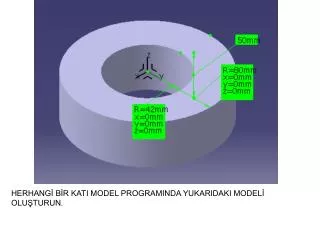

HERHANGİ BİR KATI MODEL PROGRAMINDA YUKARIDAKI MODELİ OLUŞTURUN.

HERHANGİ BİR KATI MODEL PROGRAMINDA YUKARIDAKI MODELİ OLUŞTURUN. İÇTEKİ KENARA 10mm’lik RADYUS (FİLLET KOMUTU İLE) VERİN. BU MODELİ -İGS- FORMATINDA KAYDETİN. DYNAFORM’A BU KATI MODELİ İMPORT EDİN. ÜSTTEKİ ALIN YÜZEYİ VE İÇ YÜZEYLER BİZİM KALIBIMIZIN YÜZEYLERİDİR.

hateya
Download Presentation

HERHANGİ BİR KATI MODEL PROGRAMINDA YUKARIDAKI MODELİ OLUŞTURUN.

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. HERHANGİ BİR KATI MODEL PROGRAMINDA YUKARIDAKI MODELİ OLUŞTURUN.

  2. İÇTEKİ KENARA 10mm’lik RADYUS (FİLLET KOMUTU İLE) VERİN.

  3. BU MODELİ -İGS- FORMATINDA KAYDETİN.

  4. DYNAFORM’A BU KATI MODELİ İMPORT EDİN.

  5. ÜSTTEKİ ALIN YÜZEYİ VE İÇ YÜZEYLER BİZİM KALIBIMIZIN YÜZEYLERİDİR. YAN YÜZEYLER VE ALT ALIN YÜZEYİ SİLİNMELİDİR.

  6. YAN YÜZEYLER VE ALT ALIN YÜZEYİ SIRAYLA SİLİNİR.

  7. KALIP YÜZEYLERİ ELDE EDİLDİKTEN SONRA BU YÜZEYLERE MESH ATILIR. “MAX ve MİN SİZE” İLE DÜZGÜN MESH OLUŞTURANA KADAR OYNANIR.

  8. KALIP MODELİ OLUŞMUŞTUR. AYNI ŞEKİLDE ISTAMPA VE DİĞER GEOMETRİLER DE İMPORT EDİLEREK OLUŞTURULABİLİR.
