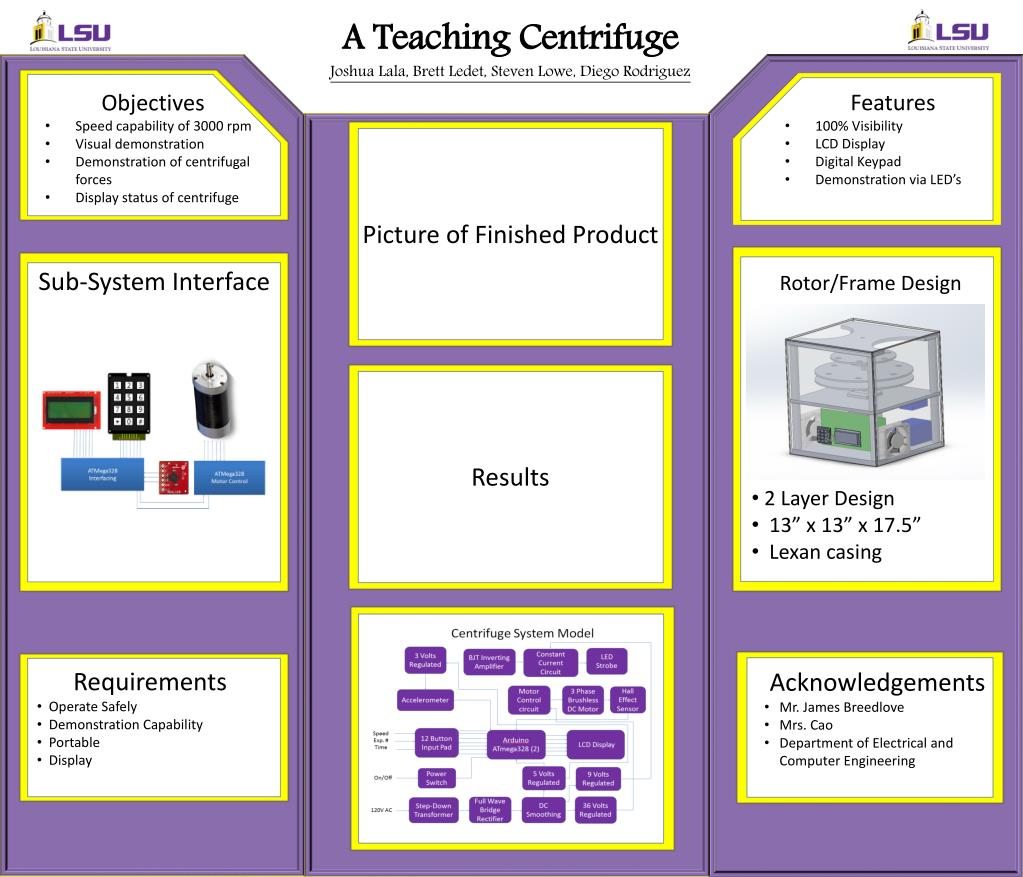

A Teaching Centrifuge

Joshua Lala, Brett Ledet, Steven Lowe, Diego Rodriguez

  • Objectives

  • Speed capability of 3000 rpm

  • Visual demonstration

  • Demonstration of centrifugal forces

  • Display status of centrifuge

  • Features

  • 100% Visibility

  • LCD Display

  • Digital Keypad

  • Demonstration via LED’s

Picture of Finished Product

Sub-System Interface

Rotor/Frame Design

Results

  • 2 Layer Design

  • 13” x 13” x 17.5”

  • Lexan casing

  • Requirements

  • Operate Safely

  • Demonstration Capability

  • Portable

  • Display

  • Acknowledgements

  • Mr. James Breedlove

  • Mrs. Cao

  • Department of Electrical and Computer Engineering
