Modelling of ecosystems by tools from computer science

Modelling of Ecosystems

by Tools from Computer Science

Summer School at Czech University of Life Sciences, Prague,

16-20 September, 2013

Winfried Kurth

University of Göttingen, Department Ecoinformatics, Biometrics

and Forest Growth

Modelling point patterns, competition

and plant-herbivore interaction


Modelling of ecosystems by tools from computer science

Modelling point patterns of plant locations

/* specification of an irregular stand structure

in the 2D plane with random tree coordinates, but

close neighbourhoods of larger individuals excluded */

module Stand;

module Seedling(super.length) extends F(length, 5, 4);

module Tree(super.length) extends F(length, 7, 2);


Modelling of ecosystems by tools from computer science

protected void init()

[ Axiom ==> Stand; ]


Modelling of ecosystems by tools from computer science

protected void init()

[ Axiom ==> Stand; ]

public void make()

[

Stand ==> for ((1 : n))

( [ Translate(random(0, x_extens), random(0, y_extens), 0)

Seedling(random(10, 20)) ] );

]

distribute the seedlings


Modelling of ecosystems by tools from computer science

protected void init()

[ Axiom ==> Stand; ]

public void make()

[

Stand ==> for ((1 : n))

( [ Translate(random(0, x_extens), random(0, y_extens), 0)

Seedling(random(10, 20)) ] );

s:Seedling(h) ==> if (notOutcompeted(s) &&

s[Location.X] >= 0 && s[Location.Y] >= 0 &&

s[Location.X] <= x_extens && s[Location.Y] <= y_extens)

( Tree(factor * h + normal(0, 15)) )

else ();

]

let the seedlings develop to trees if ...


Modelling of ecosystems by tools from computer science

competition rule

boolean notOutcompeted(Seedling s)

{

return empty( (* t:Seedling,

( (t != s) && (distance(s, t) <= inhib_r) &&

(t[length] >= s[length]) ) *) );

}


Modelling of ecosystems by tools from computer science

parameters

int n = 150; /* initial number of seedlings */

double x_extens = 500; /* extension of stand */

double y_extens = 350;

double inhib_r = 35; /* distance which inhibits growth */

double factor = 4; /* proportionality of seedling

and tree height */


Modelling of ecosystems by tools from computer science

Extension: consider local clustering of seedlings

module Cluster(super.diameter) extends F(1, diameter, 14);

module Seedling(super.length) extends F(length, 5, 4);

module Tree(super.length, super.diameter) extends F(length,

diameter, 2);

int sd_per_cl = 20; /* number of seedlings per cluster */

int n = 8; /* number of clusters */


Modelling of ecosystems by tools from computer science

protected void init()

[

Axiom ==>

[ Translate(x_extens/2, y_extens/2, -1)

Box(1, x_extens, y_extens).(setColor(-1)) ] /* soil */

Stand;

]

visible soil


Modelling of ecosystems by tools from computer science

public void make()

[

Stand ==> for ((1 : n))

( [ Translate(random(0, x_extens), random(0, y_extens), 0)

Cluster(random(60, 120)) ] );

Cluster(d) ==> for ((1 : sd_per_cl))

( [ RH(random(0, 360)) RU(90) M(random(0, 0.5) * d) RU(-90)

Seedling(random(10, 30)) ] );

s:Seedling(h) ==> if (notOutcompeted(s) &&

s[Location.X] >= 0 && s[Location.Y] >= 0 &&

s[Location.X] <= x_extens && s[Location.Y] <= y_extens)

( {double hnew = factor * h + normal(0, 20);}

Tree(hnew, 0.4 * h)

)

else ();

]


Modelling of ecosystems by tools from computer science

a (slightly) improved tree architecture

Tree(length, diameter) ==>

F(length, diameter, 2) Cone(length, length/3);


Modelling of ecosystems by tools from computer science

Tree(length, diameter) ==>

F(length, diameter, 2) Cone(length, length/3);


Modelling of ecosystems by tools from computer science

Tree(length, diameter) ==>

F(length, diameter, 2) Cone(length, length/3);

better: instantiation rule

module Tree(float length, float diameter) ==>

F(length, diameter, 2) Cone(length, length/3);


Modelling of ecosystems by tools from computer science

more complex tree architecture can also be used


Modelling of ecosystems by tools from computer science

Modelling seed dispersal and plant-herbivore interaction

Behaviour of plants


Modelling of ecosystems by tools from computer science

public void growPlants()

[

Plant(t, r), (t > pmaxage) ==> ;

Plant(t, r), (r < 0) ==> ;

p:Plant, (* q:Plant *), (distance(p, q) < q[radius]

&& p[radius] <= q[radius]) ==> ;

Plant(t, r), ((t == pgenage1 || t == pgenage2) && r >= pminrad)

==> for ((1 : (int) (pgenfac*r)))

( [ RH(random(0, 360)) RU(90) M(random(distmin, distmax))

RU(-90) Plant(0, seed_rad) ] )

Plant(t+1, r);

Plant(t, r) ==> Plant(t+1, r+pgrow);

]


Modelling of ecosystems by tools from computer science

test the examples

sm09_e23.rggmodel for spreading (1 species)

sm09_e24.rggmodel for spreading (2 species)

Competition is not taken into account in these examples.

It is also demonstrated how population strength values can be plotted in charts during the simulation runtime.


Modelling of ecosystems by tools from computer science

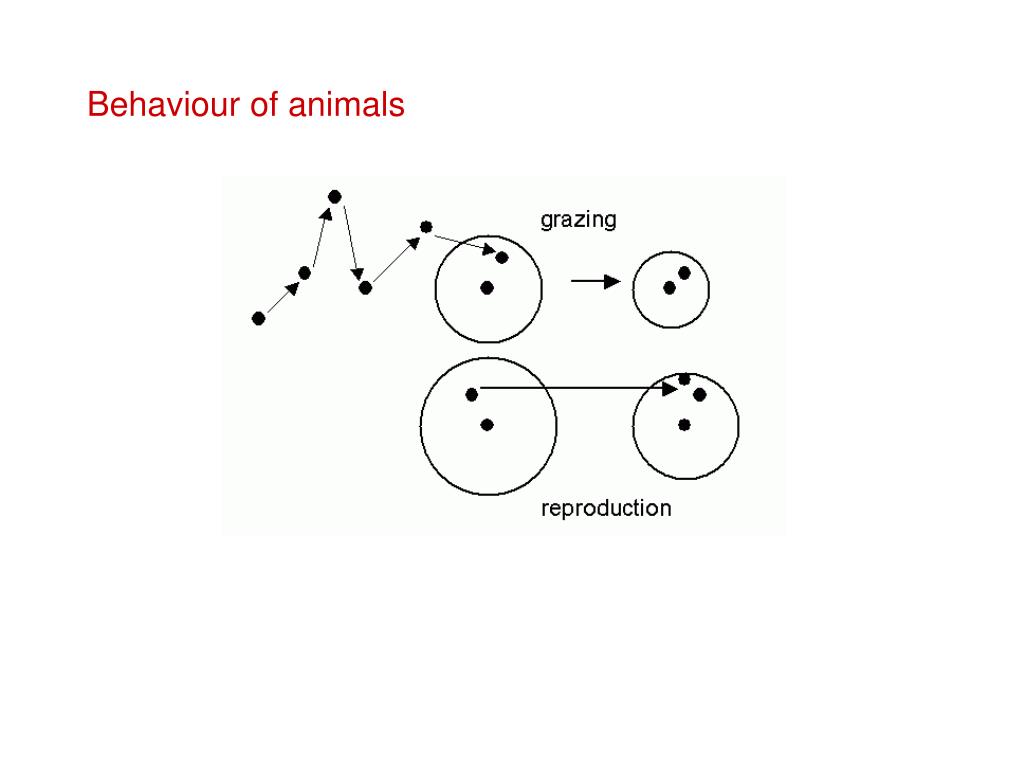

Behaviour of animals


Modelling of ecosystems by tools from computer science

public void growAnimals()

[

Animal(t, e), (t < 0) ==> Animal(t+1, e); /* start lag */

Animal(t, e), (e <= 0) ==> ;

Animal(t, e), (e > f_e*thr) ==>

[ RH(random(0, 360)) RU(90) M(shortstep) RU(-90)

Animal(0, e/2 - f_e*respi) ]

RH(random(0, 360)) RU(90) M(shortstep) RU(-90)

Animal(0, e/2 - f_e*respi);

a:Animal(t, e), (* p:Plant(u, r) *),

(distance(a, p) < p[radius]) ==>

RH(random(0, 360)) RU(90) M(shortstep) RU(-90)

Animal(t+1, e + f_e*eat - f_e*respi) { p[radius] :-= eat; };

Animal(t, e) ==>

RH(random(0, 360)) RU(90) M(longstep) RU(-90)

Animal(t+1, e - f_e*respi);

]


Modelling of ecosystems by tools from computer science

protected void init()

[

Axiom ==> Plant(0, seed_rad) [ RH(random(0, 360))

RU(90) M(10) RU(-90) Animal(-lag, f_e*init_e) ];

]

public void make()

{

growAnimals();

derive();

growPlants();

}


Modelling of ecosystems by tools from computer science

  • proposed model extensions:

  • preferred direction of seed spreading (wind)

  • sighted movement of animals (towards nearest plant)

  • more realistic reproduction (and lifespan) rules for the animals

  • 3-d plant architecture and animal movement

  • introduction of predator animals

  • mutation enhancing plant resistance (at cost of growth)


Modelling of ecosystems by tools from computer science

Thank you for your attention!

(by Stephan Rogge)


Modelling of ecosystems by tools from computer science

Supplement

Modelling above- and below-ground competition together


Modelling of ecosystems by tools from computer science

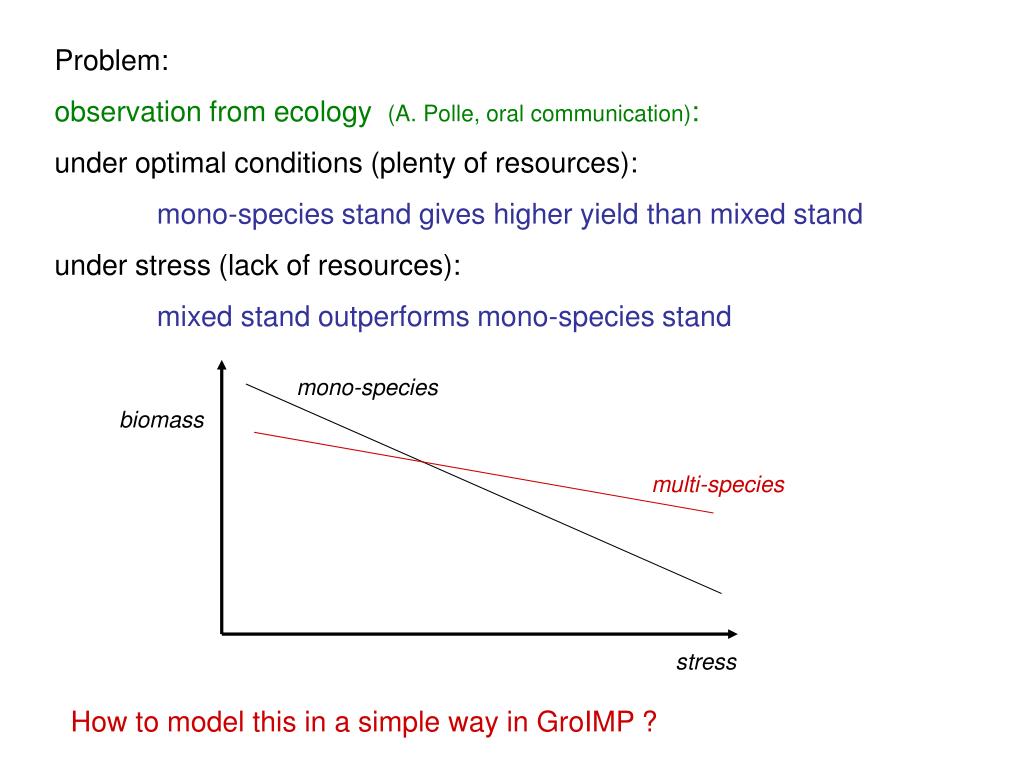

Problem:

observation from ecology (A. Polle, oral communication):

under optimal conditions (plenty of resources):

mono-species stand gives higher yield than mixed stand

under stress (lack of resources):

mixed stand outperforms mono-species stand

mono-species

biomass

multi-species

stress

How to model this in a simple way in GroIMP ?


Modelling of ecosystems by tools from computer science

  • assume 2 species, competing at two levels (e.g., above-/below-ground)

  • at 1st level: allelopathic interaction

  • i.e. species A inhibits growth of species B in its neighbourhood,

  • competition between A and B is stronger than between A and A or

  • between B and B

  • at 2nd level: complementarity between species A and B,

  • e.g. both compete for the same soil resource but at different depths

  •  intraspecific competition is stronger than that between A and B

  • Now if we decrease the availability of the soil resource (i.e., induce stress), the competition at 2nd level will gradually dominate that at 1st level; hence the advantage of the monospecies composition will vanish.


Modelling of ecosystems by tools from computer science

Objects of the model:

module Stand;

module Seedling(int species);

module Tree(float size, int age, int species) /* size = radius */

{

double nutr = satNut;

}

==>

if (species == 1)

(

c:Cone.(setLength(3*size), setRadius(size))

{{c.setColor(0x007700);}}

)

else

(

Translate(0, 0, 2*size)

Scale(1.0, 1.0, 2.0)

s:Sphere.(setRadius(size))

{{s.setColor(0x22ee00);}}

);

module Soil;

module SoilPatch(int k) extends Box(3.0, 3.0, 3.0).(setColor(0xffaa88))

{

float nutrAvail = startNutr;

float nutrDemand, nutrTransf;

int nbPlants;

}


Modelling of ecosystems by tools from computer science

Competition at level 1 (allelopathy):

boolean notOutcompeted(Tree a)

{

return empty( (* t:Tree, ((t!=a) &&

(( t[species] == a[species] &&

distance(a, t) <= inhib1 * t[size] ) ||

( t[species] != a[species] &&

distance(a, t) <= inhib2 * t[size] )) &&

(t[size] >= a[size]) ) *) );

}

t

a

const double inhib1 = 1.; /* inhibition zone: competitors of same species */

const double inhib2 = 2.; /* inhibition zone: competitors of other species */


Modelling of ecosystems by tools from computer science

Competition at level 2 (complementarity):

each plant takes nutrients from all soil patches within its depletion radius

species 1 from layer 1, species 2 from layer 2


Modelling of ecosystems by tools from computer science

Renewal of nutrients in a soil patch (from influx, mineralization etc.):

protected void updateNutr()

[

p:SoilPatch ::>

{

p[nutrAvail] += renewRate;

p[nutrAvail] = Math.min(p[nutrAvail], patchCapacity);

p[nbPlants] = 0;

p[nutrTransf] = 0.;

p[nutrDemand] = 0.;

colorize(p);

}

]


Modelling of ecosystems by tools from computer science

Checking the total demand exerted on a single soil patch:

protected void checkDemand()

[

t:Tree, p:SoilPatch, (inDepletionZone(p, t)) ::>

{

p[nutrDemand] += maxConsumption;

p[nbPlants]++;

}

]

number of plants taking nutrients from this soil patch p


Modelling of ecosystems by tools from computer science

How to check if p is in the depletion zone of t :

boolean inDepletionZone(SoilPatch p, Tree a)

{

return (p[k] == a[species] && projDistance(p, a) <= depletionRadius);

}

double projDistance(SoilPatch p, Tree a) /* distance in xy plane */

{

double dx = p[Location.X] - a[Location.X];

double dy = p[Location.Y] - a[Location.Y];

return Math.sqrt(dx*dx + dy*dy);

}


Modelling of ecosystems by tools from computer science

The amount of nutrient which one plant can really obtain from this soil patch is calculated and written to the soil patch attribute nutrTransf :

protected void writeDemand()

[

p:SoilPatch ::>

{

if (p[nbPlants] > 0)

p[nutrTransf] = Math.min(p[nutrAvail], p[nutrDemand])

/ (double) p[nbPlants];

}

]


Modelling of ecosystems by tools from computer science

Nutrient transfer from soil to plants takes place:

protected void transferNutr()

[

t:Tree, p:SoilPatch, (inDepletionZone(p, t)) ::>

{

t[nutr] += p[nutrTransf];

p[nutrAvail] -= p[nutrTransf];

}

]


Modelling of ecosystems by tools from computer science

Growth of a plant depends on its size, age, and accumulated nutrients during the last time step.

All nutrients are consumed during the growth step:

protected void grow()

[

a:Tree(size, age, k) ==> if (notOutcompeted(a) && a[nutr] >= minNeed)

( t:Tree(growthf(size, age, a[nutr]), age+1, k) { t[nutr] = 0.; } );

]

public float growthf(double x, int age, double nutr)

{

double incr;

if (nutr < minNeed)

incr = 0.;

else

{

if (nutr < satNut)

incr = ((nutr-minNeed)/(satNut-minNeed))*maxIncr;

else

incr = maxIncr;

}

if (age < max_age)

return (float) (x+incr);

else

return (float) x;

}

incr

maxIncr

nutr

minNeed

satNut


Modelling of ecosystems by tools from computer science

Initialization of the whole scene:

protected void init()

{

step = 1;

masstable.clear().setColumnKey(0, "biomass");

chart(masstable, XY_PLOT);

int nbPx = (int) Math.floor((x_extens + depletionRadius) / patchDist);

int nbPy = (int) Math.floor((y_extens + depletionRadius) / patchDist);

for ( apply(3) ) /* 3 steps of rule application are carried out: */

[

Axiom ==>

[ Translate(x_extens/2, y_extens/2, -1) /* soil surface: */

Box(0.2, x_extens, y_extens).(setColor(0xffffcc)) ]

StandSoil;

Stand ==>

for ((1:n1))

( [ Translate(random(0, x_extens), random(0, y_extens), 0) Seedling(1) ] )

for ((1:n2))

( [ Translate(random(0, x_extens), random(0, y_extens), 0) Seedling(2) ] );

Soil ==> for (int i: (1:nbPx))

(

for (int j: (1:nbPy))

(

for (int k: (1:2)) /* two layers of patches */

([

Translate(-0.5*depletionRadius + i*patchDist,

-0.5*depletionRadius + j*patchDist,

-k*layerDist)

p:SoilPatch(k) { colorize(p); }

])

)

);

s:Seedling(k) ==>

if (s[Location.X] >= 0 && s[Location.Y] >= 0 &&

s[Location.X] <= x_extens && s[Location.Y] <= y_extens)

( Tree(random(1.0, 5.0), 1, k) ); /* size = random, age = 1, species = k */

]

}


Modelling of ecosystems by tools from computer science

Colorizing the patches for visualization of nutrient content:

void colorize(SoilPatch p)

{

double a = p[nutrAvail];

if (a >= 0.875*patchCapacity) p.setColor(0xff4444);

else

if (a >= 0.75*patchCapacity) p.setColor(0xff7744);

else

if (a >= 0.625*patchCapacity) p.setColor(0xffaa44);

else

if (a >= 0.5*patchCapacity) p.setColor(0xffdd44);

else

if (a >= 0.375*patchCapacity) p.setColor(0xffff55);

else

if (a >= 0.25*patchCapacity) p.setColor(0xffff88);

else

if (a >= 0.125*patchCapacity) p.setColor(0xffffbb);

else p.setColor(0xffffff);

}

(red  yellow  white)


Modelling of ecosystems by tools from computer science

Main rule block which controls the order of rule applications

and adds a biomass entry after each growth step for a chart:

public void run()

{

updateNutr();

checkDemand();

writeDemand();

transferNutr();

grow();

masstable.addRow().set(0, sum( biomass( (* t:Tree *) )));

println(step);

step++;

}

public float biomass(Tree a)

/* assumed as proportional to basal area */

{

return (float) (Math.PI * a[size] * a[size]);

}


Modelling of ecosystems by tools from computer science

for completeness:

parameters of the model and variable declarations

const int n1 = 200; /* nb. of trees of species 1 */

const int n2 = 200; /* nb. of trees of species 2 */

const int max_age = 40; /* number of growth steps */

const double x_extens = 500.;

const double y_extens = 300.;

const double inhib1 = 1.; /* inhibition zone: competitors of same species */

const double inhib2 = 2.; /* inhibition zone: competitors of other species */

const double renewRate = 20.0; /* let this vary! */

const double patchCapacity = 50.0;

const double startNutr = 50.0;

const double maxConsumption = 0.4; /* max. consumption of a tree

from a single soil patch; 0.4 */

const double patchDist = 15.;

const double depletionRadius = 40.;

const double layerDist = 5.;

const double minNeed = 4.; /* necessary min. amount of nutrients for survival */

const double satNut = 10.; /* saturation point of nutrient response function */

const double maxIncr = 0.7; /* max. tree growth rate */

int step; /* step counter */

const DatasetRef masstable = new DatasetRef("stand biomass"); /* table for chart */

example file div_compet2b.rgg


Modelling of ecosystems by tools from computer science

Resulting stand biomass under different parameterizations

(unstressed = plenty of nutrients by high renewal rate in the soil;

stressed = competition for nutrients is severely limiting)


  • Login
