GIS and Solid Waste

Site assessment of illegal dump sites using GIS!


Site assessment form

The State asks for the following information:

(among other)

Waste area(s) dimensions

Soil Type

Mean annual precipitation

Is waste area within a flood plain? (Y/N)

Slope pitch

Show detailed site map(s)

Site Assessment Form


Waste area dimensions

GPS the outline of the dump.

The GIS software calculates the surface area, perimeter etc.

Estimate the depth of the dump and calculate the rough volume of trash to be removed.

Waste Area Dimensions


Disposal site characteristics

0.11 526

4.0

3.0

Disposal Site Characteristics


Identify the responsible party

Locate the site.

Verify the property the site is located on.

Identify the responsible party.

iOwner: Greg Garbage & Donna Dump

Mail:PO Box 123

Trash City

Site:999 Darn Ln.

Refuse Village

Identify the Responsible Party


Access additional information from various shape files

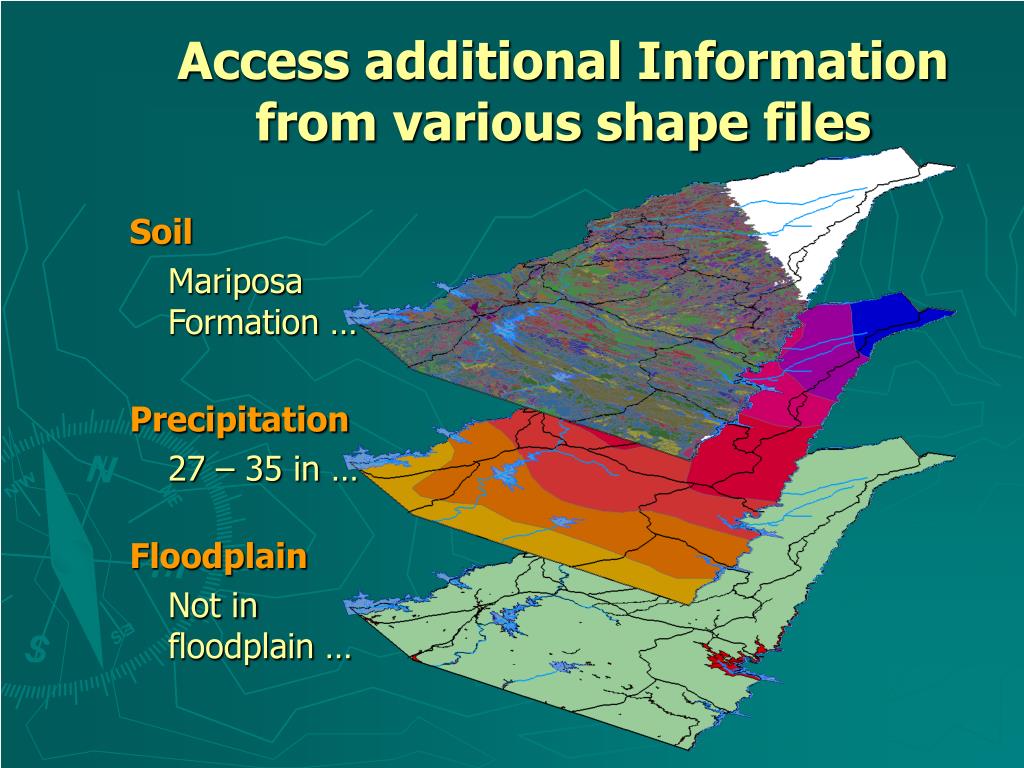

Access additional Information from various shape files

Soil

Mariposa Formation …

Precipitation

27 – 35 in …

Floodplain

Not in floodplain …


Risk assessment

Risk Assessment

Put the dot on the map


Risk assessment1

Risk Assessment

Put the dot on the map

Measure to the dwellings


Risk assessment2

Risk Assessment

Put the dot on the map

Measure to the dwellings

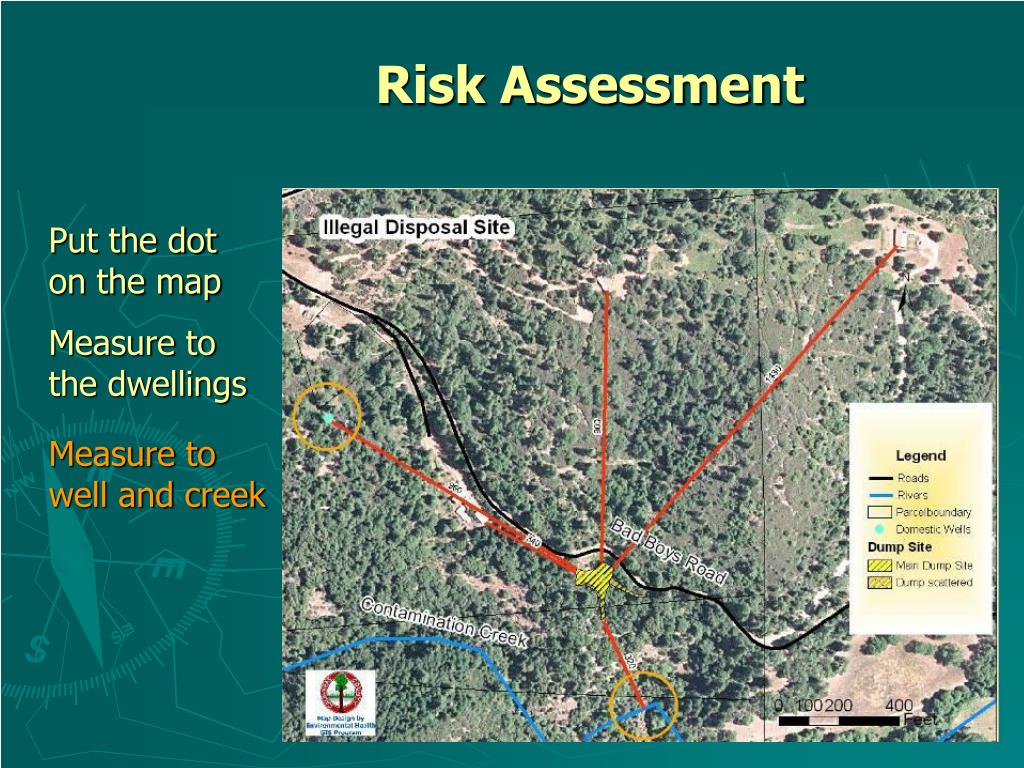

Measure to well and creek


Risk assessment3

Risk Assessment

Put the dot on the map

Measure to the dwellings

Measure to well and creek

Add contour lines for the relief


Slope

Slope

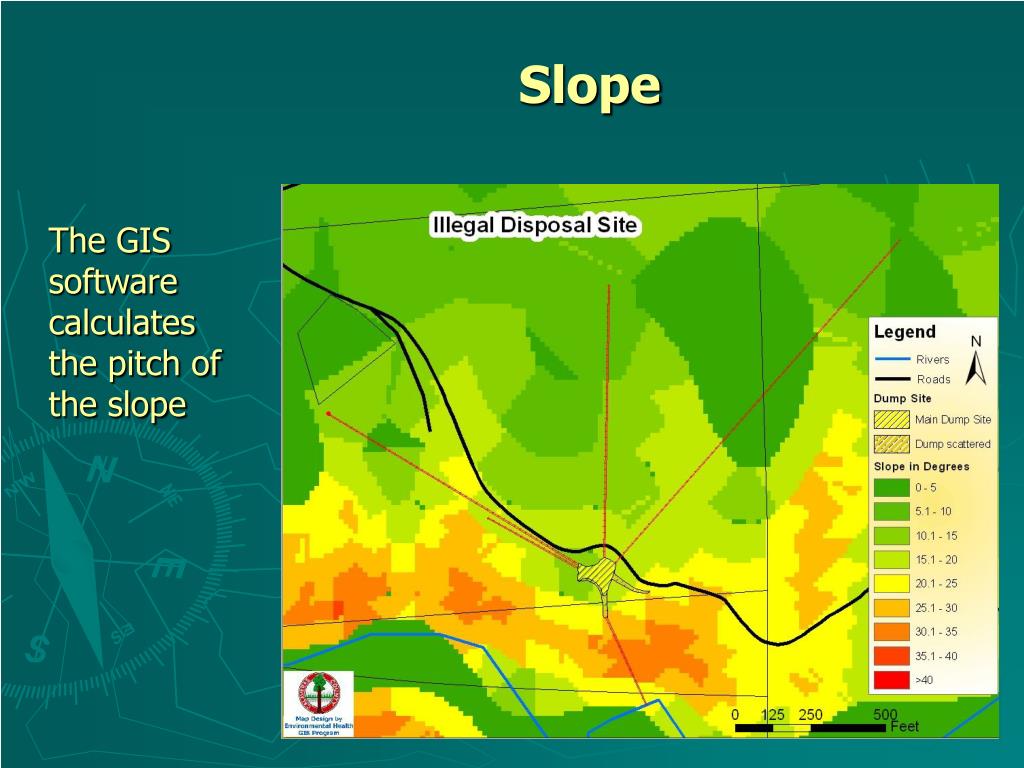

The GIS software calculates the pitch of the slope


Slope1

Slope

The GIS software calculates the pitch of the slope

iThe dump site is located on a slope with a 15.1 to 20 ° pitch


Risk assessment4

Risk Assessment

Put the dot on the map

NO

340’, 900’ and 1430’

NO

 (creek)

Maps are enclosed!

YES

NO

Measure to the dwellings

Measure to well and creek

Add contour lines for the relief


Visualization of dump sites

Visualization of Dump Sites

Include maps with the Site Assessment Form


Visualization of dump sites1

Visualization of Dump Sites

If appropriate include a 3D view of the dump site.

View


Gis and solid waste

Remediation of Illegal Dump Sites

Software requirements...Tools applied...

  • GPS UnitPathfinder Office, ArcPad or TerraSync

  • Select (attribute)ArcView

  • MeasureArcView

  • Slope Calculation3D-Analyst

  • 3D visualization3D-Analyst
