Quality Assessment ofXtend Model Transformations

Phu H. Nguyen, [email protected]

Supervisor: Prof. dr. Mark van den Brand

Tutor: Ir. Marcel van Amstel

agenda
Agenda

Introduction

Project goal

Overview of Xtend model transformations

Metrics

How to extract data from Xtend model transformations

Tools

Case studies

Conclusions

/ Department of Mathematics and Computer Science

introduction
Introduction
  • Model Driven Software Development (MDSD): the next level of software development
    • High level design models at the heart of the development process
    • Software development automation
    • Benefits : Productivity, agility, reliability
  • MDSD world:
    • Domain-specific languages (DSL)
    • Model transformations M2M (Model-to-Model)
    • Model transformations M2T (Model-to-Text)

/ Department of Mathematics and Computer Science

1-9-2010

PAGE 2

m2m transform models to models
M2M : Transform models to models

ATL - the Atlas Transformation Language

QVT (Operational) - An implementation of OMG’s spec.

Xtend – openArchitechtureWare (oAW) ’s transformation language (also used for other tasks within oAW)

/ Department of Mathematics and Computer Science

1-9-2010

PAGE 4

model transformations m2m
Model transformations M2M
  • Is there a methodology for developing model transformations with high quality?
  • Need of assessing the quality of model transformations
  • Quality assessment of model transformations:
    • ASF+SDF: enabled
    • ATL: enabled
    • QVT: ?
    • Xtend: ?

/ Department of Mathematics and Computer Science

1-9-2010

PAGE 5

project goal
Project goal

The main goal is to enable quality assessment for Xtend model transformations by means of metrics.

Approach: assessing the internal quality of model transformations by extracting metrics from the model transformations directly.

/ Department of Mathematics and Computer Science

1-9-2010

PAGE 6

sub goals
Sub-goals
  • Four sub-goals:
    • Discover the details behind Xtend model transformations.
    • Establish a metrics suite enables quality measurement of Xtend model transformations.
    • Develop a tool that enables automatic calculation of those metrics.
    • Perform case studies to validate the results.

/ Department of Mathematics and Computer Science

1-9-2010

PAGE 7

oaw xtend model transformations
oAW & Xtend model transformations

An integrated, tested, one-stop toolkit for MDSD

oAW essentially makes it possible to process code generators for any type of model.

Any type of source code can be generated from the model sources.

/ Department of Mathematics and Computer Science

features of oaw
Features of oAW
  • The most important features of oAW include:
    • support of various modeling tools
    • support of EMF (Eclipse Modeling Framework)
    • model-to-model transformations
    • model-to-code-transformations
    • eclipse integration
  • Migrated to Eclipse:
    • http://www.eclipse.org/workinggroups/oaw/
      • Xpand/Xtend/Check

/ Department of Mathematics and Computer Science

1-9-2010

PAGE 9

oaw components
oAW components

Metamodel definition: EMF, UML model

Graphical model editor: Eclipse GMF

Textual model editor: Xtext

Model transformation: Xtend

Model validation: Check

Code generation: Xpand

Metamodel extension: Xtext

/ Department of Mathematics and Computer Science

1-9-2010

PAGE 10

xtend
Xtend
  • OCL-like expression language used throughout oAW
  • Can be used in constraint checks, model transformations and generators
  • Add “methods” to meta types (Java calls are possible if necessary)
  • path expressions, set operations, (some) higher order functions
  • Polymorphism (multiple dispatch)
  • Tool support(syntax highlighting, code completion, debugger)
xtend model transformations
Xtend model transformations…

… are defined in extension files (*.ext):

  • Import statements
    • Import name spaces (meta-models)
    • Import (reexport) built-in libraries or another extend files
  • Create extensions
  • Expression extensions
  • Java extensions

/ Department of Mathematics and Computer Science

1-9-2010

PAGE 13

xtend model transformations1
Xtend model transformations

Xtend has some special support for M2M transformations

  • Create-Extensions are used to create a new instance
    • A new element is created only once for the same set of parameters
  • Cached Extension can be used for perfomence improvements
    • The same value is returned each time the extension is called with the same set of parameters
  • Several utility extensions (built-in libraries) for naming, tracing, debugging, cloning, …

/ Department of Mathematics and Computer Science

1-9-2010

PAGE 14

slide16

Book → Publication

  • Rules to transform a Book model to a Publication model:
    • Each Book instance → a Publication instance
    • The title of a Book → the title of a Publication
    • The total number of pages of a Publication is the sum of the pages of the Chapters of a Book.

/ Department of Mathematics and Computer Science

1-9-2010

PAGE 15

book publication
Book → Publication

/ Department of Mathematics and Computer Science

1-9-2010

PAGE 16

book publication extension file
Book → Publication: Extension File

/ Department of Mathematics and Computer Science

1-9-2010

PAGE 17

metrics for xtend model transformations
Metrics for Xtend model transformations
  • A set of metrics has been proposed for enabling quality assessment of Xtend model transformations
  • These metrics are specific for Xtend
  • Metric categories:
    • Extension metrics
    • Dependency metrics
    • Other metrics
  • Two types of metric:
    • Metrics that are measured over the entire transformation
    • Metrics that are measured on a smaller scale (per extension file, per extension…

/ Department of Mathematics and Computer Science

1-9-2010

PAGE 18

metrics for xtend model transformations1
Metrics for Xtend model transformations

Extension metrics

  • # Extensions
    • # Create/Expression/Java Extensions
    • # Private/Public/Cached Extensions
  • # Extensions per Extension File
  • # Extensions with Parameter
  • # Overloaded Extensions
  • # Parameters per Extension
  • # Unused Parameters per Extension
  • Cyclomatic Complexity per Extension

/ Department of Mathematics and Computer Science

1-9-2010

PAGE 19

metrics for xtend model transformations2
Metrics for Xtend model transformations

Dependency metrics

  • # Imported Standard Libraries per Extension File
  • # Imported Extension Files per Extension File
  • # Calls to Extensions in Standard Libraries per Extension
  • # Extension Calls per Extension
    • # Internal Extension Calls per Extension
    • # External Extension Calls per Extension
  • # Usages per Extension

/ Department of Mathematics and Computer Science

1-9-2010

PAGE 20

metrics for xtend model transformations3
Metrics for Xtend model transformations

Other metrics

  • # Extension Files
  • # Imported Namespaces (Metamodels) per Extension File
  • # Arounds
  • # Checks

/ Department of Mathematics and Computer Science

1-9-2010

PAGE 21

slide23

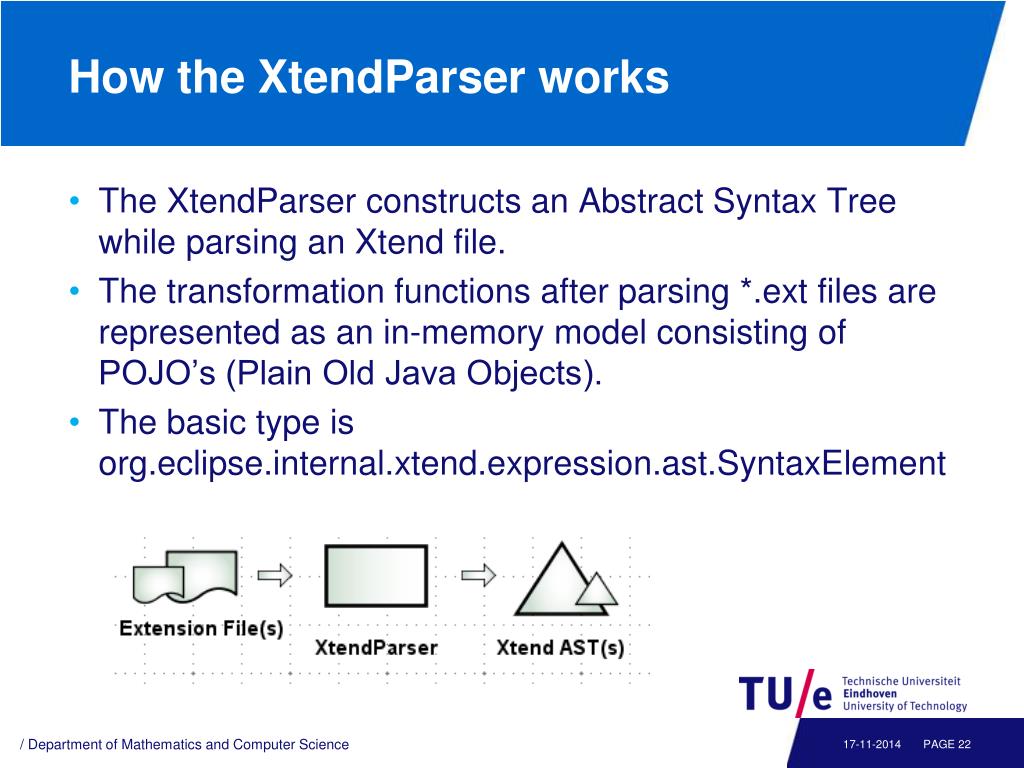

How the XtendParser works

The XtendParser constructs an Abstract Syntax Tree while parsing an Xtend file.

The transformation functions after parsing *.ext files are represented as an in-memory model consisting of POJO’s (Plain Old Java Objects).

The basic type is org.eclipse.internal.xtend.expression.ast.SyntaxElement

/ Department of Mathematics and Computer Science

1-9-2010

PAGE 22

metric extractor tools
Metric Extractor Tools
  • Design requirements
    • Input: Extension files
    • Output: Metrics
      • New metrics can be defined easily
      • It is possible to quickly implement the calculation of a new metric
metric extractor tools1
Metric Extractor Tools
  • In order to calculate the metrics, we need to extract data from the Xtend AST(s) to store in a well defined data model
    • “data” means all elements of Xtend model transformations
    • A well defined data model = data can be stored easily and metrics can be calculated easily.
metric extractor tools2
Metric Extractor Tools
  • Which data model?
    • Relational data model: No
    • Java Objects
      • Store data easily: The Xtend AST consists of Java Objects
      • Easily implementing metrics calculation in Java
    • XML
      • Store data of the Xtend AST in XML
      • Easily calculating metrics by using Xpath, Xquery

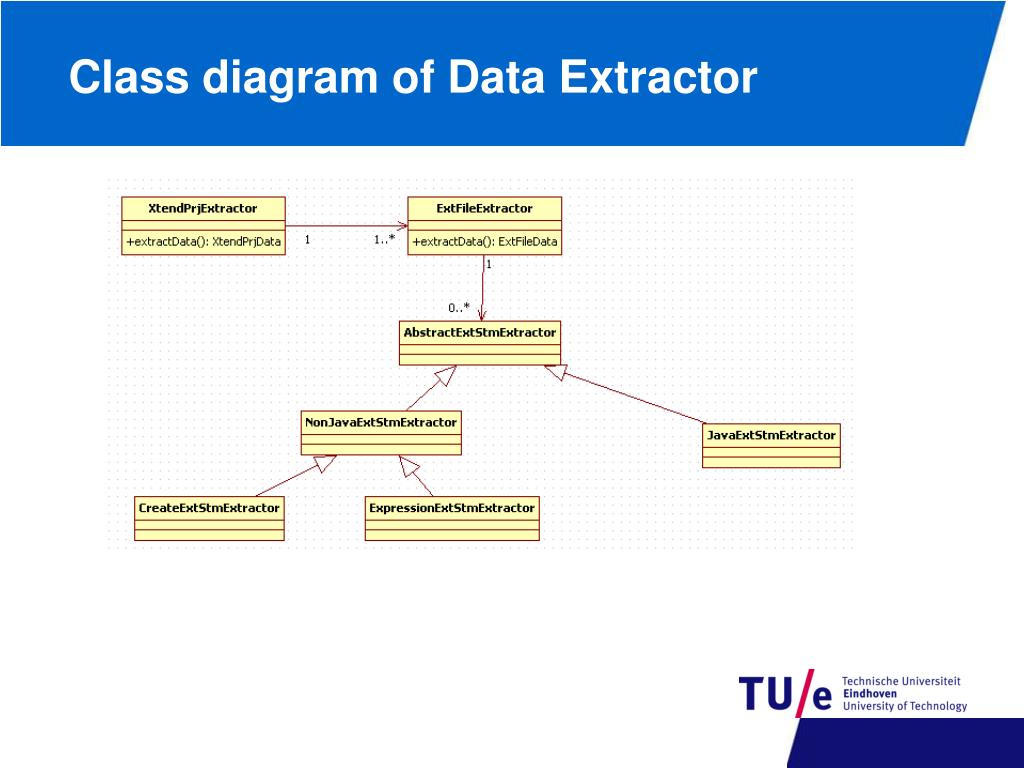

metric extractor tool 1 m2m qa
Metric Extractor Tool 1 – M2M QA
  • Data model = Java Objects
gui for m2m qa
GUI for M2M QA

Implement GUI, as a jar file

Implement as an Eclipse plugin

/ Department of Mathematics and Computer Science

1-9-2010

PAGE 32

metric extractor tool 2
Metric Extractor Tool 2
  • Data model = XML
  • Native XML database eXist
  • XPath and XQuery are used for querying the XML data
  • GUI: A web application
    • Java, JavaBeans, JSP/Servlet and Java Server Faces.
    • Apache HTTP server Apache Tomcat 7.0.

/ Department of Mathematics and Computer Science

1-9-2010

PAGE 33

slide36
DTD

<!ELEMENTxtendPrj (extendFile*)>

<!ATTLISTxtendPrj prjName CDATA#REQUIRED>

<!ATTLISTxtendPrj prjDir CDATA#REQUIRED>

<!ATTLISTxtendPrj rootExtFile CDATA#REQUIRED>

<!ELEMENTextendFile (importedNamespaces|importedExtFiles|extensions|arounds|checks)*>

<!ATTLISTextendFile extFileName CDATA#REQUIRED>

<!ELEMENT importedNamespaces (namespace*)>

<!ELEMENT namespace(#PCDATA)>

<!ELEMENT importedExtFiles (extFileName*)>

<!ELEMENT extFileName(#PCDATA)>

<!ATTLIST extFileName reexported CDATA#REQUIRED>

<!ELEMENT extensions (extension*)>

<!ELEMENT extension (extName|qualifiedName|parameters|returnType|extBody)*>

/ Department of Mathematics and Computer Science

1-9-2010

PAGE 35

slide37
XML

<?xml version="1.0" encoding="UTF-8"?>

<!DOCTYPE xtendPrj SYSTEM "xtendPrj.dtd">

<xtendPrj prjName="" prjDir="../my.slco.project/src/" rootExtFile="../my.slco.project/src/slco2nqx/Bi2Uni.ext">

<extendFile extFileName="../my.slco.project/src/slco2nqx/Bi2Uni.ext">

<importedNamespaces>

<namespace>slco</namespace>

<namespace>channels</namespace>

</importedNamespaces>

<importedExtFiles>

/ Department of Mathematics and Computer Science

1-9-2010

PAGE 36

xpath xquery
Xpath, XQuery

# Extensions per Extension File: This metric counts the number of extensions per extension file.

element { "result" }

{

for $extFile in doc("xtendM2M/Bi2Uni.xml")//extendFile

return

element { "extCountPerExtFile" }

{

count(for $ext in $extFile//extension

return $ext)

}

/ Department of Mathematics and Computer Science

1-9-2010

PAGE 37

m2m qa web application
M2M QA Web Application

Upload (zipped) extend files of an Xtend project

Browse data

Metrics calculation

Search

Download reports

/ Department of Mathematics and Computer Science

1-9-2010

PAGE 38

m2m qa web application1
M2M QA Web Application

/ Department of Mathematics and Computer Science

1-9-2010

PAGE 39

summary
Summary

A set of metrics has been established to enabling quality assessment of Xtend model transformations

Extension file(s) are parsed by the XtendParser to get the corresponding AST(s)

2 types of data model => 2 tools

All the metrics can be automatically calculated by these two tools

The results extracted from both tools are the same

/ Department of Mathematics and Computer Science

1-9-2010

PAGE 40

the end
The end.

/ Department of Mathematics and Computer Science

1-9-2010

PAGE 41

ad
