Sonotherm sn30x0

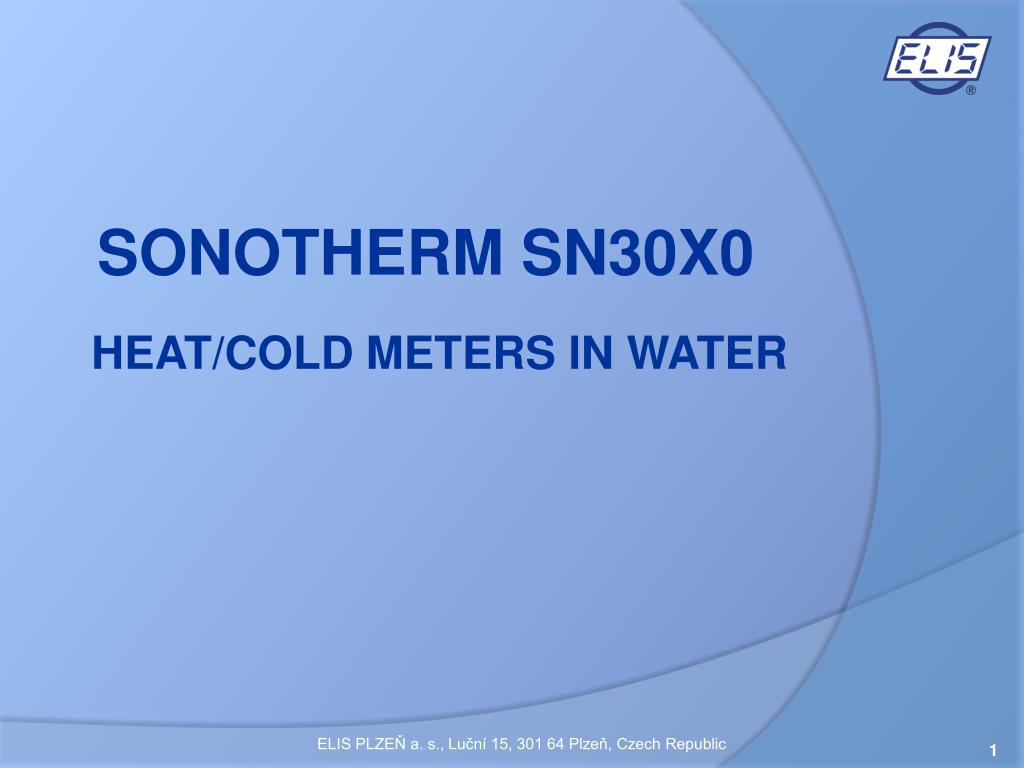

SONOTHERM SN30X0

HEAT/COLD METERS IN WATER

ELIS PLZEŇ a. s., Luční 15, 301 64 Plzeň, Czech Republic


Heat cold meters in water

HEAT/COLD METERS IN WATER

SONOTHERM SN3030

SONOTHERM SN3070

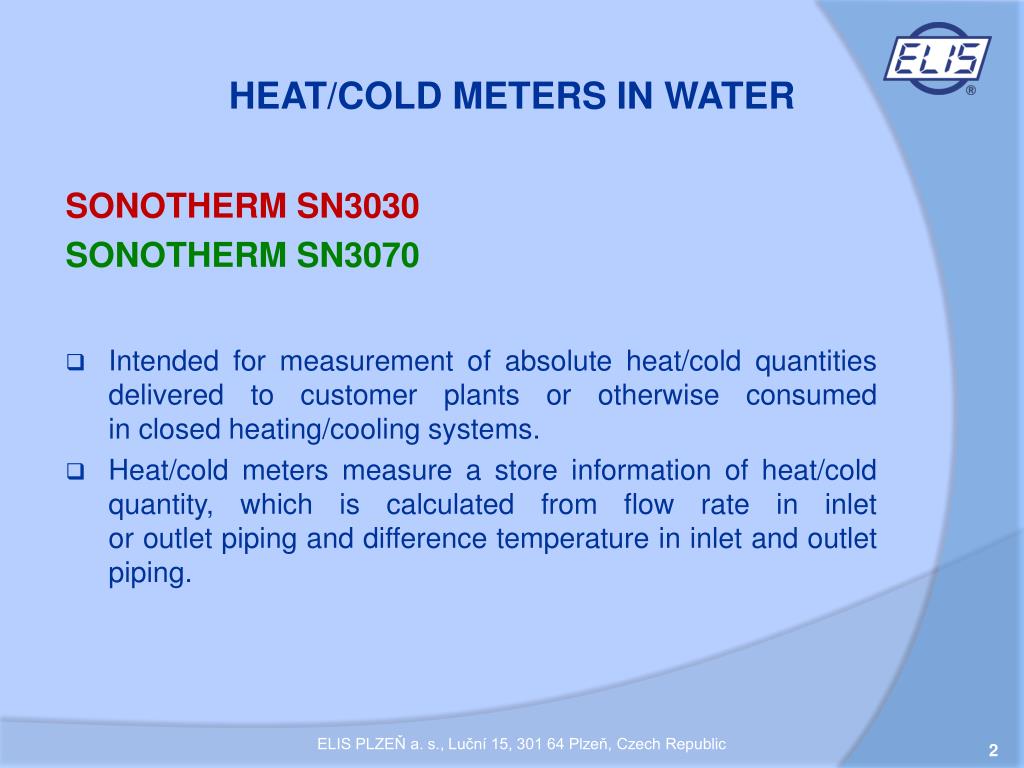

  • Intended for measurement of absolute heat/cold quantities delivered to customer plants or otherwiseconsumed in closed heating/cooling systems.

  • Heat/cold meters measure a store information of heat/cold quantity, which is calculated from flow rate in inlet or outlet piping and difference temperature in inlet and outlet piping.

ELIS PLZEŇ a. s., Luční 15, 301 64 Plzeň, Czech Republic


Heat cold meters in water

HEAT/COLD METERS IN WATER

SONOTHERM SN3030

SONOTHERM SN3070

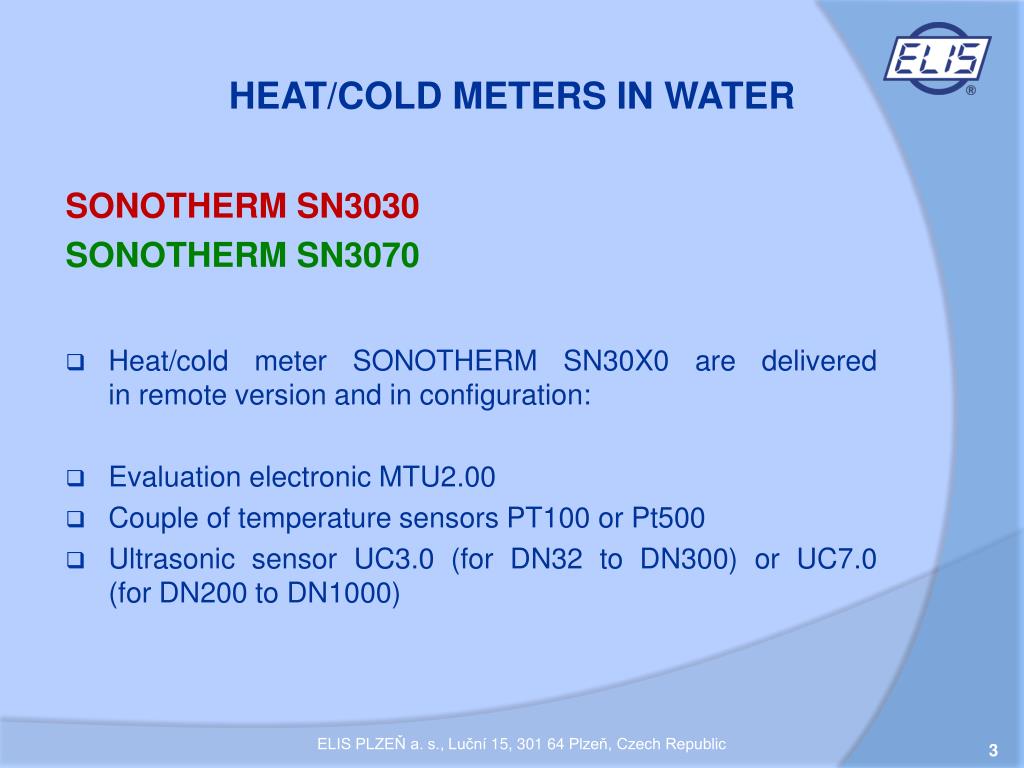

  • Heat/cold meter SONOTHERM SN30X0 are delivered in remote version and in configuration:

  • Evaluation electronic MTU2.00

  • Couple of temperature sensors PT100 or Pt500

  • Ultrasonic sensor UC3.0 (for DN32 to DN300) or UC7.0 (for DN200 to DN1000)

ELIS PLZEŇ a. s., Luční 15, 301 64 Plzeň, Czech Republic


Heat cold meters in water

HEAT/COLD METERS IN WATER

SONOTHERM SN3030

SONOTHERM SN3070

  • Technical specification:

  • Dimension range of flow meter:

    • DN32 to DN300 (SONOTHERM SN3030)

    • DN200 to DN1000 (SONOTHERM SN3070)

  • Produced pressure range of flow meter:

    • PN16, PN40 (SONOTHERM SN3030)

    • PN10, PN16, PN40 (SONOTHERM SN3070)

ELIS PLZEŇ a. s., Luční 15, 301 64 Plzeň, Czech Republic


Heat cold meters in water

HEAT/COLD METERS IN WATER

SONOTHERM SN3030

SONOTHERM SN3070

ELIS PLZEŇ a. s., Luční 15, 301 64 Plzeň, Czech Republic

5


Heat cold meters in water

HEAT/COLD METERS IN WATER

SONOTHERM SN3030

SONOTHERM SN3070

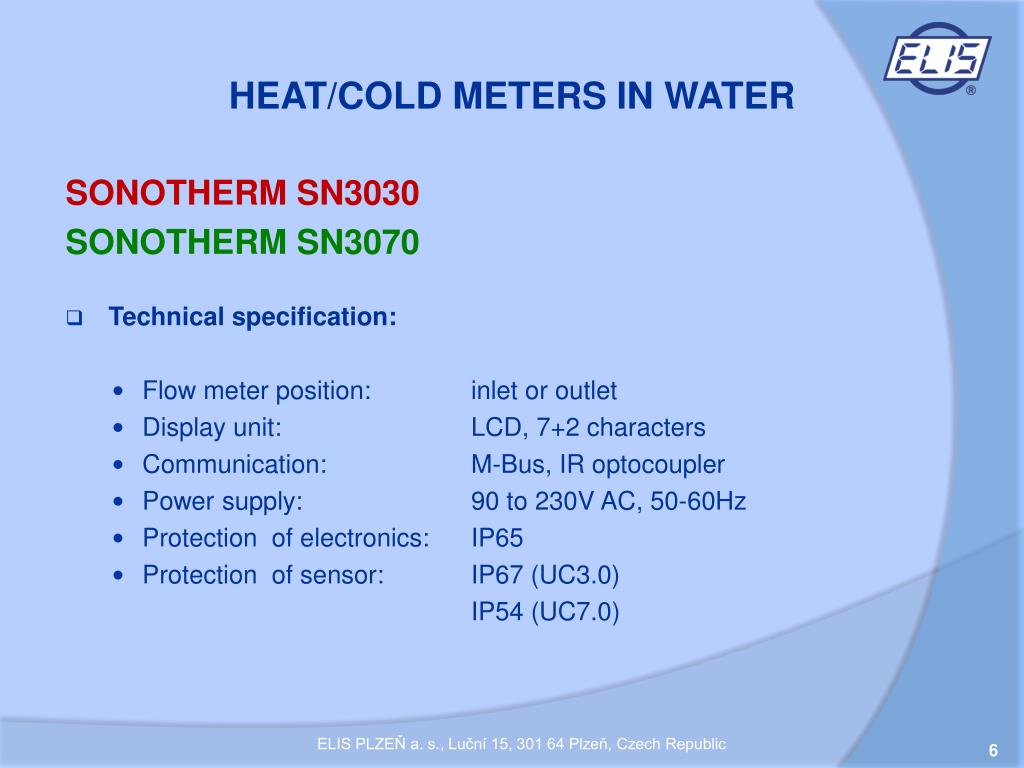

  • Technical specification:

    • Flow meter position:inlet or outlet

    • Display unit:LCD, 7+2 characters

    • Communication:M-Bus, IR optocoupler

    • Power supply:90 to 230V AC, 50-60Hz

    • Protection of electronics:IP65

    • Protection of sensor:IP67 (UC3.0)

      IP54 (UC7.0)

ELIS PLZEŇ a. s., Luční 15, 301 64 Plzeň, Czech Republic


Heat cold meters in water

HEAT/COLD METERS IN WATER

SONOTHERM SN3030

SONOTHERM SN3070

  • Technical specification:

  • Optional equipment:

    • Protection of sensors IP68

    • Pulse output (energy or volume) oralarm

    • Back lighted display

ELIS PLZEŇ a. s., Luční 15, 301 64 Plzeň, Czech Republic


Heat cold meters in water

HEAT/COLD METERS IN WATER

SONOTHERM SN3030

SONOTHERM SN3070

ELIS PLZEŇ a. s., Luční 15, 301 64 Plzeň, Czech Republic


Heat cold meters in water

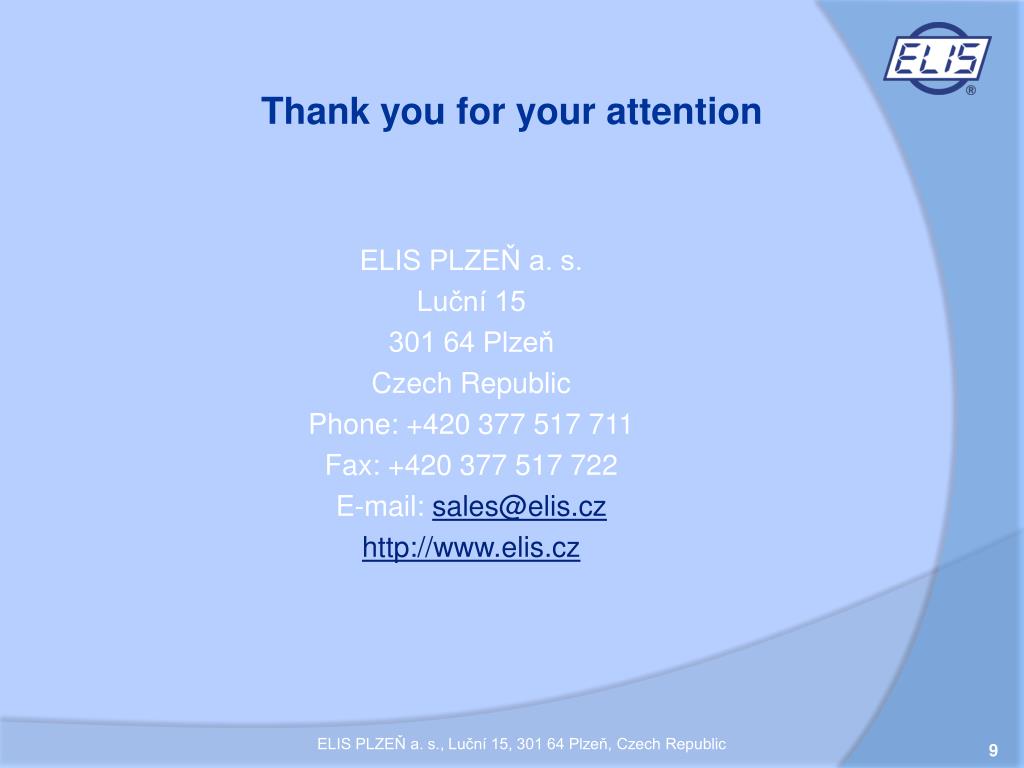

Thank you for your attention

ELIS PLZEŇ a. s.

Luční 15

301 64 Plzeň

Czech Republic

Phone: +420 377 517 711

Fax: +420 377 517 722

E-mail: [email protected]

http://www.elis.cz
