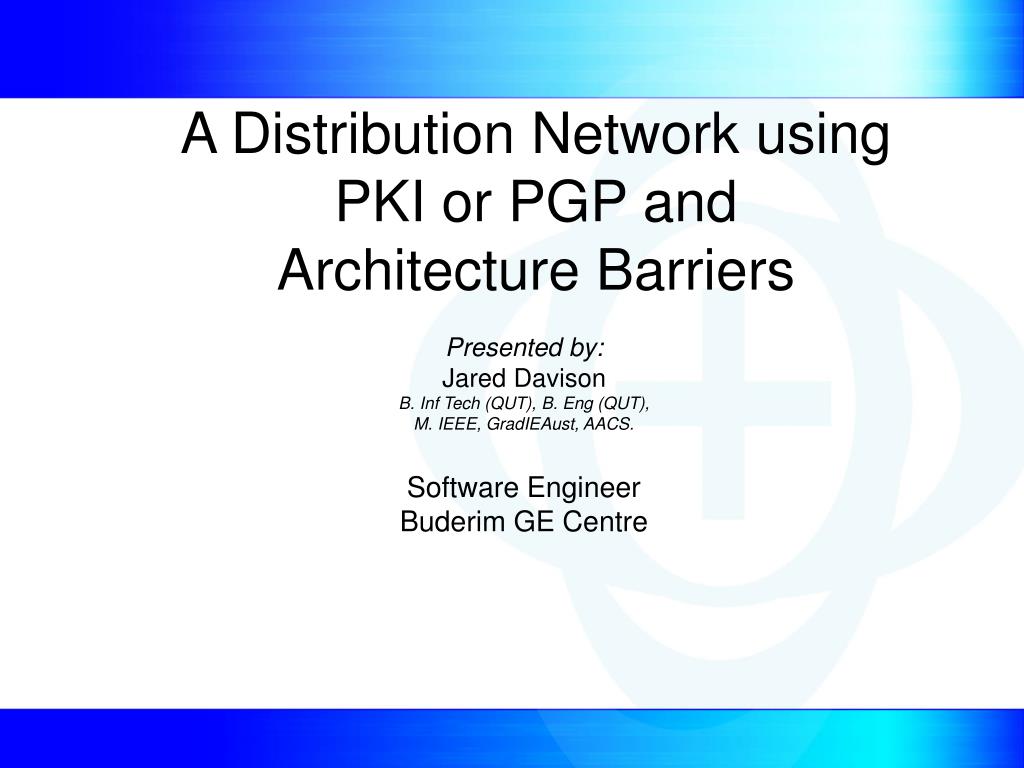

  1. A Distribution Network using PKI or PGP and Architecture Barriers Presented by: Jared Davison B. Inf Tech (QUT), B. Eng (QUT), M. IEEE, GradIEAust, AACS. Software Engineer Buderim GE Centre

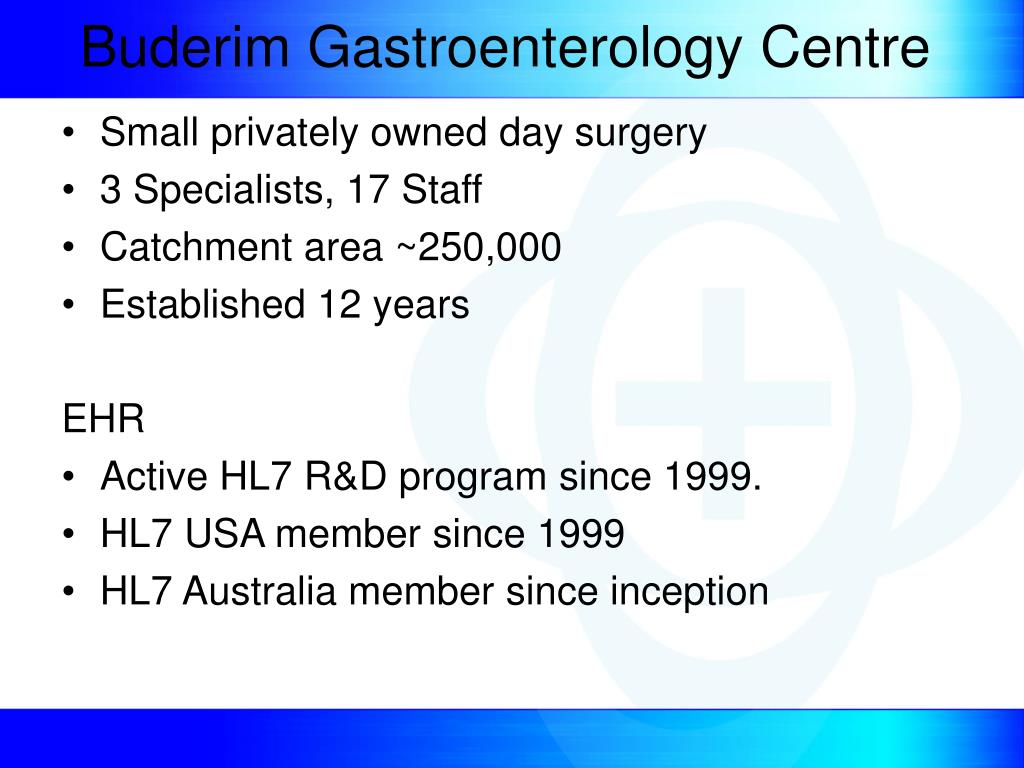

  2. Buderim Gastroenterology Centre • Small privately owned day surgery • 3 Specialists, 17 Staff • Catchment area ~250,000 • Established 12 years EHR • Active HL7 R&D program since 1999. • HL7 USA member since 1999 • HL7 Australia member since inception

  3. Electronic Records • Developed HL7 system • 35,000 patients • 190,000 reports • 250 GPs in the local area. • w/copies 244,000 individual recipients • 1.3 copies per document • Pathology dating to the start of PIT distribution by QML & S&N path. • All outgoing clinical letters since 1991 • HL7 format for storage for all this = 750 MB

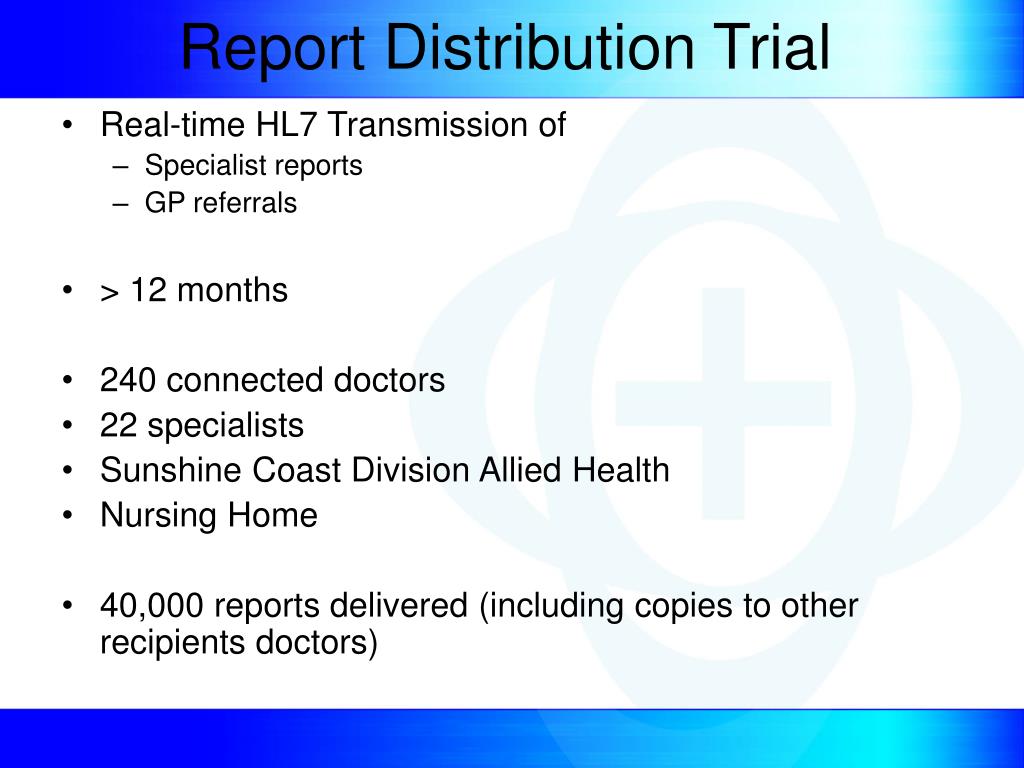

  4. Report Distribution Trial • Real-time HL7 Transmission of • Specialist reports • GP referrals • > 12 months • 240 connected doctors • 22 specialists • Sunshine Coast Division Allied Health • Nursing Home • 40,000 reports delivered (including copies to other recipients doctors)

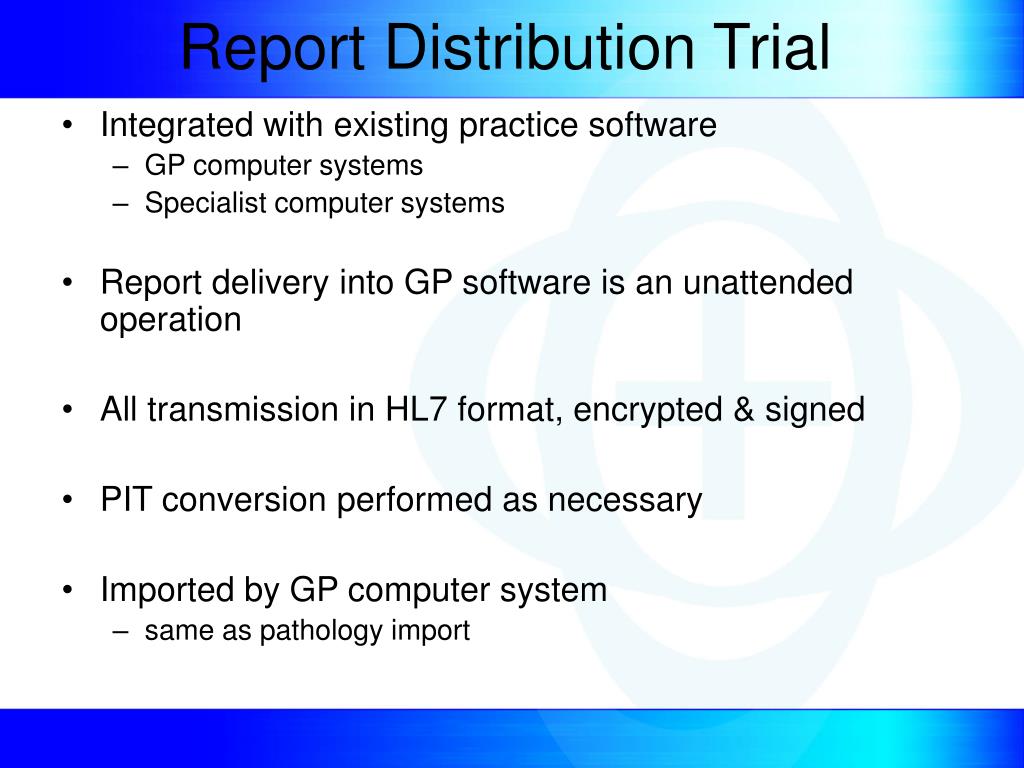

  5. Report Distribution Trial • Integrated with existing practice software • GP computer systems • Specialist computer systems • Report delivery into GP software is an unattended operation • All transmission in HL7 format, encrypted & signed • PIT conversion performed as necessary • Imported by GP computer system • same as pathology import

  6. Transmission • Specialist report creation • Word Processor integration • HL7 based custom reporting clients

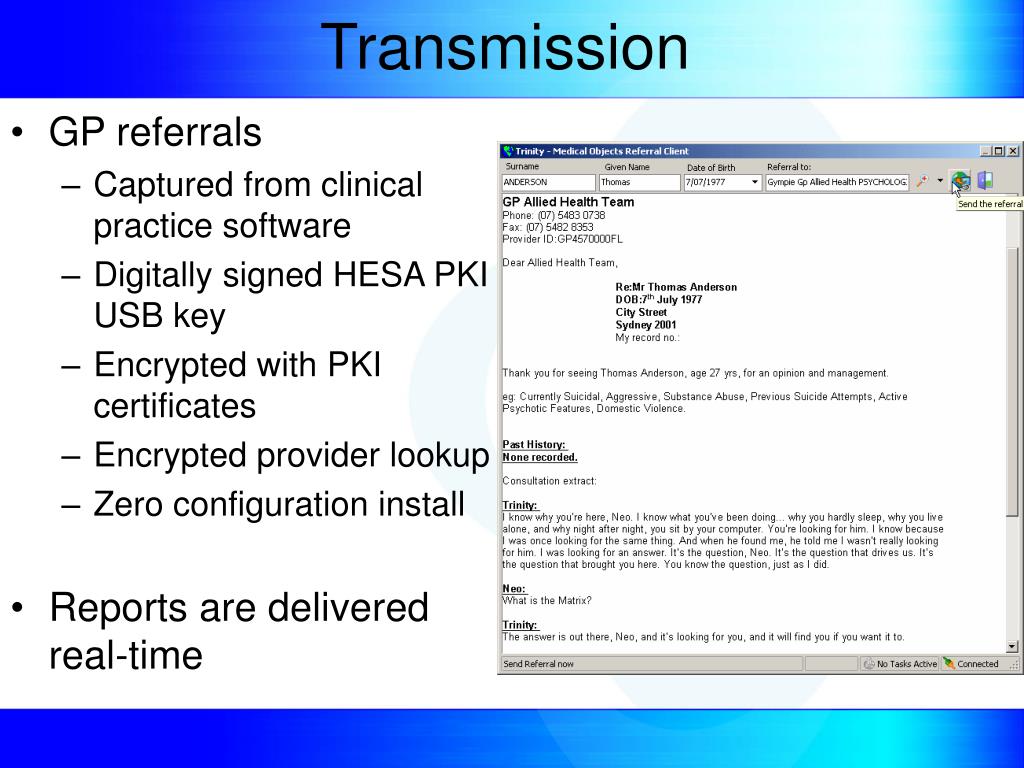

  7. Transmission • GP referrals • Captured from clinical practice software • Digitally signed HESA PKI USB key • Encrypted with PKI certificates • Encrypted provider lookup • Zero configuration install • Reports are delivered real-time

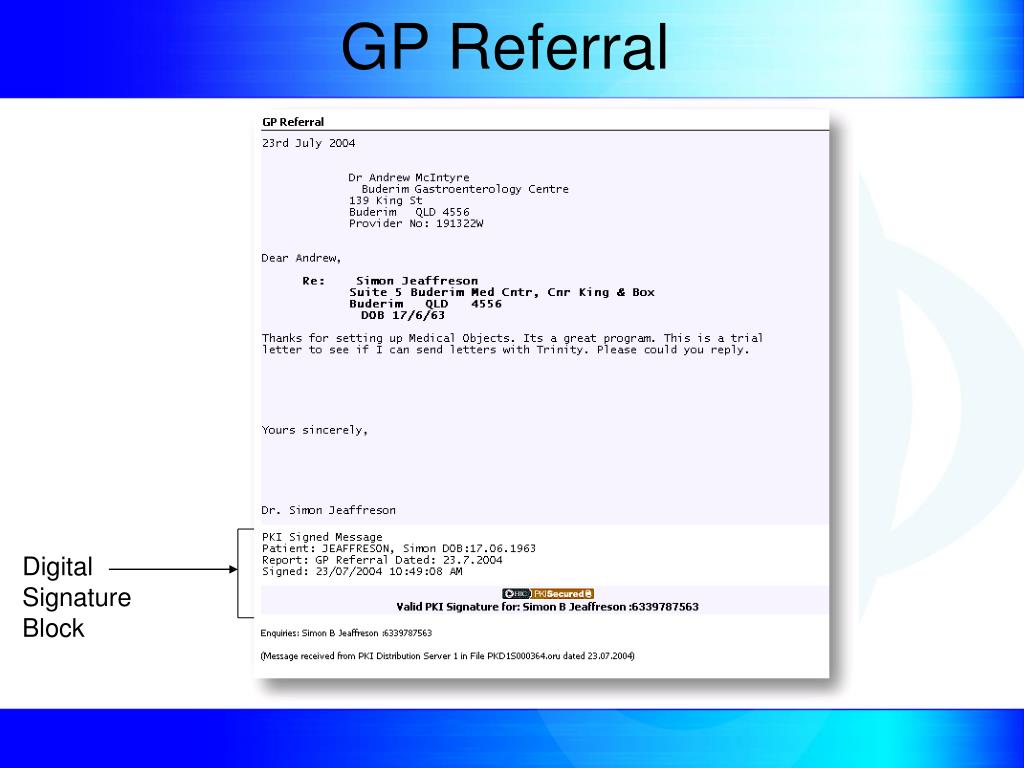

  8. GP Referral Digital Signature Block

  9. Architectural & Technical Barriers to distribution network implementation • Transport • Recipient/Provider Addressing • Delivery & Acknowledgment Protocols • Security & Authentication • Routing • Use of standards – HL7

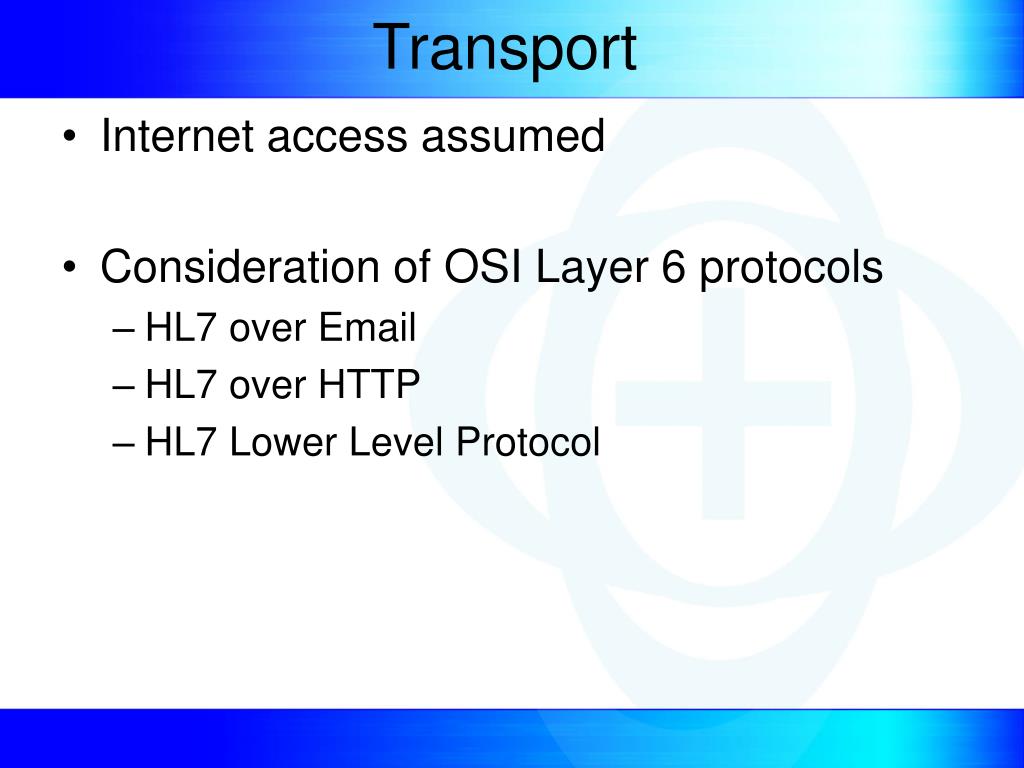

  10. Transport • Internet access assumed • Consideration of OSI Layer 6 protocols • HL7 over Email • HL7 over HTTP • HL7 Lower Level Protocol

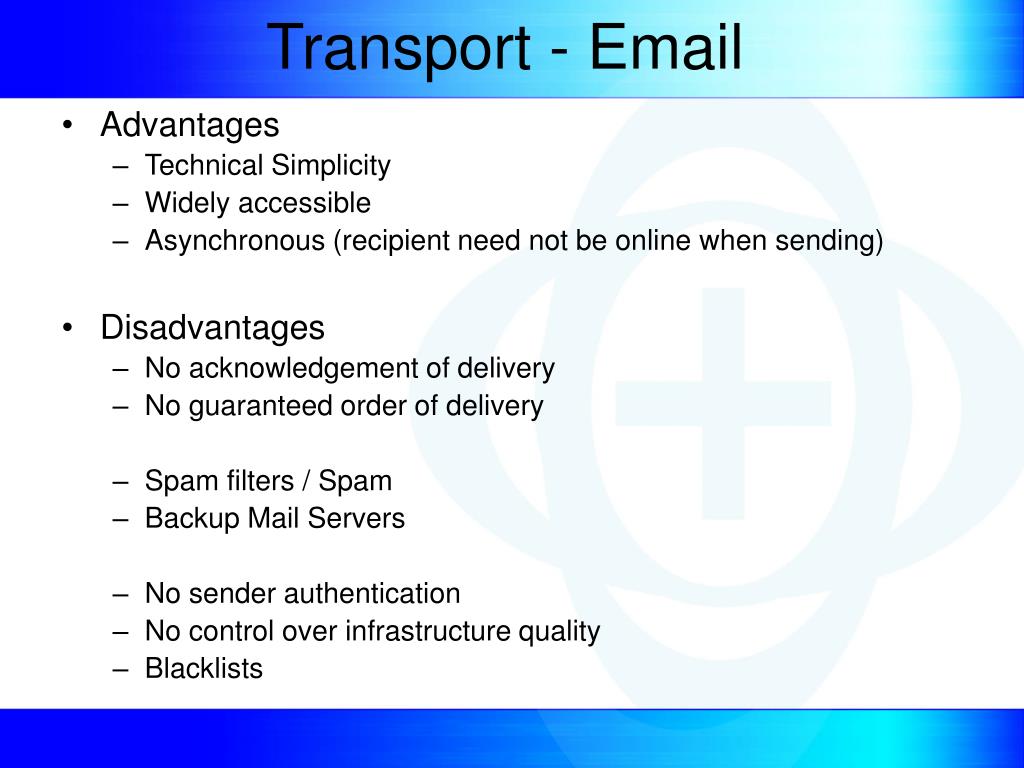

  11. Transport - Email • Advantages • Technical Simplicity • Widely accessible • Asynchronous (recipient need not be online when sending) • Disadvantages • No acknowledgement of delivery • No guaranteed order of delivery • Spam filters / Spam • Backup Mail Servers • No sender authentication • No control over infrastructure quality • Blacklists

  12. HL7 over HTTP • Advantages • HL7 standard acknowledgement possible • Ability to reject connections • Industry standard • Ease of interoperability for 3rd parties • Connectionless  scalable • URL & Headers available for protocol variations • Eg. Http1.1 keep alive, content types • Disadvantages • Need for full time internet presence

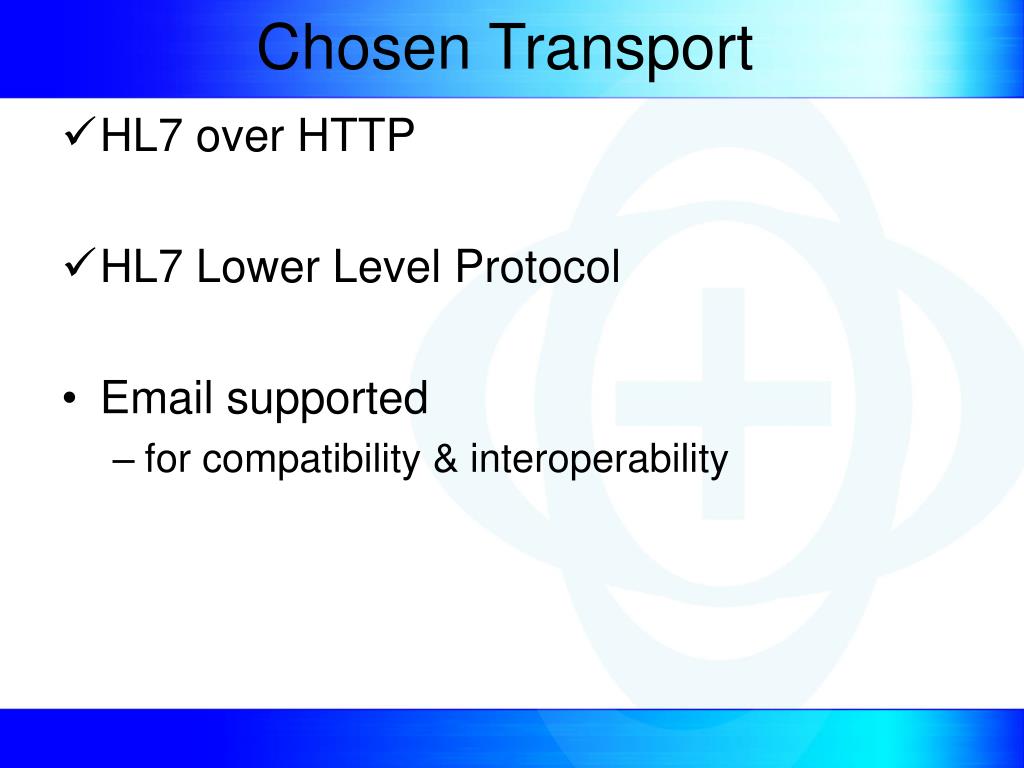

  13. Chosen Transport • HL7 over HTTP • HL7 Lower Level Protocol • Email supported • for compatibility & interoperability

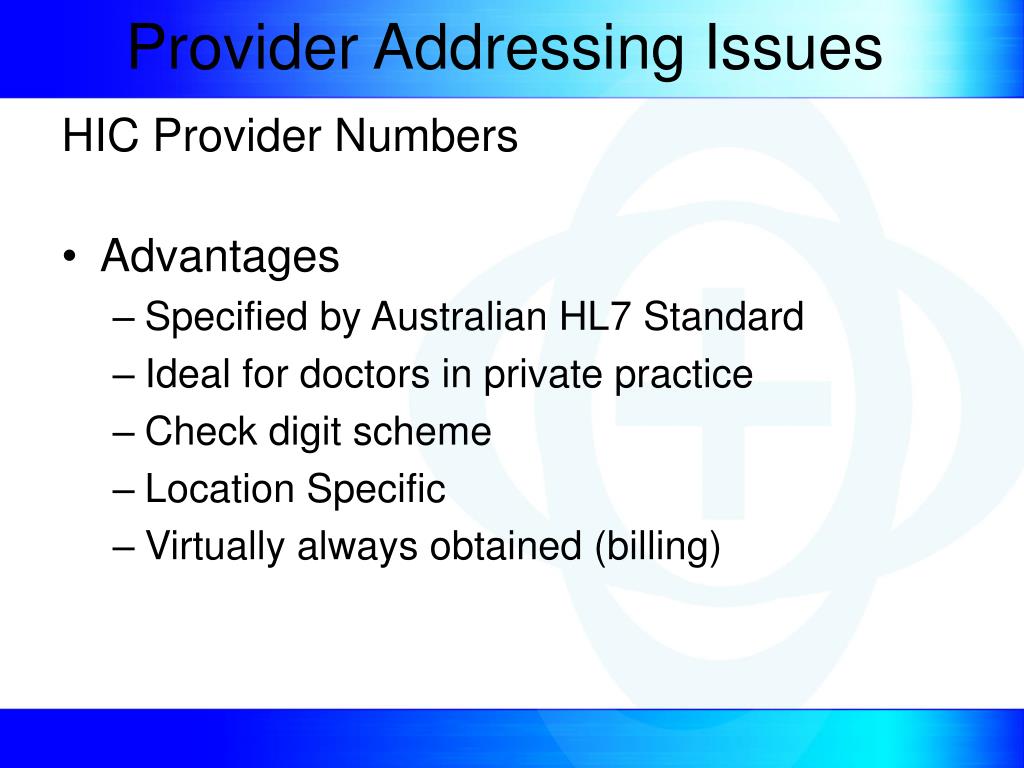

  14. Provider Addressing Issues HIC Provider Numbers • Advantages • Specified by Australian HL7 Standard • Ideal for doctors in private practice • Check digit scheme • Location Specific • Virtually always obtained (billing)

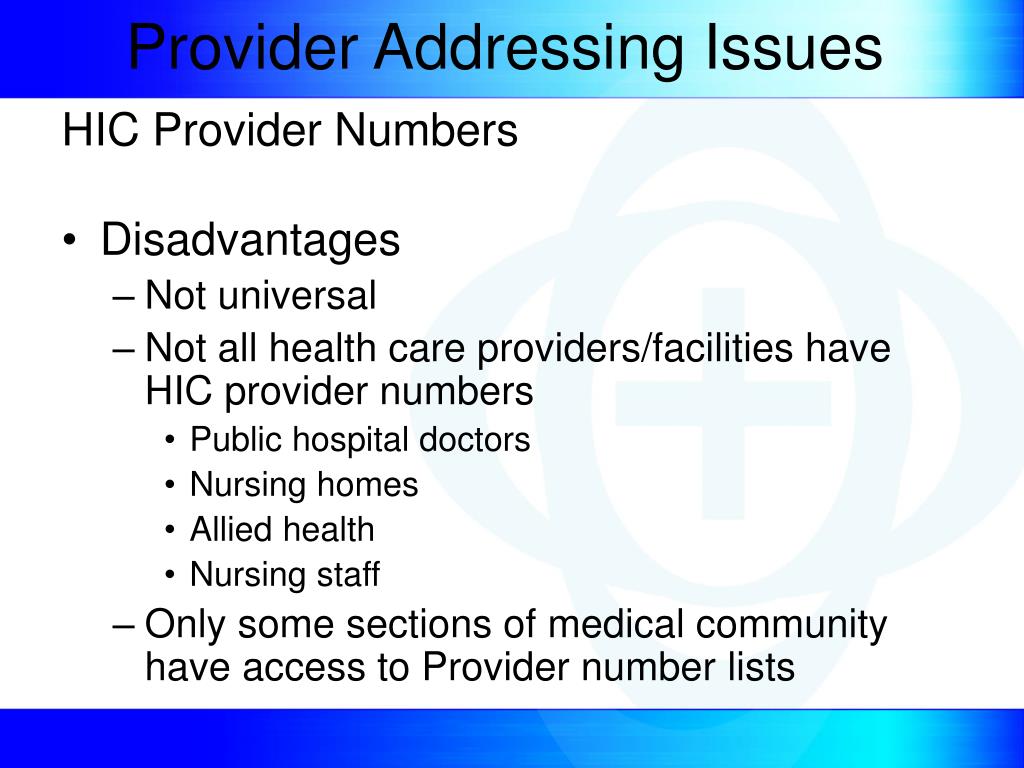

  15. Provider Addressing Issues HIC Provider Numbers • Disadvantages • Not universal • Not all health care providers/facilities have HIC provider numbers • Public hospital doctors • Nursing homes • Allied health • Nursing staff • Only some sections of medical community have access to Provider number lists

  16. An Addressing Solution • A mixed solution • HIC provider numbers used where available • Proprietary identifiers used if no provider number • Disadvantage: some software only accepts provider numbers • PKI key common name used for Author identification

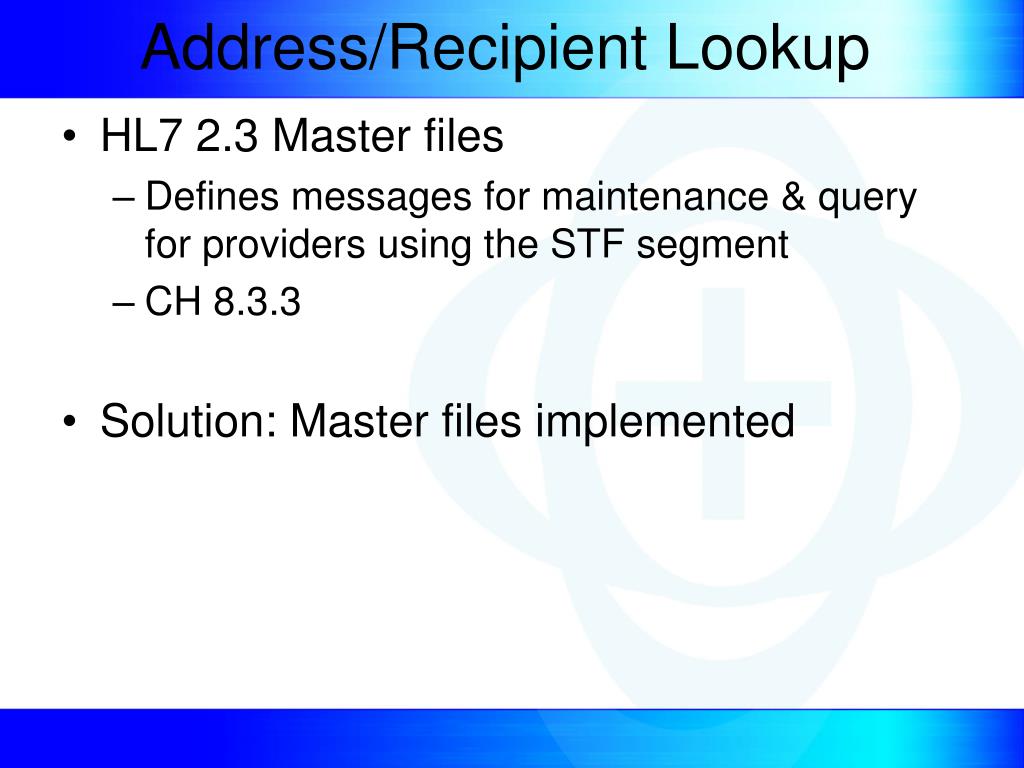

  17. Address/Recipient Lookup • HL7 2.3 Master files • Defines messages for maintenance & query for providers using the STF segment • CH 8.3.3 • Solution: Master files implemented

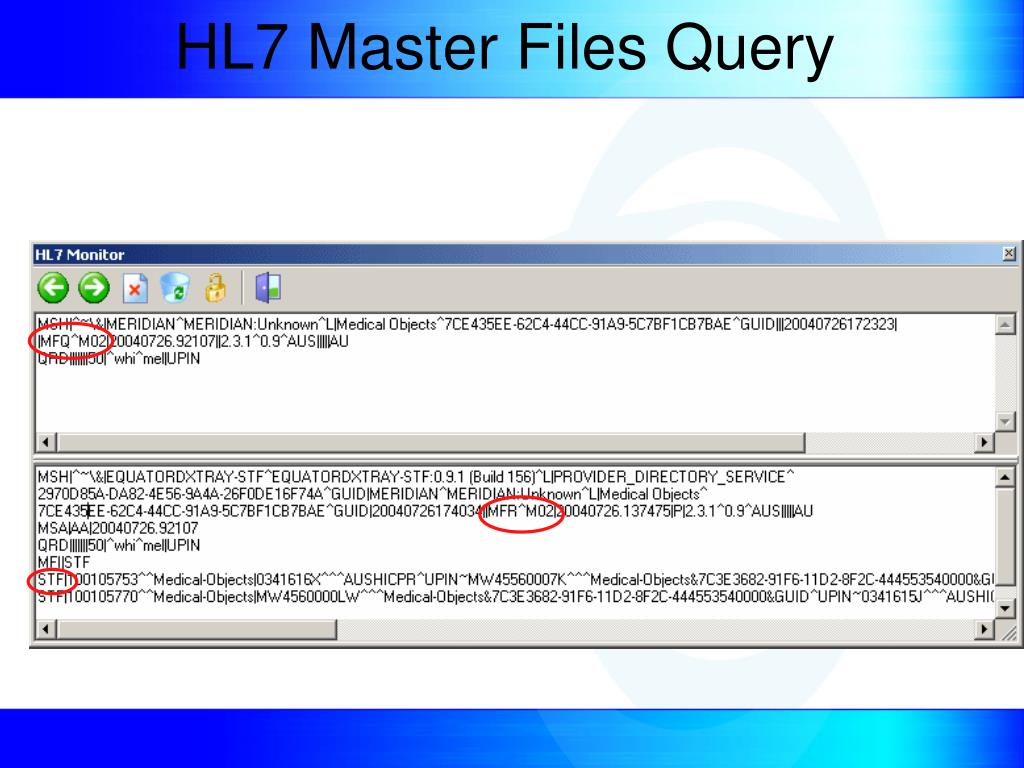

  18. HL7 Master Files Query

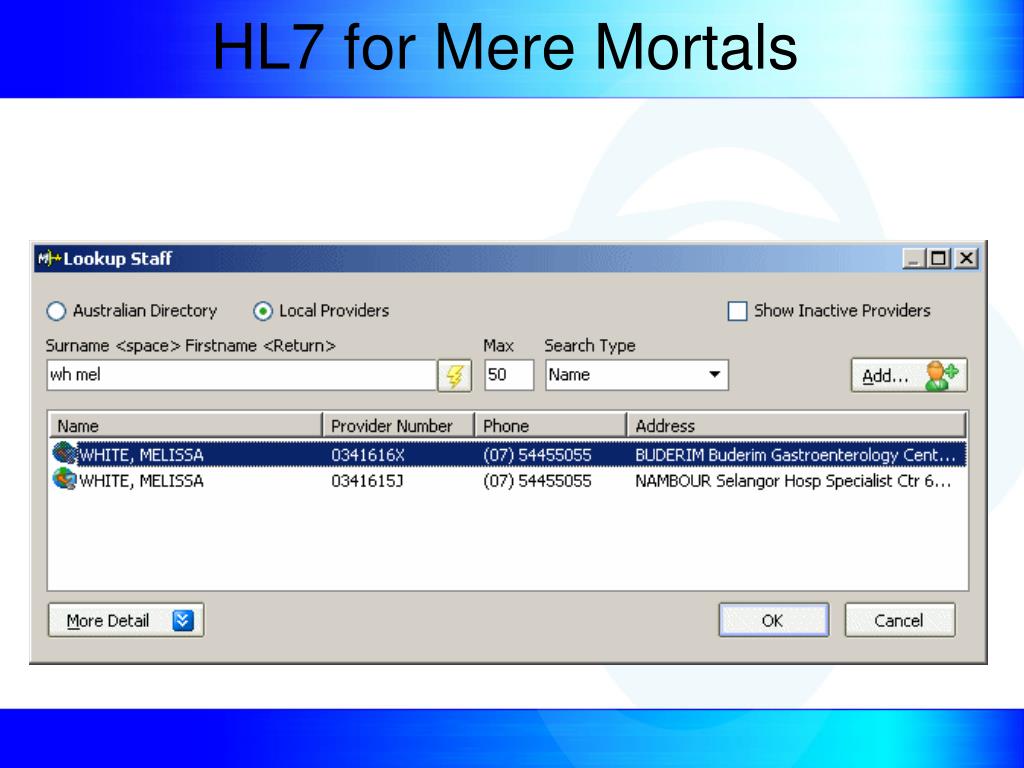

  19. HL7 for Mere Mortals

  20. Protocol • Standard HL7 Delivery Protocol • Message Acknowledgement • Eg. ORU – ACK, REF – ACK (messages) • Assumes • Internet server availability • Push model as new reports are sent unsolicited (ORU) • Retry sending if ACK not received

  21. Protocol • Problems • Many clients DO NOT or CAN NOT • open their networks (inadequate knowledge/skills) • have persistent internet connectivity  Some clients need to poll

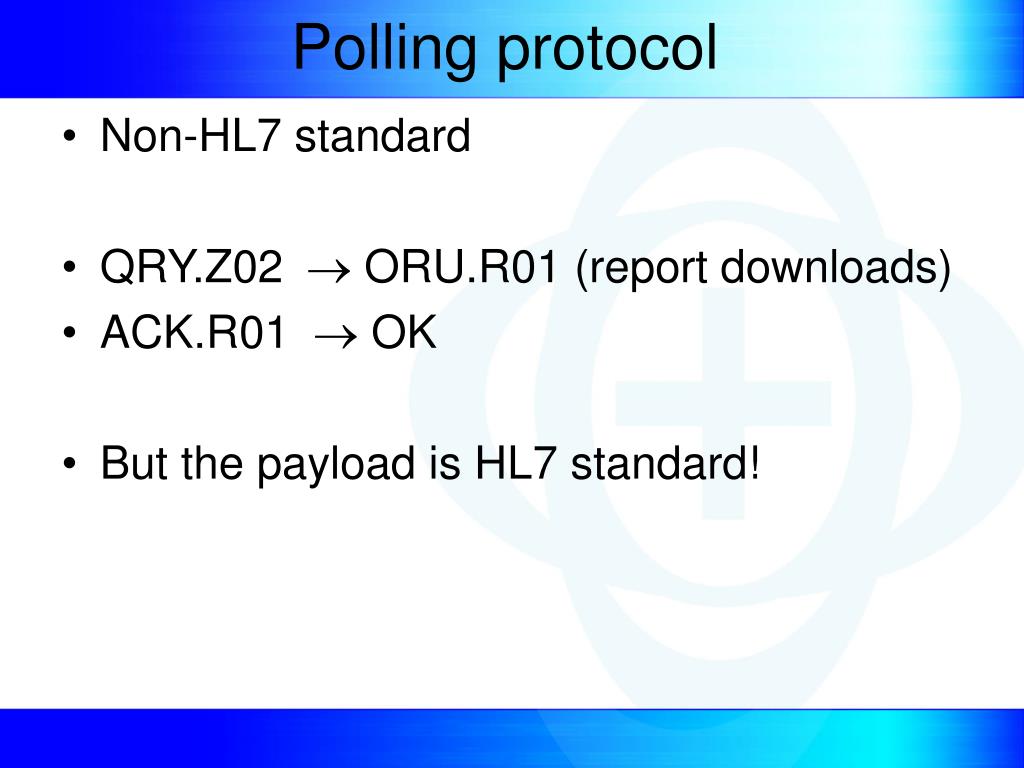

  22. Polling protocol • Non-HL7 standard • QRY.Z02  ORU.R01 (report downloads) • ACK.R01  OK • But the payload is HL7 standard!

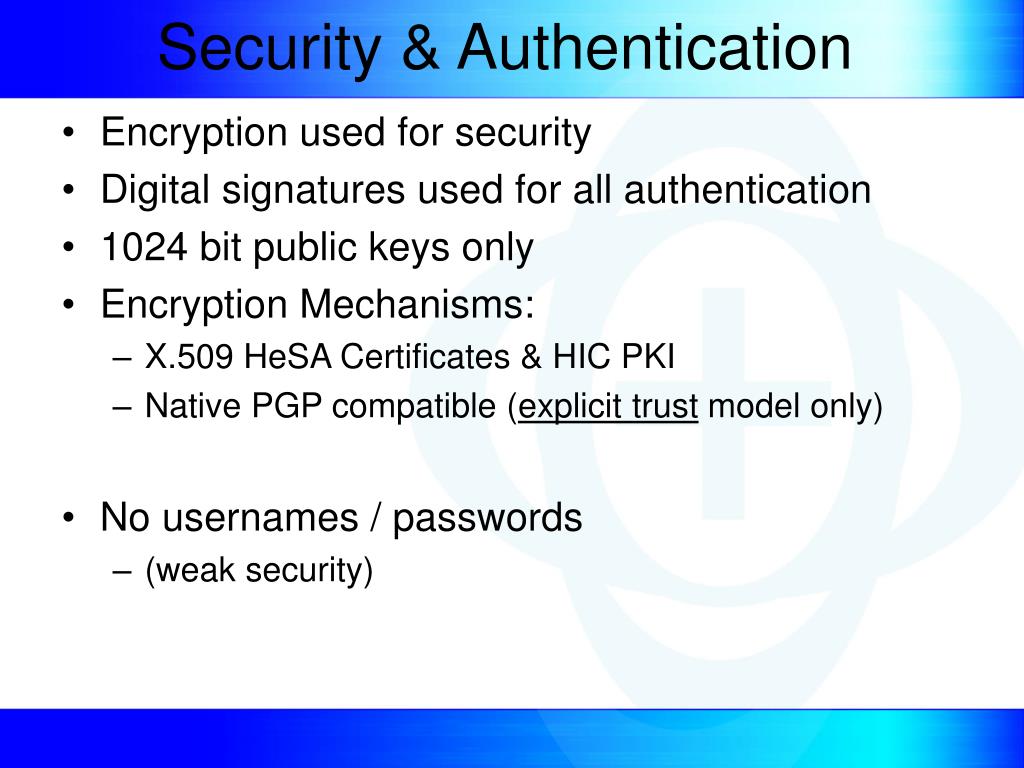

  23. Security & Authentication • Encryption used for security • Digital signatures used for all authentication • 1024 bit public keys only • Encryption Mechanisms: • X.509 HeSA Certificates & HIC PKI • Native PGP compatible (explicit trust model only) • No usernames / passwords • (weak security)

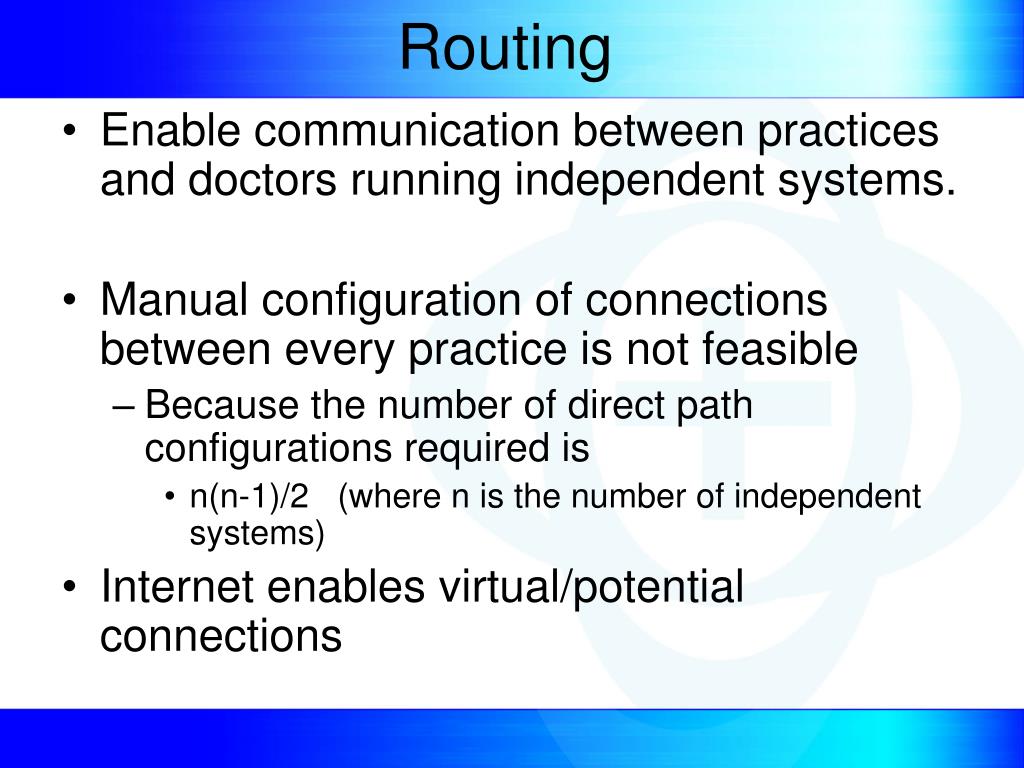

  24. Routing • Enable communication between practices and doctors running independent systems. • Manual configuration of connections between every practice is not feasible • Because the number of direct path configurations required is • n(n-1)/2 (where n is the number of independent systems) • Internet enables virtual/potential connections

  25. Routing • Solution: use HL7 Master File messages to enable dynamic discovery of newly connected users • Allow existing users to change their address without manual reconfiguration being required

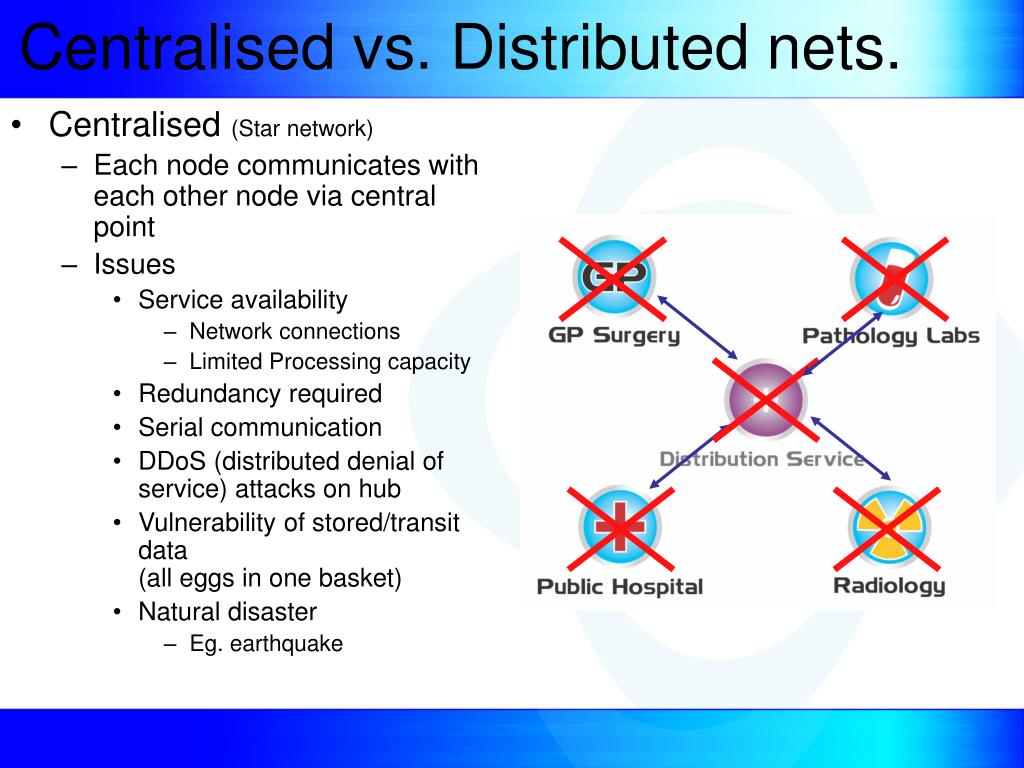

  26. Centralised vs. Distributed nets. • Centralised (Star network) • Each node communicates with each other node via central point • Issues • Service availability • Network connections • Limited Processing capacity • Redundancy required • Serial communication • DDoS (distributed denial of service) attacks on hub • Vulnerability of stored/transit data (all eggs in one basket) • Natural disaster • Eg. earthquake

  27. Centralised vs. Distributed nets. • Distributed network (fully connected mesh) • Every node is able to communicate directly with any other node • Fewer points of failure in transit • Very powerful • Load sharing possibilities • Parallel communication • Very Fast • DDoS can at worst case affect limited nodes only • Robust to natural disasters

  28. HL7 Support • Workable delivery format at this time is HL7 ORU messages. • This is all we have delivered at this stage to GPs • Minor modifications to messages are required depending on target application. • Satisfying import assumptions of software • No change to report payload. • REF message have potential in future • No support in practice software at present

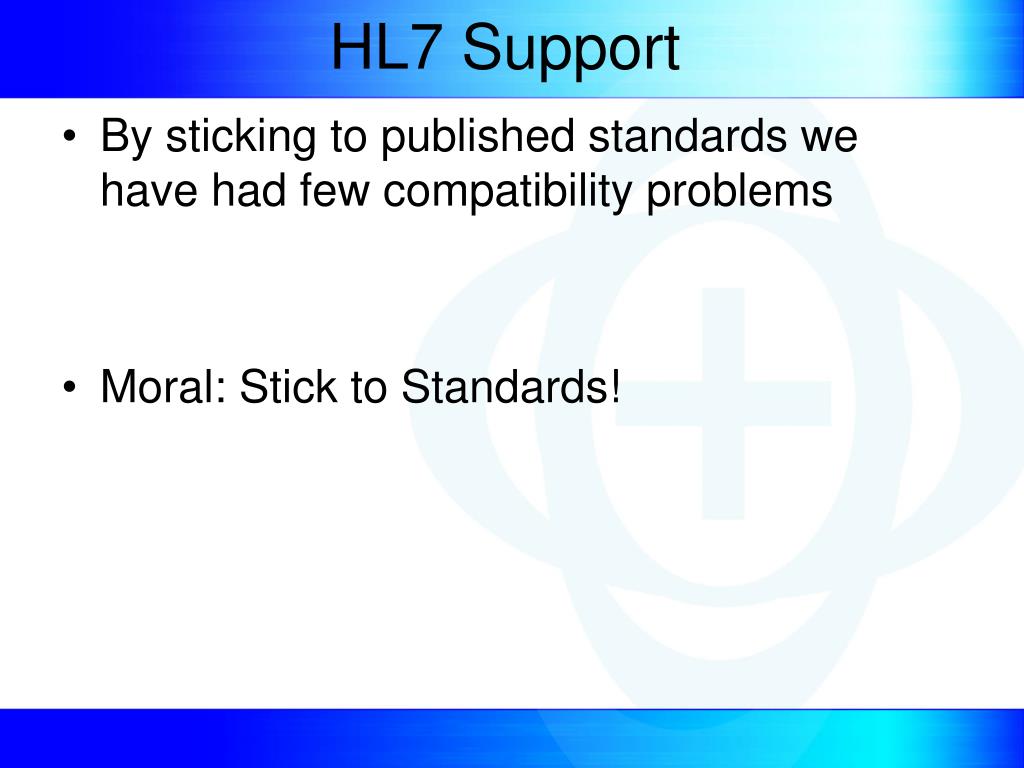

  29. HL7 Support • By sticking to published standards we have had few compatibility problems • Moral: Stick to Standards!

  30. Putting it together • The Software “Medical Objects” • Currently undergoing beta testing • Participants welcome info@medical-objects.com.au

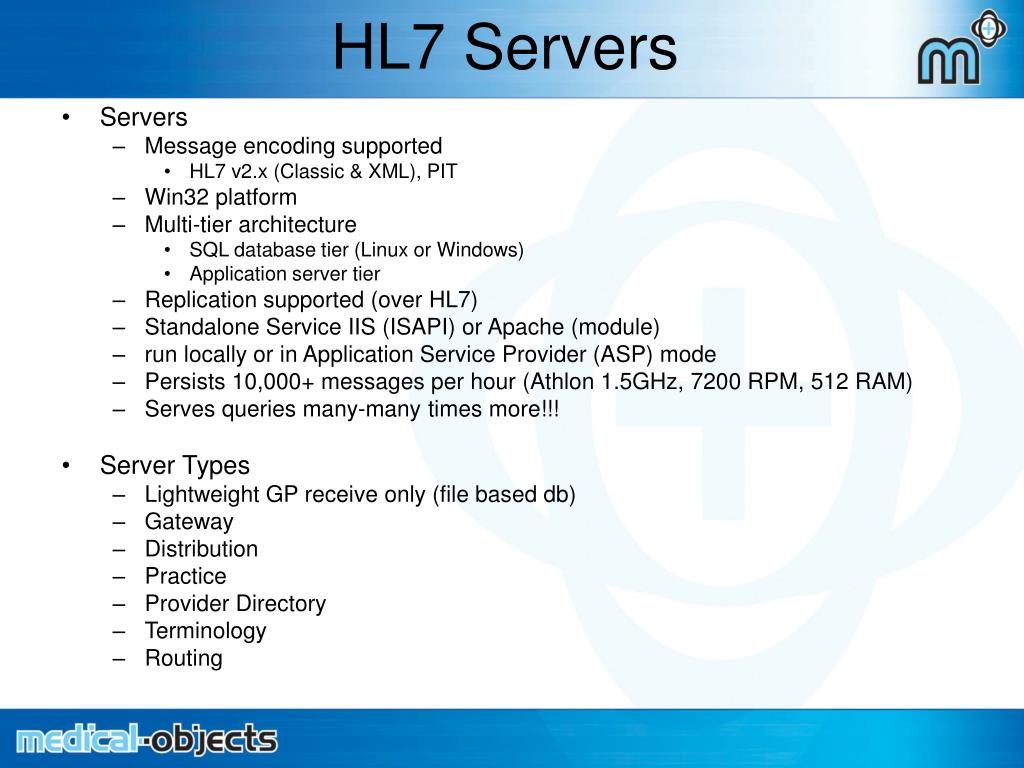

  31. HL7 Servers • Servers • Message encoding supported • HL7 v2.x (Classic & XML), PIT • Win32 platform • Multi-tier architecture • SQL database tier (Linux or Windows) • Application server tier • Replication supported (over HL7) • Standalone Service IIS (ISAPI) or Apache (module) • run locally or in Application Service Provider (ASP) mode • Persists 10,000+ messages per hour (Athlon 1.5GHz, 7200 RPM, 512 RAM) • Serves queries many-many times more!!! • Server Types • Lightweight GP receive only (file based db) • Gateway • Distribution • Practice • Provider Directory • Terminology • Routing

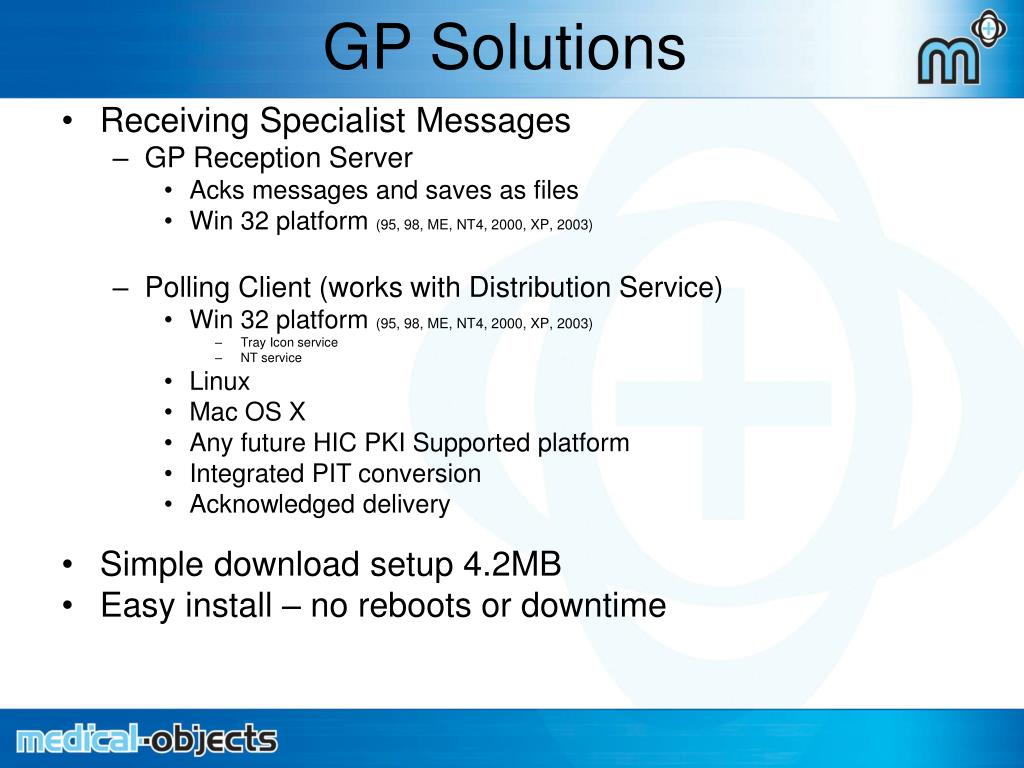

  32. GP Solutions • Receiving Specialist Messages • GP Reception Server • Acks messages and saves as files • Win 32 platform (95, 98, ME, NT4, 2000, XP, 2003) • Polling Client (works with Distribution Service) • Win 32 platform (95, 98, ME, NT4, 2000, XP, 2003) • Tray Icon service • NT service • Linux • Mac OS X • Any future HIC PKI Supported platform • Integrated PIT conversion • Acknowledged delivery • Simple download setup 4.2MB • Easy install – no reboots or downtime

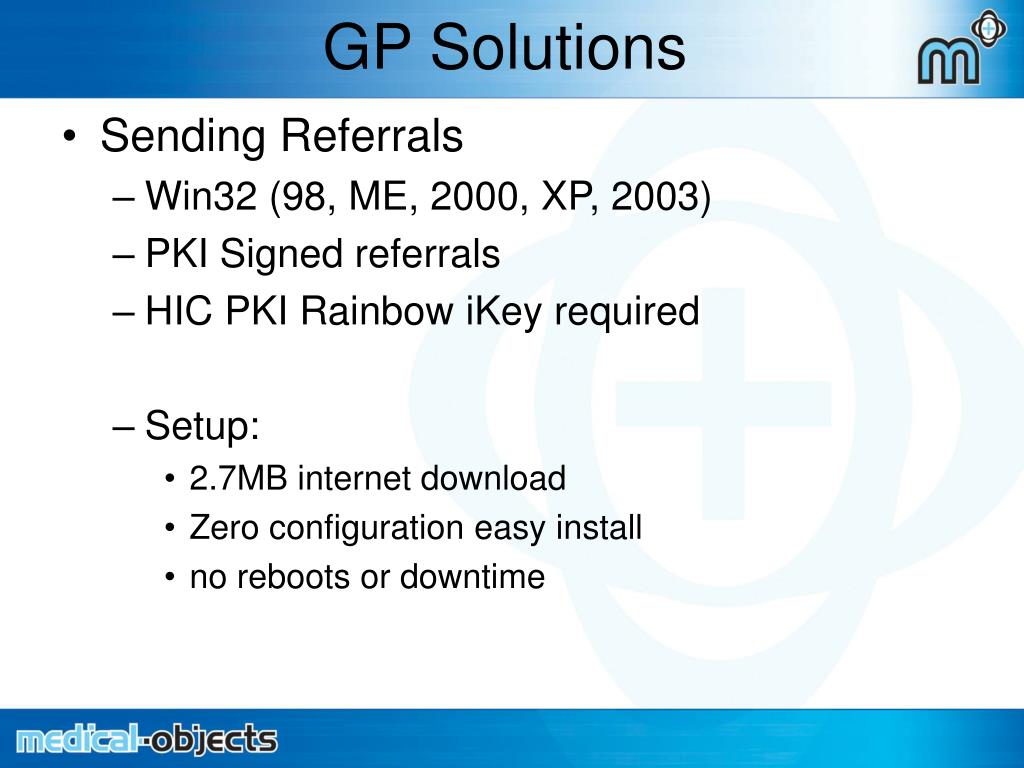

  33. GP Solutions • Sending Referrals • Win32 (98, ME, 2000, XP, 2003) • PKI Signed referrals • HIC PKI Rainbow iKey required • Setup: • 2.7MB internet download • Zero configuration easy install • no reboots or downtime

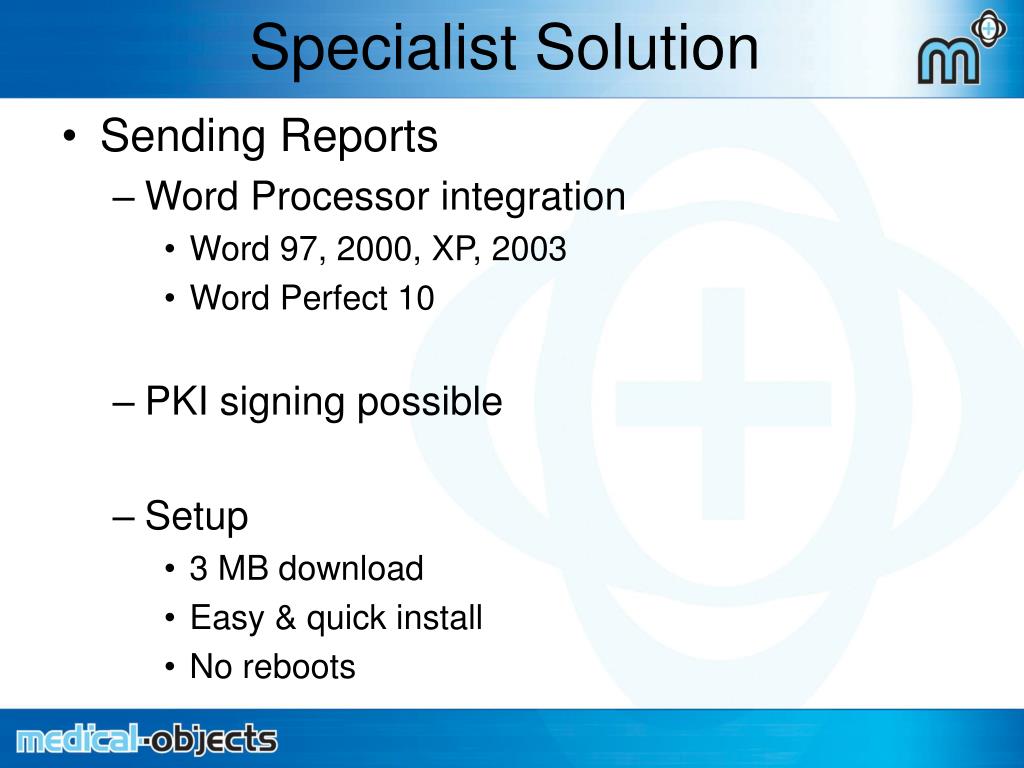

  34. Specialist Solution • Sending Reports • Word Processor integration • Word 97, 2000, XP, 2003 • Word Perfect 10 • PKI signing possible • Setup • 3 MB download • Easy & quick install • No reboots

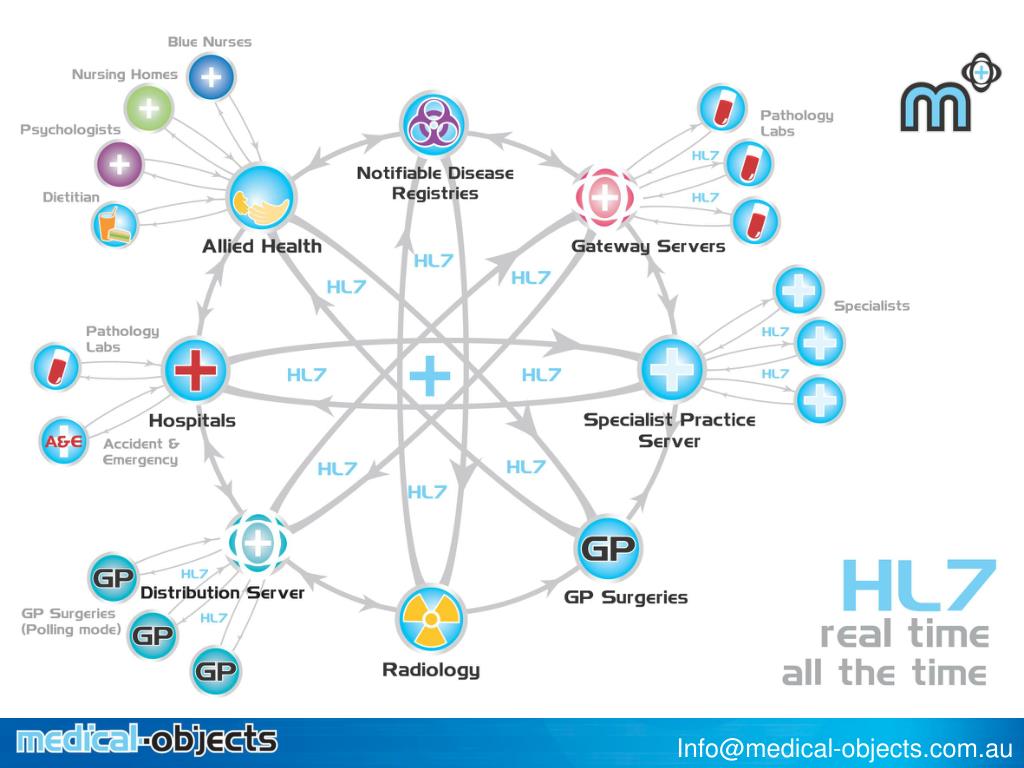

  35. Medical Objects Network Today Info@medical-objects.com.au
