The pathology imaging engine histology workflow with wsi

HARVARDMEDICAL SCHOOL

Pathology Visions 2010

October 25, 2010

San Diego, CA

The Pathology Imaging Engine Histology Workflow with WSI

John Gilbertson MD

Associate Chief of Pathology

Director of Pathology Informatics

Massachusetts General Hospital

Associate Professor of Pathology

Harvard Medical School


The pathology imaging engine histology workflow with wsi

  • I have no personal financial relationship with any company*

  • However, I am Associated Chief of Pathology and Director of Pathology Informatics in a Department that does significant research and co-development with industry

  • Names that we work with and I might mention today include Kurabo, Sony, Olympus, 3D Histech, Corista, Bioimagene, Hamamatsu and Sunquest*

  • I am overall PI on a collaboration agreement with Philips

  • All conflicts are disclosed and compliant with Partners and Harvard ethics rules

Pathology Visions 2010


The pathology imaging engine histology workflow with wsi

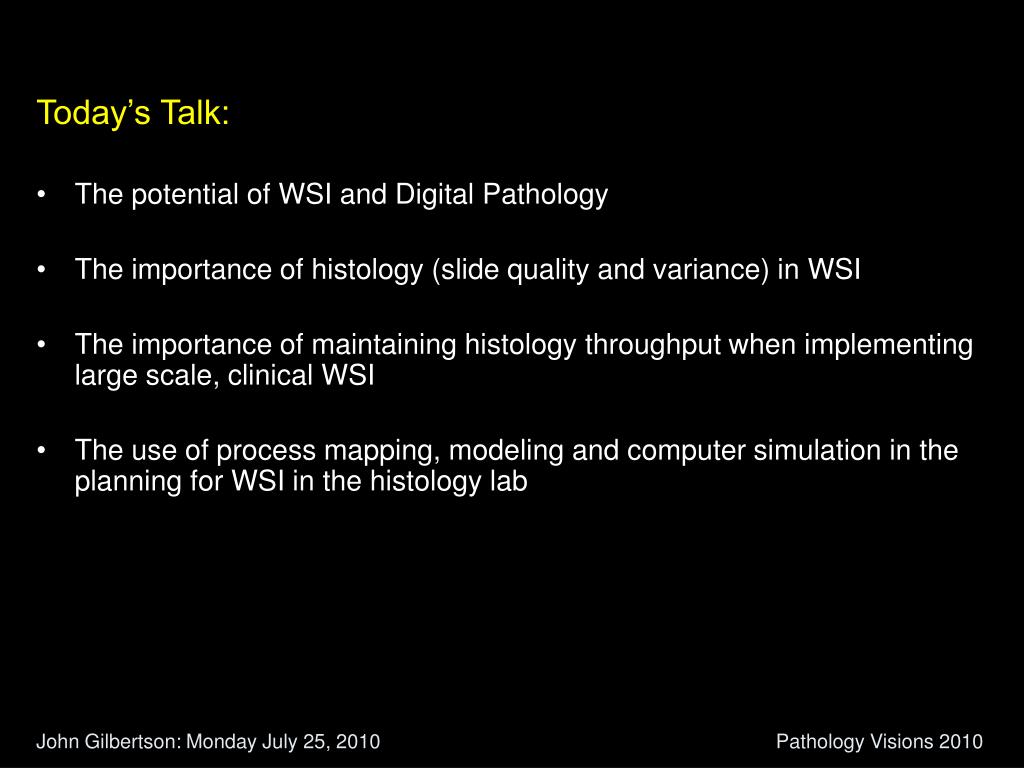

  • Today’s Talk:

  • The potential of WSI and Digital Pathology

  • The importance of histology (slide quality and variance) in WSI

  • The importance of maintaining histology throughput when implementing large scale, clinical WSI

  • The use of process mapping, modeling and computer simulation in the planning for WSI in the histology lab

Pathology Visions 2010


The pathology imaging engine histology workflow with wsi

Pathology Visions 2010


The pathology imaging engine histology workflow with wsi

When pathology is able to digitize all

of its slides, automatically, rapidly

and with high fidelity, it will be able to

apply computational power and

network connectivity to study of

microscopic morphology and the

practice of anatomic pathology

  • Computational power and network connectivity are the driving forces of change in the modern world

  • They have changed every industry they have touched: they should change pathology

Pathology Visions 2010


The pathology imaging engine histology workflow with wsi

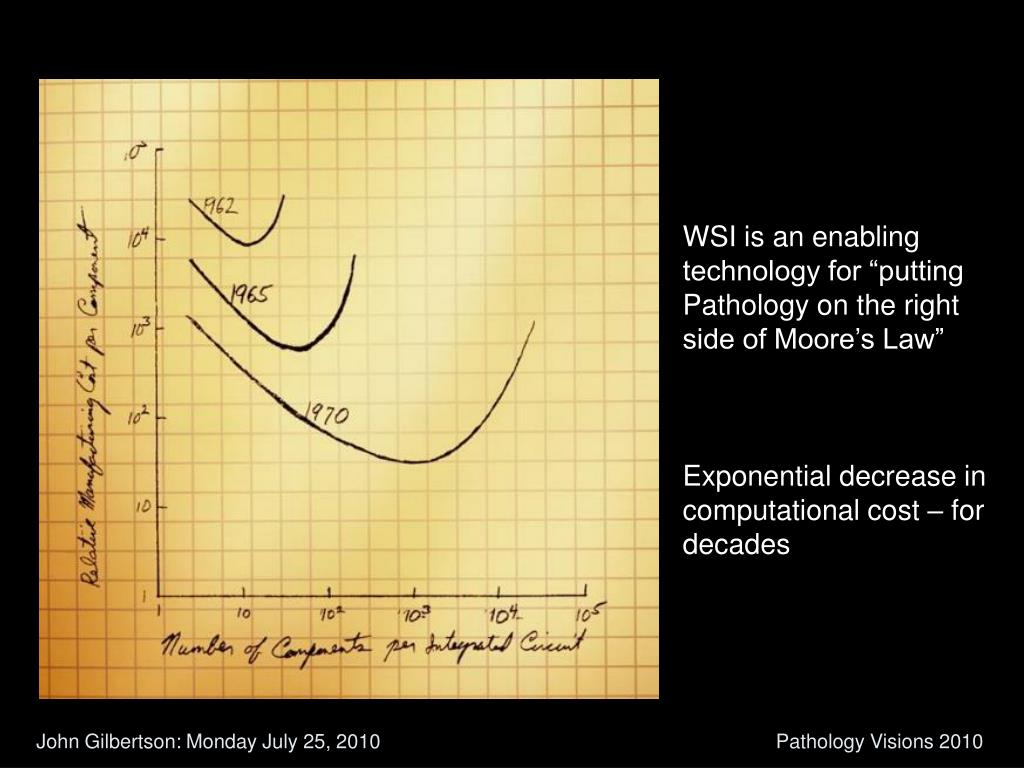

WSI is an enabling

technology for “putting

Pathology on the right

side of Moore’s Law”

Exponential decrease in

computational cost – for

decades

Pathology Visions 2010


The pathology imaging engine histology workflow with wsi

  • What if the rest of the medicine is taking advantage of growing computational power and network connectivity and pathology isn’t?

    … It will not end well

  • Not going “digital” is not an option

Pathology Visions 2010


The pathology imaging engine histology workflow with wsi

But

Pathology Visions 2010


The pathology imaging engine histology workflow with wsi

Digital pathology isn’t really digital…

There still is the slide …

…and the stain

Stained slides are the subject of the WSI process…

…but they have been an unwilling subject

Pathology Visions 2010


The pathology imaging engine histology workflow with wsi

They are designed to be looked at by eye under the microscope

They were never designed to be imaged

Pathology Visions 2010


The pathology imaging engine histology workflow with wsi

Slides: for your eyes only

  • Many of them

  • Rapidly

  • By hand

Pathology Visions 2010


The pathology imaging engine histology workflow with wsi

In most laboratories, the glass slide has vary high variance

Pathology Visions 2010


The pathology imaging engine histology workflow with wsi

  • Machines hate this

  • Things that were never a problem for the human hand and pathologist’s eye were problems for the robotic actuator and the digital camera

Pathology Visions 2010


The pathology imaging engine histology workflow with wsi

Pathology Visions 2010


The pathology imaging engine histology workflow with wsi

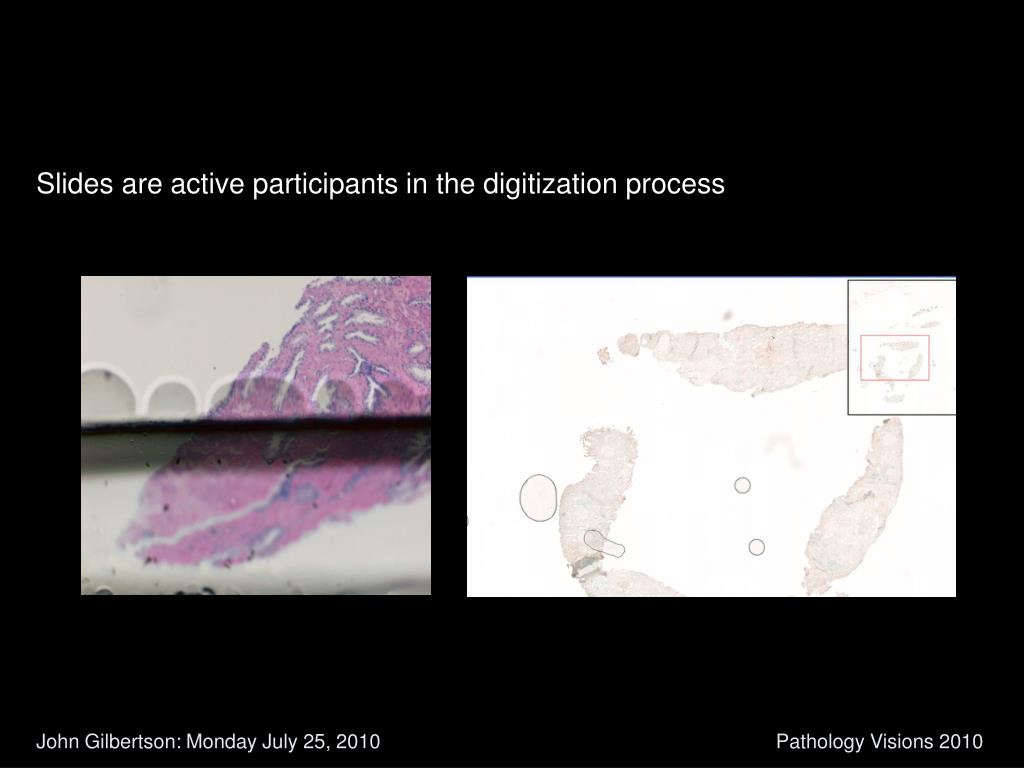

Slides are active participants in the digitization process

Pathology Visions 2010


The pathology imaging engine histology workflow with wsi

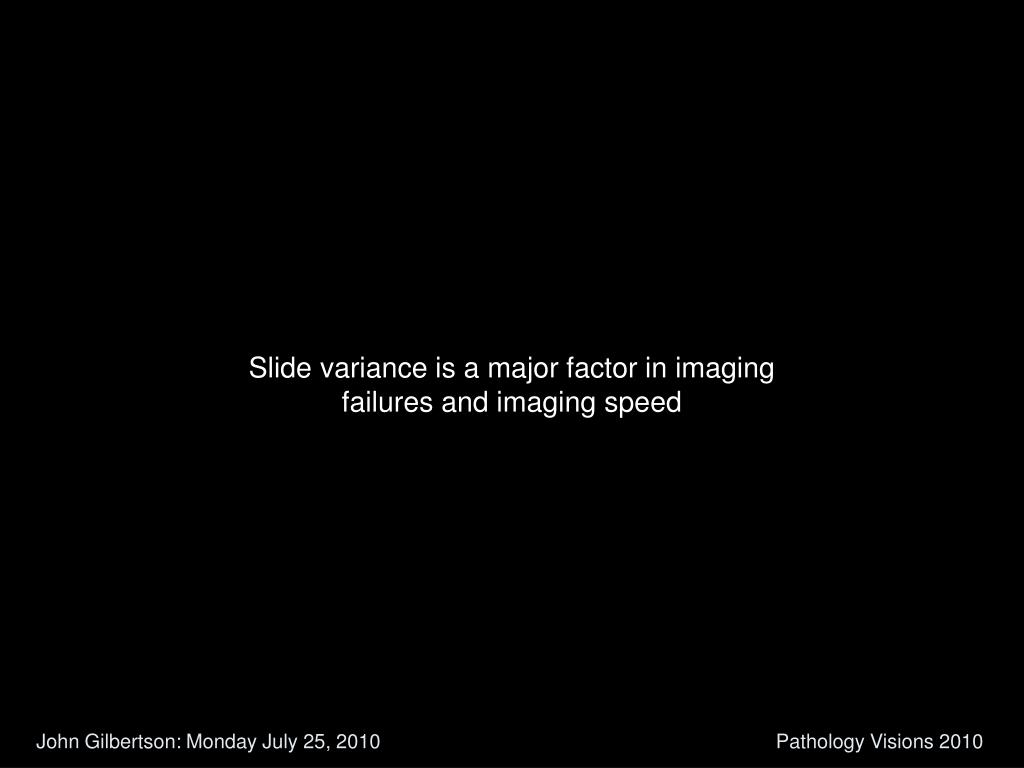

Slide variance is a major factor in imaging failures and imaging speed

Pathology Visions 2010


The pathology imaging engine histology workflow with wsi

When robots work with robots…

Better slides  Images

Faster image capture speed

Archive

Pathology Imaging Engine

Interpretation

Processing

& Embedding

Cutting &

Adhesion

Staining

Optics &

Digitization


Analysis

Grossing

Workflow and Dataflow Infrastructure (LIS)

  • Lower variances – faster focus

  • Lower variance – fewer failures (unacceptable focus, tissue finding or mechanical failure)

Pathology Visions 2010


The pathology imaging engine histology workflow with wsi

Pathology Visions 2010


The pathology imaging engine histology workflow with wsi

High slide quality, low variance

Yagi et al

Pathology Visions 2010


The pathology imaging engine histology workflow with wsi

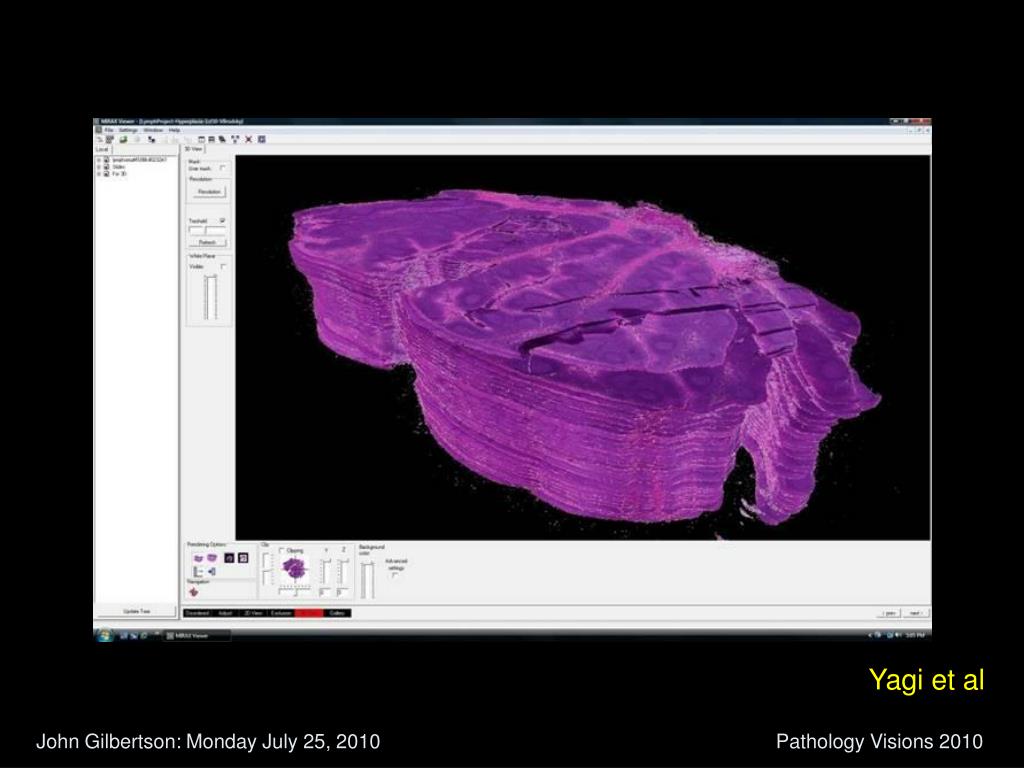

Yagi et al

Pathology Visions 2010


The pathology imaging engine histology workflow with wsi

Yagi et al

Pathology Visions 2010


The pathology imaging engine histology workflow with wsi

Quantitative QA: Better images  Better Slides

Archive

Pathology Imaging Engine

Interpretation

Processing

& Embedding

Cutting &

Adhesion

Staining

Optics &

Digitization


Analysis

Grossing

Workflow and Dataflow Infrastructure (LIS)

Bautista PA, Yagi Y

Detection of tissue folds in whole slide images.

Conf Proc IEEE Eng Med Biol Soc. 2009:3669-72.

Pathology Visions 2010


The pathology imaging engine histology workflow with wsi

There is a trend to incorporate robots and quantitative, Imaging-based QA at every step of the histology process

This is great for imaging, histology and anatomic pathology

Pathology Visions 2010


The pathology imaging engine histology workflow with wsi

Throughput

Pathology Visions 2010


The pathology imaging engine histology workflow with wsi

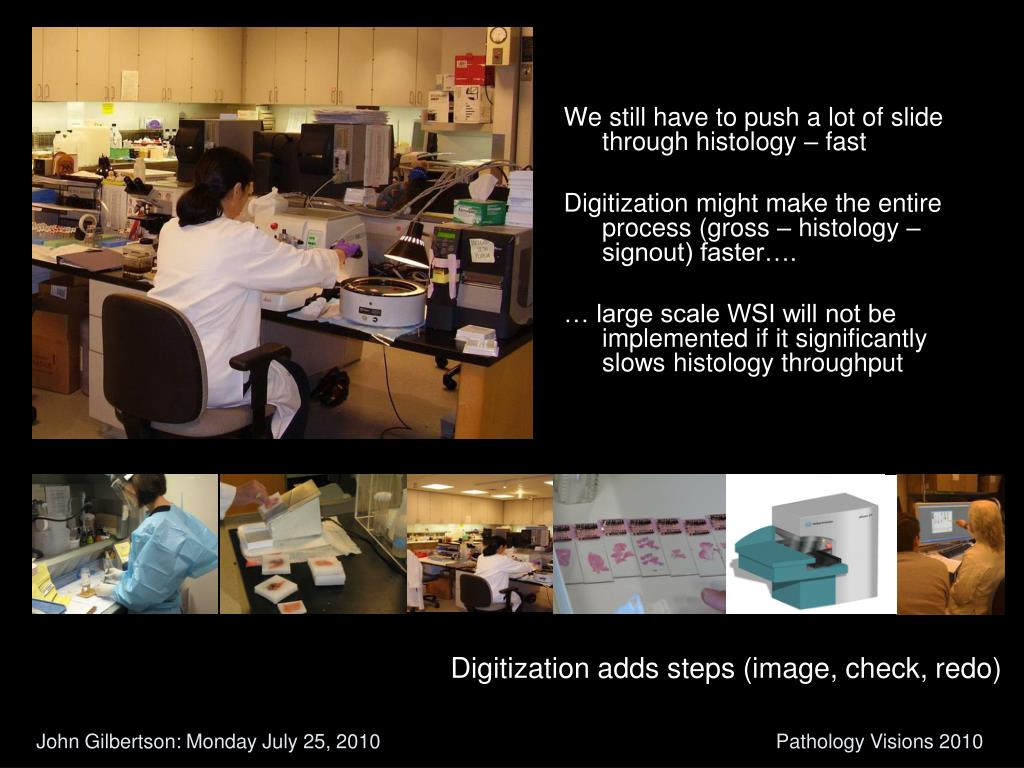

We still have to push a lot of slide through histology – fast

Digitization might make the entire process (gross – histology – signout) faster….

… large scale WSI will not be implemented if it significantly slows histology throughput

Digitization adds steps (image, check, redo)

Pathology Visions 2010


The pathology imaging engine histology workflow with wsi

Anatomic Pathology Workflow

  • We have a real interest in AP productivity

    • Our pathologist’s time is the more valuable resource we have

    • This is true world wide

    • Potential Market is increasing…

    • Case complexity is increasing…

    • Need for documentation is increasing…

    • Research opportunities are increasing…

    • Pathology satisfaction is declining…

    • High turnover in Histology Labs

    • Aging infrastructure

Pathology Visions 2010


The pathology imaging engine histology workflow with wsi

Anatomic Pathology Workflow

  • We have a specific interest in AP productivity

    • Sunquest collaboration requires the implementation of a new AP LIS

    • Axiom: Bad workflow eats good software for lunch

    • Axiom: Don’t prop up bad workflow with new software

  • All these things give us a very good excuse to examine our workflow (and infrastructure)

Pathology Visions 2010


The pathology imaging engine histology workflow with wsi

Infrastructure to study/improve productivity

  • Green belts, analysts, techs and engineers (Lean, six sigma, FMEA)

  • Mapping: What is our baseline workflow’

  • Modeling: Include rates, numbers, times (manually initially)

  • Populated Models: Asset tracking (2011), routing and station protocols (process steps) (2012)

  • Process Laboratory: “A laboratory to study the laboratory”

  • Simulation Software: “What if we make a change”

  • Clinical Laboratory: “Beta Testing”

  • Compare: Scientifically compare the pre- and post states

Pathology Visions 2010


The pathology imaging engine histology workflow with wsi

Current findings

Mapping and manual modeling

  • ………………….!

  • 29 major workflows

  • 1000+ hand offs

  • Major Variation (interruptions, etc)

  • Cultural issues

Pathology Visions 2010


The pathology imaging engine histology workflow with wsi

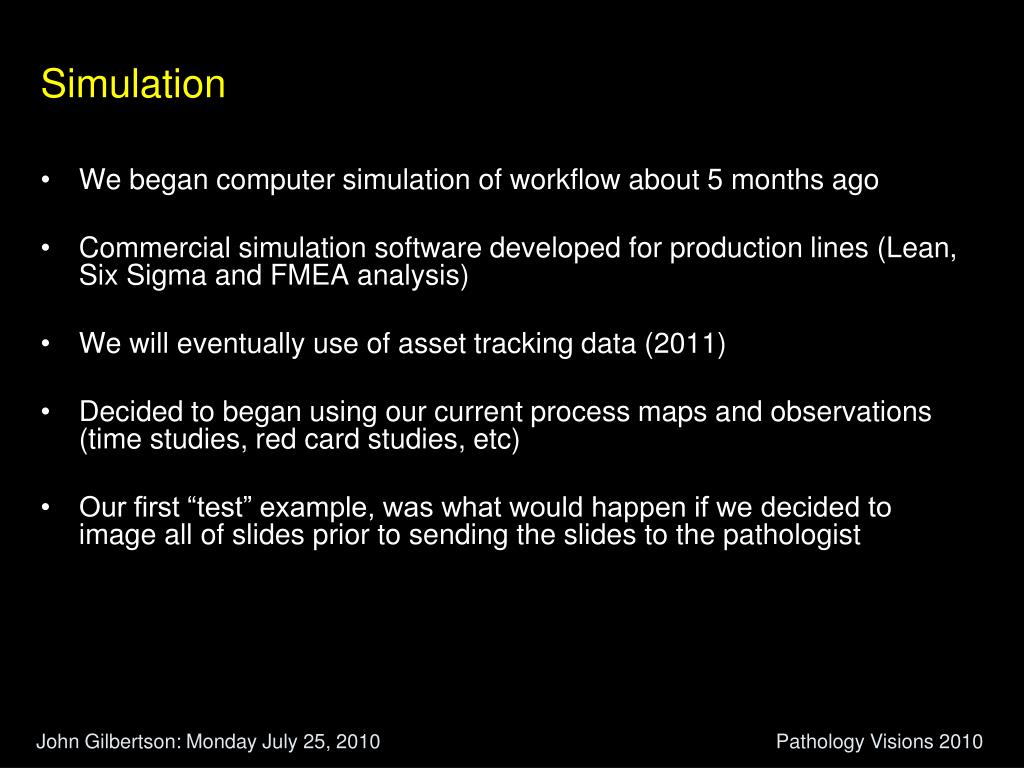

Simulation

  • We began computer simulation of workflow about 5 months ago

  • Commercial simulation software developed for production lines (Lean, Six Sigma and FMEA analysis)

  • We will eventually use of asset tracking data (2011)

  • Decided to began using our current process maps and observations (time studies, red card studies, etc)

  • Our first “test” example, was what would happen if we decided to image all of slides prior to sending the slides to the pathologist

Pathology Visions 2010


The pathology imaging engine histology workflow with wsi

Simulation

A story:

  • ~ 4.5 months ago…

  • ~ 3 weeks…

  • ~ 2.5 weeks ago…

  • Developing a simulation of laboratory that does 300 cases and 2500 slides a day, 1200 part types, 29 major processes (and wide variations in each process), 40+ people… is hard

  • ~ 1.5 weeks ago…

  • ~ 4 days ago…

Pathology Visions 2010


The pathology imaging engine histology workflow with wsi

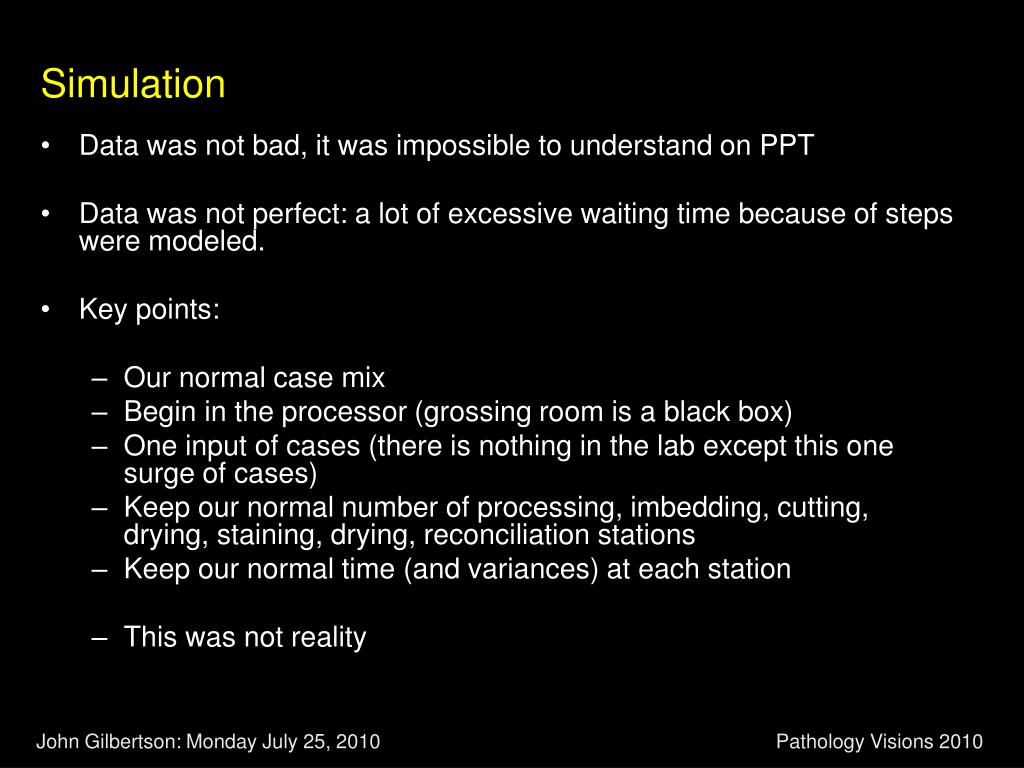

Simulation

  • Data was not bad, it was impossible to understand on PPT

  • Data was not perfect: a lot of excessive waiting time because of steps were modeled.

  • Key points:

    • Our normal case mix

    • Begin in the processor (grossing room is a black box)

    • One input of cases (there is nothing in the lab except this one surge of cases)

    • Keep our normal number of processing, imbedding, cutting, drying, staining, drying, reconciliation stations

    • Keep our normal time (and variances) at each station

    • This was not reality

Pathology Visions 2010


The pathology imaging engine histology workflow with wsi

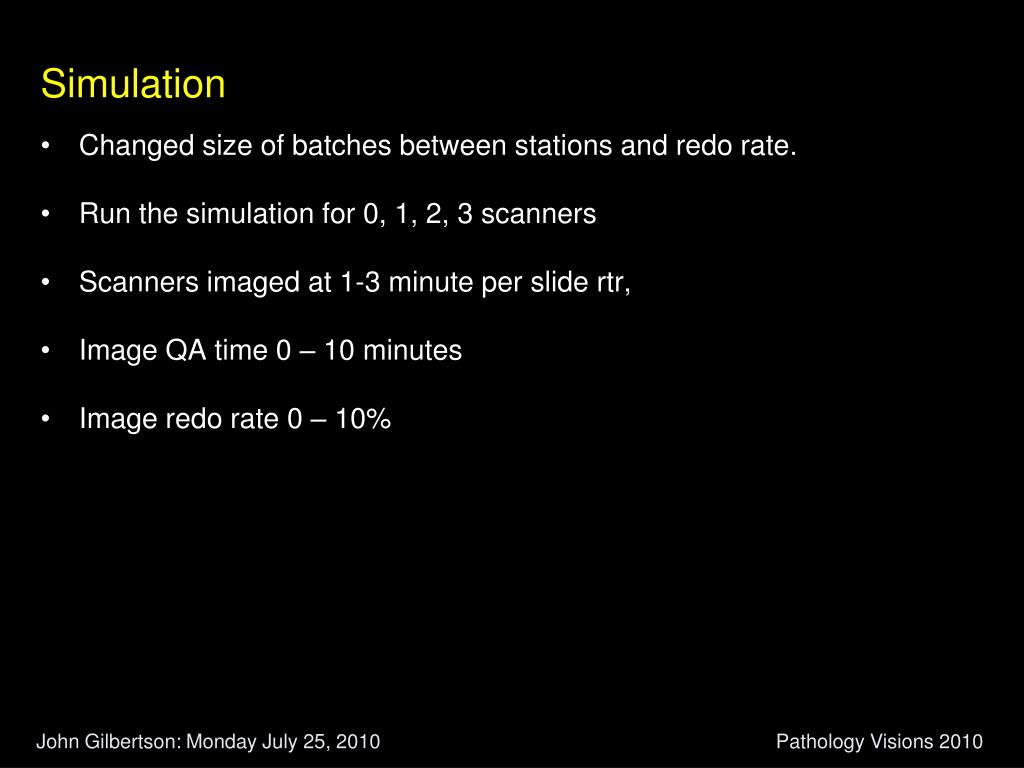

Simulation

  • Changed size of batches between stations and redo rate.

  • Run the simulation for 0, 1, 2, 3 scanners

  • Scanners imaged at 1-3 minute per slide rtr,

  • Image QA time 0 – 10 minutes

  • Image redo rate 0 – 10%

Pathology Visions 2010


The pathology imaging engine histology workflow with wsi

Simulation Results - Not based in reality, but useful…

  • Tidal Effect” (traffic jams) but the simulation did not “stop”

  • Batching drives throughput rate – especially in staining/drying

    • Batches of five slides each, allowed two scanners to image 400 slides (~ 600 – 800 minutes of work) while only adding 19 minutes to the run (redo rate = 0, QA time = 0)

  • Case size drives throughput rate

  • Imaging QA time is a major impact throughput rate (scan time + QA time = )

  • Imaging redo kills throughput rate especially at rates above 5% or with large cases

  • Elimination of batching, case reconciliation, low QA time and minimum imaging failures are key

Pathology Visions 2010


The pathology imaging engine histology workflow with wsi

Conclusions

  • Digital slides are potentially powerful tools for pathology. Its gets us on the right side of Moore’s Law

  • Pathology imaging begins in Histology, it requires a stained slide

  • Slide quality impacts image quality and scanner specification: High quality, low variance slide result in high quality, high speed images

  • For large scale clinical WSI to be implemented, WSI must not significantly impact the distribution of slides to the pathologist

  • Preliminary simulations at MGH indicate that both workflow changes (especially minimizing batches) and improved image quality (decreased QA time and redos) are important parameters in maintaining high histology throughput with WSI

  • Computer simulations seems useful in evaluating a large number of process in pathology – especially in conjunction with asset tracking

Pathology Visions 2010


The pathology imaging engine histology workflow with wsi

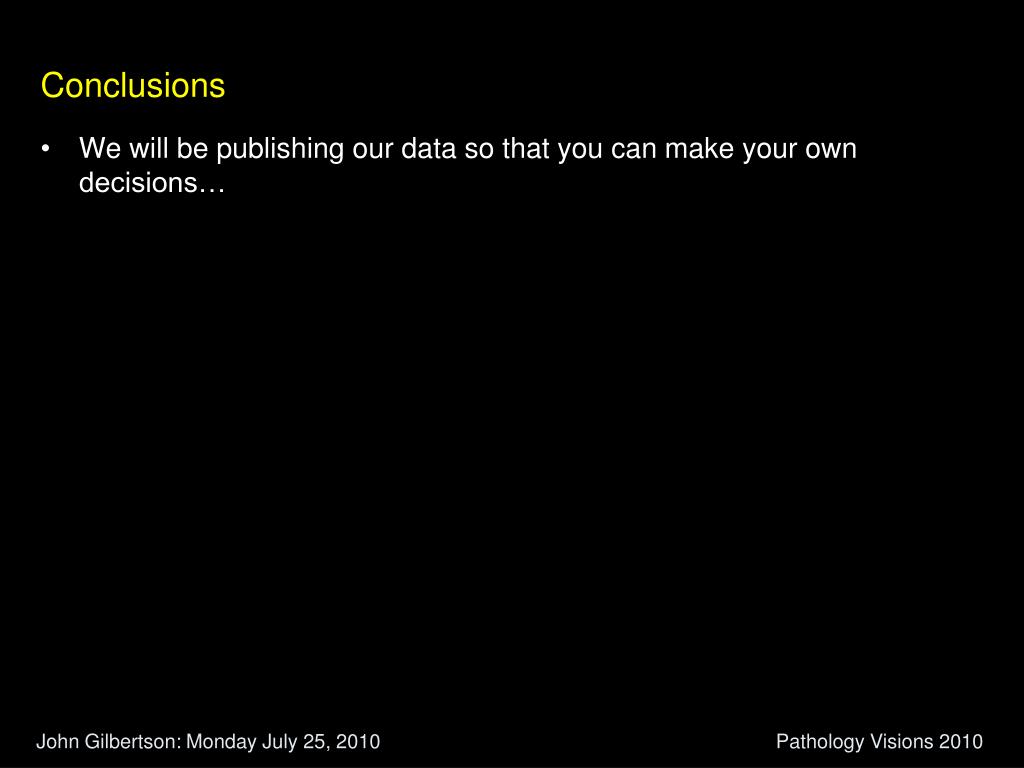

Conclusions

  • We will be publishing our data so that you can make your own decisions…
