2012

ניתוח ועיצוב מערכות תוכנהאביב 2012

שפת אילוצי העצמיםObject Constraints Language

(OCL)


Outline

Outline

  • What is OCL

  • Types of constraints

  • Constraints structure

  • OCL expressions

  • Examples

  • Textbook: Jos Warmer and AnnekeKleppe,“The Object Constraint Language”Available on Google Books


What is ocl

What is OCL

  • It is intended for the specification of additional requirements (constrains) which cannot or be expressed graphically.

    • To specify invariants on classes and types in the class model.

    • To describe pre- and post- conditions on operations.

    • To describe guards.

    • To specify target (sets) for messages and actions.

    • To specify constraints on operations.

    • To specify derivation rules for attributes for any expression over a UML model.


Types of constraints

Types of Constraints

  • An invariant is a constraint that states a condition that must always be met by all instances of the class, type, or interface.

    • An invariant is described using an expression that evaluates to true if the invariant is met.

    • Invariants must be true all the time (Class diagram).

  • A precondition to an operation is a restriction that must be true at the moment that the operation is going to be executed.

    • The obligations are specified by post conditions (Sequential diagram).

  • A postcondition to an operation is a restriction that must be true at the moment that the operation has just ended its execution (Sequential diagram).

  • A guard is a constraint that must be true before a state transition fires (State machine diagram).


Constraints structure

Constraints Structure

contextTypenamec_type[name]:

<OCL–expression>

  • The context is keyword introduces the context for the expression. Each OCL expression is written in the context of an instance of a specific type.

  • Typename is the name of the type or the class for which the invariant constrain applies.

  • c_type is the type of the constrain:

    • invariant, pre/post-condition, guard.

  • [name] – optional, the names of the constraint.

  • OCL - expression should accept value “true” for all instances of Typename.

  • For example:

    • Context Packagename1::class1 inv : …

    • Context class2 inv : …


Basic data types

Basic Data Types

  • Operations above basic types of data (Boolean, Integer, Real, String);


Collections

Collections

  • set : the mathematical set.

    • It is not ordered and does not contain duplicate elements.

  • bag : A container.

    • It is not ordered and contain duplicate elements.

  • sequence : An container.

    • It is ordered and contain duplicate elements.

      collection  asSet() : can be used to convert any collection into a set (remove duplicates).


Implies operator operator

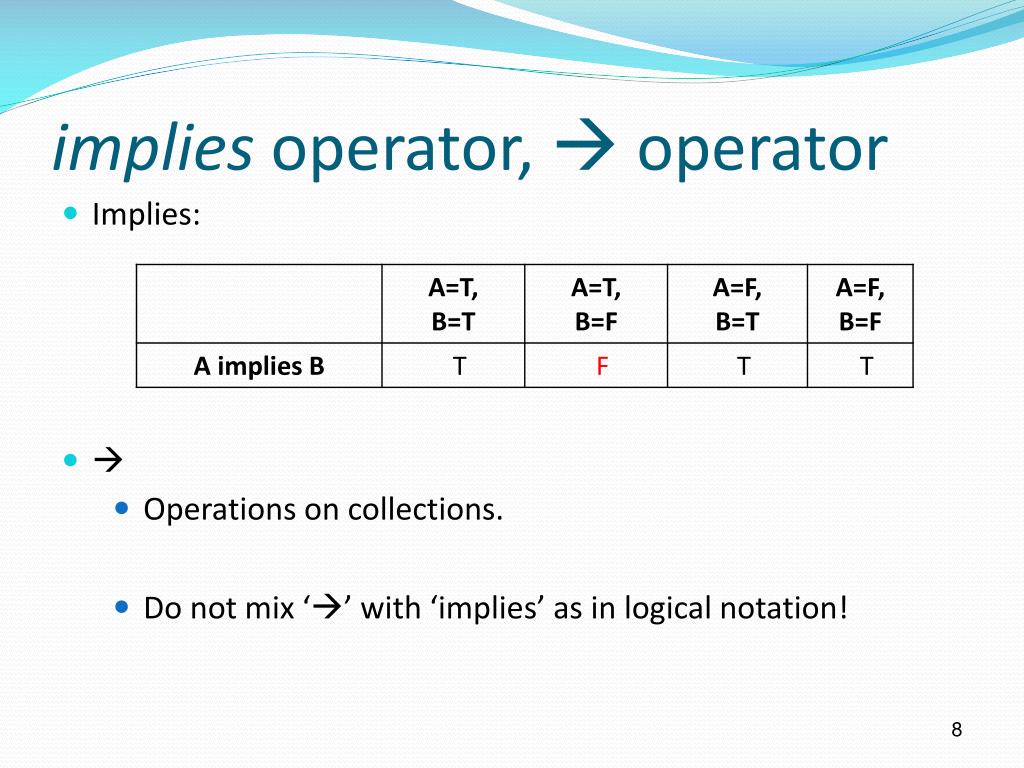

implies operator,  operator

  • Implies:

    • Operations on collections.

    • Do not mix ‘’ with ‘implies’ as in logical notation!


Collection operations

Collection Operations

• <collection> → …

→ isEmpty( )

→ notEmpty ( )

→ exists ( e:T | <b.e.>) isUnique(e:T | <v.e>)

Boolean:→ forAll ( e:T* | <b.e.>) forAll(e:T1,f;T2|<b.e.>)

→ excludes ( object )

→ includes ( object )

→ includesAll ( collection )

→ count ( object )

Numeral:→ size ( )

→ sum ( )

→ select ( e:T | <b.e.>) asSet()

Collections:→ reject ( e:T | <b.e.>)including(object), excluding(object)

→ collect ( e:T | <v.e.>)includingAll(collection), excludingAll(collection)

Generic:→ iterate ( e:T1; r:T2 = <v.e.> | <v.e.>)

• b.e. stands for: boolean expression

• v.e. stands for: value expression

(as seen in the Structural Modeling, Part B lecture (slides 59-60)).


Collection operations select

Collection Operations - Select

select ( e:T | <b.e.>): SQL-like select, returning a sub-collection of the original.

animals select(a:Animal | a.family == “Reptile”)

reject ( e:T | <b.e.>) is select’s complementary operation.

From a collection of animals – to a <= collection of animals!

  • e stands for iterator expression,

  • T stands for type.

  • b.e. stands for: boolean expression

  • v.e. stands for: value expression


Collection operations collect

Collection Operations - Collect

collect ( e:T | <v.e.>): from every member of the collection, take something. Thus this operation might return a collection of different type than the original!

animals collect(a:Animal | a.name)

From a collection of animals– to a collection of strings!

Shorthand Notation:students.studentCard – only in ‘collect’!!!

Alice Bob Carol DaveEve Mallory Peggy VictorTrent Trudy Walter Paul


Ocl expression

OCL – expression

  • Operations above objects:

    <class>.<attribute>

    <class>.<role>.<attribute>

    (preferred)

    <class>.<class name>.<attribute>

  • context Employee inv:

    self.age>17 andself.age<=100

  • context Employee inv:

    self.age>30 orself.workplace.number<5

  • context Department inv:

    self.number<5 orself.employee select(age<=30)size()=0

  • context Department inv:

    self.employeeexist(job=“manager”) andself.company.year<=self.year

  • context Company inv:

    self.department.employeeforAll(age<=67)

  • Operations above collections:

    <collection>→<operation>

  • דוגמאות:

  • גיל העובדים חייב להיות בין 18 ל- 100

  • גיל מינימלי של העובדים במחלקות 5 ומעלה חייב להיות לפחות 31.

  • לכל מחלקה חייב להיות "מנהל" ושנת הקמת המחלקה לא מוקדם משנת הקמת החברה

  • פנסיונרים לא מועסקים בחברה


Example 1 treating collections as instances enumerations

Example 1: treating collections as instances, enumerations

  • If a person has a wife, she must be female and the person must be male.

  • context Person inv:

    WifenotEmpty() implies

    (wife.gender=Gender::female and self.gender=Gender::male)

    //note: after a collection has been validated to be of size 1, it can be treated as an instance!

  • If a person has a husband, he must be male and the person must be female.

  • context Person inv:

    HusbandnotEmpty() implies

    (husband.gender=Gender::male and self.gender=Gender::female)


Example 1 cont

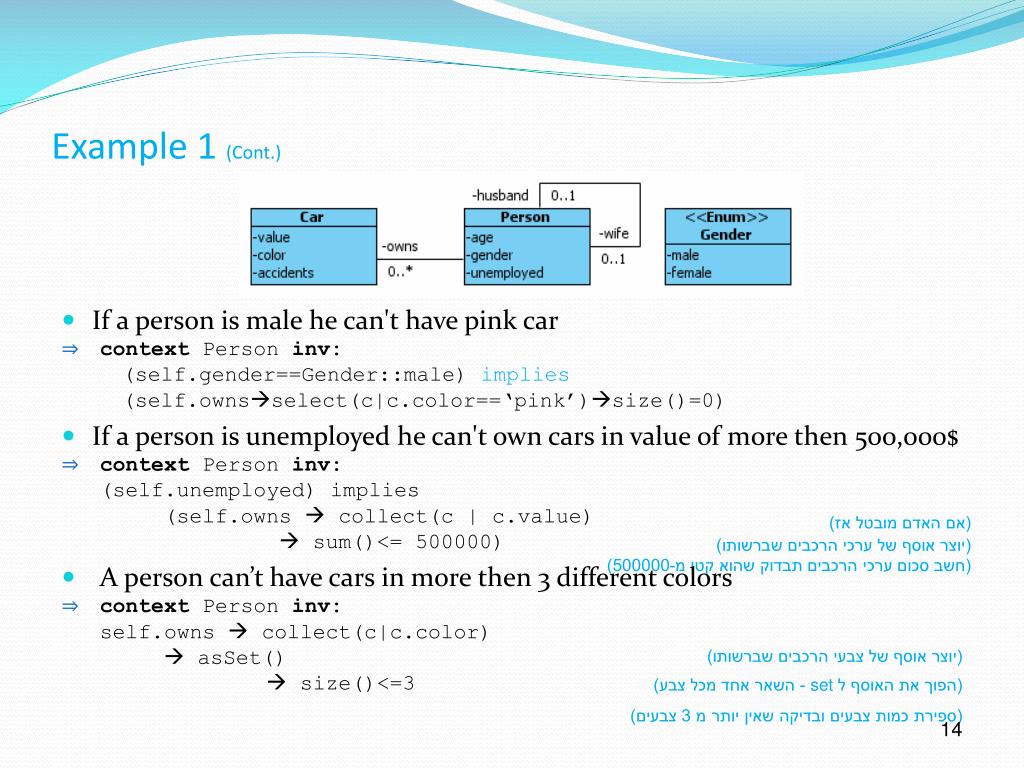

Example 1 (Cont.)

  • If a person is male he can't have pink car

  • context Person inv:

    (self.gender==Gender::male) implies

    (self.ownsselect(c|c.color==‘pink’)size()=0)

  • If a person is unemployed he can't own cars in value of more then 500,000$

  • context Person inv:

    (self.unemployed) implies

    (self.owns collect(c | c.value)

     sum()<= 500000)

  • A person can’t have cars in more then 3 different colors

  • context Person inv:

    self.owns  collect(c|c.color)

    asSet()

     size()<=3

(אם האדם מובטל אז)

(יוצר אוסף של ערכי הרכבים שברשותו)

(חשב סכום ערכי הרכבים תבדוק שהוא קטן מ-500000)

(יוצר אוסף של צבעי הרכבים שברשותו)

(הפוך את האוסף ל set - השאר אחד מכל צבע)

(ספירת כמות צבעים ובדיקה שאין יותר מ 3 צבעים)


Example 1 cont1

Example 1 (Cont.)

  • A person between the age of 0 to 18 can’t own a yellow car while person between the age of 18 and 21 can own one yellow car at most and a person older then 21 can own as many yellow cars as he like.

  • context Person inv:

    let amountOfYellowCars : Integer =

    self.ownsselect(c:Car | c.color = “yellow”)size()

    in

    if (self.age < 18) then(amountOfYellowCars = 0)

    else if (self.age < 21) then (amountOfYellowCars <= 1)

    else true

    endif

    endif


Example 2

Example 2

  • The sum of the values of all securities must be at least 20% more than the amount of the credit.

  • context Credit invsufficientSecurities:

    securities.Value  sum()>self.Amount * 1.2

  • A credit of a given customer can only be secured by securities that are owned by the given customer. (הלוואה של לקוח נתון מאובטחת רק ע"י ערבויות ששייכות לאותו הלקוח )

  • context Credit invonlyOwnedSecurities:

    securities.ownerforAll(aa:Customer|aa = self.customer)

    • aa is instance of owner!!!!


Instance and type operations

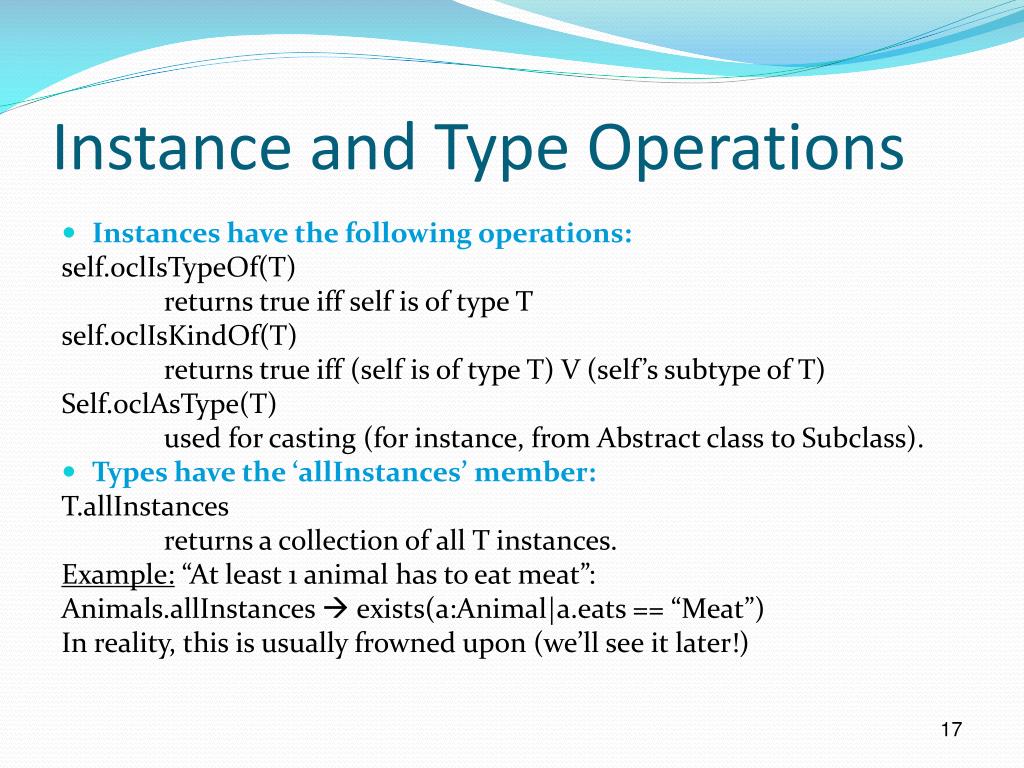

Instance and Type Operations

  • Instances have the following operations:

    self.oclIsTypeOf(T)

    returns true iff self is of type T

    self.oclIsKindOf(T)

    returns true iff (self is of type T) V (self’s subtype of T)

    Self.oclAsType(T)

    used for casting (for instance, from Abstract class to Subclass).

  • Types have the ‘allInstances’ member:

    T.allInstances

    returns a collection of all T instances.

    Example: “At least 1 animal has to eat meat”:

    Animals.allInstances exists(a:Animal|a.eats == “Meat”)

    In reality, this is usually frowned upon (we’ll see it later!)


Example 3 allinstances type checks recursion

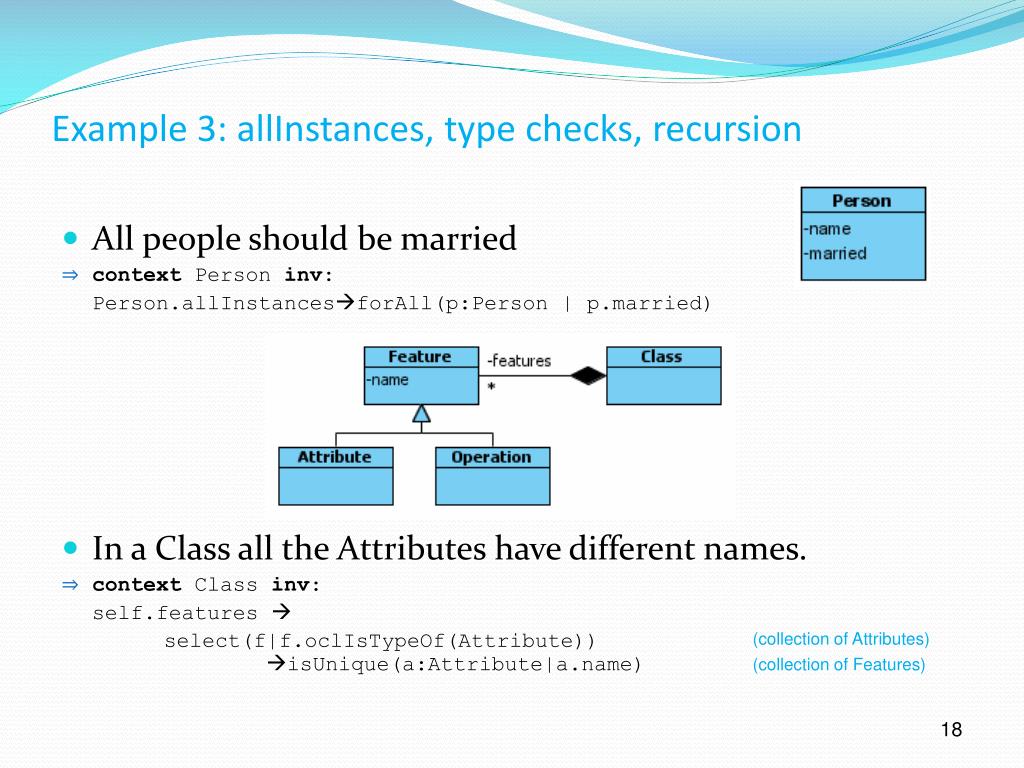

Example 3: allInstances, type checks, recursion

  • All people should be married

  • context Person inv:

    Person.allInstancesforAll(p:Person | p.married)

  • In a Class all the Attributes have different names.

  • context Class inv:

    self.features

    select(f|f.oclIsTypeOf(Attribute))isUnique(a:Attribute|a.name)

(collection of Attributes)

(collection of Features)


Association class

Association Class

*

  • Navigate to an association class:

    • If the context is Teacher, you could navigate to the association class with the expression: self.Room.

    • This expression would result in a collection of all the room assignments for all the courses to which the teacher is assigned.

  • Navigate from an association class to either end of the association:

    • Starting with a context of the Room class, the expressions: self.instructor self.course is valid.

    • Navigating from an association class always results in a single object.


Example 4 train

Example 4 - Train

  • All trains must own at least one wagon

  • context Train invatLeastOneWagon:self.wagon  size() >= 1

  • A wagon and its successor wagon should belong to the same train

  • context Wagon invbelongToTheSameTrain:self.succ  notEmpty() implies self.succ.train = self.train

  • All the trains will have the same number of wagons

  • context Train invsameNumberOfWagons:Train.allInstances  forAll(x:Train,y:Train | x.wagonsize() = y.wagonsize() )


Example 4 train1

Example 4 - Train

  • There do not exists two different wagons directly linked to each other in a cyclic way

  • not necessary : consider two wagon instances w1,w2.

  • If these two instances are linked with an ‘Order’ link, one has to assume the role of ‘succ’ and the second must assume the role of ‘pred’ – two can’t close a cycle!

  • But how do you prevent a cycle of > 2 wagons?

  • Context Train invNoCycles:

    Wagoncollect(w | w.succ)size() = Wagon.size()-1

    Will this work?


2012

Advanced Topics in OCL

  • Types and Subtypes via oclIsTypeOf and oclIsKindOf


2012

Advanced Topics in OCL


2012

Advanced Topics in OCL


2012

Advanced Topics in OCL

  • Preconditions, Postconditions, Operations (sic, p.155)

  • Navigation into class method using ‘::’

  • post : result = participants  This is how we define the result!

  • Keywords: <attribute>@pre , pre , post , result .


2012

Advanced Topics in OCL

  • Avoid allInstances (Warmer and Kleppe, p.67)

    “A Person has no more than 2 parents:”

    context Person

    Inv: parents  size() <= 2

    context Person

    Inv: Person.allInstancesforAll(p:Person|p.parentssize()<= 2)

    “The use of allInstances is discouraged, because it makes the invariant more complex [even to the point of hiding it.]...

    “In most systems... It is difficult to find all instances of a class. Unless an explicit tracking device keeps a record of all instances of a certain class as they are created and deleted, there is no way to find them. Thus, there is no way to implement the invariant using a programming language equivalent to the allInstances operation.


2012

Advanced Topics in OCL

And this is just the beginning...

  • Handling message-passing between objects

  • Tuples and Tuple Types

  • Unvefined Values: the OclVoid type

  • Retyping or Casting

    Unfortunately, these along with many other

    OCL features are out of the scope of

    our course.
