  1. Responsible Renewable Recyclable Thomas Parker October 2013

  2. What is the European Spallation Source ? • One of Europe's largest planned research infrastructure • Will bring new insights to the grand challenges of science and innovation • Collaborative project: Includes more than 17 countries • 2014: Start of construction phase of the world's most powerful linear proton accelerator • 2019: Provide the world's most advanced tools for studying materials with neutrons • (~ 450 employees; > 2500 users / year) Europe 2019: The European Spallation Source (<5 MW) Lund, Sweden USA 2006: SNS(<1.4 MW) Japan 2008: JPARC (<1MW)

  3. The main contribution from ESS to a more sustainable society is the science Neutrons for Energy Research Energy Storage Carbon Capture and Storage Photovoltaics Extreme Materials Superconduction Photosynthesis Fuel Cells

  4. The Scandinavian Commitment: A Sustainable Research Centre • Responsible • Energy Efficiency • Renewable • Power from renewable sources • Recyclable • ESS’s cooling is Lund’s heating

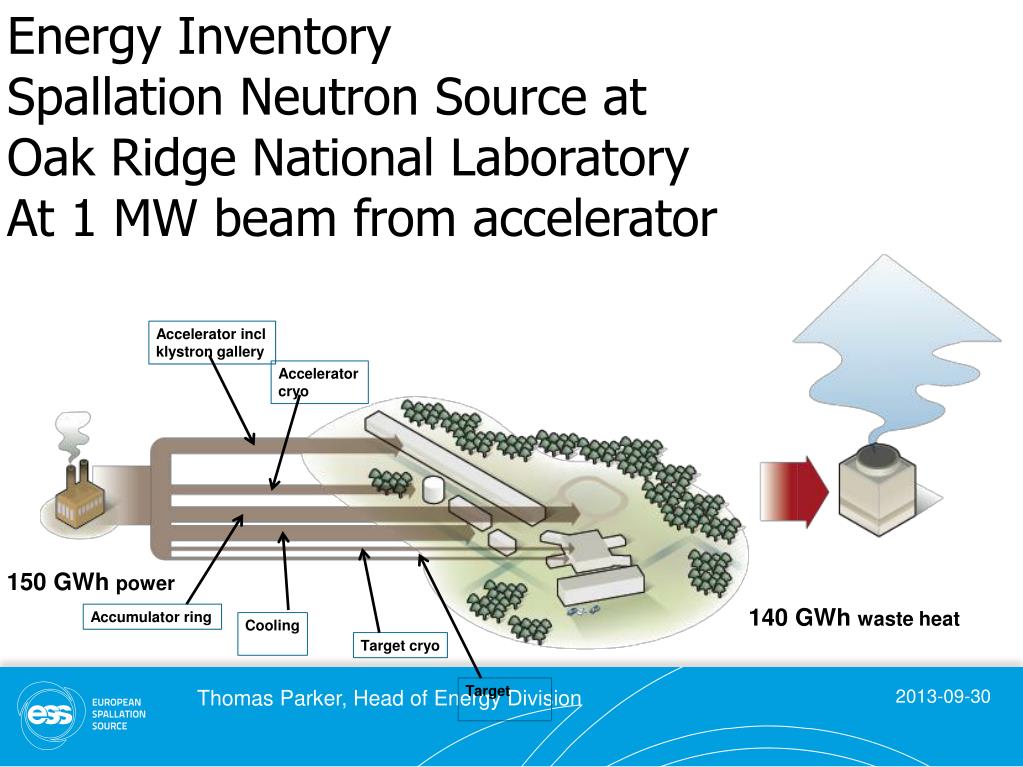

  5. Energy Inventory Spallation Neutron Source at Oak Ridge National Laboratory At 1 MW beam from accelerator Accelerator incl klystron gallery Accelerator cryo 150 GWh power 140 GWh waste heat Accumulator ring Cooling Target cryo Target

  6. Energy Inventory ESS Pan-European Project 2002 5 MW beam on target Accelerator incl klystron gallery Coolling Accelerator cryogenics Accumulator- ring 610 GWh power Target Station 580 GWh waste heat Target cryogenics

  7. Energy Inventory ESS 2012, 5 MW Instruments Accelerator incl klystron gallery Ion Source Target Cryo Cooling Target station Accelerator Cryogenics 270 GWh renewable power 20°C 40°C 90°C 200 GWh recycled

  8. Responsible – Renewable – Recyclable Responsible CO2: - 30 000 t. Renewable CO2: -120 000 t. Recyclable CO2: - 15 000 t.

  9. High-temperature cooling Klystrons Helium Compressors

  10. Open Call for heat recycling solutions Recycle heat without using electricity Open now!

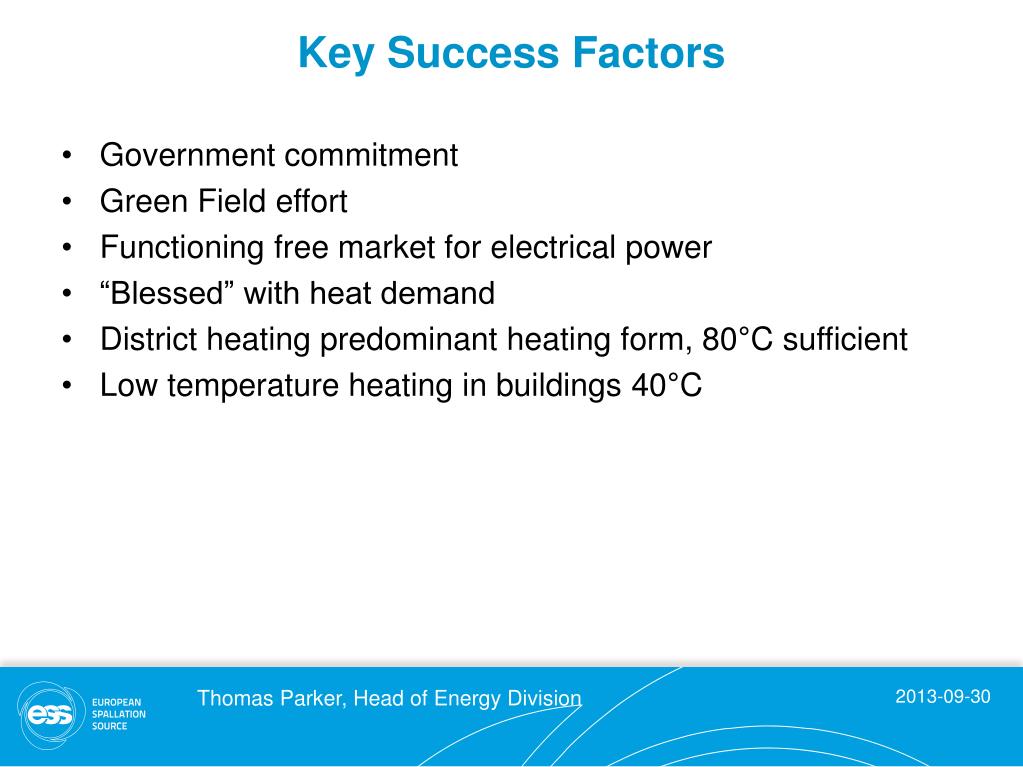

  11. Key Success Factors • Government commitment • Green Field effort • Functioning free market for electrical power • “Blessed” with heat demand • District heating predominant heating form, 80°C sufficient • Low temperature heating in buildings 40°C

  12. Conclusions • The energy strategy Responsible Renewable Recyclable was instrumental in winning ESS • “Responsible, Renewable, Responsible” is neither perfect nor universal, but is being implemented and will be a benchmark for future development. • Attention to temperature in design of machine and buildings • Collaboration is a key success factor. • Innovation is a requirement.

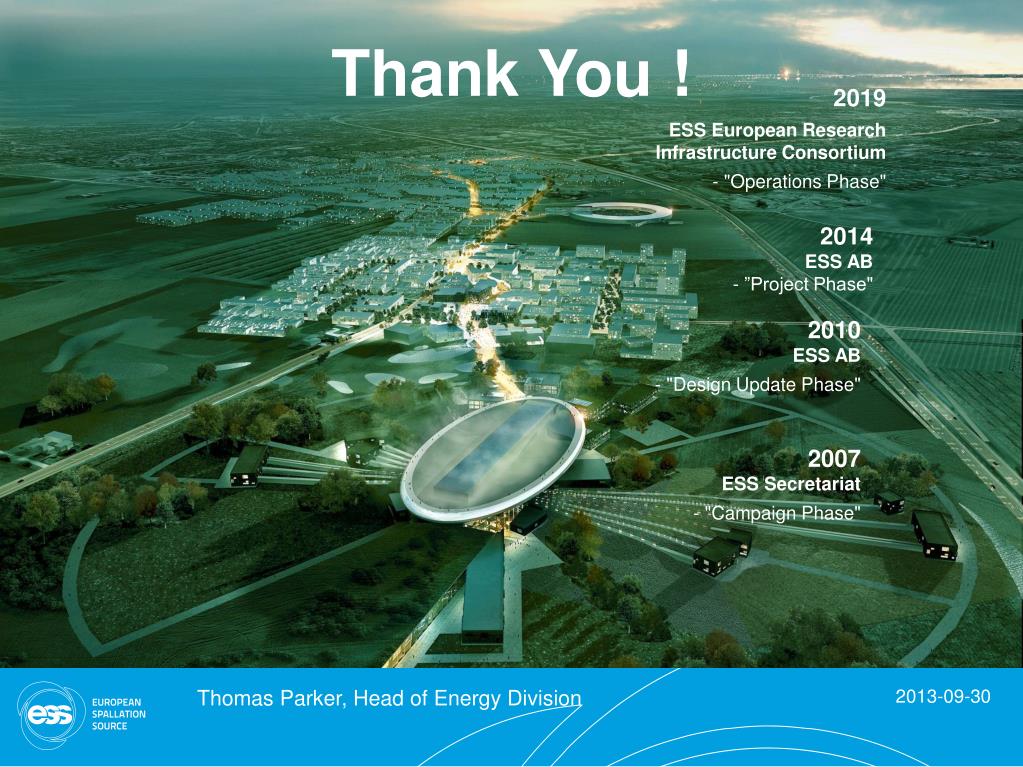

  13. Thank You ! 2019 ESS European Research Infrastructure Consortium - "Operations Phase" 2014 ESS AB- ”Project Phase" 2010 ESS AB - "Design Update Phase" 2007 ESS Secretariat - "Campaign Phase"
