  1. Project 3 Creating Web Pages with Links, Images, and Formatted Text

  2. Project Objectives • Create a home page and enhance a Web page using images • Use absolute and relative paths • Align and add bold, italics, and color to text • Change the bullet type used in an unordered list • Add a background image • Add a text link to a Web page in the same Web site • Add an e-mail link • Add an image with wrapped text • Add links to targets within a Web page Project 3: Creating Web Pages with Links, Images, and Formatted Text

  3. Entering HTML Tags to Define the Web Page Structure <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd"> <html> <head> <title>Plant World Homepage</title> </head> <body> </body> </html> Project 3: Creating Web Pages with Links, Images, and Formatted Text

  4. Adding an Image <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd"> <html> <head> <title>Plant World Homepage</title> </head> <body> <img src="plantworldlg.jpg“ width="720“ height="84“ alt="Plant World logo" /> </body> </html> Project 3: Creating Web Pages with Links, Images, and Formatted Text

  5. Adding a Left-Aligned Heading with a Font Color <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd"> <html> <head> <title>Plant World Homepage</title> </head> <body> <img src="plantworldlg.jpg“ width="720“ height="84“ alt="Plant World logo" /> <h1><font color="#000066">Welcome to Plant World!</font></h1> </body> </html> Project 3: Creating Web Pages with Links, Images, and Formatted Text

  6. Entering a Paragraph of Text <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd"> <html> <head> <title>Plant World Homepage</title> </head> <body> <img src="plantworldlg.jpg“ width="720“ height="84“ alt="Plant World logo" /> <h1><font color="#000066">Welcome to Plant World!</font></h1> <p>For the finest in indoor and outdoor plants,…</p> </body> </html> Project 3: Creating Web Pages with Links, Images, and Formatted Text

  7. Creating Unordered (Bulleted) Lists ….. <p>For the finest in indoor and outdoor plants,…</p> <h2> Our company</h2> <ul type = "square"> <li>Founded in 1989 by Margaret Anne Coles</li> <li>Headquartered in Surprise, Arizona</li> <li>25 store locations throughout the Southwest</li> </ul> <h2> Our Services</h2> <ul type = "square"> <li>Residential and commercial landscaping</li> <li>Plant and lawn maintenance</li> <li>online information for all varieties of plants</li> </ul> </body> </html> Project 3: Creating Web Pages with Links, Images, and Formatted Text

  8. Adding a Background Image <html> <head> <title>Plant World Homepage</title> </head> <body > <img src="plantworldlg.jpg“ width="720“ height="84“ alt="Plant World logo" /> <h1><font color="#000066">Welcome to Plant World!</font></h1> <p>For the finest in indoor and outdoor plants,…</p> <h2> Our company</h2> <ul type = "square"> … </ul> </body> </html> Project 3: Creating Web Pages with Links, Images, and Formatted Text

  9. Adding a Background Image <html> <head> <title>Plant World Homepage</title> </head> <body background=“greyback.jpg” > <img src="plantworldlg.jpg“ width="720“ height="84“ alt="Plant World logo" /> <h1><font color="#000066">Welcome to Plant World!</font></h1> <p>For the finest in indoor and outdoor plants,…</p> <h2> Our company</h2> <ul type = "square"> … </ul> </body> </html> Project 3: Creating Web Pages with Links, Images, and Formatted Text

  10. Adding a Text Link to Another Web Page within the Same Web Site <html> <head> <title>Plant World Homepage</title> </head> <body background=“greyback.jpg” > <img src="plantworldlg.jpg“ width="720“ height="84“ alt="Plant World logo" /> <h1><font color="#000066">Welcome to Plant World!</font></h1> <p>For the finest in indoor and outdoor plants,…</p> <h2> Our company</h2> <ul type = "square"> … </ul> <p>To learn more about the Plant World products and services.. this month's featured desert plants, …</p> </body> </html> Project 3: Creating Web Pages with Links, Images, and Formatted Text

  11. Adding a Text Link to Another Web Page within the Same Web Site <html> <head> <title>Plant World Homepage</title> </head> <body background=“greyback.jpg” > <img src="plantworldlg.jpg“ width="720“ height="84“ alt="Plant World logo" /> <h1><font color="#000066">Welcome to Plant World!</font></h1> <p>For the finest in indoor and outdoor plants,…</p> <h2> Our company</h2> <ul type = "square"> … </ul> <p>To learn more about the Plant World products and services.. this month's featured <a href="desertplants.htm"> desert plants</a>, …</p> </body> </html> Project 3: Creating Web Pages with Links, Images, and Formatted Text

  12. Adding an E-Mail Link <html> <head> <title>Plant World Homepage</title> </head> <body background=“greyback.jpg” > <img src="plantworldlg.jpg“ width="720“ height="84“ alt="Plant World logo" /> <h1><font color="#000066">Welcome to Plant World!</font></h1> <p>For the finest in indoor and outdoor plants,…</p> <h2> Our company</h2> <ul type = "square"> … </ul> <p>To learn more about the Plant World products and services.. this month's featured <a href="desertplants.htm"> desert plants</a>, …</p> <p>Have a question or comment? Call us at (206) 555-PLANT or e-mail us at plantworld@isp.com. </p> </body> </html> Project 3: Creating Web Pages with Links, Images, and Formatted Text

  13. Adding an E-Mail Link <html> <head> <title>Plant World Homepage</title> </head> <body background=“greyback.jpg” > <img src="plantworldlg.jpg“ width="720“ height="84“ alt="Plant World logo" /> <h1><font color="#000066">Welcome to Plant World!</font></h1> <p>For the finest in indoor and outdoor plants,…</p> <h2> Our company</h2> <ul type = "square"> … </ul> <p>To learn more about the Plant World products and services.. this month's featured <a href="desertplants.htm"> desert plants</a>, …</p> <p>Have a question or comment? Call us at (206) 555-PLANT or e-mail us at <a href="mailto:plantworld@isp.com">plantworld@isp.com</a>. </p> </body> </html> Project 3: Creating Web Pages with Links, Images, and Formatted Text

  14. Formatting Text in Bold <p>For the finest in indoor and outdoor plants,…</p> Project 3: Creating Web Pages with Links, Images, and Formatted Text

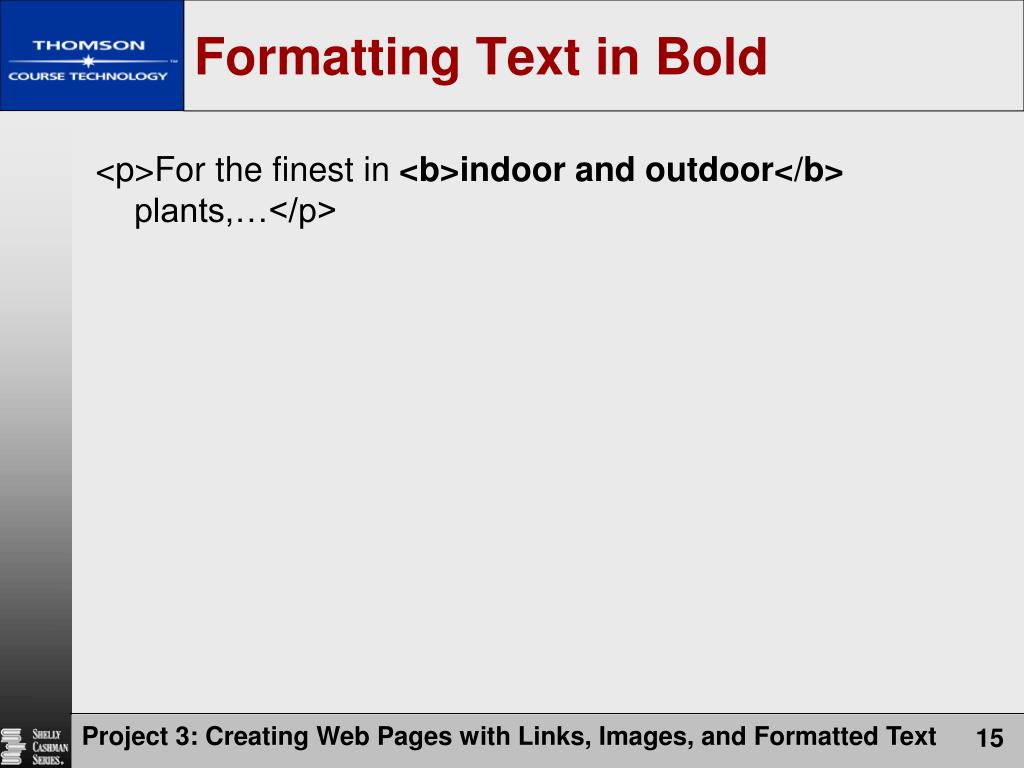

  15. Formatting Text in Bold <p>For the finest in <b>indoor and outdoor</b> plants,…</p> Project 3: Creating Web Pages with Links, Images, and Formatted Text

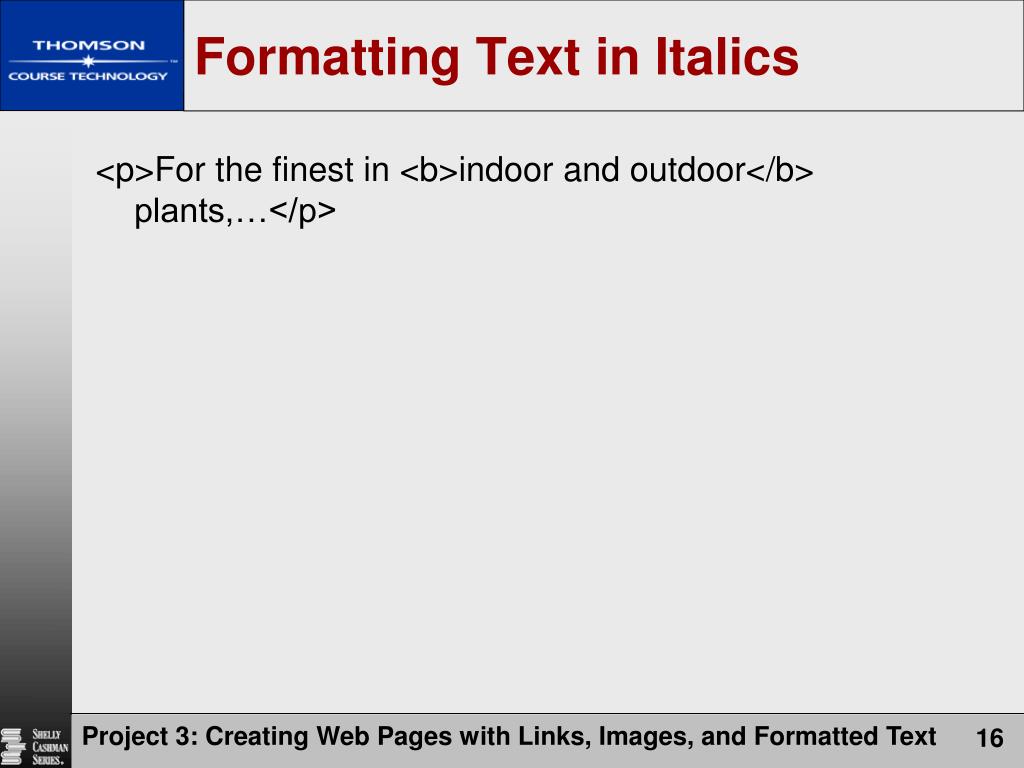

  16. Formatting Text in Italics <p>For the finest in <b>indoor and outdoor</b> plants,…</p> Project 3: Creating Web Pages with Links, Images, and Formatted Text

  17. Formatting Text in Italics <p>For the finest in <b><em>indoor</em> and outdoor</b> plants,…</p> Project 3: Creating Web Pages with Links, Images, and Formatted Text

  18. Formatting Text with a Font Color <li>Founded in 1989 by Margaret Anne Coles</li> Project 3: Creating Web Pages with Links, Images, and Formatted Text

  19. Formatting Text with a Font Color <li> <font color="#000099"> Founded in 1989 by Margaret Anne Coles</ font ></li> Project 3: Creating Web Pages with Links, Images, and Formatted Text

  20. Adding an Image with Wrapped Text <a name="agaveamericana"></a><font size="+1">Agave Americana</font> <img src="agave.jpg" align=“left" alt= "Agave" width="212" height="203" /> Project 3: Creating Web Pages with Links, Images, and Formatted Text

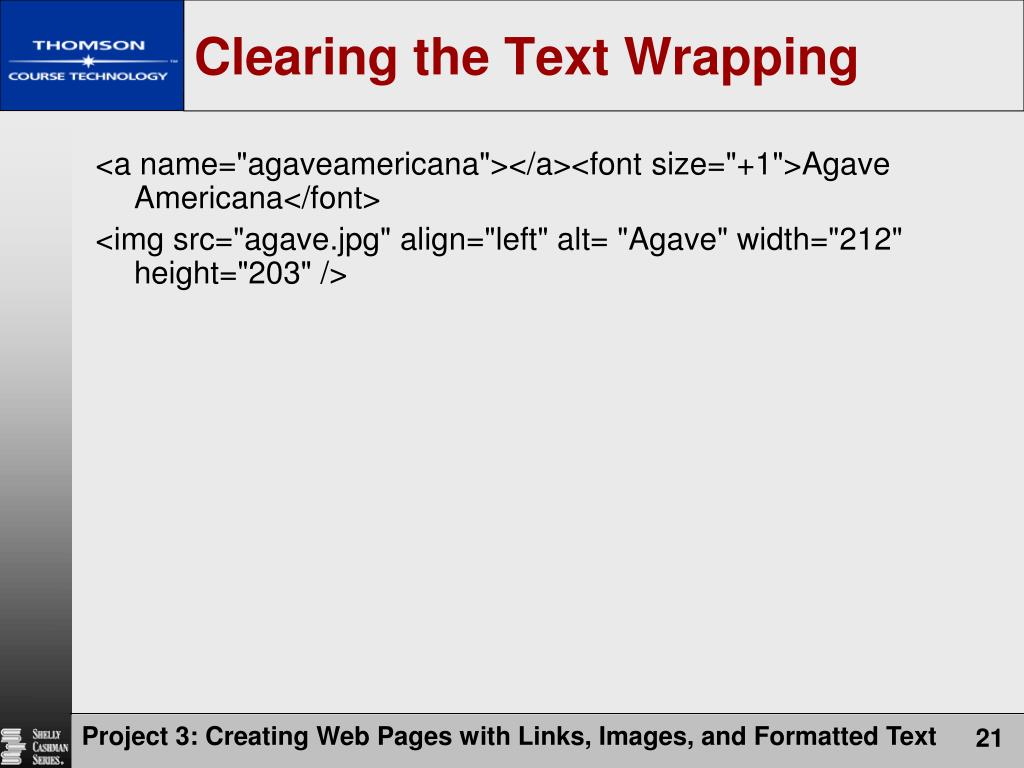

  21. Clearing the Text Wrapping <a name="agaveamericana"></a><font size="+1">Agave Americana</font> <img src="agave.jpg" align="left" alt= "Agave" width="212" height="203" /> Project 3: Creating Web Pages with Links, Images, and Formatted Text

  22. Clearing the Text Wrapping <a name="agaveamericana"></a><font size="+1">Agave Americana</font> <img src="agave.jpg" align="left" alt= "Agave" width="212" height="203" /> <br clear="left" /> Project 3: Creating Web Pages with Links, Images, and Formatted Text

  23. Adding a Text Link to a Web Page in Another Web Site <p>To find out more information about desert plants, visit the <a href="http://www.desertmuseum.org">Arizona-Sonora Desert Museum</a>.</p> </body> Project 3: Creating Web Pages with Links, Images, and Formatted Text

  24. Setting Link Targets <a name="agaveamericana"></a><font size="+1">Agave Americana</font> (already created) Project 3: Creating Web Pages with Links, Images, and Formatted Text

  25. Adding Links to Link Targets within a Web Page • Go to top (or anyplace which is far from the target) and type <a href="#agaveamericana"> Agave Americana </a> and then press the ENTER key Project 3: Creating Web Pages with Links, Images, and Formatted Text

  26. Project 3 Complete Creating Web Pages with Links, Images, and Formatted Text
