Quality driven conformance checking in product line architectures

Quality-DrivenConformance Checking in Product Line Architectures

Femi Olumofin and Vojislav B. Mišić

University of Manitoba

Winnipeg, MB, Canada


Outline

OUTLINE

  • INTRODUCTION

  • CHALLENGES

  • VARIATION POINT CONCEPTS USAGE

  • OPEN ISSUES

#2


Outline1

Outline

  • Introduction

  • Challenges

  • Variation Point Concepts Usage

  • Open Issues

#3


Introduction

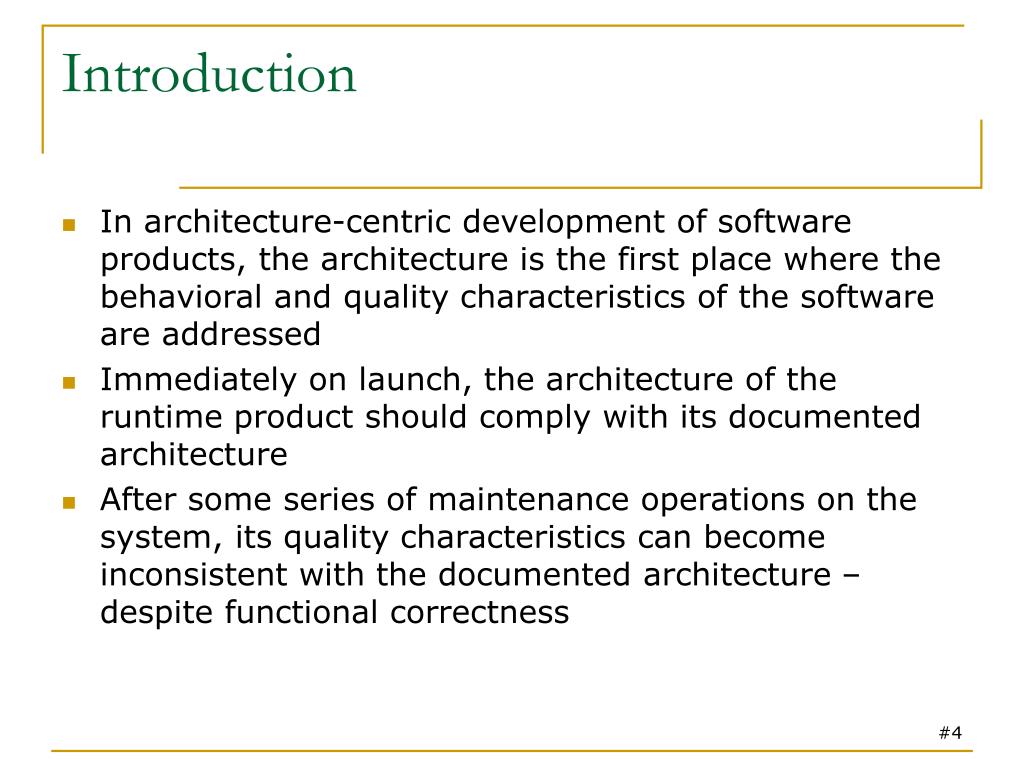

Introduction

  • In architecture-centric development of software products, the architecture is the first place where the behavioral and quality characteristics of the software are addressed

  • Immediately on launch, the architecture of the runtime product should comply with its documented architecture

  • After some series of maintenance operations on the system, its quality characteristics can become inconsistent with the documented architecture – despite functional correctness

#4


Reengineering

Reengineering

  • Architecture reengineering (or reverse engineering):a technique for recovering the architecture of a system from its runtime image

  • Reconstruction once again ensures that the documented (or as-designed) architecture is consistent with the runtime (or as-built) architecture

  • The key question: How can reengineering techniques be used to construct a product line architecture from existing products and legacy applications?

#5


Reengineering towards product line

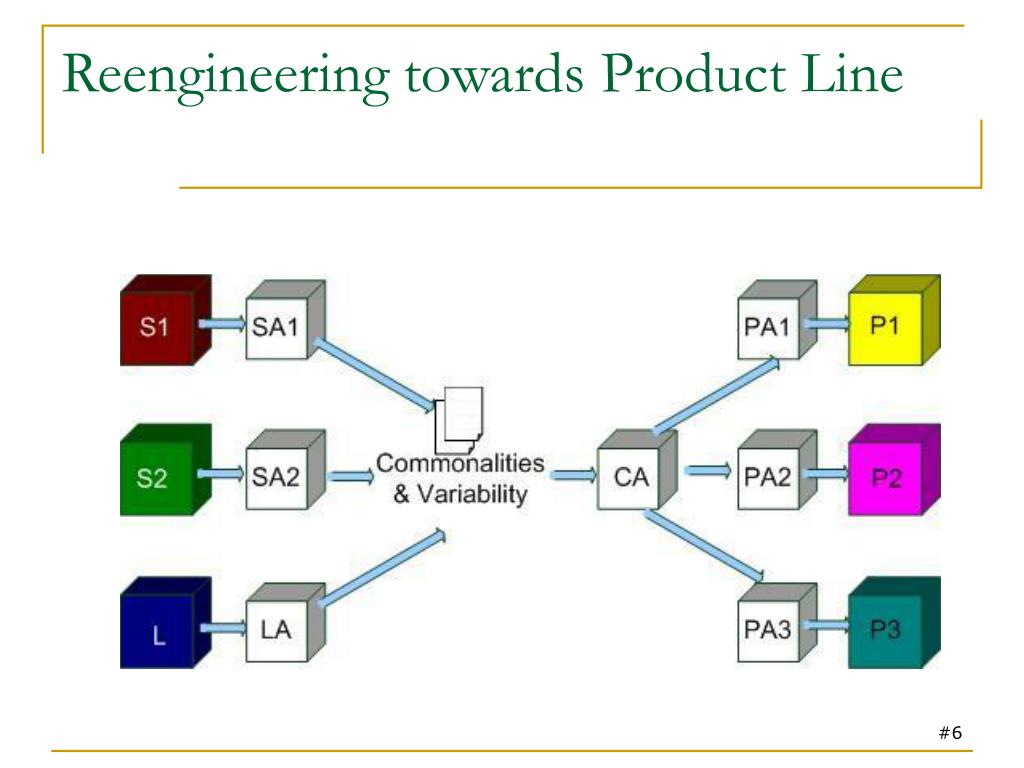

Reengineering towards Product Line

#6


Outline2

Outline

  • Introduction

  • Challenges

  • Variation Point Concepts Usage

  • Open Issues

#7


Quality driven conformance checking

Quality-Driven Conformance Checking

  • A product architecture (PA) should remain consistent with the common architecture (CA)

  • The only exception is when the development of a product architecture involves an overlap of a variation point with a sensitivity point

  • The quality attributes allowed for in the CA can only become degraded by design decisions of the PA at these points; point of transforming variation point into product variants

  • How do we use this insight to ensure quality conformance of a PA to those of the CA?

#8


Challenges

Challenges

  • How to extract the commonalities and variability from existing system architectures and legacy architectures?

  • Once the product architectures have been created, how to ensure they remain in consistent (in terms of quality attributes) with the common architecture?

#9


Quality driven conformance checking1

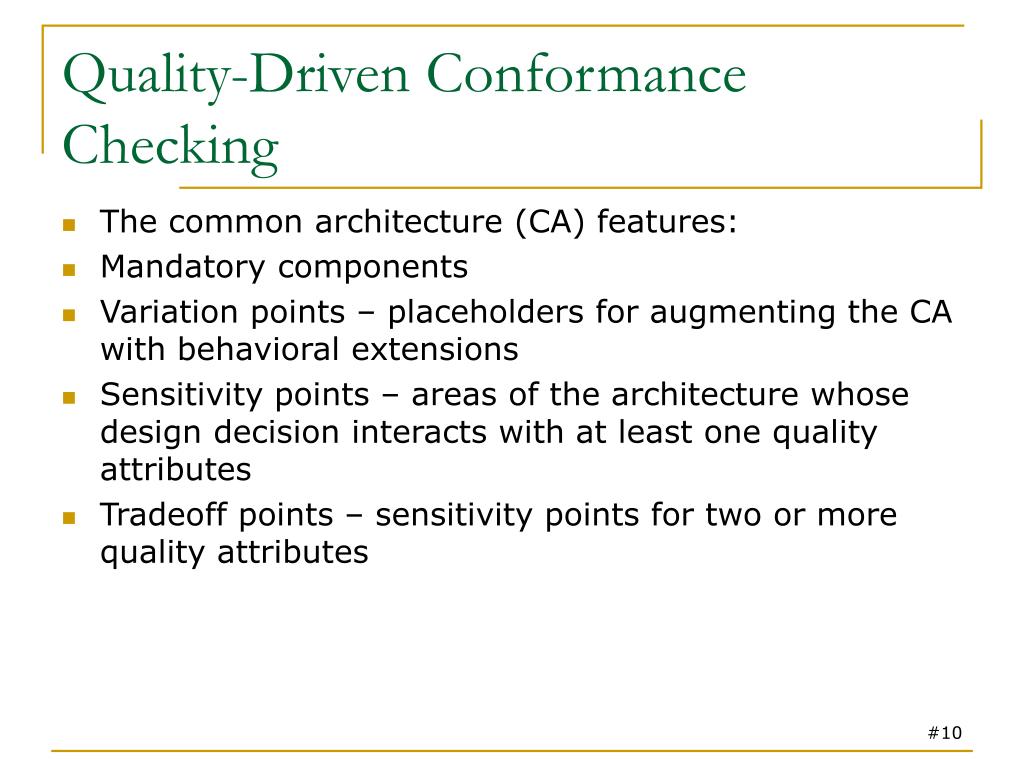

Quality-Driven Conformance Checking

  • The common architecture (CA) features:

  • Mandatory components

  • Variation points – placeholders for augmenting the CA with behavioral extensions

  • Sensitivity points – areas of the architecture whose design decision interacts with at least one quality attributes

  • Tradeoff points – sensitivity points for two or more quality attributes

#10


Outline3

Outline

  • Introduction

  • Challenges

  • Variation Point Concepts Usage

  • Open Issues

#11


Evolvability points

Evolvability points

  • We use the concept of evolvability points

  • Evolvability point: an area of the architecture which is a sensitivity point and, at the same time, contains at least one variation point

  • We accompany each evolvability point in the CA with appropriate constraint and/or guideline (or several of them) which are utilized to guide subsequent PA design decisions and conformance checking

#12


Example

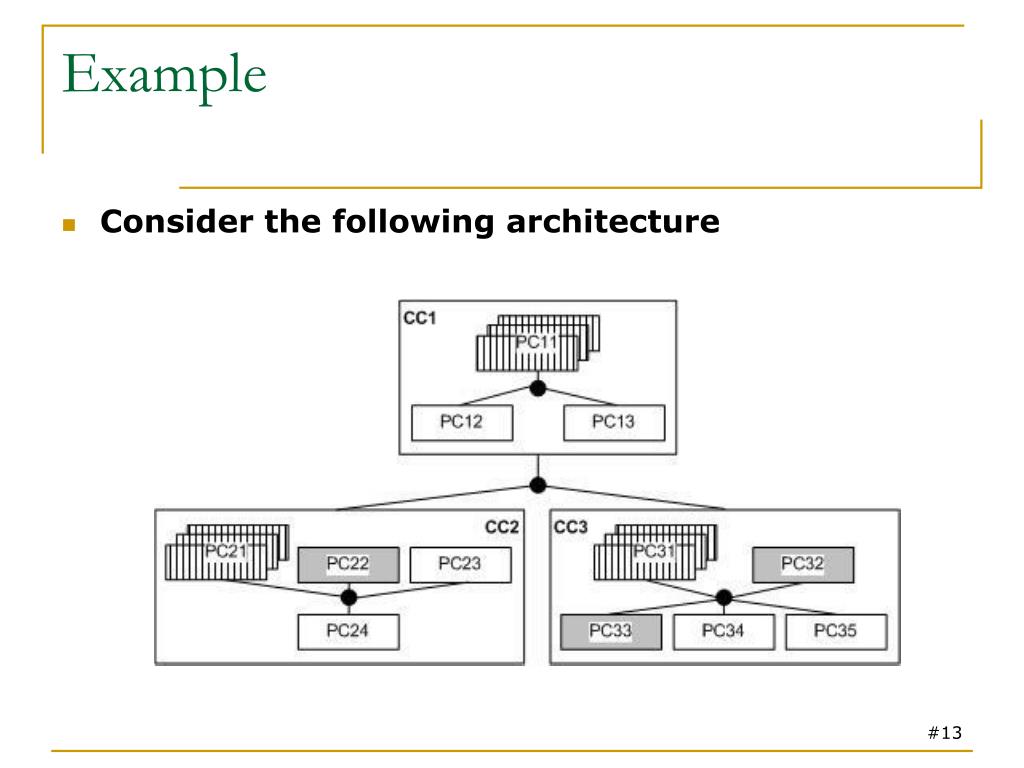

Example

  • Consider the following architecture

#13


Example1

Example

  • Primitive components: mandatory (unshaded), alternatives (vertically striped) and optional (shaded)

  • Complex (or composite) components CC1, CC2, CC3

  • Assuming that

    • sensitivity points are located in some of the components; and

    • performance and availability are the two quality goals of highest priority

  • We shall consider two scenarios:

    • Scenario 1: the architecture is taken to be a product architecture (PA)

    • Scenario 2: the architecture is taken to be the common architecture (CA)

#14


Scenario 1 architecture is a pa

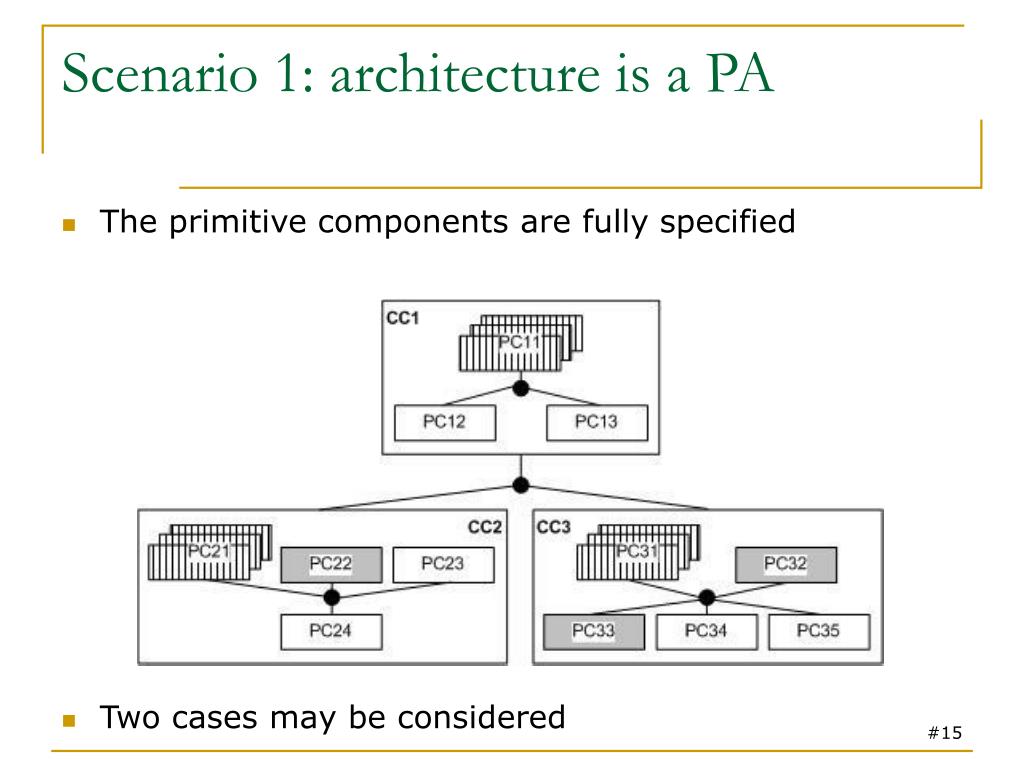

Scenario 1: architecture is a PA

  • The primitive components are fully specified

  • Two cases may be considered

#15


Scenario 1

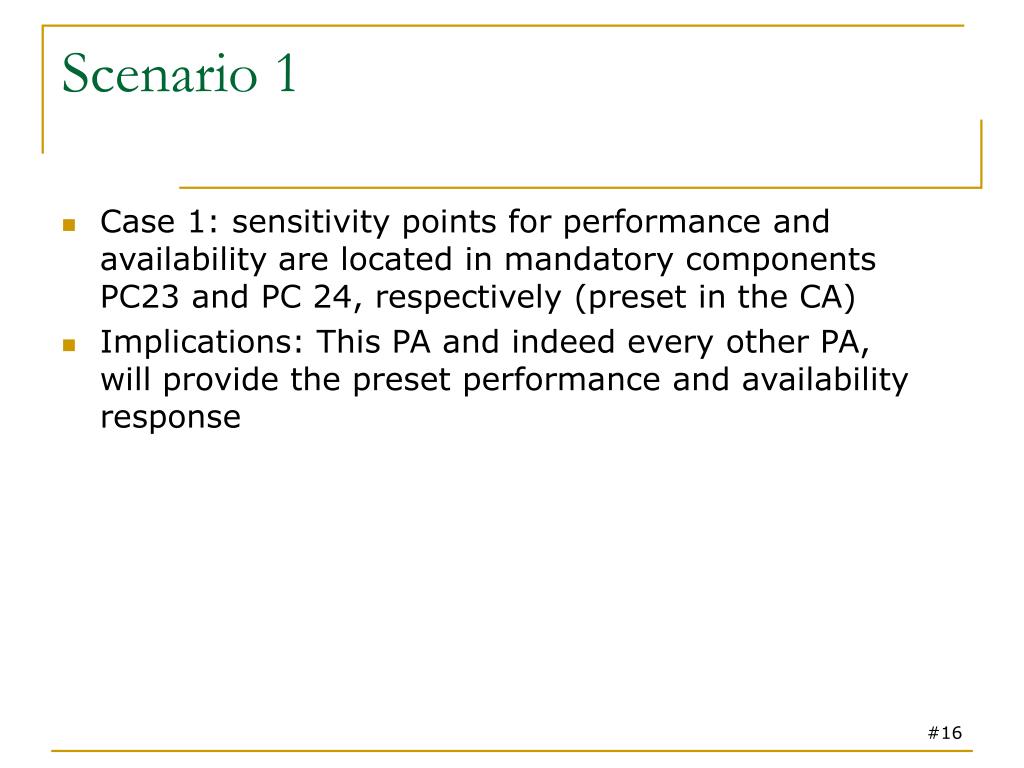

Scenario 1

  • Case 1: sensitivity points for performance and availability are located in mandatory components PC23 and PC 24, respectively (preset in the CA)

  • Implications: This PA and indeed every other PA,will provide the preset performance and availability response

#16


Scenario 11

Scenario 1

  • Case 2: sensitivity points for performance are jointly located in mandatory components PC23, and alternative component PC21

  • Note: design decisions of PC23 are determined in the CA definition while those of PC21 are determined in this particular PA definition

  • Implications: If there is to be a performance guarantee, this PA must correctly specialize PC21 from its variation point in the CA

  • The relevant design decisions need to be guided or constrained in an appropriate manner

#17


Scenario 2 architecture is the ca

Scenario 2: architecture is the CA

  • Only the unshaded boxes are fully specified

  • Again, two cases may be distinguished

#18


Scenario 2

Scenario 2

  • Case 1: sensitivity points are only located in mandatory components

  • Although this is the goal of every CA design – this rarely occurs in reality

  • Implications: the CA would address the quality goals of ALL products

#19


Scenario 21

Scenario 2

  • Case 2: sensitivity points are localized in both fully specified mandatory components and some underspecified alternative and optional components

  • Implications: The architects can only design to fulfill the quality goals of the mandatory components

  • … and expect the product architects to fulfill their part in designing the variant for appropriate quality response

  • Caveat: If the teams are different this may be hard to do without duplication of efforts

#20


Scenario 2 architecture is the ca1

Scenario 2: architecture is the CA

  • So, to ensure the conformance of the PA design decisions to those of the CA, an evolvability point and evolvability constraints are needed

  • Note: Not every variation point is an evolvability point – only those interacting with sensitivity points are

  • An evolvability constraint (EC) is a statement about an evolvability point (EP) to guide product architecture creation

  • It can be described in the syntax and semantics of an ADL, or perhaps in another constraint language

#21


Sample evolvability point and the accompanying evolvability constraint

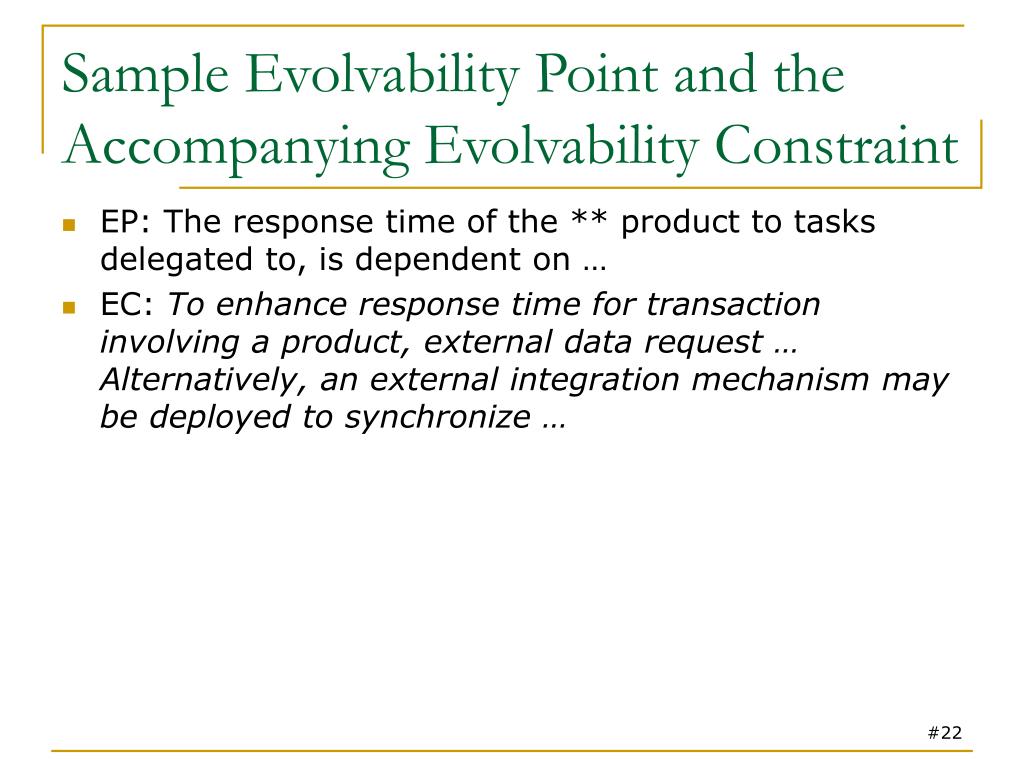

Sample Evolvability Point and the Accompanying Evolvability Constraint

  • EP: The response time of the ** product to tasks delegated to, is dependent on …

  • EC: To enhance response time for transaction involving a product, external data request …Alternatively, an external integration mechanism may be deployed to synchronize …

#22


Key idea

Key Idea

  • The combined use of evolvability points and evolvability constraints ensures the PAs remain in conformance with the CA

  • Main contributions:

  • Architecture-centric focus for reasoning about quality attributes conformance of the product architectures to the CA

  • Systematic use of variation points to constrain product architectures from deviating from the preset qualities of the CA

  • Both of these should enhance our understanding of the interactions and tradeoffs between quality attributes of different forms of architecture

#23


Outline4

Outline

  • Introduction

  • Challenges

  • Variation Point Concepts Usage

  • Open Issues

#24


Some of the open issues

(Some of the) Open Issues

  • How to extract CA and PAs from existing systems?

  • How to characterize the areas of the CA that do not feature any variation points, but have the potential of determining qualities both in the CA and the PAs?

  • How can software product line specialists utilize the result of the characterizations of conformance checks between a product line’s CA and PAs for checking conformance of the code-dependent (as-built) architecture to the documented (as-designed) PAs?

  • While tool support is always a plus, the exact details of support for quality conformance checking and traceability in a product line context are yet to be worked out

#25
