  1. Melody: A Desktop Grid Architecture for Computational Workloads Vijay K Naik Swaminathan Sivasubramanian Sriram Krishnan

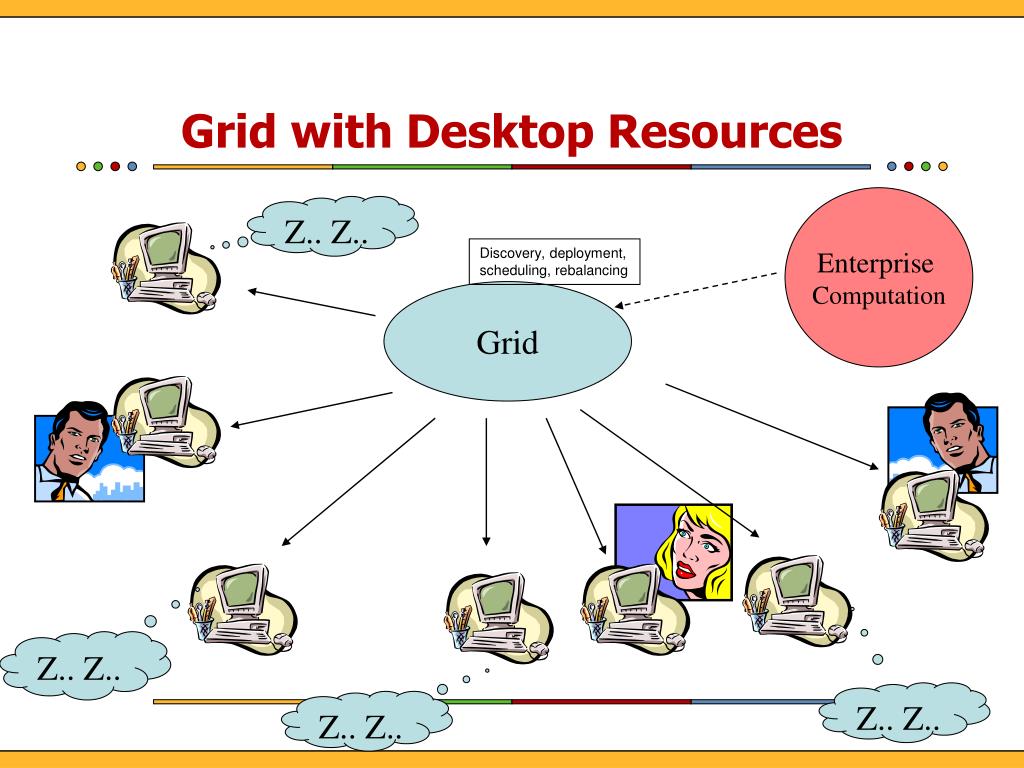

  2. Grid with Desktop Resources Enterprise Computation Z.. Z.. Discovery, deployment, scheduling, rebalancing Grid Z.. Z.. Z.. Z.. Z.. Z..

  3. Outline • Desktop Grids • Introduction to Melody • Overview of Melody client side architecture • Overview of Melody server side architecture • Related Work • Conclusions and Future work

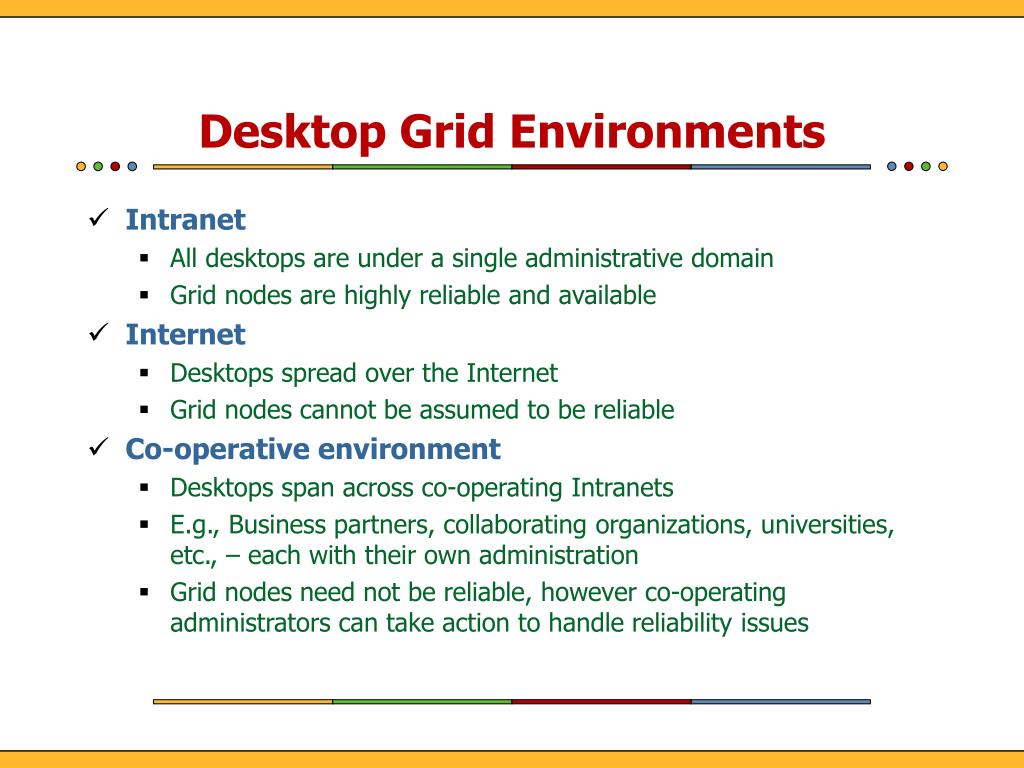

  4. Desktop Grid Environments • Intranet • All desktops are under a single administrative domain • Grid nodes are highly reliable and available • Internet • Desktops spread over the Internet • Grid nodes cannot be assumed to be reliable • Co-operative environment • Desktops span across co-operating Intranets • E.g., Business partners, collaborating organizations, universities, etc., – each with their own administration • Grid nodes need not be reliable, however co-operating administrators can take action to handle reliability issues

  5. Grid Workloads • Two kinds of Grid workloads • Transactional – e.g., Web Service based transactions • Computational workload –e.g., batch workloads • Harmony • Dynamic scheduling based on resource availability • Desktop owners set policies of usage for grid workload • Targeted for an intranet scenario • Melody • Grid infrastructure for running loosely coupled and asynchronous Grid applications • Co-operative environment • Focus of this talk: Melody

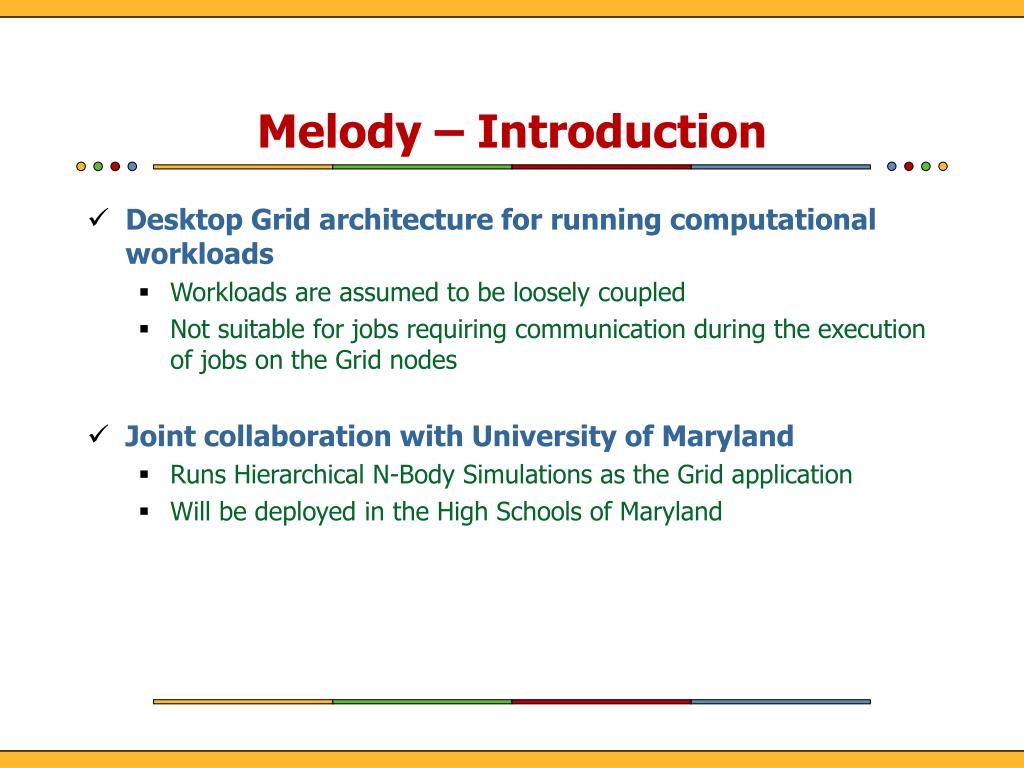

  6. Melody – Introduction • Desktop Grid architecture for running computational workloads • Workloads are assumed to be loosely coupled • Not suitable for jobs requiring communication during the execution of jobs on the Grid nodes • Joint collaboration with University of Maryland • Runs Hierarchical N-Body Simulations as the Grid application • Will be deployed in the High Schools of Maryland

  7. Melody – System setup High School 1 Grid User1 Creates and manages school accounts, grid server Submits new grid jobs, reviews results Adds new nodes for the account and installs client side software Grid Administrator High School n Grid Server … High School 3 School Administrator Grid User2 High School 2

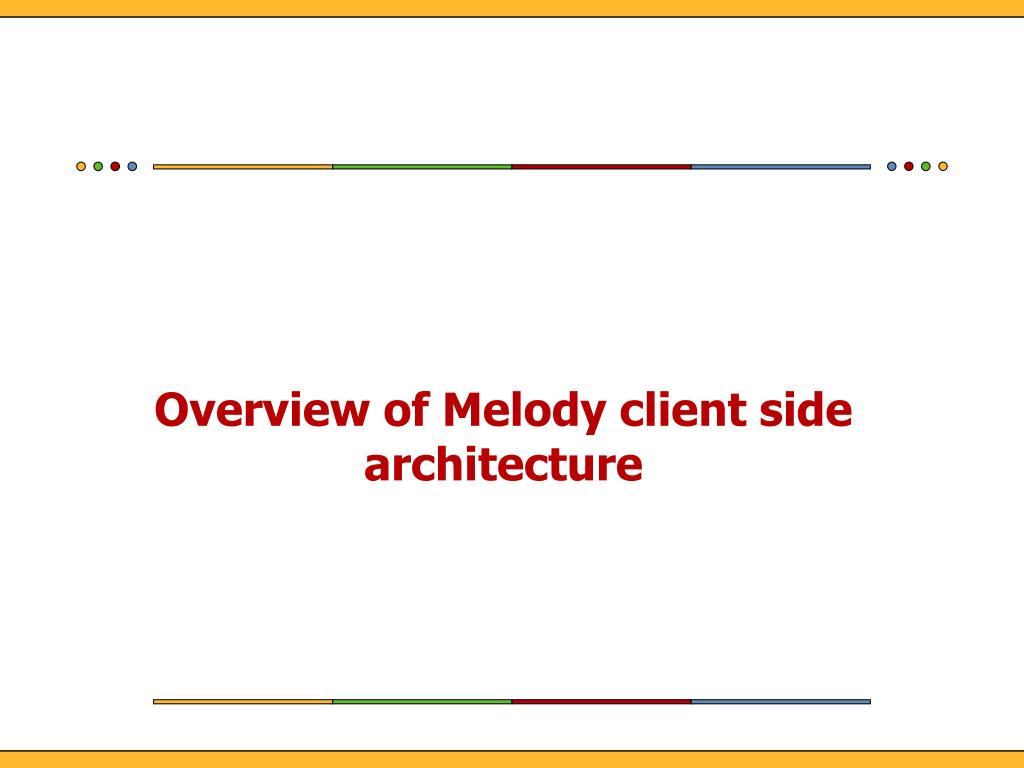

  8. Overview of Melody client side architecture

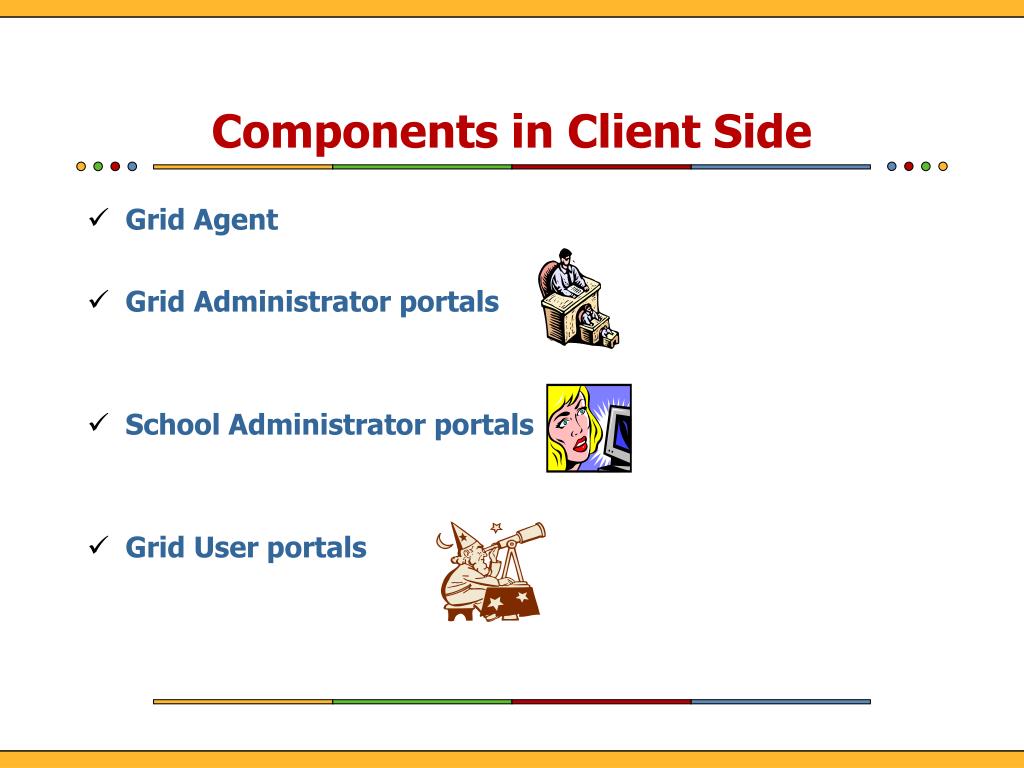

  9. Components in Client Side • Grid Agent • Grid Administrator portals • School Administrator portals • Grid User portals

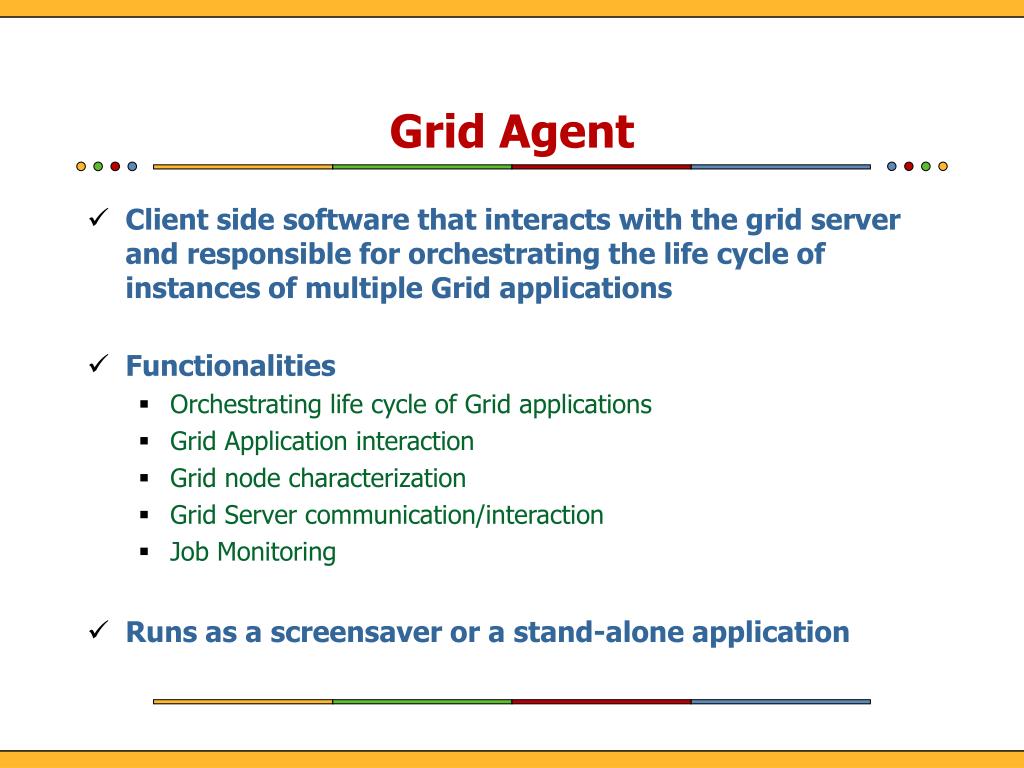

  10. Grid Agent • Client side software that interacts with the grid server and responsible for orchestrating the life cycle of instances of multiple Grid applications • Functionalities • Orchestrating life cycle of Grid applications • Grid Application interaction • Grid node characterization • Grid Server communication/interaction • Job Monitoring • Runs as a screensaver or a stand-alone application

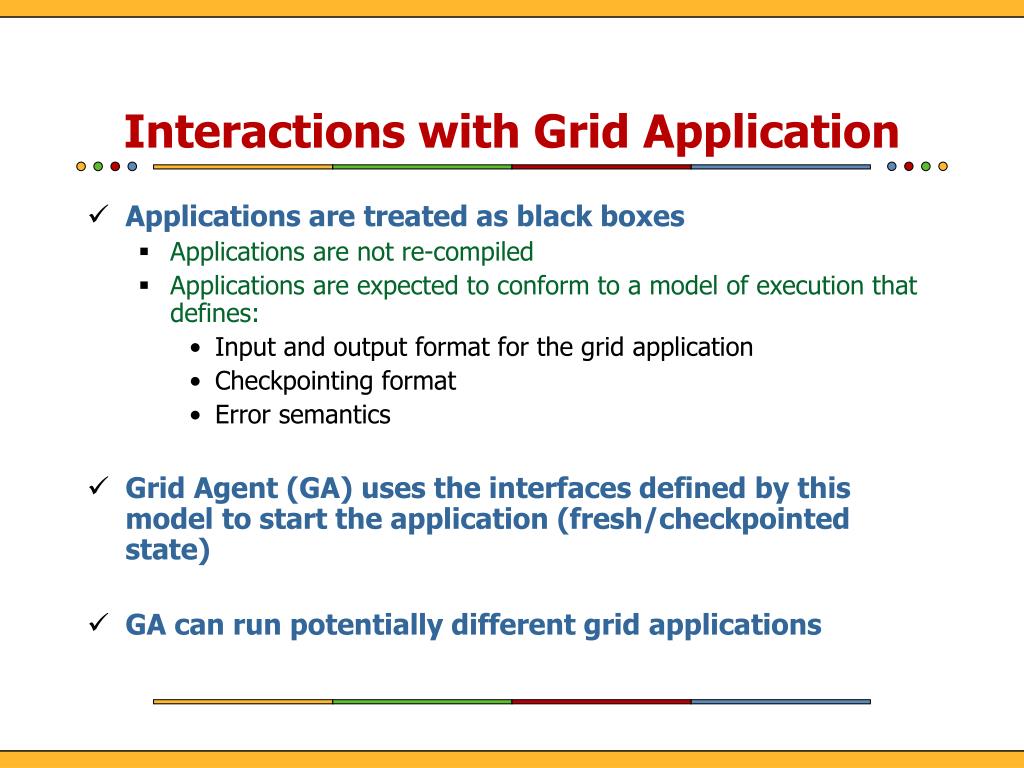

  11. Interactions with Grid Application • Applications are treated as black boxes • Applications are not re-compiled • Applications are expected to conform to a model of execution that defines: • Input and output format for the grid application • Checkpointing format • Error semantics • Grid Agent (GA) uses the interfaces defined by this model to start the application (fresh/checkpointed state) • GA can run potentially different grid applications

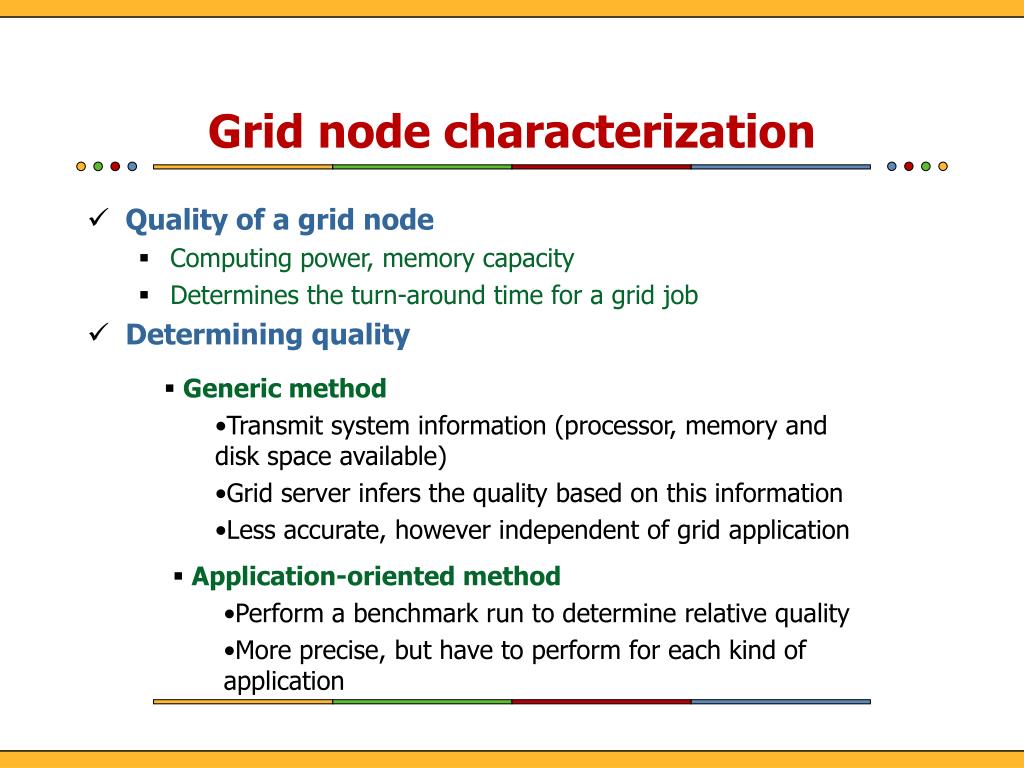

  12. Grid node characterization • Quality of a grid node • Computing power, memory capacity • Determines the turn-around time for a grid job • Determining quality • Generic method • Transmit system information (processor, memory and disk space available) • Grid server infers the quality based on this information • Less accurate, however independent of grid application • Application-oriented method • Perform a benchmark run to determine relative quality • More precise, but have to perform for each kind of application

  13. Grid node characterization (contd..) • GA records the availability of the grid node • Percentage of availability for Grid computations • Information regarding interval of availability • Used to determine which job can be at least to the next over the time interval available • Availability information is used by the server for scheduling • 50% available machine = half powerful • Desktop availability - bi-modal behavior • Run different kinds of jobs/application during different modes

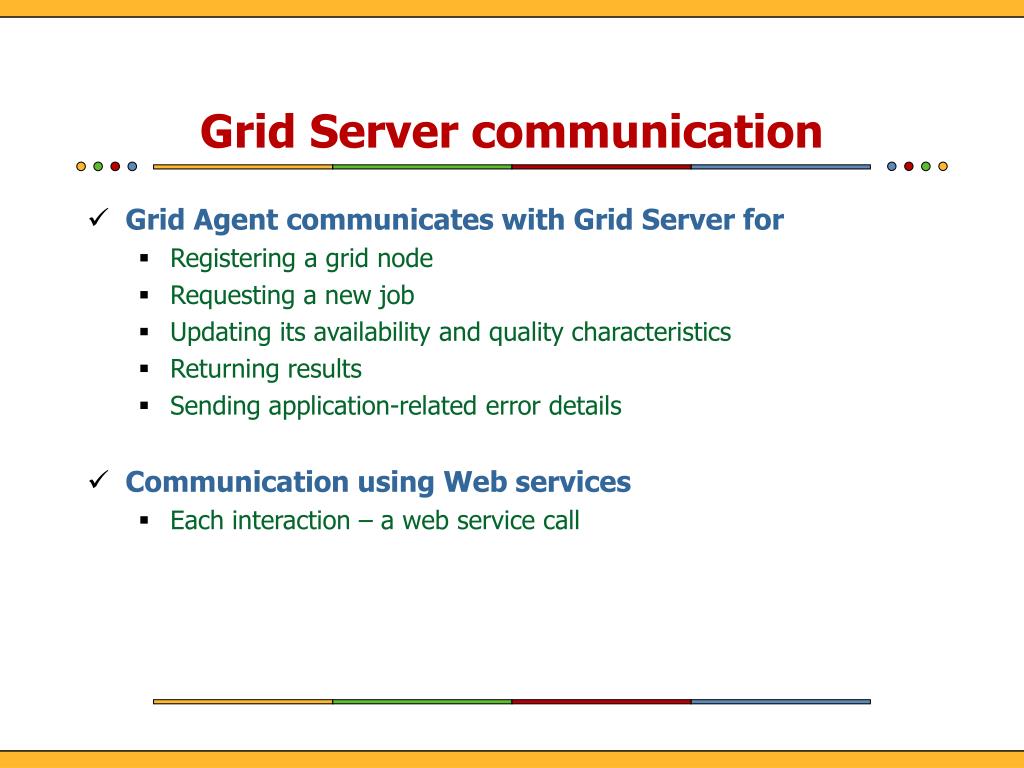

  14. Grid Server communication • Grid Agent communicates with Grid Server for • Registering a grid node • Requesting a new job • Updating its availability and quality characteristics • Returning results • Sending application-related error details • Communication using Web services • Each interaction – a web service call

  15. Registers new grid nodes and downloads packages Creates a new school account Sends account information Installs grid agent self-installer package with registration id Grid node - Typical scenario School Administrator Grid Administrator Registers itself Downloads grid application package Updates quality values Gets a new job, instantiates it Monitor the job status Return results Grid Server

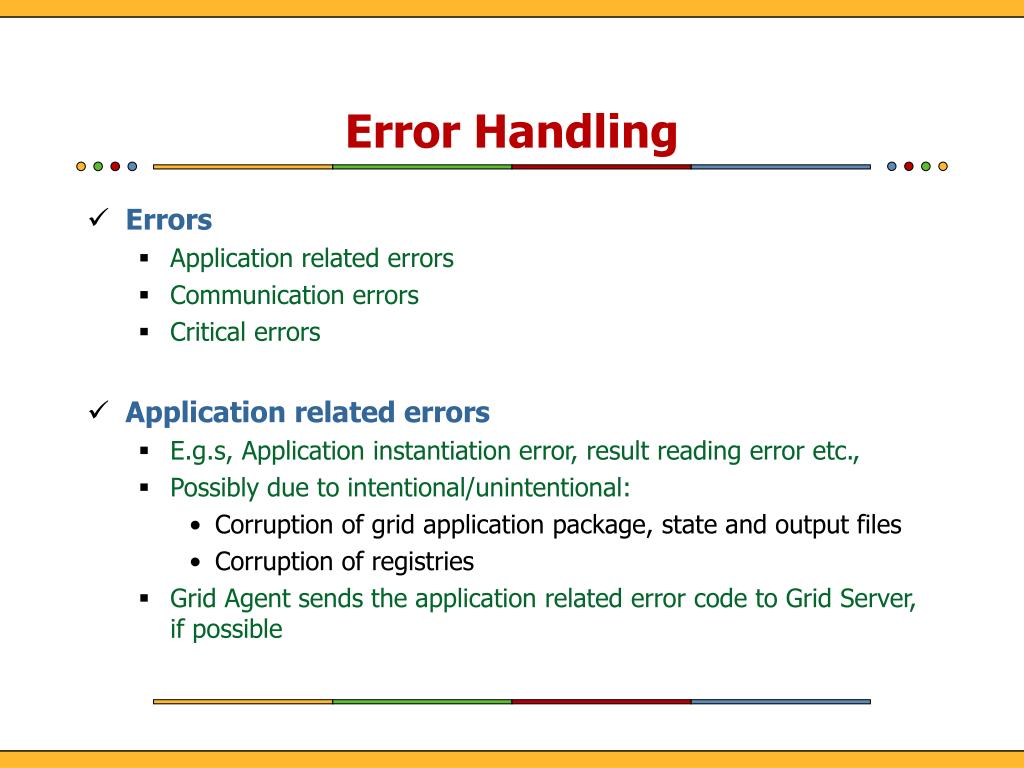

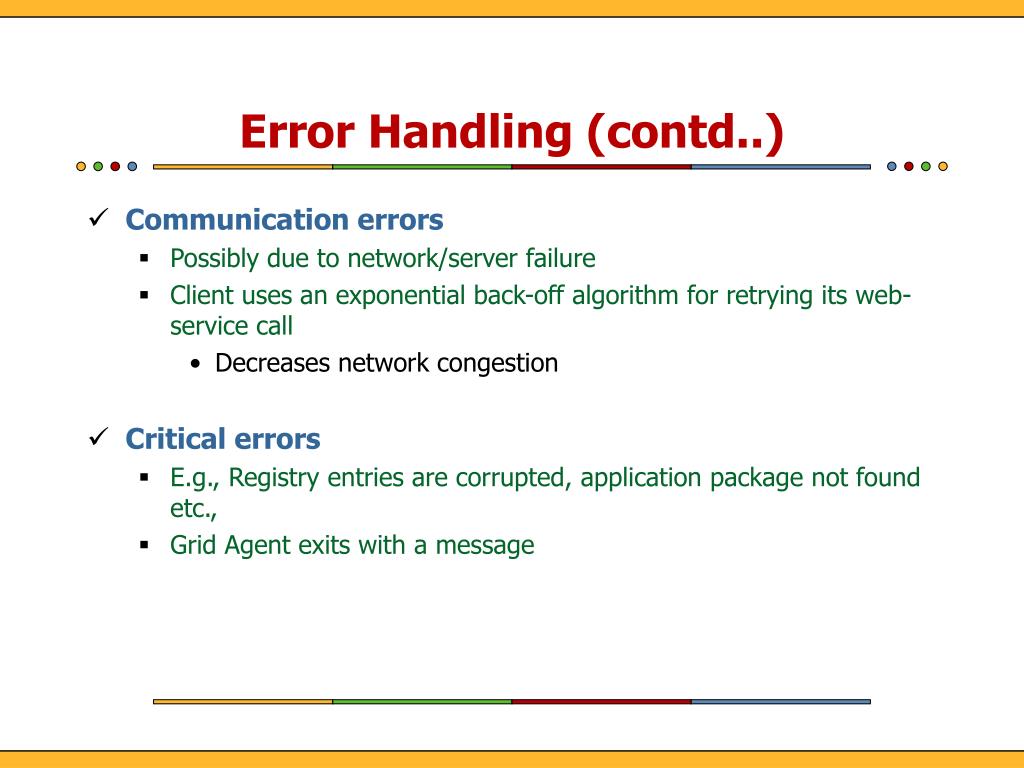

  16. Error Handling • Errors • Application related errors • Communication errors • Critical errors • Application related errors • E.g.s, Application instantiation error, result reading error etc., • Possibly due to intentional/unintentional: • Corruption of grid application package, state and output files • Corruption of registries • Grid Agent sends the application related error code to Grid Server, if possible

  17. Error Handling (contd..) • Communication errors • Possibly due to network/server failure • Client uses an exponential back-off algorithm for retrying its web-service call • Decreases network congestion • Critical errors • E.g., Registry entries are corrupted, application package not found etc., • Grid Agent exits with a message

  18. Grid Agent Implementation • Grid Agent - implemented in C++ • Web Service calls using gSOAP C++ client stubs • Application invocation, monitoring • Windows process control APIs • Stores node characteristics and state information in the windows registry • Self Installer package • Grid Agent package was created using Installshield • Interactions with Grid Administrator, School administrator and Grid user • Portals – implemented using JSPs

  19. Overview of Melody Server Side Architecture

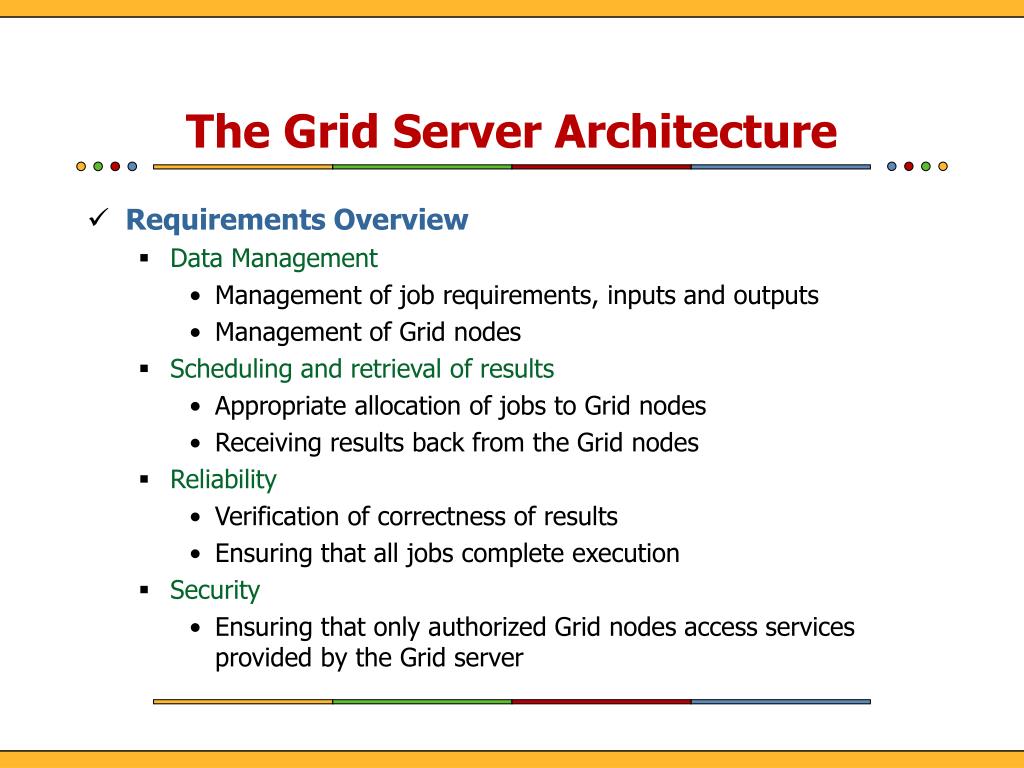

  20. The Grid Server Architecture • Requirements Overview • Data Management • Management of job requirements, inputs and outputs • Management of Grid nodes • Scheduling and retrieval of results • Appropriate allocation of jobs to Grid nodes • Receiving results back from the Grid nodes • Reliability • Verification of correctness of results • Ensuring that all jobs complete execution • Security • Ensuring that only authorized Grid nodes access services provided by the Grid server

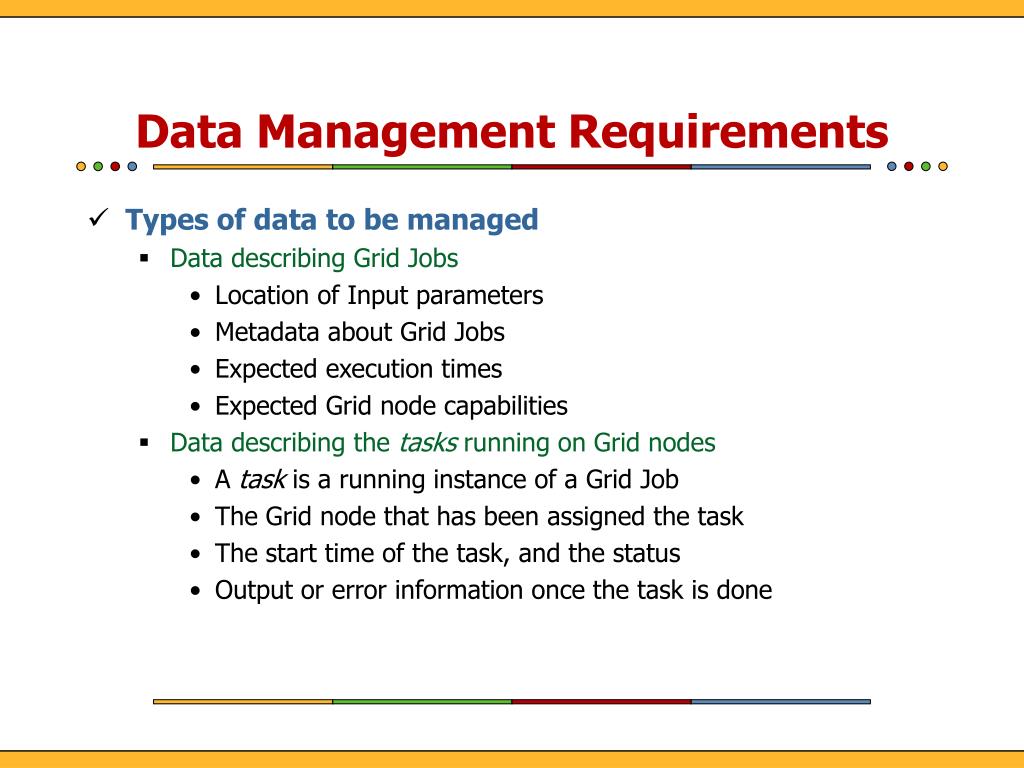

  21. Data Management Requirements • Types of data to be managed • Data describing Grid Jobs • Location of Input parameters • Metadata about Grid Jobs • Expected execution times • Expected Grid node capabilities • Data describing the tasks running on Grid nodes • A task is a running instance of a Grid Job • The Grid node that has been assigned the task • The start time of the task, and the status • Output or error information once the task is done

  22. Data Management Requirements • Types of data to be managed (contd.) • Data describing Grid nodes • The computational capabilities (represented as a quality factor) • The average availabilities of the Grid nodes • The reliability information for the Grid nodes • The location (schools) for the Grid nodes • The maximum number of Grid nodes allowed per school • Data describing Grid application software • The location where the binaries can be found for different architectures

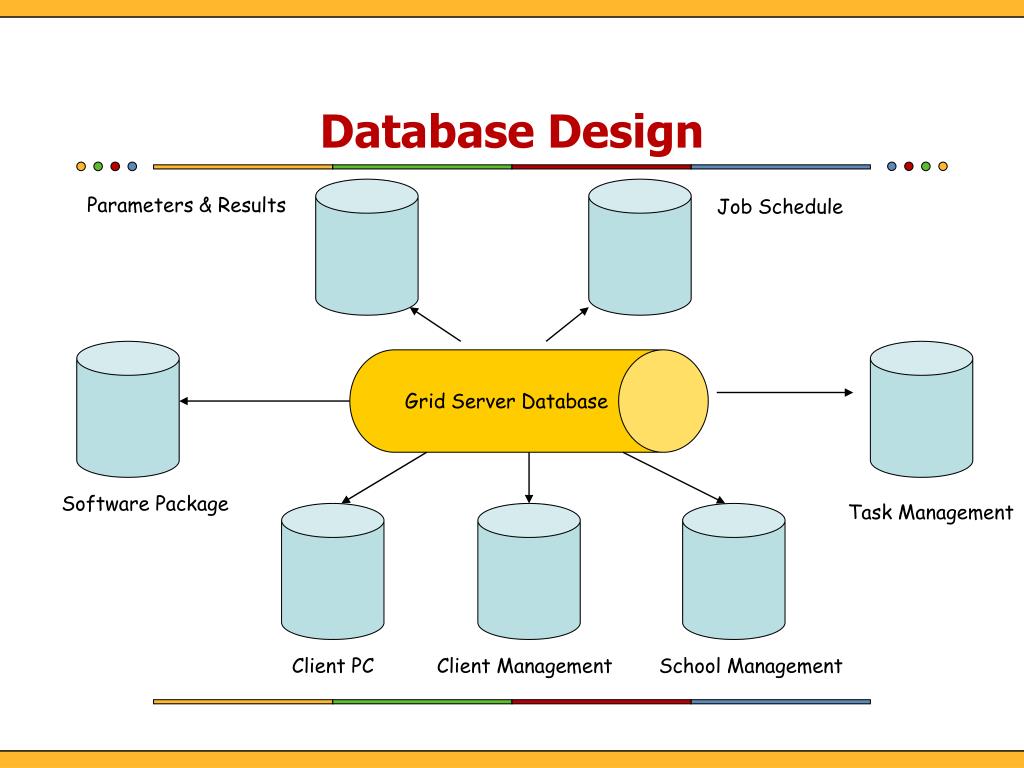

  23. Parameters & Results Job Schedule Software Package Task Management Client PC Client Management School Management Database Design Grid Server Database

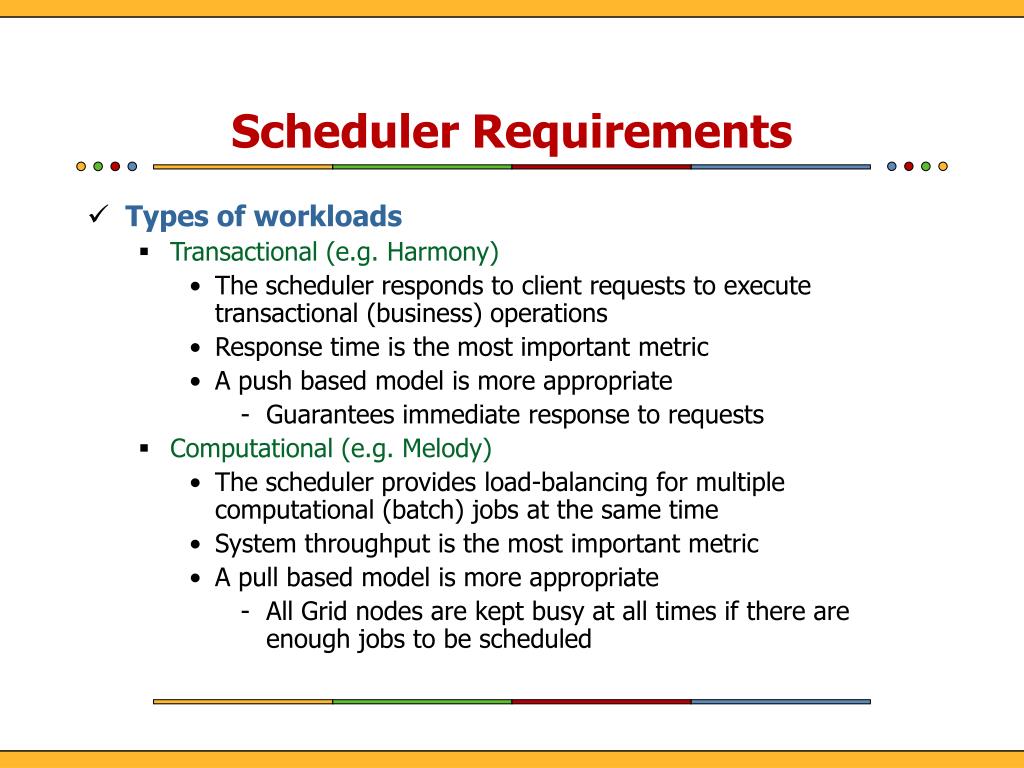

  24. Scheduler Requirements • Types of workloads • Transactional (e.g. Harmony) • The scheduler responds to client requests to execute transactional (business) operations • Response time is the most important metric • A push based model is more appropriate • Guarantees immediate response to requests • Computational (e.g. Melody) • The scheduler provides load-balancing for multiple computational (batch) jobs at the same time • System throughput is the most important metric • A pull based model is more appropriate • All Grid nodes are kept busy at all times if there are enough jobs to be scheduled

  25. Retrieve QF and Availability Receive MachineID Find best fit for the Machine Found suitable job No suitable job found Retrieve job parameters Throw an Exception Return Job Update Job Schedule & Task Management Databases Scheduler Algorithm

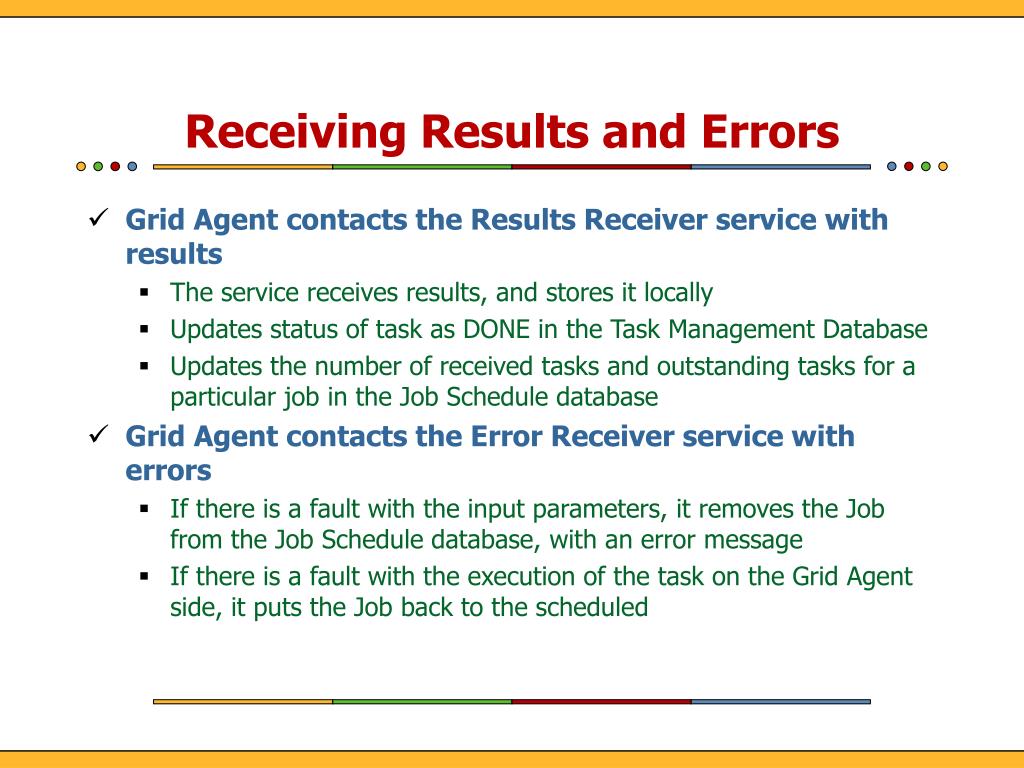

  26. Receiving Results and Errors • Grid Agent contacts the Results Receiver service with results • The service receives results, and stores it locally • Updates status of task as DONE in the Task Management Database • Updates the number of received tasks and outstanding tasks for a particular job in the Job Schedule database • Grid Agent contacts the Error Receiver service with errors • If there is a fault with the input parameters, it removes the Job from the Job Schedule database, with an error message • If there is a fault with the execution of the task on the Grid Agent side, it puts the Job back to the scheduled

  27. Reliability Requirements • Scenarios affecting reliability • Tampering with the results • Results can be altered by a malicious user at the Grid node • Results may get corrupted during transit • It should be possible to recover from incorrect results sent by a Grid node • Unexpected delays in processing at the Grid nodes • The Grid nodes may experience failures, and not return results at an expected time • It should be possible to reschedule such a task on another Grid node, without affecting the correctness

  28. Reliability: Tampering with Results • Replication of tasks as a mechanism to ensure correctness • Triple Modular Redundancy (TMR), with equal voting • May be an overkill, as we assume a co-operative environment • Random replication, to be used as a sanity check • Build up the confidence of machines gradually, and keep track of it in the database • Weighted voting schemes, with variable number of redundancies • Use the reliabilities to associate votes for each Grid node, to be used to determine the correctness of results • Reduce the number of replications for highly reliable machines and vice-versa

  29. Reliability: Tampering (contd.) • Current Implementation provides for • No replication • A sanity-checker algorithm that verifies if the results received are feasible • If results are feasible • Accept the results, and store metadata in the database • If results are not feasible • Put the task back to be scheduled • Decrement the reliability information of the Grid node. If the Grid node sends back incorrect results constantly, inform the school administrator

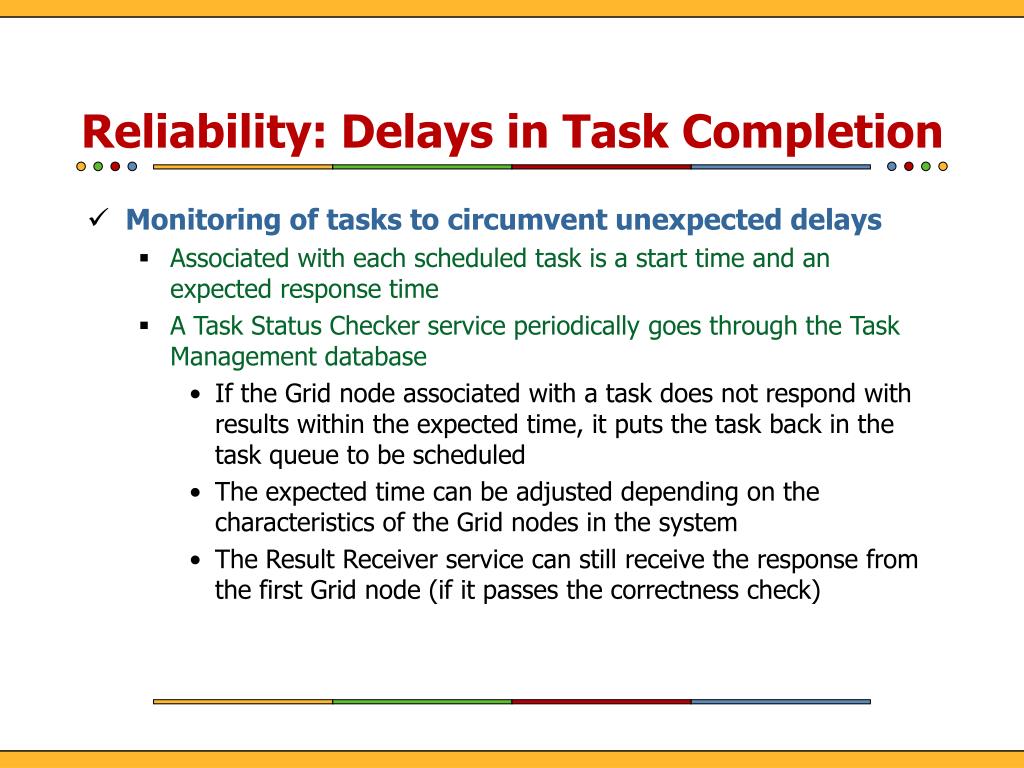

  30. Reliability: Delays in Task Completion • Monitoring of tasks to circumvent unexpected delays • Associated with each scheduled task is a start time and an expected response time • A Task Status Checker service periodically goes through the Task Management database • If the Grid node associated with a task does not respond with results within the expected time, it puts the task back in the task queue to be scheduled • The expected time can be adjusted depending on the characteristics of the Grid nodes in the system • The Result Receiver service can still receive the response from the first Grid node (if it passes the correctness check)

  31. Security • Requirements • The Grid nodes can authenticate the Grid server during any interaction • The Grid server can authenticate the Grid nodes during any interaction • Encryption of data on the wire, if need be • Current implementation • Use of HTTPS with X509 Certificates, with mutual authentication • The Grid server uses a self-signed certificate • Every client is given a client certificate, signed by the server’s private key

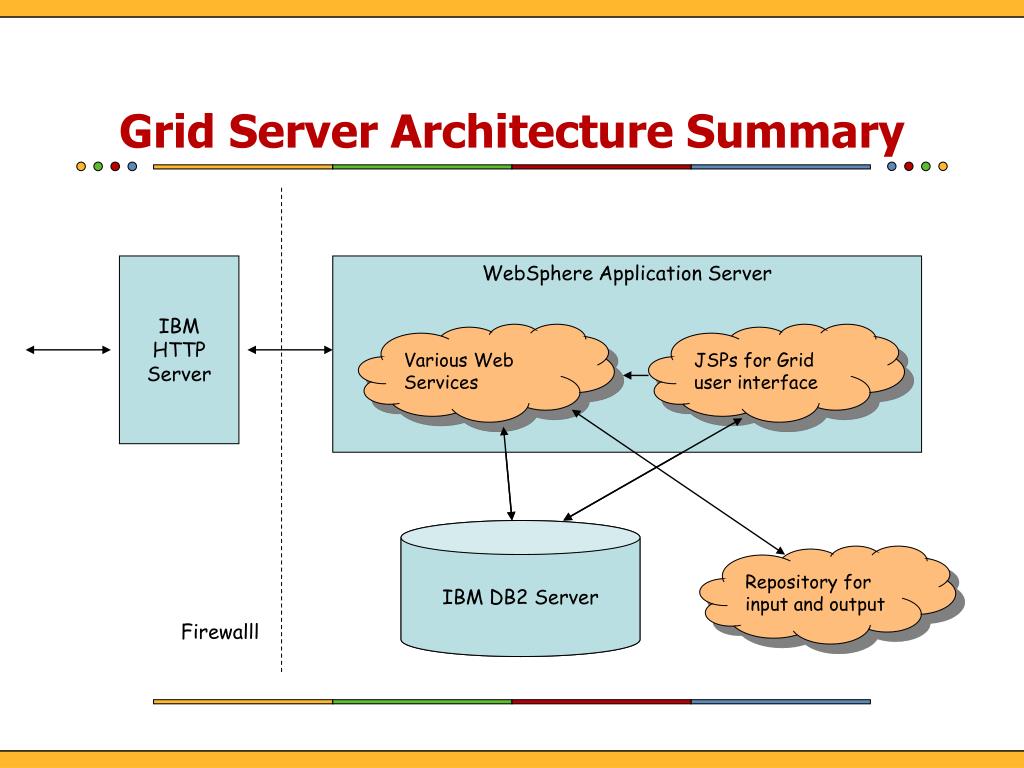

  32. Grid Server Architecture Summary IBM HTTP Server WebSphere Application Server Various Web Services JSPs for Grid user interface IBM DB2 Server IBM DB2 Server Repository for input and output Firewalll

  33. Implementation Details • Tools used: • Web services, deployed on the WebSphere Application Server 5.0 • Written in Java, developed using WSAD5.0 • Can be accessed via IBM HTTP Server 1.3.26 • IBM DB2v7.2 back-end • C++ Web services client (inside the screensaver) • gSOAP provides the C++ client side stubs • Florida State University, Open Source project • JSP based interface to the Grid user

  34. Related Work • Volunteer Computing • SETI@Home: http://setiathome.ssl.berkeley.edu/ • Screensaver based Search for Extra-Terrestrial Intelligence • Bayanihan Computing: http://bayanihancomputing.net/ • A Web services based approach, using applet clients • BOINC: http://boinc.berkeley.edu/ • Resource sharing among independent projects • Entropia DCGrid, United Devices • Industry solutions for a PC Grid • High Throughput Computing • Condor(G): http://www.cs.wisc.edu/condor/ • Leverages large collections of distributed resources to run scientific applications

  35. Conclusions • Melody – A desktop Grid architecture for computational workloads • Leveraging idle cycles of desktop PCs in a co-operative environment • A pull-based scheduling model to support high throughput • Can potentially run different Grid applications • To be deployed on High School PCs in Maryland, to run Astronomy simulations (Hierarchical N-Body)

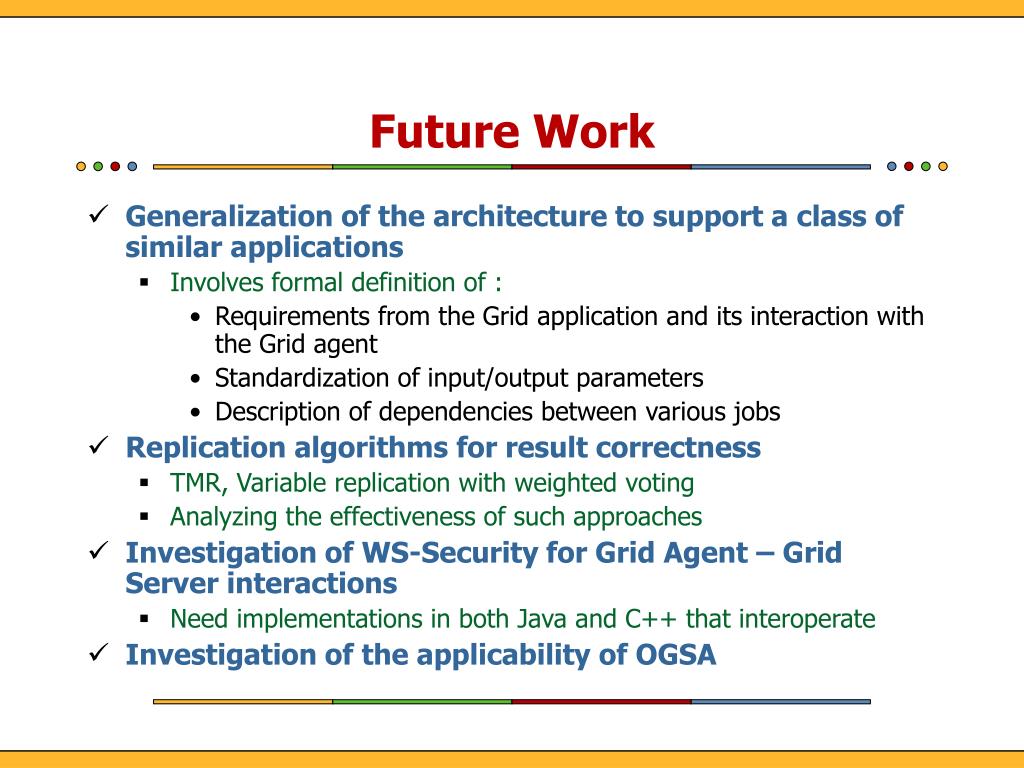

  36. Future Work • Generalization of the architecture to support a class of similar applications • Involves formal definition of : • Requirements from the Grid application and its interaction with the Grid agent • Standardization of input/output parameters • Description of dependencies between various jobs • Replication algorithms for result correctness • TMR, Variable replication with weighted voting • Analyzing the effectiveness of such approaches • Investigation of WS-Security for Grid Agent – Grid Server interactions • Need implementations in both Java and C++ that interoperate • Investigation of the applicability of OGSA

  37. Backup

  38. Job Monitoring • GA instantiates and monitors the grid computations • GA can be in 4 states • No Job, Job-obtained but not started, Job started and running, Job finished-result yet to be sent • State information is stored in the registry • If screensaver is pre-empted due to user interaction • GA kills the grid job • Updates its state in the registry and exits
