  1. Monitor Solutions to Classical Problems

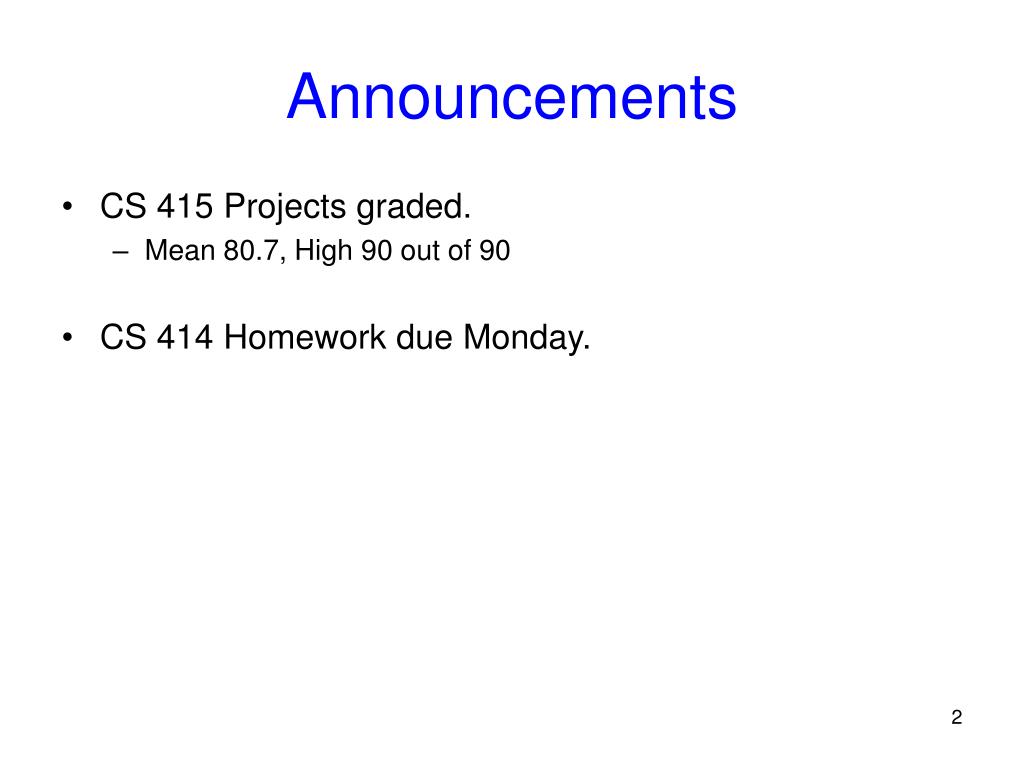

  2. Announcements • CS 415 Projects graded. • Mean 80.7, High 90 out of 90 • CS 414 Homework due Monday.

  3. Goals for Today • Continue with Synchronization Abstractions • Monitors and condition variables • Producer Consumer with Monitors • Readers-Writers problem and solution with Monitors

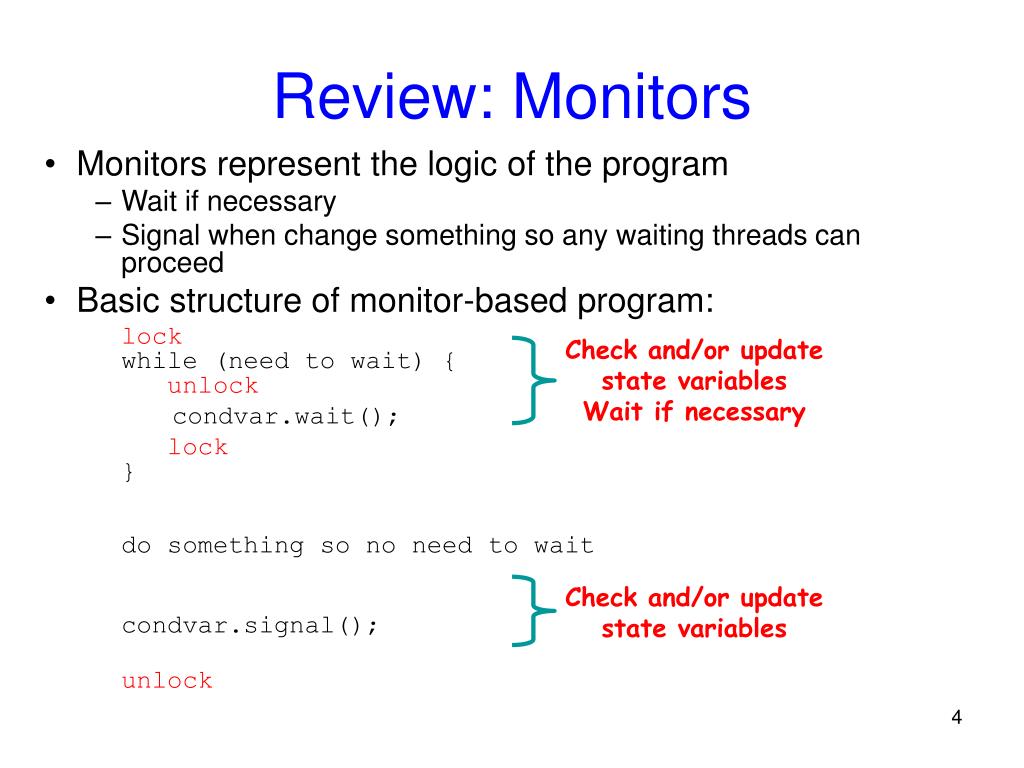

  4. Check and/or updatestate variables Wait if necessary Check and/or update state variables Review: Monitors • Monitors represent the logic of the program • Wait if necessary • Signal when change something so any waiting threads can proceed • Basic structure of monitor-based program: lock while (need to wait) {unlock condvar.wait(); lock}do something so no need to wait condvar.signal(); unlock

  5. Review: Producer-consumer with a bounded buffer • Problem Definition • Producer puts things into a shared buffer (wait if full) • Consumer takes them out (wait if empty) • Use a fixed-size buffer between them to avoid lockstep • Need to synchronize access to this buffer • Correctness Constraints: • Consumer must wait for producer to fill buffers, if none full • scheduling constraint • Producer must wait for consumer to empty buffers, if all full • scheduling constraint • Only one thread can manipulate buffer queue at a time • mutual exclusion • Remember why we need mutual exclusion • Because computers are stupid • General rule of thumb:Use a separate semaphore for each constraint • Semaphore not_empty; // consumer’s constraint • Semaphore not_full; // producer’s constraint • Semaphore mutex; // mutual exclusion

  6. Producer-Consumer using Semaphores Init: Semaphore mutex = 1; /* for mutual exclusion*/ Semaphore not_full = N; /* number empty buf entries */ Semaphore not_empty = 0; /* number full buf entries */ any_t buf[N]; int tail = 0, head = 0; Producer void put(char ch) { P(not_full); P(mutex); // add ch to buffer buf[head%N] = ch; head++; V(mutex); V(not_empty); } Consumer char get() { P(not_empty); P(mutex); // remove ch from buffer ch = buf[tail%N]; tail++; V(mutex); V(not_full); return ch; }

  7. Discussion about Bounded Buffer Solution • Why asymmetry? • Producer does: P(not_full), V(not_empty) • Consumer does: P(not_empty), V(not_full) • Is order of P’s important? • Yes! Can cause deadlock • Is order of V’s important? • No, except that it might affect scheduling efficiency • What if we have 2 producers or 2 consumers? • Do we need to change anything?

  8. Review: Motivation for Monitors and Condition Variables • Semaphores are a huge step up, but: • They are confusing because they are dual purpose: • Both mutual exclusion and scheduling constraints • Example: the fact that flipping of P’s in bounded buffer gives deadlock is not immediately obvious • Cleaner idea: Use locks for mutual exclusion and condition variablesfor scheduling constraints • Definition: Monitor: a lock and zero or more condition variables for managing concurrent access to shared data • Use of Monitors is a programming paradigm • Some languages like Java provide monitors in the language • The lock provides mutual exclusion to shared data: • Always acquire before accessing shared data structure • Always release after finishing with shared data • Lock initially free

  9. Condition Variables • How do we change the get() routine to wait until something is in buffer? • Could do this by keeping a count of the number of things on the queue (with semaphores), but error prone • Condition Variable: a queue of threads waiting for something inside a critical section • Key idea: allow sleeping inside critical section by atomically releasing lock at time we go to sleep • Contrast to semaphores: Can’t wait inside critical section • Operations: • Wait(&lock): Atomically release lock and go to sleep. Re-acquire lock later, before returning. • Signal(): Wake up one waiter, if any • Broadcast(): Wake up all waiters • Rule: Must hold lock when doing condition variable ops!

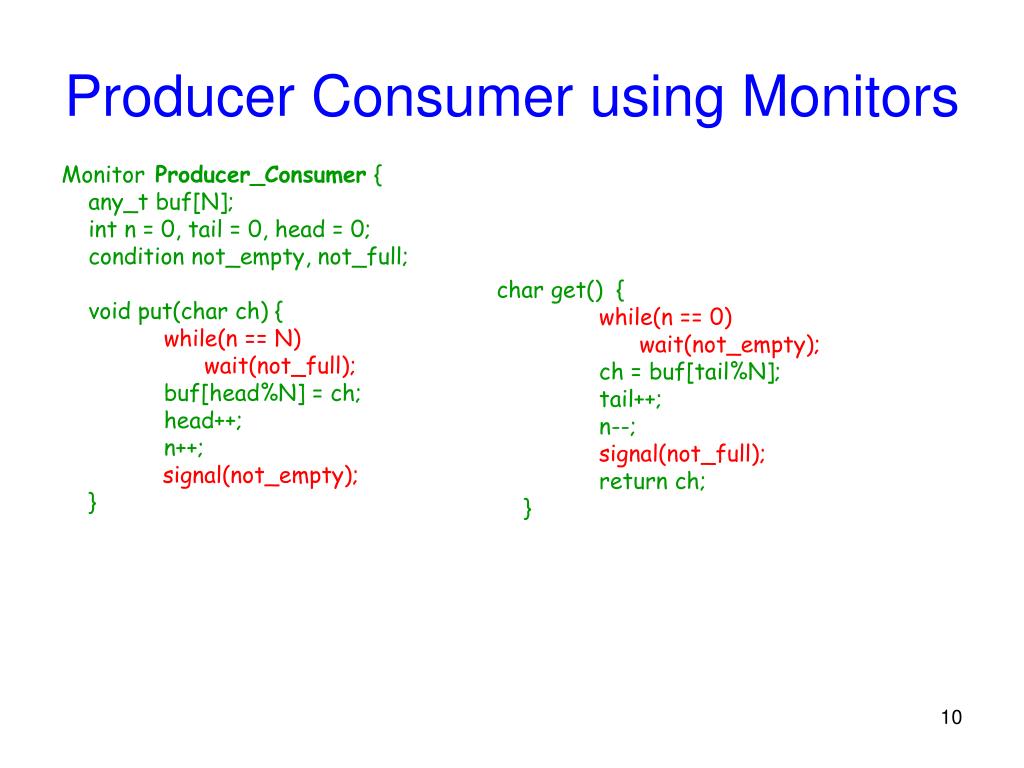

  10. Producer Consumer using Monitors Monitor Producer_Consumer { any_t buf[N]; int n = 0, tail = 0, head = 0; condition not_empty, not_full; void put(char ch) { while(n == N) wait(not_full); buf[head%N] = ch; head++; n++; signal(not_empty); } char get() { while(n == 0) wait(not_empty); ch = buf[tail%N]; tail++; n--; signal(not_full); return ch; }

  11. Reminders: Subtle aspects • Notice that when a thread calls wait(), if it blocks it also automatically releases the monitor’s mutual exclusion lock • This is an elegant solution to an issue seen with semaphores • Caller has mutual exclusion and wants to call P(not_empty)… but this call might block • If we just do the call, the solution deadlocks… • But if we first call V(mutex), we get a race condition!

  12. Review: Mesa vs. Hoare monitors • Need to be careful about precise definition of signal and wait. Consider a piece of our dequeue code: while (n==0) { wait(not_empty); // If nothing, sleep } ch = buf[tail%N]; // Get next item • Why didn’t we do this? if (n==0) { wait(not_empty); // If nothing, sleep } ch = buf[tail%N]; // Get next item • Answer: depends on the type of scheduling • Hoare-style (most textbooks): • Signaler gives lock, CPU to waiter; waiter runs immediately • Waiter gives up lock, processor back to signaler when it exits critical section or if it waits again • Mesa-style (Java, most real operating systems): • Signaler keeps lock and processor • Waiter placed on ready queue with no special priority • Practically, need to check condition again after wait

  13. Review: Can we construct Monitors from Semaphores? • Locking aspect is easy: Just use a mutex • Can we implement condition variables this way? Wait() { P(x_sem); } Signal() { V(x_sem); } • Doesn’t work: Wait() may sleep with lock held • Does this work better? Wait() { V(mutex); // Release mutex lock P(x_sem); P(mutex); // Acquire mutex lock}Signal() { V(x_sem); } • No: Condition vars have no history, semaphores have history: • What if thread signals and no one is waiting? NO-OP • What if thread later waits? Thread Waits • What if thread V’s and noone is waiting? Increment • What if thread later does P? Decrement and continue

  14. Construction of Monitors from Semaphores (con’t) • Problem with previous try: • P and V are commutative – result is the same no matter what order they occur • Condition variables are NOT commutative • Does this fix the problem? Wait(Lock lock) { V(mutex); // Release mutex lock P(x_sem); P(mutex); // Acquire mutex lock}Signal() { if semaphore queue is not empty V(x_sem);} • Not legal to look at contents of semaphore queue • There is a race condition – signaler can slip in after lock release and before waiter executes semaphore.P() • It is actually possible to do this correctly • Complex solution for Hoare scheduling in book • Can you come up with simpler Mesa-scheduled solution?

  15. Construction of Hoare Monitors using Semaphores Wait(){ x_count++; if(next_count > 0) V(next); else V(mutex); P(x_sem); x_count--; For each procedure F: P(mutex); /* body of F */ if(next_count > 0) V(next); else V(mutex); Signal(){ If(x_count > 0) { next_count++; V(x_sem); P(next); next_count--; }

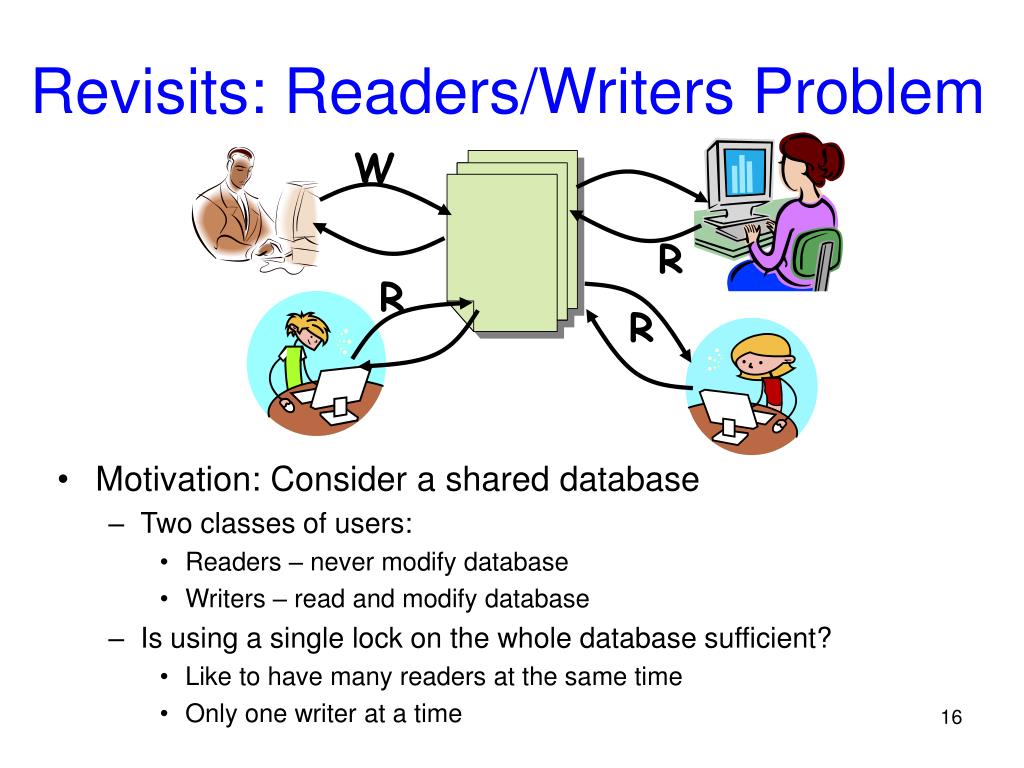

  16. W R R R Revisits: Readers/Writers Problem • Motivation: Consider a shared database • Two classes of users: • Readers – never modify database • Writers – read and modify database • Is using a single lock on the whole database sufficient? • Like to have many readers at the same time • Only one writer at a time

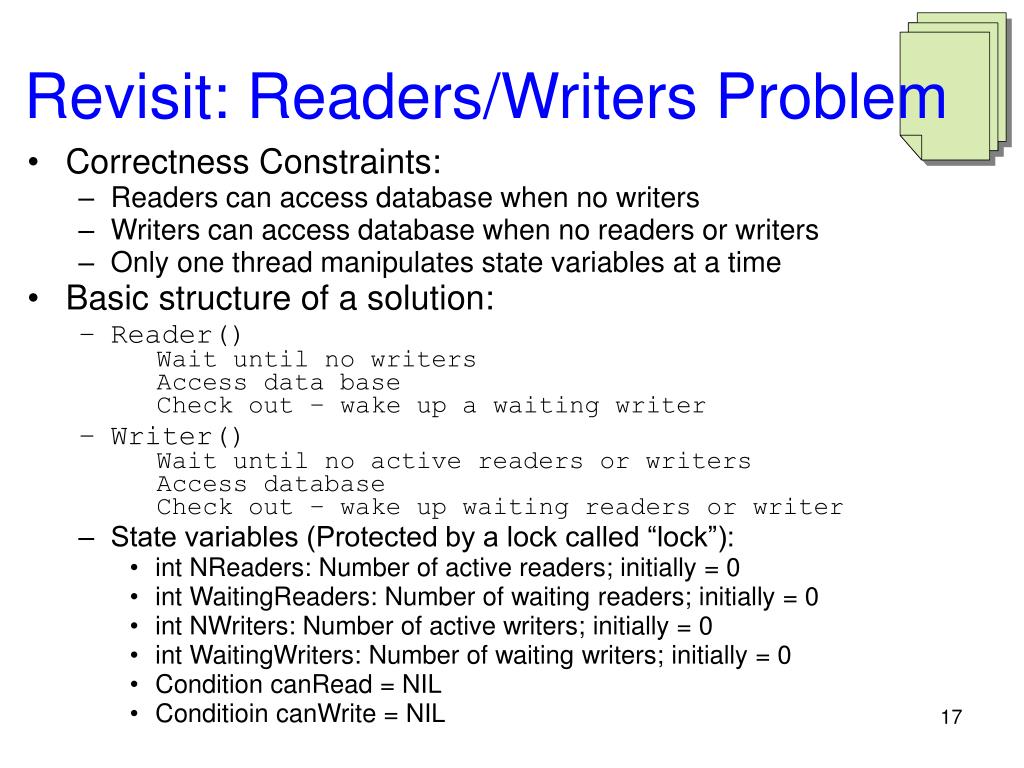

  17. Revisit: Readers/Writers Problem • Correctness Constraints: • Readers can access database when no writers • Writers can access database when no readers or writers • Only one thread manipulates state variables at a time • Basic structure of a solution: • Reader() Wait until no writers Access data base Check out – wake up a waiting writer • Writer() Wait until no active readers or writers Access database Check out – wake up waiting readers or writer • State variables (Protected by a lock called “lock”): • int NReaders: Number of active readers; initially = 0 • int WaitingReaders: Number of waiting readers; initially = 0 • int NWriters: Number of active writers; initially = 0 • int WaitingWriters: Number of waiting writers; initially = 0 • Condition canRead = NIL • Conditioin canWrite = NIL

  18. Revisit: Readers-Writers Problem • One issue we need to settle, to clarify problem statement. • Suppose that a writer is active and a mixture of readers and writers now shows up. Who should get in next? • Or suppose that a writer is waiting and an endless of stream of readers keeps showing up. Is it fair for them to become active? • We’ll favor a kind of back-and-forth form of fairness: • Once a reader is waiting, readers will get in next. • If a writer is waiting, one writer will get in next.

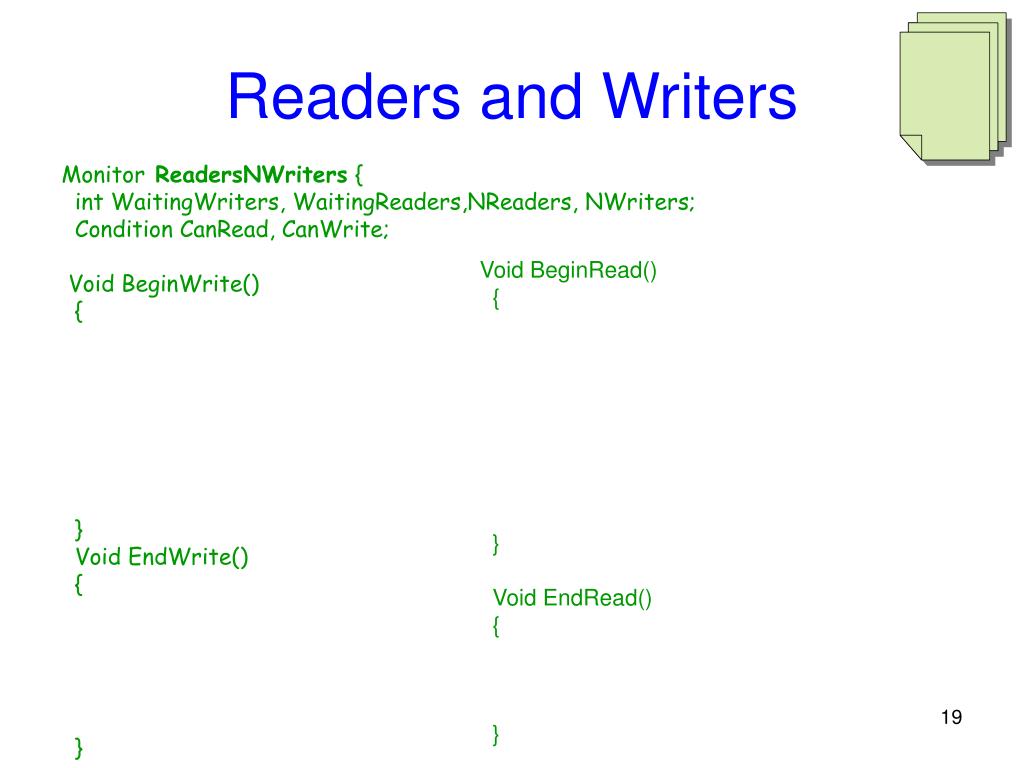

  19. Readers and Writers Monitor ReadersNWriters { int WaitingWriters, WaitingReaders,NReaders, NWriters; Condition CanRead, CanWrite; Void BeginWrite() { if(NWriters == 1 || NReaders > 0) { ++WaitingWriters; wait(CanWrite); --WaitingWriters; } NWriters = 1; } Void EndWrite() { NWriters = 0; if(WaitingReaders) Signal(CanRead); else Signal(CanWrite); } Void BeginRead() { if(NWriters == 1 || WaitingWriters > 0) { ++WaitingReaders; Wait(CanRead); --WaitingReaders; } ++NReaders; Signal(CanRead); } Void EndRead() { if(--NReaders == 0) Signal(CanWrite); }

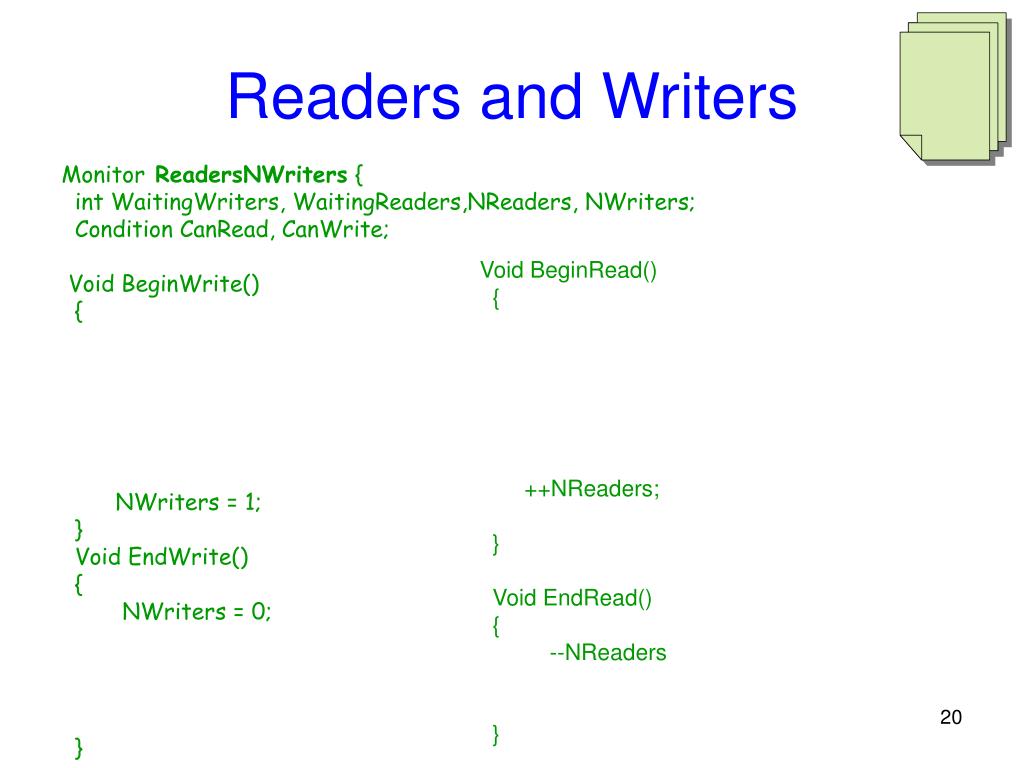

  20. Readers and Writers Monitor ReadersNWriters { int WaitingWriters, WaitingReaders,NReaders, NWriters; Condition CanRead, CanWrite; Void BeginWrite() { if(NWriters == 1 || NReaders > 0) { ++WaitingWriters; wait(CanWrite); --WaitingWriters; } NWriters = 1; } Void EndWrite() { NWriters = 0; if(WaitingReaders) Signal(CanRead); else Signal(CanWrite); } Void BeginRead() { if(NWriters == 1 || WaitingWriters > 0) { ++WaitingReaders; Wait(CanRead); --WaitingReaders; } ++NReaders; Signal(CanRead); } Void EndRead() { if(--NReaders == 0) Signal(CanWrite); }

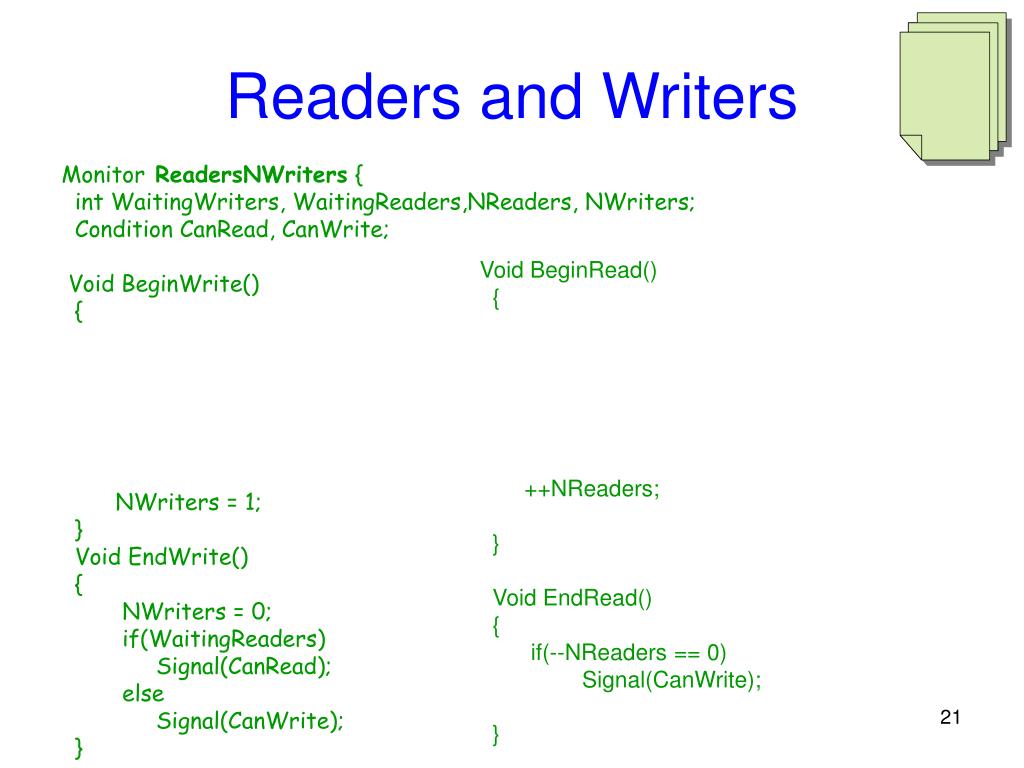

  21. Readers and Writers Monitor ReadersNWriters { int WaitingWriters, WaitingReaders,NReaders, NWriters; Condition CanRead, CanWrite; Void BeginWrite() { if(NWriters == 1 || NReaders > 0) { ++WaitingWriters; wait(CanWrite); --WaitingWriters; } NWriters = 1; } Void EndWrite() { NWriters = 0; if(WaitingReaders) Signal(CanRead); else Signal(CanWrite); } Void BeginRead() { if(NWriters == 1 || WaitingWriters > 0) { ++WaitingReaders; Wait(CanRead); --WaitingReaders; } ++NReaders; Signal(CanRead); } Void EndRead() { if(--NReaders == 0) Signal(CanWrite); }

  22. Readers and Writers Monitor ReadersNWriters { int WaitingWriters, WaitingReaders,NReaders, NWriters; Condition CanRead, CanWrite; Void BeginWrite() { if(NWriters == 1 || NReaders > 0) { ++WaitingWriters; wait(CanWrite); --WaitingWriters; } NWriters = 1; } Void EndWrite() { NWriters = 0; if(WaitingReaders) Signal(CanRead); else Signal(CanWrite); } Void BeginRead() { if(NWriters == 1 || WaitingWriters > 0) { ++WaitingReaders; Wait(CanRead); --WaitingReaders; } ++NReaders; Signal(CanRead); } Void EndRead() { if(--NReaders == 0) Signal(CanWrite); }

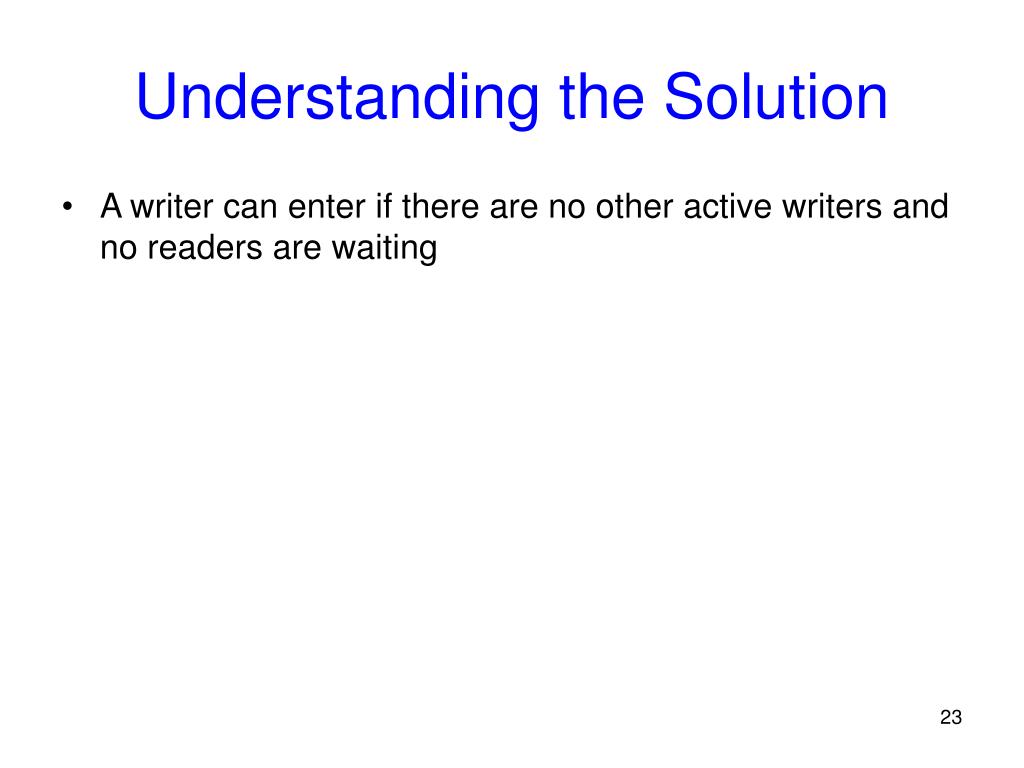

  23. Understanding the Solution • A writer can enter if there are no other active writers and no readers are waiting

  24. Readers and Writers Monitor ReadersNWriters { int WaitingWriters, WaitingReaders,NReaders, NWriters; Condition CanRead, CanWrite; Void BeginWrite() { if(NWriters == 1 || NReaders > 0) { ++WaitingWriters; wait(CanWrite); --WaitingWriters; } NWriters = 1; } Void EndWrite() { NWriters = 0; if(WaitingReaders) Signal(CanRead); else Signal(CanWrite); } Void BeginRead() { if(NWriters == 1 || WaitingWriters > 0) { ++WaitingReaders; Wait(CanRead); --WaitingReaders; } ++NReaders; Signal(CanRead); } Void EndRead() { if(--NReaders == 0) Signal(CanWrite); }

  25. Understanding the Solution • A reader can enter if • There are no writers active or waiting • So we can have many readers active all at once • Otherwise, a reader waits (maybe many do)

  26. Readers and Writers Monitor ReadersNWriters { int WaitingWriters, WaitingReaders,NReaders, NWriters; Condition CanRead, CanWrite; Void BeginWrite() { if(NWriters == 1 || NReaders > 0) { ++WaitingWriters; wait(CanWrite); --WaitingWriters; } NWriters = 1; } Void EndWrite() { NWriters = 0; if(WaitingReaders) Signal(CanRead); else Signal(CanWrite); } Void BeginRead() { if(NWriters == 1 || WaitingWriters > 0) { ++WaitingReaders; Wait(CanRead); --WaitingReaders; } ++NReaders; Signal(CanRead); } Void EndRead() { if(--NReaders == 0) Signal(CanWrite); }

  27. Understanding the Solution • When a writer finishes, it checks to see if any readers are waiting • If so, it lets one of them enter • That one will let the next one enter, etc… • Similarly, when a reader finishes, if it was the last reader, it lets a writer in (if any is there)

  28. Readers and Writers Monitor ReadersNWriters { int WaitingWriters, WaitingReaders,NReaders, NWriters; Condition CanRead, CanWrite; Void BeginWrite() { if(NWriters == 1 || NReaders > 0) { ++WaitingWriters; wait(CanWrite); --WaitingWriters; } NWriters = 1; } Void EndWrite() { NWriters = 0; if(WaitingReaders) Signal(CanRead); else Signal(CanWrite); } Void BeginRead() { if(NWriters == 1 || WaitingWriters > 0) { ++WaitingReaders; Wait(CanRead); --WaitingReaders; } ++NReaders; Signal(CanRead); } Void EndRead() { if(--NReaders == 0) Signal(CanWrite); }

  29. Understanding the Solution • It wants to be fair • If a writer is waiting, readers queue up • If a reader (or another writer) is active or waiting, writers queue up • … this is mostly fair, although once it lets a reader in, it lets ALL waiting readers in all at once, even if some showed up “after” other waiting writers

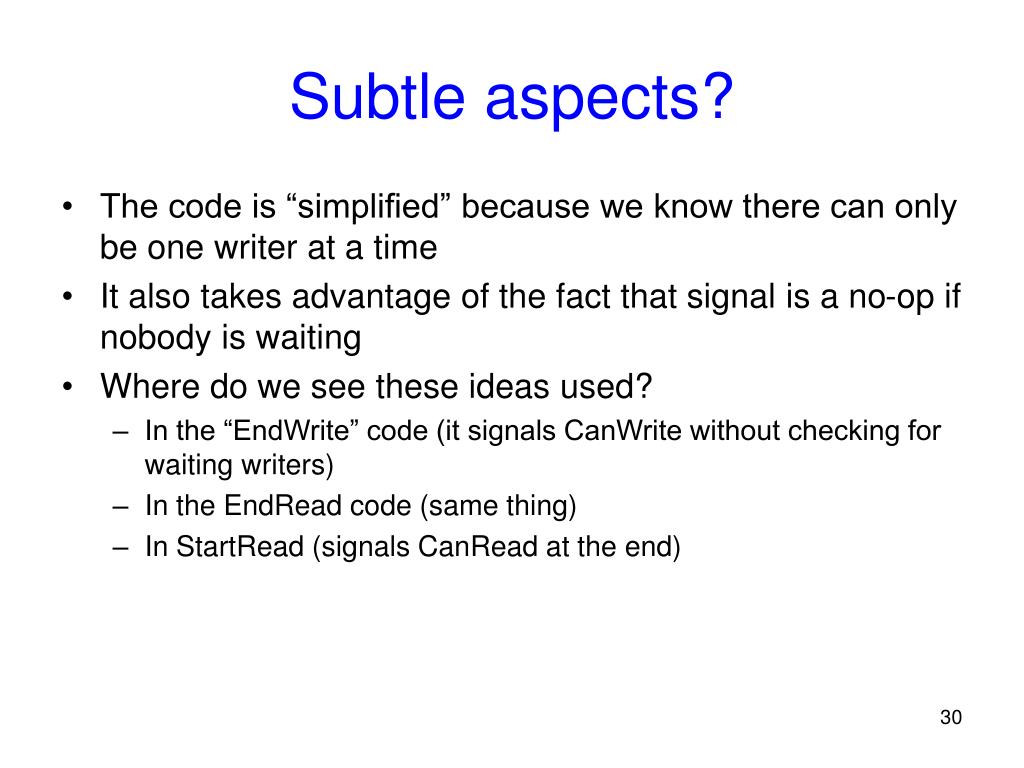

  30. Subtle aspects? • The code is “simplified” because we know there can only be one writer at a time • It also takes advantage of the fact that signal is a no-op if nobody is waiting • Where do we see these ideas used? • In the “EndWrite” code (it signals CanWrite without checking for waiting writers) • In the EndRead code (same thing) • In StartRead (signals CanRead at the end)

  31. Comparison with Semaphores • With semaphores we never did have a “fair” solution of this sort • In fact it can be done, but the code is quite tricky • Here the straightforward solution works in the desired way! • Monitors are less error-prone and also easier to understand • C# and Java primitives should typically be used in this manner, too…
