  1. ARTICULATED BUS BUS CARS Source: ITDP PUBLIC VERSUS PRIVATE TRANSPORT

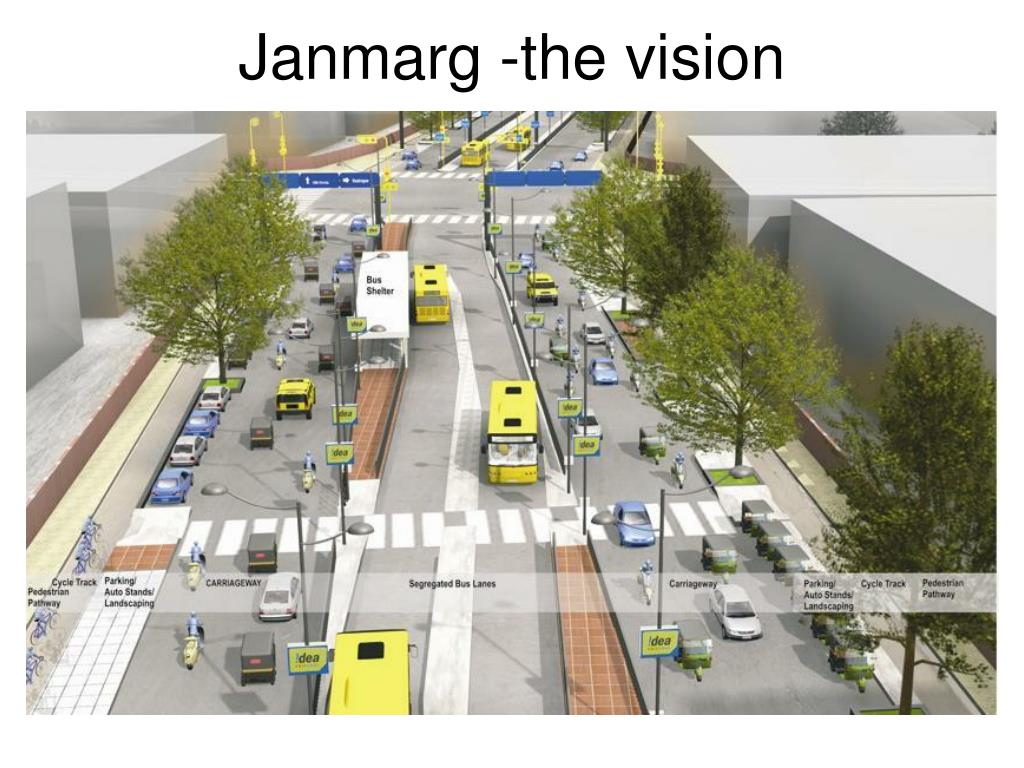

  2. Janmarg -the vision

  3. Bus Rapid Transit – Ahmedabad Scenario Map Showing Locations of Proposed Stations • Total No of Stations: 94 • No. of interchange stations: 23 • No. of Terminals: 04 • No. of bays per station: 1 to 2 • (per direction) • Average Distance: 500 m • (between two consecutive stations) • Station Location: • Online • Curb side • Near-side (at intersections) • Ticketing System: Offboard At grade access to bus stops is more convenient. But all auhorities favour subway or FOB! Bus Station Design

  4. Influence Zone of DMIC in Gujarat (Min.200 sqkm) (Min.100 sqkm) • FREIGHT CORRIDOR • The proposed Freight Corridor passes through the States of U.P, NCR of Delhi, Haryana, Rajasthan, Gujarat and Maharashtra. • End terminals of the corridor are Dadri in the National Capital Region of Delhi and Jawaharlal Nehru Port trust near Mumbai. • It offers high-speed connectivity for High Axle Load Wagons (25 Tones) of Double Stacked Container Trains supported by high power locomotives. • On the basis of the potential for growth and inherent strengths of various locations along the DMIC influence area, investment region and industrial areas have been identified • Phase I : • Valsad - Umbergaon as Industrial Area • Bharuch - Dahej Region as Petro-Chemical Investment Region (PCPIR) • Vadodara - Ankleshwar Zone as General Manufacturing Industrial Area • Phase-2 : • Ahmedabad - Dholera Special Investment Region (SIR) • Surat - Navsari Industrial Area

  5. INFLUENCE ZONE DELINEATION 150 km 50 km • Direct Zone of Influence – 50km • Most of the identified development nodes lie within 50 km of the DFC • Major urban centres like Ahmedabad, Vadodara & Surat and Upcoming Urban centres like Palanpur, Mehsana, Sidhpur, Unjha, Viramgam, Khambat and Dabhoi lie within this zone. • 65% of SEZ’s - concentrated at Ahmedabad, Vadodara, Bharuch and Surat. • Ahmedabad and Vadodara are the major knowledge centres (Min.100 sqkm) (Min.200 sqkm)

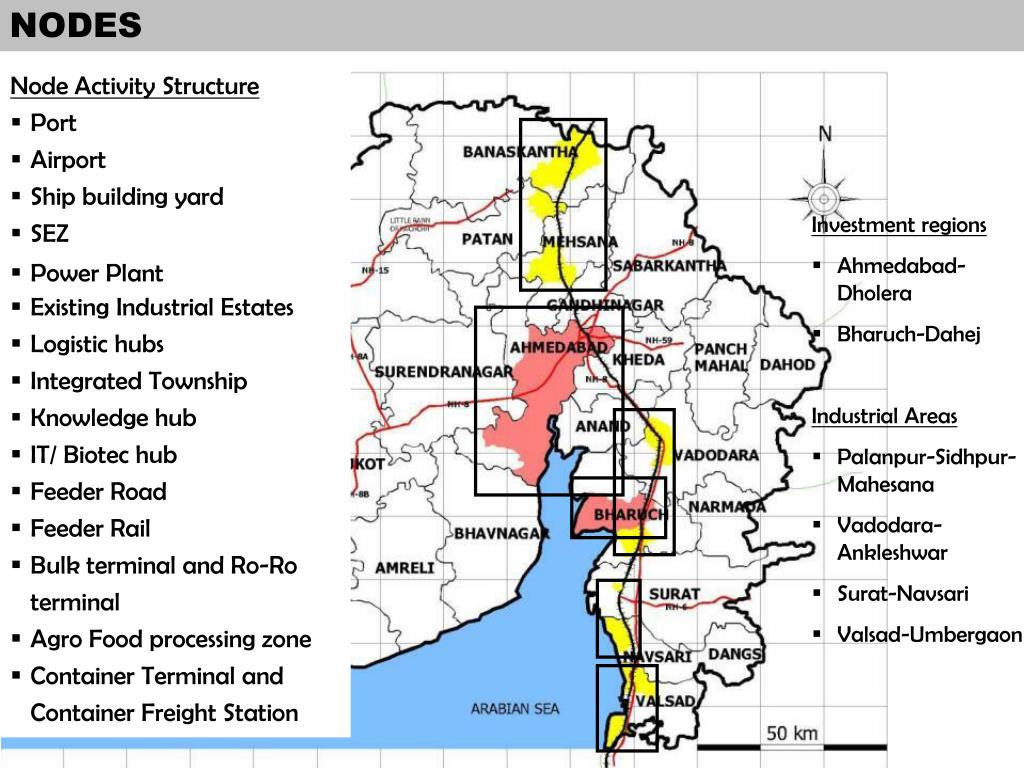

  6. NODES • Node Activity Structure • Port • Airport • Ship building yard • SEZ • Power Plant • Existing Industrial Estates • Logistic hubs • Integrated Township • Knowledge hub • IT/ Biotec hub • Feeder Road • Feeder Rail • Bulk terminal and Ro-Ro terminal • Agro Food processing zone • Container Terminal and Container Freight Station • Investment regions • Ahmedabad- Dholera • Bharuch-Dahej • Industrial Areas • Palanpur-Sidhpur-Mahesana • Vadodara-Ankleshwar • Surat-Navsari • Valsad-Umbergaon ` Source: DMIC concept IL&FS

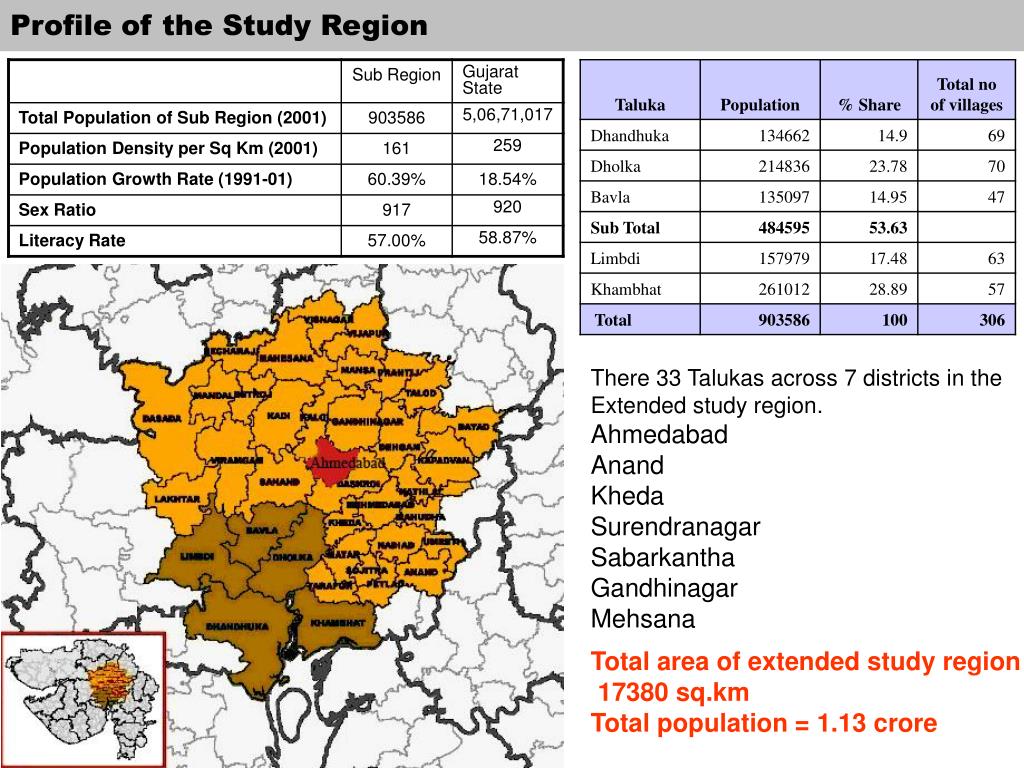

  7. Profile of the Study Region There 33 Talukas across 7 districts in the Extended study region. Ahmedabad Anand Kheda Surendranagar Sabarkantha Gandhinagar Mehsana Total area of extended study region 17380 sq.km Total population = 1.13 crore

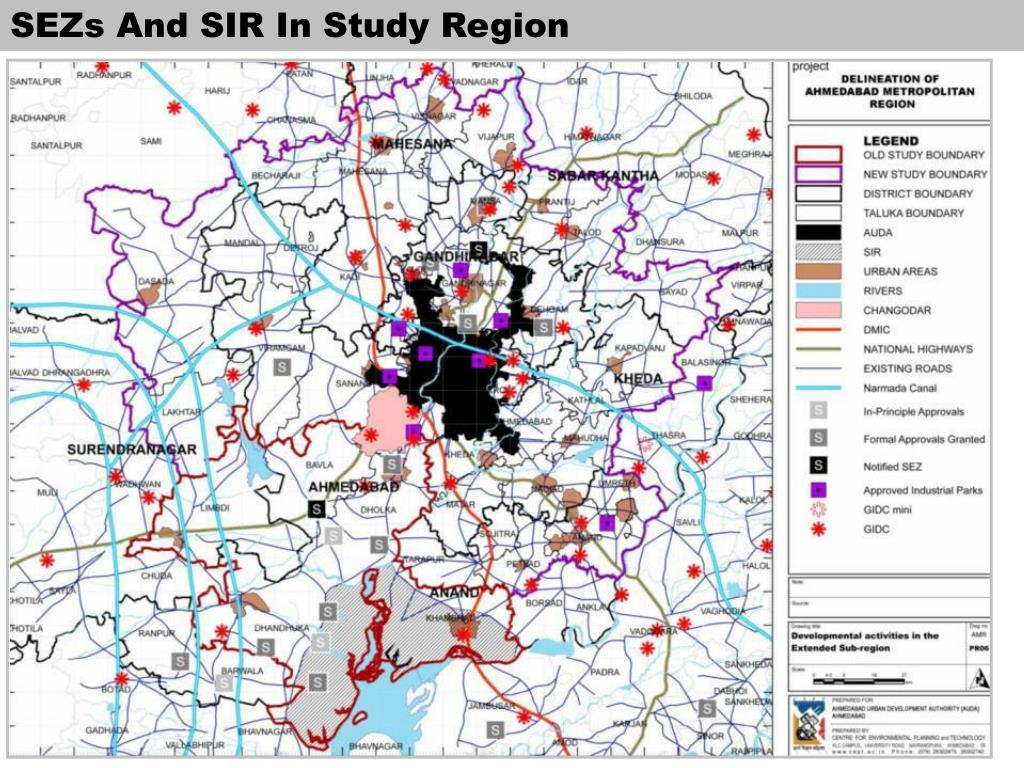

  8. SEZs And SIR In Study Region

  9. Demographic Parameter - TALUKA LEVEL Taluka along NH Delhi Mumbai corridor having high population density High population growth rate is observed in south western part of the study area The share of primary worker to the main worker is higher in eastern taluka of the study area

  10. DENSITY COMPARISON-People per sqkm VILLAGE LEVEL Demographic Parameter Villages along NH-8 have high population density As Gandhinagar ,Mehsana have more service class industries, Anand and Nadiad have more labour intensive industries & are along the major corridors NH-8.

  11. DISTRIBUTION OF CULTIVATORS - VILLAGE LEVEL Demographic Parameter More Cultivators are observed in the western side due to more agricultural activities.

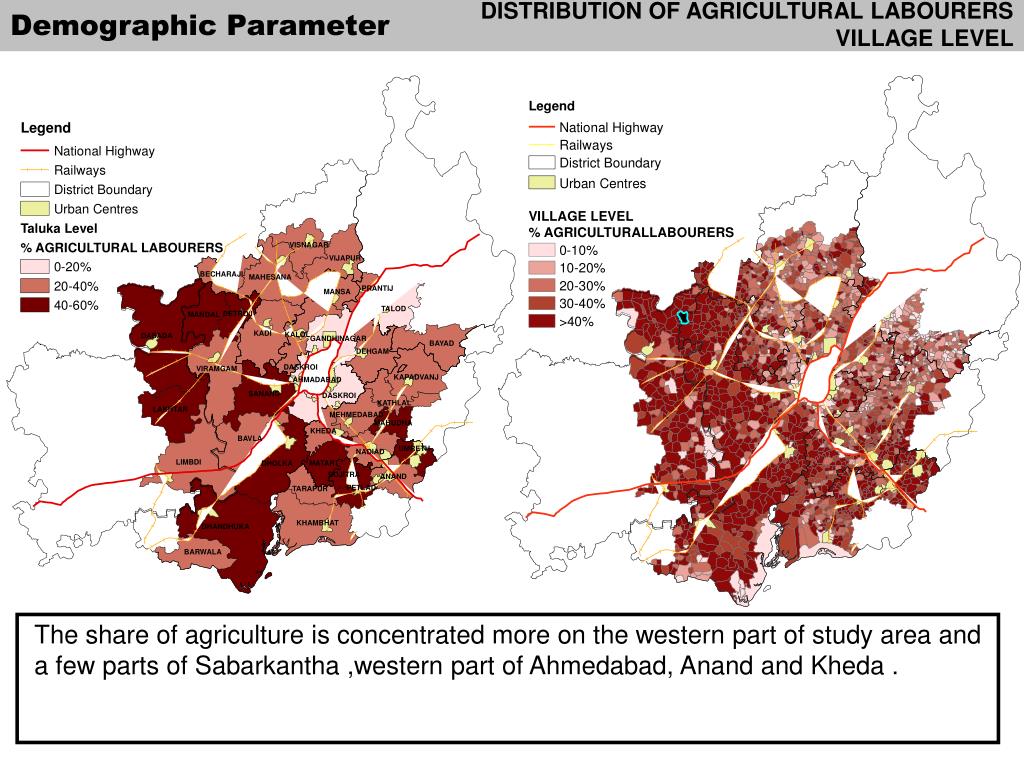

  12. DISTRIBUTION OF AGRICULTURAL LABOURERS VILLAGE LEVEL Demographic Parameter The share of agriculture is concentrated more on the western part of study area and a few parts of Sabarkantha ,western part of Ahmedabad, Anand and Kheda .

  13. Demographic Parameter - TALUKA LEVEL High literacy rate is observed in Ahmedabad, Ghandhinagar, Anand. Sex ratio is high in the outer periphery of the region. The share of non primary workers is high in Ahmedabad, Ghandhinagar, Daskroi.

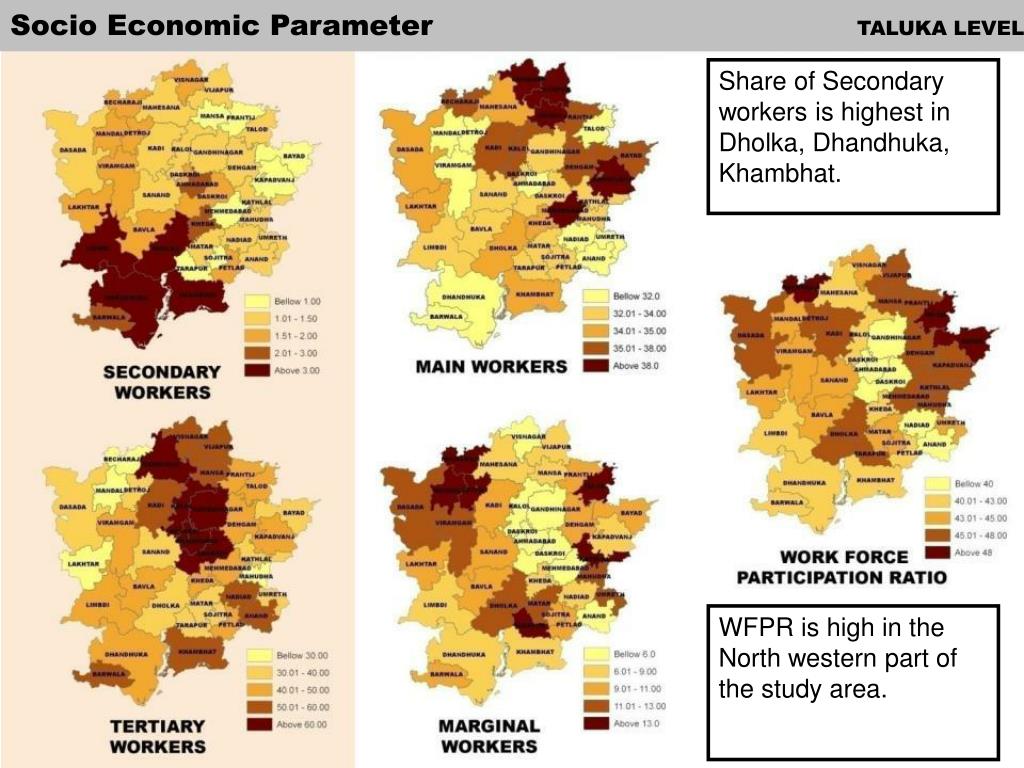

  14. Socio Economic Parameter TALUKA LEVEL Share of Secondary workers is highest in Dholka, Dhandhuka, Khambhat. WFPR is high in the North western part of the study area.

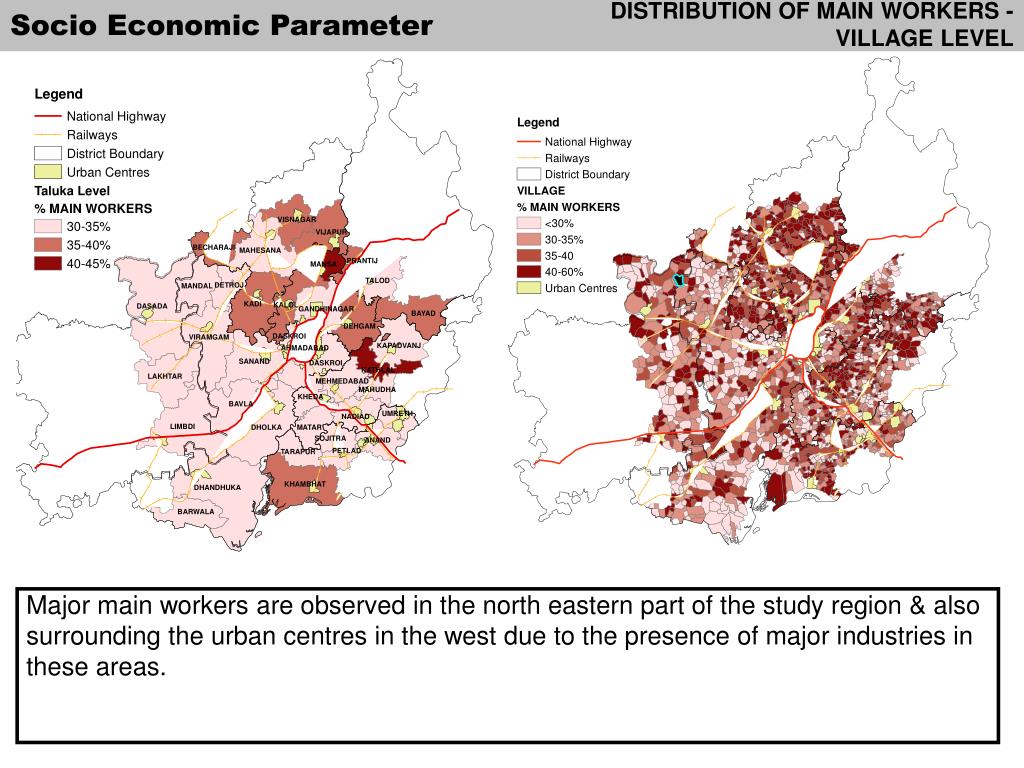

  15. DISTRIBUTION OF MAIN WORKERS - VILLAGE LEVEL Socio Economic Parameter Major main workers are observed in the north eastern part of the study region & also surrounding the urban centres in the west due to the presence of major industries in these areas.

  16. DISTRIBUTION OF MAIN WORKERS - VILLAGE LEVEL Socio Economic Parameter Major main workers are observed in the north eastern part of the study region & also surrounding the urban centres in the west due to the presence of major industries in these areas.

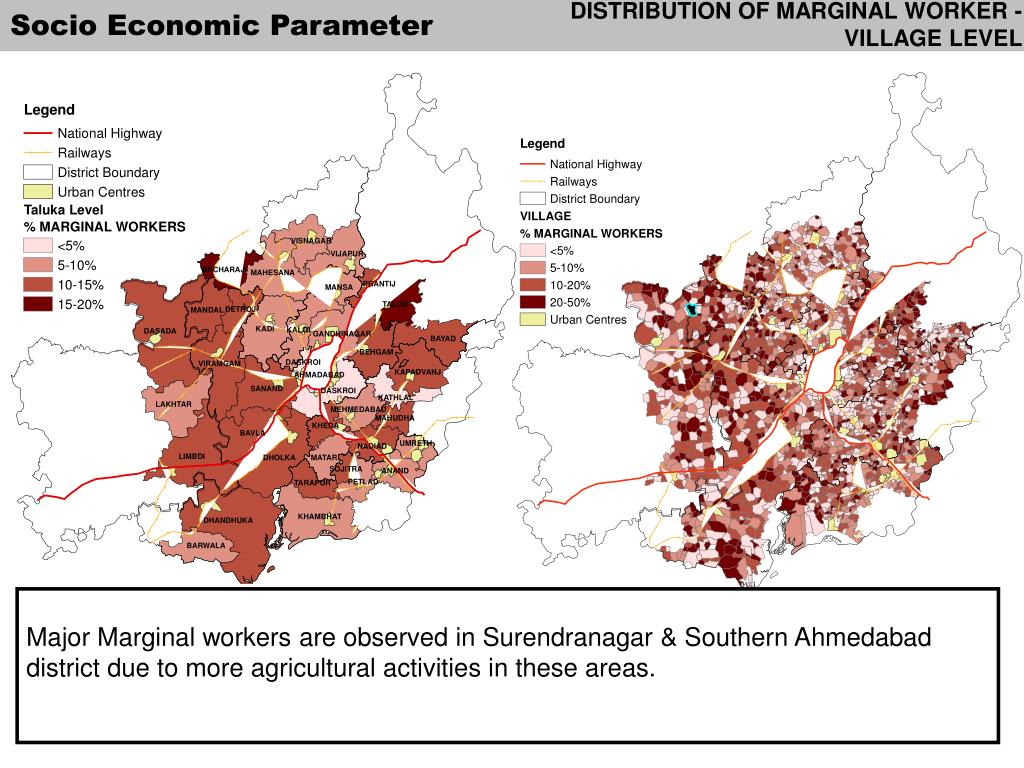

  17. DISTRIBUTION OF MARGINAL WORKER - VILLAGE LEVEL Socio Economic Parameter Major Marginal workers are observed in Surendranagar & Southern Ahmedabad district due to more agricultural activities in these areas.

  18. DISTRIBUTION OF HH INDUSTRY WORKERS - VILLAGE LEVEL Socio Economic Parameter The percentage of house hold industries is very low and is majorly concentrated in few villages of Dhandhuka, Limbdi and Dholka.

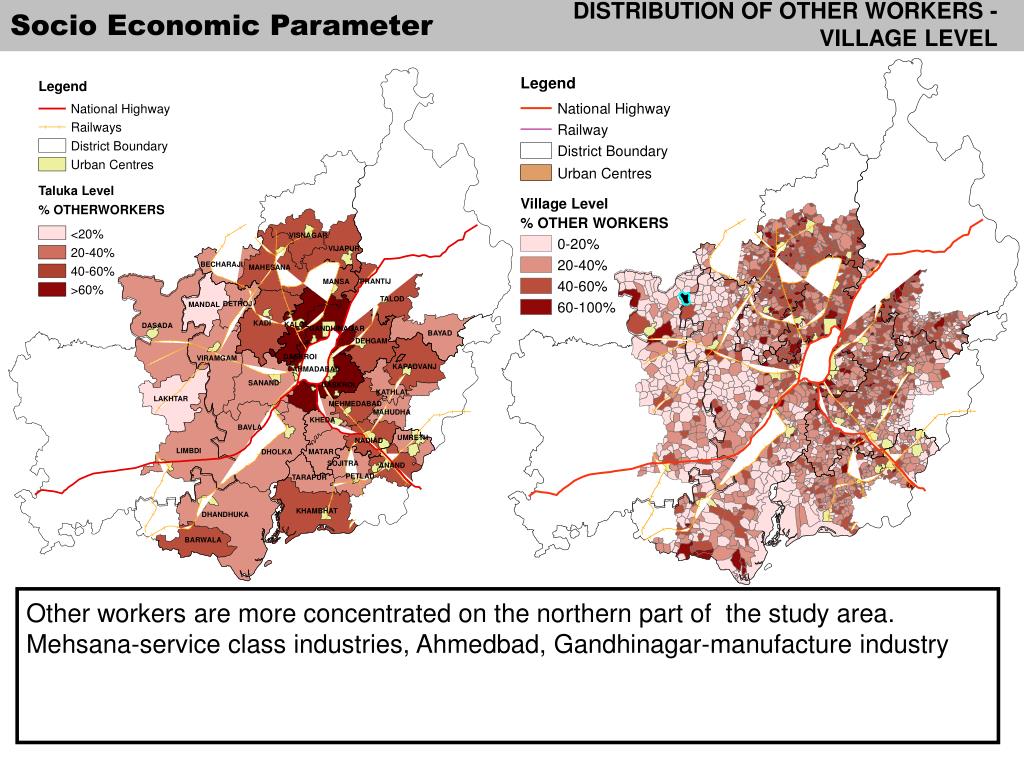

  19. DISTRIBUTION OF OTHER WORKERS - VILLAGE LEVEL Socio Economic Parameter Other workers are more concentrated on the northern part of the study area. Mehsana-service class industries, Ahmedbad, Gandhinagar-manufacture industry

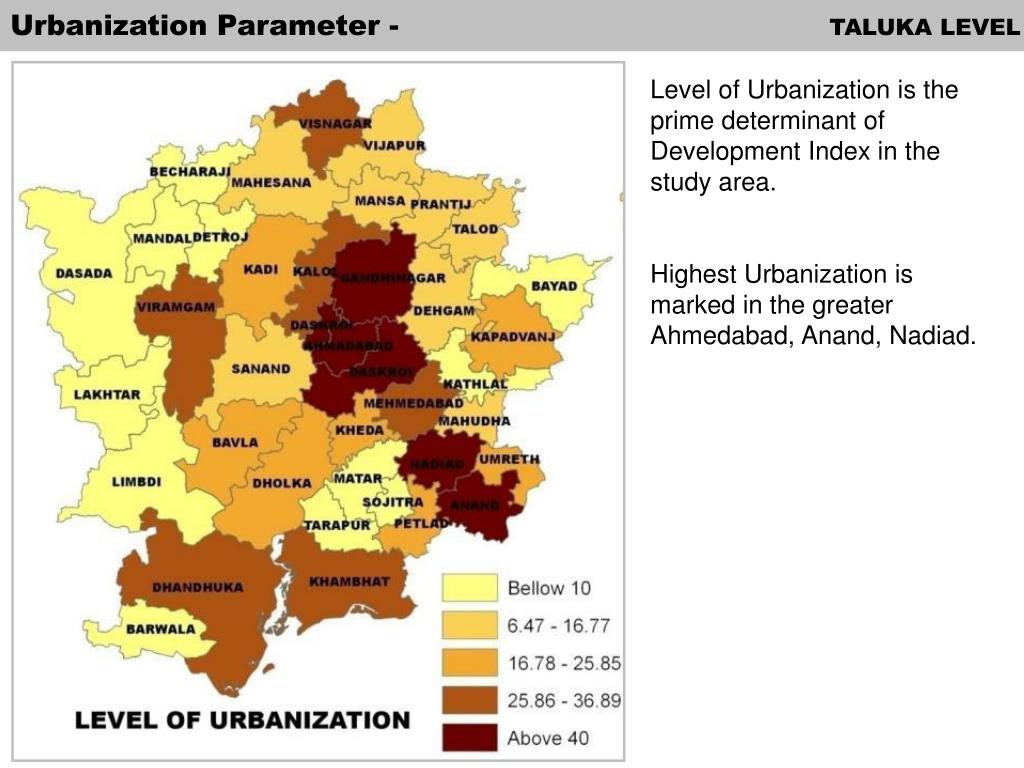

  20. Urbanization Parameter - TALUKA LEVEL Level of Urbanization is the prime determinant of Development Index in the study area. Highest Urbanization is marked in the greater Ahmedabad, Anand, Nadiad.

  21. Development Index TALUKA LEVEL Development Index is observed to be highest in Ahmedabad and Daskroi Talukas, followed by Gandhinagar, Kalol, Mehmadabad, Bavla, Dholka and Khambhat. Out of these, Kalol and Mehmadabad have significant area under present AUDA jurisdiction. While the other three talukas are outside AUDA. The talukas having next range of Development Index are mainly located in North to Ahmedabad, clustering around Gandhinagar.

  22. Proposal & strategy – Population Projection Note: *There is an Addition of 6 lakh projected population because of proposed SIR Greater Ahmedabad = Ahmedabad Urban agglomeration + 4 satellite town ( dehgam, Sanand, Mehmedabad, Kalol) Popultaion projection for Surrounding urban towns are also done i.e Ghandhinagar, Anand, Kheda.

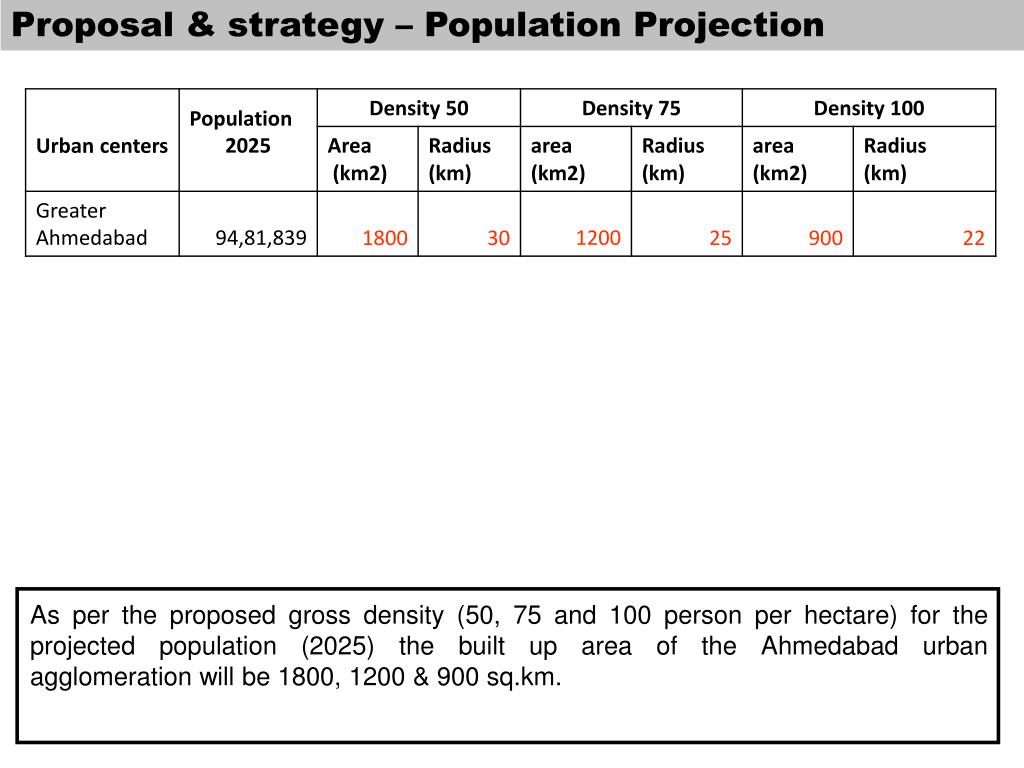

  23. Proposal & strategy – Population Projection As per the proposed gross density (50, 75 and 100 person per hectare) for the projected population (2025) the built up area of the Ahmedabad urban agglomeration will be 1800, 1200 & 900 sq.km.

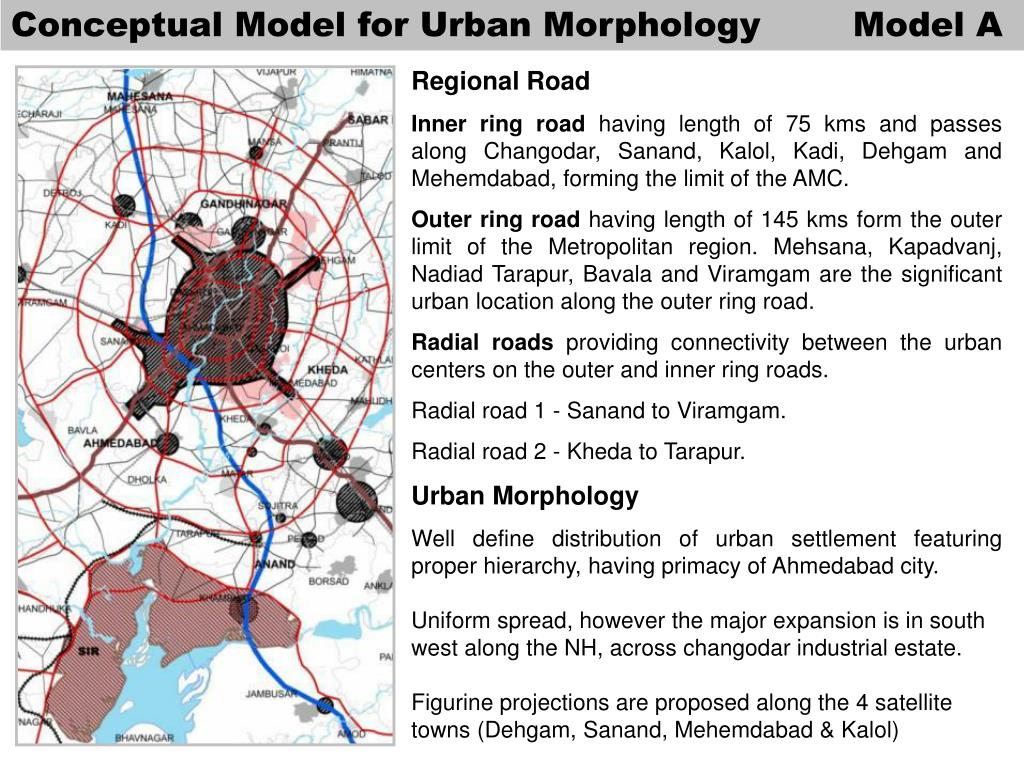

  24. Conceptual Model for Urban Morphology Model A Regional Road Inner ring road having length of 75 kms and passes along Changodar, Sanand, Kalol, Kadi, Dehgam and Mehemdabad, forming the limit of the AMC. Outer ring road having length of 145 kms form the outer limit of the Metropolitan region. Mehsana, Kapadvanj, Nadiad Tarapur, Bavala and Viramgam are the significant urban location along the outer ring road. Radial roads providing connectivity between the urban centers on the outer and inner ring roads. Radial road 1 - Sanand to Viramgam. Radial road 2 - Kheda to Tarapur. Urban Morphology Well define distribution of urban settlement featuring proper hierarchy, having primacy of Ahmedabad city. Uniform spread, however the major expansion is in south west along the NH, across changodar industrial estate. Figurine projections are proposed along the 4 satellite towns (Dehgam, Sanand, Mehemdabad & Kalol)

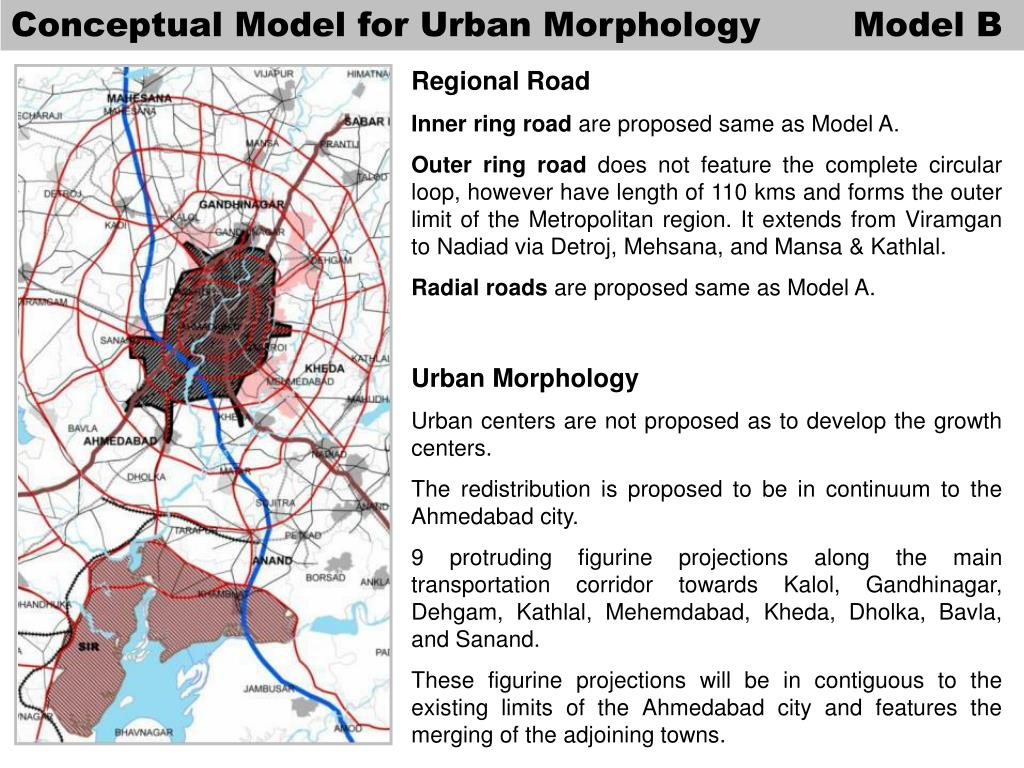

  25. Conceptual Model for Urban Morphology Model B Regional Road Inner ring road are proposed same as Model A. Outer ring road does not feature the complete circular loop, however have length of 110 kms and forms the outer limit of the Metropolitan region. It extends from Viramgan to Nadiad via Detroj, Mehsana, and Mansa & Kathlal. Radial roads areproposed same as Model A. Urban Morphology Urban centers are not proposed as to develop the growth centers. The redistribution is proposed to be in continuum to the Ahmedabad city. 9 protruding figurine projections along the main transportation corridor towards Kalol, Gandhinagar, Dehgam, Kathlal, Mehemdabad, Kheda, Dholka, Bavla, and Sanand. These figurine projections will be in contiguous to the existing limits of the Ahmedabad city and features the merging of the adjoining towns.

  26. Conceptual Model for Urban Morphology Model C Regional Road Inner ring road are proposed same as Model B. Outer ring road are proposed same as Model B. Urban Morphology Expansion of the Ahmedabad city is continuous to SIR of sub region. The expansion is linearly aligned along the state high way 6 and extends to Dholka special investment region. Identification of 7 important urban centers along the proposed Delhi-Mumbai industrial freight corridor. Anand, Tarapur, Nadiad and Matar urban centers forms concentrated cluster in the southern east part of the metropolitan region. While Kadi, Viramgam and Detroj are the other three growth centers identified in the north western part of the region Distribution of proposed urban settlement exhibits longitudinal distribution of proposed growth centers. These centers will cater to the logistic services as per the proposed Delhi-Mumbai industrial freight corridor.

  27. Conceptual Model for Urban Morphology Four models are been opted (Varying population density of 50, 75 & 100 person/hectare), so therefore 12 alternatives are proposed.

  28. Conceptual Model for Urban Morphology Model D

  29. Delineation of Ahmedabad Metropolitan region Includes – viramgam taluka,Barwala, Sojitra, and Nadiad. Excludes the outer ring road Excludes – part of viramgam taluka,Barwala, Sojitra, and Nadiad. Excludes – Viramgam taluka, and part of Dhandhuka Taluka. Includes SIR. Includes SIR. Includes SIR. Area of 12,930 sq.km. Area of 11,065 sq.km Area of 8980 sq.km

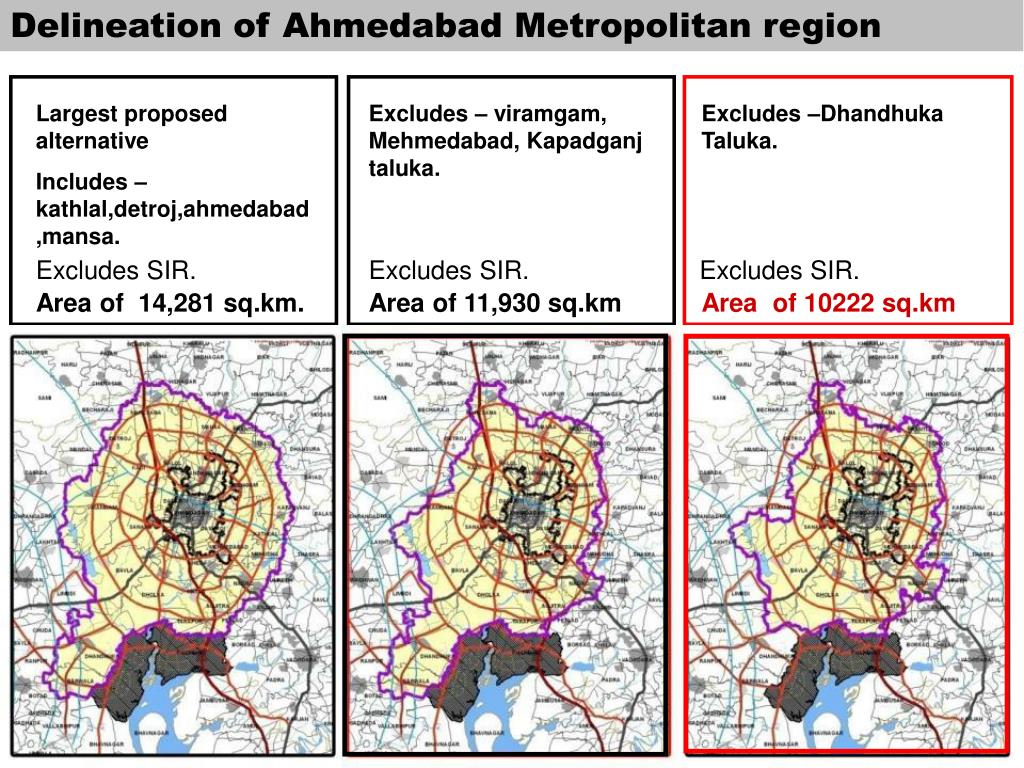

  30. Delineation of Ahmedabad Metropolitan region Largest proposed alternative Includes – kathlal,detroj,ahmedabad,mansa. Excludes – viramgam, Mehmedabad, Kapadganj taluka. Excludes –Dhandhuka Taluka. Excludes SIR. Excludes SIR. Excludes SIR. Area of 14,281 sq.km. Area of 11,930 sq.km Area of 10222 sq.km

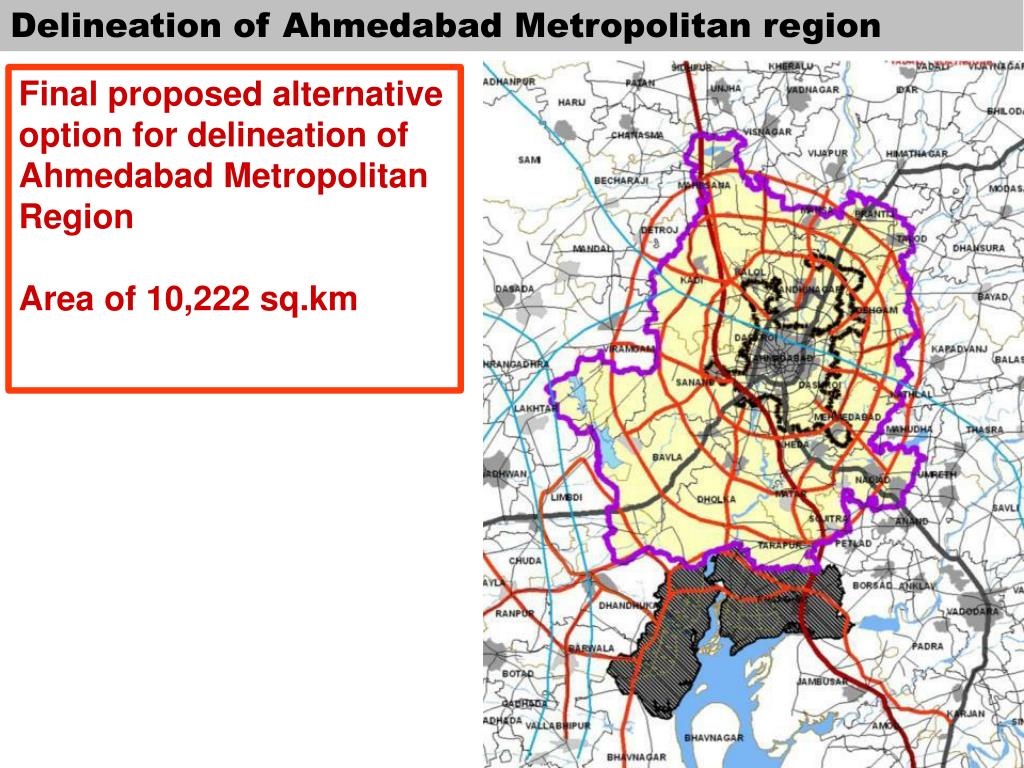

  31. Delineation of Ahmedabad Metropolitan region Final proposed alternative option for delineation of Ahmedabad Metropolitan Region Area of 10,222 sq.km

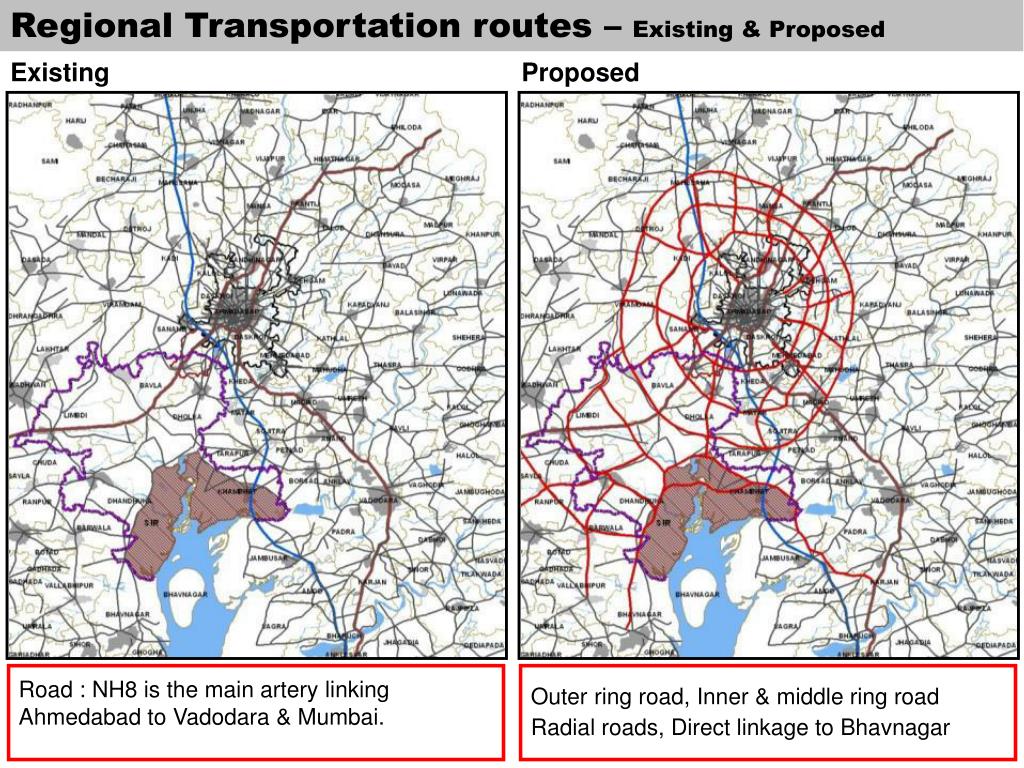

  32. Regional Transportation routes – Existing & Proposed Existing Proposed Road : NH8 is the main artery linking Ahmedabad to Vadodara & Mumbai. Outer ring road, Inner & middle ring road Radial roads, Direct linkage to Bhavnagar

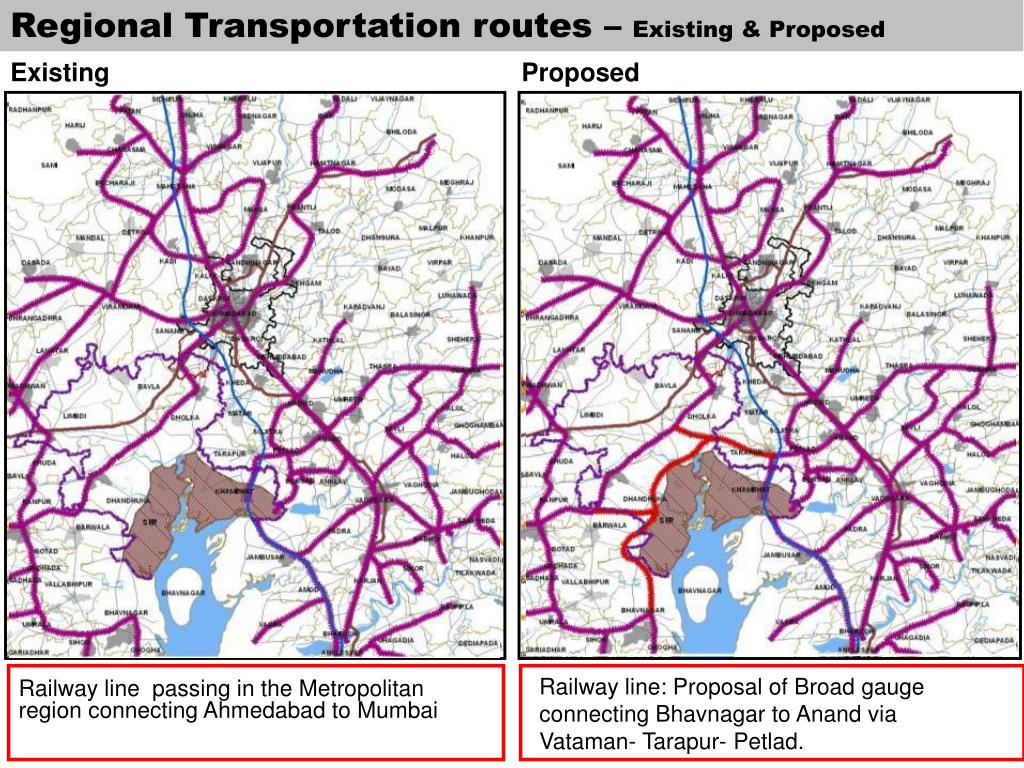

  33. Regional Transportation routes – Existing & Proposed Existing Proposed Railway line: Proposal of Broad gauge connecting Bhavnagar to Anand via Vataman- Tarapur- Petlad. Railway line passing in the Metropolitan region connecting Ahmedabad to Mumbai

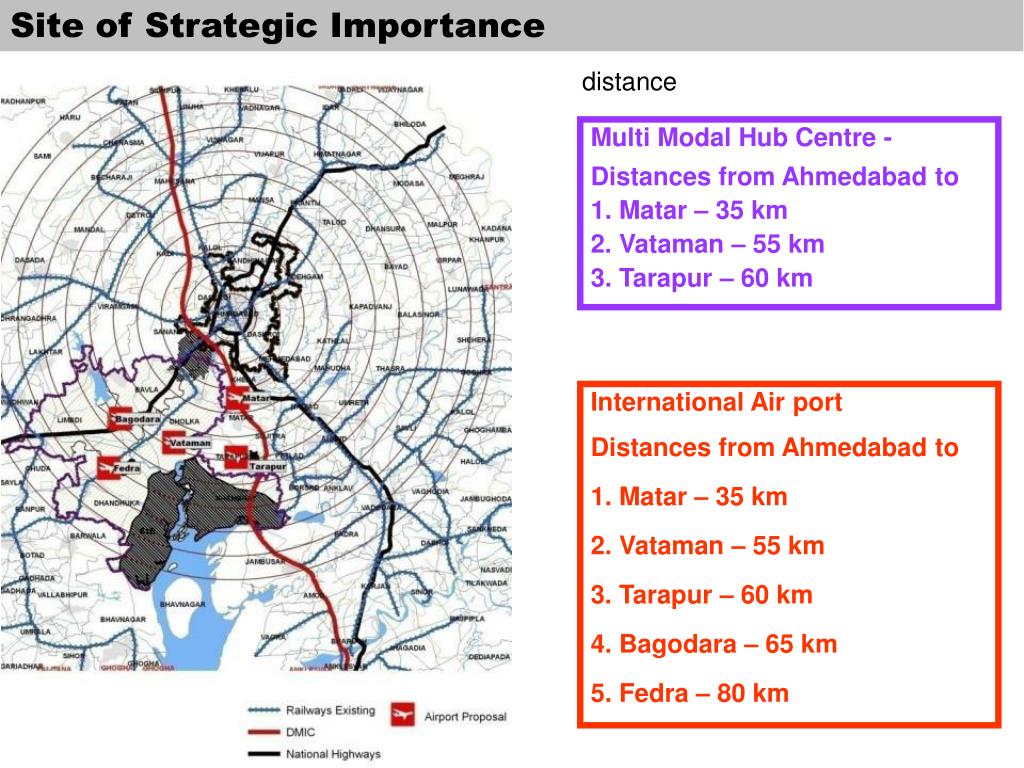

  34. Site of Strategic Importance distance Multi Modal Hub Centre - Distances from Ahmedabad to 1. Matar – 35 km 2. Vataman – 55 km 3. Tarapur – 60 km International Air port Distances from Ahmedabad to 1. Matar – 35 km 2. Vataman – 55 km 3. Tarapur – 60 km 4. Bagodara – 65 km 5. Fedra – 80 km

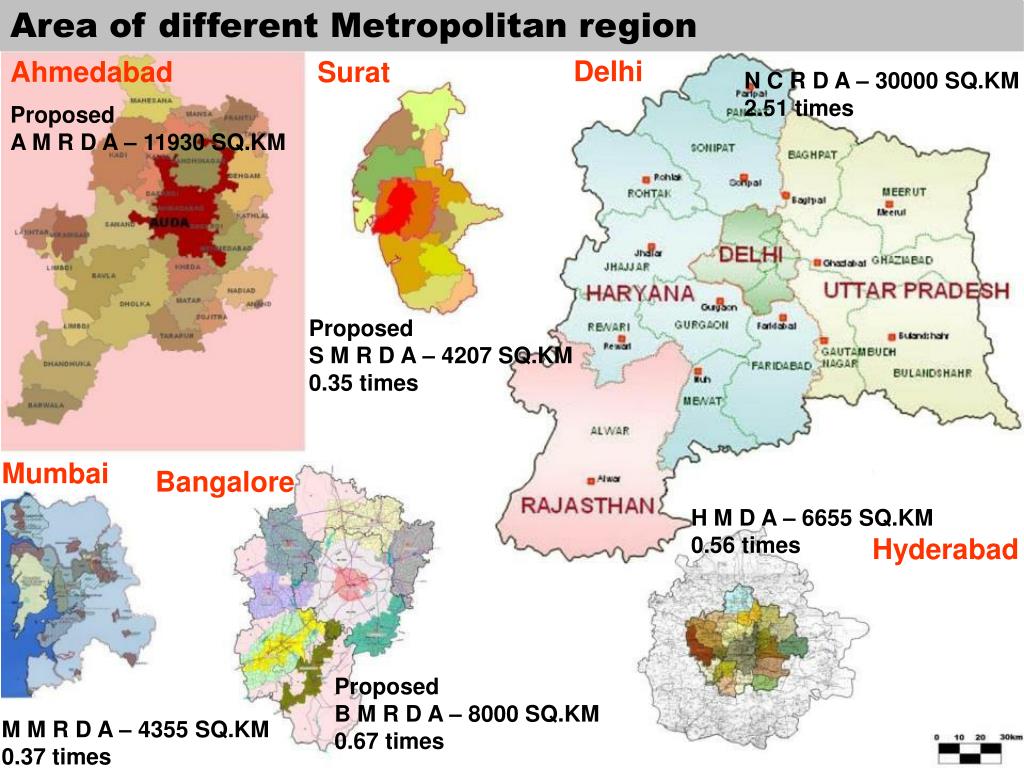

  35. Area of different Metropolitan region Delhi Ahmedabad Surat N C R D A – 30000 SQ.KM 2.51 times Proposed A M R D A – 11930 SQ.KM Proposed S M R D A – 4207 SQ.KM 0.35 times Mumbai Bangalore H M D A – 6655 SQ.KM 0.56 times Hyderabad Proposed B M R D A – 8000 SQ.KM 0.67 times M M R D A – 4355 SQ.KM 0.37 times

  36. Area of different Metropolitan region

  37. Area of different Metropolitan region Hongkong San Fransisco Bangkok AHMEDABAD- SURAT New York
