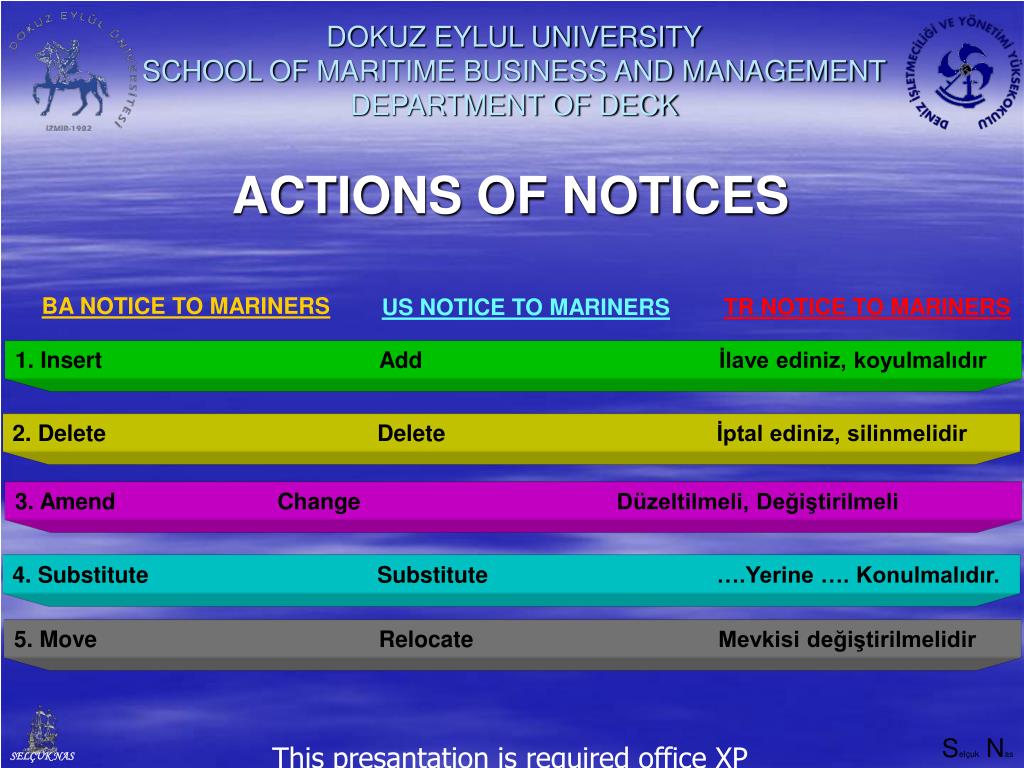

  1. DOKUZ EYLUL UNIVERSITYSCHOOL OF MARITIME BUSINESS AND MANAGEMENTDEPARTMENT OF DECK ACTIONS OF NOTICES BA NOTICE TO MARINERS TR NOTICE TO MARINERS US NOTICE TO MARINERS 1. Insert Add İlave ediniz, koyulmalıdır 2. Delete Delete İptal ediniz, silinmelidir 3. Amend Change Düzeltilmeli, Değiştirilmeli 4. Substitute Substitute ….Yerine …. Konulmalıdır. 5. Move Relocate Mevkisi değiştirilmelidir This presantation is required office XP

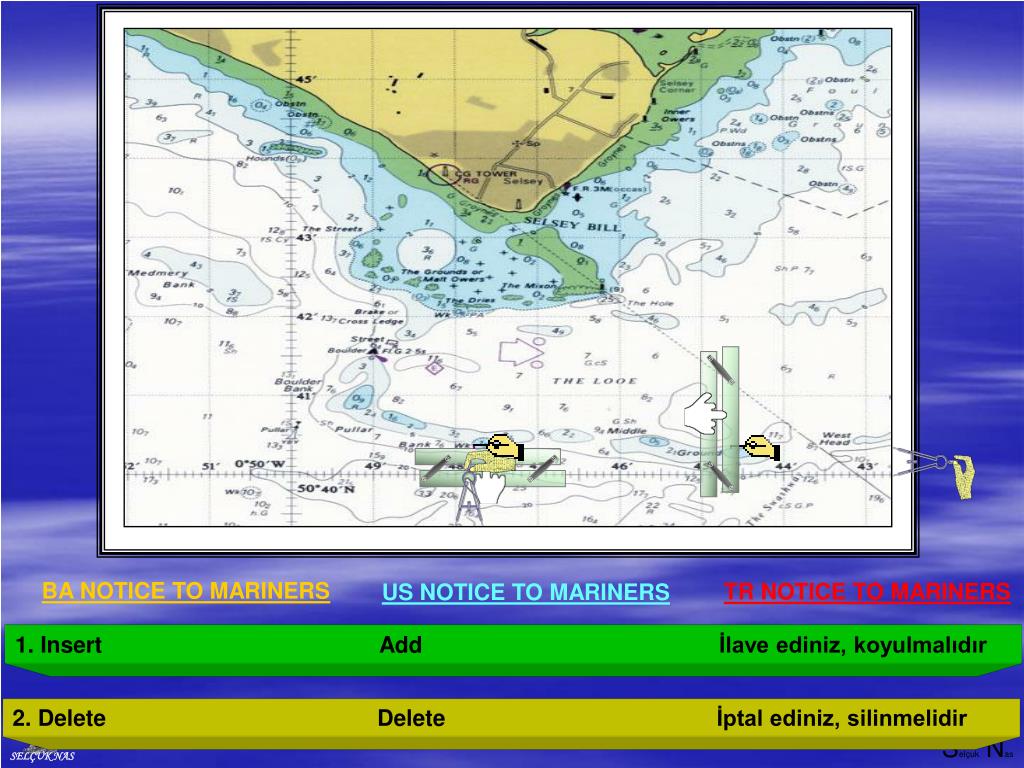

  2. BA NOTICE TO MARINERS TR NOTICE TO MARINERS US NOTICE TO MARINERS 1. Insert Add İlave ediniz, koyulmalıdır 2. Delete Delete İptal ediniz, silinmelidir

  3. Oc G 5s CORRECTION NUMBERS MUST BE WRITEN CORNER OF THE CHART BA NOTICE TO MARINERS TR NOTICE TO MARINERS US NOTICE TO MARINERS 3. Amend Change Düzeltilmeli, Değiştirilmeli 4. Substitute Substitute ….Yerine …. Konulmalıdır.

  4. CORRECTION NUMBERS MUST BE WRITEN CORNER OF THE CHART BA NOTICE TO MARINERS TR NOTICE TO MARINERS US NOTICE TO MARINERS 5. Move Relocate Mevkisi değiştirilmelidir

  5. THIS PRESENTATION WAS PREPARED BY SELÇUK NAS E MAIL : snas@deu.edu.tr Mobile Phone : 0 532 331 51 31 Phone : 0 90 232 278 22 30 Address : Dokuz Eylul Universitesi, Deniz Isletmeciligi ve Yonetimi Yuksekokulu, Kaynaklar Yerleskesi, Buca, Izmir, TURKEY You can use all my product where ever you want.

  6. CHART CORRECTION AND CHART LIST BOOK BA CHART CHART NO ED. NO. CORRECTIONS or NOTICE NO 341 5 th 95 96/ 23,338, 2341 97/ 564, 997 98/889, 3634, 3635 358 2 nd 98 98/ 1547 11 th 97 97/ 881, 992, 1978, 3226 98/ 382, 1127 2005 7 th 92 93/ 1231 94/3925 98/3648 2046 3 rd 95 97/ 1245, 3678, 98/23, 647, 3654PL 2114 6 th 98 97/239, 735 98/168, 2367, 3112, 3603 ? ?

  7. 3638 JAPAN — Kysh, West Coast -Approaches to Sasebo -Katashima Suid-Depths Insert depth 184 m enclosed bywith seabed character, R Rep(1998) (a) 33° 034·82N., 129° 234·15E. depth 197 m enclosed by with seabed character, R Rep(1998) (b) 33° 034·88N., 129° 294·42E. Deletedepth 22m (c) close NW. of (a) above Chart [Last correction].— 3881 (b) [ 3319/98 ] — 1527 [ 3319/98 ] — 359 & L(D7) 359 [ 3319/98 ] Japanese Notice 34/1447(T)/98 (HH.564/424/02). 3632 SUMATERA, West Coast — Selat Siberut — Pulau Bojo — Light Amendlight to, Fl.2s388ft12M (a) 0° 384·4S., 98° 304·7E. light to, Fl.2s12M (b) 0° 384·0S., 98° 304·7E. Chart [Last correction].— 2779 (a) [ 3536/98 ] — 2760 (b) [ 3536/98 ] Light List Vol. K/98, 0842 DG Seacomm, Indonesia (HH.525/460/02). 3648* WEST INDIES — Virgin Islands — Tortola — Road Harbour and Approaches — Buoyage Substitutepreferred channel to starboard can light-buoy, Fl(2+1)G.15s,for starboard-hand conical light-buoy, Fl.2s 18° 254·06N., 64° 364·61W. Move light-buoy from: (a) 18° 244·39N., 64° 354·18W. to: (b) 18° 244·417N., 64° 354·000W. light-buoy from: 18° 254·38N., 64° 364·51W. to: 18° 254·267N., 64° 364·500W. Chart [Last correction].— 2020 (plan, Road Harbour and Approaches) [ 1696/97 ] — 2005 (a,b) [ 2100/98 ] — 2019 (a,b) [ New Chart 27/9/96 ] British Virgin Islands Ports Authority Notices 1/97 & 1/98 (HH.671/430/03).

  8. PL

  9. Oc G 5s BA NOTICE TO MARINERS TR NOTICE TO MARINERS US NOTICE TO MARINERS 3. Amend Change Düzeltilmeli, Değiştirilmeli 4. Substitute Substitute ….Yerine …. Konulmalıdır.
