Presentation Transcript

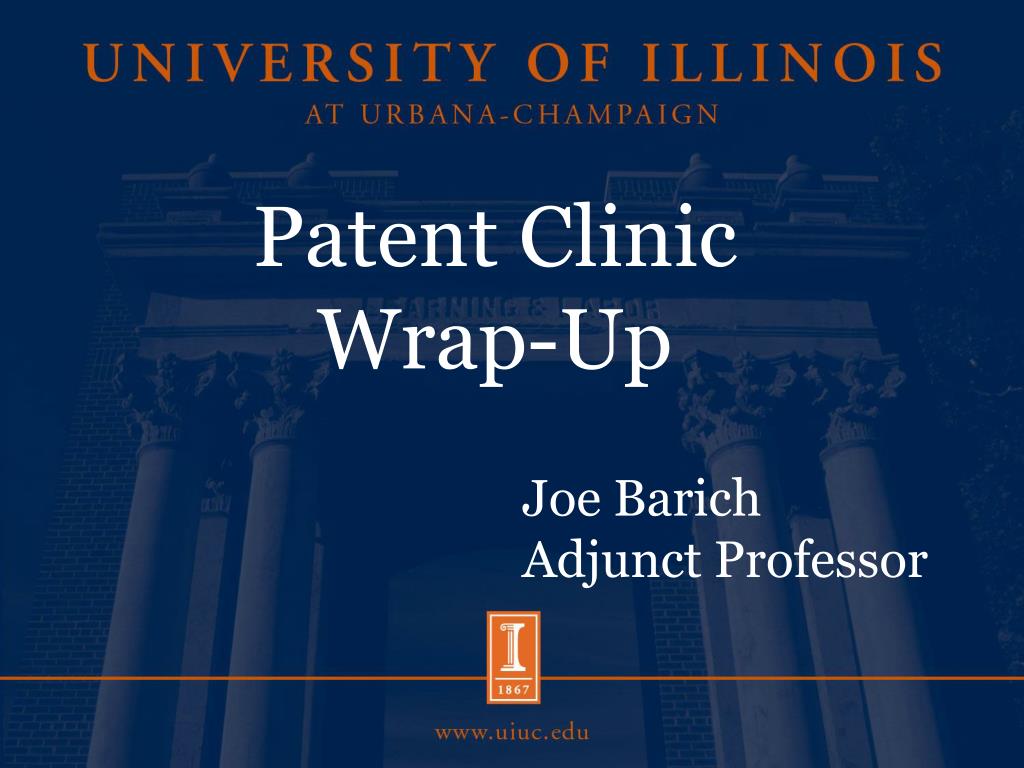

Patent clinic wrap up

Patent ClinicWrap-Up

Joe Barich

Adjunct Professor


Patent clinic wrap up

Overview

  • Your Patent Application

  • Where Do You Go From Here?

  • How To File With The PTO


Your patent application

Your Patent Application

  • Thanks for participating in the Patent Clinic!

  • All inventors have now received and approved their patent applications

  • A hearty Thank-You to our Law Students

  • Mike AzziKatie Hartnett

  • Justin CookJim Lovsin

  • Kevin CukierskiAnn Palma

  • Devon CurtisJosh Sibble


Where do you go from here

Where Do You Go From Here?

  • Must work with OTM to get filing clearance

    • Del Kranz (217) 333-9389 [email protected]

  • Send your patent application to the draftsman to have the figures rendered in compliance with PTO rules

  • Once you have OTM clearance and formal drawings, file your application with the PTO

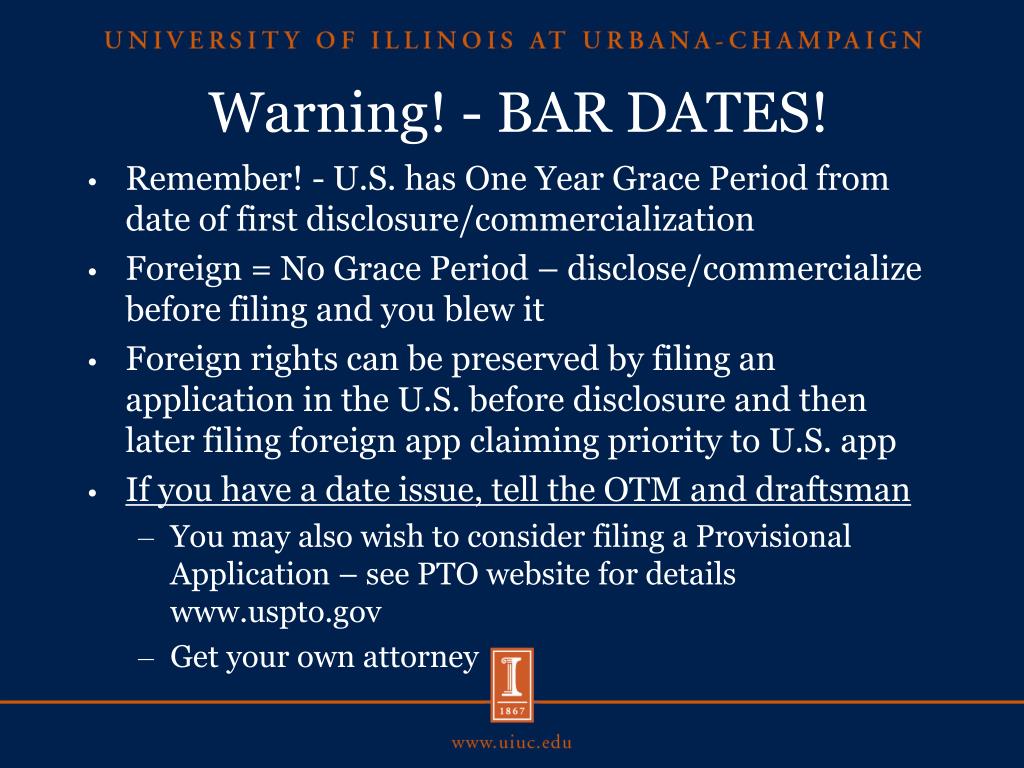

Warning bar dates

Warning! - BAR DATES!

  • Remember! - U.S. has One Year Grace Period from date of first disclosure/commercialization

  • Foreign = No Grace Period – disclose/commercialize before filing and you blew it

  • Foreign rights can be preserved by filing an application in the U.S. before disclosure and then later filing foreign app claiming priority to U.S. app

  • If you have a date issue, tell the OTM and draftsman

    • You may also wish to consider filing a Provisional Application – see PTO website for details www.uspto.gov

    • Get your own attorney


Nick lenzen patent draftsman

Nick Lenzen – Patent Draftsman

  • Nick is a well-known professional draftsman who works with many firms in the Chicago area

  • For the law students – When the partner says “Get this done”, then it’s time to call Nick

  • Nick has graciously agreed to donate $1,000 of his time for each patent application

  • The Patent Clinic, TEC, and Inventors thank Nick for donating his services!

  • Nick will take the drawings prepared by the law students and render the drawings in accordance with the PTO’s arcane formal rules


Working with nick

Working With Nick

  • Working with Nick is strictly voluntary

  • Please e-mail your patent application to Nick at [email protected] - (312) 493-2584

  • Include your phone # and reply e-mail as well as any bar date information if applicable

  • Nick will draft your drawings and return them to you in about 30 days

  • Due date to get drawings to Nick is May 30th


Filing the app at the pto 1

Filing The App At The PTO - 1

  • Once we have filing clearance and drawings, it’s time to file at the PTO!

  • First, make sure that your patent application includes absolutely everything that you want in it.

  • You are typically not able to add or change your description after you file (claims can change)

  • Next, finalize inventorship – Make your best efforts to determine who should be listed as an inventor

    • Fraudulent inventorship may render your patent unenforcable


Filing the app at the pto 2

Filing The App At The PTO - 2

  • We can file with the PTO either electronically or on paper – we will discuss paper because:

    • It is harder to screw up

    • Does not require you to have a PTO account

  • Forms needed:

    • Declaration

    • Fee Transmittal

    • Utility Patent Application Transmittal


Filing the app at the pto 3

Filing The App At The PTO - 3

  • Declaration

  • Signed by all inventors – your official oath

  • See example in materials

  • Online at www.uspto.gov/web/forms/sb0001.pdf

  • If more than one inventor, use supplementwww.uspto.gov/web/forms/sb0002_fill.pdf

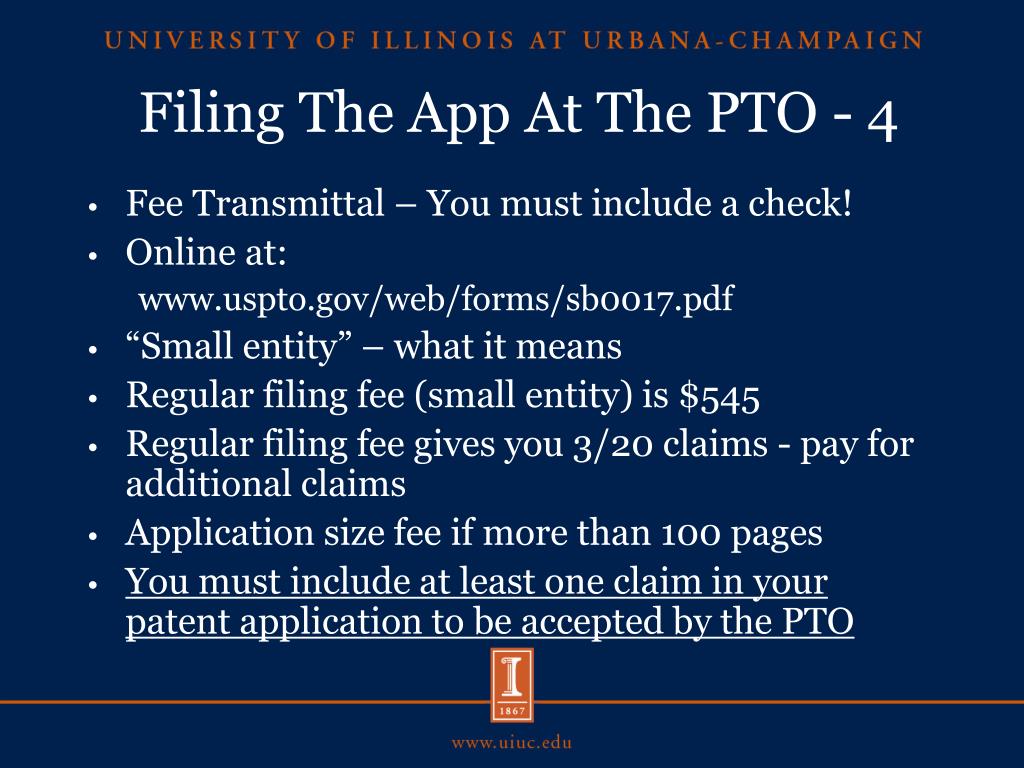

Filing the app at the pto 4

Filing The App At The PTO - 4

  • Fee Transmittal – You must include a check!

  • Online at:

    www.uspto.gov/web/forms/sb0017.pdf

  • “Small entity” – what it means

  • Regular filing fee (small entity) is $545

  • Regular filing fee gives you 3/20 claims - pay for additional claims

  • Application size fee if more than 100 pages

  • You must include at least one claim in yourpatent application to be accepted by the PTO


Filing the app at the pto 5

Filing The App At The PTO - 5

  • Utility Patent Application Transmittal

  • Online at: www.uspto.gov/web/forms/sb0005_fill.pdf

  • Include Express Mail Label No

  • You may also include the following:

    • Assignment – if the inventors are assigning their interest to a corporation

    • Information Disclosure Statement (IDS) – must disclose information material to patentability to the PTO


Filing the app at the pto 6

Filing The App At The PTO - 6

  • Express Mail

  • Enter Express Mail No. on App Transmittal

  • Post Office to Addressee

  • Enter Your Return Address

  • Send to:

    Commissioner For Patents

    P.O. Box 1450

    Alexandria, VA 22313-1450


Filing the app at the pto 7

Filing The App At The PTO - 7

  • What if I screw it up?

  • As long as you include the specification and at least one claim, you will get a filing date

  • You may receive a Notice of Missing Parts if there is a problem with the Declaration or Fee

  • If so, you can just re-file the problem document with a small surcharge

  • It is recommended that you get your own attorney

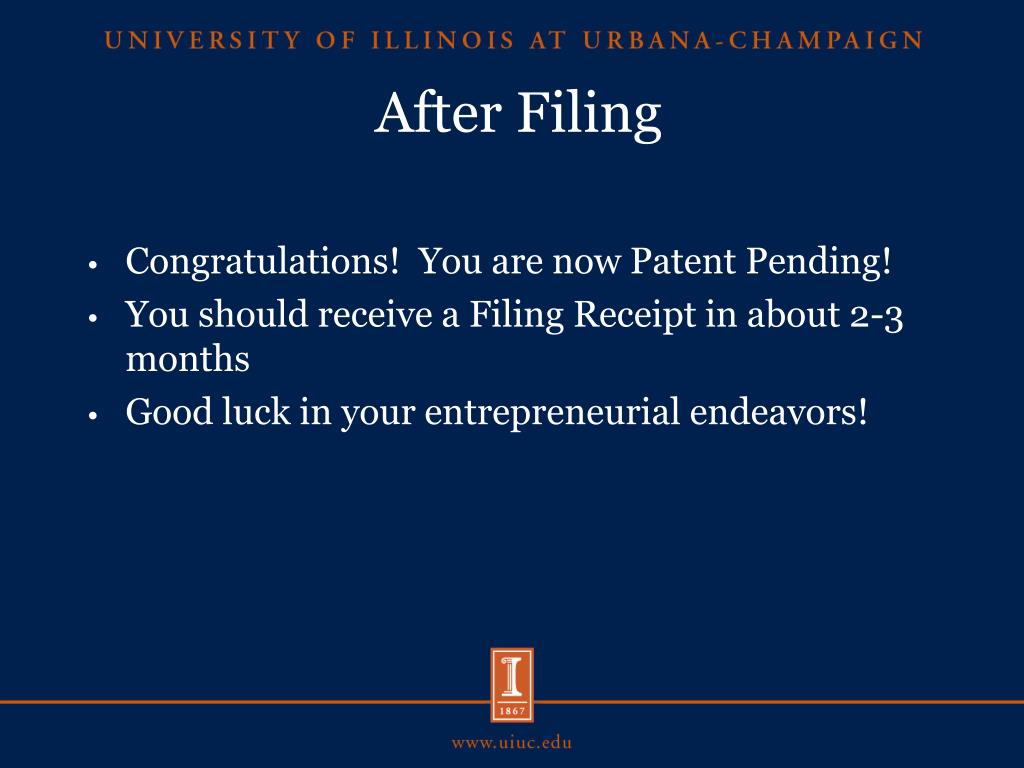

After filing

After Filing

  • Congratulations! You are now Patent Pending!

  • You should receive a Filing Receipt in about 2-3 months

  • Good luck in your entrepreneurial endeavors!

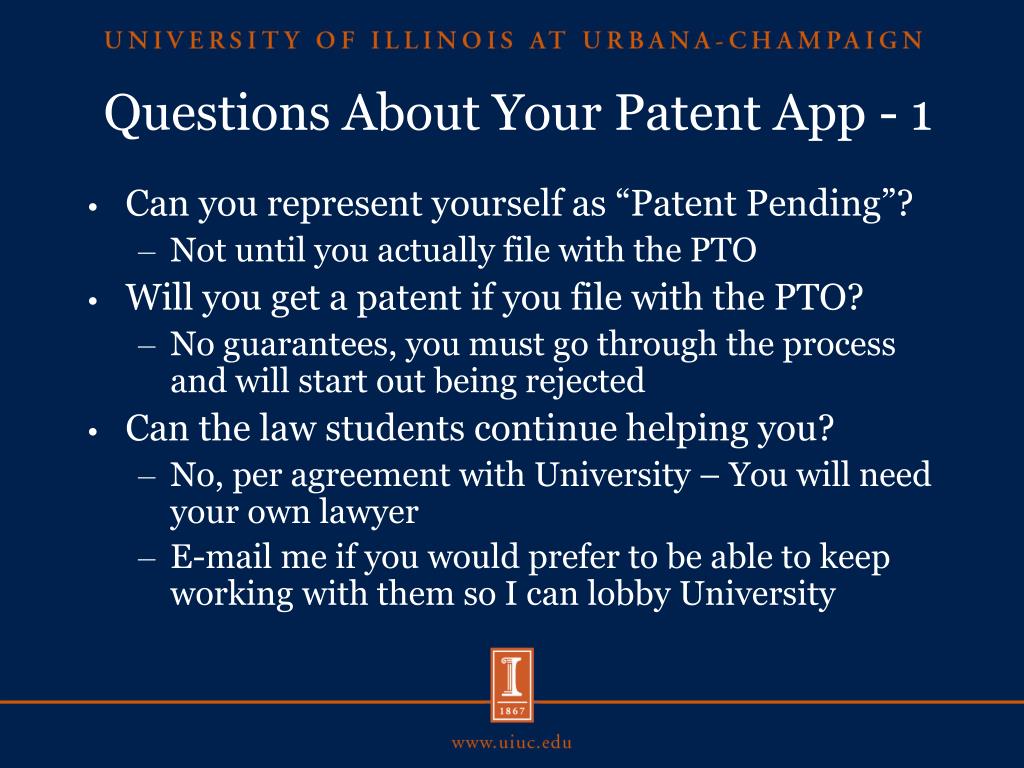

Questions about your patent app 1

Questions About Your Patent App - 1

  • Can you represent yourself as “Patent Pending”?

    • Not until you actually file with the PTO

  • Will you get a patent if you file with the PTO?

    • No guarantees, you must go through the process and will start out being rejected

  • Can the law students continue helping you?

    • No, per agreement with University – You will need your own lawyer

    • E-mail me if you would prefer to be able to keep working with them so I can lobby University


Questions about your patent app 2

Questions About Your Patent App -2

  • Does having a patent app mean that you don’t infringe others?

    • No, novelty/patentability determination is distinct from infringement determination

    • Neither PTO nor the Patent Clinic examine infringement


Final thoughts

Final Thoughts

  • Be conscious of your Bar Dates, if any

  • Be sure to get OTM clearance before filing

  • Work with Nick – it’s a great perk

  • Remember to include your check and Express Mail Number

  • All feedback is welcome – [email protected]

  • Good Luck!


Questions

Questions?

Thanks!
