“Bobbin Box”

A lidded box with a snug fitting lid


Simple Steps

  • Eight side the stock

  • Round the stock

  • Apply glue block

  • True glue block

  • Apply second and true.

  • Layout lid.

  • Remove lid.


Simple Steps ……

  • Turn lid and create groove

  • Finish the interior of the lid.

  • Mount the bottom

  • Hollow, create the tenon. (tendon)

  • Finish the interior

  • Allow to cure

  • Fit the lid, using wax.


Simple Steps …..

  • Bring up the soft touch*

  • Shape the lid and box

  • Sand to finish.

  • Remove from glue block

  • Create jamb chuck

  • Detail the bottom of box.


Mount on glue block

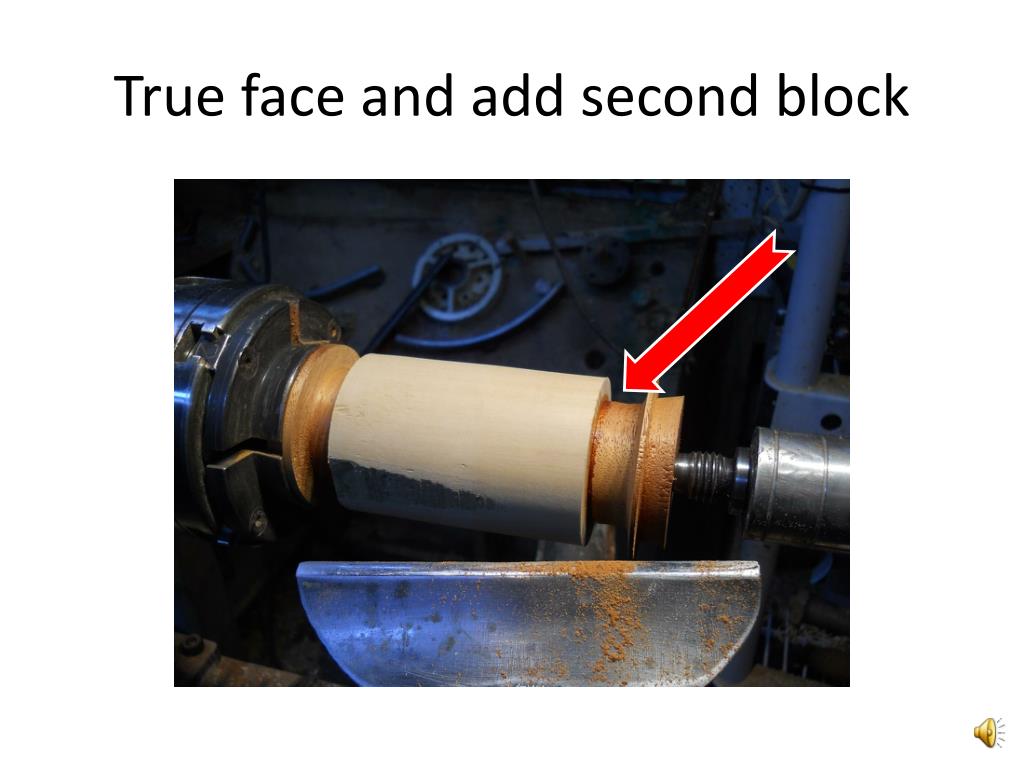

True face and add second block


Part off top third


Lay out center and edges


Hollow Center, add recess


Mount base, layout from top


Hollow Center, Sand

Chatter?


Create tenon


Add groove for “O” Ring


Add “O” Ring and fit lid

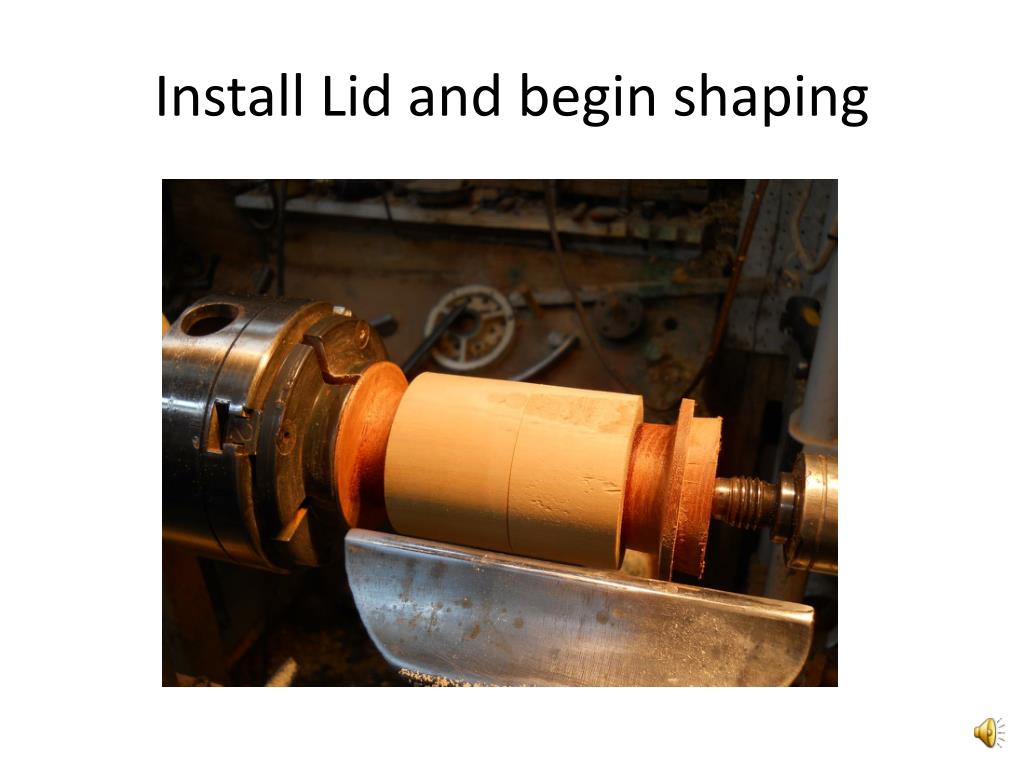

Install Lid and begin shaping

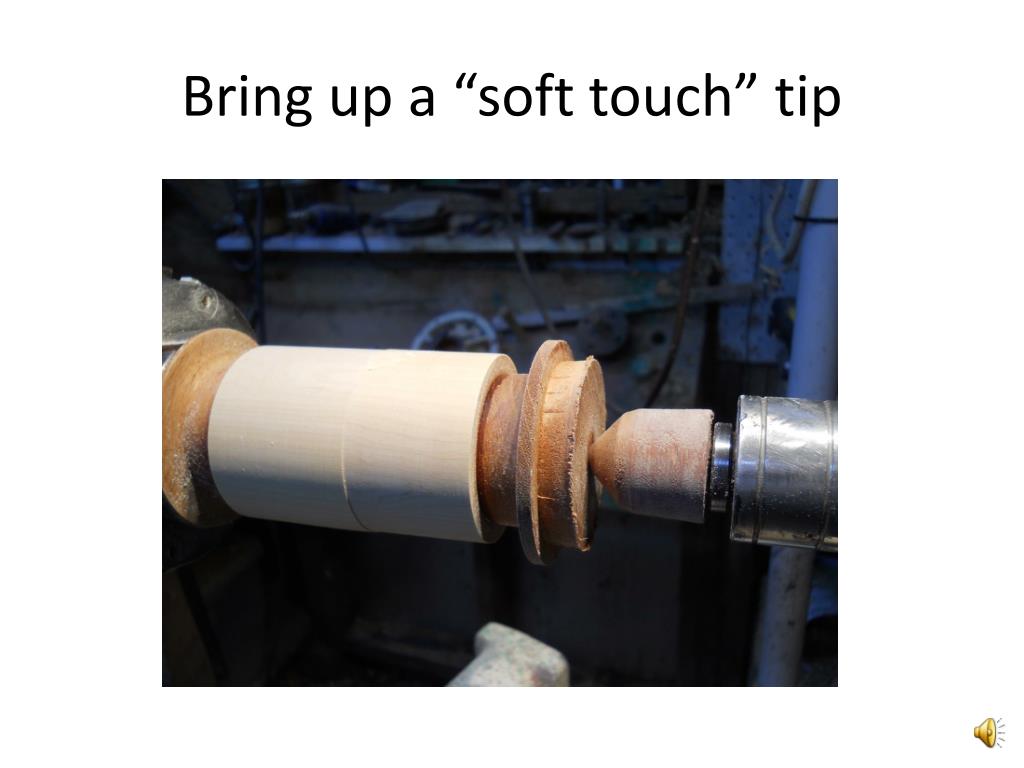

Bring up a “soft touch” tip


Shape lid to suit


Secure lid for finishing

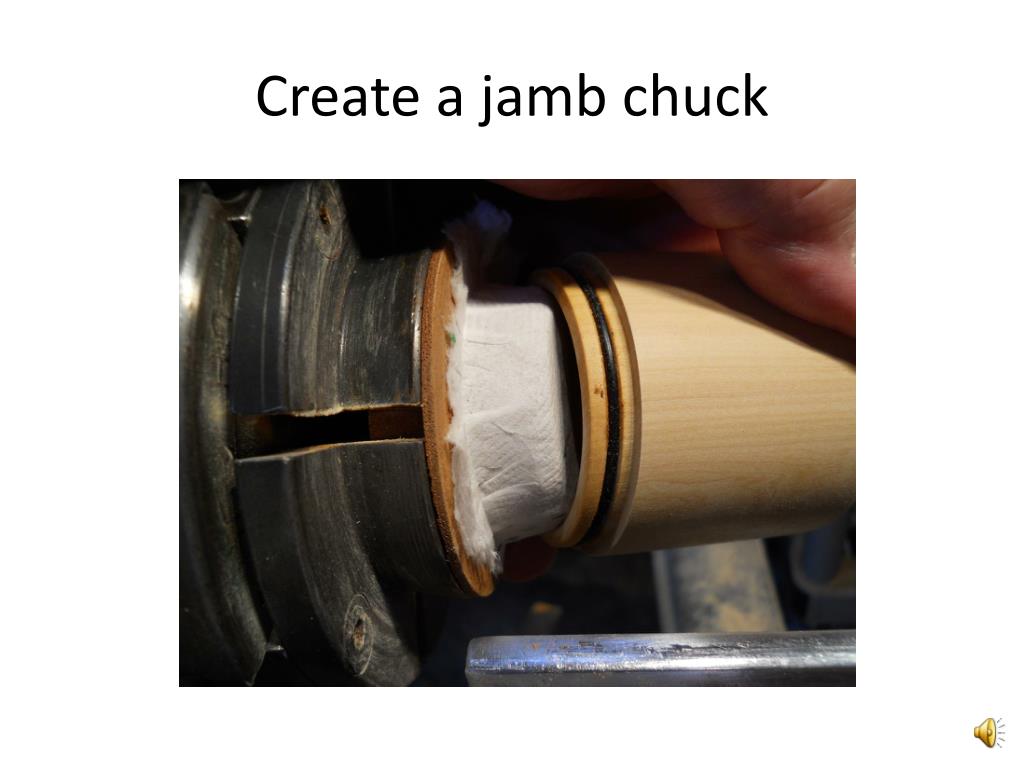

Create a jamb chuck


Bring up a “Soft Touch”


To reshape, sand, finish.
