Presentation Transcript


Mixer settings for shs band room

Mixer Settings for SHS Band Room

Connect powered speakers

To Main Out

Plug mics in Bal/Unbal

Starting with mic 1

Plug RCA cables in

Tape Output to connect

To Computer input

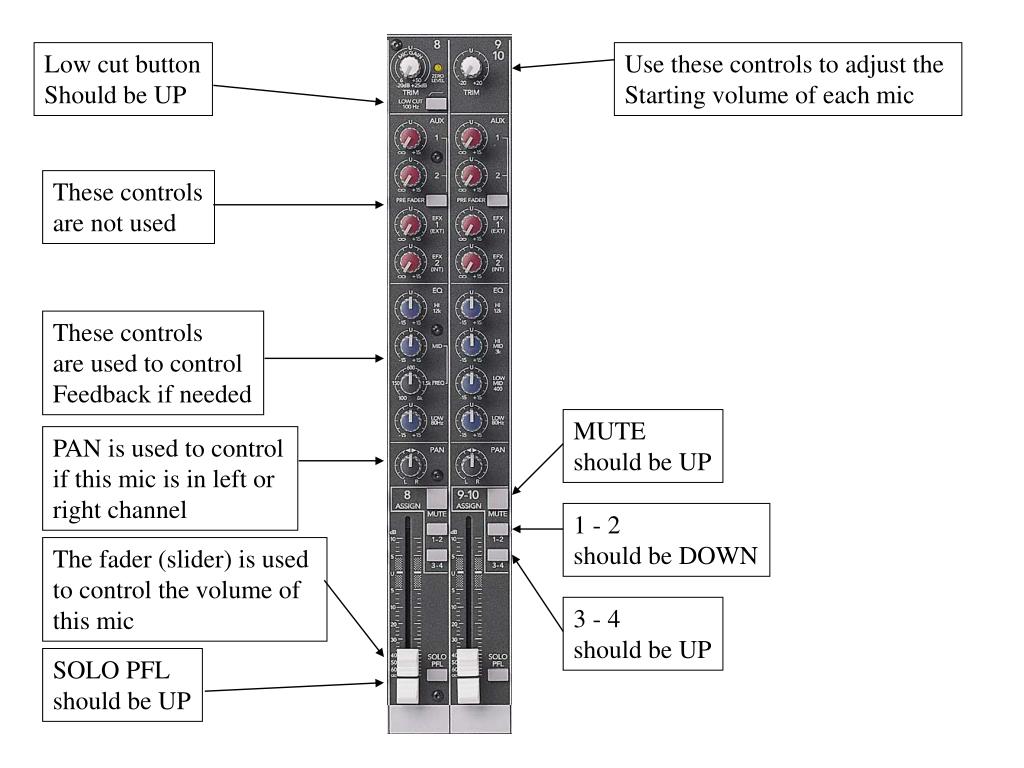

Mixer settings for shs band room

Low cut button

Should be UP

Use these controls to adjust the

Starting volume of each mic

These controls

are not used

These controls

are used to control

Feedback if needed

MUTE

should be UP

PAN is used to control

if this mic is in left or

right channel

1 - 2

should be DOWN

The fader (slider) is used

to control the volume of

this mic

3 - 4

should be UP

SOLO PFL

should be UP

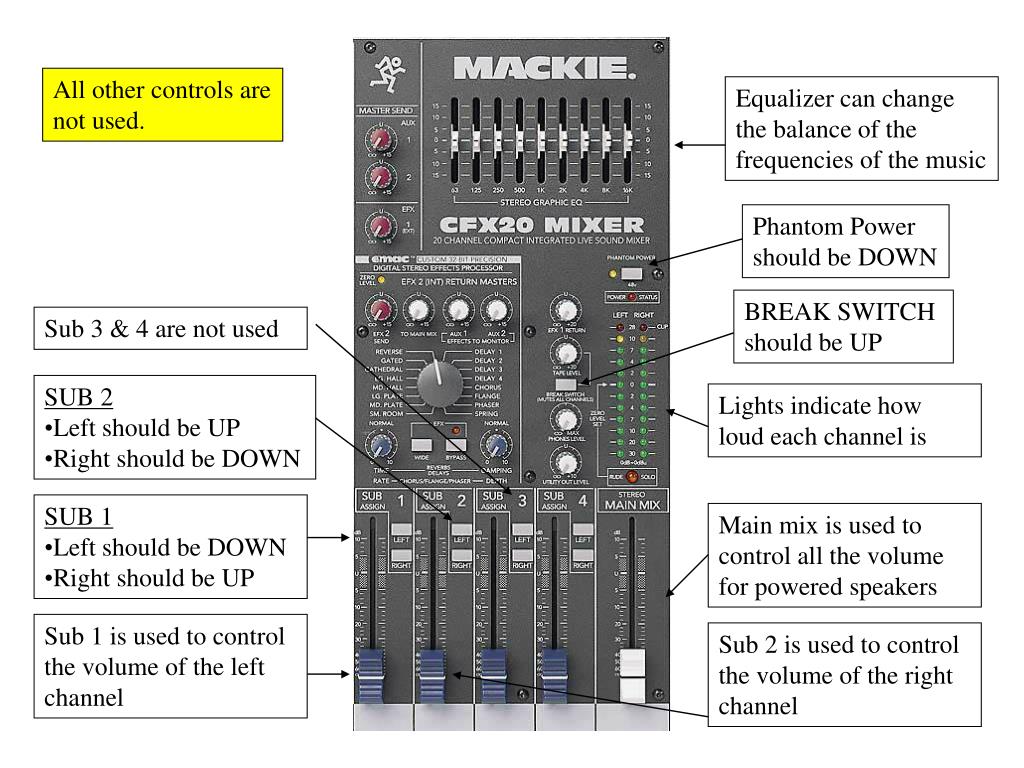

Mixer settings for shs band room

All other controls are

not used.

Equalizer can change

the balance of the

frequencies of the music

Phantom Power

should be DOWN

BREAK SWITCH

should be UP

Sub 3 & 4 are not used

  • SUB 2

  • Left should be UP

  • Right should be DOWN

Lights indicate how loud each channel is

  • SUB 1

  • Left should be DOWN

  • Right should be UP

Main mix is used to control all the volume for powered speakers

Sub 1 is used to control the volume of the left

channel

Sub 2 is used to control the volume of the right

channel

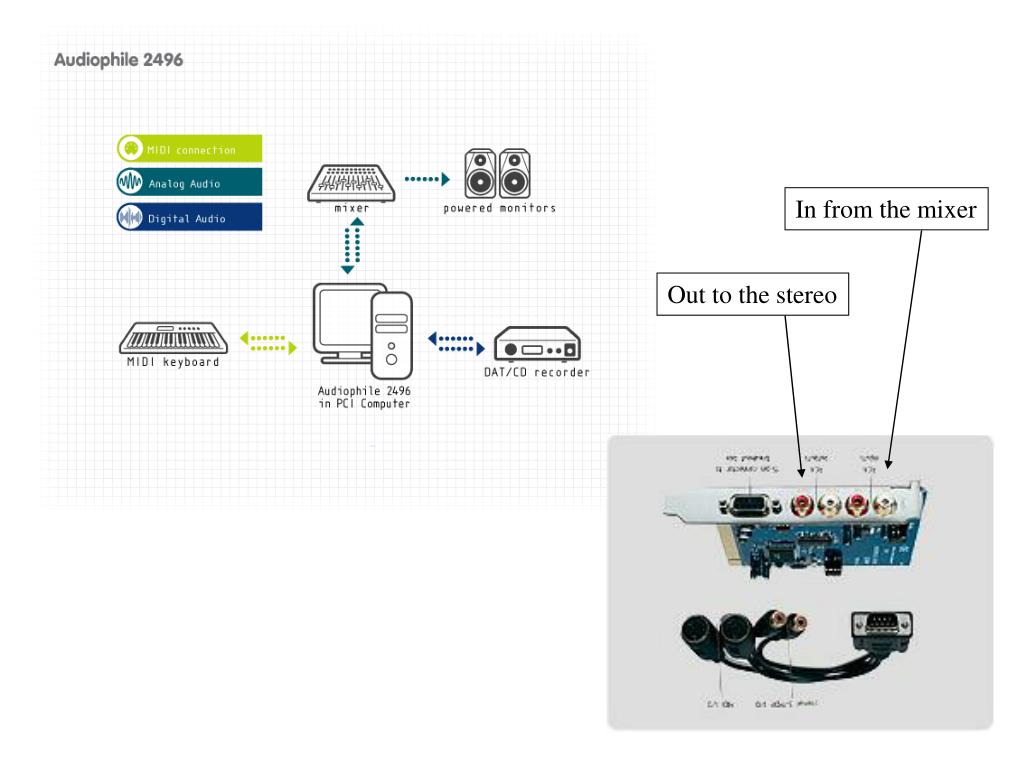

Mixer settings for shs band room

In from the mixer

Out to the stereo
