Department of communications optics materials technical university of denmark

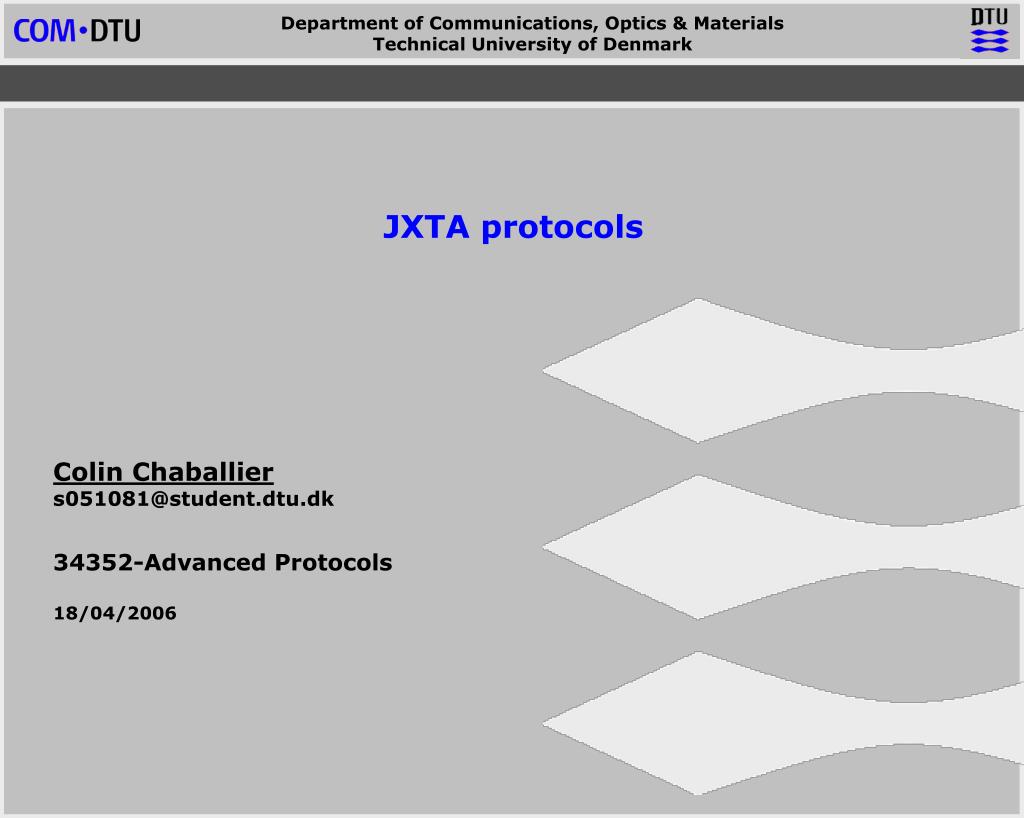

Department of Communications, Optics & Materials

Technical University of Denmark

JXTA protocols

Colin Chaballier

[email protected]

34352-Advanced Protocols

18/04/2006


Department of communications optics materials technical university of denmark

JXTA

Peer-to-Peer Networking ?

a well-known subject (File Exchange, Instant Messaging ….)

Peer-to-peer networks are dedicated to their application

… a lack of inter-operability

… a lack of independence with platforms

- Transport Networks

- Operating System & programming language

A real need for an independent, adhoc, pervasive p2p network

>> JXTA !


Department of communications optics materials technical university of denmark

JXTA

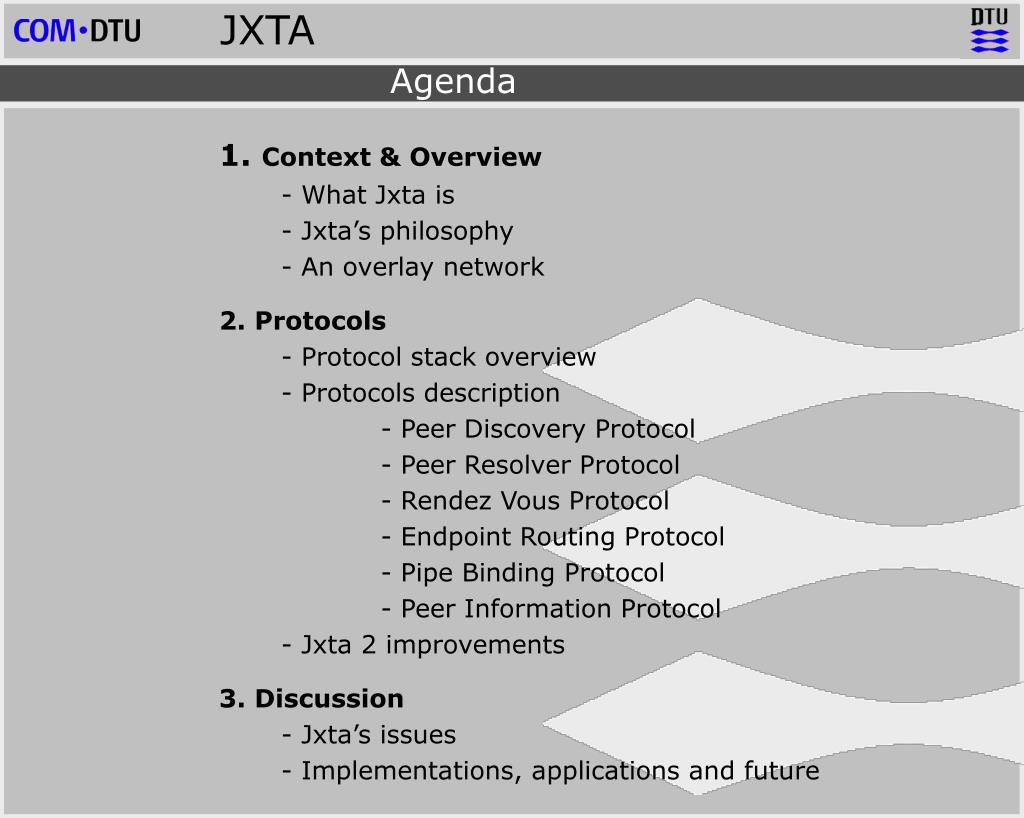

Context & Overview- What Jxta is- Jxta’s philosophy- An overlay network2. Protocols- Protocol stack overview- Protocols description- Peer Discovery Protocol- Peer Resolver Protocol- Rendez Vous Protocol- Endpoint Routing Protocol- Pipe Binding Protocol- Peer Information Protocol- Jxta 2 improvements3. Discussion- Jxta’s issues- Implementations, applications and future

Agenda


Context overview what jxta is jxta s philosophy an overlay network 2 protocols 3 discussion

JXTA

Context & Overview- What Jxta is- JXTA’s philosophy- An overlay network2. Protocols3. Discussion


Department of communications optics materials technical university of denmark

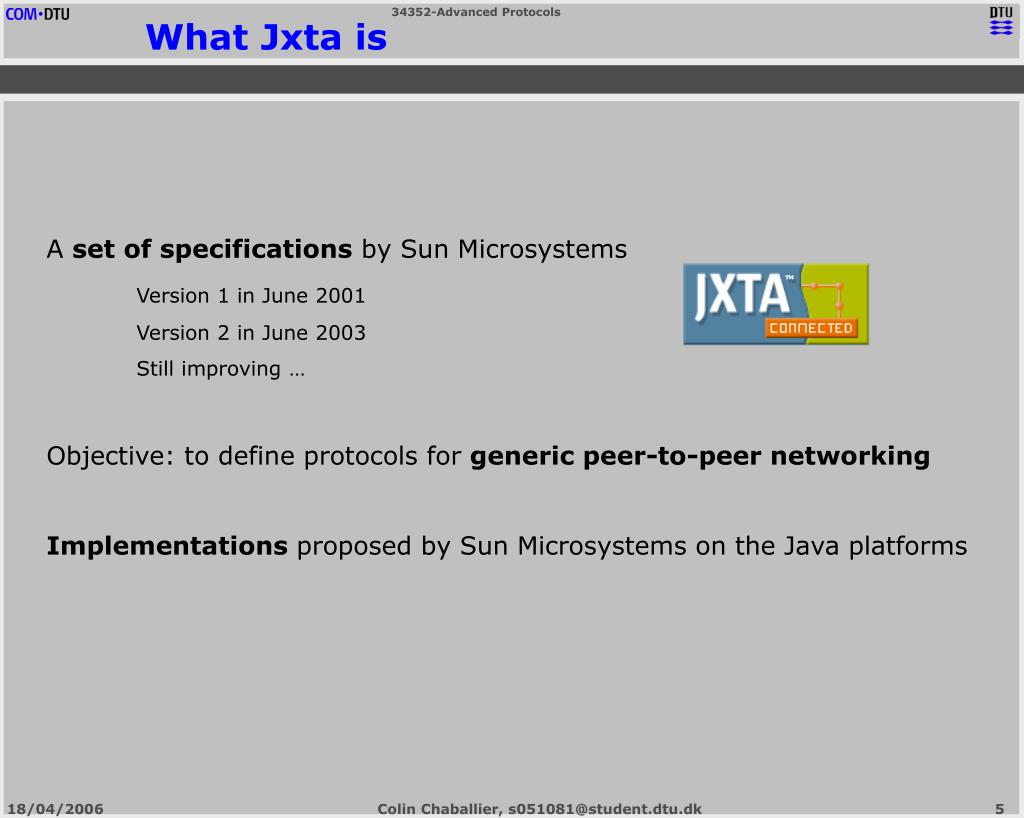

What Jxta is

A set of specifications by Sun Microsystems

Version 1 in June 2001

Version 2 in June 2003

Still improving …

Objective: to define protocols for generic peer-to-peer networking

Implementations proposed by Sun Microsystems on the Java platforms

Colin Chaballier, [email protected]


Department of communications optics materials technical university of denmark

JXTA’s philosophy (1/2)

Jxta enables to build p2p applications on a common platform (JXTA)

with the following characteristics:

> scalability

> Robustness & fault-resistance

> Dynamic behavior & spontaneity

> self-organization

>> Creation of a new set of applications

Colin Chaballier, [email protected]


Department of communications optics materials technical university of denmark

JXTA’s philosophy (2/2)

Organization of these applications:

> Services offered within peergroups

> Each peer is able to “provide” or “consume” a service

Colin Chaballier, [email protected]


Department of communications optics materials technical university of denmark

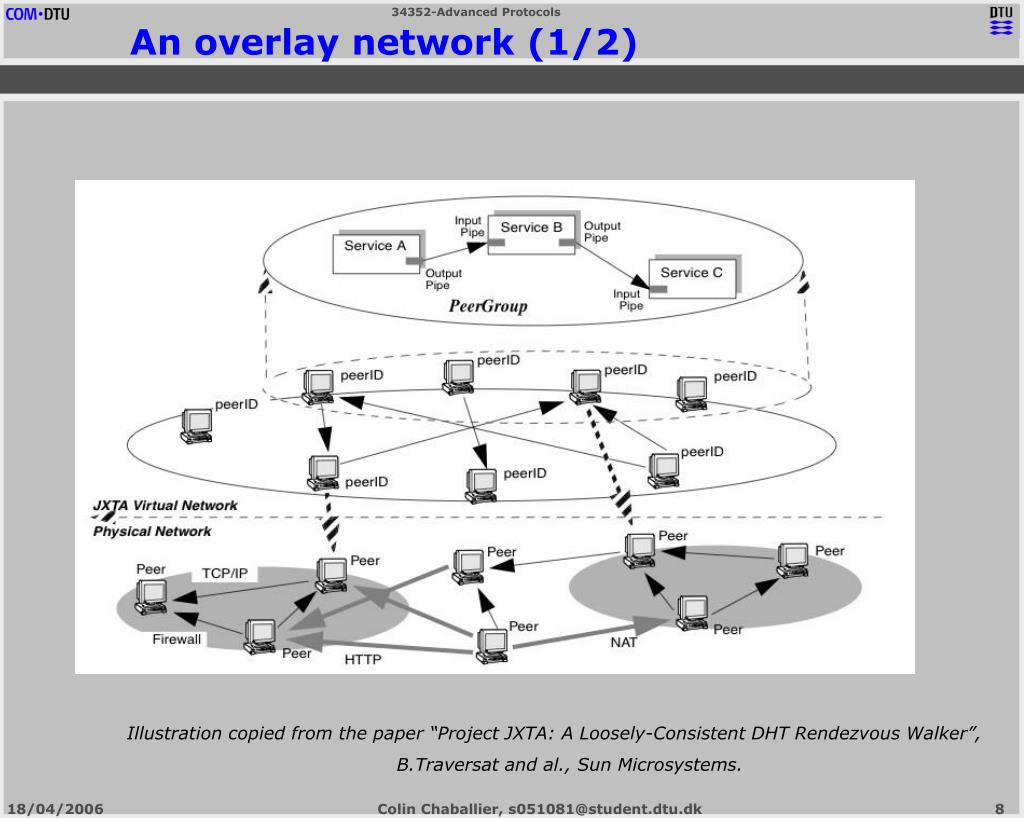

An overlay network (1/2)

Illustration copied from the paper “Project JXTA: A Loosely-Consistent DHT Rendezvous Walker”,

B.Traversat and al., Sun Microsystems.

Colin Chaballier, [email protected]


Department of communications optics materials technical university of denmark

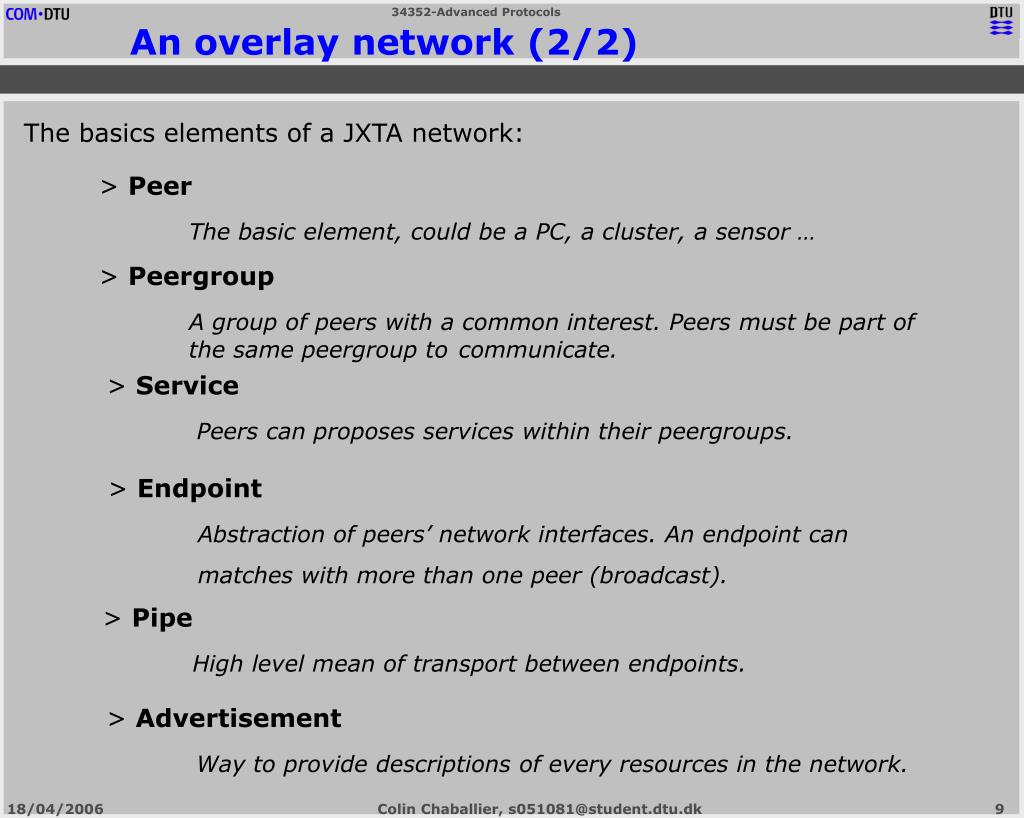

An overlay network (2/2)

The basics elements of a JXTA network:

> Peer

The basic element, could be a PC, a cluster, a sensor …

> Peergroup

A group of peers with a common interest. Peers must be part of the same peergroup to communicate.

> Service

Peers can proposes services within their peergroups.

> Endpoint

Abstraction of peers’ network interfaces. An endpoint can

matches with more than one peer (broadcast).

> Pipe

High level mean of transport between endpoints.

> Advertisement

Way to provide descriptions of every resources in the network.

Colin Chaballier, [email protected]


Department of communications optics materials technical university of denmark

JXTA

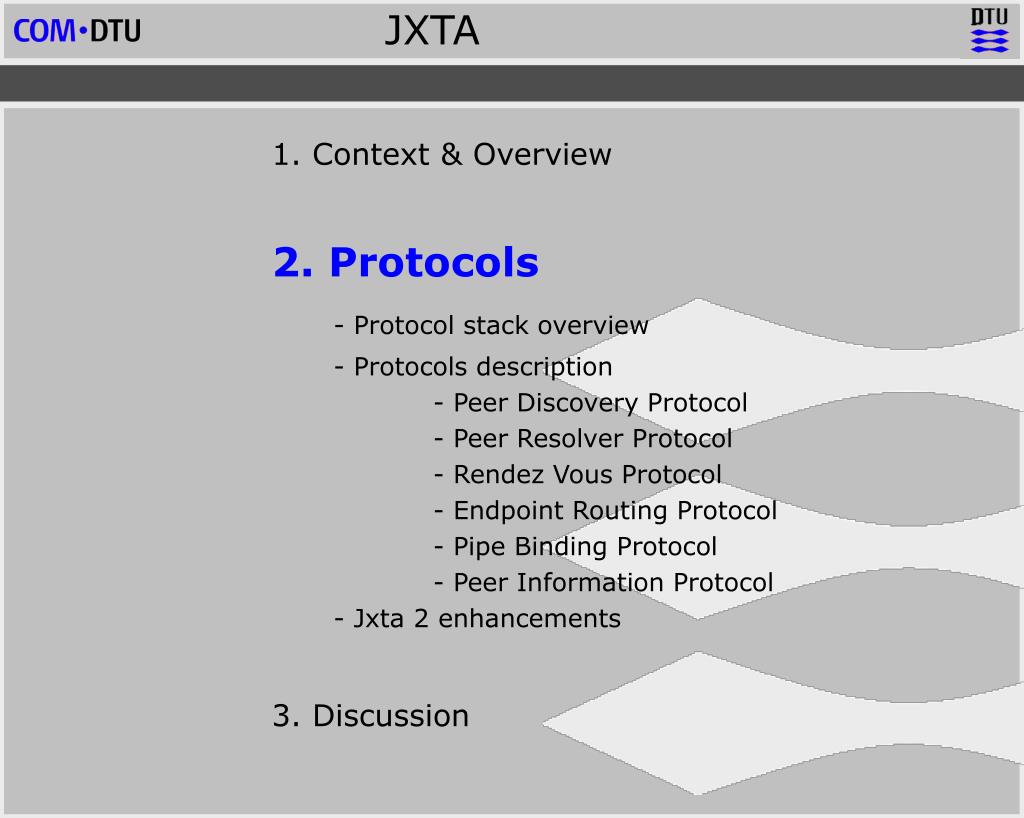

Context & Overview2. Protocols- Protocol stack overview- Protocols description- Peer Discovery Protocol- Peer Resolver Protocol- Rendez Vous Protocol- Endpoint Routing Protocol- Pipe Binding Protocol- Peer Information Protocol- Jxta 2 enhancements3. Discussion


Department of communications optics materials technical university of denmark

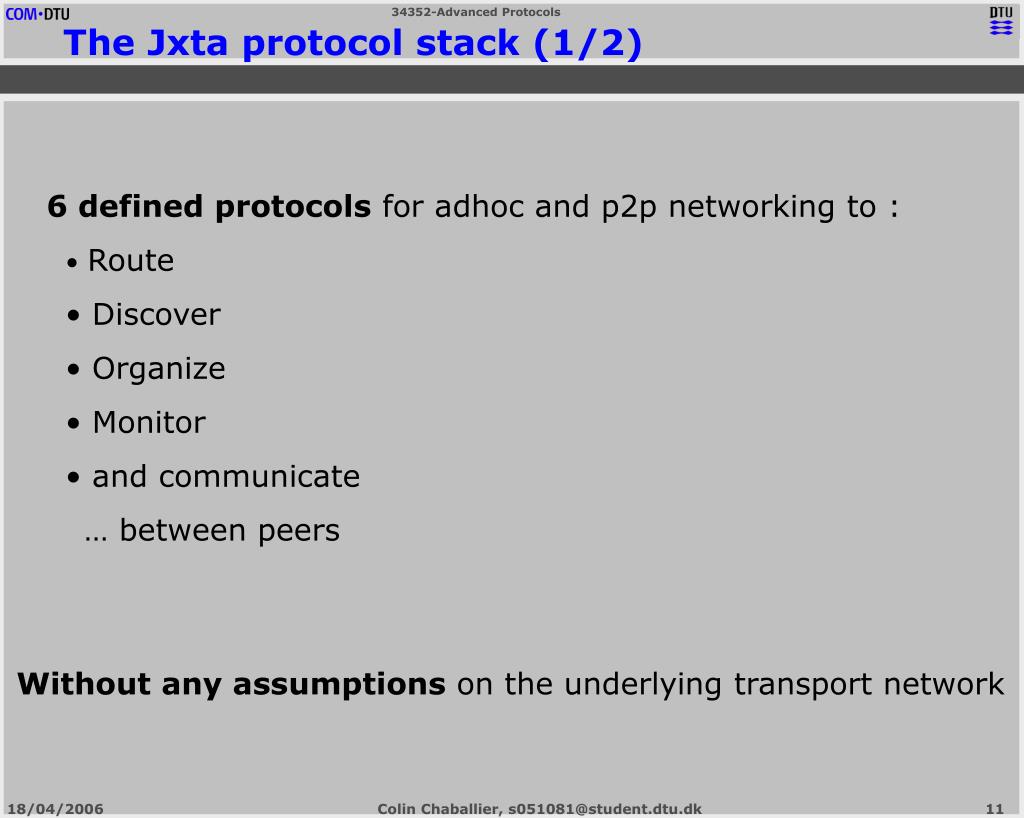

The Jxta protocol stack (1/2)

  • 6 defined protocols for adhoc and p2p networking to :

    • Route

    • Discover

    • Organize

    • Monitor

    • and communicate

      • … between peers

  • Without any assumptions on the underlying transport network

Colin Chaballier, [email protected]


Department of communications optics materials technical university of denmark

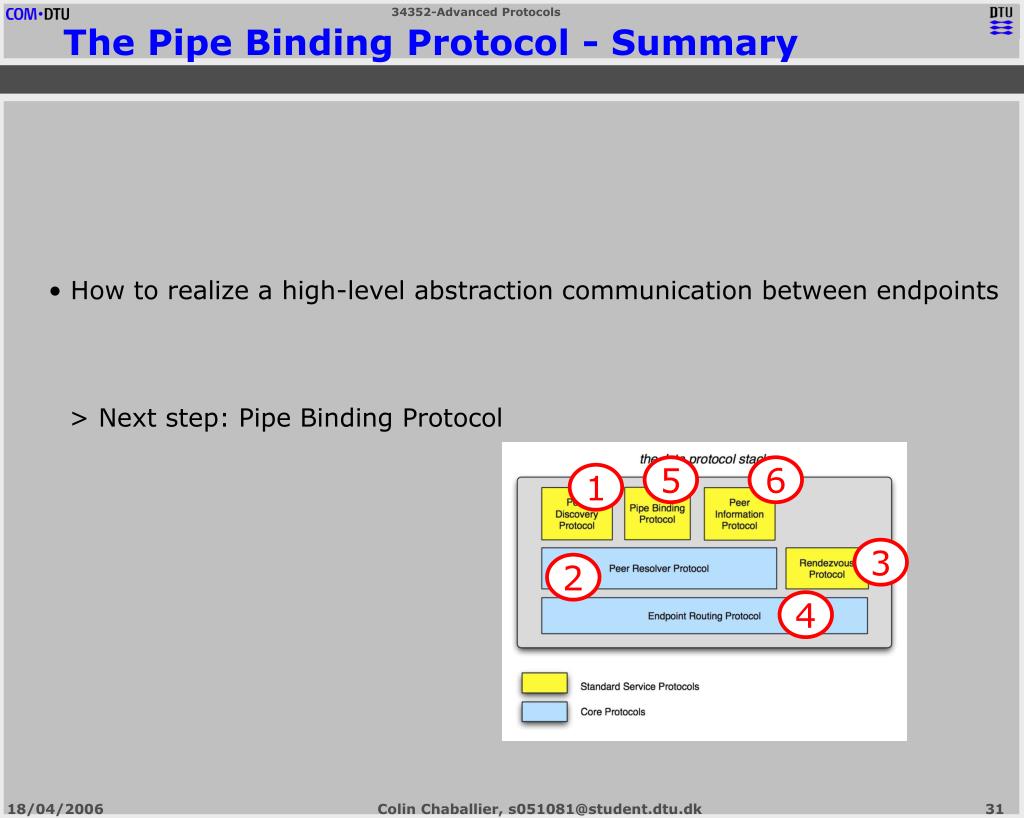

The Jxta protocol stack (2/2)

1

5

6

2

3

4

Colin Chaballier, [email protected]


Department of communications optics materials technical university of denmark

The Peer Discovery Protocol (1/2)

Description

Publish and discover ressources using advertisements

  • Every network resources represented by an advertisement

  • (peer, peergroup, pipe, module …)

  • A very simple and generic mechanism

  • 2 messages types :

  • Discovery Query Message lookup for a keyword for example

  • Discovery Response Message reply matching advertisements

  • No guarantee of response to a query

Colin Chaballier, [email protected]


Department of communications optics materials technical university of denmark

<?xml version=“1.0” encoding=“UTF-8”?>

<jxta:DiscoveryQuery>

<Type> . . . </Type>

<Threshold> . . . </Threshold>

<PeerAdv> . . .</PeerAdv>

<Attr> Name </Attr>

<Value> *sidus* </Value>

</jxta:DiscoveryQuery>

The Discovery Query Message structure :

<jxta:DiscoveryResponse>

<Type> . . . </Type>

<Count> . . . </Count>

<PeerAdv> . . .</PeerAdv>

<Attr> Name. </Attr>

<Value> *sidus*</Value>

<Response Expiration= ‘’expiration time’’>

<!-- pipe adv., containing the string “sidus” in its name>

</Response>

</jxta:DiscoveryResponse>

The Discovery Response Message structure :

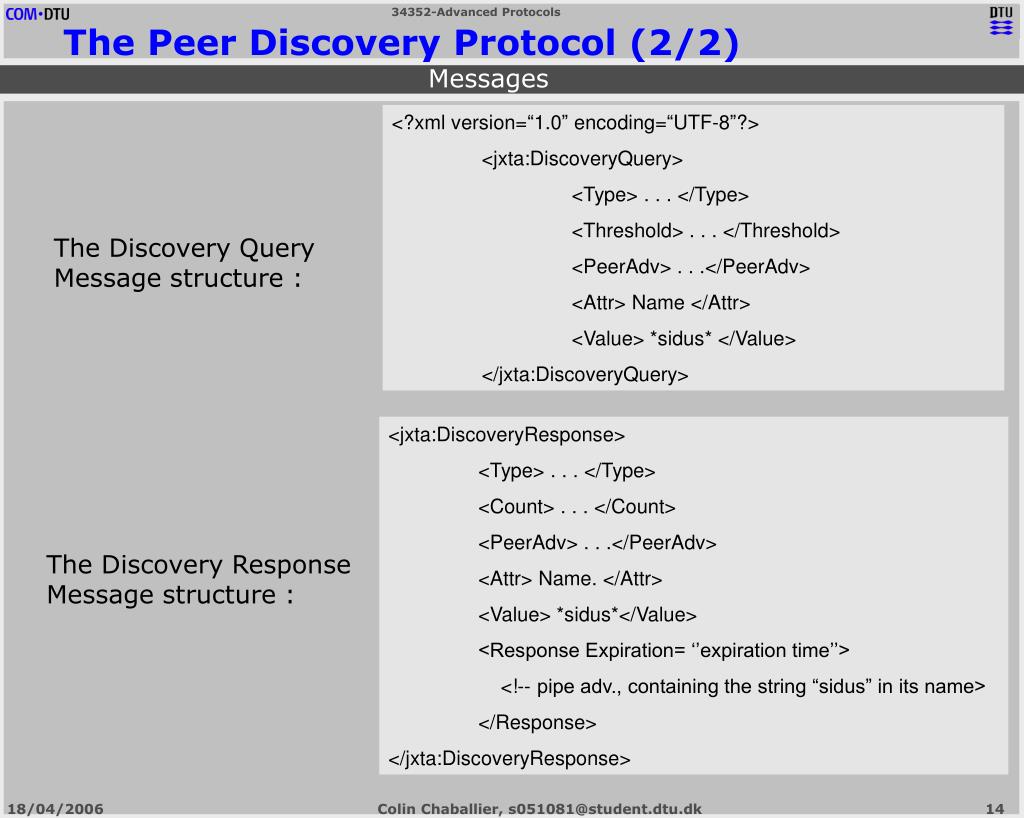

The Peer Discovery Protocol (2/2)

Messages

Colin Chaballier, [email protected]


Department of communications optics materials technical university of denmark

> Next step: Peer Resolver Protocol

2

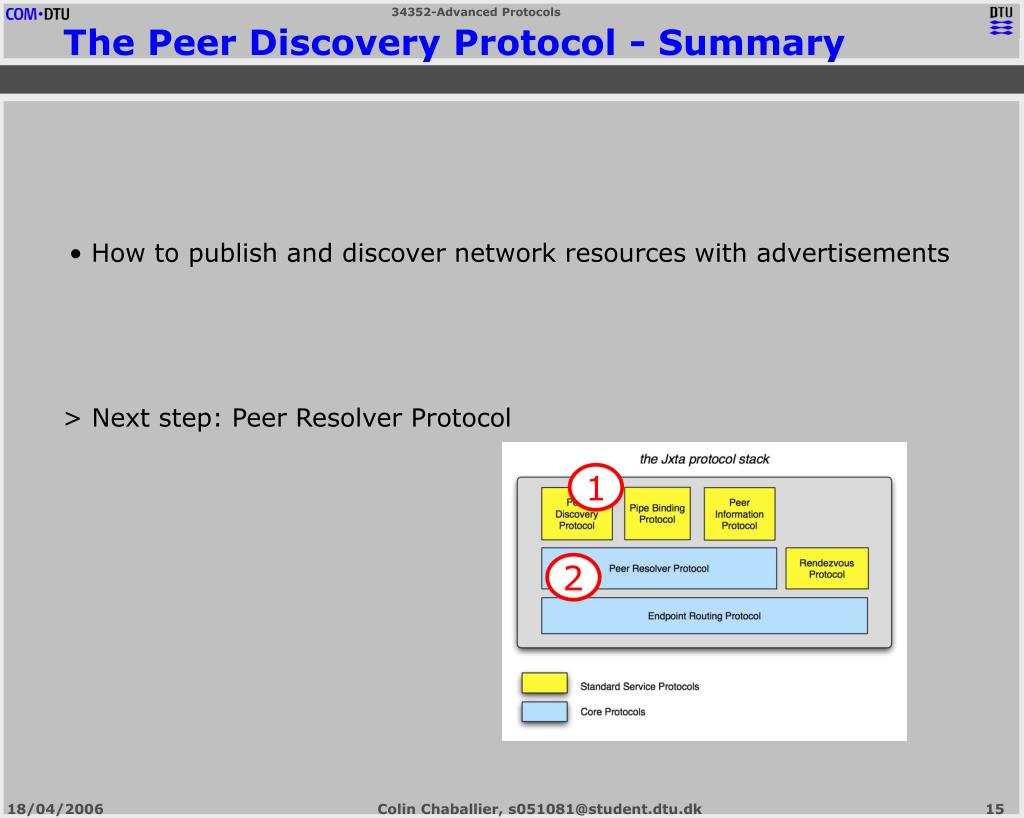

The Peer Discovery Protocol - Summary

  • How to publish and discover network resources with advertisements

1

Colin Chaballier, [email protected]


Department of communications optics materials technical university of denmark

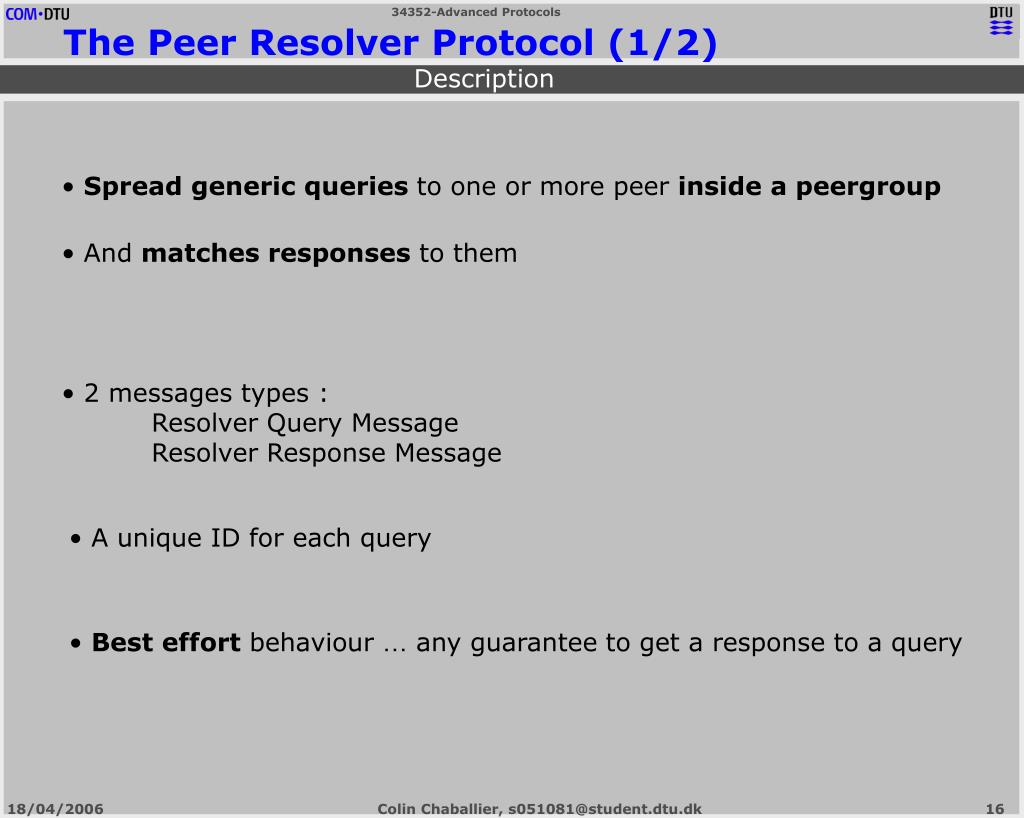

The Peer Resolver Protocol (1/2)

Description

  • Spread generic queries to one or more peer inside a peergroup

  • And matches responses to them

  • 2 messages types :

  • Resolver Query Message

  • Resolver Response Message

  • A unique ID for each query

  • Best effort behaviour … any guarantee to get a response to a query

Colin Chaballier, [email protected]


Department of communications optics materials technical university of denmark

<?xml version=“1.0” encoding=“UTF-8”?>

<jxta:ResolverQuery>

<Credential> . . . </ Credential>

<SrcPeerID> . . . </ SrcPeerID>

<HandlerName> . . .</HandlerName>

<QueryID> . . . </ QueryID >

<Query>

<!-- ex: Discovery Query Message -->

</Query>

</jxta:ResolverQuery>

The Resolver Query Message structure :

<?xml version=“1.0” encoding=“UTF-8”?>

<jxta:ResolverResponse>

<Credential> . . . </ Credential>

<HandlerName> . . .</HandlerName>

<QueryID> . . . </ QueryID >

<Response>

<!-- ex: Discovery Response Message -->

</Response>

</jxta:ResolverResponse>

The Resolver Response Message structure :

The Peer Resolver Protocol (2/2)

Messages

Colin Chaballier, [email protected]


Department of communications optics materials technical university of denmark

> Next step: Rendez Vous Protocol

1

3

2

The Peer Resolver Protocol - Summary

  • How to send query-based messages through the network

Colin Chaballier, [email protected]


Department of communications optics materials technical university of denmark

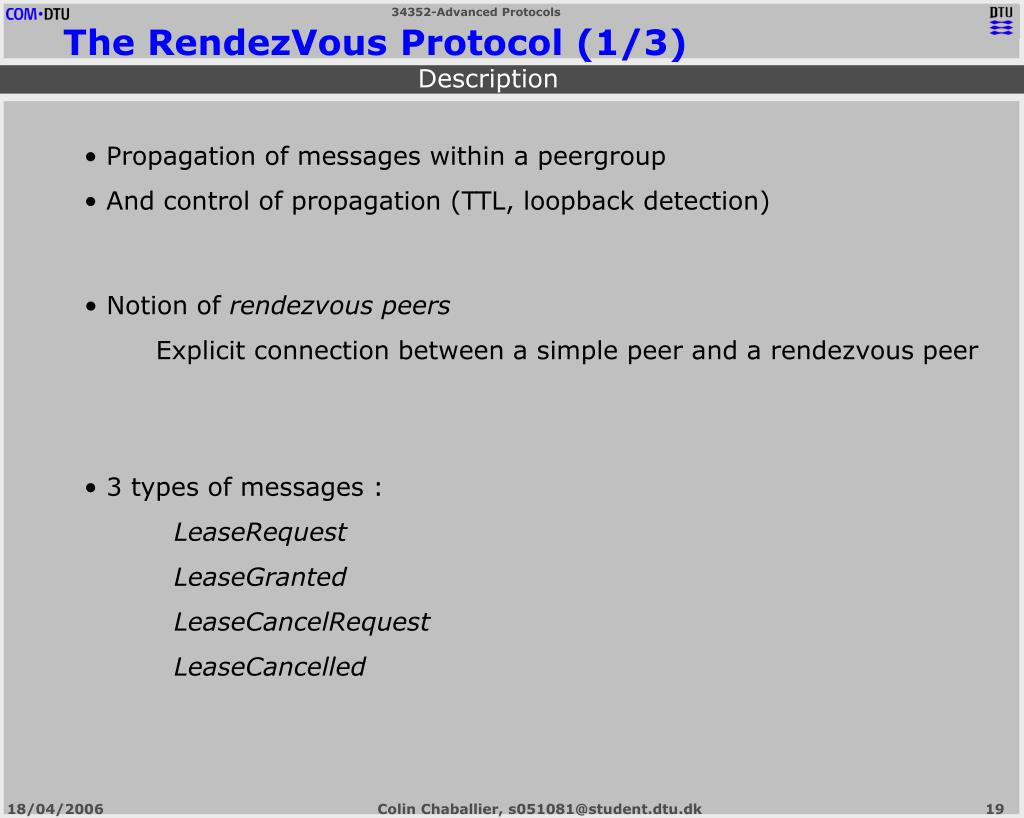

  • Notion of rendezvous peers

Explicit connection between a simple peer and a rendezvous peer

The RendezVous Protocol (1/3)

Description

  • Propagation of messages within a peergroup

  • And control of propagation (TTL, loopback detection)

  • 3 types of messages :

  • LeaseRequest

  • LeaseGranted

  • LeaseCancelRequest

  • LeaseCancelled

Colin Chaballier, [email protected]


Department of communications optics materials technical university of denmark

The RendezVous Protocol (2/3)

XML element

The rendezvous Propagate Message element:

<jxta:RendezVousPropagateMessage>

<MessageId> … </MessageId>

<DestSName> . . . </DestSName>

<DestSParam> . . . </DestSParam>

<TTL> … </TTL>

<Path> . . . </Path>

</jxta:RendezVousPropagateMessage>

MessageId : time in ms since propagation start

DestSName & DestSParam : name & parameters of the destination service

TTL : current TTL of the propagated message

Path: peer Ids of peer already visited

Colin Chaballier, [email protected]


Department of communications optics materials technical university of denmark

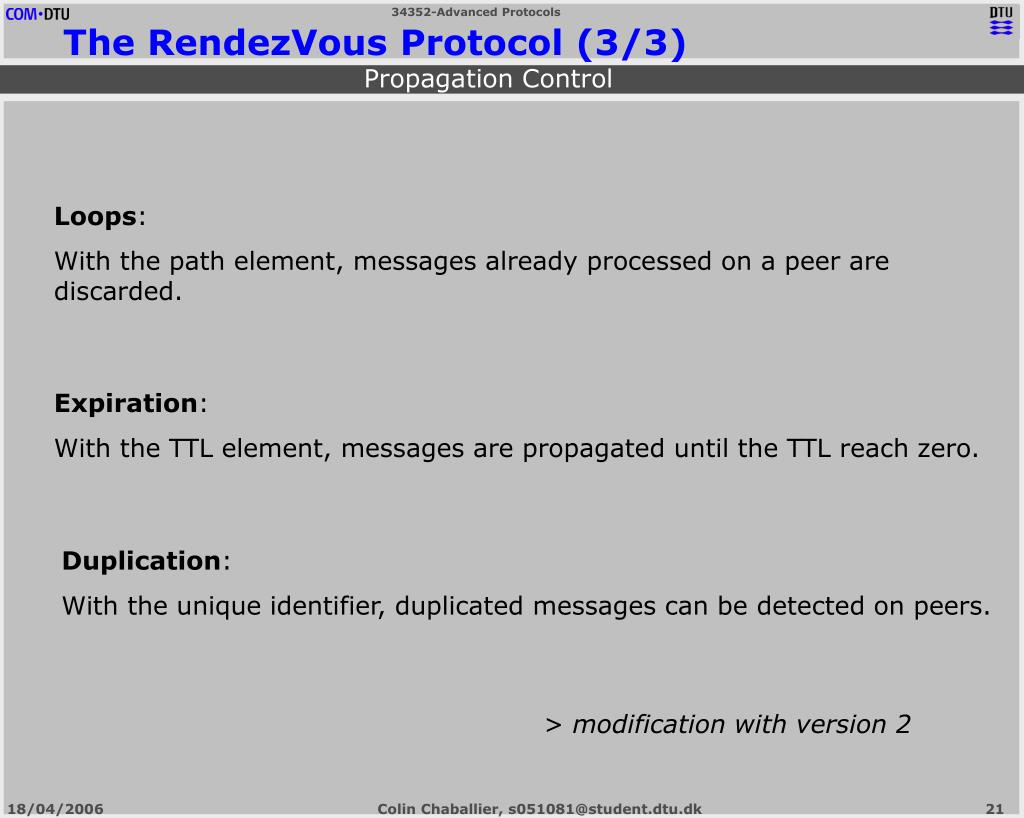

The RendezVous Protocol (3/3)

Propagation Control

Loops:

With the path element, messages already processed on a peer are discarded.

Expiration:

With the TTL element, messages are propagated until the TTL reach zero.

Duplication:

With the unique identifier, duplicated messages can be detected on peers.

> modification with version 2

Colin Chaballier, [email protected]


Department of communications optics materials technical university of denmark

3. Send query

4. Propagate query with RVP

5. Peers look for the asked resource

6. Positive replies are sent back

No

Yes

RendezVous Peer

Peer 2

Peer 1

Peer 4

Peer 3

No

No

Partial summary: how to discover resources ?

Using the Peer Discovery Protocol, Peer Resolver Protocol, and Rendez Vous Protocol

1. Prepare the Discovery query

<jxta:DiscoveryResponse>

<Type> . . . </Type>

<Count> . . . </Count>

<PeerAdv> . . .</PeerAdv>

<Attr> Name. </Attr>

<Value> *sidus*</Value>

<Response Expiration= ‘’expiration time’’>

<!-- pipe adv., containing the string “sidus” in its name>

</Response>

</jxta:DiscoveryResponse>

<jxta:ResolverResponse>

<Credential> . . . </ Credential>

<HandlerName> . . .</HandlerName>

<QueryID> . . . </ QueryID >

<Response>

<!-- Discovery Response Message -->

</Response>

</jxta:ResolverResponse>

<jxta:ResolverQuery>

<Credential> . . . </ Credential>

<SrcPeerID> . . . </ SrcPeerID>

<HandlerName> . . .</HandlerName>

<QueryID> . . . </ QueryID >

<Query>

<!-- Discovery Query Message -->

</Query>

</jxta:ResolverQuery>

<jxta:DiscoveryQuery>

<Type> . . . </Type>

<Threshold> . . . </Threshold>

<PeerAdv> . . .</PeerAdv>

<Attr> Name </Attr>

<Value> *sidus* </Value>

</jxta:DiscoveryQuery>

2. Pack it with a Resolver Query

7. Unpack the Resolver Response

8. Get Discovery Response

Animation inspired from the book “JXTA” page 127, Brendon Wilson, New Riders Edition.

Colin Chaballier, [email protected]


Department of communications optics materials technical university of denmark

> Next step: Endpoint Routing Protocol

1

3

4

2

Colin Chaballier, [email protected]


Department of communications optics materials technical university of denmark

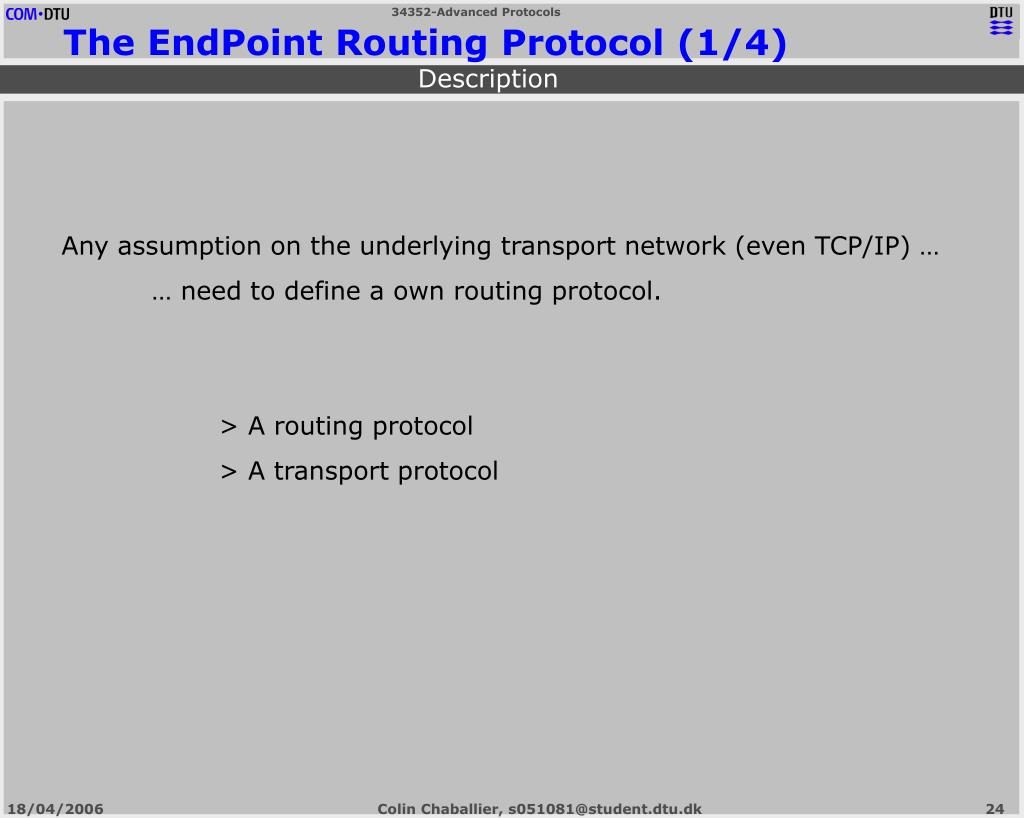

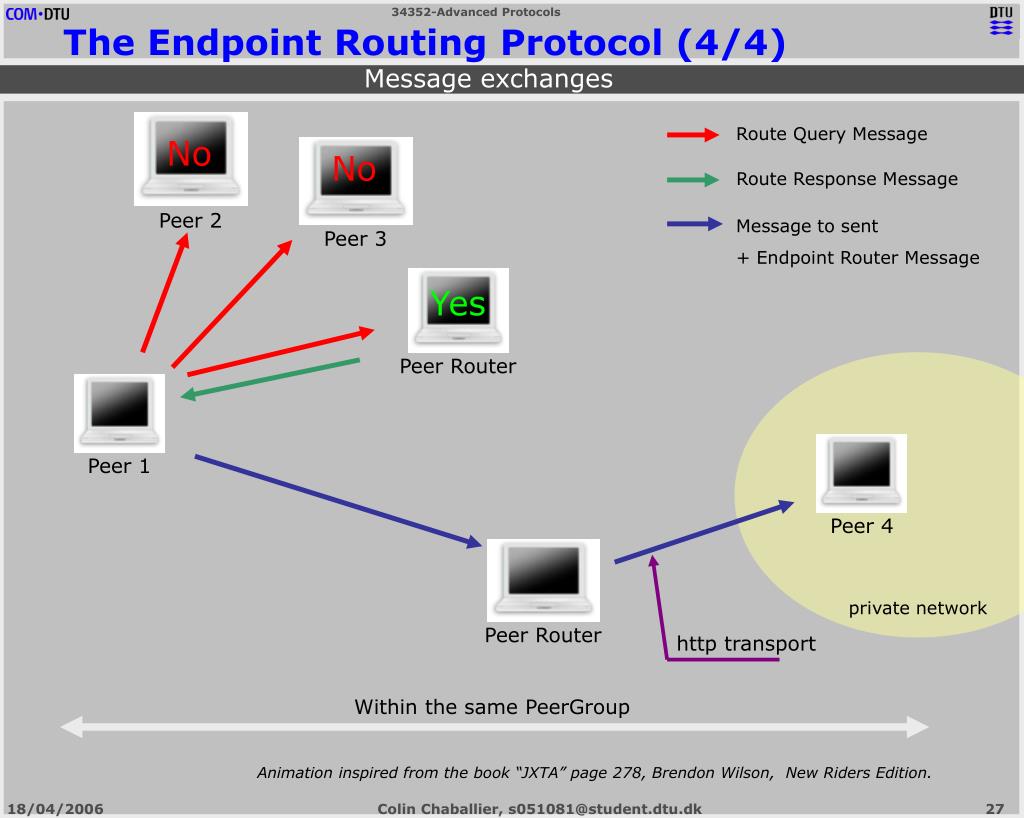

The EndPoint Routing Protocol (1/4)

Description

Any assumption on the underlying transport network (even TCP/IP) …

… need to define a own routing protocol.

> A routing protocol

> A transport protocol

Colin Chaballier, [email protected]


Department of communications optics materials technical university of denmark

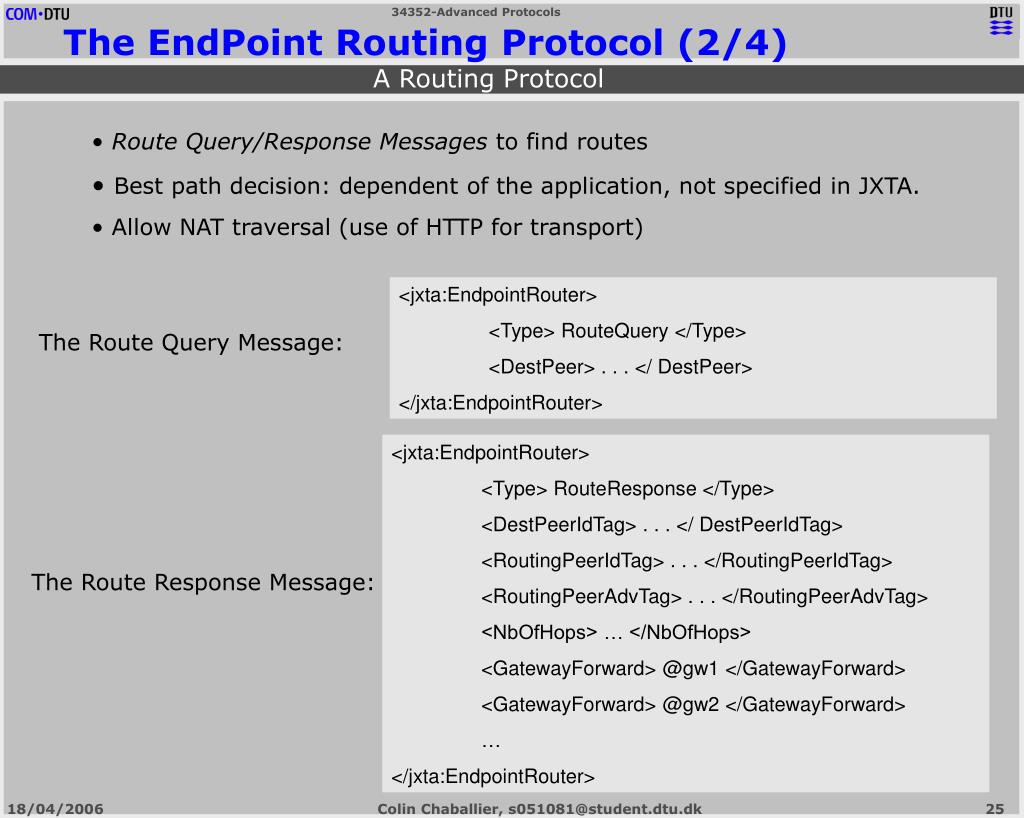

<jxta:EndpointRouter>

<Type> RouteQuery </Type>

<DestPeer> . . . </ DestPeer>

</jxta:EndpointRouter>

The Route Query Message:

<jxta:EndpointRouter>

<Type> RouteResponse </Type>

<DestPeerIdTag> . . . </ DestPeerIdTag>

<RoutingPeerIdTag> . . . </RoutingPeerIdTag>

<RoutingPeerAdvTag> . . . </RoutingPeerAdvTag>

<NbOfHops> … </NbOfHops>

<GatewayForward> @gw1 </GatewayForward>

<GatewayForward> @gw2 </GatewayForward>

</jxta:EndpointRouter>

The Route Response Message:

The EndPoint Routing Protocol (2/4)

A Routing Protocol

  • Route Query/Response Messages to find routes

  • Best path decision: dependent of the application, not specified in JXTA.

  • Allow NAT traversal (use of HTTP for transport)

Colin Chaballier, [email protected]


Department of communications optics materials technical university of denmark

The Endpoint Router Message element:

<jxta:JxtaEndpointRouter>

<jxta:Src> … </jxta:Src>

<jxta:Dest> … </jxta:Dest>

<jxta:Last> … </jxta:Last>

<jxta:NBOH>… </jxta:NBOH>

<jxta:GatewayForward> @gwForward1 </jxta:GatewayForward >

<jxta:GatewayForward> @gwForward2 </jxta:GatewayForward >

<jxta:GatewayReverse> @gwReverse1 </jxta:GatewayReverse >

<jxta:GatewayReverse> @gwReverse2 </jxta:GatewayReverse >

</jxta:EndpointRouter>

The EndPoint Routing Protocol (3/4)

A Transport Protocol

  • Add routers path (as an XML element) to the sent message

Colin Chaballier, [email protected]


Department of communications optics materials technical university of denmark

Route Query Message

No

No

Route Response Message

Message to sent

+ Endpoint Router Message

Yes

Peer 1

Peer 4

Peer Router

Peer Router

Peer 3

Peer 2

private network

http transport

Within the same PeerGroup

The Endpoint Routing Protocol (4/4)

Message exchanges

Animation inspired from the book “JXTA” page 278, Brendon Wilson, New Riders Edition.

Colin Chaballier, [email protected]


Department of communications optics materials technical university of denmark

> Next step: Pipe Binding Protocol

5

1

3

2

4

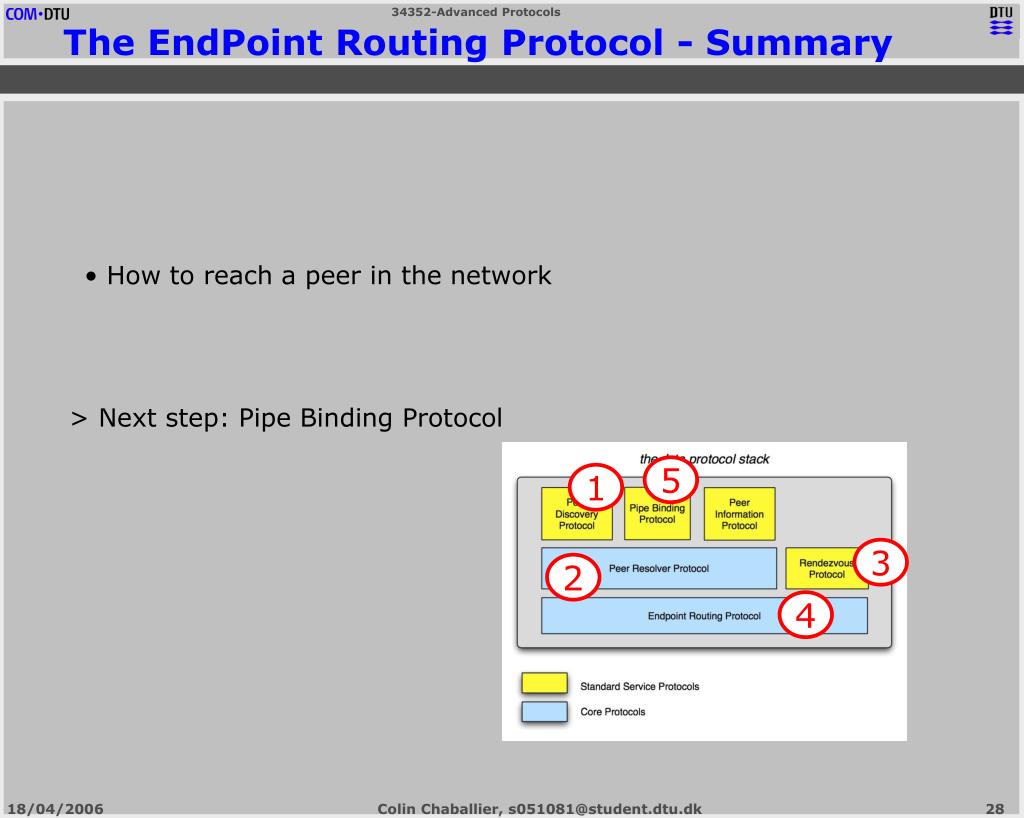

The EndPoint Routing Protocol - Summary

  • How to reach a peer in the network

Colin Chaballier, [email protected]


Department of communications optics materials technical university of denmark

broadcast pipe

Peer 2

Peer 3

Peer 4

Peer 1

Unicast pipe

The Pipe Binding Protocol (1/2)

Description

  • Used to bind network Endpoint and pipes input/output

  • Pipes: abstraction to allow easy communication between endpoints

    • 3 types of pipes: unicast, broadcast, and secure

    • Only mandatory support of unicast & asynchronous pipe type

Colin Chaballier, [email protected]


Department of communications optics materials technical university of denmark

<jxta:PipeResolver>

<MsgType>Query</MsgType>

<PipeId> … </PipeId>

<Type> … </Type>

<Cached> … </Cached>

<Peer> … </Peer>

</jxta:PipeResolver>

  • Pipe Binding Query:

    • To discover listening peer endpoints to a particular pipe advertisement

<jxta:PipeResolver>

<MsgType>Answer</MsgType>

<PipeId> … </PipeId>

<Type> … </Type>

<Cached> … </Cached>

<Peer> … </Peer>

<Found> … </Found>

<PeerAdv> … </PeerAdv>

</jxta:PipeResolver>

  • Pipe Binding Response:

    • Optional response to a Pipe Binding Query

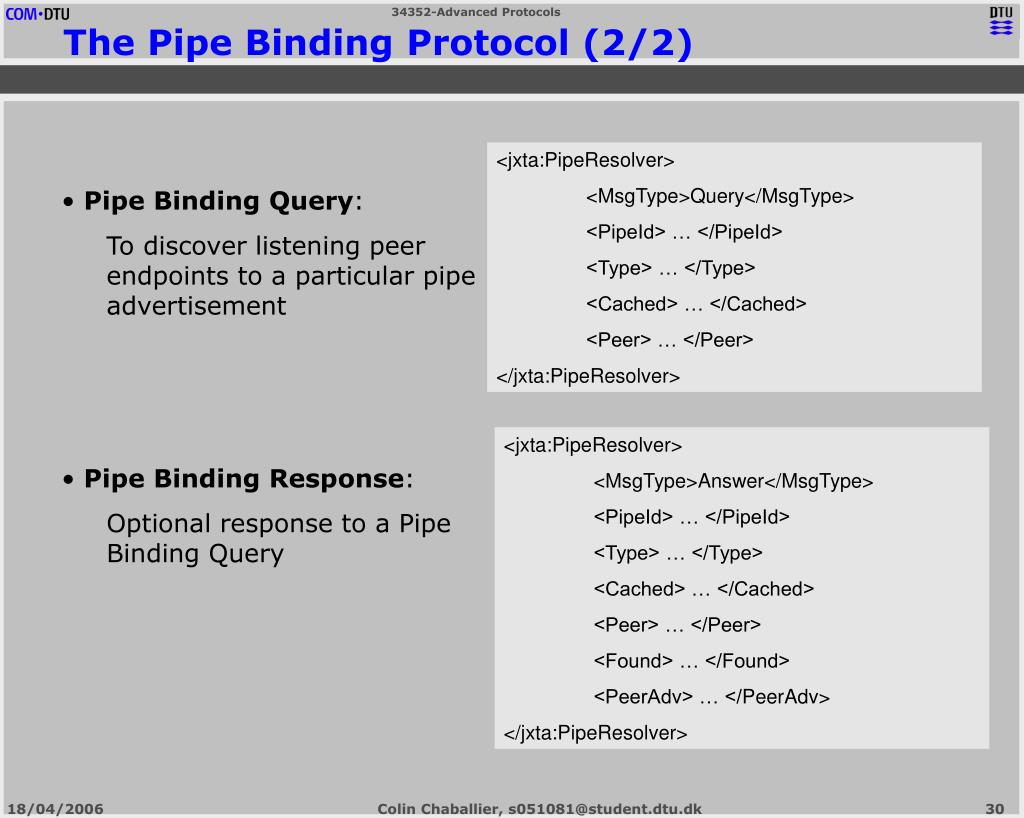

The Pipe Binding Protocol (2/2)

Colin Chaballier, [email protected]


Department of communications optics materials technical university of denmark

> Next step: Pipe Binding Protocol

5

6

1

3

2

The Pipe Binding Protocol - Summary

  • How to realize a high-level abstraction communication between endpoints

4

Colin Chaballier, [email protected]


Department of communications optics materials technical university of denmark

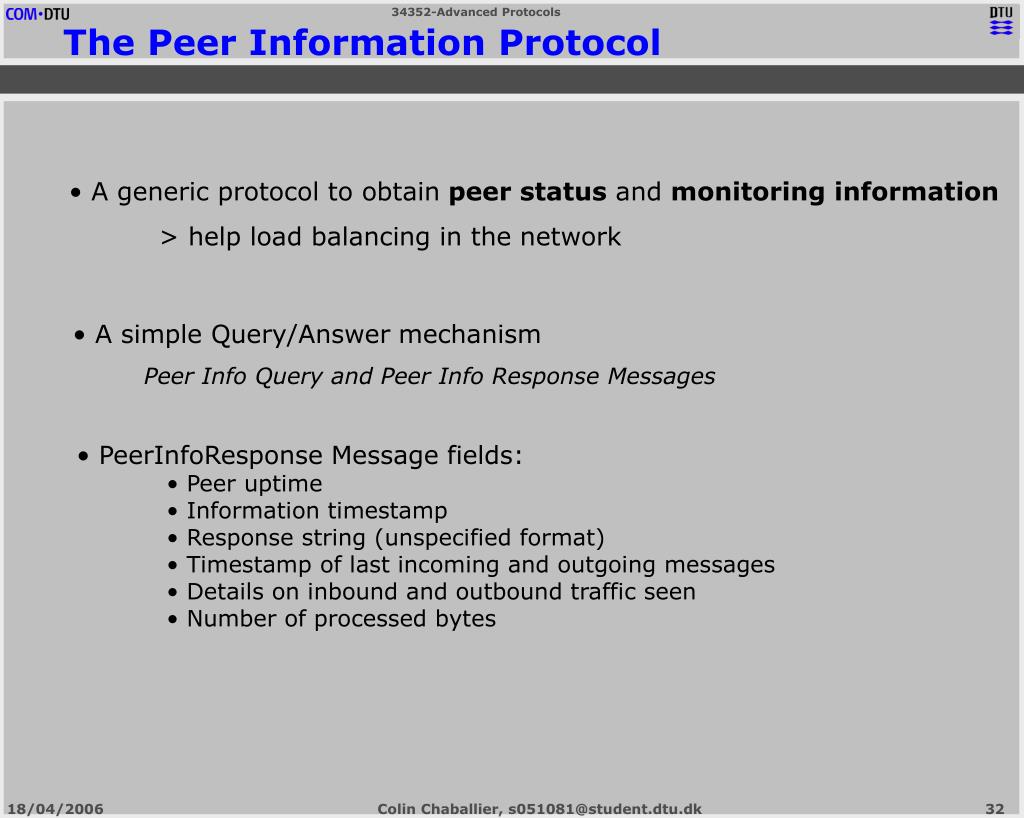

The Peer Information Protocol

  • A generic protocol to obtain peer status and monitoring information

  • > help load balancing in the network

  • A simple Query/Answer mechanism

    • Peer Info Query and Peer Info Response Messages

  • PeerInfoResponse Message fields:

    • Peer uptime

    • Information timestamp

    • Response string (unspecified format)

    • Timestamp of last incoming and outgoing messages

    • Details on inbound and outbound traffic seen

    • Number of processed bytes

Colin Chaballier, [email protected]


Department of communications optics materials technical university of denmark

  • How to Publish and discover network resources with advertisements

  • How to send query-based messages through the network

  • How to propagate messages within a peergroup

  • How to reach a peer wherever in the network

  • How to realize a high-level abstraction communication between endpoints

  • How to monitor peers status

1

5

6

3

2

4

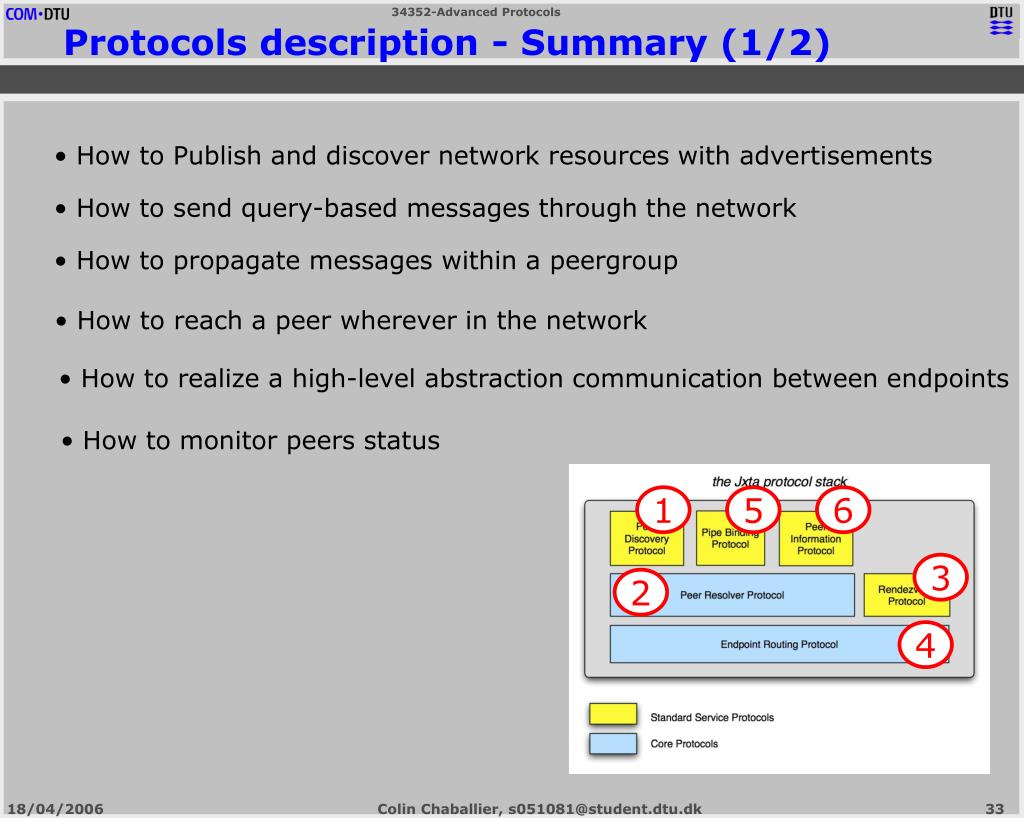

Protocols description - Summary (1/2)

Colin Chaballier, [email protected]


Department of communications optics materials technical university of denmark

Protocols description - Summary (2/2)

The “service” view

Colin Chaballier, [email protected]


Department of communications optics materials technical university of denmark

Jxta 2 improvements

Version 1 since June 2001

Version 2 since February 2003 (now v2.3.5)

  • Improvement of overall performance and scalability with:

    • New mechanisms for advertisement discovery (Rendezvous Super-peers)

    • New mechanisms for NAT traversal (Relay Super-peers)

    • Specification of a binary message format

Colin Chaballier, [email protected]


Department of communications optics materials technical university of denmark

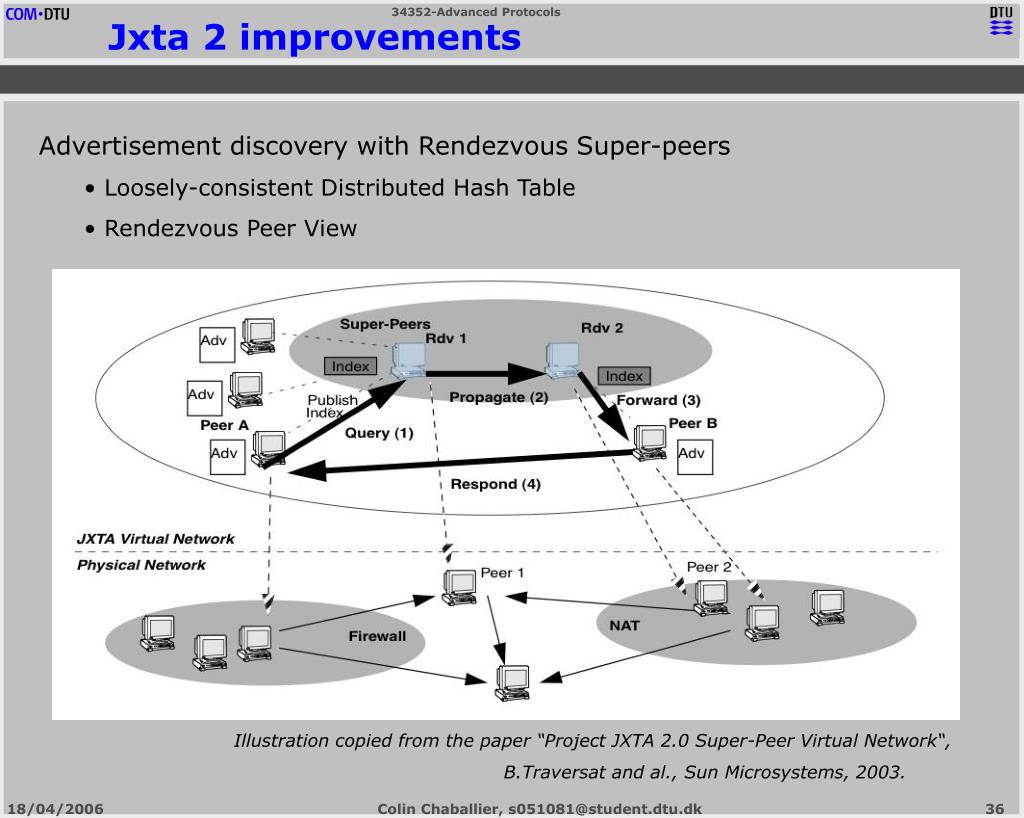

Jxta 2 improvements

  • Advertisement discovery with Rendezvous Super-peers

    • Loosely-consistent Distributed Hash Table

    • Rendezvous Peer View

Illustration copied from the paper “Project JXTA 2.0 Super-Peer Virtual Network“,

B.Traversat and al., Sun Microsystems, 2003.

Colin Chaballier, [email protected]

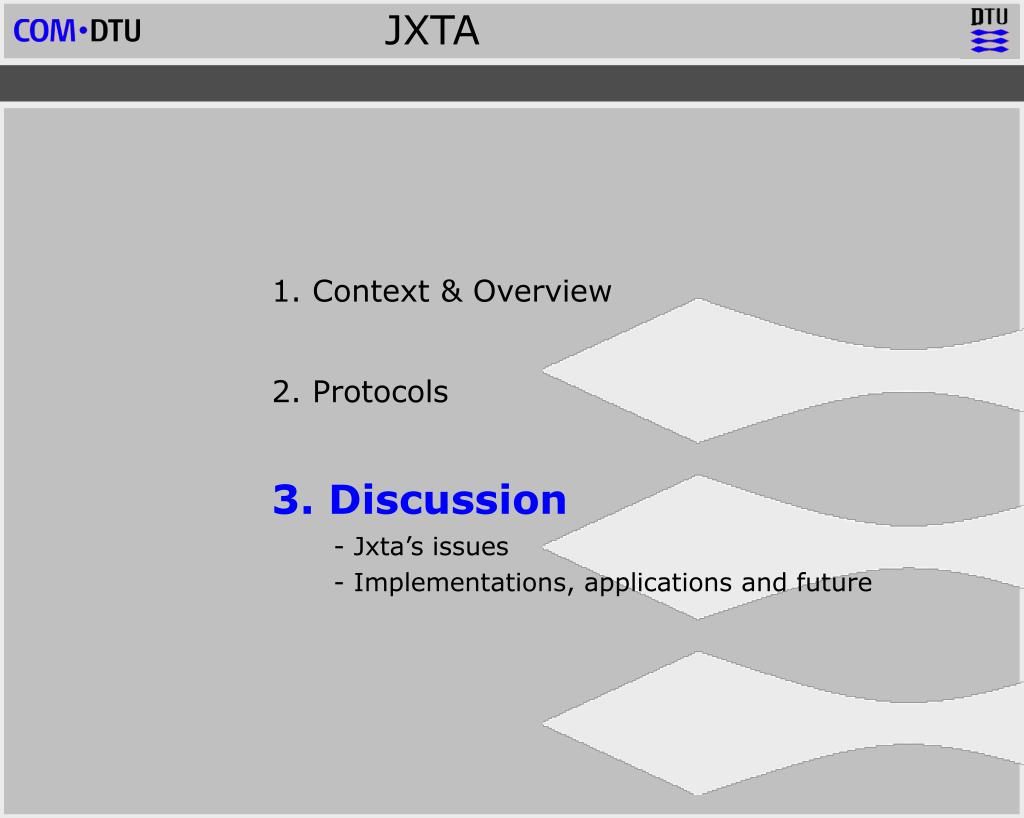

Context overview 2 protocols 3 discussion jxta s issues implementations applications and future

JXTA

Context & Overview2. Protocols3. Discussion- Jxta’s issues- Implementations, applications and future


Department of communications optics materials technical university of denmark

Jxta’s issues

  • Abstraction: generic, multi-platform, multi-language …

  • Use of XML:

    • - easy understand & debug for developers

    • - flexibility

  • No definition for services invocation

  • Not optimized for application oriented: cost of the XML overhead

  • Not optimized if usage of a reliable transport network (TCP/IP)

Trade-off: Performance vs. Flexibility

-> Not suitable for a short-term particular p2p application

-> But provide the flexibility for a long-term solution requiring scalability

Colin Chaballier, [email protected]


Department of communications optics materials technical university of denmark

Implementations, applications and future

And now, what to do with JXTA protocols ?

1/ Developing a new application based on JXTA

> Choose an existing implementation of the JXTA specifications:

J2SE, J2ME, C, Perl, PocketPC … or do your proper implementation

> And fit the implementation to your application

Which components are useless ? What services to deploy ?

Topology of rendez-vous peers … etc.

2/ Contribute to the Project JXTA

> an open-source intiative still needing contributions …

  • 3/ Or simply use a current application based on JXTA

    • from the Jxta community: myJXTA, Gnougat, …

    • more and more adopted by companies (Boeing, Verizon …)

Colin Chaballier, [email protected]


Department of communications optics materials technical university of denmark

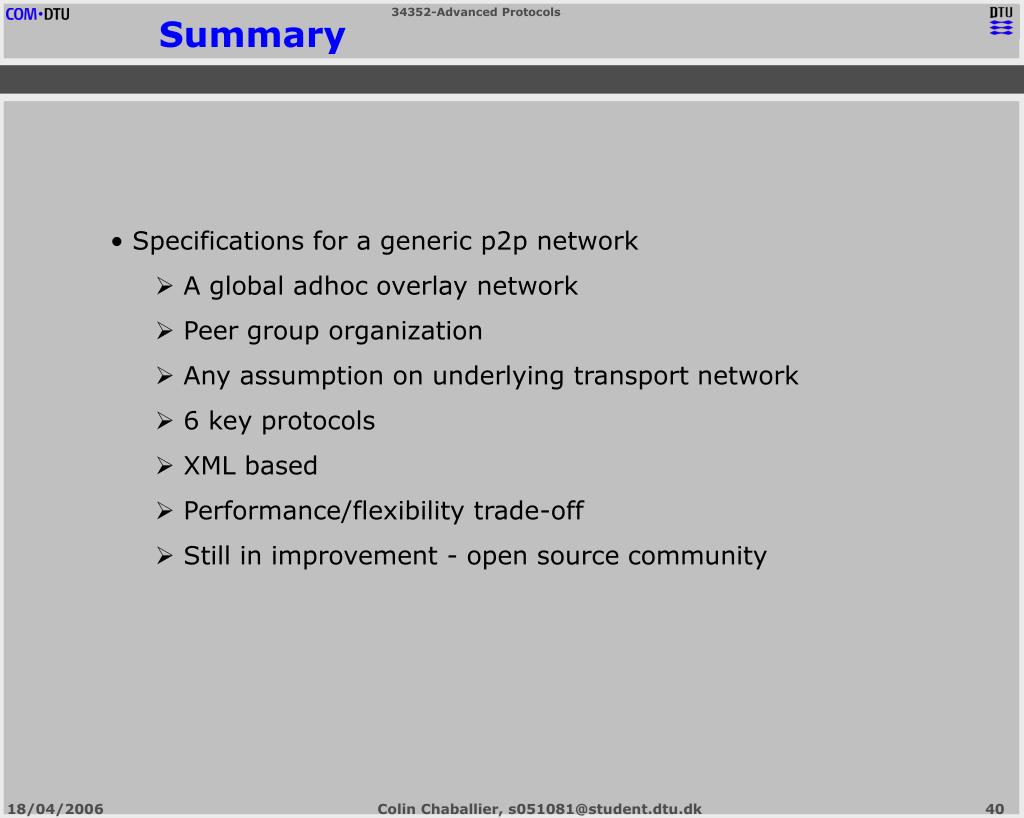

Summary

  • Specifications for a generic p2p network

    • A global adhoc overlay network

    • Peer group organization

    • Any assumption on underlying transport network

    • 6 key protocols

    • XML based

    • Performance/flexibility trade-off

    • Still in improvement - open source community

Colin Chaballier, [email protected]


Department of communications optics materials technical university of denmark

References

> Official web sitefor project JXTA: www.jxta.org

  • > Books:

    • "JXTA in a nutshell", S. Oaks, B.Traversat and L.Gong, O'reilly.

    • "JXTA", Brendon J. Wilson, New Riders Edition.

    • Freely available online at http://www.brendonwilson.com/projects/jxta-book/

      > Articles and reports:

    • "JXTA Technology Brings the Internet Back to Its Origin”.

      Available at http://java.sun.com/developer/technicalArticles/JXTA/

    • "Project JXTA Virtual Network",

      B. Traversat et al., Sun Microsystems, 2002.

    • "Project JXTA 2.0 Super-Peer Virtual Network",

      B. Traversat et al., Sun Microsystems, 2003.

    • "Project JXTA: A Loosely-Consistent DHT Rendezvous Walker ",

      B. Traversat et al., Sun Microsystems.

    • "The JXTA performance model and evaluation",

      Emir Halepovic and Ralph Deters, Department of Computer Science, University of Saskatchewan, Canada, published in the Elsevier database "Future Generation Computer Systems", 2004.

Colin Chaballier, [email protected]


Department of communications optics materials technical university of denmark

Thank you for your attention …

Questions ?

Colin Chaballier, [email protected]


  • Login
