Advanced dc motor

Advanced DC Motor


Advanced dc motor info

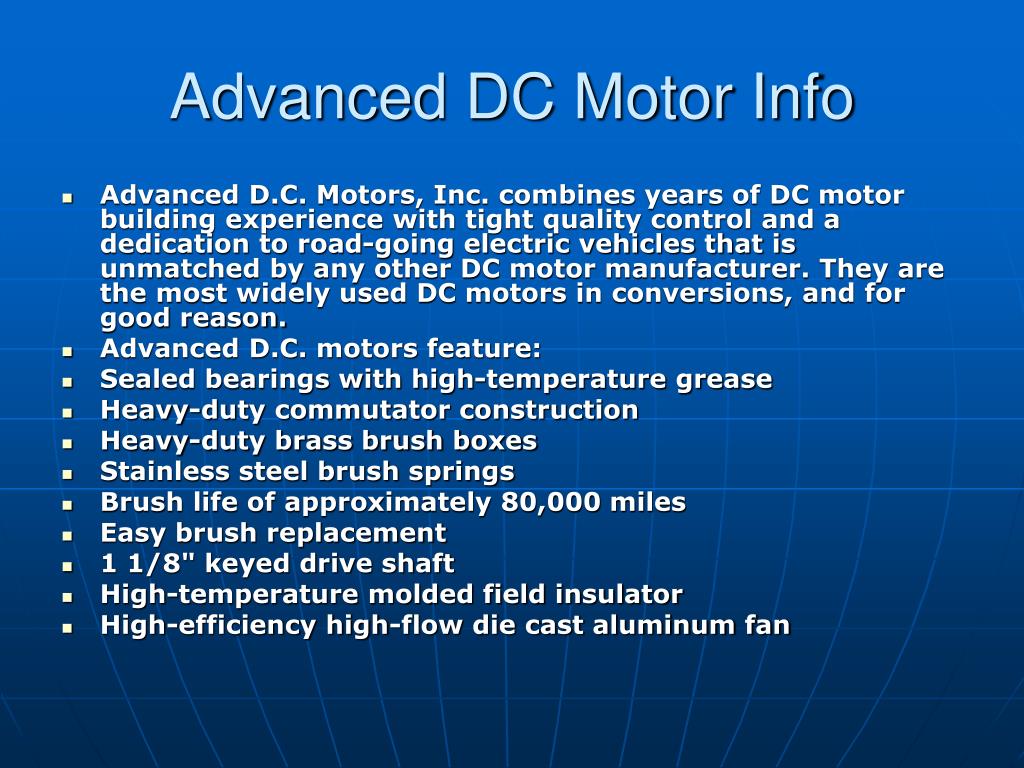

Advanced DC Motor Info

  • Advanced D.C. Motors, Inc. combines years of DC motor building experience with tight quality control and a dedication to road-going electric vehicles that is unmatched by any other DC motor manufacturer. They are the most widely used DC motors in conversions, and for good reason.

  • Advanced D.C. motors feature:

  • Sealed bearings with high-temperature grease

  • Heavy-duty commutator construction

  • Heavy-duty brass brush boxes

  • Stainless steel brush springs

  • Brush life of approximately 80,000 miles

  • Easy brush replacement

  • 1 1/8" keyed drive shaft

  • High-temperature molded field insulator

  • High-efficiency high-flow die cast aluminum fan


Advanced dc motor

Advanced DC Motor Charts

Length - 14.50“

Diameter- 8.0"

Weight -107.0 lbs.

Input Voltage -96-120 V

Efficiency -89.0%

Test Data @ 96 V Input

Time on - VoltsAmpsRPMHPKW

5 min. - 86.0 322 3600 31.50 23.80

1 hr. - 90.0 190 4800 20.60 15.50

Continuous - 91.0 178 5000 19.00 14.40

Peak Horsepower- 68.00

Test Data @ 120 V Input

Time on - VoltsAmpsRPMHPKW

5 min. - 111.0 300 4650 37.00 28.00

1 hr. - 114.0 180 6200 24.00 18.00

Continuous - 115.0 165 6500 21.70 16.30

Peak Horsepower- 83.00


Scott motor

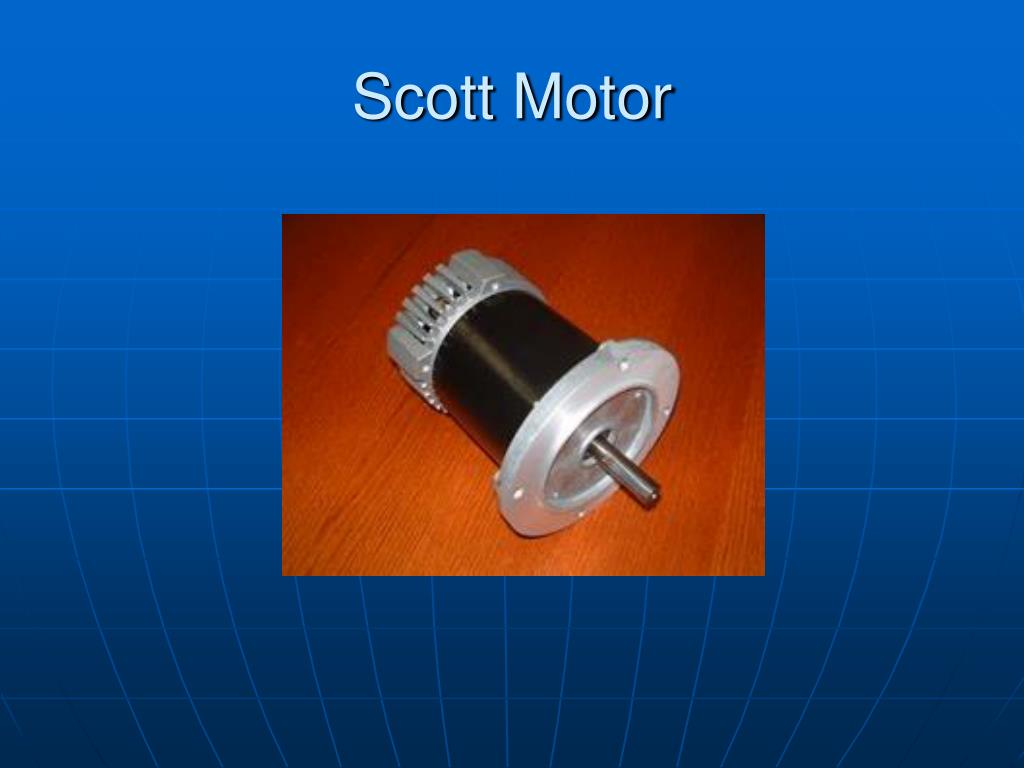

Scott Motor


Scott motor1

Scott Motor


Scott motor info

Scott Motor Info

  • Horsepower Rating- 1

  • RPM- 2800 Voltage- 12-24 Amps- 41

  • Weight- 15.2 lbs. With Base Mount (Can be removed)

  • These motors are ideal for Electric Vehicles up to 400 lbs. including Driver weight


Etek motor

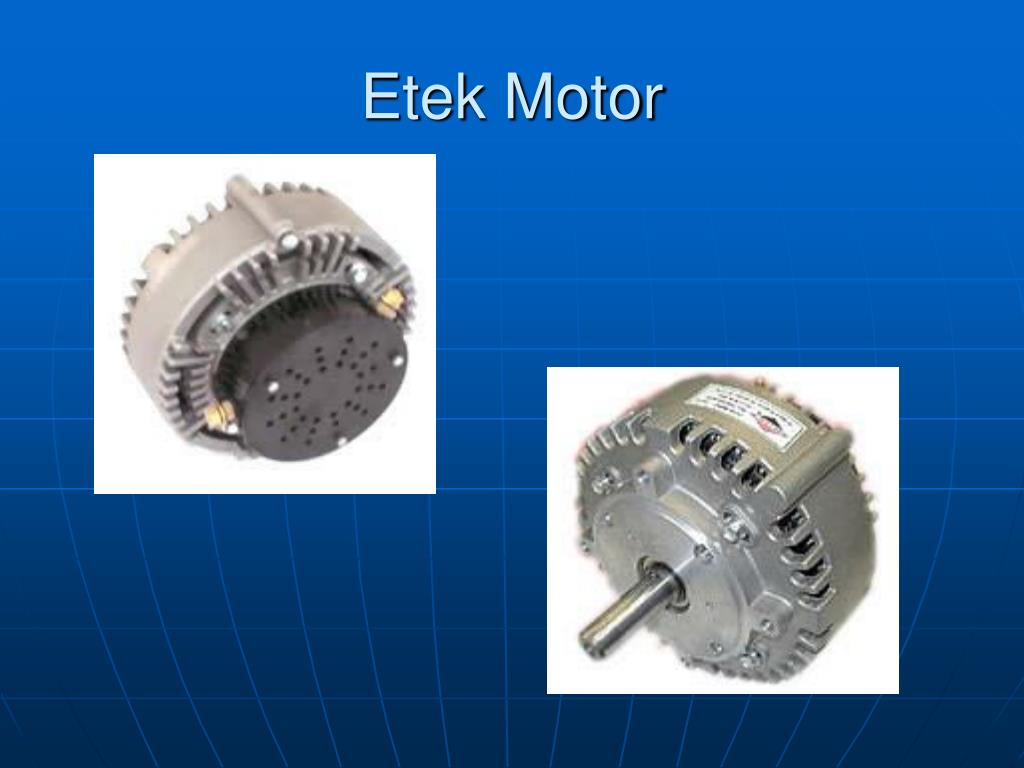

Etek Motor


Advanced dc motor

Etek Curve

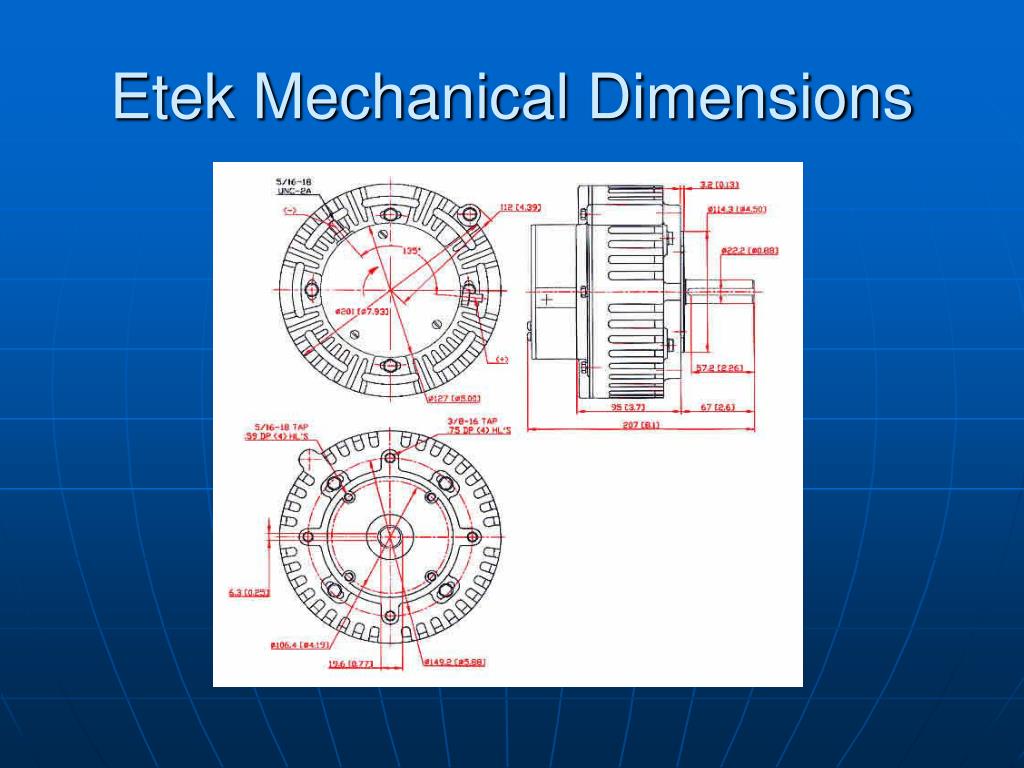

Etek mechanical dimensions

Etek Mechanical Dimensions


Etek r motor

Etek-R motor


Etek r info

Etek-R Info

  • Power - 8 cont-- 15 pk hp

  • Voltage - 48V rated

  • Speed - 3700 rpm @ 48V unloaded

  • Size - 8" OD, 5.5" long (w/o shaft)

  • Shaft - 7/8"x 1-3/4", 3/16" key

  • Weight - 28 lbs.

  • Price - $450

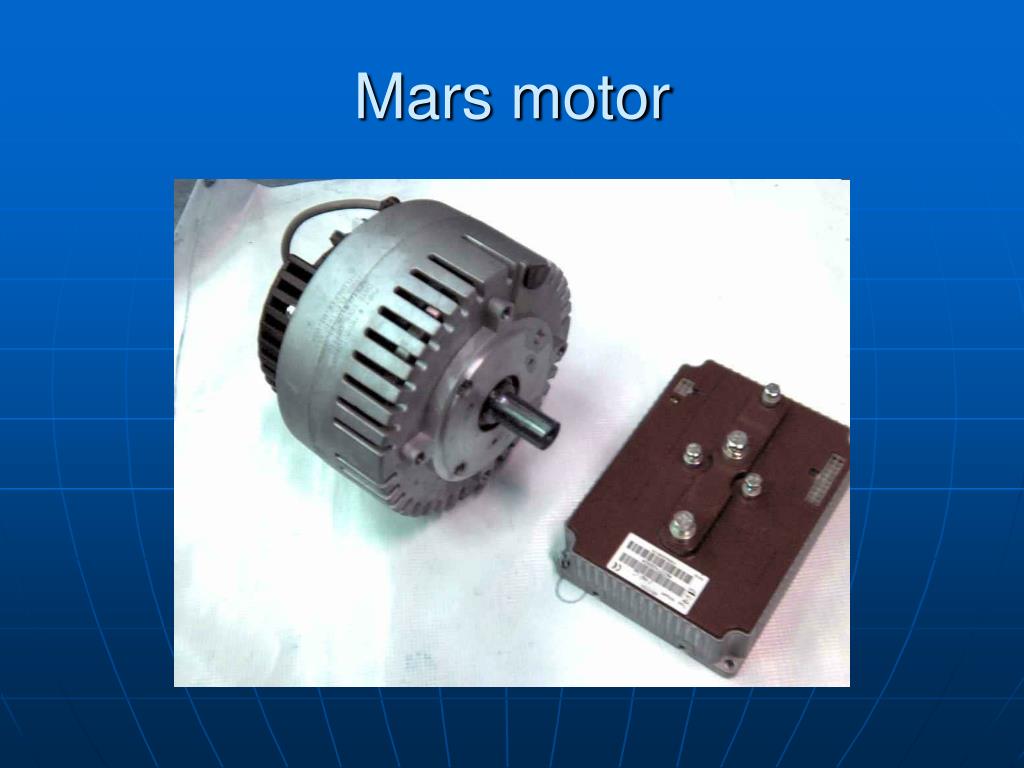

Mars motor

Mars motor

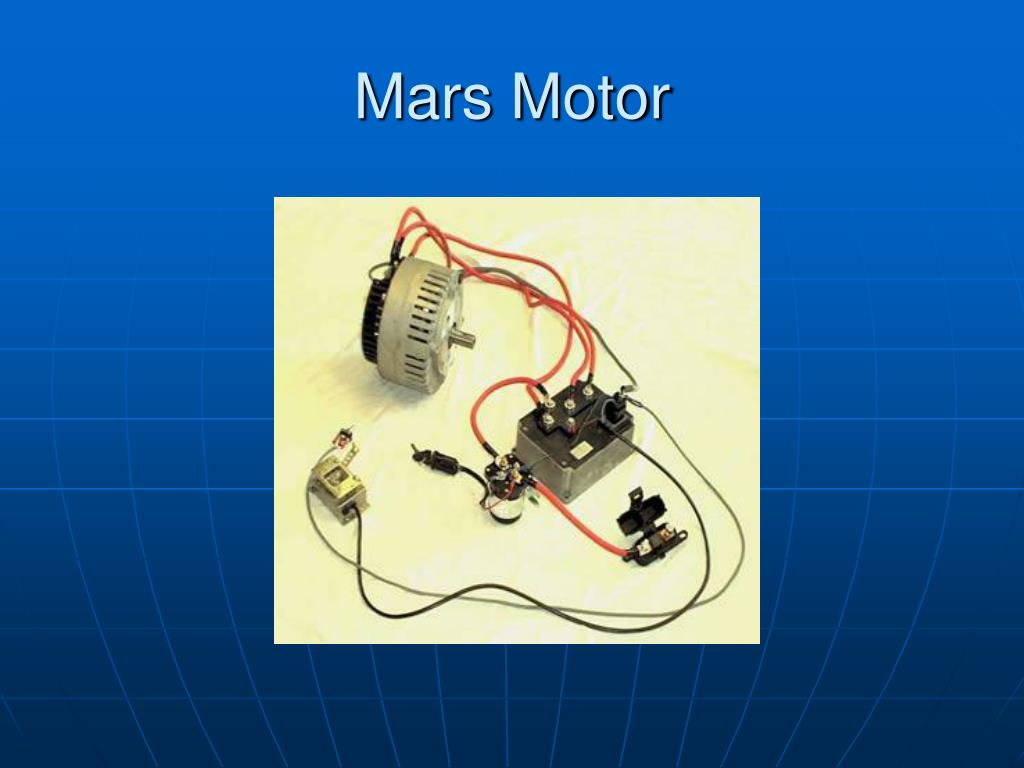

Mars motor1

Mars Motor


Mars brushless motor info

Mars Brushless motor info.

  • Brushless Motor

  • 10 kw peak power

  • www.thunderstruck-ev.com


Lemco motor

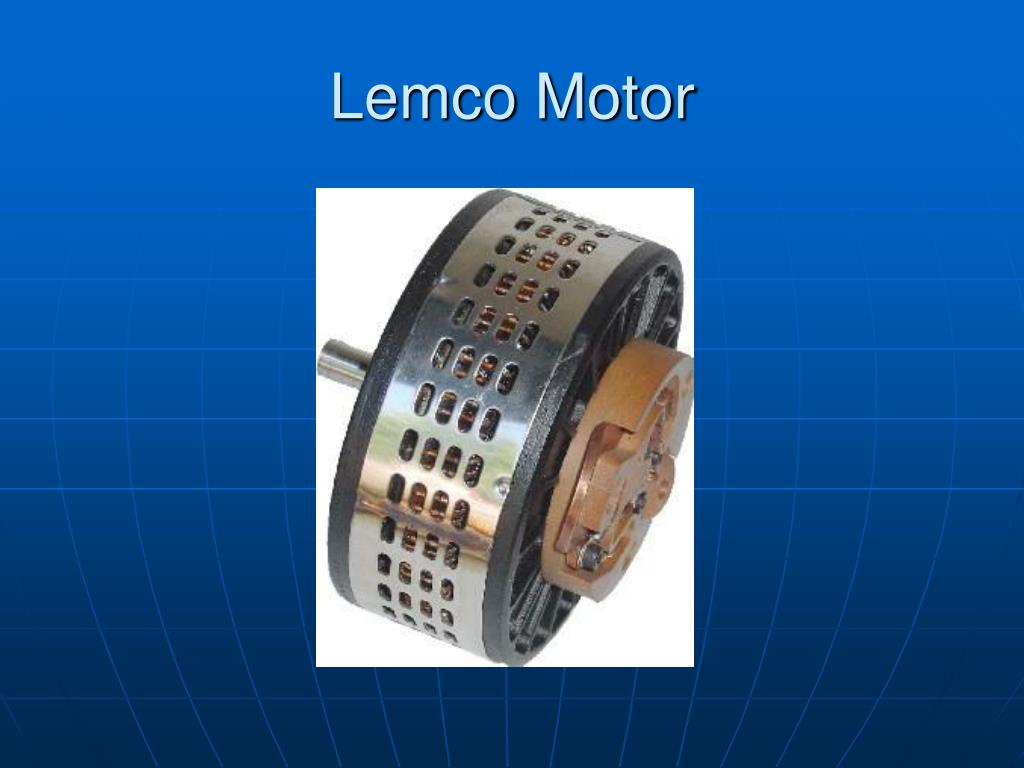

Lemco Motor

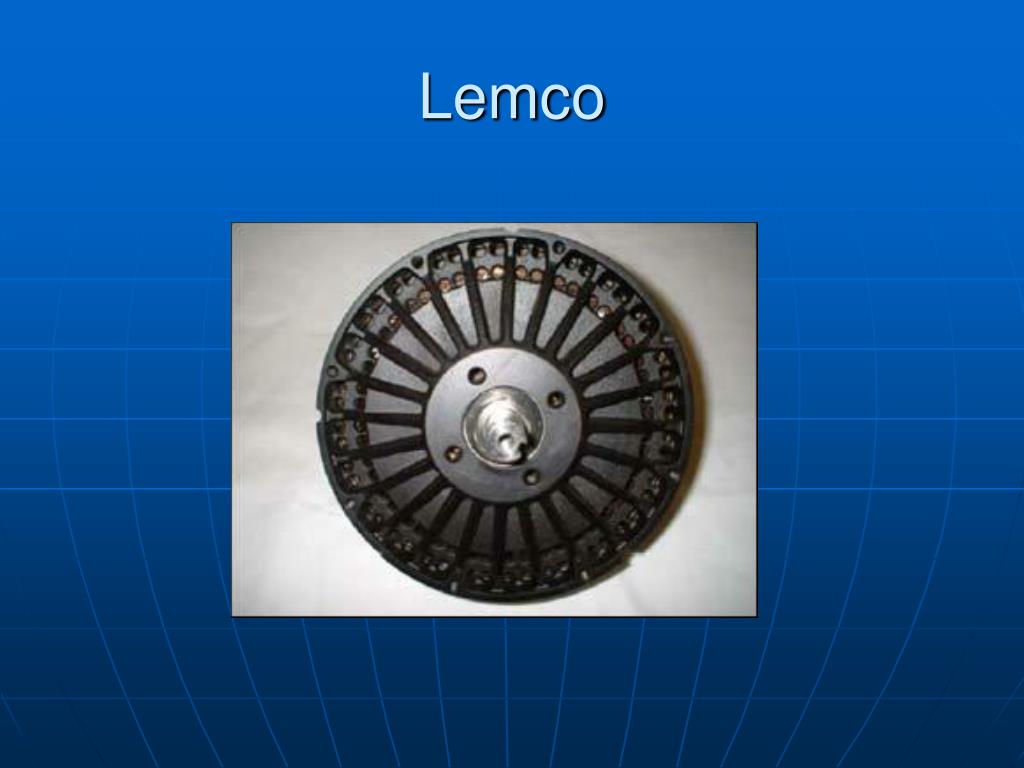

Lemco

Lemco


Lemco motor info

Lemco motor info.


Lemco motor info1

Lemco motor info.


Perm motor pmg 132

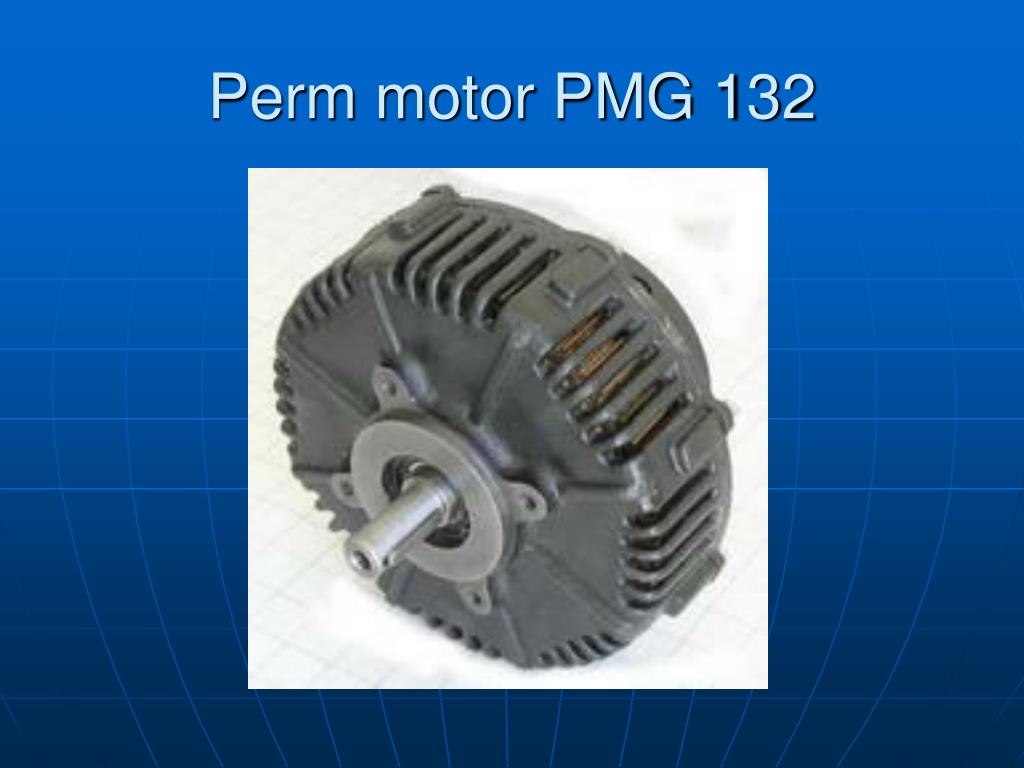

Perm motor PMG 132


Perm 36v curve

Perm 36V Curve

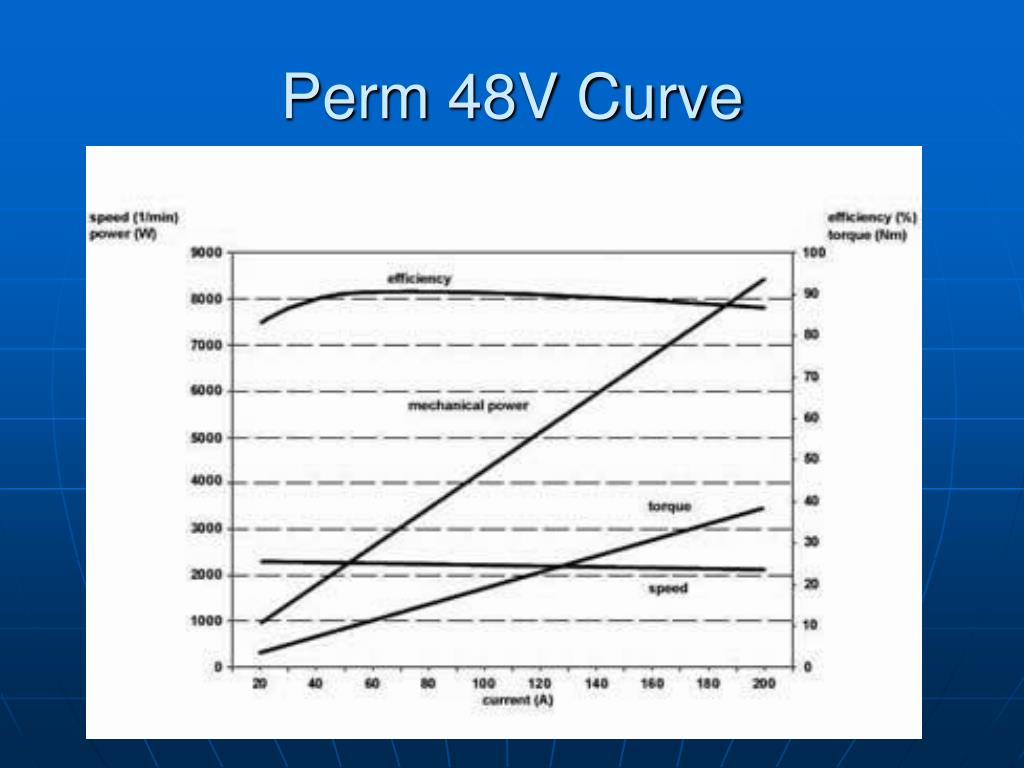

Perm 48v curve

Perm 48V Curve

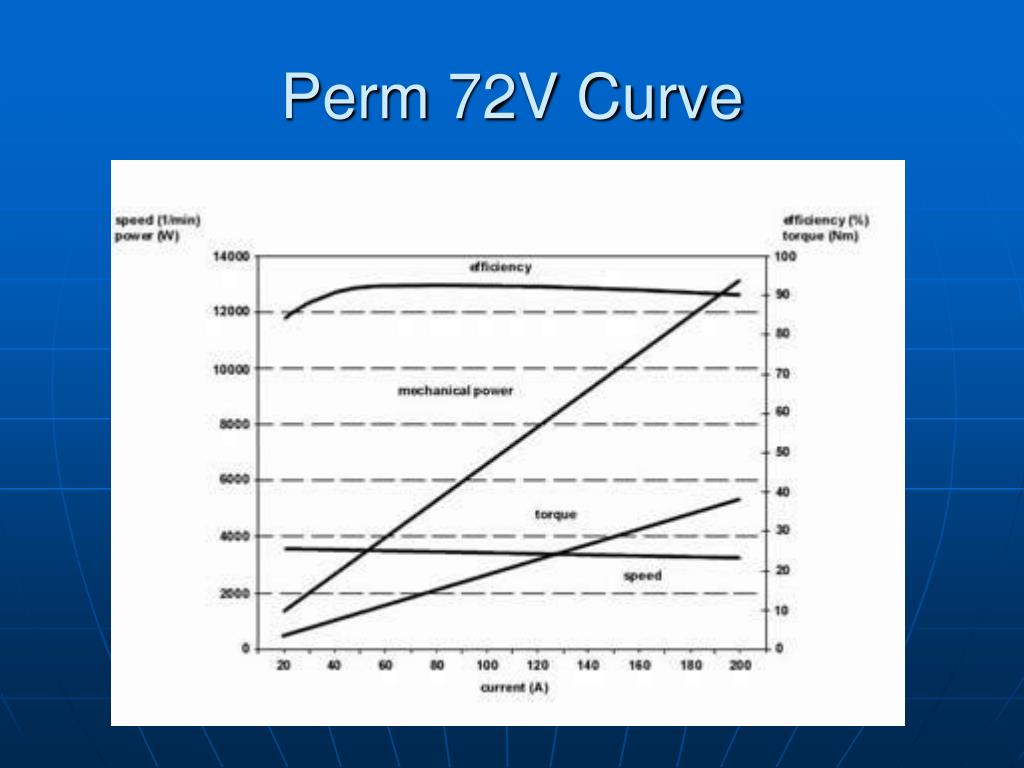

Perm 72v curve

Perm 72V Curve


Perm mechanical dimensions

Perm Mechanical Dimensions

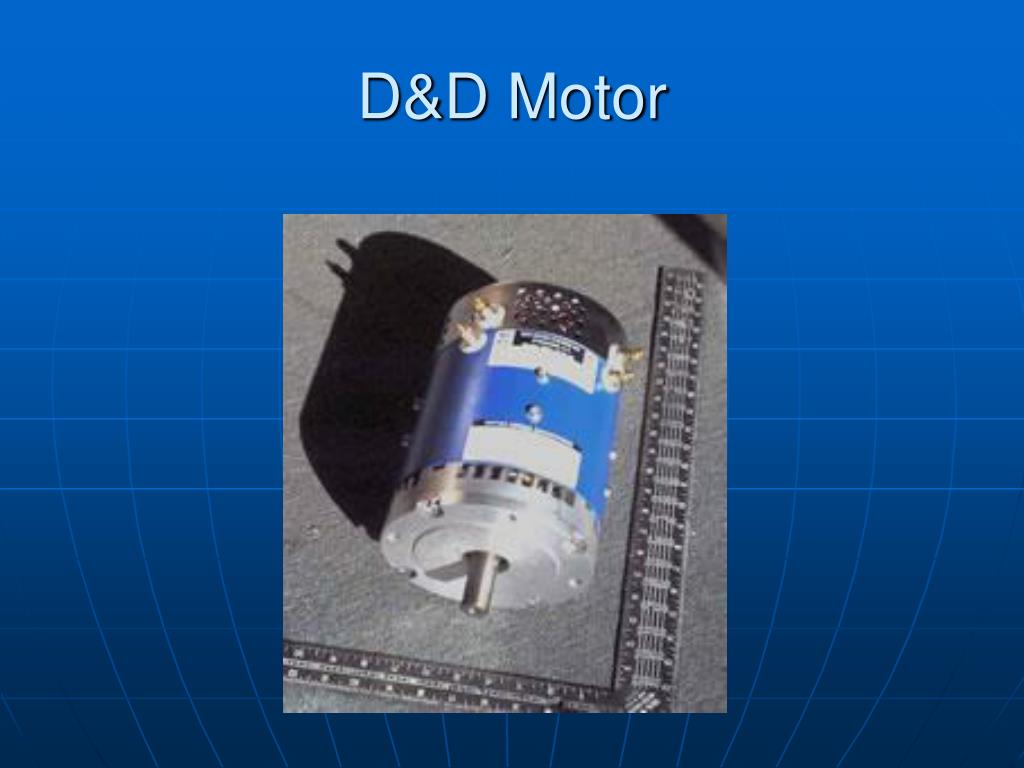

D d motor

D&D Motor


D d motor1

D&D Motor


D d motor info

D&D Motor Info

  • These motors are designed and manufactured in Syracuse NY, USA, by 40 year professionals. Marketed as performance upgrades for golf cars, NEVs, and off-road buggies, Thunderstruck Motors sees their potential in a wide range of vehicle platforms. We've already put them in a large boat, an industrial truck, mountain climbing dune buggy, hot rod motorcycles. . . what's next?SepEx

  • <<What does the Separately Excited topology mean?>>

  • These motors are similar to the series wound ADC motors we've seen; they have the same dimensions and no permanent magnets. But instead of having the motor field in series with the armature (and carrying armature current), the field is a separate electric circuit that is controlled independently by the controller. This allows the controller to alter the field strength as needed by the load; so at low speed the field strength is stronger, providing maximum torque. Then, as speed increases and armature current falls, the field weakens to optimize efficiency and allow the top speed of the motor to increase.

  • As a bonus, the field is reversible, allowing re-gen braking! This reverse field then allows for reversing of the motor shaft without the need for external contactors or switches

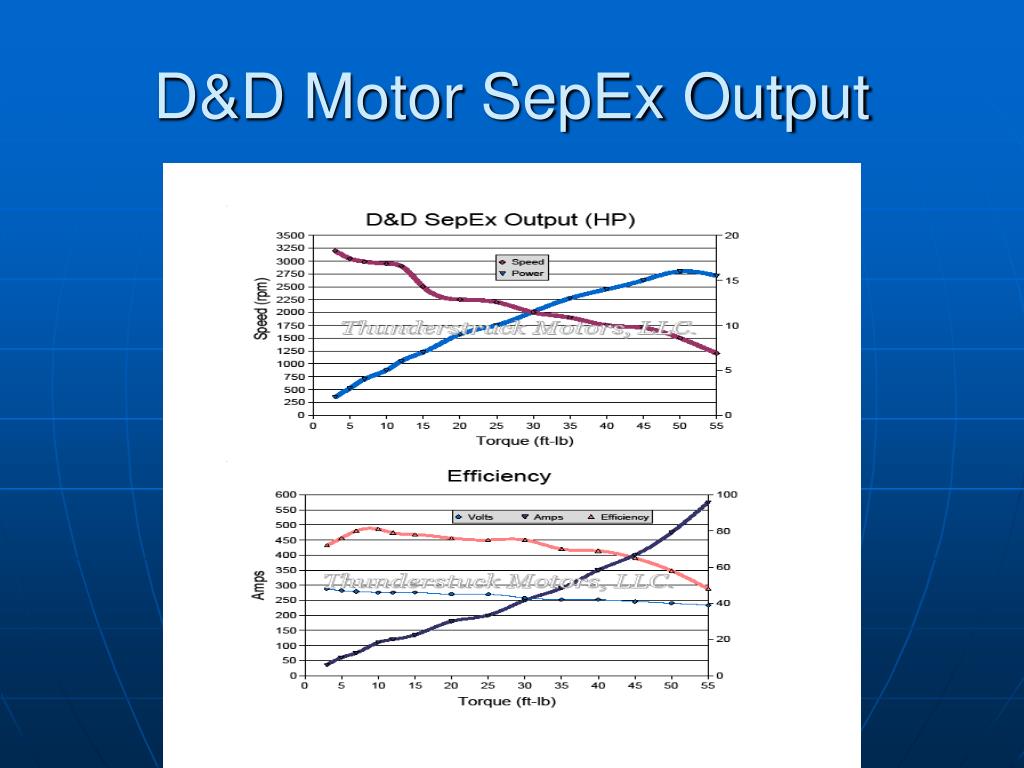

D d motor sepex output

D&D Motor SepEx Output


D d motor 72v charts

D&D Motor 72V Charts
