3508 3504

3508/3504


What is the 3500 range

What is the 3500 Range?

  • Not a 2400 replacement!

  • 818/902 performance controller/programmer

  • 2408/2404 compatible terminals assignment

  • 2400 simplicity with 2604 flexibility

  • Flexible configuration tools for creative solutions


Where should we sell it

Where should we sell it?

  • Aerospace & Defence

    • Heat Treatment, composite curing, environmental test

  • Semiconductor

    • Crystal growing, MBE, CVD, environmental test

  • Automotive

    • Heat treatment, paint drying, environmental test

  • Bricks & Ceramics

    • Drying, firing, glazing

  • Glass

    • , Forehearth heating, annealing lears

  • Pharmaceutical

    • Fermentation, culture growth, freeze dryers, reactors

  • Process Applications

    • Flow dosing


3508 3504

3508 - 96x 48mm

3500 Range Summary

  • Precision 1uV main PV input

  • Single PID loop

  • 50 programs, 200 segments

  • Maths, logic & timer functions

  • 3508 supports up to 3 I/O modules

  • 3504 supports up to 6 I/O module

3504 - 96x 96mm


3508 3504

3500 Range Summary

  • Graphical configuration tools

  • Front panel IR communication interface

  • Built in- logic I/O & relay

  • 24Vdc transmitter PSU

  • Uses digital I/O Expander


3508 3504

3508 Display Concept

Output/ Status Beacons

Alarm Beacon

PV Units

41/2 Digit PV Display

10 x 4 Character, Graphic/ Text display

Large SP Display

  • Programmer Home

  • Screen

  • Setpoint

  • Time Remaining

  • Program Number

  • Segment Number

Infrared Communication Port


3508 3504

3504 Display Concept

Output/ Status Beacons

Alarm Beacon

Display Units

51 point Bar Graphwith alarm indication

20 x 4 Character, Graphic/ Text display

5 digit PV

Large SP Display

  • Programmer Home

  • Screen

  • Setpoint

  • Time Remaining

  • Program Number

  • Segment Number

Infrared Communication Port


3508 3504

3500 Terminations

Logic out - 24V/15mA

logic input

24Vdc transmitter supply

Note: RTD terminals as 26/27


3508 3504

3508/04 Modular I/O

  • Output modules

    • Change over relay

    • 2 Pin relay

    • Dual relay

    • Single triac

    • Dual triac

    • Analog DC control

    • Analog DC retransmission

    • Isolated single logic

    • Triple logic

  • Input modules

    • Analog input(26/27(AM) module)

      • Not Slots 2 or 5

    • Triple logic input

    • Triple contact input

    • Potentiometer input

  • Power supply modules

    • 24Vdc transmitter supply

    • 5/10Vdc transducer supply

  • Communication modules

    • 232 Modbus RTU

    • 2 wire 485 Modbus RTU

    • 4 wire 485 Modbus RTU

    • IO Expander


Control options

Control Options

  • Single PID loop

    • PID, ON/OFF

    • VP Heat/VP Cool

    • PID Heat/VP Cool etc

  • Advanced control features

    • Flexible wiring of function blocks

    • Similar functionality to single loop 2604

    • Configured using iTools Graphical Editor


Setpoint programmer

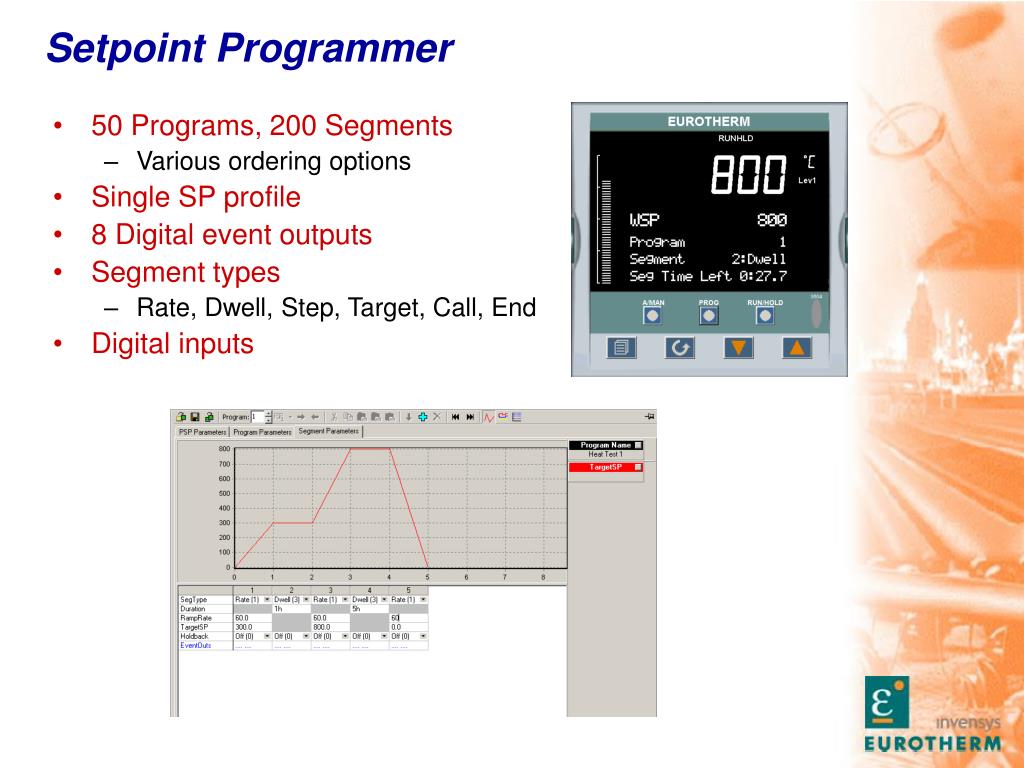

Setpoint Programmer

  • 50 Programs, 200 Segments

    • Various ordering options

  • Single SP profile

  • 8 Digital event outputs

  • Segment types

    • Rate, Dwell, Step, Target, Call, End

  • Digital inputs


Toolkit functions

Toolkit Functions

  • Maths functions

    • 2 input x 24

    • 8 input switch x 4

    • User value x 16

  • Logic functions

    • 2 input x 24

    • 8 input x 2

  • Timer functions

    • Real time clock

    • Timer x 4

    • Counter x 2

    • Totaliser x 2

  • Other functions include

    • Transducer Scaling x 2

    • Custom Linearisation x 2

    • Switchover

    • Load simulation


User pages

User Pages

  • 8 Pages

  • 64 Parameters

  • Various display formats


Recipes

Recipes

  • 8 Sets, each set can a given meaningful name

  • 24 Tags(parameters) per set

  • Typical example of Tags; Control SPs, Alarm SPs, PID values etc

  • Sets can be selected by HMI or communications


Communications

Communications

  • Modbus RTU slave

  • Master Modbus RTU

    • Broadcast of single parameter

  • More options coming soon

SCADA/DCS

Modbus RTU


Infra red clip

Infra Red Clip

  • In-Situ Communications

  • No loss of sealing

  • Commissioning

  • Cloning

  • Diagnostics


Order code hardware functions

Order Code - Hardware & Functions

20


Order code io modules

Order Code - IO Modules


Quick start hmi

Quick Start HMI

  • Quick Start HMI provides an intuitive series of questions to allow a user to configure a simple 3500 application without itools

  • Enables all blocks in 3500 and makes wires


Future development

Future Development

  • Phase 1A - April 04

    • More communication options

      • Profibus DP, DeviceNet, EI-Bisync

    • Supports IO Expander

    • Zirconia block

    • Quick start HMI

  • Phase 2 – Late Summer 04

    • 2 PID loops

    • 2 Setpoint profiles

    • Programmer PV events

    • Ethernet Modbus TCP/IP

  • What we are doing next

    • Cascade, override, ratio

    • Master Modbus


Why buy 3500

Why Buy 3500?

  • Flexible and competitive controller

    • Single loop 2604 at lower cost

  • Easy and fast configuration

    • Saves time, money and easier to be right first time

  • 0.1% Measurement accuracy

    • High performance control at 2400 costs

  • Wide selection of IO modules

    • Reduces spares holding

    • Caters for more applications

  • Configurable and intuitive display

    • Provides clear view of current process state

    • Recipes simplify process changes

    • Available in languages other than English
