Coe 405 logic design with behavioral models of combinational sequential logic

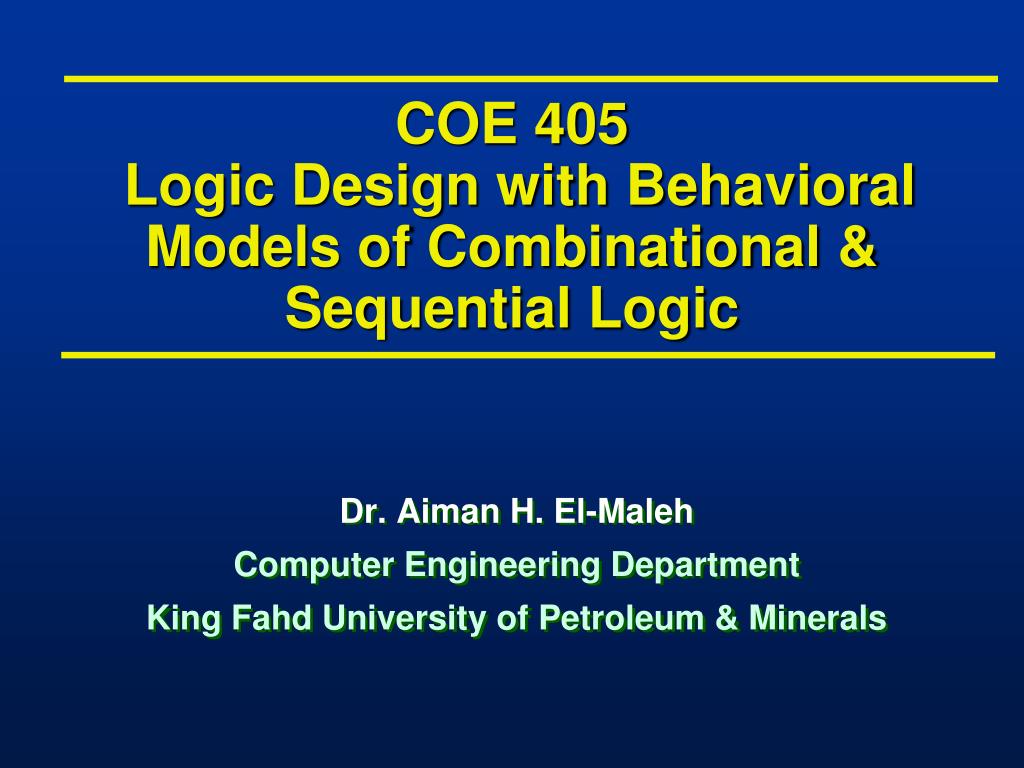

COE 405 Logic Design with Behavioral Models of Combinational & Sequential Logic

Dr. Aiman H. El-Maleh

Computer Engineering Department

King Fahd University of Petroleum & Minerals


Outline

Outline

  • Behavioral Modeling

  • Data Types for Behavioral Modeling

  • Boolean Equation-Based Behavioral Models of Combinational Logic

  • Assign Statement

  • Verilog Operators

  • Propagation Delay & Continuous Assignment

  • Latches & Level-Sensitive Circuits

  • Always Block, Procedural Assignment

  • If and Case Statements


Outline1

Outline

  • Data Flow / Register Transfer Level (RTL)

  • Algorithm-Based Models

  • Repetitive Algorithms

  • Tasks and Functions

  • Behavioral Modeling of Control Unit

  • Behavioral Models of Counters

  • Behavioral Models of Registers


Behavioral modeling

Behavioral Modeling

  • Behavioral modeling describes the functionality of a design

    • What the design will do

    • Not how the design will be built in hardware

  • Behavioral models specify the input-output model of a logic circuit and suppress details about its low level internal structure

  • Behavioral modeling encourages designers to

    • Rapidly create a behavioral prototype of a design

    • Verify its functionality

    • Use synthesis tool to optimize and map design into a given technology


Data types for behavioral modeling

Data Types for Behavioral Modeling

  • All variables in Verilog have a predefined type

  • There are two families of data types: nets and registers

  • Net variables act like wires in physical circuit and establish connectivity between design objects

  • Net types include: wire, tri, wand, wor, triand, trior, supply0, supply1, tri0, tri1, trireg

  • Register variables act like variables in ordinary procedural languages – they store information while the program executes

  • Register types include: reg, integer, real, realtime, time.


Data types for behavioral modeling1

Data Types for Behavioral Modeling

  • For synthesis, we use mainly the data types wire, reg and integer.

  • A wire and a reg have a default size of 1 bit.

  • Size of integer is the size of word length in a computer, at least 32.

  • A reg variable may never be the output of a primitive gate, an input or inout port of a module or the target of continuous assignment.


Boolean equation based behavioral models of combinational logic

Boolean Equation-Based Behavioral Models of Combinational Logic

  • A Boolean equation describes combinational logic by an expression of operations on variables.

  • In Verilog, this is done by continuous assignment statement.

  • Example:

    module AOI_5_CA0 (

    input x_in1, x_in2, x_in3, x_in4, x_in5,

    output y_out

    );

    assigny_out = !((x_in1 && x_in2) || (x_in3 && x_in4 && x_in5));

    endmodule


Assign statement

Assign Statement

  • The keyword assign declares a continuous assignment

  • It associate the Boolean expression on the RHS with the variable on the LHS

  • The assignment is sensitive to the variables in the RHS

  • Any time an event occurs on any of the variables on the RHS, the RHS expression is revaluated and the result is used to update the LHS

  • A continuous assignment is said to describe implicit combinational logic


Assign statement1

Assign Statement

module AOI_5_CA1 (

input x_in1, x_in2, x_in3, x_in4, x_in5, enable,

output y_out

);

assign y_out = enable ? !((x_in1 && x_in2) ||

(x_in3 && x_in4 && x_in5)) : 1’bz;

endmodule


Assign statement2

Assign Statement

  • The conditional operator (?:) acts like a software if-then-else switch that selects between two expressions.

  • If the value of enable is true, the expression to the right of the ? Is evaluated and used to assign value to y_out

  • Otherwise, the expression to the right of the : is used.

  • Using 1’bz illustrates how to write models that include three-state outputs.

  • A module may contain multiple continuous assignments; the assignments are active concurrently with all other continuous assignments, primitives, behavioral statements, and instantiated modules.


Assign statement3

Assign Statement

module Mux_2_32_CA #(parameter word_size=32)

( output [wordsize-1:0] mux_out,

input [wordsize-1:0] data_1, data_0,

input select

);

assign mux_out = select? data_1 : data_0;

endmodule


Verilog operators

Verilog Operators

{ }concatenation

+ - * / ** arithmetic

%modulus

> >= < <= relational

!logical NOT

&& logical AND

||logical OR

==logical equality

!=logical inequality

=== case equality

!== case inequality

? :conditional

~bit-wise NOT

&bit-wise AND

|bit-wise OR

^bit-wise XOR

^~ ~^bit-wise XNOR

&reduction AND

|reduction OR

~&reduction NAND

~|reduction NOR

^reduction XOR

~^ ^~reduction XNOR

<<shift left

>>shift right


Verilog operators1

Verilog Operators

  • Arithmetic Operators:

    • Each operator takes two operands. + and – could also take a single operand

    • During synthesis, the + and - operators infer an adder and a subtractor

    • Xilinx XST software can infer a block multiplier during synthesis for the multiplication operator

    • /, %, and ** operators usually cannot be synthesized automatically

  • Shift operators: Four shift operators

    • >>, << logical shift right and left (0s inserted from the right or the left)

    • >>>, <<< arithmetic shift right and left (sign bits are shifted in for the >>> operation and 0's are shifted in for the <<< operation)


Verilog operators2

Verilog Operators

  • If both operands of a shift operator are signals, as in a << b, the operator infers a barrel shifter, a fairly complex circuit

  • If the shifted amount is fixed, as in a << 2, the operation infers no logic and involves only routing of the input signals (can also be done with {} operator)

  • Examples of shift operations:


  • Verilog operators3

    Verilog Operators

    • Relational and equality operators:

      • compare two operands and return a 1-bit logical (Boolean) value: either 0 or 1

      • 4 relational operators: >, <, <=, and >=

      • 4 equality operators: ==, ! =, ===, and ! ==

      • Case equality and case inequality operators, take the x and z bits in the operands into consideration in the match  cannot be synthesized.

      • The relational operators and the == and ! = operators infer comparators during synthesis


    Verilog operators4

    Verilog Operators

    • Bitwise operators:

      • 4 basic bitwise operators: & (and), I (or), ^ (xor), and ! (not)

      • The first three operators require two operands

      • Negation and xor operation can be combined, as in ~^ or ^~ to form the xnor

      • operations are performed on a bit-by-bit basis

      • Ex.: let a, b, and c be 4-bit signals: i.e. wire [3:0] a , b , c ;

        The statement:assign c = a I b ;

        is the same as:assign c[3] = a[3] I b[3];

        assign c[2] = a[2] I b[2];

        assign c[1] = a[1] I b[1];

        assign c[0] = a[0] I b[0];


    Verilog operators5

    Verilog Operators

    • Reduction operators: &, I , and ^ operators may have only one operand and then are known as reduction operators.

      • The single operand usually has an array data type.

      • The designated operation is performed on all elements of the array and returns a I-bit result.

      • For example, let a be a 4-bit signal and y be a 1-bit signal:

        wire [3:0] a ; wire y ;

        The statement: assign y = I a ; // only one operand

        is the same as:assign y = a[3] | a[2] | a[1] | a[0] ;


    Verilog operators6

    Verilog Operators

    • Logical operators: && (logical and), II (logical or), and ! (logical negate)

      • operands of a logical operator are interpreted as false (when all bits are 0's) or true (when at least one bit is 1), and the operation always returns a 1-bit result

      • Usually used as logical connectives of Boolean expressions,

      • bitwise and logical operators can be used interchangeably in some situations. Not good practice though!

    • Examples of bitwise and logical operations


    Verilog operators7

    Verilog Operators

    • Conditional operator: ? : takes three operands and its general format is

      [signal] = [boolean-exp] ? [true-exp] : [false-exp];

      • The [boolean-expl] is a Boolean expression that returns true (1’b1) or false ( 1'b0).

      • Ex.: assign max = (a>b) ? a : b; //max will get the maximum of the signals a and b

      • The operator can be thought as a simplified if-then-else statement. Infers a mux

      • Can be cascaded or nested:

        assign max = (a>b) ? ((a>c) ? a : c) : ((b>c) ? b : c ) ; // max of three ignals


    Verilog operators8

    Verilog Operators

    • Concatenation and replication operators: { } and {{ }}

    • { } combines segments of elements and small arrays to form a large array:

      wire a1; wire [3:0] a4;wire [7:0] b8, c8, d8;

      assign b8 = {a4 , a4} ;

      assign c8 = {a1, a1, a4, 2'b00 } ;

      assign d8 = {b8[3:0] , c8[3:0]} ;

    • Concatenation operator involves reconnection of the input and output signals and only requires "wiring”. Can be used for shifting or rotating data


    Verilog operators9

    Verilog Operators

    wire [7:0] a, rot, shl , sha;

    assign rot = {a[2:0], a[7:3]) ; // Rotate a to right 3 bits

    assign shl = {3'b000, a[7:3]) ; // shift a to right 3 bits and insert 0s (logical shift)

    assign sha = {a[78] , a[7] , a[7] , a[7:3]} ; // arithmeticshift a to right 3 bits

    • The replication operator, N{ }, replicates the enclosed string. The replication constant, N, specifies the number of replications. For example:

      {4{2 'b01}} returns 8' b01010101.


    Full adder

    Full Adder

    module fadd (output Cout, S, input A, B, Cin);

    assign S = A ^(B ^ Cin);

    assign Cout = (A & B)

    | (A & Cin)

    | (B & Cin) ;

    endmodule


    Behavioral description of an adder

    Behavioral Description of an Adder

    module adder #(parameter width = 4)

    (output cout, output [width-1:0] sum,

    input [width-1:0] a, b, input cin);

    assign {cout, sum} = a + b + cin;

    // note: Verilog treats wires as ‘unsigned’ numbers

    endmodule

    4-bit operands,

    5-bit result

    { Cout, S } is a 5 bit bus:

    Cout S[3] S[2] S[1] S[0]


    Propagation delay continuous assignment

    Propagation Delay & Continuous Assignment

    • Propagation delay can be associated with a continuous assignment so that its implicit logic has same functionality and timing characteristics as its gate level implementation.

    module fadd (output Cout, S, input A, B, Cin);

    wire #10 S = A ^(B ^ Cin);

    wire #10 Cout = (A & B)

    | (A & Cin)

    | (B & Cin) ;

    endmodule


    Latches level sensitive circuits

    Latches & Level-Sensitive Circuits

    • Latch can be modeled as:

      module latch (output q, qb, input set, reset);

      assign q = ~(set & qb);

      assign qb = ~(reset & q);

      endmodule

    • Synthesis tools do not accommodate this form of feedback

    • Latch is inferred by synthesis tools as follows:

      module dlatch (output q, input data_in, enable);

      assign q = enable ? data_in : q;

      endmodule

      module dlatch2 (output q, input data_in, enable, reset);

      assign q = (reset==1'b0)? 0: enable ? data_in : q;

      endmodule


    Always block

    Always Block

    • always blocks are procedural blocks that contain sequential statements.

    • Syntax

      always @(sensitivity list) begin

      ……….

      end

    • sensitivity list prevents the always block from executing again until another change occurs on a signal in the sensitivity list.

      • Level type

        • always @(a or b or c)

      • Edge type

        • always @(posedge clock)

        • always @(negedge clock)


    Procedural assignment

    Procedural Assignment

    • Assignments inside an always block are called procedural assignments

    • Can only be used within an always block or initial block

    • Two types : blocking assignment and nonblocking assignment. basic syntax :

      • [variable-name] = [expression] ; // blocking assignment

      • [variable-name] <= [expression] ; // nonblocking assignment

    • In a blocking assignment, the expression is evaluated and then assigned to the variable immediately, before execution of the next statement (the assignment thus "blocks" the execution of other statements). It behaves like the normal variable assignment in the C language.


    Procedural assignment1

    Procedural Assignment

    • In a nonblocking assignment, the evaluated expression is assigned at the end of the always block (the assignment thus does not block the execution of other statements).

    • The basic rule of thumb is:

      • Use blocking assignments for a combinational circuit.

      • Use nonblocking assignments for a sequential circuit.

    • if-else and case statement are only in always block


    Wire vs reg

    Wire vs. Reg

    • There are two types of variables in Verilog:

      • Wires (all outputs of assign statements must be wires)

      • Regs (all outputs modified in always blocks must be regs)

    • Both variables can be used as inputs any where

      • Can use regs or wires as inputs (RHS) to assign statements

      • assign bus = LatchOutput + ImmediateValue

      • // bus must be a wire, but LatchOutput can be a reg

      • Can use regs or wires as inputs (RHS) in always blocks

      • always @ (in or clk)

      • if (clk) out = in  // in can be a wire, out must be a reg


    Algorithm based models

    Algorithm-Based Models

    • Algorithms prescribe a sequence of procedural assignments within a cyclic behavior.

    • The algorithm described by the model does not have explicit binding to hardware.

    • It does not have an implied architecture of registers, datapaths and computational resources.

    • This style is most challenging for a synthesis tool.

    • Synthesis tool needs to perform architectural synthesis which extracts the needed resources and schedules them into clock cycles.


    If statements

    If Statements

    Syntax

    if (expression)

    begin

    ...procedural statements...

    end

    else if (expression)

    begin

    ...statements...

    end

    ...more else if blocks

    else

    begin

    ...statements...

    end

    module ALU #(parameter n=8)

    (output reg [n-1:0] c, input [1:0] s, input [n-1:0] a, b);

    always @(s or a or b) begin

    if (s==2'b00)

    c = a + b;

    else if (s==2'b01)

    c = a - b;

    else if (s==2'b10)

    c = a & b;

    else

    c = a | b;

    end

    endmodule


    Case statements

    Case Statements

    Syntax

    case (expression)

    case_choice1:

    begin

    ...statements...

    end

    case_choice2:

    begin

    ...statements...

    end

    ...more case choices blocks...

    default:

    begin

    ...statements...

    end

    endcase

    module ALU2 #(parameter n=8)

    (output reg [n-1:0] c, input [1:0] s, input [n-1:0] a, b);

    always @(s or a or b) begin

    case (s)

    2'b00: c = a + b;

    2'b01: c = a - b;

    2'b10: c = a & b;

    default: c = a | b;

    endcase

    end

    endmodule


    Example full adder

    Example: Full Adder

    module fadd2 (output reg S, Cout, input A, B, Cin);

    always @(A or B or Cin)

    begin

    S = (A ^ B ^ Cin);

    Cout = (A & B)|(A&Cin)|(B&Cin);

    end

    endmodule


    Example comparator

    Example: Comparator

    module comp #(parameter width=32)

    (input [width-1:0] A, B,

    output A_gt_B, A_lt_B, A_eq_B);

    assign A_gt_B = (A>B);

    assign A_lt_B = (A<B);

    assign A_eq_B = (A==B);

    endmodule


    Example comparator1

    Example: Comparator

    module comp2 #(parameter width=2)

    (input [width-1:0] A, B,

    output regA_gt_B, A_lt_B, A_eq_B);

    always @(A, B) begin

    A_gt_B = 0;

    A_lt_B = 0;

    A_eq_B = 0;

    if (A == B) A_eq_B = 1;

    else if (A > B) A_gt_B = 1;

    else A_lt_B = 1;

    end

    endmodule


    Example 2x1 multiplexer

    Example: 2x1 Multiplexer

    • Method 1

      module mux2x1 (input b, c, select, output a);

      assign a = (select ? b : c);

      endmodule

    • Method 2

      module mux2x1 (input b, c, select, output reg a);

      always@(select or b or c) begin

      if (select) a=b;

      else a=c;

      end

      endmodule

    Method 3

    module mux2x1 (input b, c, select, output reg a);

    always@(select or b or c) begin

    case (select)

    1’b1: a=b;

    1’b0: a=c;

    endcase

    end

    endmodule


    Example demux

    Example: DeMux

    module demux ( input D, select, output reg y0, y1);

    always @( D or select ) begin

    if( select == 1’b0)

    begin

    y0 = D; y1 = 1’b0;

    end

    else

    begin

    y0 = 1’b0; y1 = D;

    end

    end

    endmodule


    Example arithmetic unit

    Example: Arithmetic Unit

    module arithmetic #(parameter width=8)

    (input [width-1:0] A, B, input [1:0] Sel,

    output reg [width-1:0] Y, output regCout);

    always @(A or B or Sel) begin

    case (Sel)

    2'b 00 : {Cout,Y} = A+B;

    2'b 01 : {Cout,Y} = A-B;

    2'b 10 : {Cout,Y} = A+1;

    2'b 11 : {Cout,Y} = A-1;

    default: begin Cout=0; Y=0; end

    endcase

    end

    endmodule


    Example logic unit

    Example: Logic Unit

    module logic #(parameter width=4)

    (input [width-1:0] A, B, input [2:0] Sel,

    output reg [width-1:0] Y);

    always @(A or B or Sel) begin

    case (Sel)

    3'b 000 : Y = A & B; // A and B

    3'b 001 : Y = A | B; // A or B

    3'b 010 : Y = A ^ B; // A xor B

    3'b 011 : Y = ~A; // 1’s complement of A

    3'b 100 : Y = ~(A & B); // A nand B

    3'b 101 : Y = ~(A | B); // A nor B

    default : Y = 0;

    endcase

    end

    endmodule


    D latch

    D Latch

    module dlatch (output q, input data, enable);

    assign q = enable ? data: q;

    endmodule

    module dlatch2 (output reg q, input data, enable);

    always @(enable, data)

    if (enable == 1'b1) q <= data;

    endmodule


    D flip flop synchronous set reset

    D Flip Flop – Synchronous Set/Reset

    module dff (output reg q, output q_bar, input data, set_b, reset_b, clk);

    assign q_bar = !q;

    always @(posedgeclk)// Synchronous set/reset

    if (reset_b == 1'b0) q <= 0;

    else if (set_b == 1'b0) q <=1;

    else q <= data;

    endmodule


    D flip flop asynchronous set reset

    D Flip Flop – Asynchronous Set/Reset

    module dff2 (output reg q, output q_bar, input data, set_b, reset_b, clk);

    assign q_bar = !q;

    always @(posedgeclk, negedgeset_b, negedgereset_b )// Asynchronous set/reset

    if (reset_b == 1'b0) q <= 0;

    else if (set_b == 1'b0) q <=1;

    else q <= data;

    endmodule


    D flip flop asynchronous set reset1

    D Flip Flop – Asynchronous Set/Reset

    module dff3 (output reg q, output q_bar, input data, set_b, reset_b, clk);

    assign q_bar = !q;

    always @(clk, set_b, reset_b )// Asynchronous set/reset

    if (reset_b == 1'b0) q <= 0;

    else if (set_b == 1'b0) q <=1;

    else @(posedgeclk) q <= data;

    endmodule


    Data flow rtl models

    Data Flow/ RTL Models

    • Data flow models describe concurrent operations on signals where computations are initiated at active edges of a clock and completed to be stored in a register at next active edge.

    • Also referred to as Register Transfer Level (RTL) as they describe transfer of data among registers.

    • A behavioral model of combinational logic can be described using concurrent assign statements or always statements.

    • A behavioral model of sequential logic can be described using always statements.


    Shift register

    Shift Register

    module shiftreg (output reg A, input E, clk, rst);

    reg B, C, D;

    always @(posedgeclk, posedgerst)begin

    if (rst == 1'b1) begin A=0; B=0; C=0; D=0; end

    else begin

    A = B;

    B = C;

    C = D;

    D = E;

    end

    end

    endmodule


    Shift register1

    Shift Register

    module shiftreg2 (output reg A, input E, clk, rst);

    reg B, C, D;

    always @(posedgeclk, posedgerst)begin

    if (rst == 1'b1) begin A=0; B=0; C=0; D=0; end

    else begin

    D = E;

    C = D;

    B = C;

    A = B;

    end

    end

    endmodule

    What will happen in this model?


    Shift register2

    Shift Register

    module shiftreg3 (output reg A, input E, clk, rst);

    reg B, C, D;

    always @(posedgeclk, posedgerst)begin

    if (rst == 1'b1) begin A=0; B=0; C=0; D=0; end

    else begin

    A <= B;

    B <= C;

    C <= D;

    D <= E;

    end

    end

    endmodule

    Non-blocking assignments (<=)

    execute concurrently. So they are

    order independent.


    Behavioral models of multiplexor

    Behavioral Models of Multiplexor

    module Mux_4_1 #(parameter width=32)

    (output [width-1:0] mux_out, input [width-1:0] data_3, data_2, data_1, data_0, input [1:0] select, input enable);

    reg [width-1:0] mux_int;

    assign mux_out = enable ? mux_int : 'bz;

    always @(data_3, data_2, data_1, data_0, select)

    case (select)

    0: mux_int = data_0;

    1: mux_int = data_1;

    2: mux_int = data_2;

    3: mux_int = data_3;

    default: mux_int = 'bx;

    endcase

    endmodule


    Behavioral models of multiplexor1

    Behavioral Models of Multiplexor

    module Mux_4_1_IF #(parameter width=32)

    (output [width-1:0] mux_out, input [width-1:0] data_3, data_2, data_1, data_0, input [1:0] select, input enable);

    reg [width-1:0] mux_int;

    assign mux_out = enable ? mux_int : 'bz;

    always @(data_3, data_2, data_1, data_0, select)

    if (select==0) mux_int = data_0; else

    if (select==1) mux_int = data_1; else

    if (select==2) mux_int = data_2; else

    if (select==3) mux_int = data_3; elsemux_int = 'bx;

    endmodule


    Behavioral models of multiplexor2

    Behavioral Models of Multiplexor

    module Mux_4_1_CA #(parameter width=32)

    (output [width-1:0] mux_out, input [width-1:0] data_3, data_2, data_1, data_0, input [1:0] select, input enable);

    wire [width-1:0] mux_int;

    assign mux_out = enable ? mux_int : 'bz;

    assign mux_int = (select==0) ? data_0:

    (select==1) ? data_1:

    (select==2) ? data_2:

    (select==3) ? data_3: 'bx;

    endmodule


    Behavioral models of encoder

    Behavioral Models of Encoder

    module encoder (output reg [2:0] Code, input [7:0] Data);

    always @(Data)

    if (Data==8'b00000001) Code = 0; else

    if (Data==8'b00000010) Code = 1; else

    if (Data==8'b00000100) Code = 2; else

    if (Data==8'b00001000) Code = 3; else

    if (Data==8'b00010000) Code = 4; else

    if (Data==8'b00100000) Code = 5; else

    if (Data==8'b01000000) Code = 6; else

    if (Data==8'b10000000) Code = 7; else

    Code = 'bx;

    endmodule


    Behavioral models of encoder1

    Behavioral Models of Encoder

    module priority (output reg [2:0] Code, output valid_data, input [7:0] Data);

    assign valid_data = | Data;

    always @(Data)

    if (Data[7]) Code = 7; else

    if (Data[6]) Code = 6; else

    if (Data[5]) Code = 5; else

    if (Data[4]) Code = 4; else

    if (Data[3]) Code = 3; else

    if (Data[2]) Code = 2; else

    if (Data[1]) Code = 1; else

    if (Data[0]) Code = 0; else

    Code = 'bx;

    endmodule


    Behavioral models of encoder2

    Behavioral Models of Encoder

    module priority2 (output reg [2:0] Code, output valid_data, input [7:0] Data);

    assign valid_data = | Data;

    always @(Data)

    case (Data)

    8'b1xxxxxxx : Code = 7;

    8'b01xxxxxx : Code = 6;

    8'b001xxxxx : Code = 5;

    8'b0001xxxx : Code = 4;

    8'b00001xxx : Code = 3;

    8'b000001xx : Code = 2;

    8'b0000001x : Code = 1;

    8'b00000001 : Code = 0;

    default: Code = 'bx;

    endcase

    endmodule


    Behavioral models of decoder

    Behavioral Models of Decoder

    module decoder (output reg [7:0] Data, input [2:0] Code);

    always @(Code)

    if (Code == 0 ) Data= 8'b00000001; else

    if (Code == 1 ) Data= 8'b00000010; else

    if (Code == 2 ) Data= 8'b00000100; else

    if (Code == 3 ) Data= 8'b00001000; else

    if (Code == 4 ) Data= 8'b00010000; else

    if (Code == 5 ) Data= 8'b00100000; else

    if (Code == 6 ) Data= 8'b01000000; else

    if (Code == 7 ) Data= 8'b10000000; else

    Data = 'bx;

    endmodule


    Seven segment display decoder

    Seven Segment Display Decoder

    module Seven_Segment_Display (output reg [6:0] Display, input [3:0] BCD);

    parameter BLANK = 7’b111_1111; parameter ZERO= 7’b000_0001; //abc_defg

    parameter ONE= 7’b100_1111; parameter TWO= 7’b001_0010;

    parameter THREE= 7’b000_0110; parameter FOUR= 7’b100_1100;

    parameter FIVE= 7’b010_0100; parameter SIX= 7’b010_0000;

    parameter SEVEN= 7’b000_1111; parameter EIGHT= 7’b000_0000;

    parameter NINE= 7’b000_0100;

    always @(BCD)

    case (BCD)

    0: Display = ZERO; 1: Display = ONE;

    2: Display = TWO; 3: Display = THREE;

    4: Display = FOUR; 5 : Display = FIVE;

    6: Display = SIX; 7: Display = SEVEN;

    8: Display = EIGHT; 9: Display = NINE;

    default: DISPLAY = BLANK;

    endcase

    endmodule


    Linear feedback shift register lfsr

    Linear Feedback Shift Register (LFSR)


    Linear feedback shift register lfsr1

    Linear Feedback Shift Register (LFSR)


    Linear feedback shift register lfsr2

    Linear Feedback Shift Register (LFSR)

    module LFSR #(parameter Length=8, initial_state = 8'b1001_0001, //91h

    parameter [Length: 1]Tap_Coefficient = 8'b1100_1111)

    (input clock, reset_b, output reg [1:Length] Y);

    always@ (posedge clock)

    if (reset_b == 1'b0) Y<= initial_state;

    else begin

    Y[1] <= Y[8];

    Y[2] <= Tap_Coefficient[7]? Y[1]^Y[8]:Y[1];

    Y[3] <= Tap_Coefficient[6]? Y[2]^Y[8]:Y[2];

    Y[4] <= Tap_Coefficient[5]? Y[3]^Y[8]:Y[3];

    Y[5] <= Tap_Coefficient[4]? Y[4]^Y[8]:Y[4];

    Y[6] <= Tap_Coefficient[3]? Y[5]^Y[8]:Y[5];

    Y[7] <= Tap_Coefficient[2]? Y[6]^Y[8]:Y[6];

    Y[8] <= Tap_Coefficient[1]? Y[7]^Y[8]:Y[7];

    end

    endmodule


    Repetitive algorithms

    Repetitive Algorithms

    • for loop:

      • for (initial_statement; control expression; index_statement)

        statement_for_execution;

      • initial_statement executes once to initialize a register variable (i.e. an integer of reg) that controls the loop

      • If control_expression is true the statement_for_execution will execute

      • After the statement_for_execution has executed, the index_statement will execute (usually to increment a counter)

      • Then the control expression is checked again and if false the loop terminates.


    Linear feedback shift register lfsr3

    Linear Feedback Shift Register (LFSR)

    module LFSR2 #(parameter Length=8, initial_state = 8'b1001_0001, //91h

    parameter [Length:1] Tap_Coefficient = 8'b1100_1111)

    (input clock, reset_b, output reg [1:Length] Y);

    integer k;

    always@ (posedge clock)

    if (reset_b == 1'b0) Y<= initial_state;

    else begin

    for (k = 2; k <= Length; k = k+1)

    if (Tap_Coefficient[Length-k+1]==1)

    Y[k] <= Y[k-1]^Y[Length];

    else Y[k] <= Y[k-1];

    Y[1] <= Y[Length];

    end

    endmodule


    Linear feedback shift register lfsr4

    Linear Feedback Shift Register (LFSR)

    module LFSR3 #(parameter Length=8, initial_state = 8'b1001_0001, //91h

    parameter [Length:1] Tap_Coefficient = 8'b1100_1111)

    (input clock, reset_b, output reg [1:Length] Y);

    integer k;

    always@ (posedge clock)

    if (reset_b == 1'b0) Y<= initial_state;

    else begin

    for (k = 2; k <= Length; k = k+1)

    Y[k] <= Tap_Coefficient[Length-k+1]?Y[k-1]^Y[Length]:Y[k-1];

    Y[1] <= Y[Length];

    end

    endmodule


    Majority

    Majority

    module Majority #(parameter size=8, max=3, majority=5)

    (input [size-1:0] Data,

    output reg Y);

    reg [max-1:0] count;

    integer k;

    always@ (Data) begin

    count = 0;

    for (k=0; k < size; k = k+1)

    if (Data[k] == 1) count = count + 1;

    Y = (count >= majority);

    end

    endmodule


    Repetitive algorithms1

    Repetitive Algorithms

    • repeat loop

      • repeat (expression) statement;

      • executes an associated statement or block of statements a specified number of times unless it is terminated by a disable statement within the activity flow

    • Example: a repeat loop is used to initialize a memory array

      word_address = 0;

      repeat (memory_size)

      begin

      memory[word_address]=0;

      word_address = word_address+1;

      end


    Repetitive algorithms2

    Repetitive Algorithms

    • while loop

      • while (expression) statement;

      • Executes repeatedly while a Boolean expression is true

    • Example:

      while (enable) begin

      @(posedge clock) count <= count + 1;

      end


    Repetitive algorithms3

    Repetitive Algorithms

    module CountOnes (input [7:0] reg_a, output reg [3:0] count);

    always@ (reg_a)

    begin: count_of_1s // declares a named block of statements

    reg [7:0] temp_reg;

    count = 0;

    temp_reg = reg_a; // load a data word

    while (temp_reg)

    begin

    if (temp_reg[0]) count = count + 1; // count = count + temp_reg[0];

    temp_reg = temp_reg >> 1;

    end

    end

    endmodule


    Clock generators

    Clock Generators

    module clockgen(output reg clock);

    parameter half_cycle = 50;

    parameter stop_time = 350;

    initial

    begin: clock_loop

    clock = 0;

    forever

    begin

    #half_cycle clock = 1;

    #half_cycle clock = 0;

    end

    end

    initial

    #stop_timedisableclock_loop;

    endmodule


    Disable statement

    Disable Statement

    • Disable statement is used to prematurely terminate a named block of procedural statements. Execution is transferred to the statement that immediately follows the named block.

      module find_first_one (output reg [3:0] index_value, input [15:0] A_word, input trigger);

      always @(posedge trigger)

      begin: search_for_1

      for (index_value=0; index_value<15; index_value=index_value+1)

      if (A_word[index_value] == 1) disable search_for_1;

      end

      endmodule


    Machines with multicycle operations

    Machines with Multicycle Operations

    • A machine to form the sum of four successive samples of a datapath

      module add_4cycle (output reg [5:0] sum, input [3:0] data, input clk, reset);

      always @ (posedgeclk) begin: add_loop

      if (reset == 1’b1) disableadd_loop; else sum <= data;

      @ (posedgeclk) if (reset == 1’b1) disableadd_loop; else sum <= sum + data;

      @ (posedgeclk) if (reset == 1’b1) disableadd_loop; else sum <= sum + data;

      @ (posedgeclk) if (reset == 1’b1) disableadd_loop; else sum <= sum + data;

      end

      endmodule


    Machines with multicycle operations1

    Machines with Multicycle Operations


    Tasks and functions

    Tasks and Functions

    • Tasks create a hierarchical organization of procedural statements within a Verilog behavior.

    • Functions substitute for an expression.

    • Tasks and functions facilitate a readable style of code, with a single identifier conveying the meaning of many lines of code.

    • Encapsulation of Verilog code into tasks or functions hides the details of an implementation.

    • Overall, tasks and functions improve the readability, portability and maintainability of a model.


    Tasks

    Tasks

    • Tasks are declared within a module and they may be referenced from within a cyclic or single-pass behavior.

    • A task can have parameters passed to it and results of executing a task can be passed back to environment.

    • When a task is called, copies of parameters in environment are associated with inputs, outputs, and inouts within the task according to order of declaration

    • The variables in environment are visible to a task.

    • Local variables may be declared within a task.

    • A task can call itself.


    Tasks1

    Tasks

    • A task must be named and may include declarations of any number of : parameter, input, output, inout, reg, integer, real, time, realtime.

    • Arguments of a task retain the type they hold in the environment that invokes the task.

    • All arguments of a task are passed by a value.

    • The basic syntax of a task is:

      task [task-id] ([arg]) ;

      begin

      [statements] ;

      end

      endtask

    • [arg] is the argument declaration and is similar to port declaration except that the default data type is reg and the wire data type can not be used as output


    Tasks2

    Tasks

    module adder_task (output regc_out, output reg [3:0] sum, input [3:0] data_a, data_b, input c_in, clk, reset);

    always @(posedgeclk, posedge reset)

    if (reset == 1’b1) {c_out, sum} <= 0; else add_values(c_out, sum, data_a, data_b, c_in);

    task add_values( output c_out, output [3:0] sum, input [3:0] data_a, data_b, input c_in);

    {c_out, sum} <= data_a + (data_b + c_in);

    endtask

    endmodule


    Tasks3

    Tasks


    Tasks4

    Tasks


    Functions

    Functions

    • Verilog functions are declared within a parent module and can be referenced in any valid expression

    • A function is implemented by an expression and returns a value at the location of the function’s identifier.

    • Functions may implement only combinational behavior.

    • A function may not contain timing controls (#, @, wait), non-blocking statements.

    • Functions may not invoke a task but they may call other functions but not recursively.

    • Functions are expanded during synthesis and "flattened”


    Functions1

    Functions

    • Basic syntax of a function is shown below:

    • [result-type] is the data type of the returned result (usually reg or integer)

    • Function name is specified by [func-id]

    • Function value is returned by a statement like: func-id = … ;


    Functions2

    Functions

    • Consider the following module snippet: with one operation repeated 4 times

    • We can define a function ba and use it:

    • ba takes a 4-bit reg argument

      and returns a 4-bit reg signal


    Functions3

    Functions

    • A function could be used is to calculate the constants whose values depend on other parameters:

      Note that the function in this

      example is evaluated during

      pre-processing, it does

      not infer any hardware

      (the for loop is usually

      not synthesizable)


    Functions4

    Functions

    module word_aligner #(parameter word_size = 8)

    (output [word_size-1:0] word_out, input [word_size-1:0] word_in);

    assign word_out = aligned_word(word_in);

    function [word_size-1:0] aligned_word;

    input [word_size-1:0] word;

    begin

    aligned_word = word;

    if (aligned_word != 0)

    while (aligned_word[word_size-1]==0) aligned_word = aligned_word << 1;

    end

    endfunction

    endmodule


    Functions5

    Functions

    module arithmetic_unit (

    output [4:0] result_1,

    output [3:0] result_2,

    input [3:0] operand_1, operand_2);

    assign result_1 = sum_of_operands (operand_1, operand_2);

    assign result_2 = largest_operand (operand_1, operand_2);

    function [4:0] sum_of_operands (input [3:0] operand_1, operand_2);

    sum_of_operands = operand_1 + operand_2;

    endfunction

    function [3:0] largest_operand (input [3:0] operand_1, operand_2);

    largest_operand = (operand_1 >= operand_2) ? operand_1: operand_2;

    endfunction

    endmodule


    Functions6

    Functions


    Behavioral modeling of control unit

    Behavioral Modeling of Control Unit

    module Controller (output reg Clr_P1_P0,

    Ld_P1_P0, Ld_R0, input En, Ld, clk, rst);

    parameter S_idle = 2'b00, S_1=2'b01,

    S_full=2'b10, S_wait=2'b11;

    reg [1:0] state, next_state;

    always @(posedge clk)

    if (rst) state <= S_idle;

    else state <= next_state;

    always @(state, En, Ld) begin

    Clr_P1_P0 = 0; Ld_P1_P0=0; Ld_R0=0;

    case (state)

    S_idle:

    if (En) begin

    next_state=S_1; Ld_P1_P0=1; end

    else next_state=S_idle;


    Behavioral modeling of control unit1

    Behavioral Modeling of Control Unit

    S_1: begin

    next_state=S_full; Ld_P1_P0=1; end

    S_full:

    if (!Ld) next_state=S_wait;

    else begin

    Ld_R0=1;

    if (En) begin

    next_state=S_1; Ld_P1_P0=1; end

    else begin

    next_state=S_idle; Clr_P1_P0=1; end

    end

    S_wait:

    if (!Ld) next_state=S_wait;

    else begin

    Ld_R0=1;

    if (En) begin

    next_state=S_1; Ld_P1_P0=1; end

    else begin

    next_state=S_idle; Clr_P1_P0=1; end

    end

    endcase

    end

    endmodule


    Behavioral models of counters

    Behavioral Models of Counters

    module Up_Down_Counter (output reg [2:0] count, input [1:0] up_dwn, input clock, reset_);

    always @(negedge clock, negedge reset_)

    if (reset_==1'b0) count <= 3'b0;

    else

    if (up_dwn == 2'b00 || up_dwn == 2'b11) count<=count;

    else

    if (up_dwn == 2'b01) count<=count+1; else

    if (up_dwn == 2'b10) count<=count-1;

    endmodule


    Behavioral models of counters1

    Behavioral Models of Counters

    • A ring counter asserts a single bit that circulates through the counter in a synchronous manner.


    Behavioral models of counters2

    Behavioral Models of Counters

    module ring_counter #(parameter word_size=8)

    (output reg [word_size-1:0] count, input enable, clock, reset);

    always @ (posedge clock, posedge reset)

    if (reset) count <= { {(word_size-1){1'b0}},1'b1};

    else if (enable == 1'b1) count <= {count[word_size-2:0], count[word_size-1]};

    endmodule


    Behavioral models of counters3

    Behavioral Models of Counters

    module Up_Down_Counter2 (

    output reg [2:0] count,

    input load, count_up, counter_on, clock, reset,

    input [2:0] Data_in);

    always @(posedge clock, posedge reset)

    if (reset==1'b1) count <= 3'b0; else

    if (load == 1'b1) count <= Data_in; else

    if (counter_on == 1'b1) begin

    if (count_up == 1'b1) count<=count+1;

    else count<=count-1;

    end

    endmodule


    Behavioral models of shift registers

    Behavioral Models of Shift Registers

    module Shift_reg4 #(parameter word_size=4)

    ( output Data_out, input Data_in, clock, reset);

    reg [word_size-1:0] Data_reg;

    assign Data_out = Data_reg[0];

    always @(posedge clock, negedge reset)

    if (reset==1'b0) Data_reg <= {word_size{1'b0}};

    else Data_reg <= {Data_in, Data_reg[word_size-1:1]};

    endmodule


    Parallel load register

    Parallel Load Register

    module Par_load_reg4 #(parameter word_size=4)

    ( output reg [word_size-1:0] Data_out,

    input [word_size-1:0] Data_in,

    input load, clock, reset);

    always @(posedge clock, posedge reset)

    if (reset==1'b0) Data_out <= {word_size{1'b0}};

    else if (load==1'b1) Data_out <= Data_in;

    endmodule


    Barrel shifter

    Barrel Shifter

    module barrel_shifter #(parameter word_size=8)

    ( output reg [word_size-1:0] Data_out,

    input [word_size-1:0] Data_in,

    input load, clock, reset);

    always @(posedge clock, posedge reset)

    if (reset==1'b0) Data_out <= {word_size{1'b0}};

    else if (load==1'b1) Data_out <= Data_in;

    else Data_out <= {Data_out[word_size-2:0], Data_out[word_size-1]};

    endmodule


    Universal shift register

    Universal Shift Register

    module Universal_Shift_Register #(parameter word_size=4)

    ( output reg [word_size-1:0] Data_Out, output MSB_Out, LSB_Out,

    input [word_size-1:0] Data_In, input MSB_In, LSB_In,

    input s1, s0, clk, rst);

    assign MSB_Out = Data_Out[word_size-1];

    assign LSB_Out = Data_Out[0];

    always @(posedgeclk)

    if (rst==1'b1) Data_Out <= 0;

    else case ({s1,s0})

    0: Data_Out <= Data_Out;

    1: Data_Out <= {MSB_In, Data_Out[word_size-1:1]};

    2: Data_Out <= {Data_Out[word_size-2:0], LSB_In};

    3: Data_Out <= Data_In;

    endcase

    endmodule


    Register files

    Register Files

    module Register_File #(parameter word_size=32, addr_size=5)

    ( output reg [word_size-1:0] Data_Out1, Data_Out2,

    input [word_size-1:0] Data_In,

    input [addr_size-1:0] Read_Addr_1, Read_Addr_2, Write_Addr,

    input Write_Enable, Clock);

    reg [word_size-1:0] Reg_File[31:0];

    assign Data_Out_1 = Reg_File[Read_Addr_1];

    assign Data_Out_12= Reg_File[Read_Addr_2];

    always @(posedge Clock)

    if (Write_Enable==1'b1)

    Reg_File[Write_Addre] <= Data_In;

    endmodule


  • Login
