匯報項目進度. 「城中綠洲」公眾主流的期望 設計大綱原則. Design Brief. 新加建築 : 前衛 ; 創新 ; 與舊建築有明顯分別 設計體積 : 容許向上向下擴展,容納較現時多 1-2 層,以提供多元化空間及更多綠化 立面設計 : 保育面向域多利皇后街及租庇利街的主立面 ; 移除後加立面 地面視覺通透性及可達性 : 地面外牆可作適當的改動及打通 用途 : 多元化及不要太商業化. Location. Central Oasis - Revitalization of the Central Market

Download Presentation

匯報項目進度

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


6268057

  • 匯報項目進度


6268057

「城中綠洲」公眾主流的期望

設計大綱原則

Design Brief

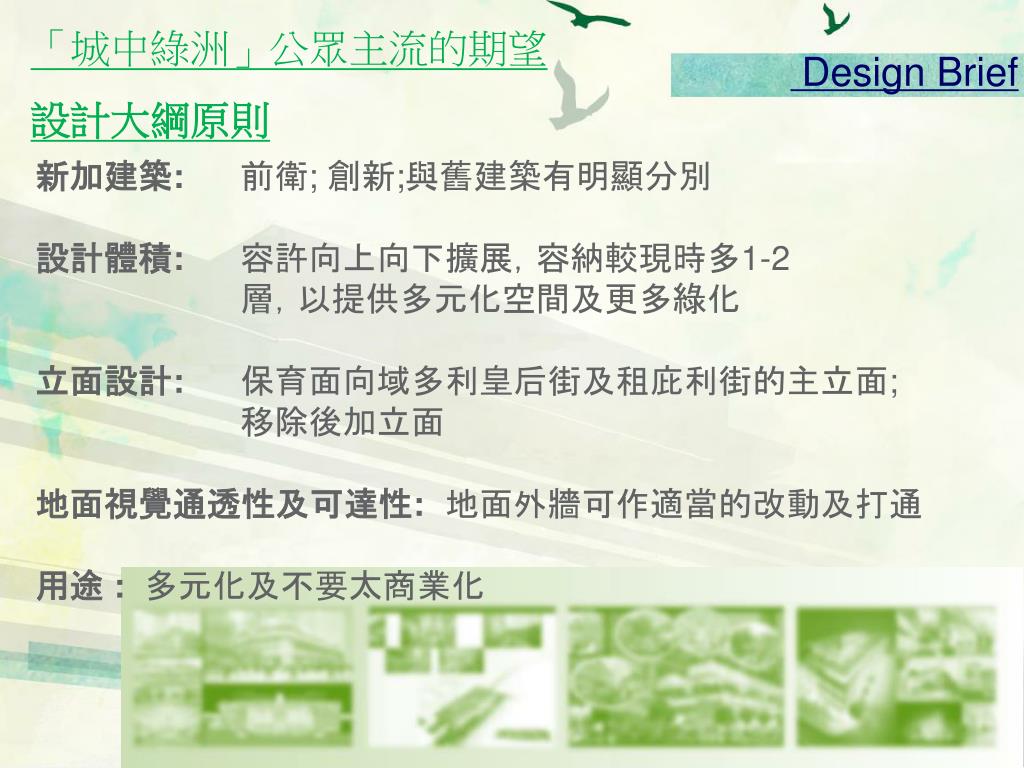

新加建築:前衛; 創新;與舊建築有明顯分別

設計體積:容許向上向下擴展,容納較現時多1-2 層,以提供多元化空間及更多綠化

立面設計:保育面向域多利皇后街及租庇利街的主立面;

移除後加立面

地面視覺通透性及可達性: 地面外牆可作適當的改動及打通

用途:多元化及不要太商業化


6268057

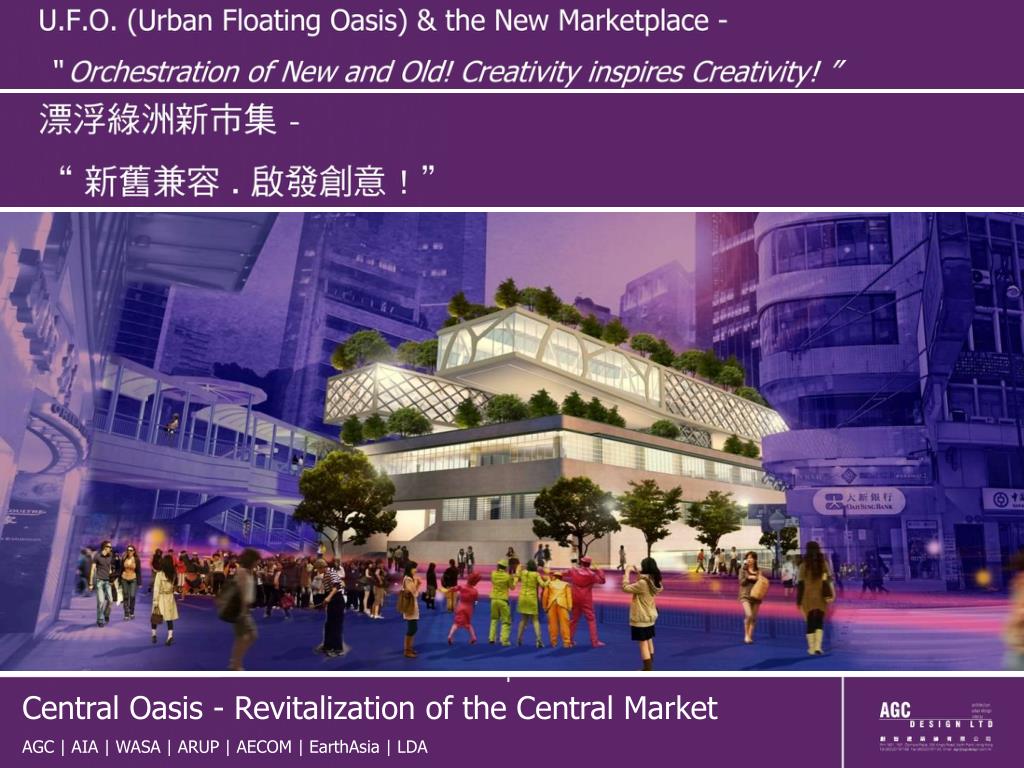

Location

Central Oasis - Revitalization of the Central Market

AGC | AIA | WASA | ARUP | AECOM | EarthAsia | LDA


6268057

1. Conservation Approach supported by AMO

2. Structural Design Options

3. Public Circulation Strategy

4. M&E Strategy

Central Oasis - Revitalization of the Central Market

AGC | AIA | WASA | ARUP | AECOM | EarthAsia | LDA


6268057

Location

G/F 2/F

1/F R/F

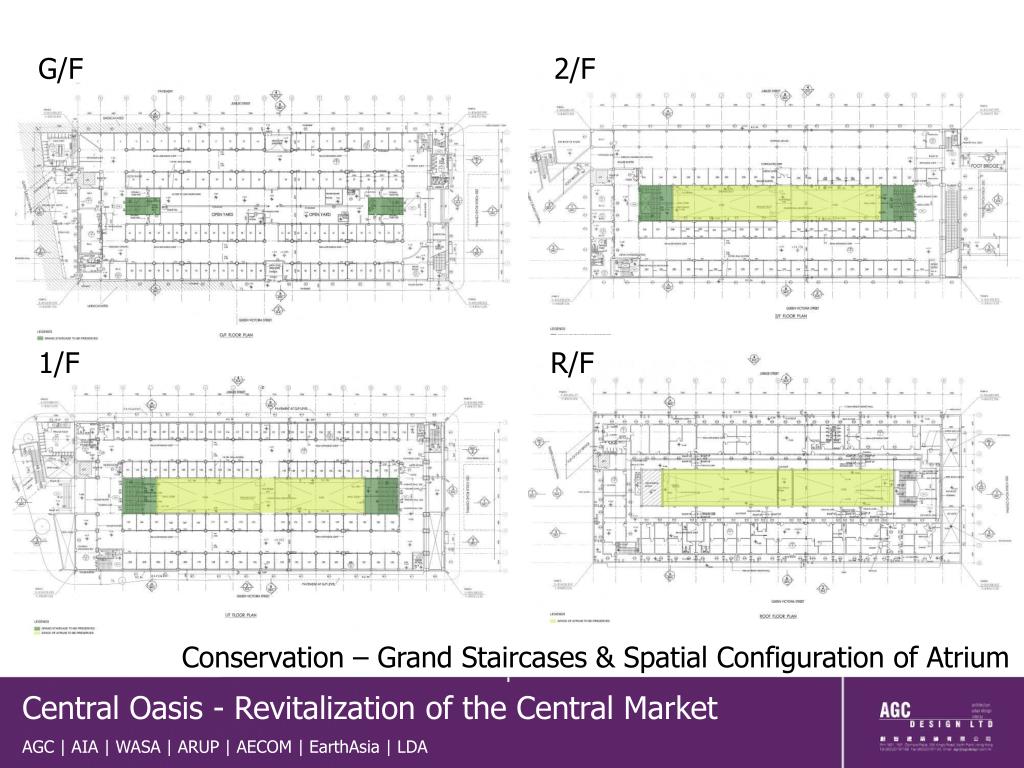

Conservation – Grand Staircases & Spatial Configuration of Atrium

Central Oasis - Revitalization of the Central Market

AGC | AIA | WASA | ARUP | AECOM | EarthAsia | LDA


6268057

Location

Elevation

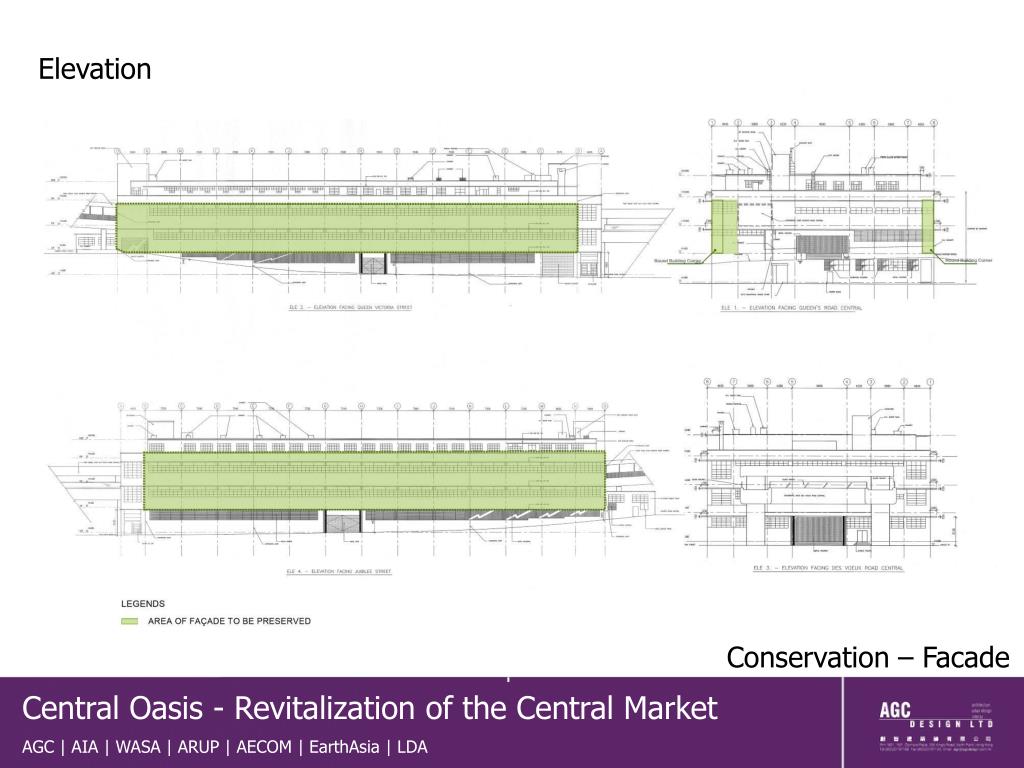

Conservation – Facade

Central Oasis - Revitalization of the Central Market

AGC | AIA | WASA | ARUP | AECOM | EarthAsia | LDA


6268057

Location

Stalls – minimum one stall for each type

Conservation – Stall

Central Oasis - Revitalization of the Central Market

AGC | AIA | WASA | ARUP | AECOM | EarthAsia | LDA


6268057

Location

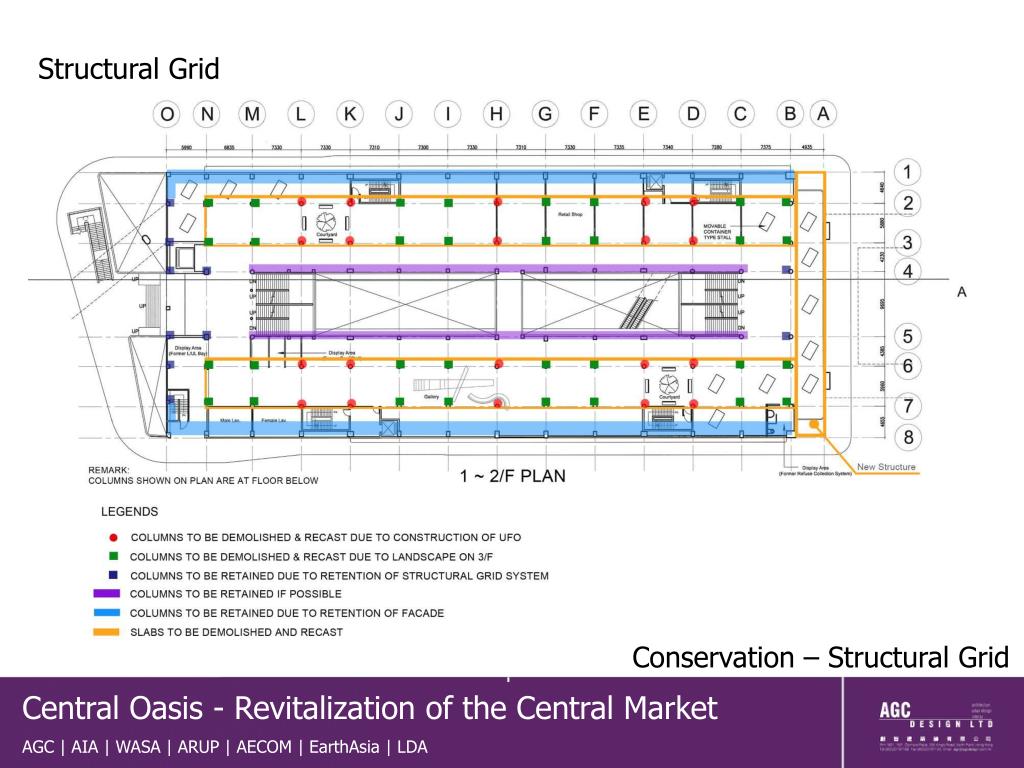

Structural Grid

Conservation – Structural Grid

Central Oasis - Revitalization of the Central Market

AGC | AIA | WASA | ARUP | AECOM | EarthAsia | LDA


6268057

1. Conservation Approach supported by AMO

2. Structural DesignOptions

3. Public Circulation Strategy

4. M&E Strategy

Central Oasis - Revitalization of the Central Market

AGC | AIA | WASA | ARUP | AECOM | EarthAsia | LDA


6268057

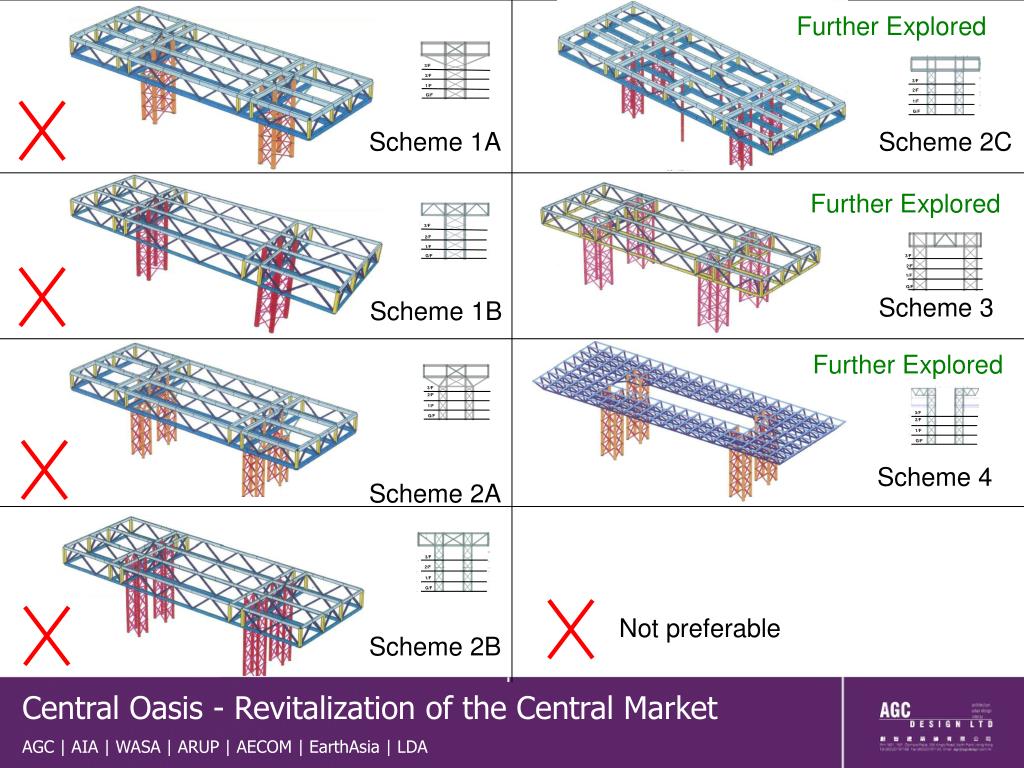

Further Explored

3/F

2/F

1/F

G/F

Scheme 1A

Scheme 2C

Further Explored

3/F

2/F

1/F

G/F

Scheme 3

Scheme 1B

Further Explored

3/F

3/F

3/F

3/F

3/F

2/F

2/F

2/F

2/F

2/F

1/F

1/F

1/F

1/F

1/F

G/F

G/F

G/F

G/F

G/F

Scheme 4

Scheme 2A

Not preferable

Scheme 2B

Central Oasis - Revitalization of the Central Market

AGC | AIA | WASA | ARUP | AECOM | EarthAsia | LDA


6268057

Location

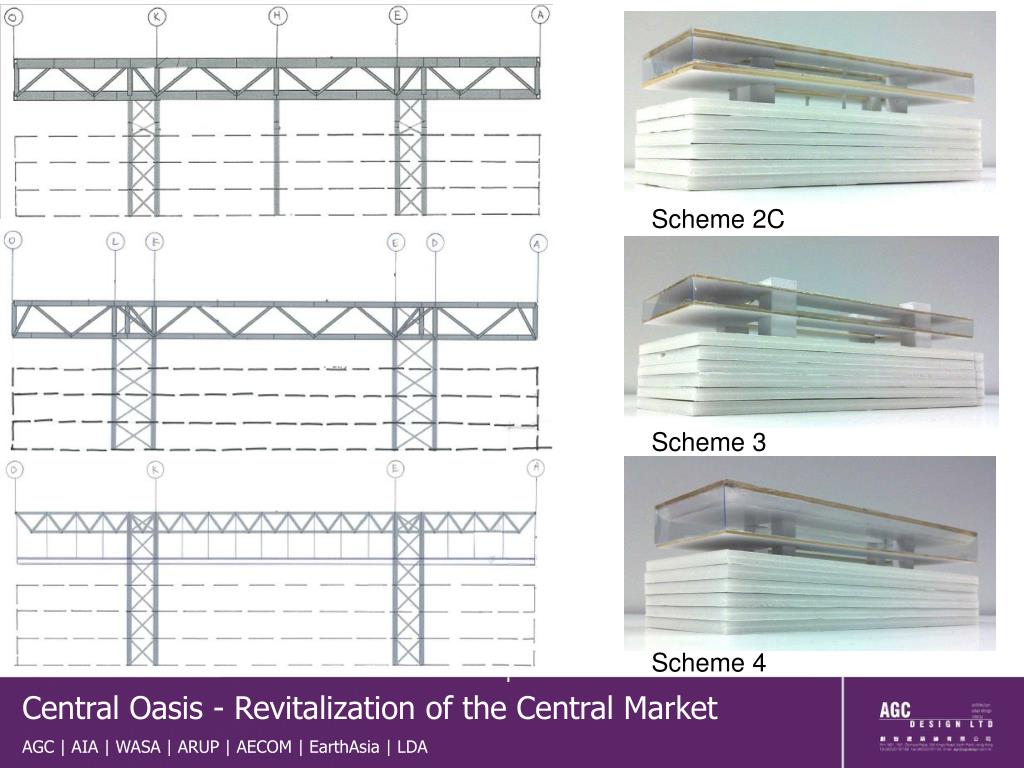

Scheme 2C

Scheme 3

Scheme 4

Central Oasis - Revitalization of the Central Market

AGC | AIA | WASA | ARUP | AECOM | EarthAsia | LDA


6268057

Location

TO BE ISSUED BY AIA

Arata Isozaki + Sasaki Mutsuro

Central Oasis - Revitalization of the Central Market

AGC | AIA | WASA | ARUP | AECOM | EarthAsia | LDA


6268057

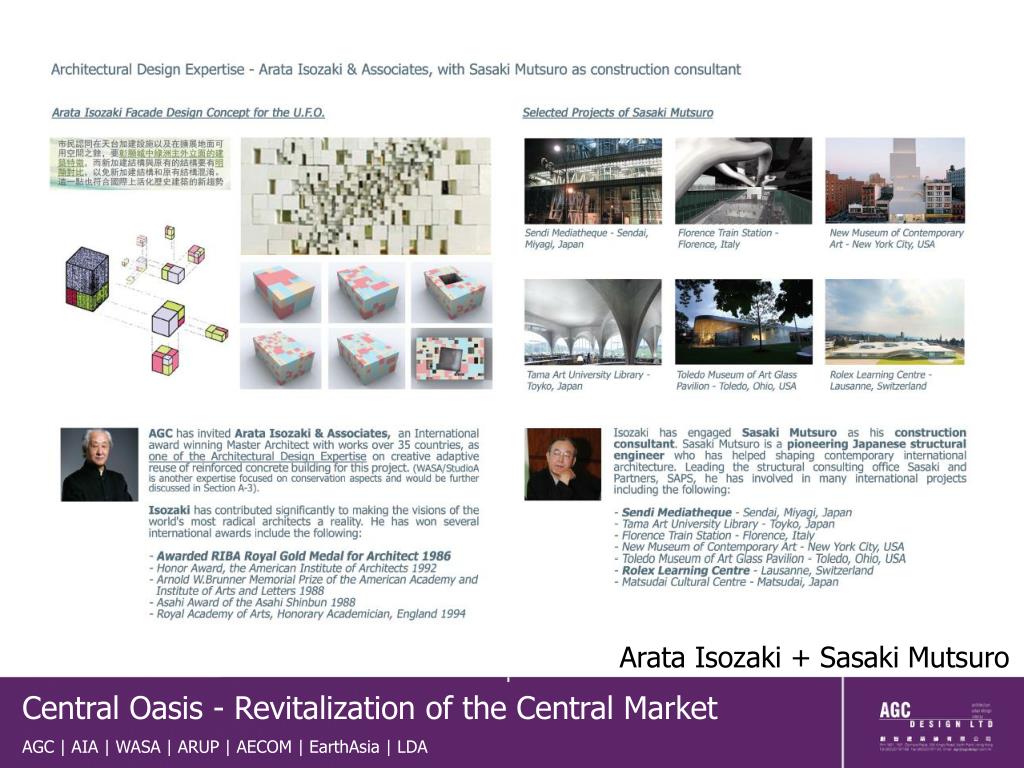

Visit to Arata Isozaki’s Shanghai Office (6-8 Feb 2012)

Arata Isozaki + Sasaki Mutsuro

Central Oasis - Revitalization of the Central Market

AGC | AIA | WASA | ARUP | AECOM | EarthAsia | LDA


6268057

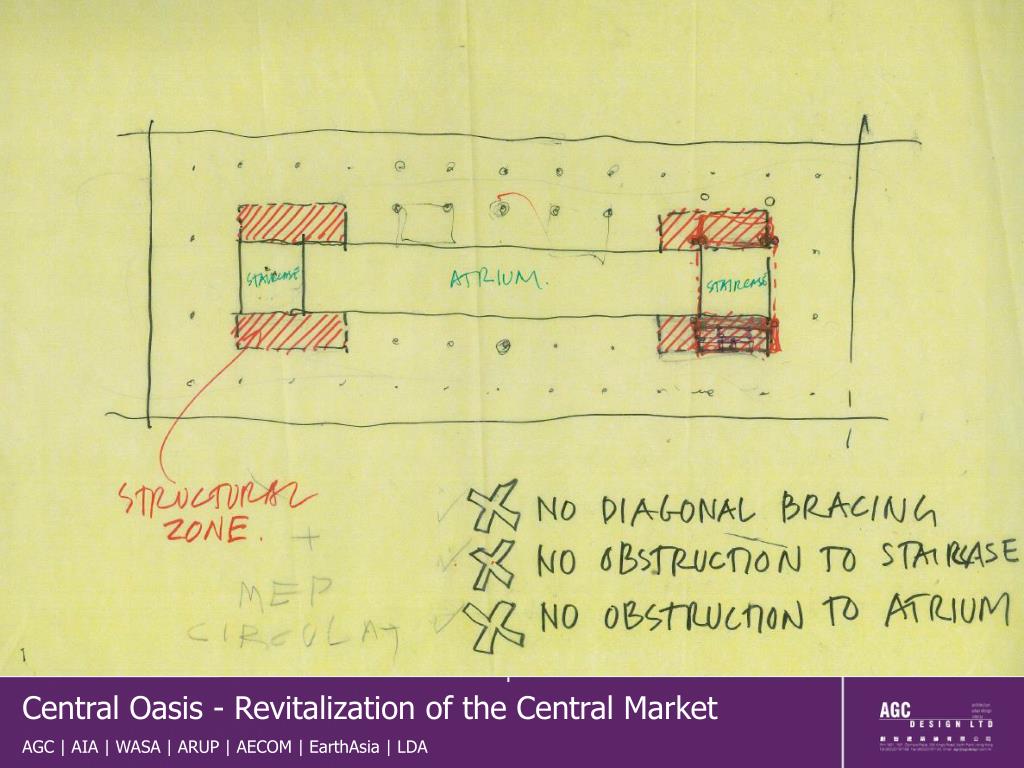

Location

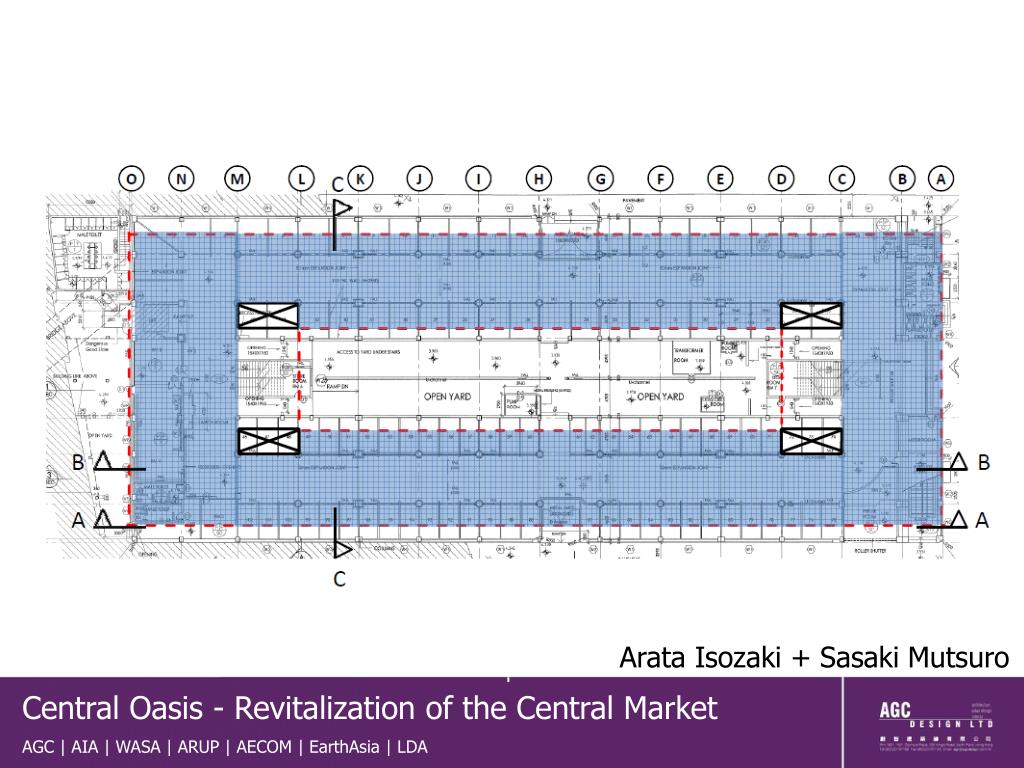

Arata Isozaki + Sasaki Mutsuro

Central Oasis - Revitalization of the Central Market

AGC | AIA | WASA | ARUP | AECOM | EarthAsia | LDA


6268057

Location

Arata Isozaki + Sasaki Mutsuro

Central Oasis - Revitalization of the Central Market

AGC | AIA | WASA | ARUP | AECOM | EarthAsia | LDA


6268057

Location

Central Oasis - Revitalization of the Central Market

AGC | AIA | WASA | ARUP | AECOM | EarthAsia | LDA


6268057

Location

Further Explored

Central Oasis - Revitalization of the Central Market

AGC | AIA | WASA | ARUP | AECOM | EarthAsia | LDA


6268057

Central Oasis - Revitalization of the Central Market

AGC | AIA | WASA | ARUP | AECOM | EarthAsia | LDA


6268057

8-8.5m

About 8.0m

15.0m

Central Oasis - Revitalization of the Central Market

AGC | AIA | WASA | ARUP | AECOM | EarthAsia | LDA


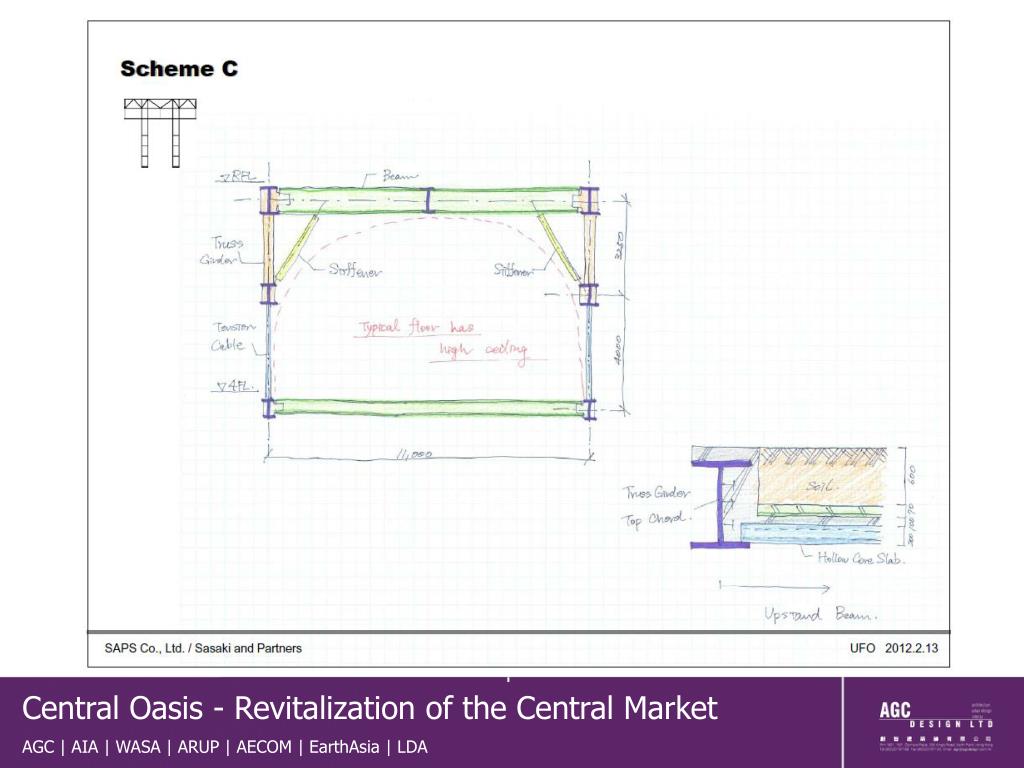

6268057

Central Oasis - Revitalization of the Central Market

AGC | AIA | WASA | ARUP | AECOM | EarthAsia | LDA


6268057

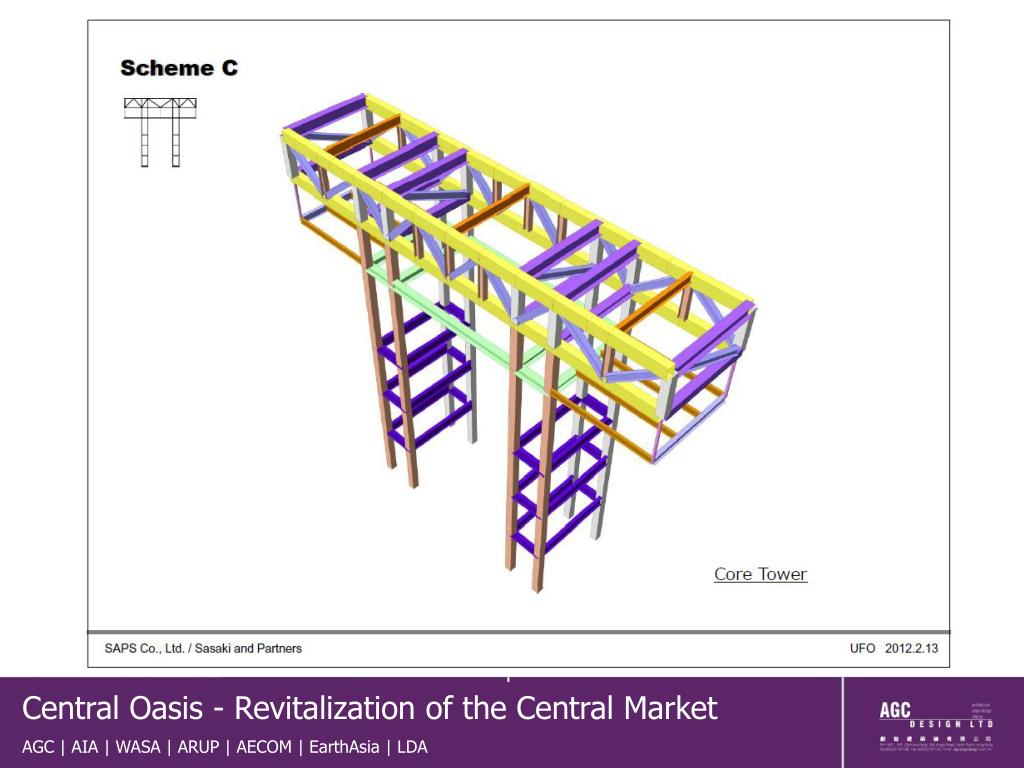

1. Floating

2. Maximum Greenery / Open Space

3. Conservation of CDEs

ArchitecturalForm to be determined

Central Oasis - Revitalization of the Central Market

AGC | AIA | WASA | ARUP | AECOM | EarthAsia | LDA


6268057

Conservation of Atrium Spatial Configuration

Central Oasis - Revitalization of the Central Market

AGC | AIA | WASA | ARUP | AECOM | EarthAsia | LDA


6268057

Conservation of Grand Staircase

Central Oasis - Revitalization of the Central Market

AGC | AIA | WASA | ARUP | AECOM | EarthAsia | LDA


6268057

1. Conservation Approach supported by AMO

2. Structural Design Options

3. Public Circulation Strategy

4. M&E Strategy

Central Oasis - Revitalization of the Central Market

AGC | AIA | WASA | ARUP | AECOM | EarthAsia | LDA


6268057

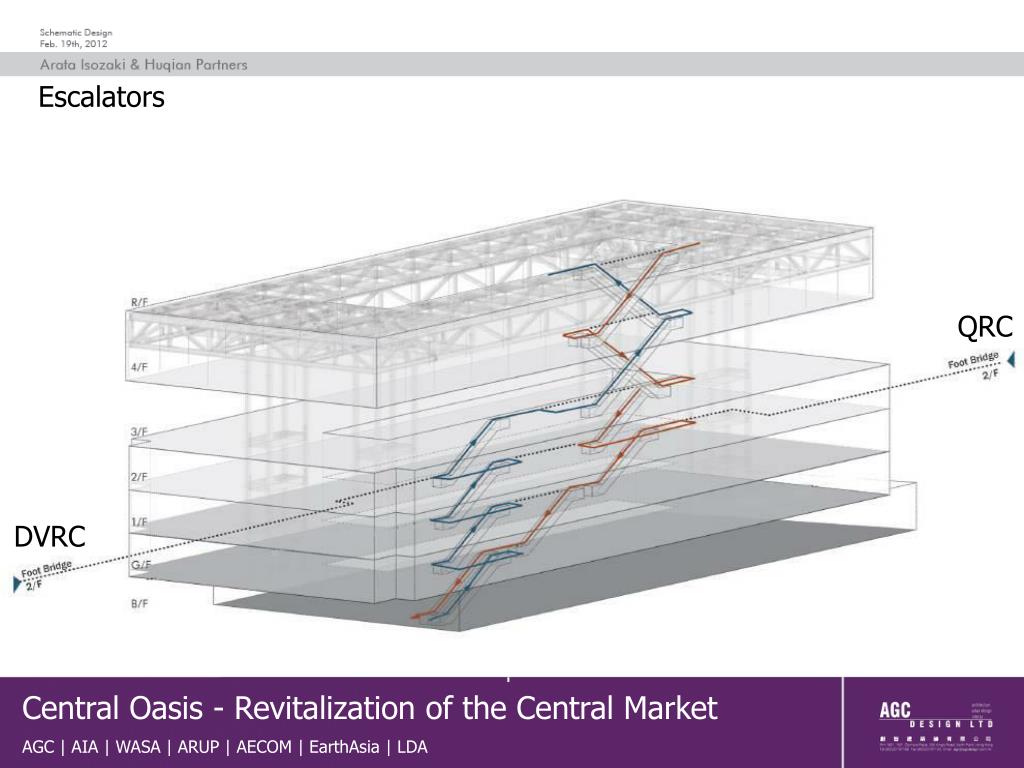

Escalators

QRC

DVRC

Central Oasis - Revitalization of the Central Market

AGC | AIA | WASA | ARUP | AECOM | EarthAsia | LDA


6268057

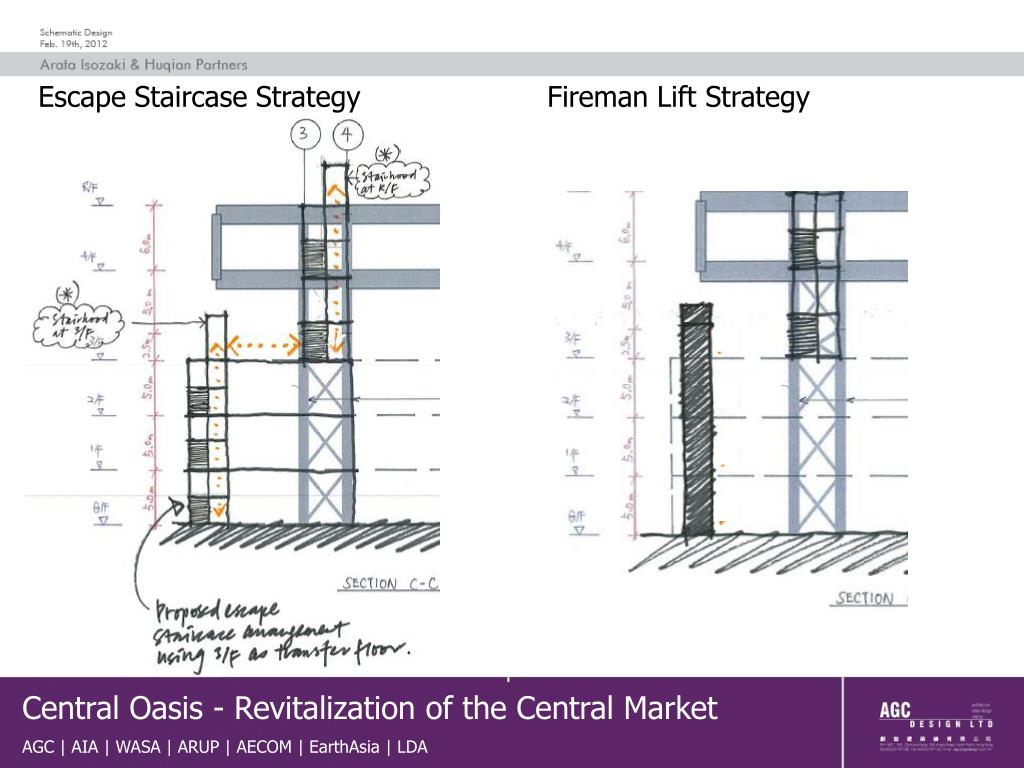

Escape Staircase Strategy Fireman Lift Strategy

Central Oasis - Revitalization of the Central Market

AGC | AIA | WASA | ARUP | AECOM | EarthAsia | LDA


6268057

1. Conservation Approach supported by AMO

2. Structural Design Options

3. Public Circulation Strategy

4. M&E Strategy

Central Oasis - Revitalization of the Central Market

AGC | AIA | WASA | ARUP | AECOM | EarthAsia | LDA


6268057

Utilization of Natural Ventilation in Winter

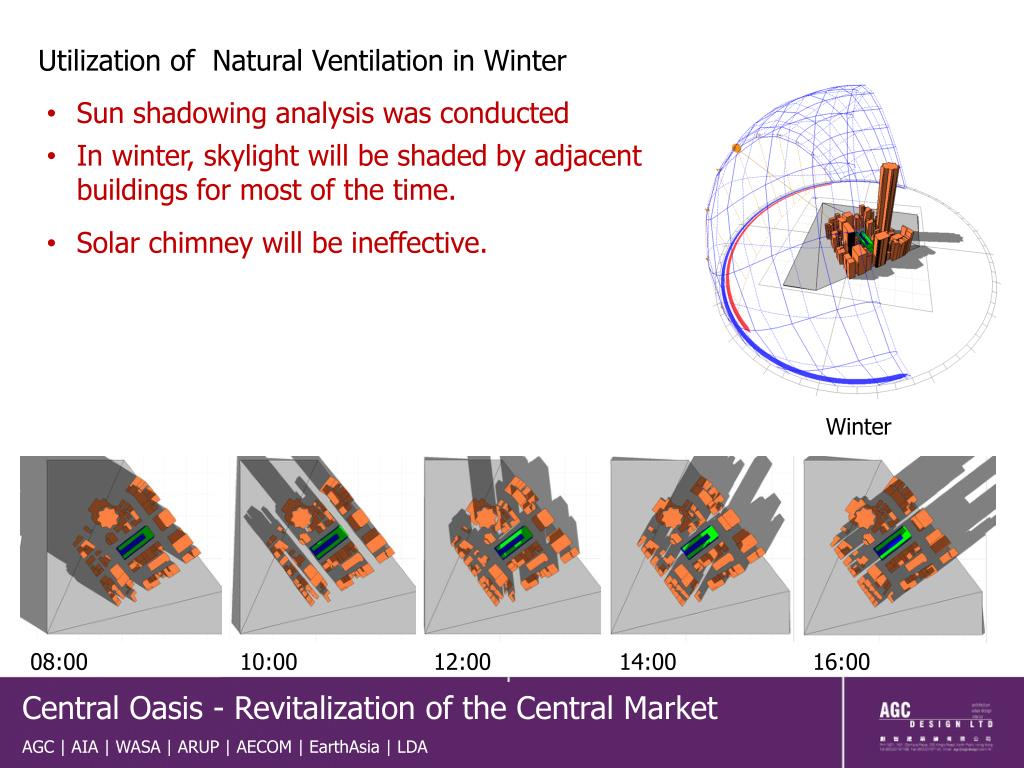

  • Sun shadowing analysis was conducted

  • In winter, skylight will be shaded by adjacent buildings for most of the time.

  • Solar chimney will be ineffective.

Winter

08:00

10:00

12:00

14:00

16:00

Central Oasis - Revitalization of the Central Market

AGC | AIA | WASA | ARUP | AECOM | EarthAsia | LDA


6268057

Utilization of Natural Ventilation in Winter

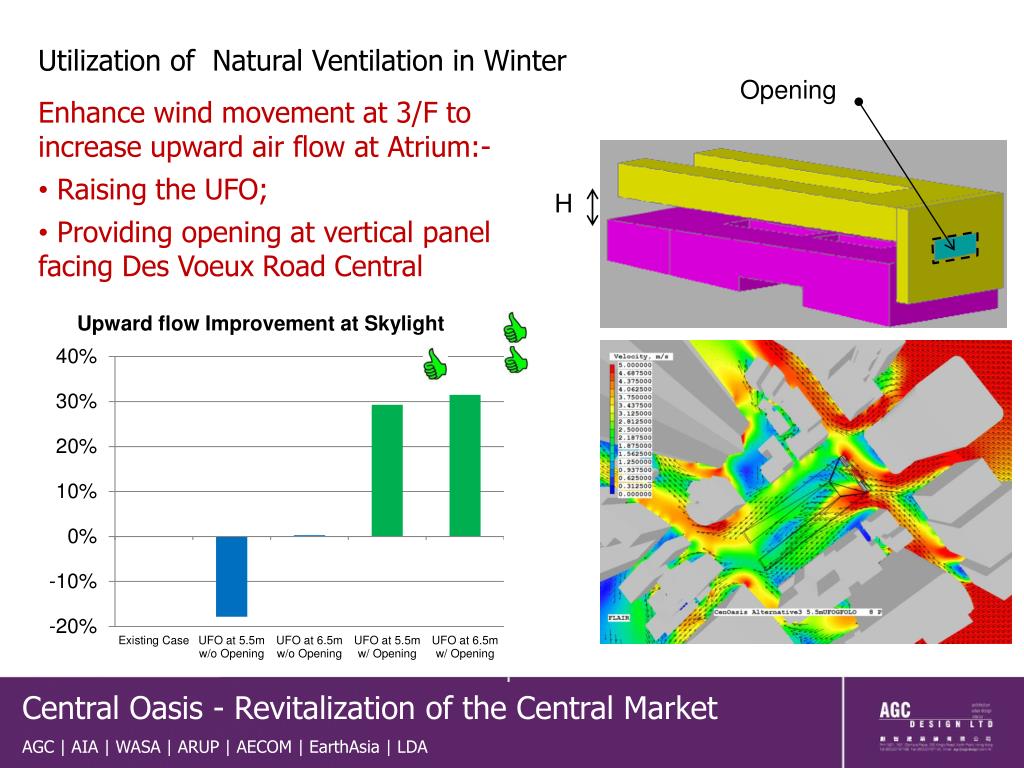

Opening

  • Enhance wind movement at 3/F to increase upward air flow at Atrium:-

  • Raising the UFO;

  • Providing opening at vertical panel facing Des Voeux Road Central

H

Central Oasis - Revitalization of the Central Market

AGC | AIA | WASA | ARUP | AECOM | EarthAsia | LDA


6268057

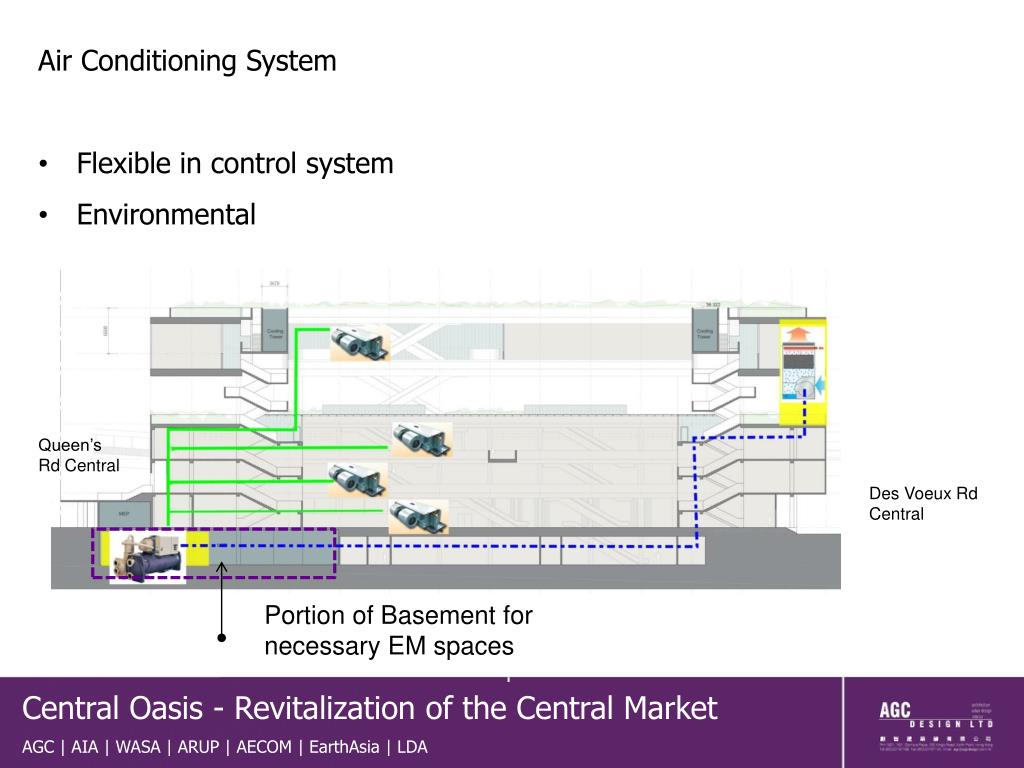

  • Air Conditioning System

  • Flexible in control system

  • Environmental

Queen’s Rd Central

Des Voeux Rd Central

Portion of Basement for necessary EM spaces

Central Oasis - Revitalization of the Central Market

AGC | AIA | WASA | ARUP | AECOM | EarthAsia | LDA


6268057

The End
