slide1

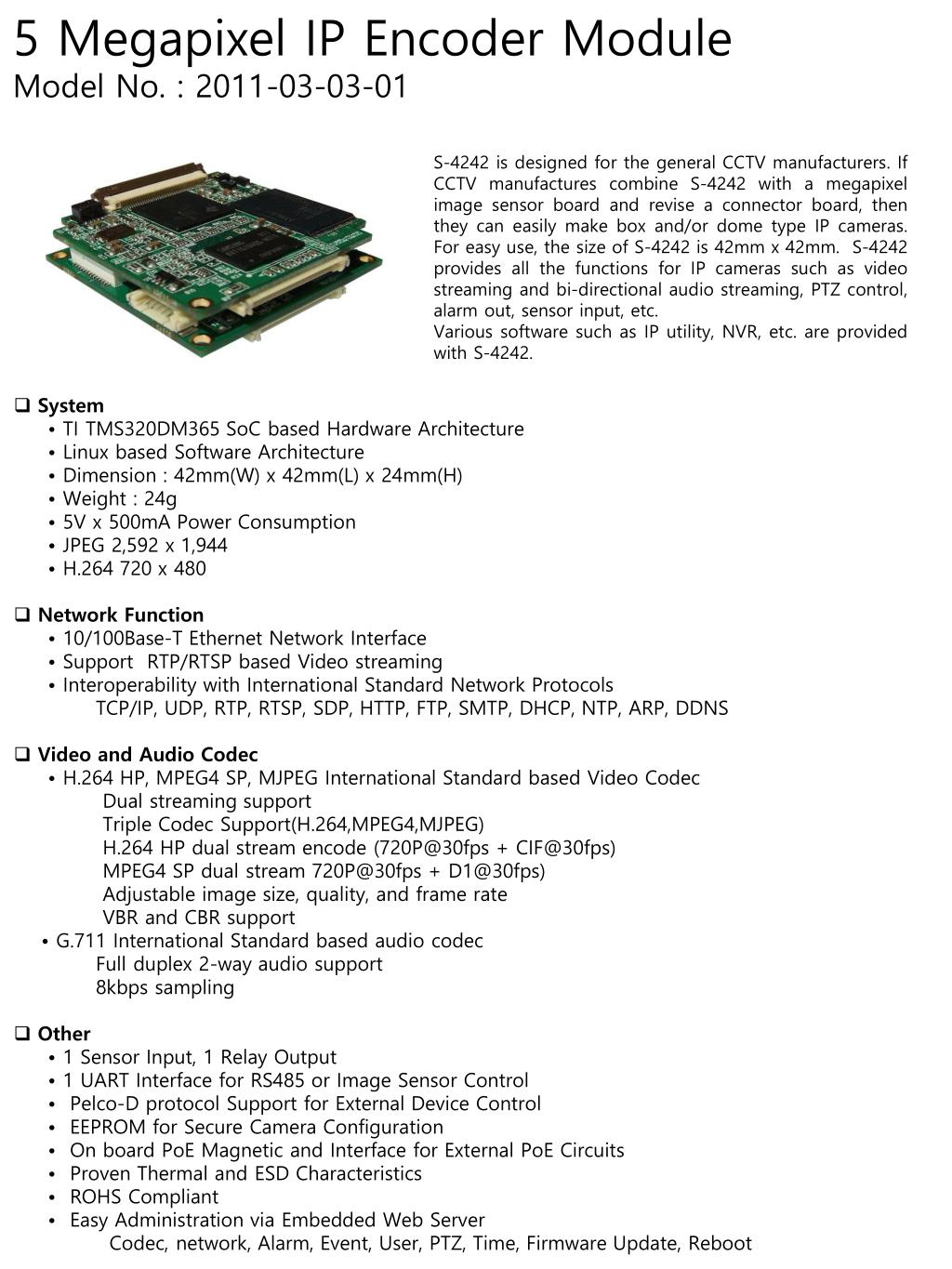

5 Megapixel IP Encoder Module

Model No. : 2011-03-03-01

S-4242 is designed for the general CCTV manufacturers. If CCTV manufactures combine S-4242 with a megapixel image sensor board and revise a connector board, then they can easily make box and/or dome type IP cameras. For easy use, the size of S-4242 is 42mm x 42mm. S-4242 provides all the functions for IP cameras such as video streaming and bi-directional audio streaming, PTZ control, alarm out, sensor input, etc.

Various software such as IP utility, NVR, etc. are provided with S-4242.

  • System
  • • TI TMS320DM365 SoC based Hardware Architecture
  • • Linux based Software Architecture
  • • Dimension : 42mm(W) x 42mm(L) x 24mm(H)
  • • Weight : 24g
  • • 5V x 500mA Power Consumption
  • • JPEG 2,592 x 1,944
  • • H.264 720 x 480
  • Network Function
  • • 10/100Base-T Ethernet Network Interface
  • • Support RTP/RTSP based Video streaming
  • • Interoperability with International Standard Network Protocols
  • TCP/IP, UDP, RTP, RTSP, SDP, HTTP, FTP, SMTP, DHCP, NTP, ARP, DDNS
  • Video and Audio Codec
  • • H.264 HP, MPEG4 SP, MJPEG International Standard based Video Codec
  • Dual streaming support
  • Triple Codec Support(H.264,MPEG4,MJPEG)
  • H.264 HP dual stream encode ([email protected] + [email protected])
  • MPEG4 SP dual stream [email protected] + [email protected])
  • Adjustable image size, quality, and frame rate
  • VBR and CBR support
  • • G.711 International Standard based audio codec
  • Full duplex 2-way audio support
  • 8kbps sampling
  • Other
  • • 1 Sensor Input, 1 Relay Output
  • • 1 UART Interface for RS485 or Image Sensor Control
  • • Pelco-D protocol Support for External Device Control
  • • EEPROM for Secure Camera Configuration
  • • On board PoE Magnetic and Interface for External PoE Circuits
  • • Proven Thermal and ESD Characteristics
  • • ROHS Compliant
  • • Easy Administration via Embedded Web Server
  • Codec, network, Alarm, Event, User, PTZ, Time, Firmware Update, Reboot
slide2

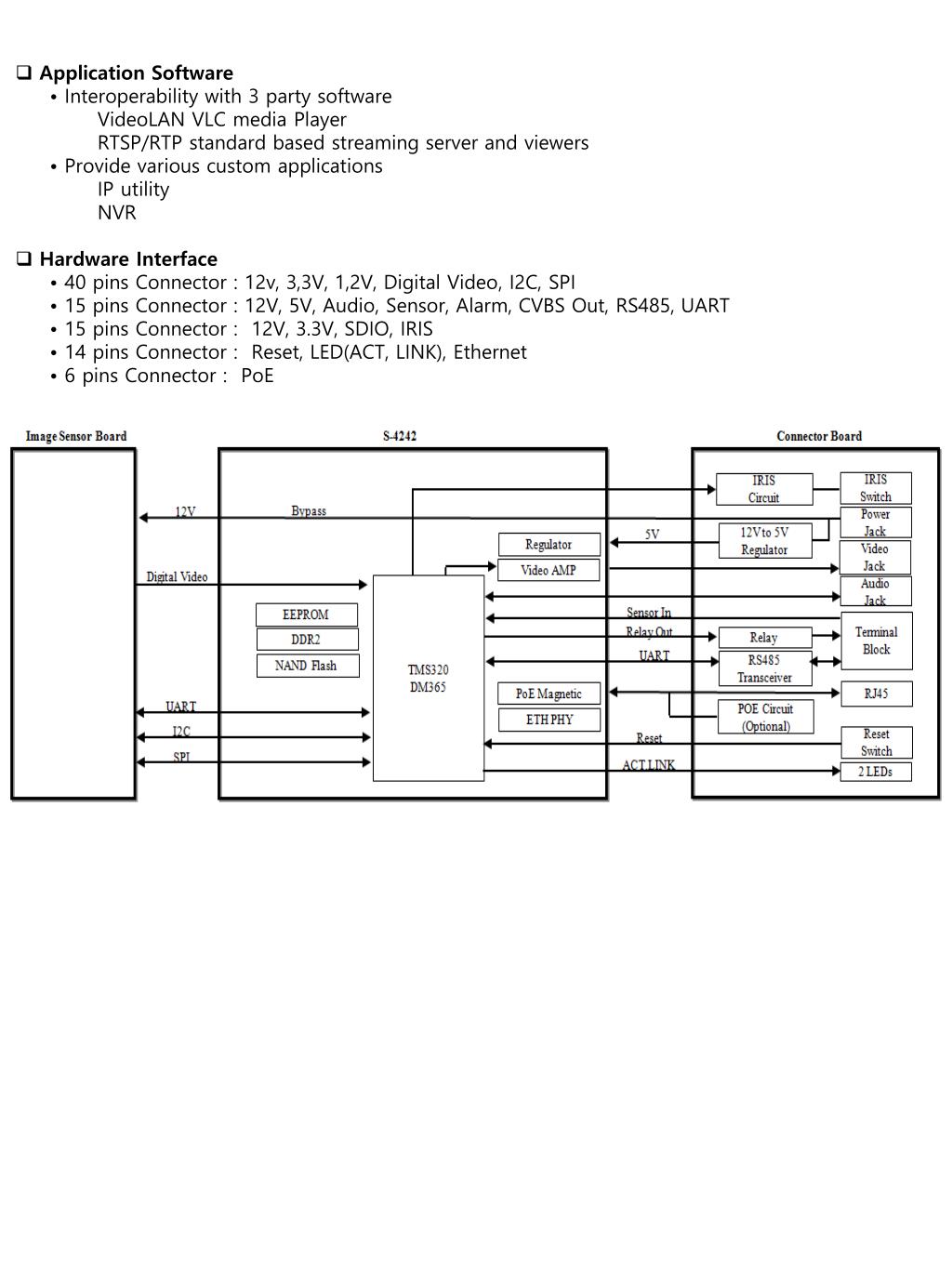

Application Software

  • • Interoperability with 3 party software
  • VideoLAN VLC media Player
  • RTSP/RTP standard based streaming server and viewers
  • • Provide various custom applications
  • IP utility
  • NVR
  • Hardware Interface
  • • 40 pins Connector : 12v, 3,3V, 1,2V, Digital Video, I2C, SPI
  • • 15 pins Connector : 12V, 5V, Audio, Sensor, Alarm, CVBS Out, RS485, UART
  • • 15 pins Connector : 12V, 3.3V, SDIO, IRIS
  • • 14 pins Connector : Reset, LED(ACT, LINK), Ethernet
  • • 6 pins Connector : PoE

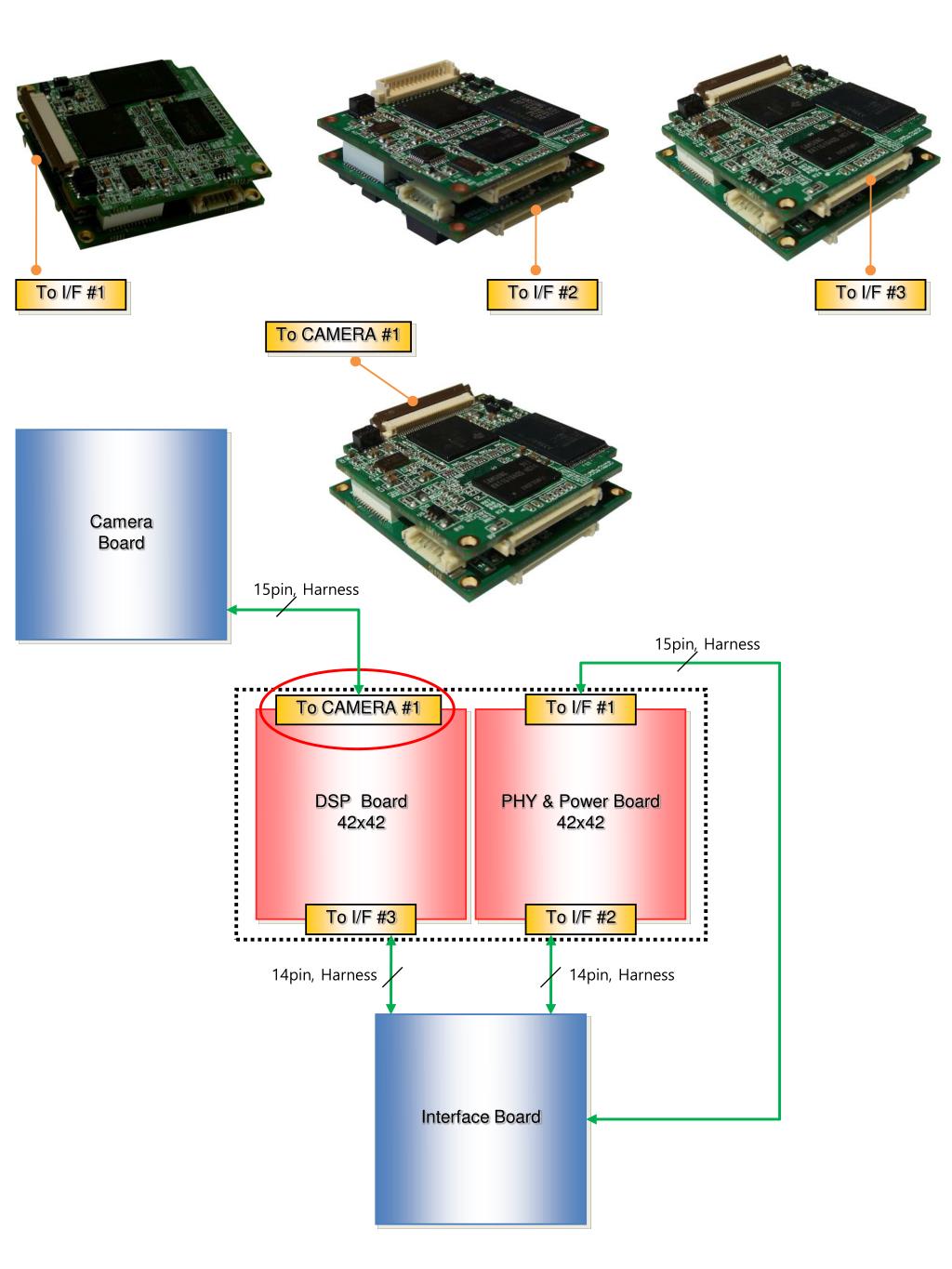

  • Application Example
slide3

To I/F #1

To I/F #2

To I/F #3

To CAMERA #1

Camera

Board

15pin, Harness

15pin, Harness

To I/F #1

To CAMERA #1

DSP Board

42x42

PHY & Power Board

42x42

To I/F #3

To I/F #2

14pin, Harness

14pin, Harness

Interface Board
