MongoDB

1. Medtronic Confidential MongoDB 9th Annual CodeFreeze Symposium Jeff Lemmerman Matt Chimento Medtronic Energy and Component Center

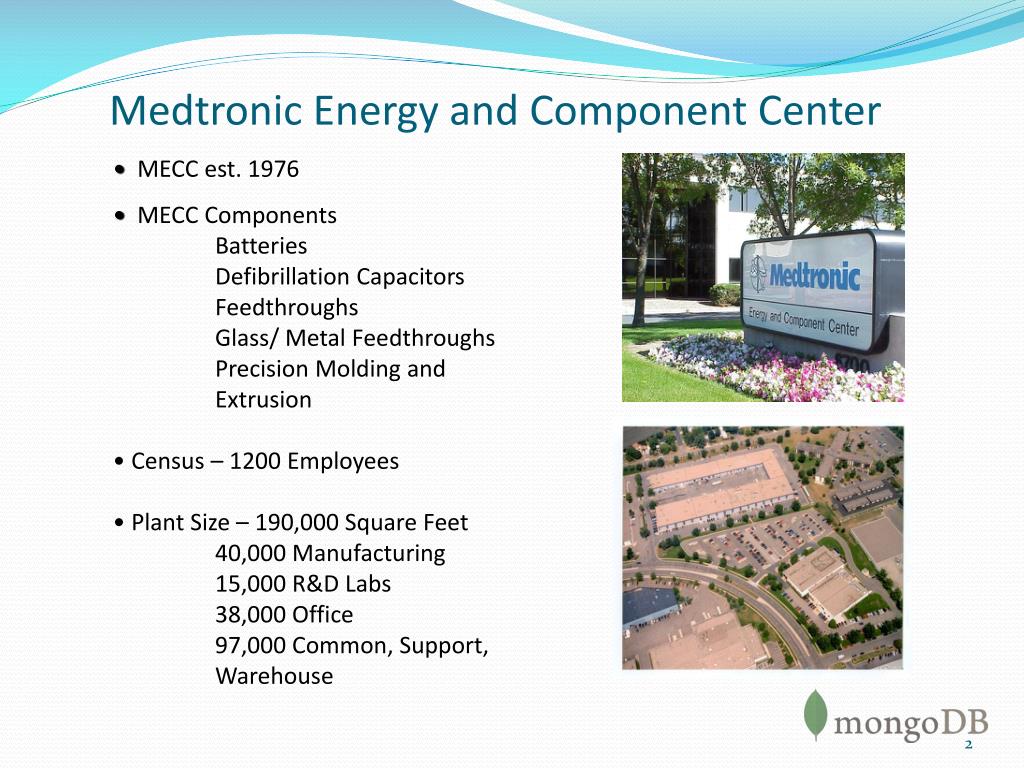

2. Medtronic Energy and Component Center • MECC est. 1976 • MECC Components • Batteries • Defibrillation Capacitors • Feedthroughs • Glass/ Metal Feedthroughs • Precision Molding and Extrusion • Census – 1200 Employees • Plant Size – 190,000 Square Feet • 40,000 Manufacturing • 15,000 R&D Labs • 38,000 Office • 97,000 Common, Support, Warehouse

3. About MongoDB • Background • Founded in 2007 as 10Gen • First release of MongoDB in 2009 • $223M+ in funding • MongoDB • Core server • Native drivers • Version 2.4.9 released 1/10/14 • Subscriptions, Consulting, Training • Monitoring (MMS)

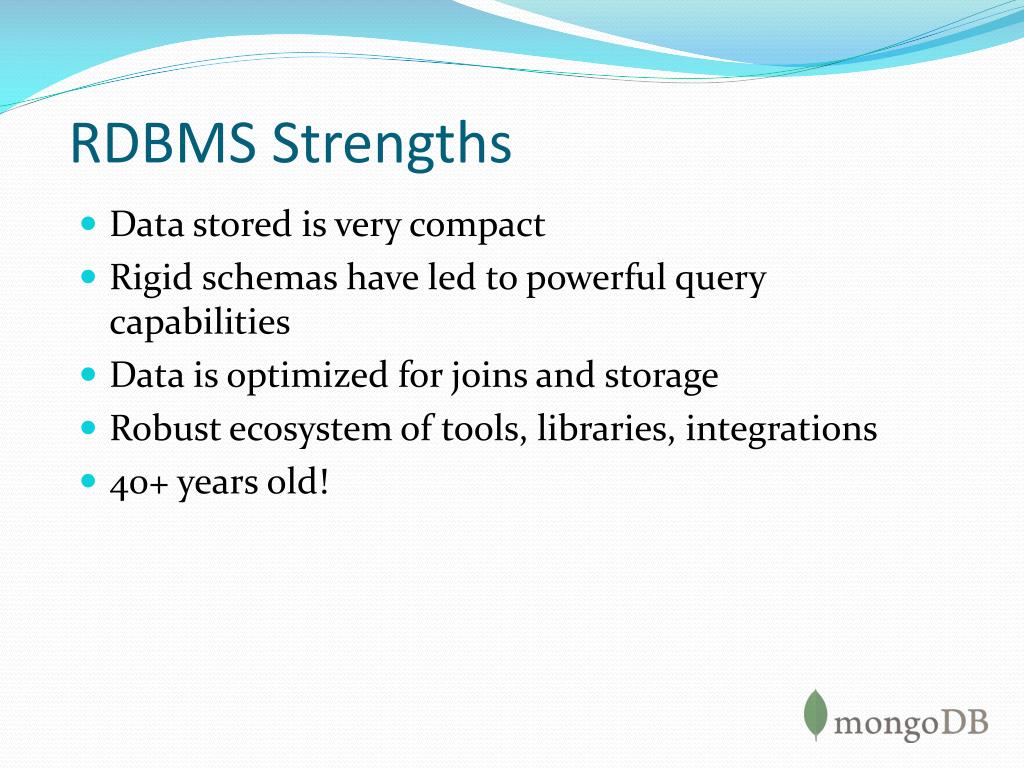

4. RDBMS Strengths • Data stored is very compact • Rigid schemas have led to powerful query capabilities • Data is optimized for joins and storage • Robust ecosystem of tools, libraries, integrations • 40+ years old!

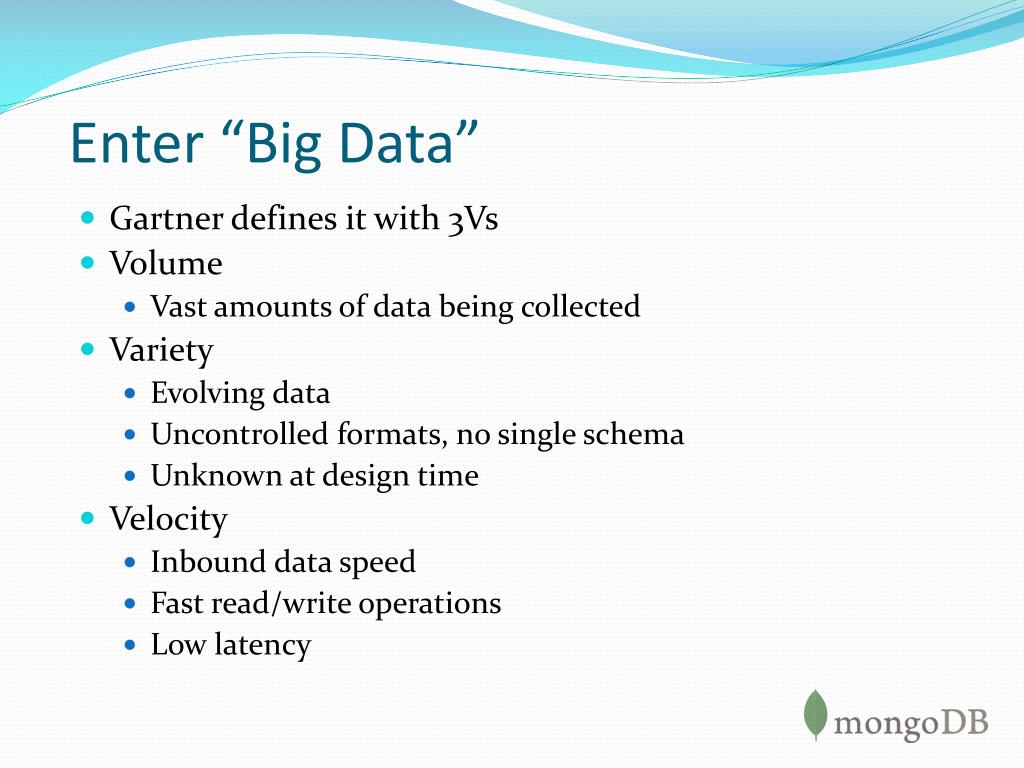

5. Enter “Big Data” • Gartner defines it with 3Vs • Volume • Vast amounts of data being collected • Variety • Evolving data • Uncontrolled formats, no single schema • Unknown at design time • Velocity • Inbound data speed • Fast read/write operations • Low latency

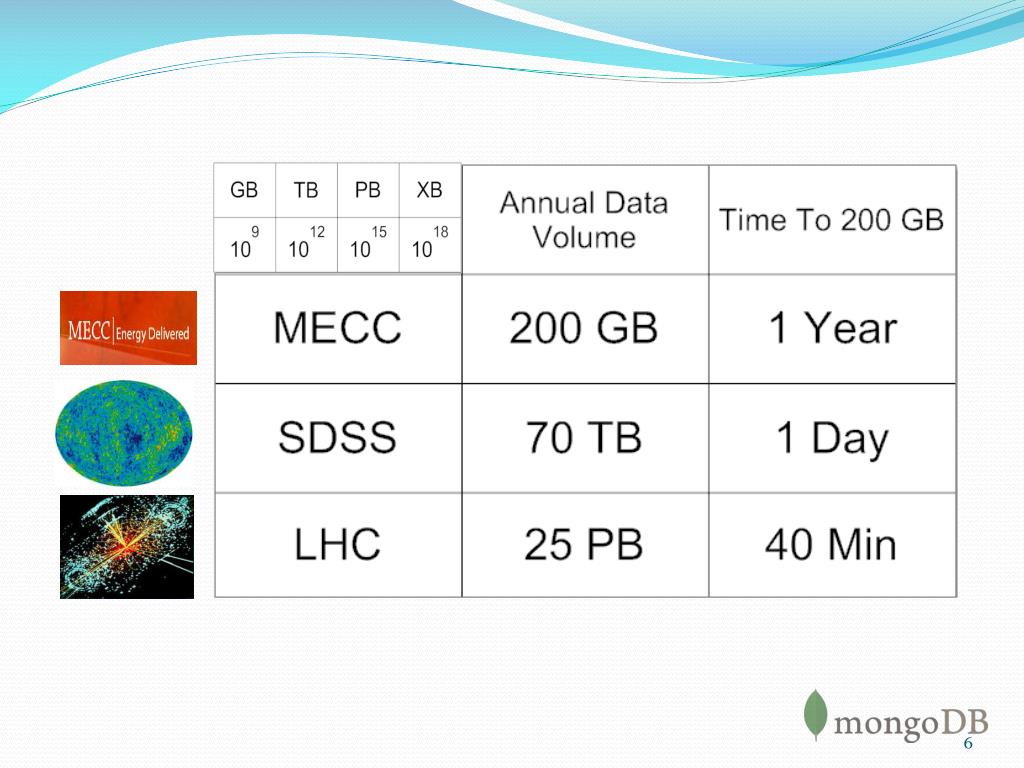

6. Is this a BIG data problem?

7. Where stored?

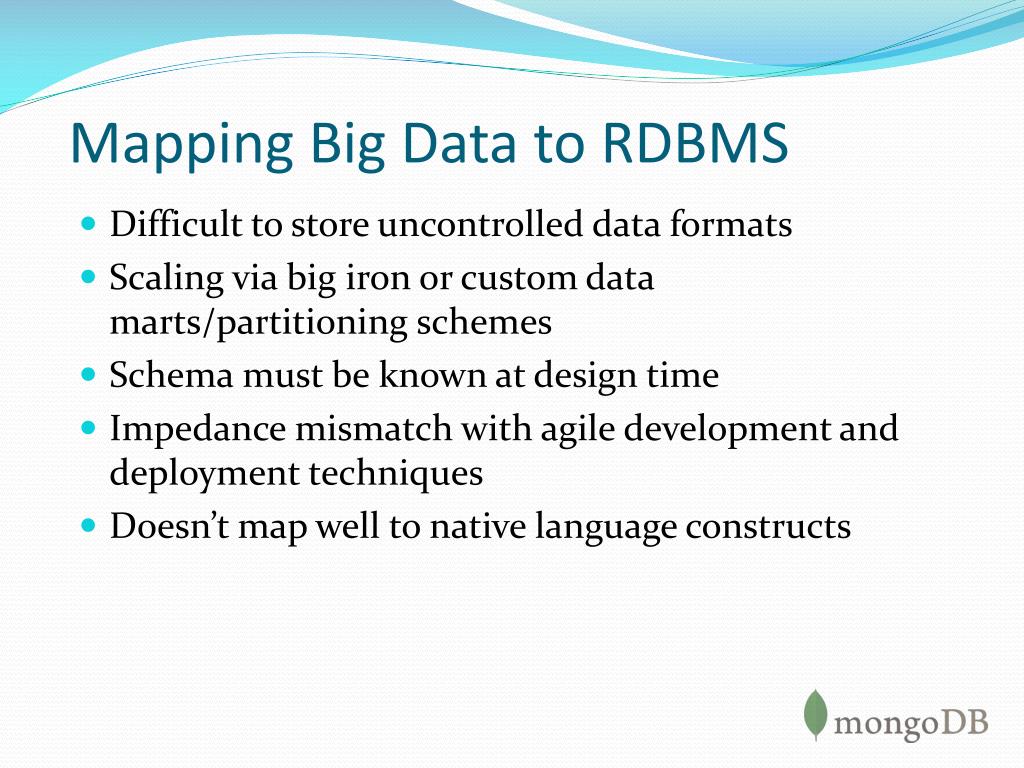

8. Mapping Big Data to RDBMS • Difficult to store uncontrolled data formats • Scaling via big iron or custom data marts/partitioning schemes • Schema must be known at design time • Impedance mismatch with agile development and deployment techniques • Doesn’t map well to native language constructs

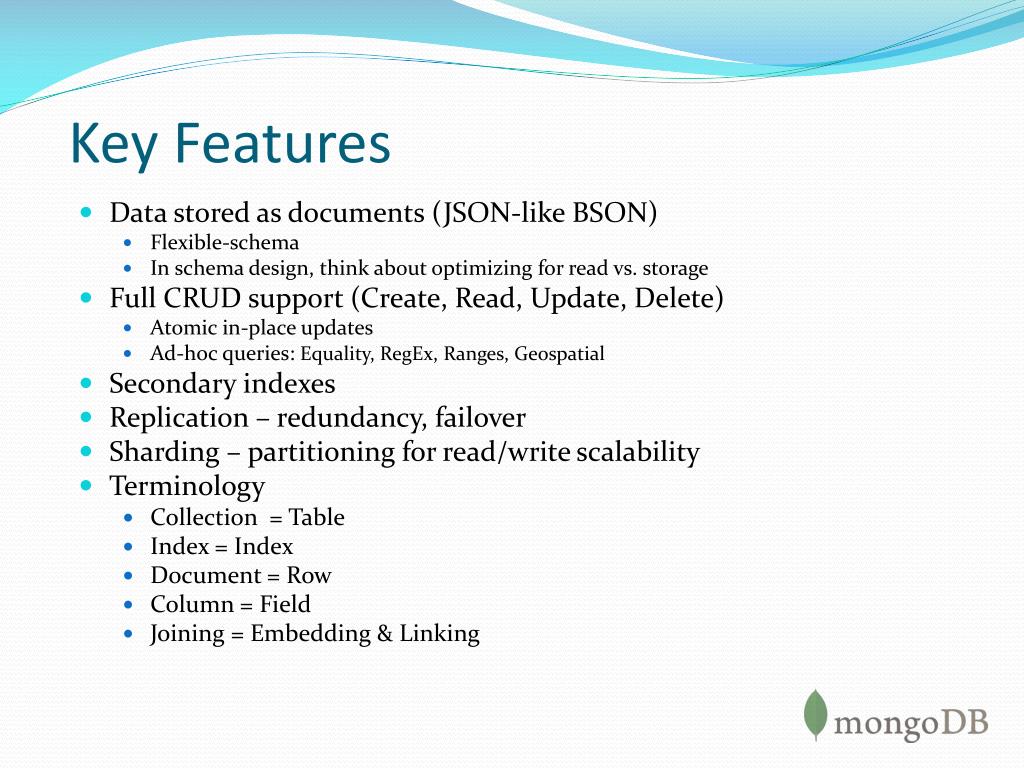

9. Key Features • Data stored as documents (JSON-like BSON) • Flexible-schema • In schema design, think about optimizing for read vs. storage • Full CRUD support (Create, Read, Update, Delete) • Atomic in-place updates • Ad-hoc queries: Equality, RegEx, Ranges, Geospatial • Secondary indexes • Replication – redundancy, failover • Sharding – partitioning for read/write scalability • Terminology • Collection = Table • Index = Index • Document = Row • Column = Field • Joining = Embedding & Linking

10. Our experience with MongoDB • Consulting/Training has been excellent • Support agreement has been under-utilized • Emails for security updates etc. are prompt • Release cycle is frequent • Mongo Monitoring Service • Potential concerns storing db stats externally • MongoDB Certification now available • New course coming soon in Udacity

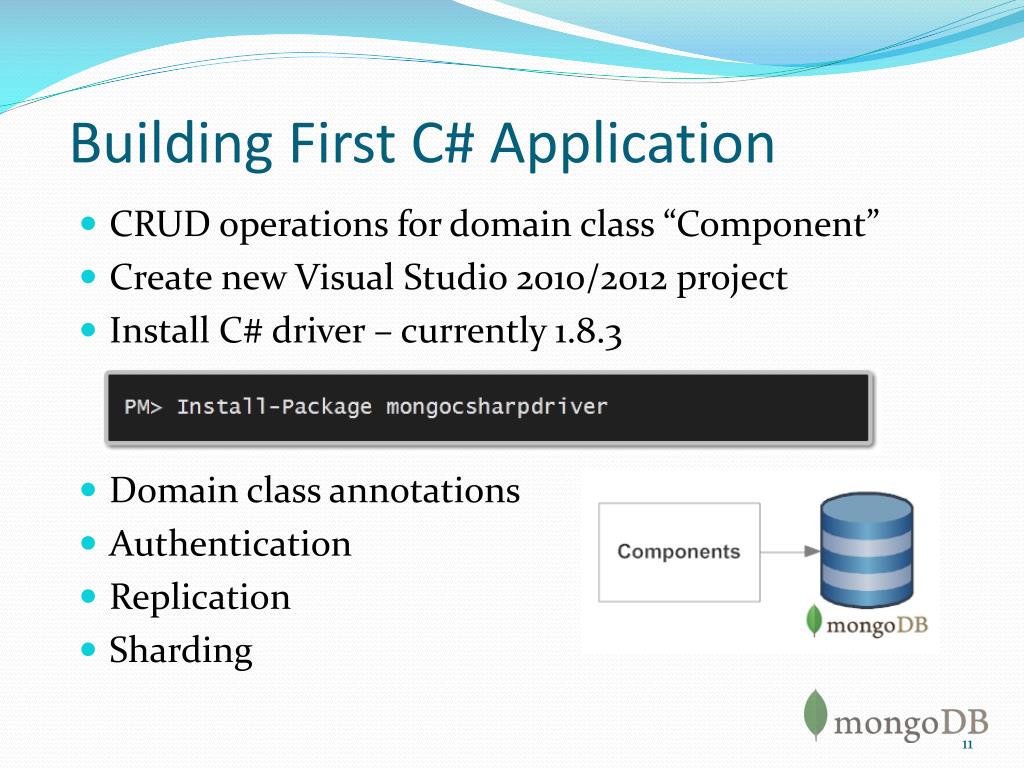

11. Building First C# Application • CRUD operations for domain class “Component” • Create new Visual Studio 2010/2012 project • Install C# driver – currently 1.8.3 • Domain class annotations • Authentication • Replication • Sharding

12. Medtronic Confidential

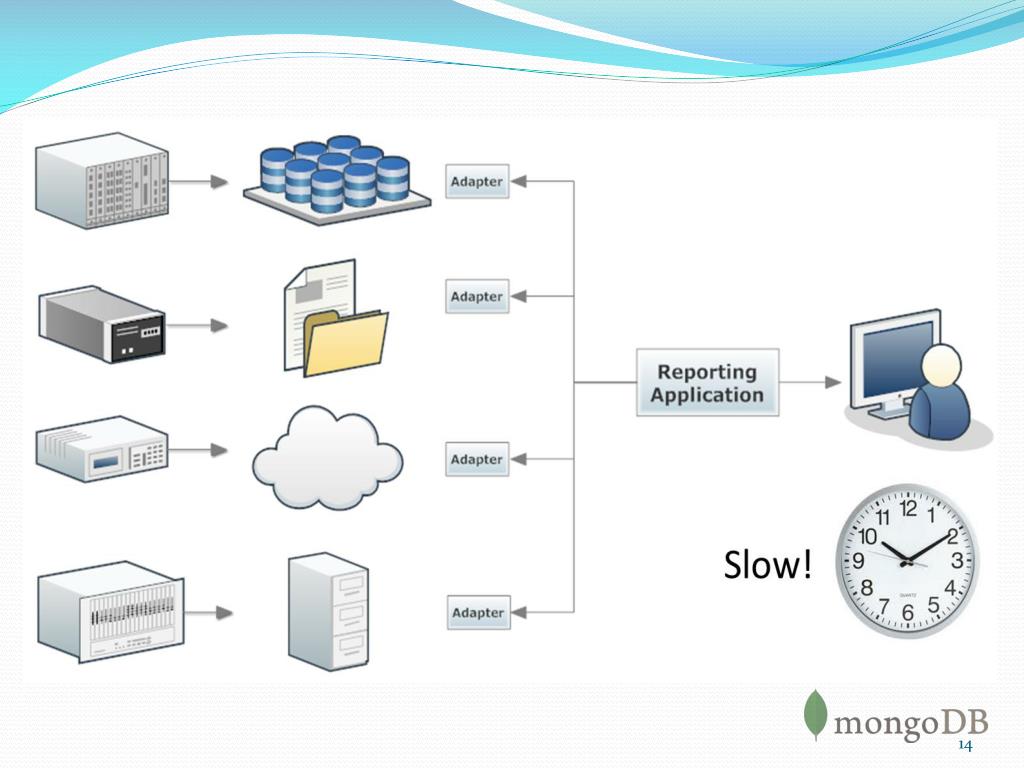

14. How is data retrieved?

15. Loading Data Into Central Repository

16. Download/Install MongoDB mongodb.org/downloads

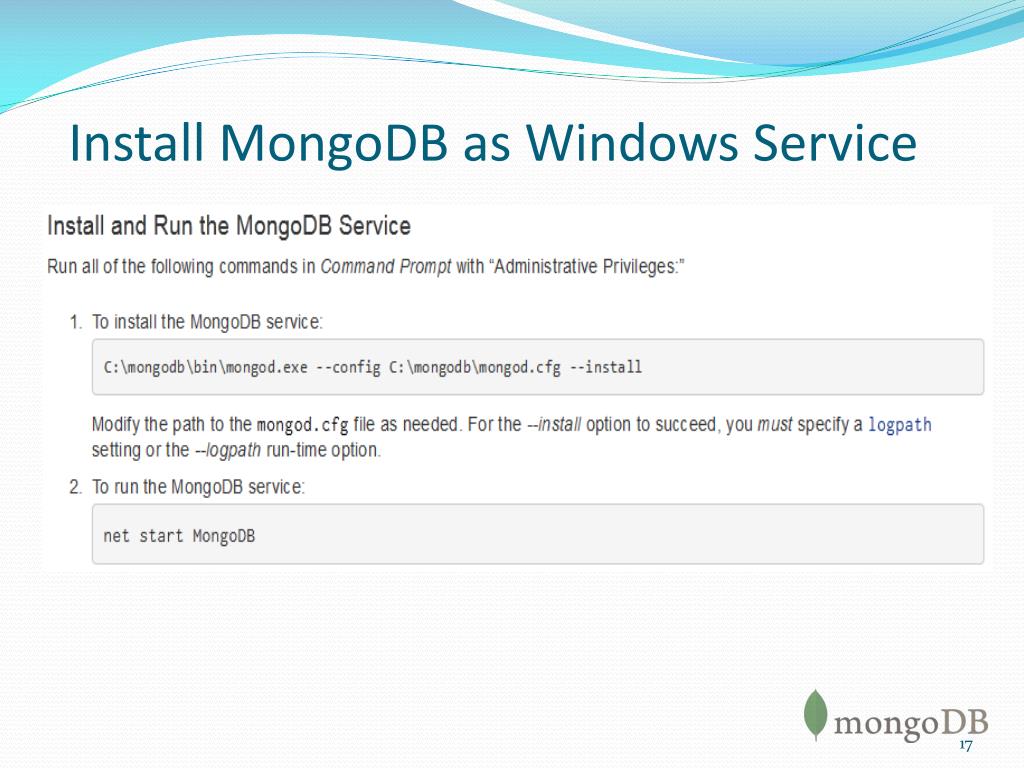

17. Install MongoDB as Windows Service

18. Create Default Data Directory C:\data\db Start Mongod C:\MongoDB\bin\mongod.exe

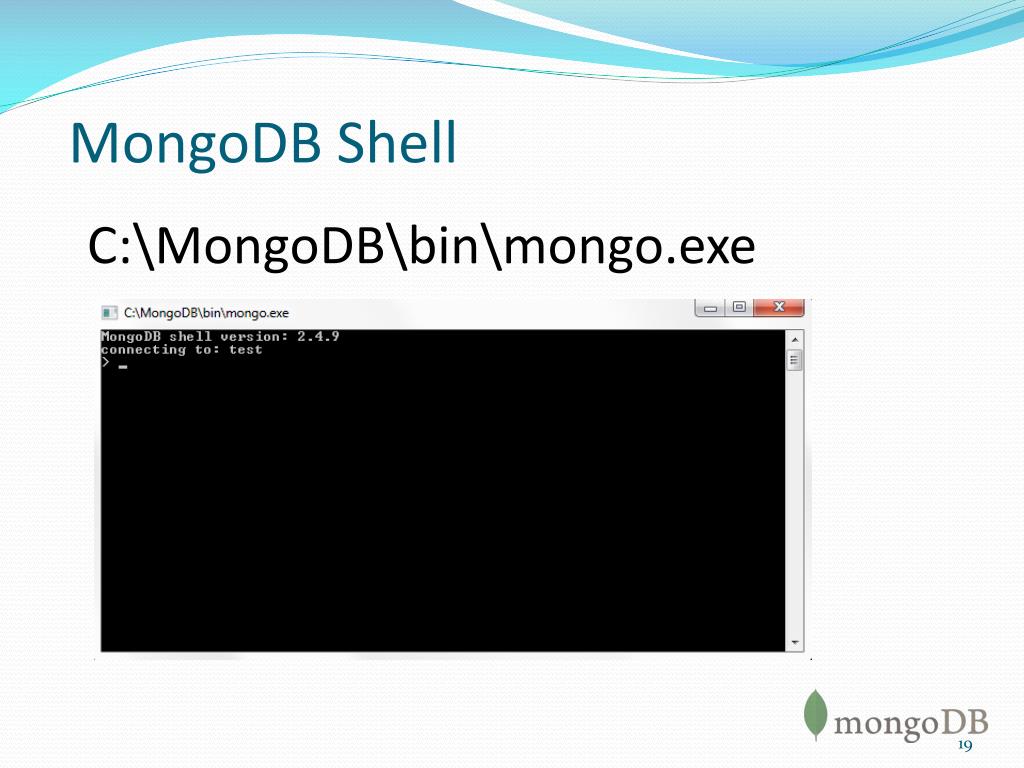

19. MongoDB Shell C:\MongoDB\bin\mongo.exe

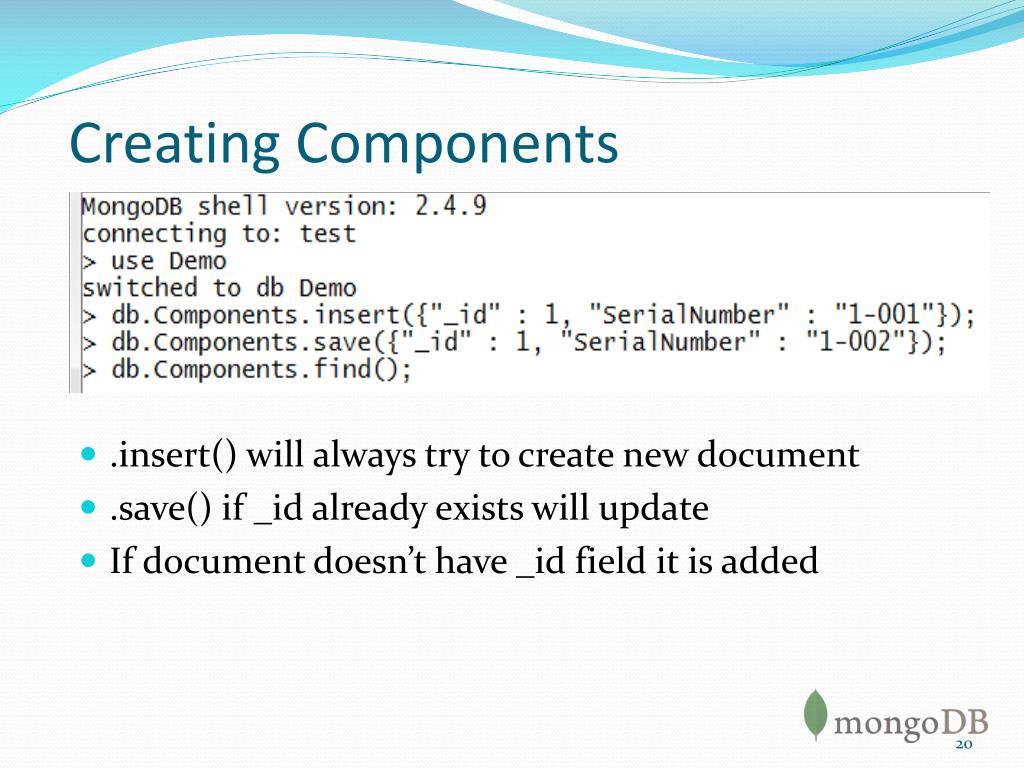

20. Creating Components • .insert() will always try to create new document • .save() if _id already exists will update • If document doesn’t have _id field it is added

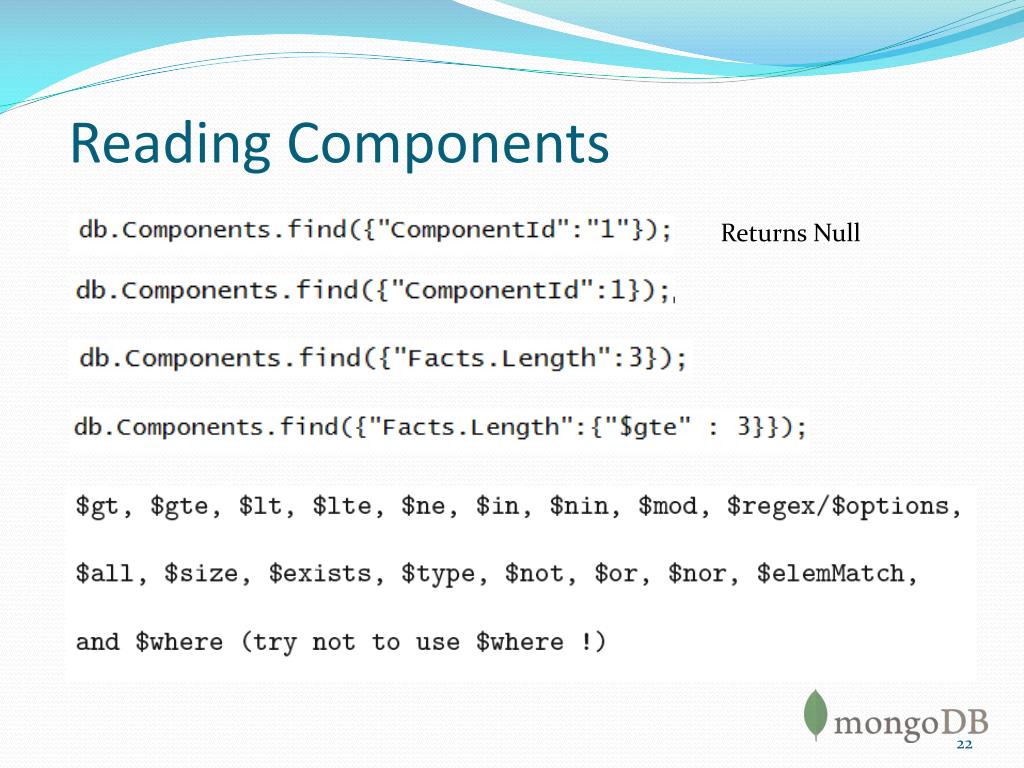

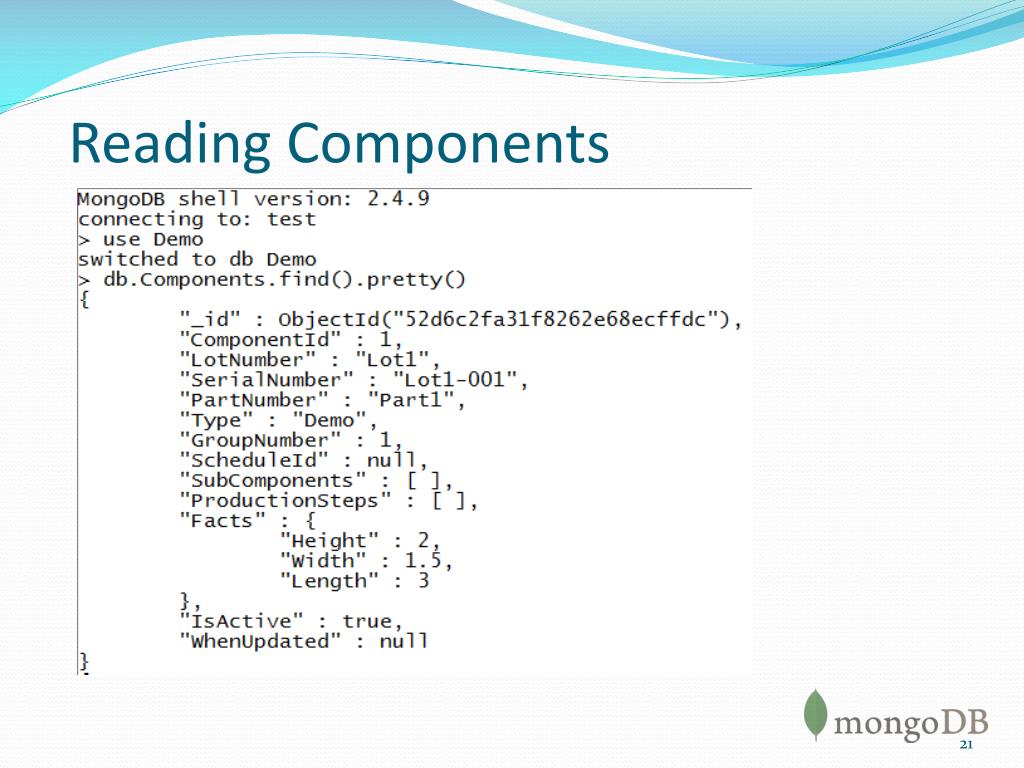

21. Reading Components

22. Reading Components Returns Null

23. Updating Components • $set keyword used for partial updates • Without $set keyword entire document is replaced • {multi : true} to update multiple documents

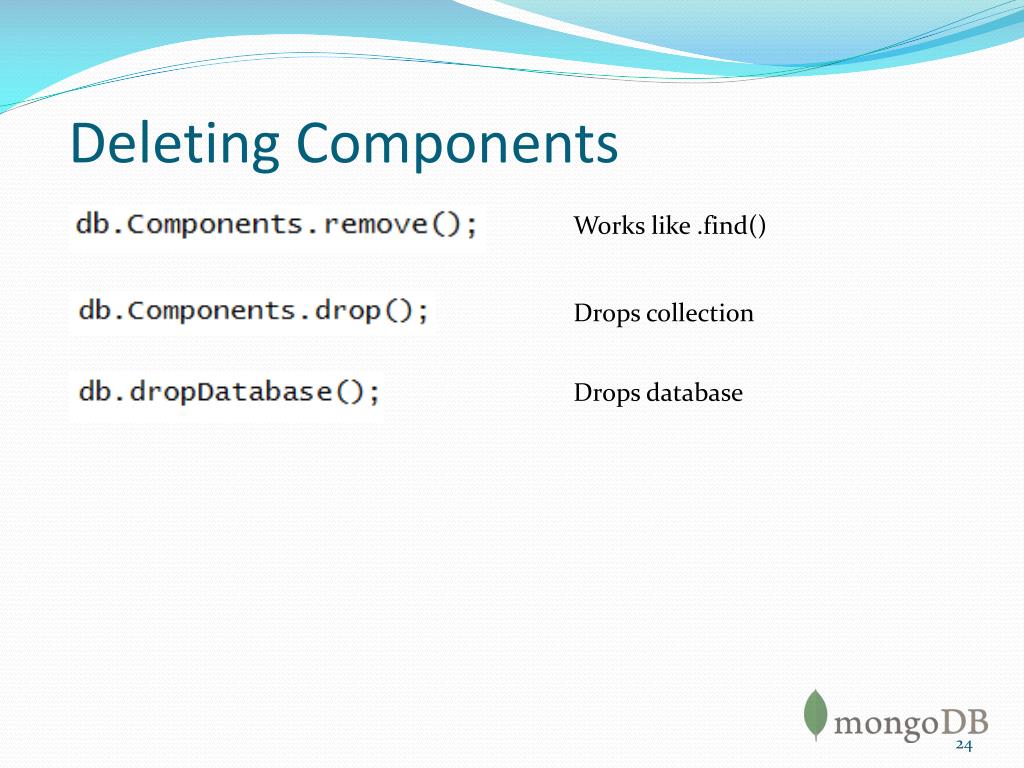

24. Deleting Components Works like .find() Drops collection Drops database

25. Medtronic Confidential

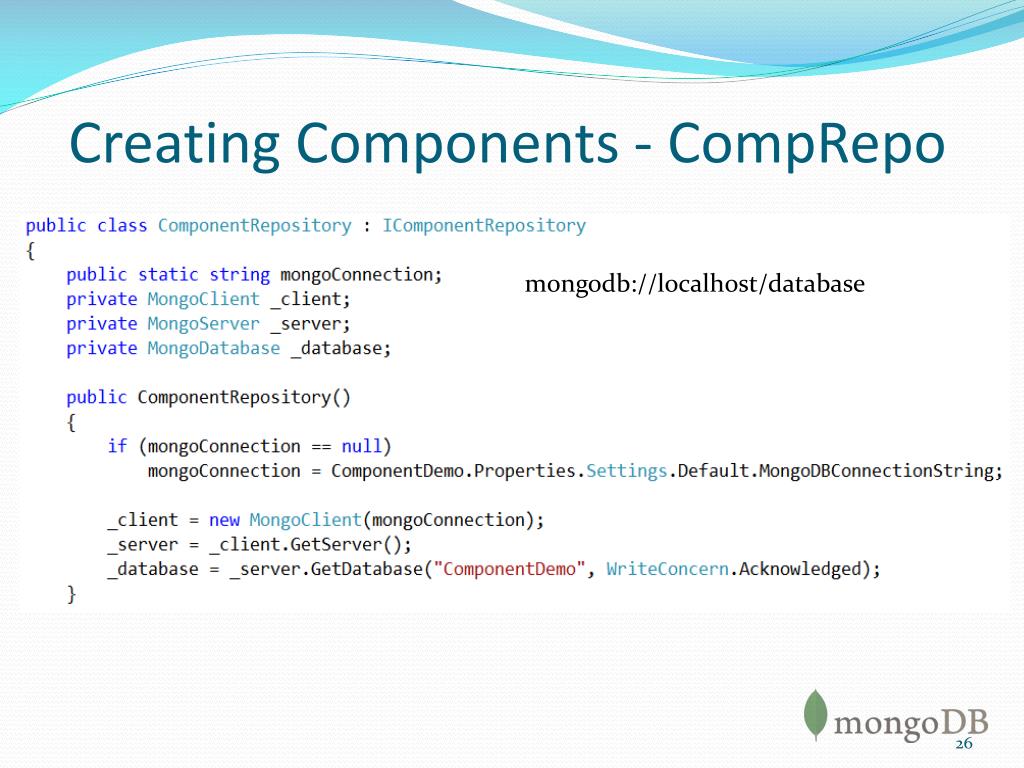

26. Creating Components - CompRepo mongodb://localhost/database

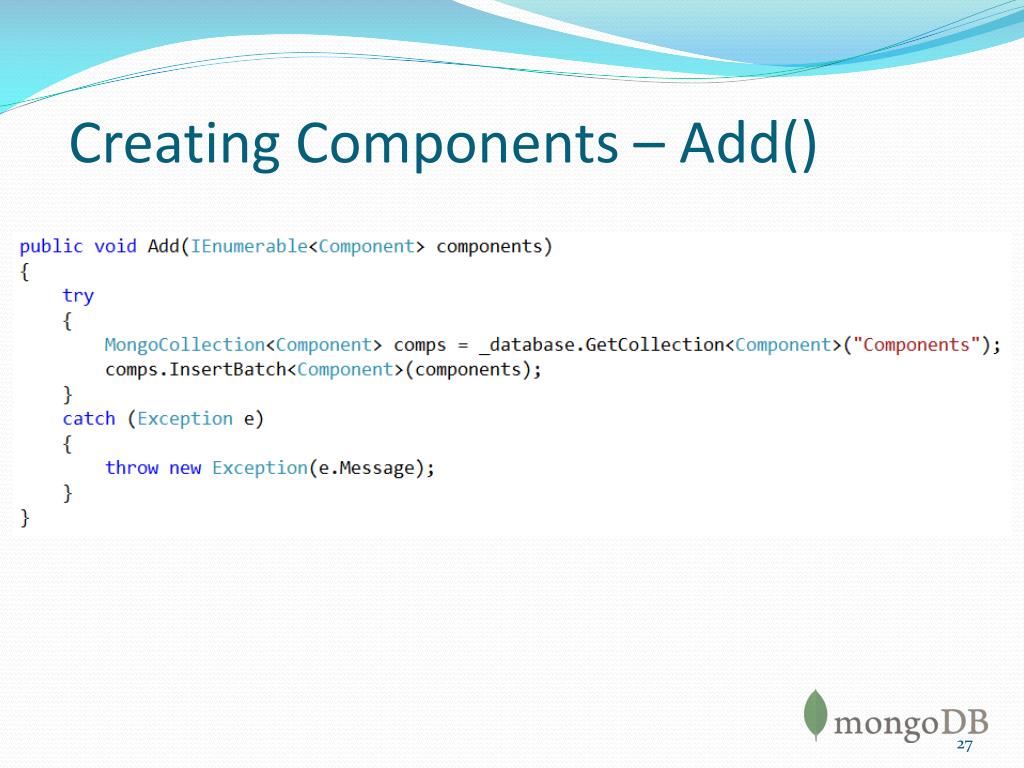

27. Creating Components – Add()

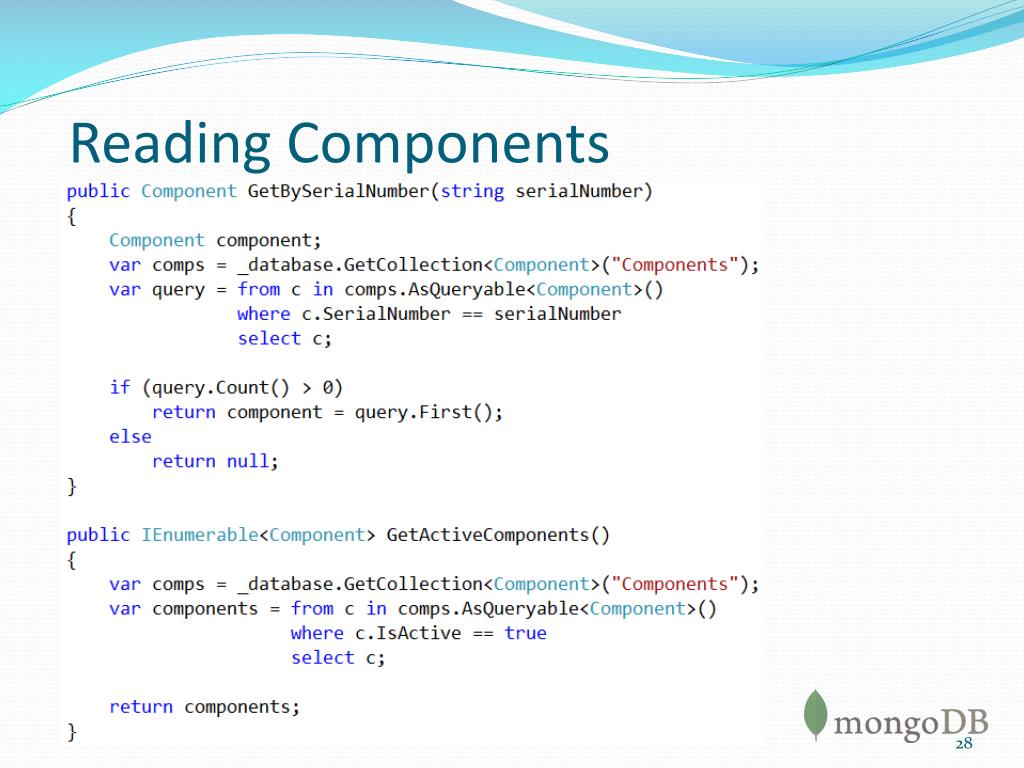

28. Reading Components

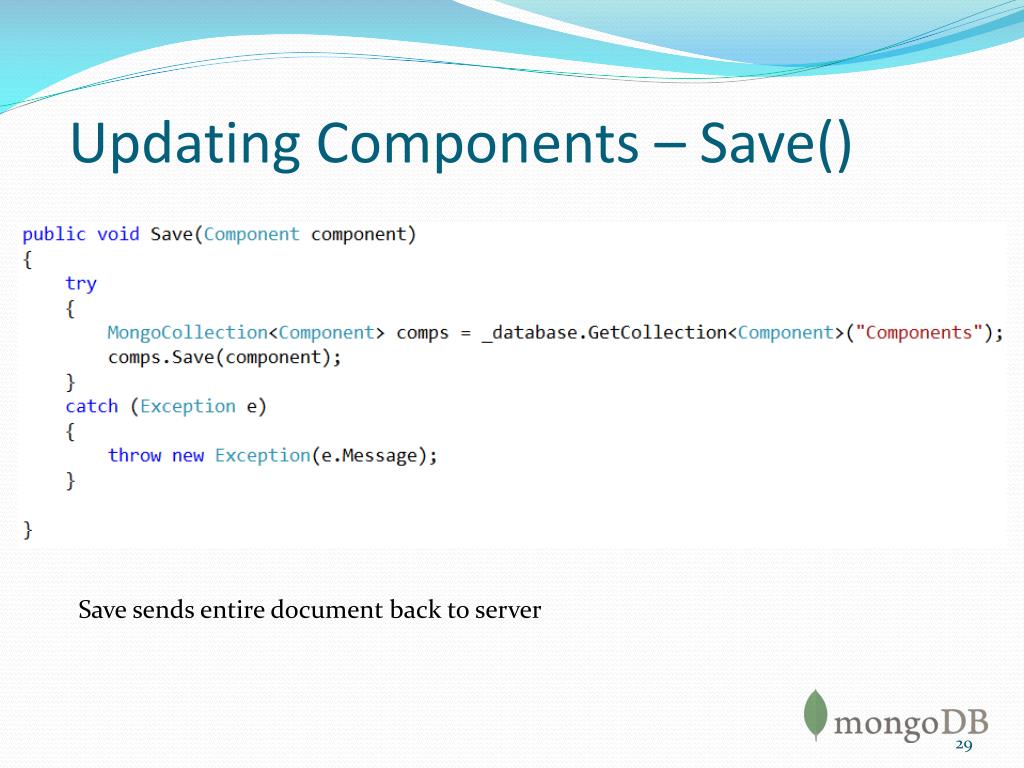

29. Updating Components – Save() Save sends entire document back to server

30. Updating Components – Update() Update only sends changes

31. Deleting Components Needed to add reference to Repo class

32. Automapping

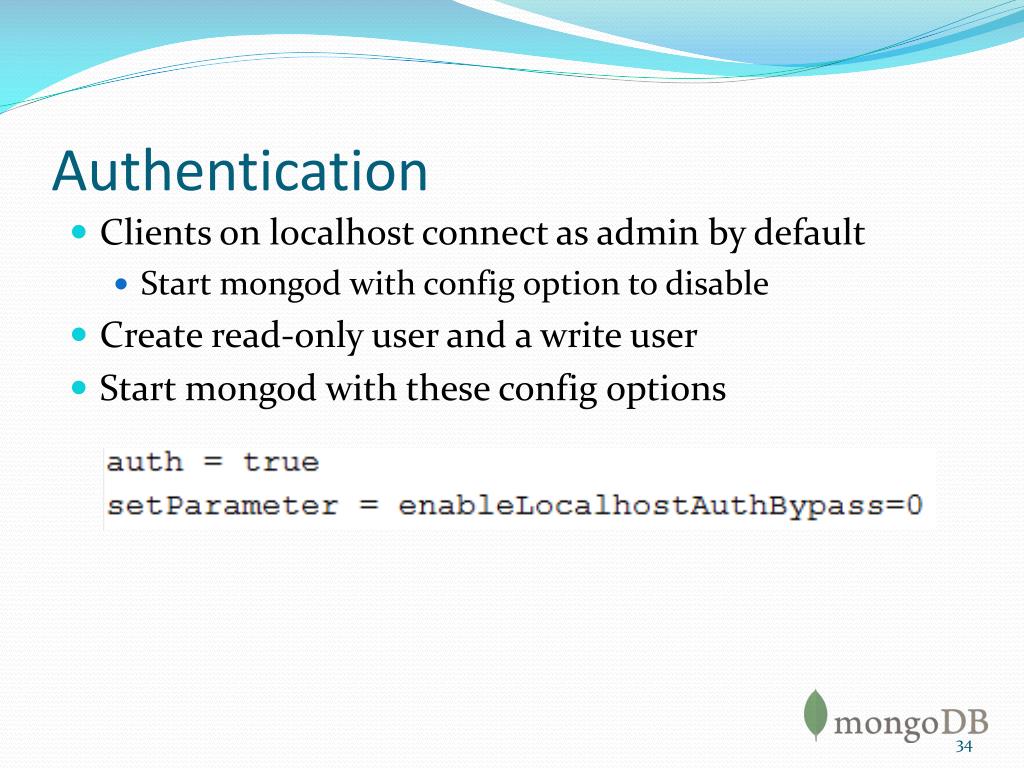

34. Authentication • Clients on localhost connect as admin by default • Start mongod with config option to disable • Create read-only user and a write user • Start mongod with these config options

35. Replica Sets

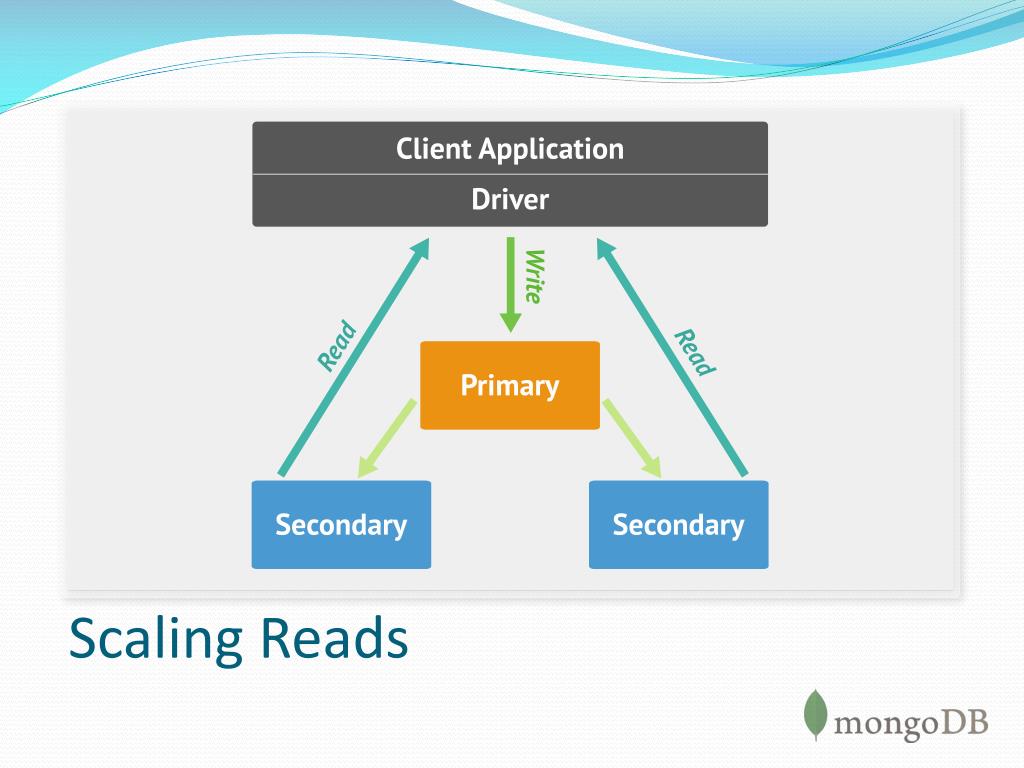

36. Scaling Reads

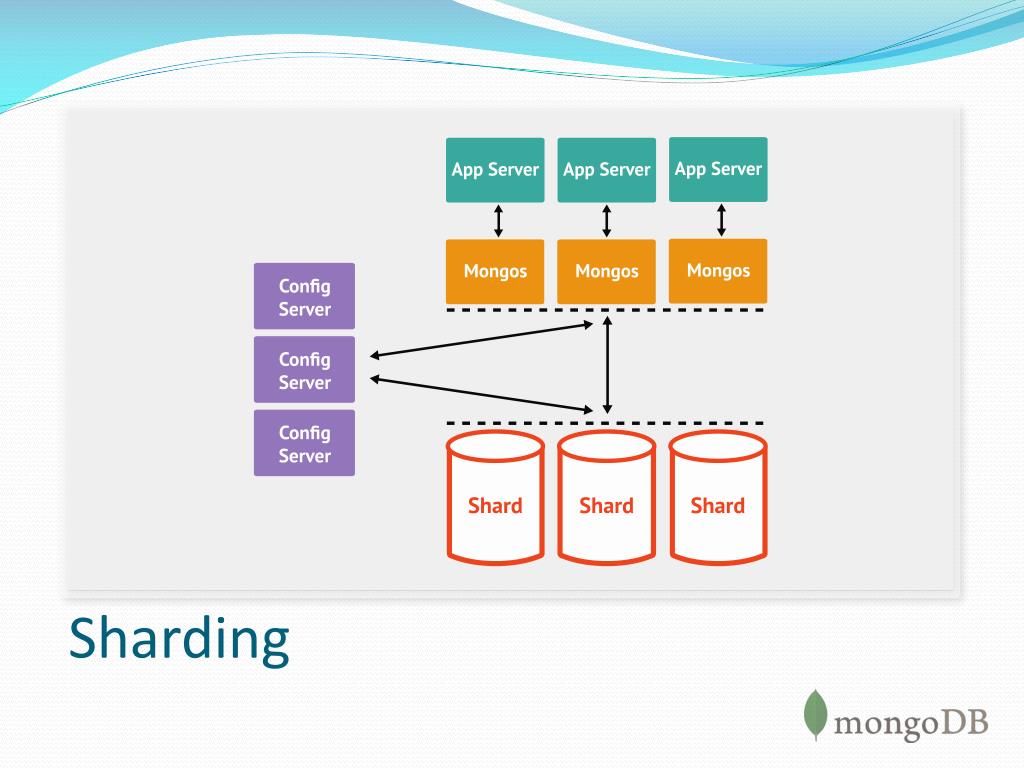

37. Sharding

38. Key Points • CHOOSE WISELY: SHARD KEY CANNOT BE CHANGED! • All documents in sharded collection must include the shard key • Shard key must be an indexed field • Queries that sort by the shard key are much more efficient • Mongos handles routing to the correct shard Sharding

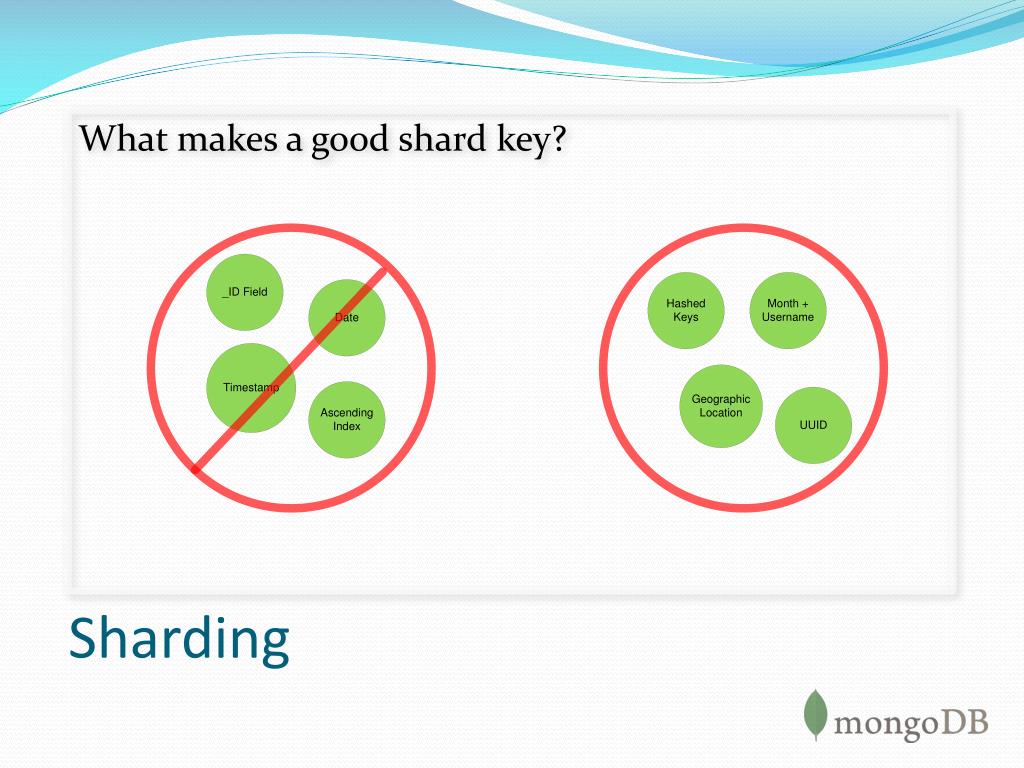

39. What makes a good shard key? Sharding

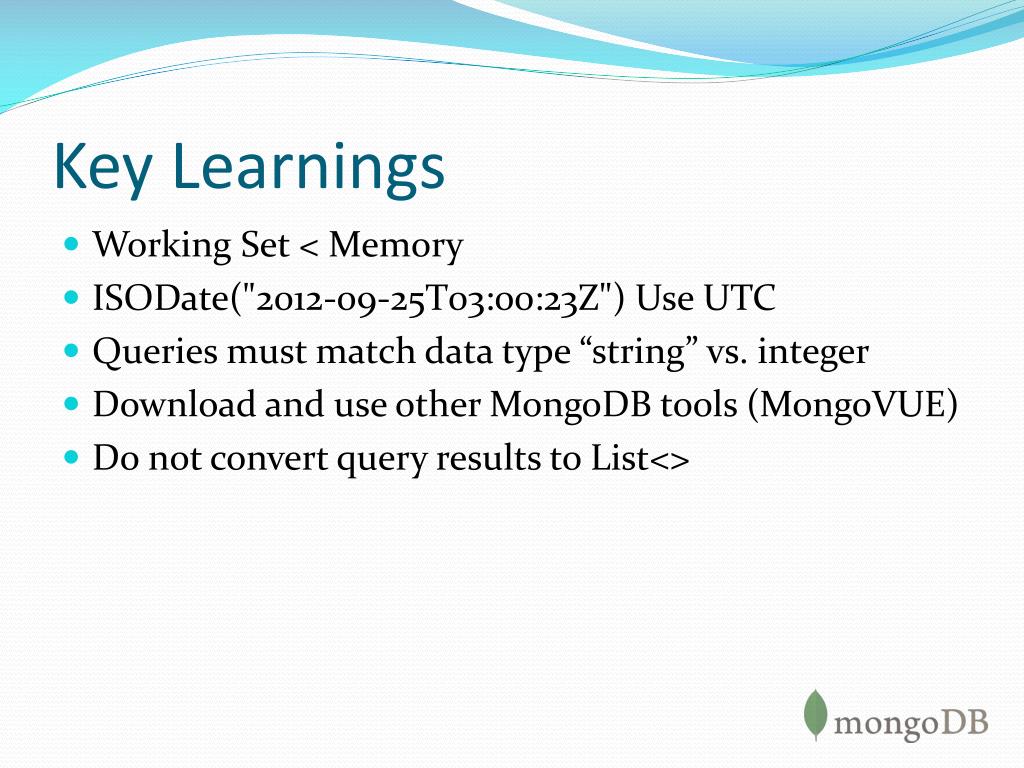

40. Key Learnings • Working Set < Memory • ISODate("2012-09-25T03:00:23Z") Use UTC • Queries must match data type “string” vs. integer • Download and use other MongoDB tools (MongoVUE) • Do not convert query results to List<>

41. Gaps • Enterprise acceptance of “new” approach • Integration with off-the-shelf reporting and analytics • User interface for managing the database cluster • Developer familiarity with JSON and MongoDB • 21 CFR Part 11 Compliance

42. Medtronic Confidential Thank You Questions? docs.mongodb.org/manual

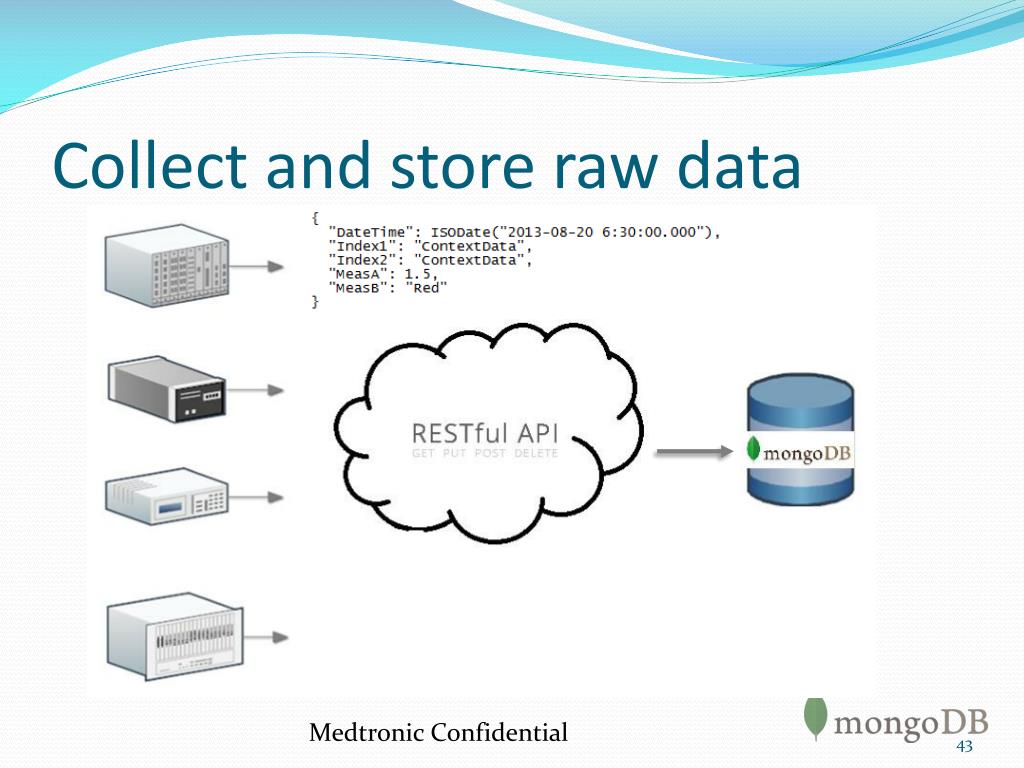

43. Medtronic Confidential Collect and store raw data

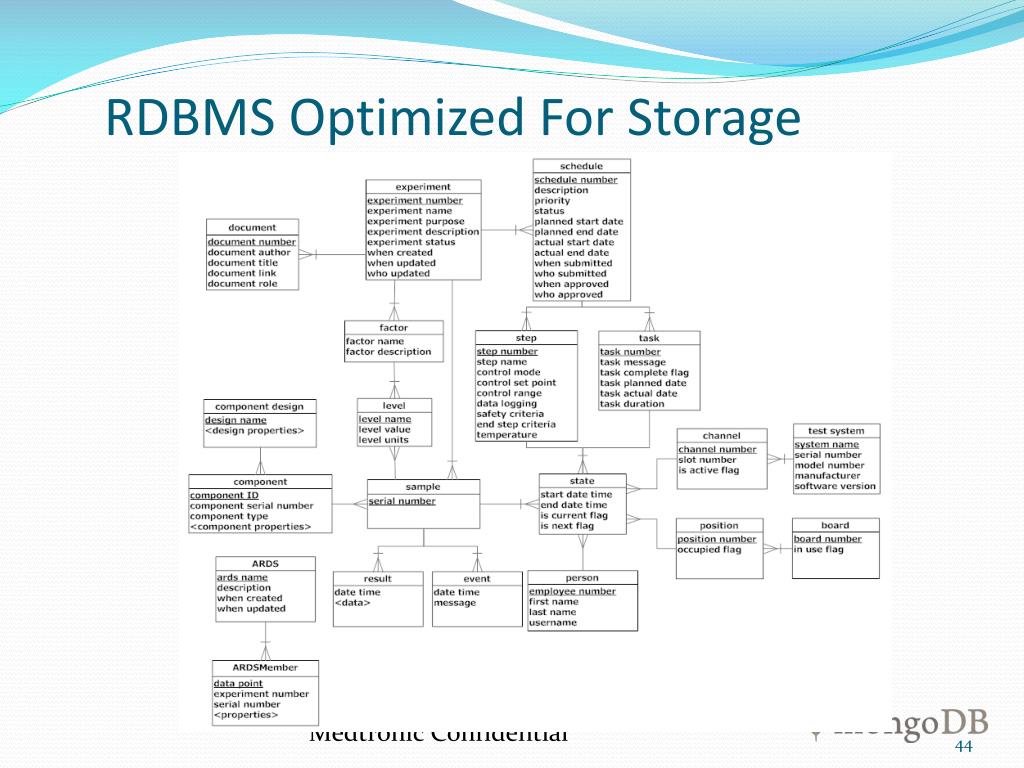

44. Databases Are Not ARDS Medtronic Confidential RDBMS Optimized For Storage

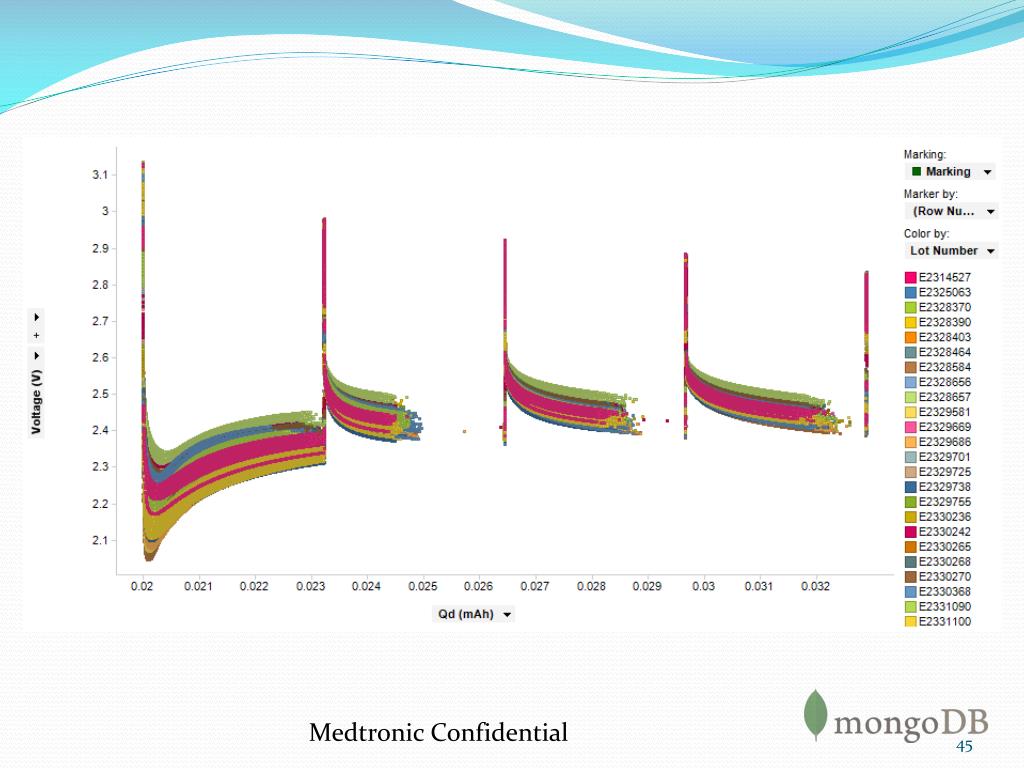

45. Medtronic Confidential Waveform Data

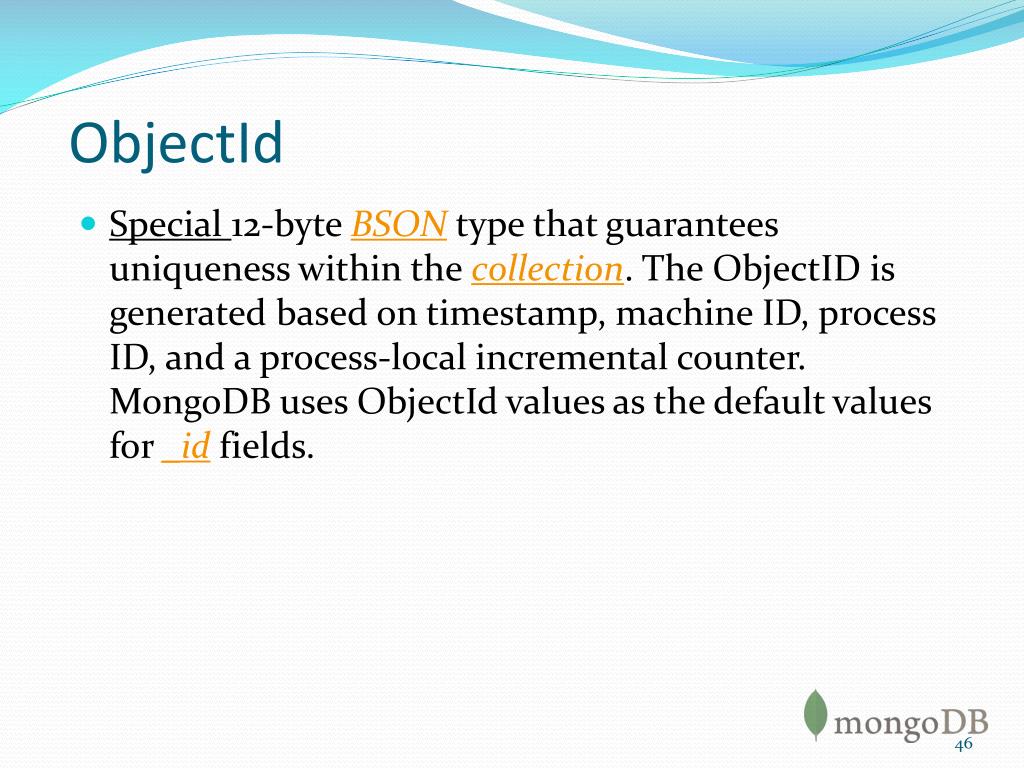

46. ObjectId • Special 12-byte BSON type that guarantees uniqueness within the collection. The ObjectID is generated based on timestamp, machine ID, process ID, and a process-local incremental counter. MongoDB uses ObjectId values as the default values for _id fields.

47. Indexing Without indexes queries must perform a table scan (every document) All collections index on the _id field

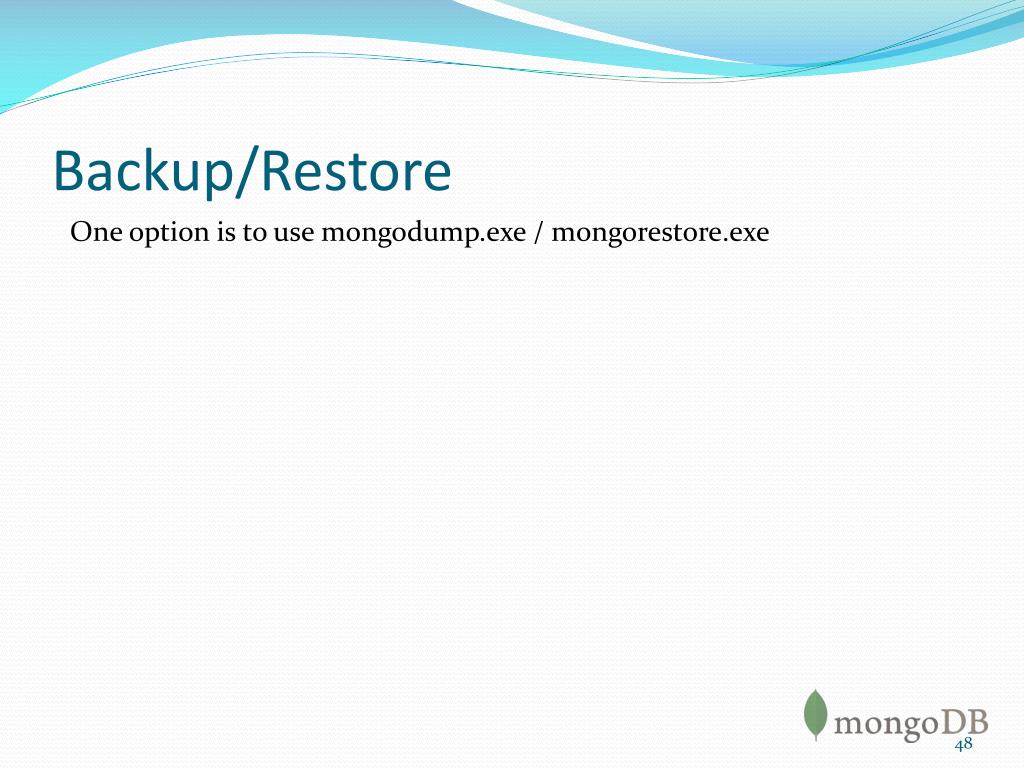

48. Backup/Restore One option is to use mongodump.exe / mongorestore.exe

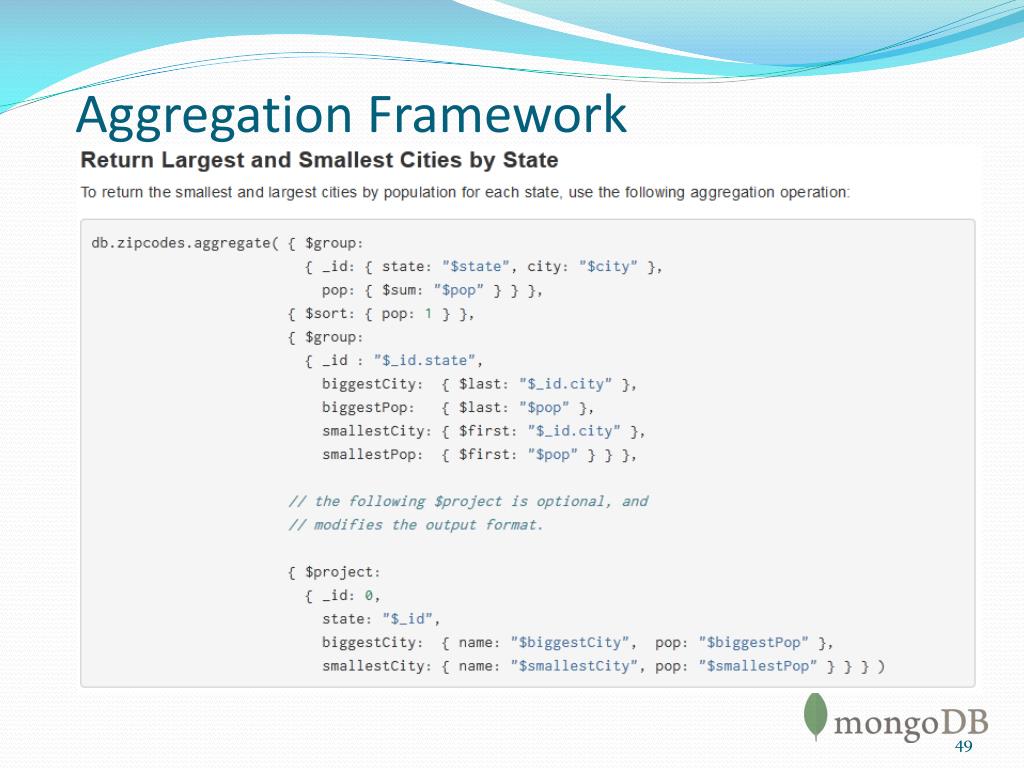

49. Aggregation Framework

50. Write Concern
