Msa w 65 self rescuer

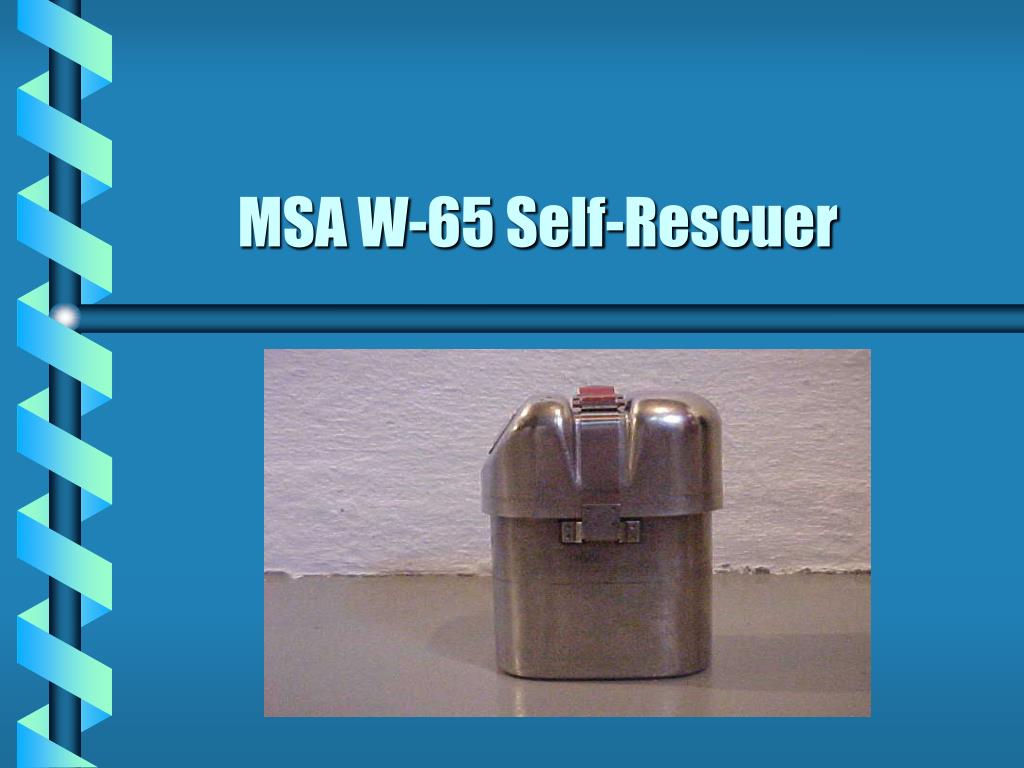

MSA W-65 Self-Rescuer

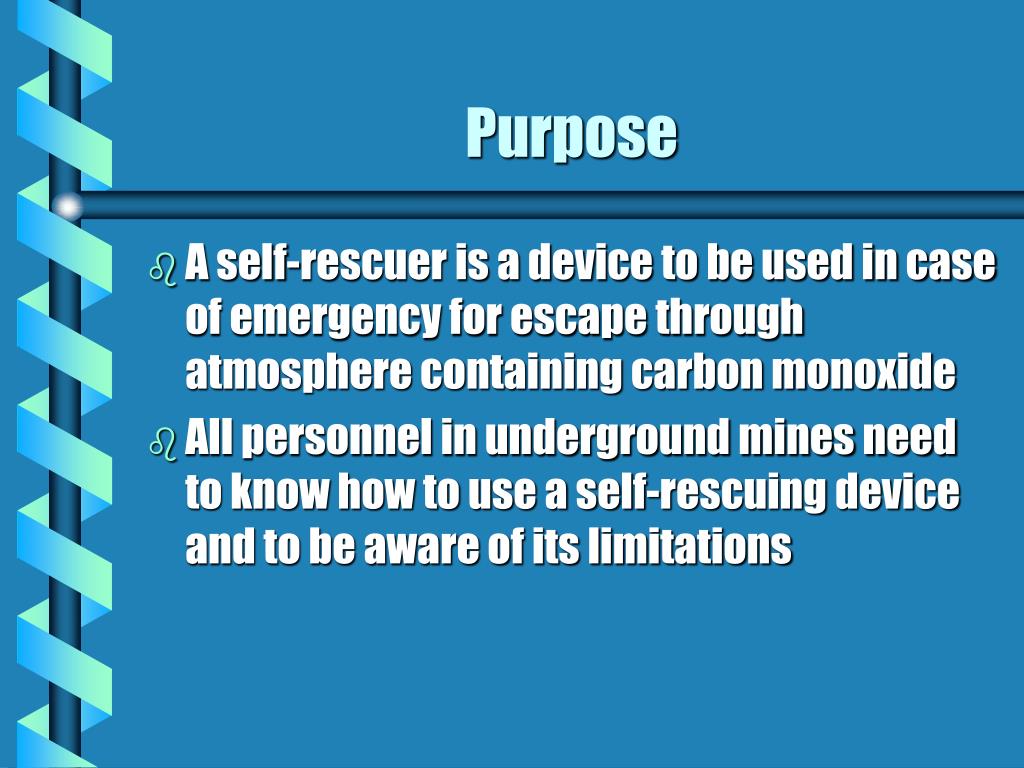

Purpose

Purpose

  • A self-rescuer is a device to be used in case of emergency for escape through atmosphere containing carbon monoxide

  • All personnel in underground mines need to know how to use a self-rescuing device and to be aware of its limitations


Goals of the course

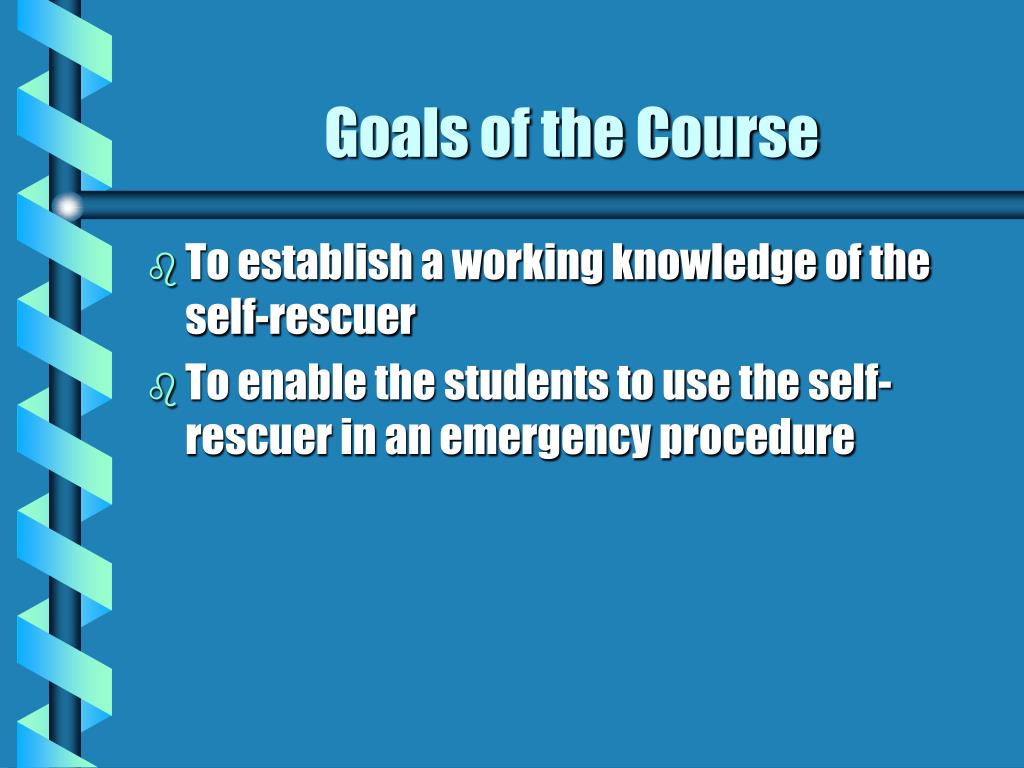

Goals of the Course

  • To establish a working knowledge of the self-rescuer

  • To enable the students to use the self-rescuer in an emergency procedure


Objectives

Objectives

  • Know how to operate a self-rescuer

  • Know when the self-rescuer should be used

  • Know the limitations of the self-rescuer: time, carbon monoxide and storage

  • Explain the examination procedure

  • Demonstrate the correct procedure for donning the device


What is the self rescuer

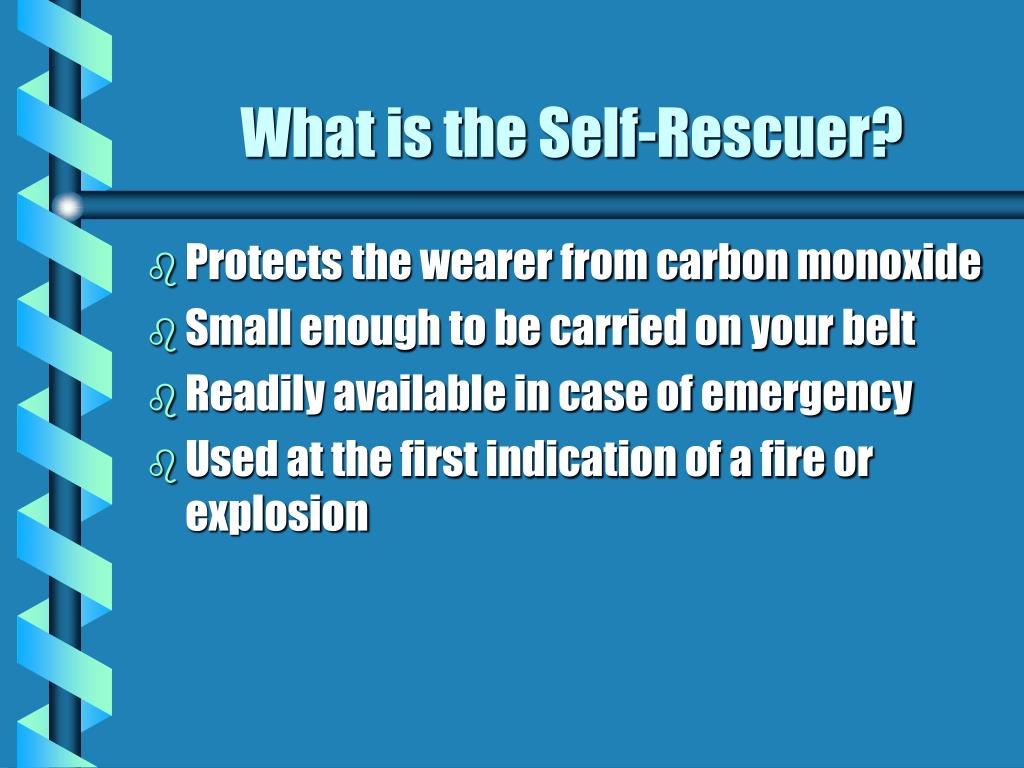

What is the Self-Rescuer?

  • Protects the wearer from carbon monoxide

  • Small enough to be carried on your belt

  • Readily available in case of emergency

  • Used at the first indication of a fire or explosion


Diagram of a self rescuer

Basic substance contained in the self-rescuer is hopcalite

Hopcalite changes carbon monoxide, a poisonous gas, into carbon dioxide, a relatively harmless gas

Diagram of a Self-Rescuer


W 65 protection facts

W-65 Protection Facts

  • Tests conducted by the Bureau of Mines state the W-65 provides adequate protection for 60 minutes in 1% concentration of carbon monoxide

  • You must keep the self-rescuer in place regardless of the heat generation


W 65 protection facts1

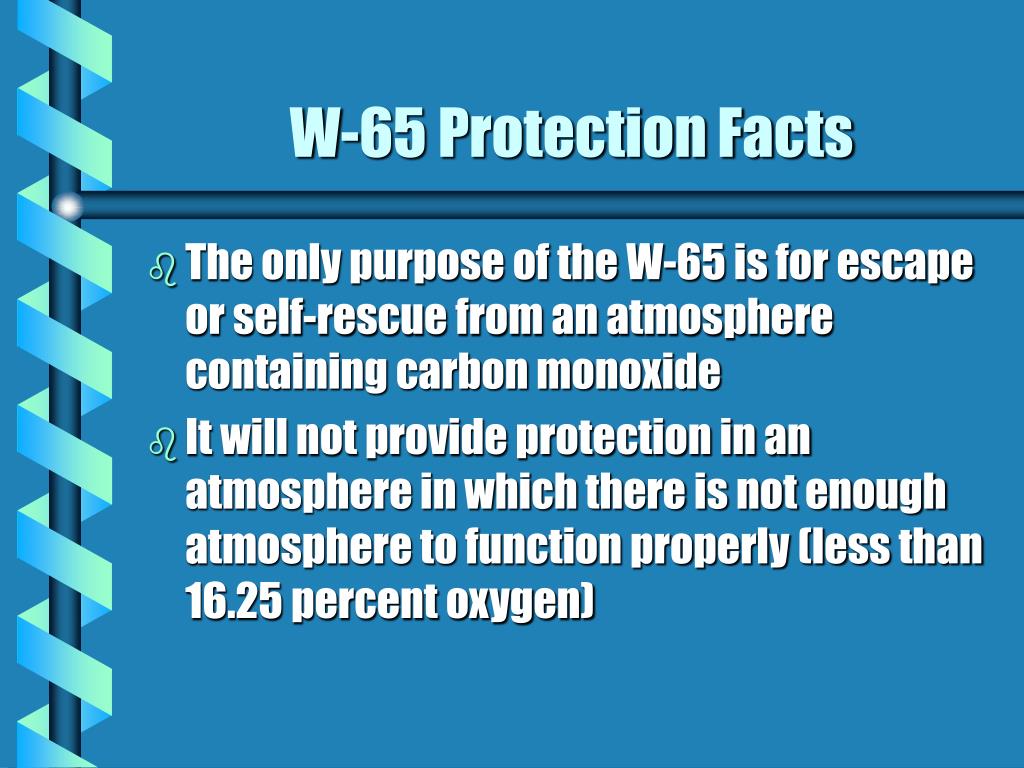

W-65 Protection Facts

  • The only purpose of the W-65 is for escape or self-rescue from an atmosphere containing carbon monoxide

  • It will not provide protection in an atmosphere in which there is not enough atmosphere to function properly (less than 16.25 percent oxygen)


W 65 protection facts2

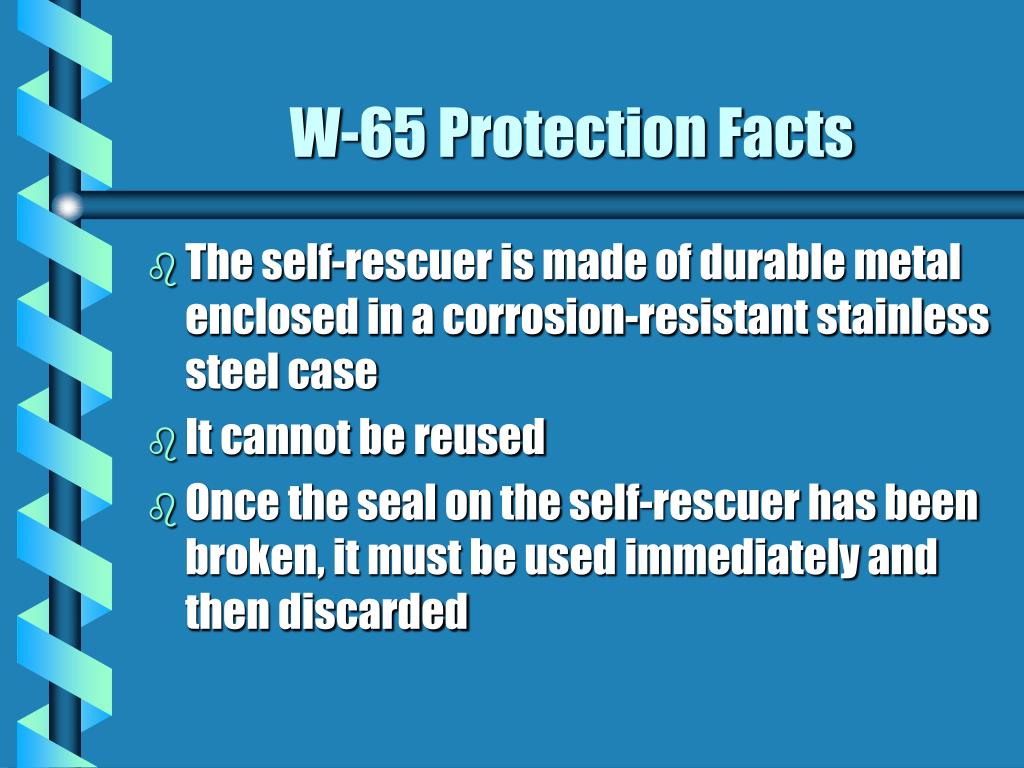

W-65 Protection Facts

  • The self-rescuer is made of durable metal enclosed in a corrosion-resistant stainless steel case

  • It cannot be reused

  • Once the seal on the self-rescuer has been broken, it must be used immediately and then discarded


Regulations for self rescue devices

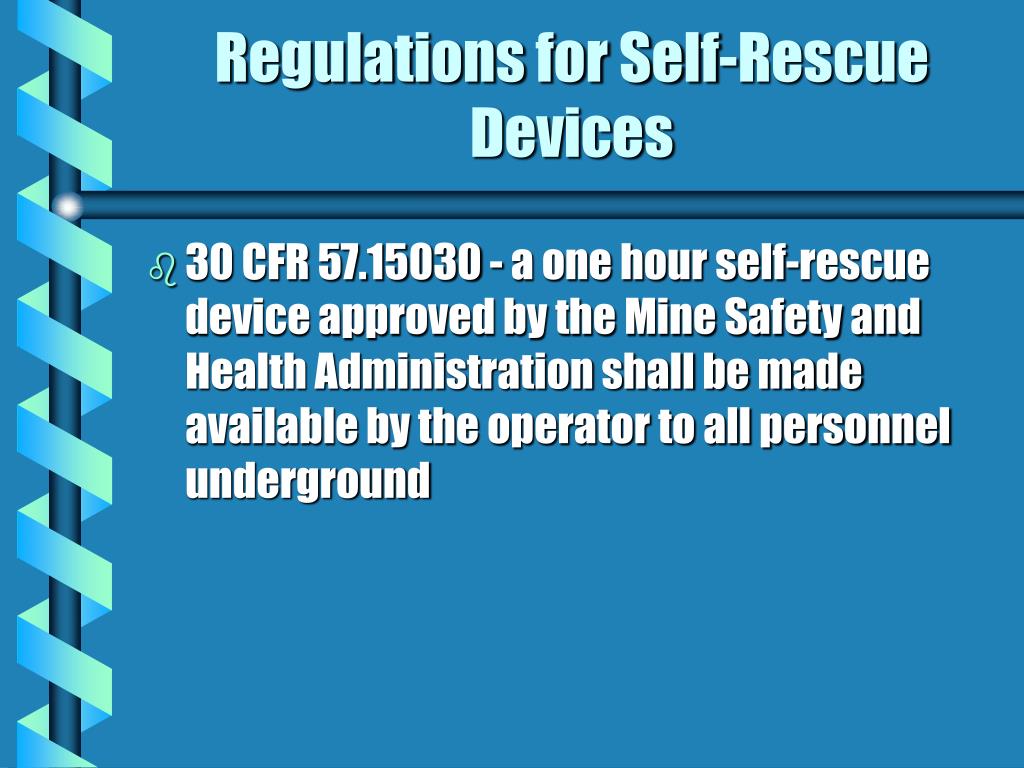

Regulations for Self-Rescue Devices

  • 30 CFR 57.15030 - a one hour self-rescue device approved by the Mine Safety and Health Administration shall be made available by the operator to all personnel underground


Regulations for self rescue devices1

Regulations for Self-Rescue Devices

  • 30 CFR 57.15031 - Must be worn at all times or carried by all persons underground except for the following:

    • when it is hazardous to a person to wear or carry the device, it shall be located at a distance no greater than 25 feet from such person

    • when a person works on or around mobile equipment, it may be placed in a readily accessible location on such equipment


Operation of w 65 self rescuer

Operation of W-65 Self-Rescuer

  • Open self-rescuer by firmly pulling lever up to break canister seal

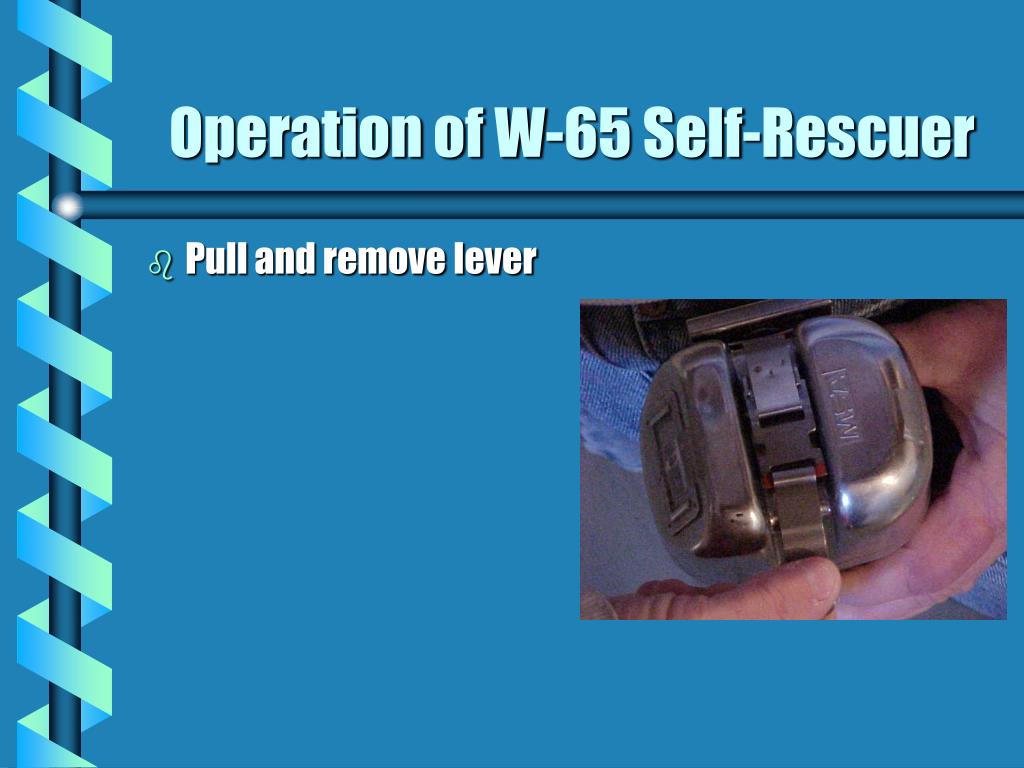

Operation of w 65 self rescuer1

Operation of W-65 Self-Rescuer

  • Pull and remove lever


Operation of w 65 self rescuer2

Operation of W-65 Self-Rescuer

  • Remove cover and discard


Operation of w 65 self rescuer3

Operation of W-65 Self-Rescuer

  • Remove the unit from the container by wrapping the headstrap around the wrist and pulling firmly


Operation of w 65 self rescuer4

Operation of W-65 Self-Rescuer

  • Grip rubber tips of mouthpiece firmly between teeth, making an airtight seal with lips and mouthpiece


Operation of w 65 self rescuer5

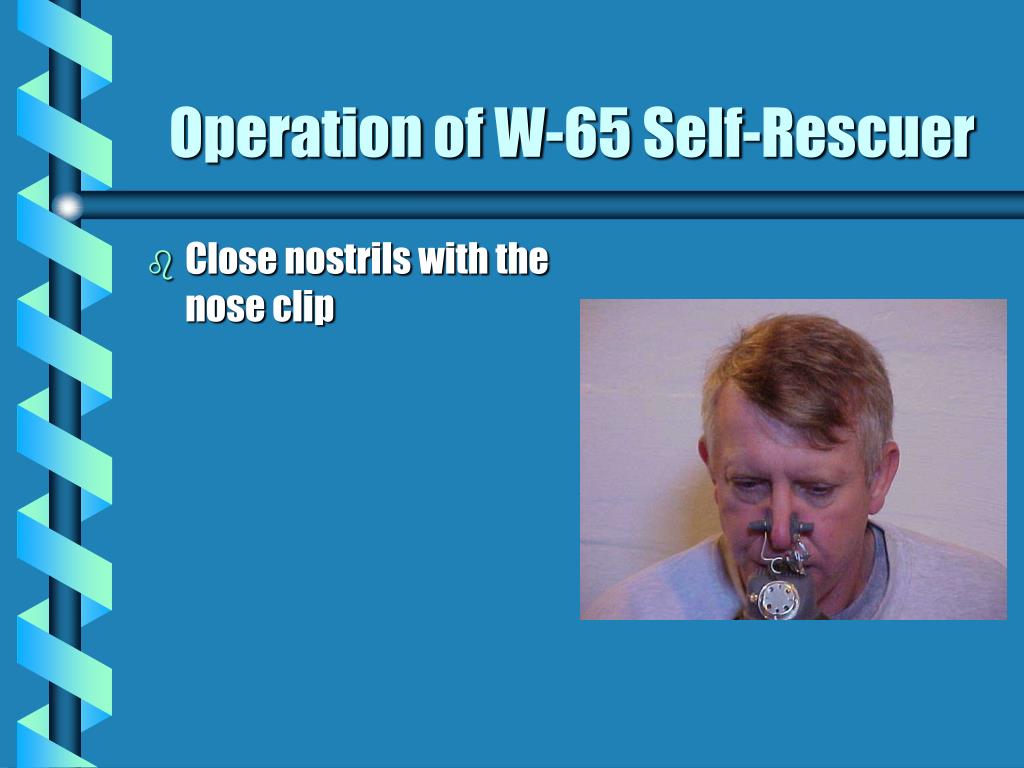

Operation of W-65 Self-Rescuer

  • Close nostrils with the nose clip


Operation of w 65 self rescuer6

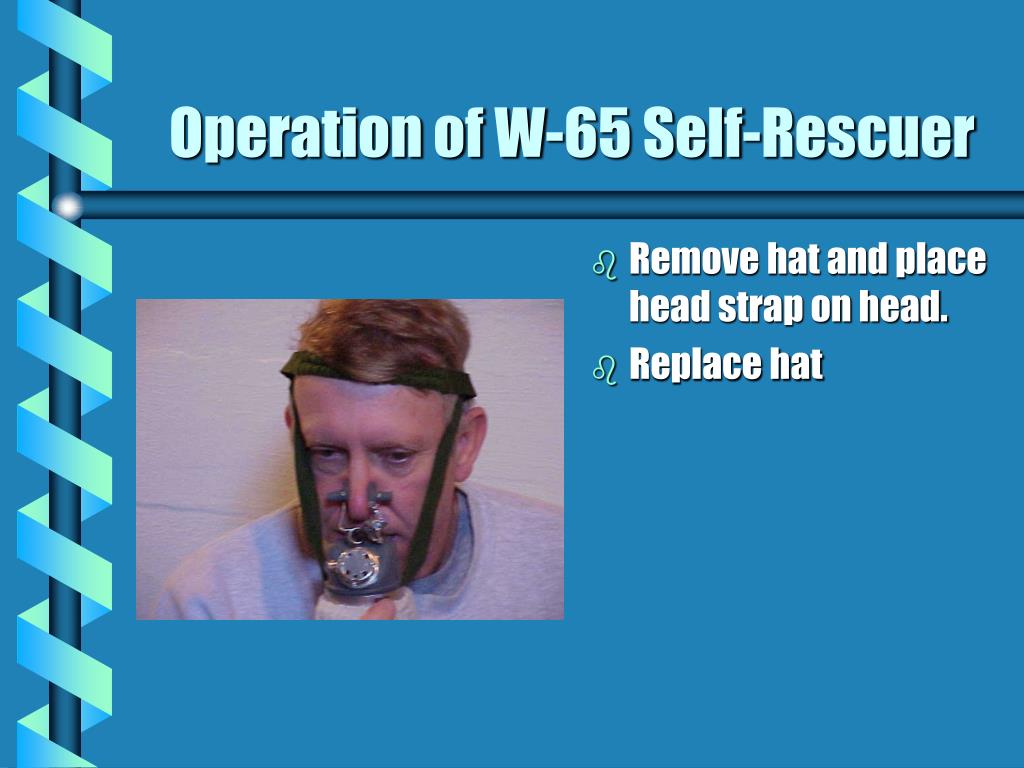

Operation of W-65 Self-Rescuer

  • Remove hat and place head strap on head.

  • Replace hat


Operation of w 65 self rescuer7

Operation of W-65 Self-Rescuer

  • Go to fresh air immediately as you breathe only through the self-rescuer

  • A breathing resistance, similar to breathing through a dust respirator, will be experienced


Inspection and maintenance

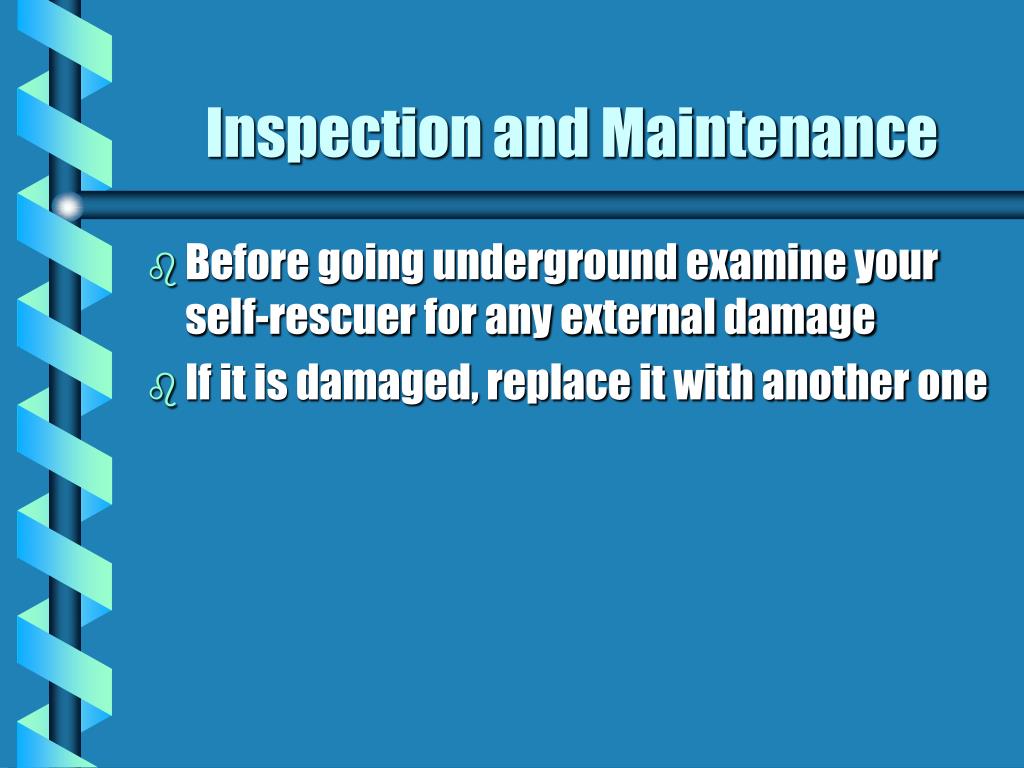

Inspection and Maintenance

  • Before going underground examine your self-rescuer for any external damage

  • If it is damaged, replace it with another one

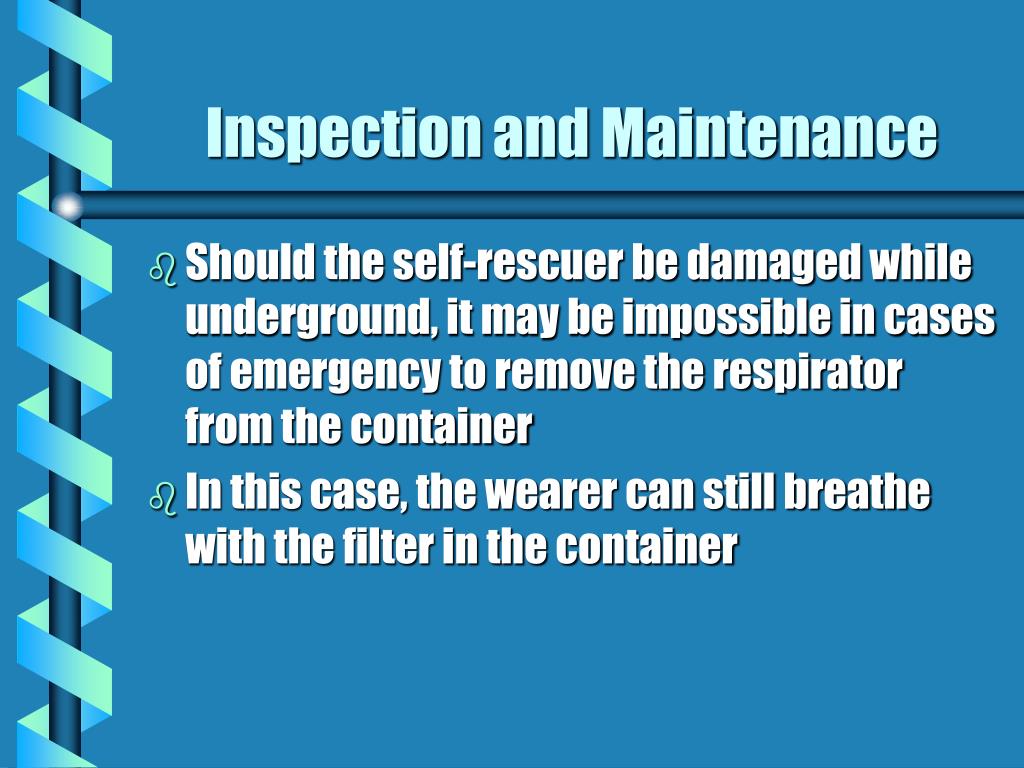

Inspection and maintenance1

Inspection and Maintenance

  • Should the self-rescuer be damaged while underground, it may be impossible in cases of emergency to remove the respirator from the container

  • In this case, the wearer can still breathe with the filter in the container

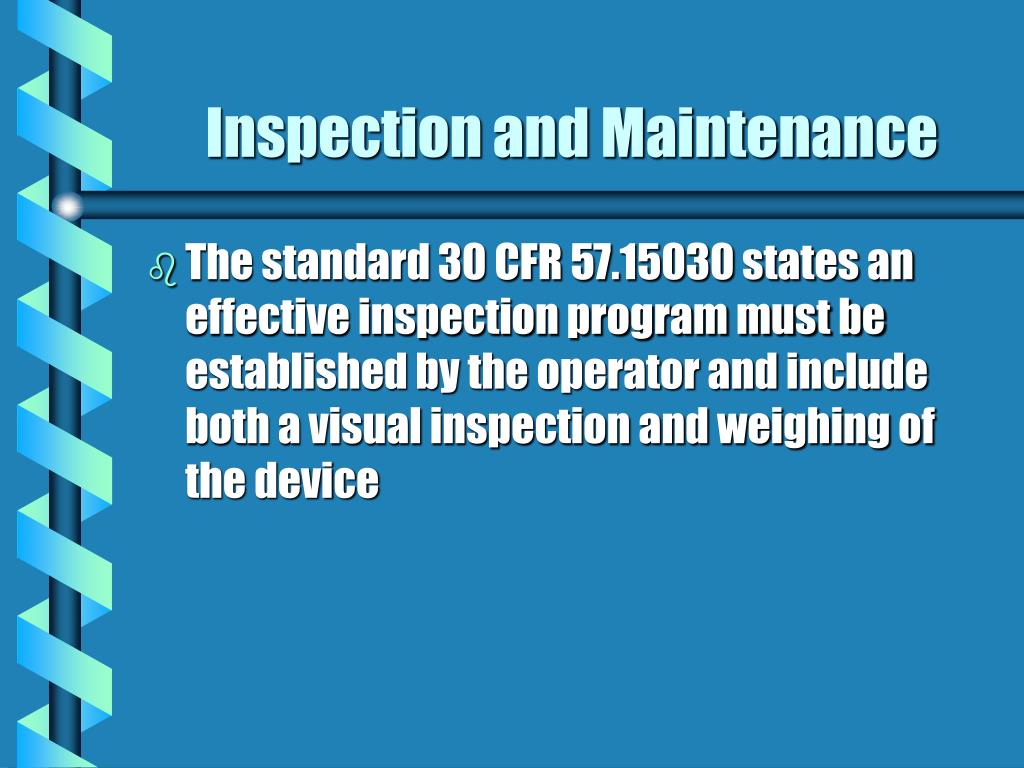

Inspection and maintenance2

Inspection and Maintenance

  • The standard 30 CFR 57.15030 states an effective inspection program must be established by the operator and include both a visual inspection and weighing of the device


Inspection and maintenance3

Inspection and Maintenance

  • A visual inspection serves to identify surface defects, such as a crushed case or broken seal

  • Weighing is necessary because it is the most reliable test in determining the serviceability of a self-rescuer


Inspection and maintenance4

Inspection and Maintenance

  • The inspection program for weighing self-rescuers shall not exceed a 90-day period and provide a record of weight for each device

  • The weight gain should not be 10 or more grams


Miner s responsibility

Miner’s Responsibility

  • Remove the self-rescue device if they are not in good condition or any of the following exists:

    • A device has a crushed or deeply dented case

    • A device has dents or damage around the seal area

    • A device has a broken seal or has lost its vacuum seal

    • A device has a weight gain of 10 grams or more above the manufacturer’s weight imprinted

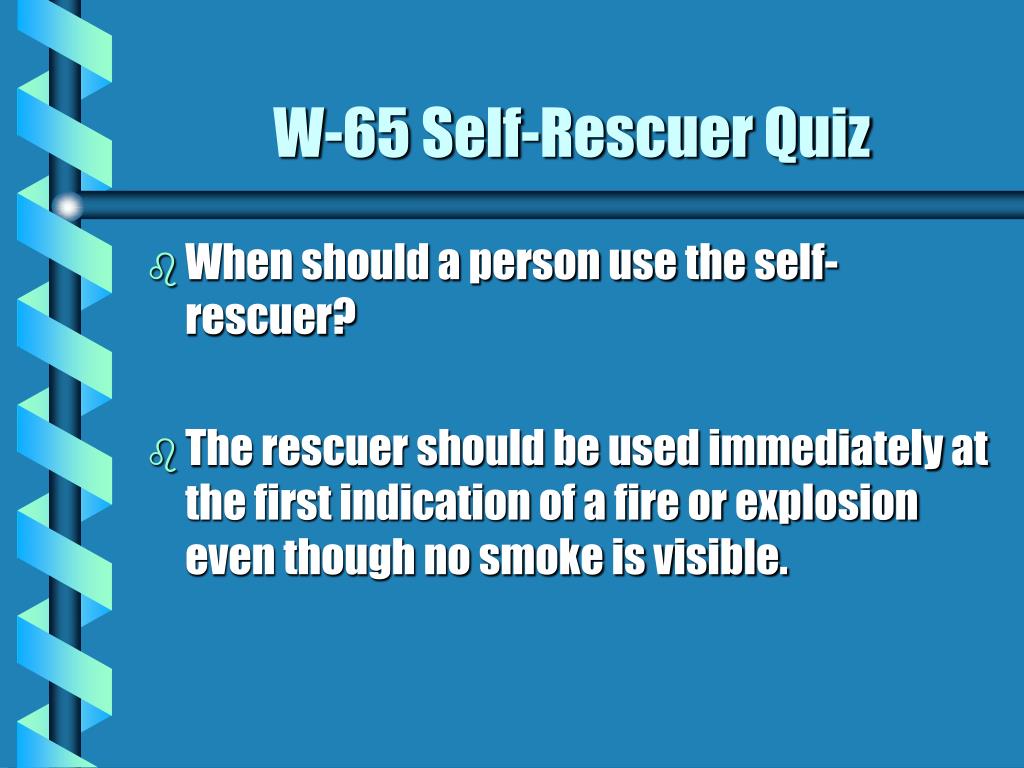

W 65 self rescuer quiz

W-65 Self-Rescuer Quiz

  • When should a person use the self-rescuer?

  • The rescuer should be used immediately at the first indication of a fire or explosion even though no smoke is visible.

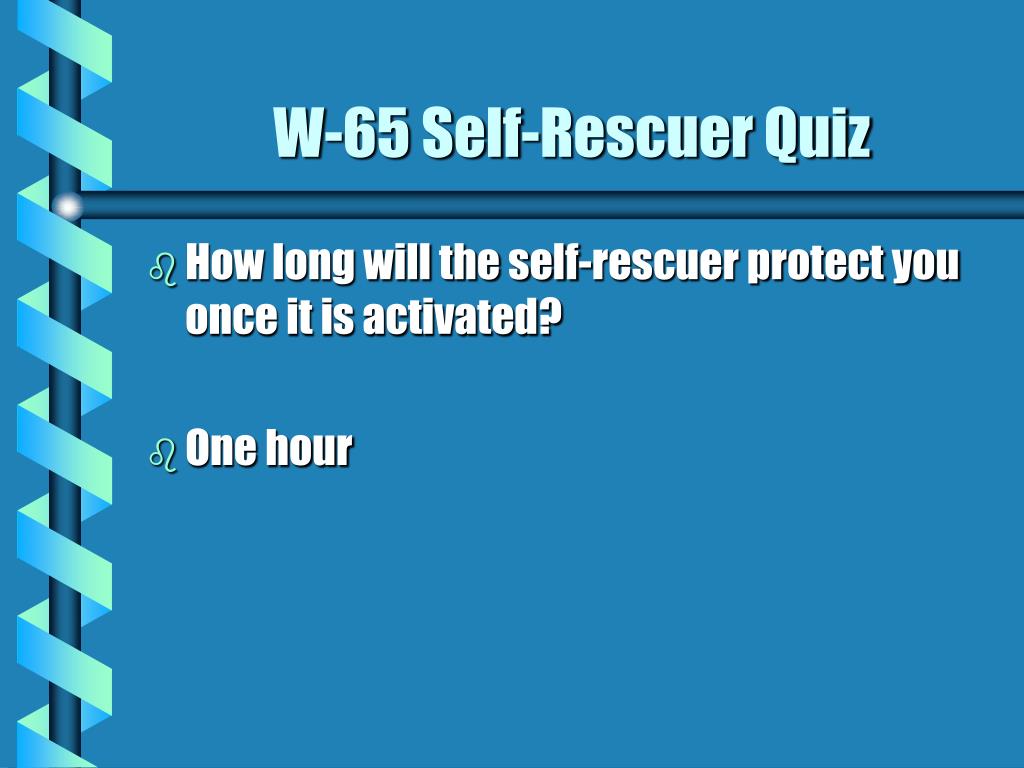

W 65 self rescuer quiz1

W-65 Self-Rescuer Quiz

  • How long will the self-rescuer protect you once it is activated?

  • One hour


W 65 self rescuer quiz2

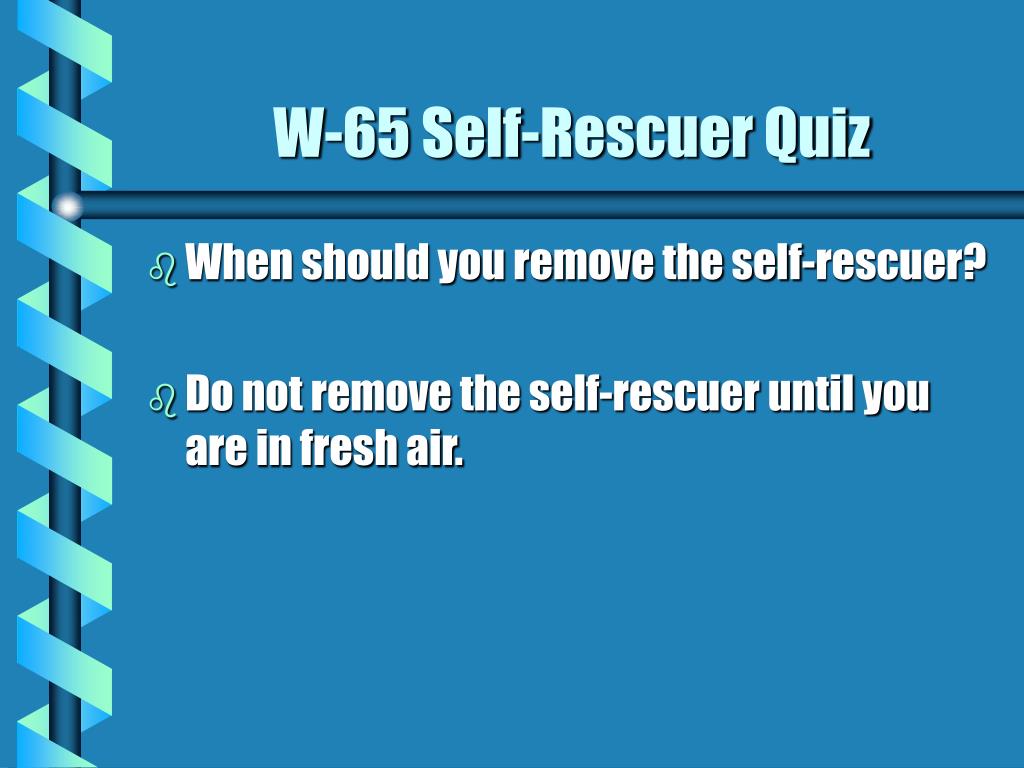

W-65 Self-Rescuer Quiz

  • When should you remove the self-rescuer?

  • Do not remove the self-rescuer until you are in fresh air.

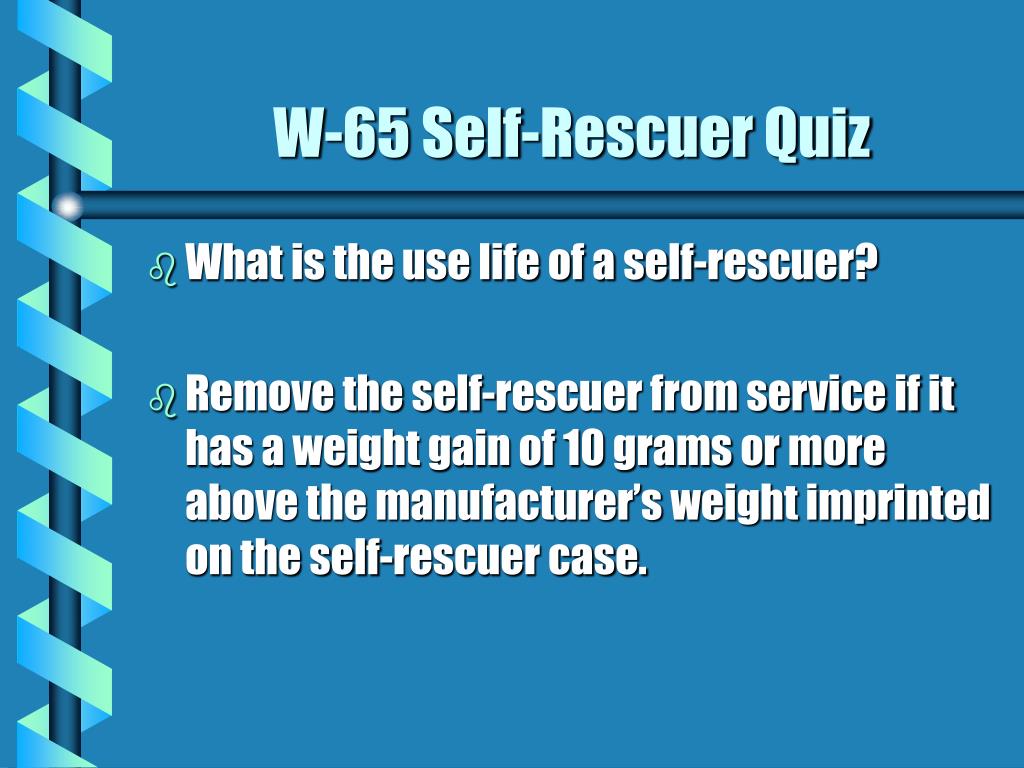

W 65 self rescuer quiz3

W-65 Self-Rescuer Quiz

  • What is the use life of a self-rescuer?

  • Remove the self-rescuer from service if it has a weight gain of 10 grams or more above the manufacturer’s weight imprinted on the self-rescuer case.


W 65 self rescuer quiz4

W-65 Self-Rescuer Quiz

  • If the container does not come off when you open the device, what should you do?

  • If the container is damaged, it may not be possible in an emergency to remove the respirator from the container. The wearer can still breathe with the filter in the container.


W 65 self rescuer quiz5

W-65 Self-Rescuer Quiz

  • If the device begins to get hot, what should you do?

  • The wearer must keep the self-rescuer in place regardless of how hot it becomes. To remove a self-rescuer under such circumstances would almost certainly result in death.


W 65 self rescuer quiz6

W-65 Self-Rescuer Quiz

  • Why was the self-rescuer designed?

  • As the name implies, the self-rescuer is intended to help the wearer escape.


W 65 self rescuer quiz7

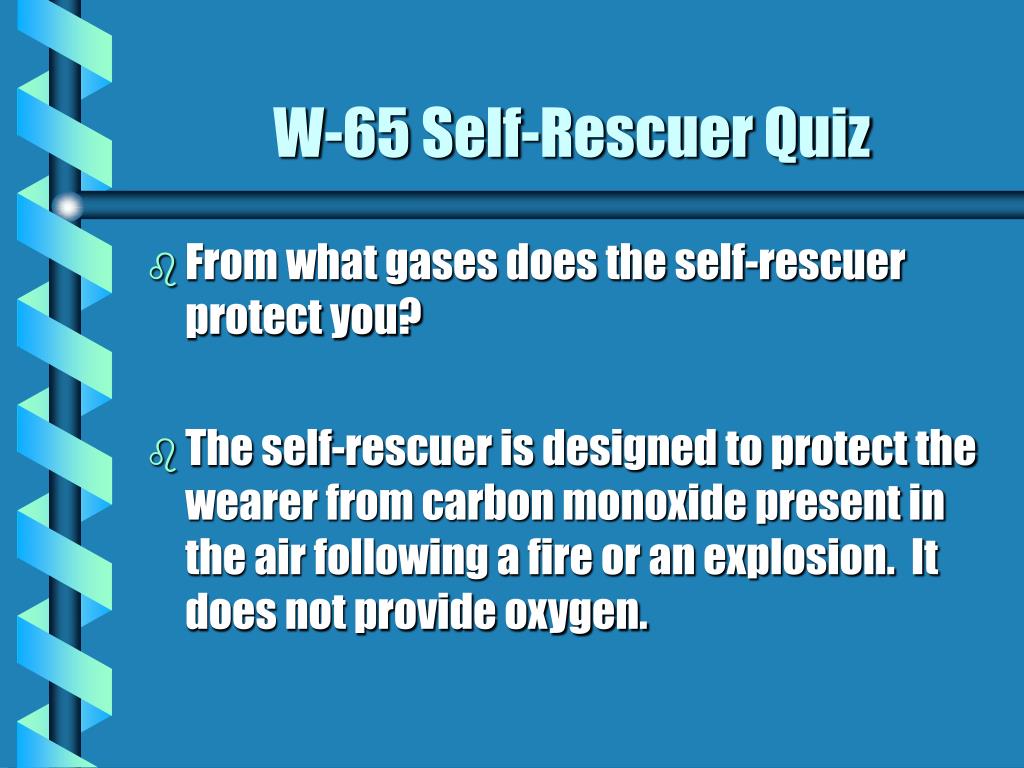

W-65 Self-Rescuer Quiz

  • From what gases does the self-rescuer protect you?

  • The self-rescuer is designed to protect the wearer from carbon monoxide present in the air following a fire or an explosion. It does not provide oxygen.


W 65 self rescuer quiz8

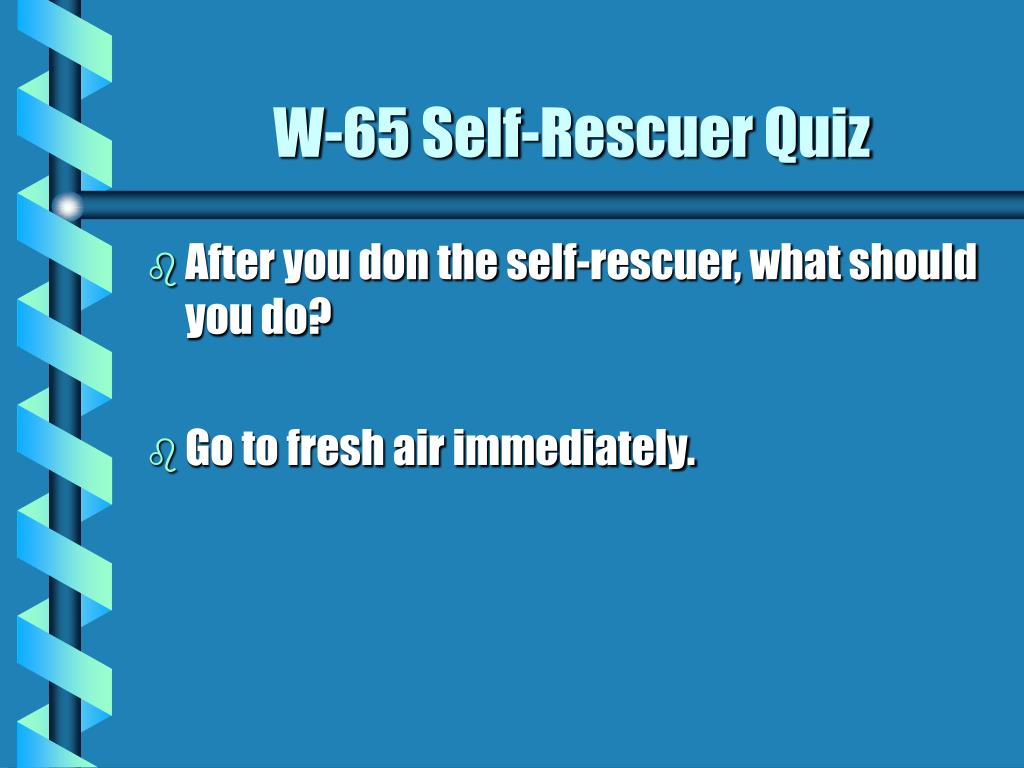

W-65 Self-Rescuer Quiz

  • After you don the self-rescuer, what should you do?

  • Go to fresh air immediately.

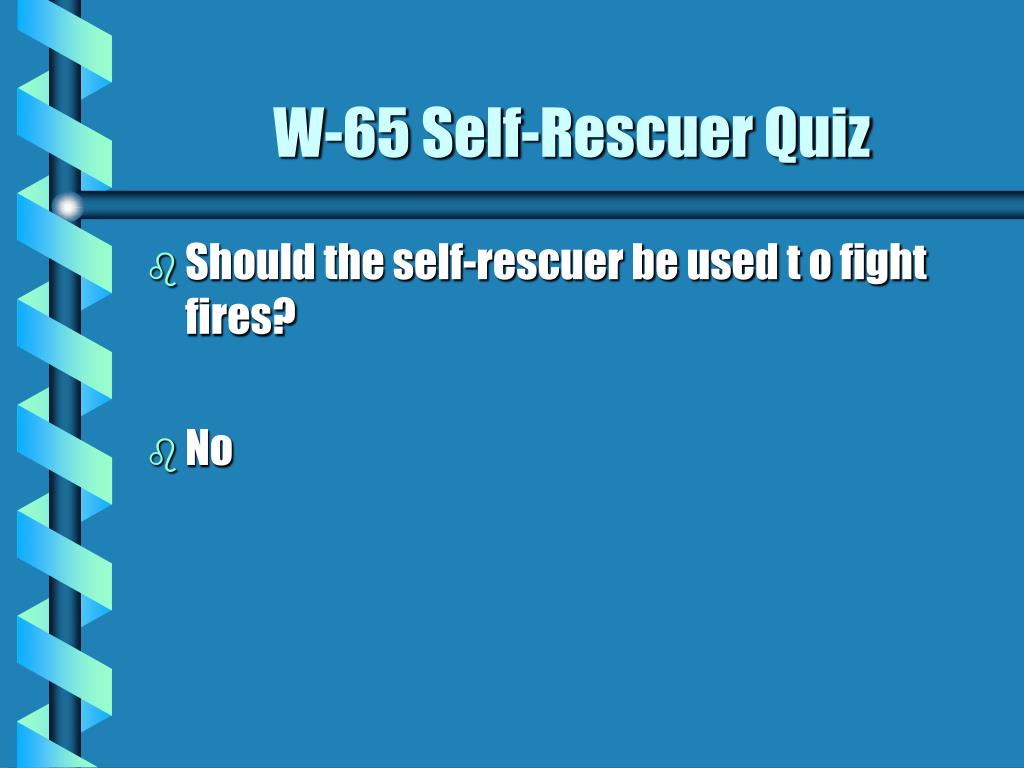

W 65 self rescuer quiz9

W-65 Self-Rescuer Quiz

  • Should the self-rescuer be used t o fight fires?

  • No
