Presentation Transcript
how to make battery

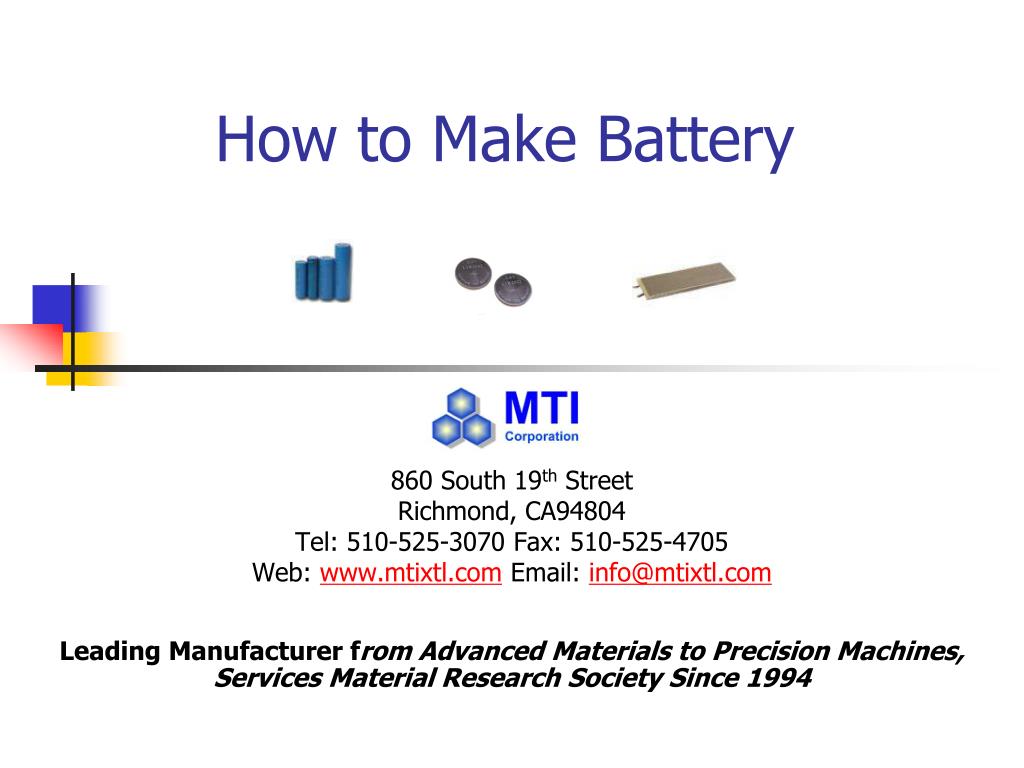

How to Make Battery

860 South 19th Street

Richmond, CA94804

Tel: 510-525-3070 Fax: 510-525-4705

Web: www.mtixtl.com Email: [email protected]

Leading Manufacturer from Advanced Materials to Precision Machines, Services Material Research Society Since 1994

why choose mti
Why Choose MTI?
  • Cost Effective
  • Easy to Operate
  • Enjoyable
making battery is making sandwich
Making battery is making sandwich
  • Electrode Raw Powder + Conduction Powder + Binder=Electrode Paste
  • Paste + Substrate (Current Collector) = Battery Electrode Sheet
  • Battery Electrode Sheet+ Separator + Electrolyte= Battery

Cathode

Separator

Anode Electrolyte

Battery Case

sintering
Sintering
  • RF1200X Rotary Tube Furnace with 4"OD Quartz Tube, 1200C Max.
  • OTF-1200X3-III Split Three-Zone Tube Furnace with 3" I.D. Quartz Tube & Vacuum Flanges ( 35" Heating Zone)

$12995.00 $8595.00

Make battery powder chemical by tube furnace under controlled atmosphere

powder milling mixing
Powder Milling/Mixing
  • SFM-3 Desk-Top High Speed Vibrating Ball Mill with 80ml Stainless Steel Jar
  • SFM-4 Desk-Top Vacuum Mixer (500-1000ml) with Variable Speed

$2995.00 $1995.00

Mixing powder with binders

coating electrode sheet
Coating Electrode Sheet
  • AFA-III Automatic Film Coater with Vacuum Chuck & Heating Cover and Coating Thickness & Width Adjustable Film Applicator

Aluminum/Copper Substrate for Anode/Cathode Paste

$6195.00

Coat Paste on Substrate

drying under vacuum
Drying under Vacuum
  • Bench-Top Vacuum Oven (12x12x11", 25 L, 250C)

$1498.00

Drying the Electrode Sheet after Coating/Taking from Storage

rolling electrode sheet
Rolling Electrode Sheet
  • MR-500 Heavy Duty Precision Manual Rolling Press with rolling thickness 0.1mm-1.5mm X 5" W
  • MR-100 Heavy Duty Precision 4" Width Manual Rolling Press with Dual Micrometer
  • Bench-Top Precision Automatic Heating Rolling Press - (11" W x 8.5" Dia up to 55 C )

$1295.00 $2495.00 $8995.00

Hot/Cold Rolling to Roll Electrode Sheet to certain thickness

cutting
Cutting
  • T-06 Precision Disc Cutter with optional 15, 19, 20 or 24 mm Diameter

$1495.00

Cut Disc-shape Electrode/Separator for Coin Cell

crimping
Crimping
  • MT-160-20 Compact Hydraulic Crimping Machine with Dies for CR2032 or CR2016
  • Bench Top Transparent Glove Box with Air Locker / Side Door

Crimping coin cell

in Glove Box with

Inert Gas

$2885.00 $2495.00

testing
Testing

Computerized 8 Channels Battery Analyzer (0.002-30000 mA / 5V )for

R&D Battery electrodes

Test battery by charging/discharging and viewing curve From $2995.00

video time
Video Time

Please go to our web www.mtixtl.com

at category “Battery / Capacitor

Equipment” to have the demo video

“Coating Electrode-Making Coin Cell-

Battery Analyzer Testing”

slide13
Thanks for your time

Please call us at 1-510-525-3070

or email us at [email protected]

Remember www.mtixtl.com is the easiest way!
