Presentation Transcript


Ib1 chemistry quantitative 1b

IB1 ChemistryQuantitative 1b

.


Topic 1 quantitative chemistry

Topic 1: Quantitative chemistry

1.1 The mole concept and Avogadro’s constant

1.1.1 Apply the mole concept to substances.

1.1.2 Determine the number of particles and the amount of substance (in moles).

1.2 Formulas

1.2.1 Define the terms relative atomic mass (Ar) and relative molecular mass (Mr).

1.2.2 Calculate the mass of one mole of a species from its formula.

1.2.3 Solve problems involving the relationship between the amount of substance in moles, mass and molar mass.

1.2.4 Distinguish between the terms empirical formula and molecular formula.

1.2.5 Determine the empirical formula from the percentage composition or from other experimental data.

1.2.6 Determine the molecular formula when given both the empirical formula and experimental data.

1.3 Chemical equations

1.3.1 Deduce chemical equations when all reactants and products are given.

1.3.2 Identify the mole ratio of any two species in a chemical equation.

1.3.3 Apply the state symbols (s), (l), (g) and (aq).

1.4 Mass and gaseous volume relationships in chemical reactions

1.4.1 Calculate theoretical yields from chemical equations.

1.4.2 Determine the limiting reactant and the reactant in excess when quantities of reacting substances are given.

1.4.3 Solve problems involving theoretical, experimental and percentage yield.

1.4.4Apply Avogadro’s law to calculate reacting volumes of gases.

1.4.5 Apply the concept of molar volume at standard temperature and pressure in calculations.

1.4.6 Solve problems involving the relationship between temperature, pressure and volume for a fixed mass of an ideal gas.

1.4.7 Solve problems using the ideal gas equation, PV = nRT.

1.4.8 Analyse graphs relating to the ideal gas equation.

1.5 Solutions

1.5.1 Distinguish between the terms solute, solvent, solution and concentration (g dm–3 and moldm–3).

1.5.2 Solve problems involving concentration, amount of solute and volume of solution.


Yield

Yield

The yield is the amount of product obtained experimentally

Percentage yield= actual yield × 100

theoretical yield

Reacts can be:

limiting reagent

to excess


Yield example

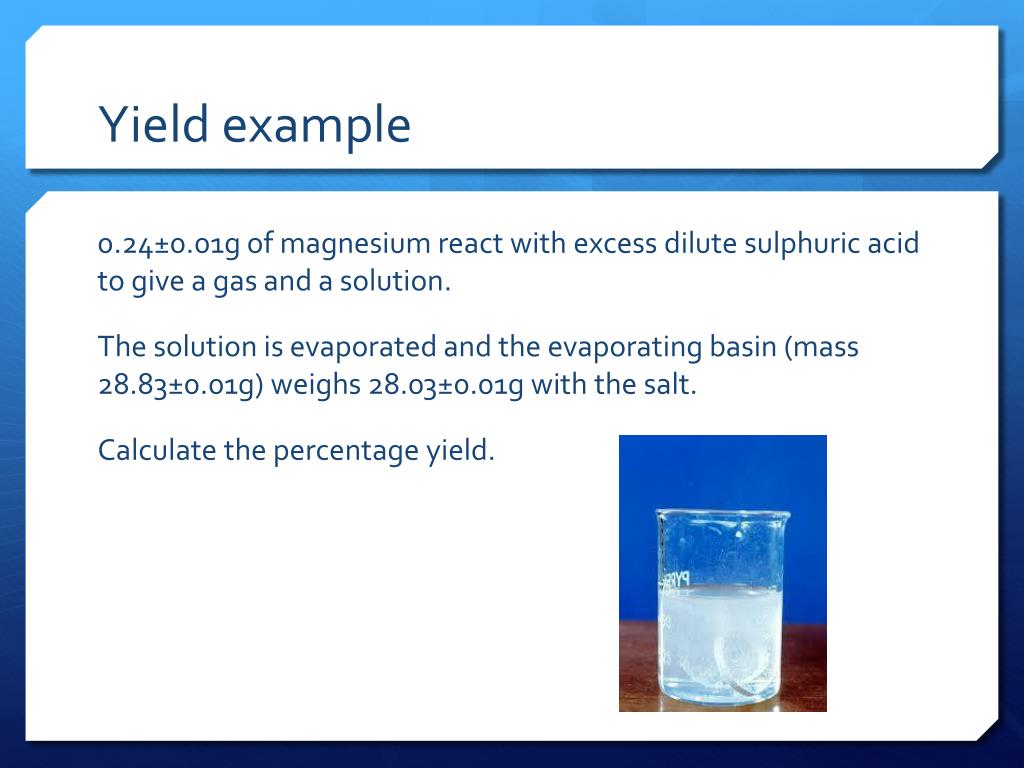

Yield example

0.24±0.01g of magnesium react with excess dilute sulphuric acid to give a gas and a solution.

The solution is evaporated and the evaporating basin (mass 28.83±0.01g) weighs 28.03±0.01g with the salt.

Calculate the percentage yield.


Yield1

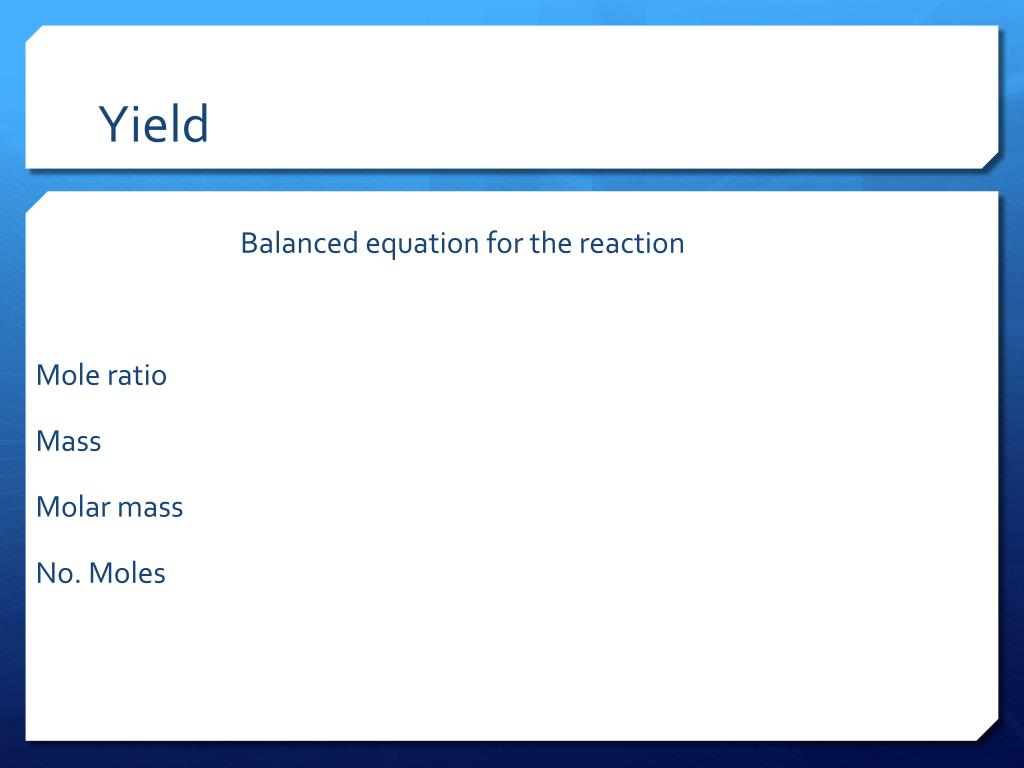

Yield

Balanced equation for the reaction

Mole ratio

Mass

Molar mass

No. Moles


Uncertainties

Uncertainties


Measuring chemical quantities gases

Measuring chemical quantities: gases

  • in volumeunits (cm3, dm3, etc.) using a gas syringe

  • volumedepends on temperature and pressure


Propeties of gases

Propeties of gases

  • Variable volume and shape

  • Expand to occupy volume available

  • Can be easily compressed

  • Exert pressure on whatever surrounds them

  • Volume, Pressure, Temperature, and the number of moles present are interrelated

  • Easily diffuse into one another


Mercury barometer

Mercury barometer

  • Defines and measures atmospheric pressure

  • Mercury column rises to 760 mm average at sea level

  • This quantity 1 atmosphere = 100 kPa


Pressure

Pressure

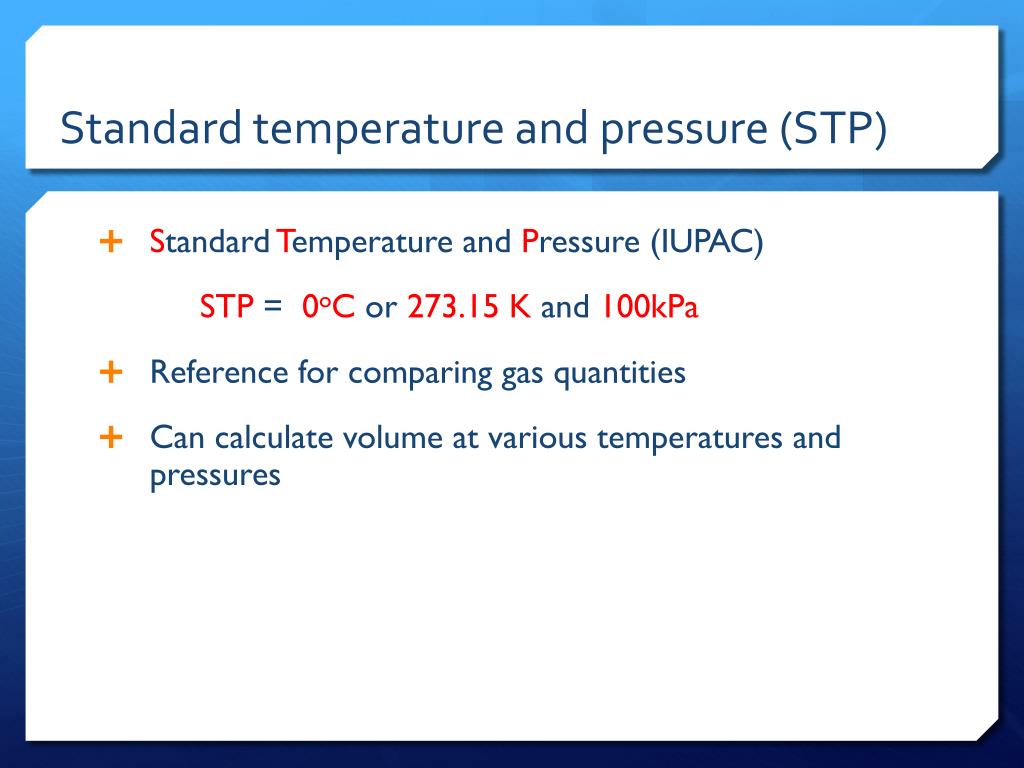

Standard temperature and pressure stp

Standard temperature and pressure (STP)

  • Standard Temperature and Pressure (IUPAC)

    STP = 0oC or 273.15 K and 100kPa

  • Reference for comparing gas quantities

  • Can calculate volume at various temperatures and pressures


Assumptions of the ideal gas model

Assumptions of the ideal gas model

  • the particles are indistinguishable, small, hard spheres

  • no energy loss in motion or collision

  • Newton's laws apply to collisions

  • The average distance between molecules is much larger than the size of the particles

  • The molecules are constantly moving in random directions with a distribution of speeds

  • There are no attractive or repulsive forces between the molecules or the surroundings except during collisions

  • Real gases have attractive forces between particles (van der Waals forces)

    •  close to an ideal gas at high Temp and low Pressure


  • Charles law

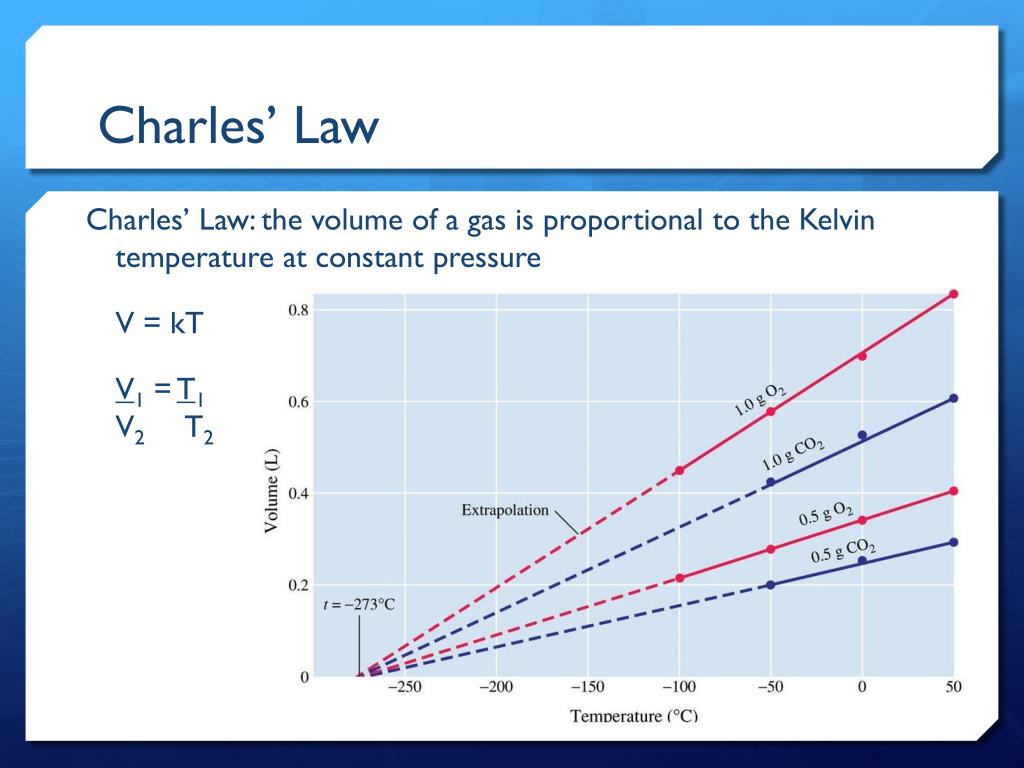

    Charles’ Law

    Charles’ Law: the volume of a gas is proportional to the Kelvin temperature at constant pressure

    V = kT

    V1 = T1

    V2 T2


    Gay lussac s law

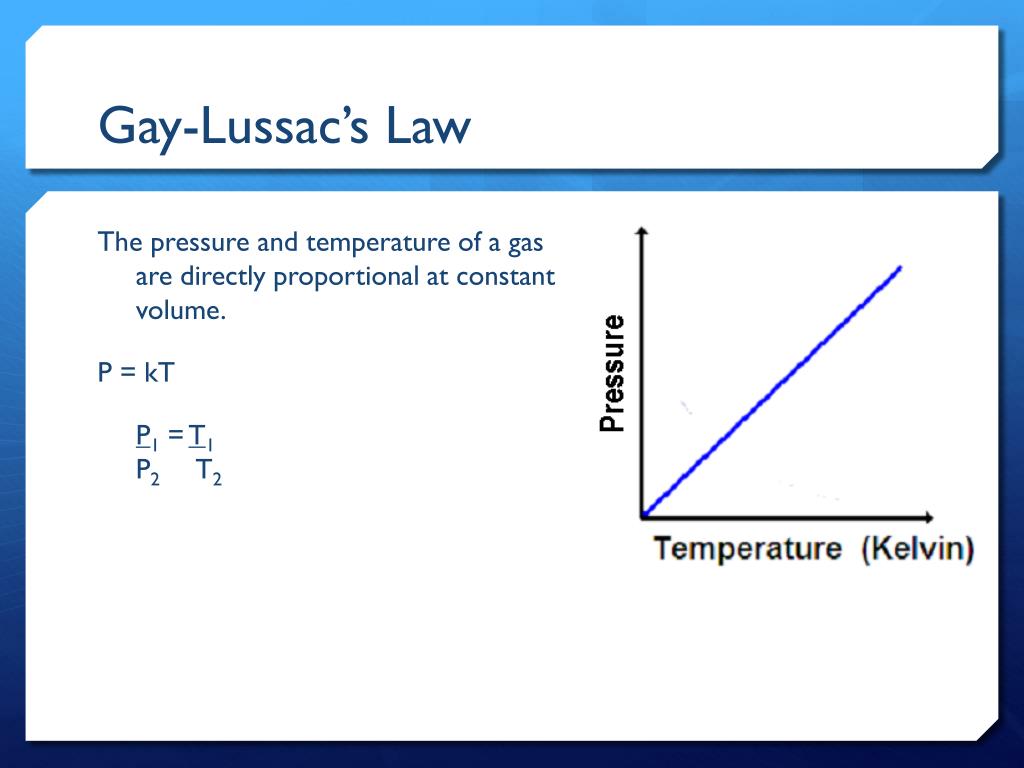

    Gay-Lussac’s Law

    The pressure and temperature of a gas are directly proportional at constant volume.

    P = kT

    P1 = T1

    P2 T2


    Boyle s law

    Boyle’s Law

    Boyle’s Law: pressure and volume of a gas are inversely proportional at constant temperature.

    PV = constant.

    P1V1 = P2V2


    Boyle s law1

    Boyle’s Law


    Combined gas law

    Combined gas law

    V ∝ 1/p (at constant T)

    V ∝ T(at constant p)

    combine to give

    V ∝ T/p or

    pV∝ T


    Avogadro s law

    Avogadro’s Law

    Equal volumes of a gas under the same temperature and pressure contain the same number of particles.

    At constant T and p

    V ∝ n


    Universal gas constant

    Universal Gas Constant

    pV = constant, R

    nT

    universal gas constant , R= 8.31 Jmol-1K-1

    (units also dm3kPamol-1K-1)


    Universal gas equation

    Universal Gas Equation

    pV = nRT

    Where p = pressure

    V = volume

    T = Kelvin Temperature

    n = number of mole

    R = 8.31 J mol-1 K-1

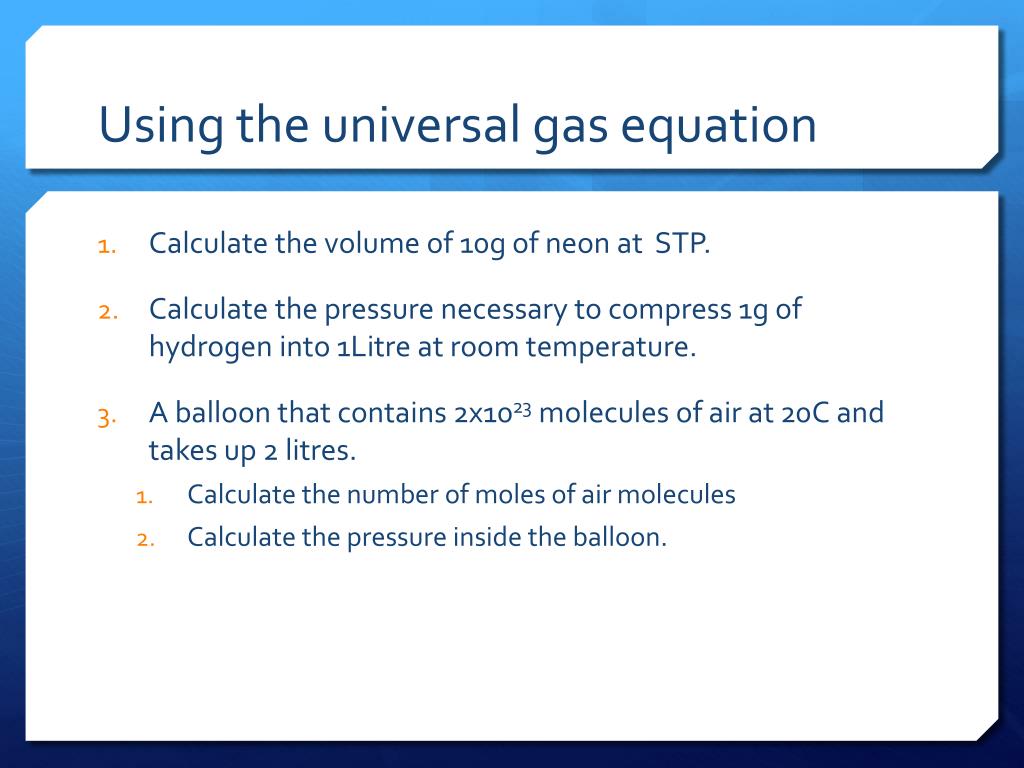

    Using the universal gas equation

    Using the universal gas equation

    • Calculate the volume of 10g of neon at STP.

    • Calculate the pressure necessary to compress 1g of hydrogen into 1Litre at room temperature.

    • A balloon that contains 2x1023 molecules of air at 20C and takes up 2 litres.

      • Calculate the number of moles of air molecules

      • Calculate the pressure inside the balloon.

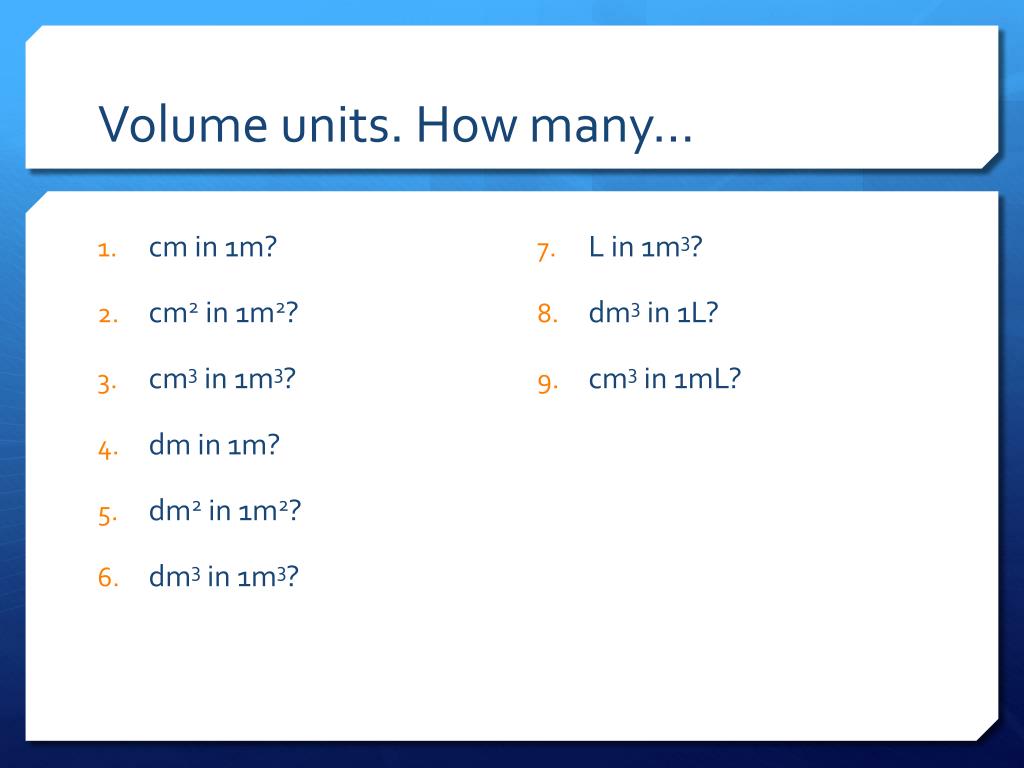

    Volume units how many

    Volume units. How many…

    • cm in 1m?

    • cm2 in 1m2?

    • cm3 in 1m3?

    • dm in 1m?

    • dm2in 1m2?

    • dm3in 1m3?

    • L in 1m3?

    • dm3 in 1L?

    • cm3 in 1mL?


    Calculate the volume of 1 mole of gas at stp

    Calculate the volume of 1 mole of gas at STP

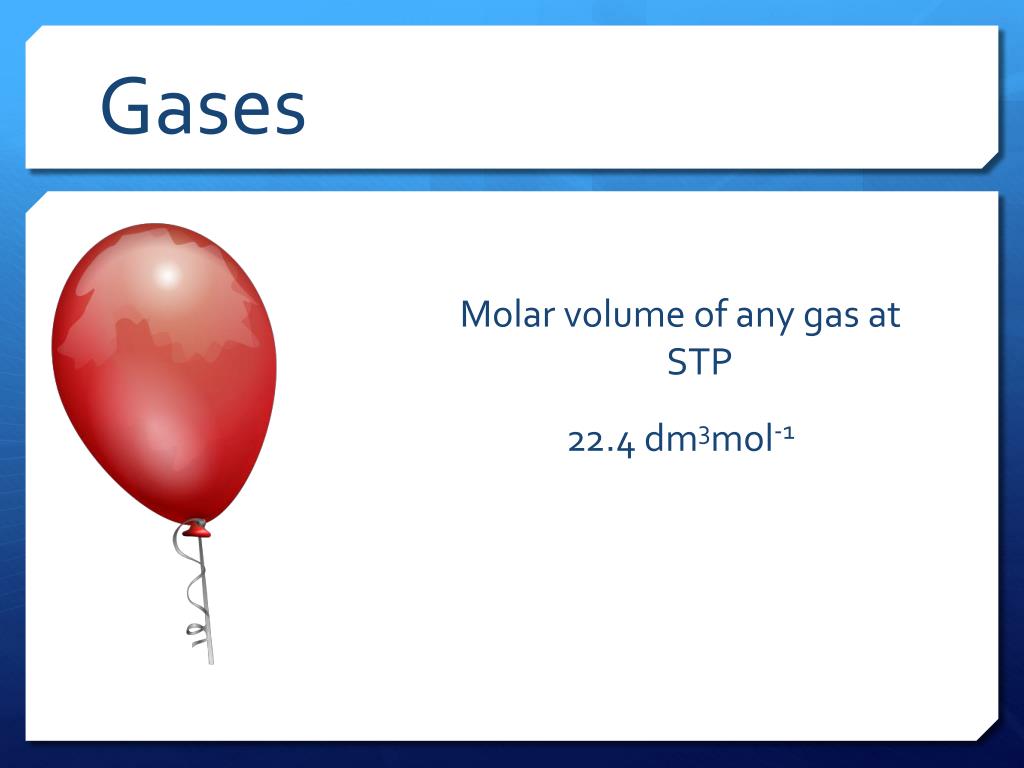

    Gases

    Gases

    Molar volume of any gas at STP

    22.4 dm3mol-1


    Reacting gas volumes

    Reacting gas volumes

    For a gas at a constant temperature and pressure

    the volume is proportional to the number of moles.

    mole ratio  volume ratio


    Calculate the volume of oxygen that reacts with 2 dm 3 of hydrogen gas const p v

    Calculate the volume of oxygen that reacts with 2 dm3 of Hydrogen gas. (const. p & V)

    2 H2(g) + O2(g) 2 H2O(g)

    2dm3 ? ?


    Under other conditions use pv nrt

    Under other conditions use pV=nRT

    • Balanced Equation

    • Table

    • Fill in known and ?

    • Calculate


    6 0 g carbon burns in oxygen give the volume of formed carbon dioxide at 400k and 1 atm

    6.0 g Carbon burns in Oxygen. Give the volume of formed Carbon dioxide at 400K and 1 Atm.

    C + O2  CO2

    m 6.0(g)

    M12(gmol-1)

    n 0.50(mol)

    Image: http://commons.wikimedia.org/wiki/File:Coal_anthracite.jpg


    Pv nrt

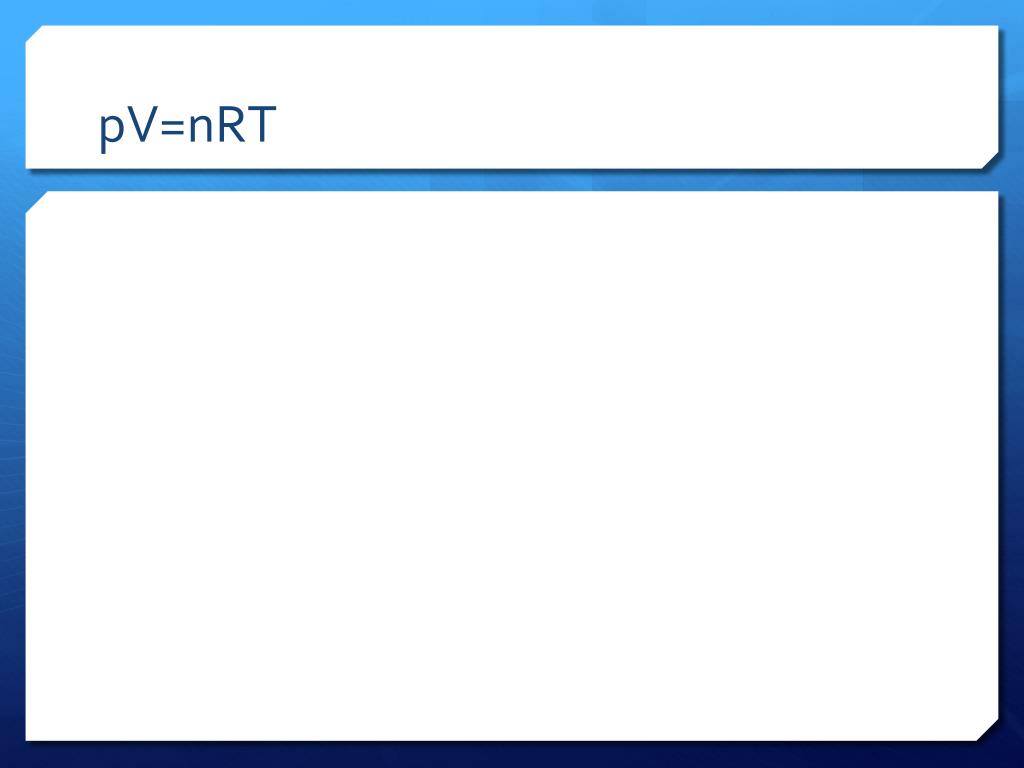

    pV=nRT


    Solutions

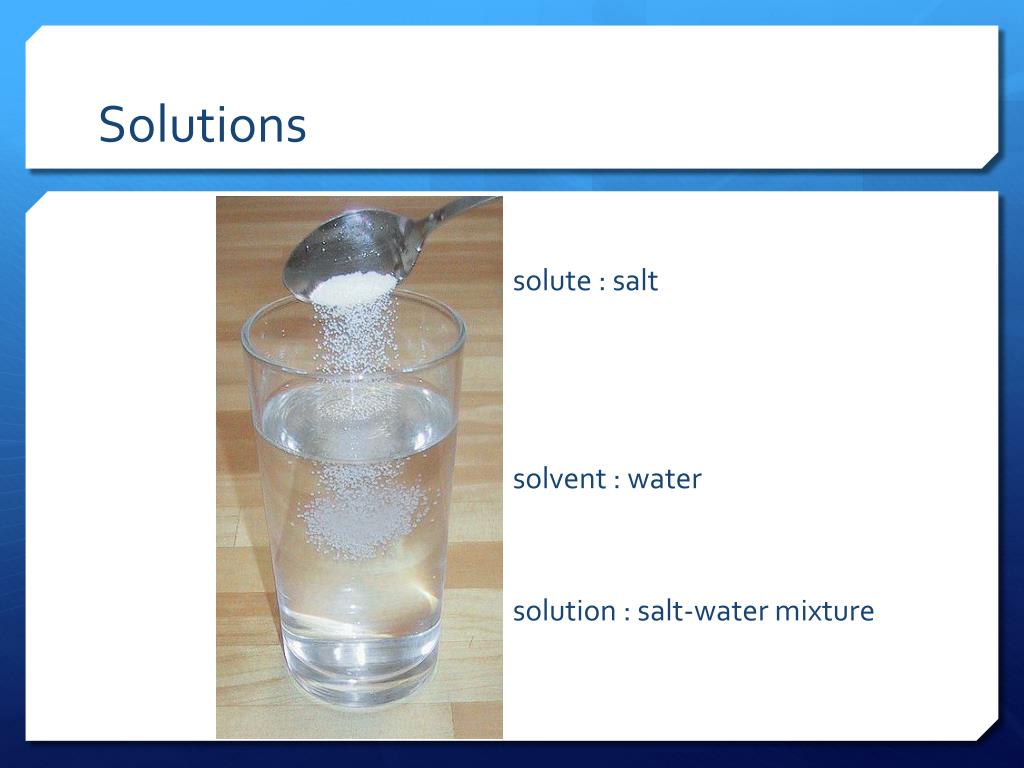

    Solutions

    solute : salt

    solvent : water

    solution : salt-water mixture


    Concentration

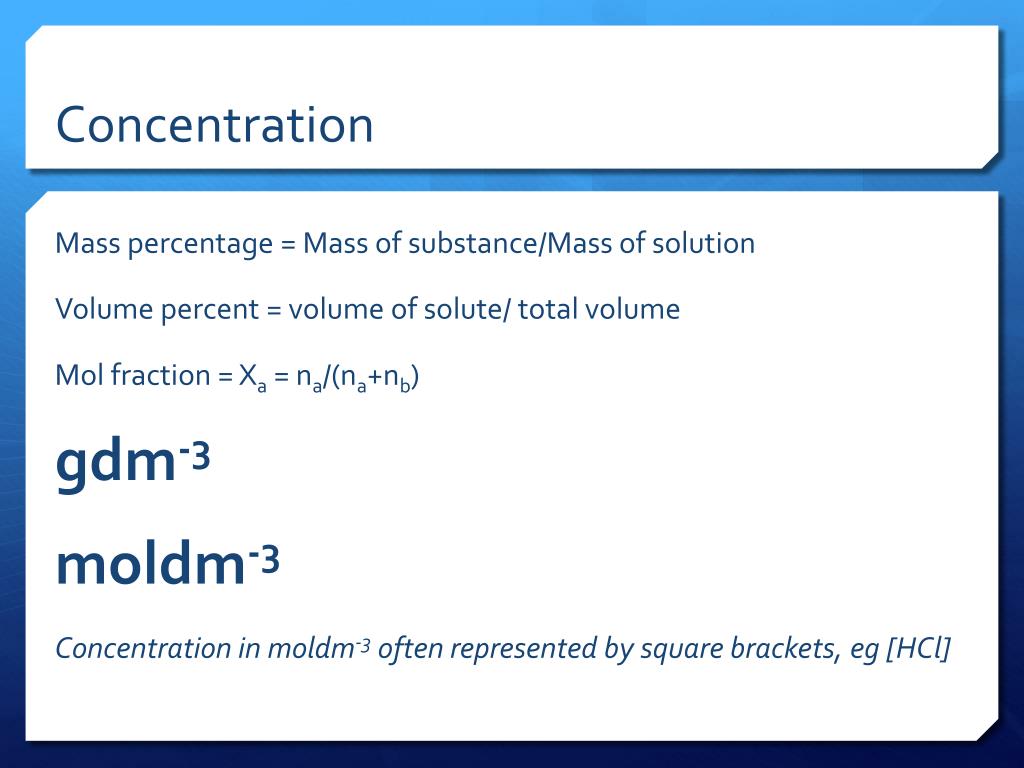

    Concentration

    Mass percentage = Mass of substance/Mass of solution

    Volume percent = volume of solute/ total volume

    Mol fraction = Xa = na/(na+nb)

    gdm-3

    moldm-3

    Concentration in moldm-3 often represented by square brackets, eg [HCl]


    Concentration in gdm 3

    Concentration in gdm-3

    concentration = mass

    volume


    Solubility

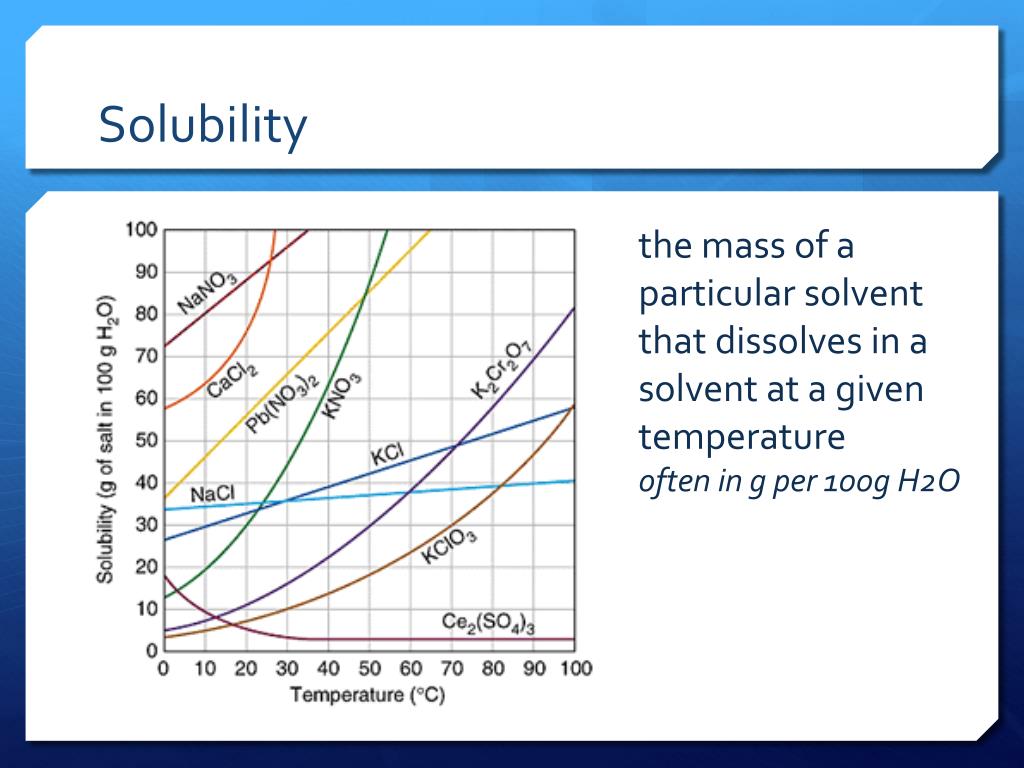

    Solubility

    the mass of a particular solvent that dissolves in a solvent at a given temperature

    often in g per 100g H2O


    Calculate the mass of salt needed for a concentration of 10gdm 3 in 50cm 3

    Calculate the mass of salt needed for a concentration of 10gdm-3 in 50cm3


    Concentration in moldm 3 molarity

    Concentration in moldm-3 (molarity)

    concentration = number of moles

    volume

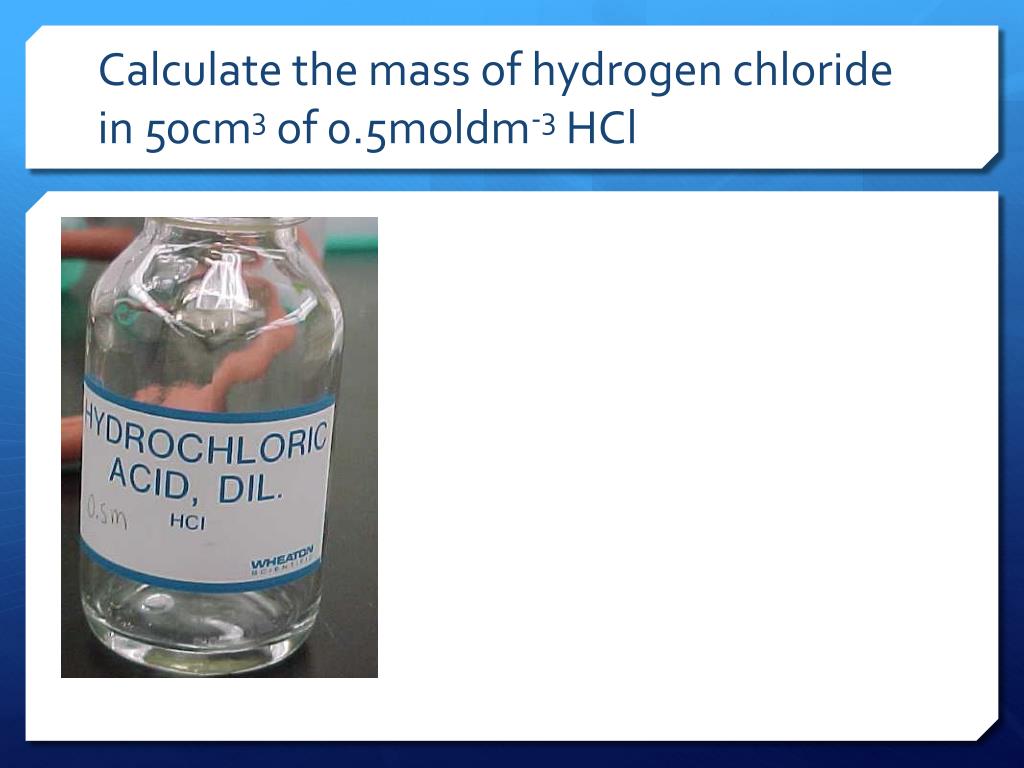

    Calculate the mass of hydrogen chloride in 50cm 3 of 0 5moldm 3 hcl

    Calculate the mass of hydrogen chloride in 50cm3 of 0.5moldm-3HCl


    Comparing concentrations which is the most concentrated convert to moldm 3

    Comparing concentrations: which is the most concentrated- convert to moldm-3

    10g of copper sulfate in 25cm3 of water

    5g of copper sulfate in 10cm3 of water

    0.1mol of copper sulfate in 15cm3 of water

    0.01mol of copper sulfate in 5cm3 of water
