Integrating with services

Integrating with Services

  • Up to this point, we’ve focused on reading from external sources…

  • Writing:

    • Get better functionality than you can write

      • Flickr, google maps, &c

    • Get access to better (more?) audience

      • Facebook, Tumblr, &c

      • Lots of business examples


Business examples

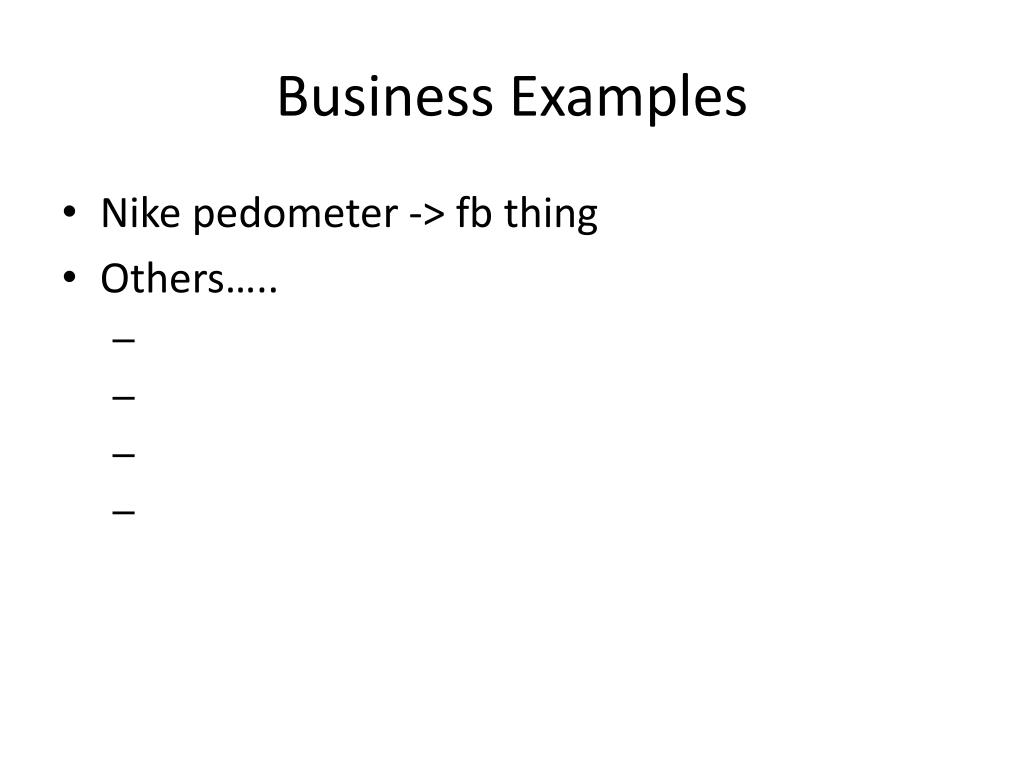

Business Examples

  • Nike pedometer -> fb thing

  • Others…..


Integrating with services

Auth

  • Pass username/password of end user

    • What’s bad about this idea?

  • One time (session) key

  • Permanent service-to-service key

    • User creates a key at the 3rd party service which it shares with both the local and remote service.


Tumblr post i

Tumblr: Post I

// Authorization info

$tumblr_email = [email protected]';

$tumblr_password = 'secret';

// Data for new record

$post_type = 'regular';

$post_title = 'The post title';

$post_body = 'This is the body of the post.';

// Prepare POST request

$request_data = http_build_query( array( 'email' => $tumblr_email, 'password' => $tumblr_password, 'type' => $post_type, 'title' => $post_title, 'body' => $post_body, 'generator' => 'API example' ) );


Tumblr post ii

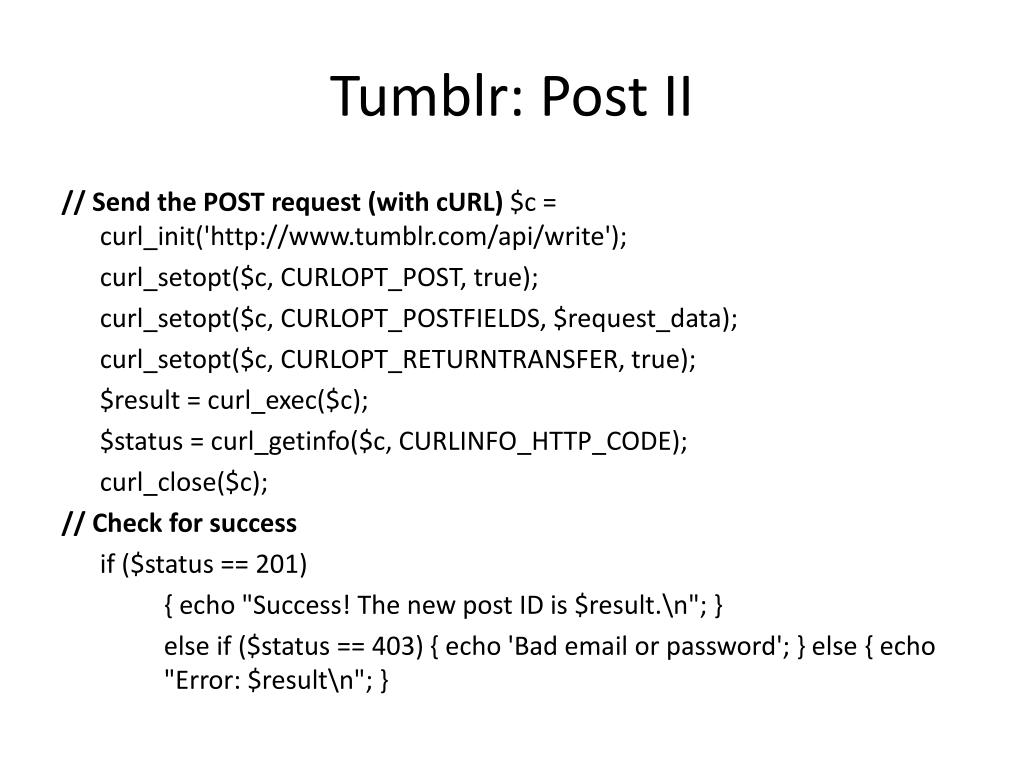

Tumblr: Post II

// Send the POST request (with cURL) $c = curl_init('http://www.tumblr.com/api/write');

curl_setopt($c, CURLOPT_POST, true);

curl_setopt($c, CURLOPT_POSTFIELDS, $request_data);

curl_setopt($c, CURLOPT_RETURNTRANSFER, true);

$result = curl_exec($c);

$status = curl_getinfo($c, CURLINFO_HTTP_CODE);

curl_close($c);

// Check for success

if ($status == 201)

{ echo "Success! The new post ID is $result.\n"; }

else if ($status == 403) { echo 'Bad email or password'; } else { echo "Error: $result\n"; }


Tumblr api

Tumblr API

http://www.tumblr.com/docs/en/api


Flickr example auth

Flickr Example: Auth

Our web based app has the api key '1234567890'. It has already registered a callback url for this key - 'http://viewr.com/auth.php'.

  • User visits http://viewr.com/ and clicks on the 'login' link.

  • This link points to http://flickr.com/services/auth/?api_key=1234567890&perms=read&api_sig=2f3870be274f6c49b3e31a0c6728957f.

  • The user is already logged in to flickr - they are asked if they wish to allow the application to have 'read' permissions to their photos.

  • The user clicks 'yes' and flickr updates it's auth database.

  • The user is redirected to http://viewr.com/auth.php?frob=abcxyz.

  • The app makes a background call to flickr.auth.getToken: http://flickr.com/services/rest/?method=flickr.auth.getToken&api_key=1234567890&frob=abcxyz&api_sig=3f3870be274f6c49b3e31a0c6728957f.

  • The call returns an auth token '334455'.

  • The application stores the auth token and creates a session for the user with a cookie which points to the user's auth token.

  • The application makes a background request to the flickr.people.getInfo to return information about the user, by calling http://flickr.com/services/rest/?method=flickr.people.getInfo&api_key=1234567890&auth_token=334455&api_sig=4f3870be274f6c49b3e31a0c6728957f.


Flickr upload

Flickr: Upload

POST to http://api.flickr.com/services/upload/

  • Arguments

    • photo The file to upload.

    • title (optional) The title of the photo.

    • Description (optional) A description of the photo. May contain some limited HTML.

    • tags (optional) A space-seperated list of tags to apply to the photo.

    • is_public, is_friend, is_family (optional) Set to 0 for no, 1 for yes. Specifies who can view the photo.

    • safety_level (optional) Set to 1 for Safe, 2 for Moderate, or 3 for Restricted.

    • content_type (optional) Set to 1 for Photo, 2 for Screenshot, or 3 for Other.

    • hidden (optional) Set to 1 to keep the photo in global search results, 2 to hide from public searches.


Flickr documentation

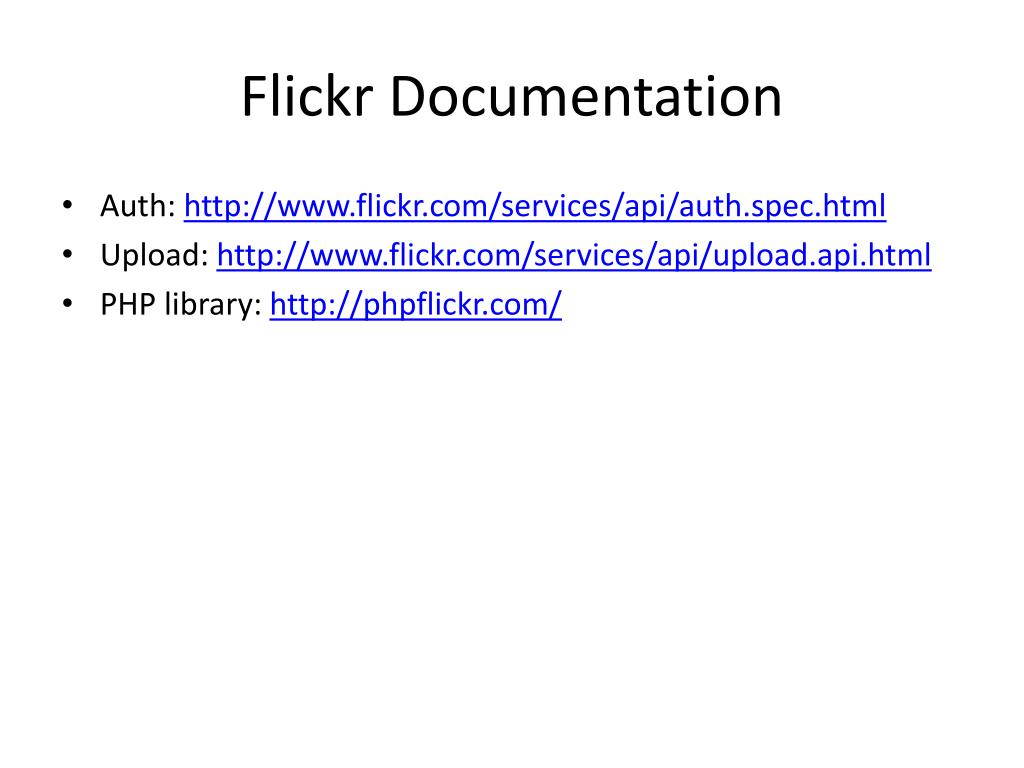

Flickr Documentation

  • Auth: http://www.flickr.com/services/api/auth.spec.html

  • Upload: http://www.flickr.com/services/api/upload.api.html

  • PHP library: http://phpflickr.com/


Good apis are complex

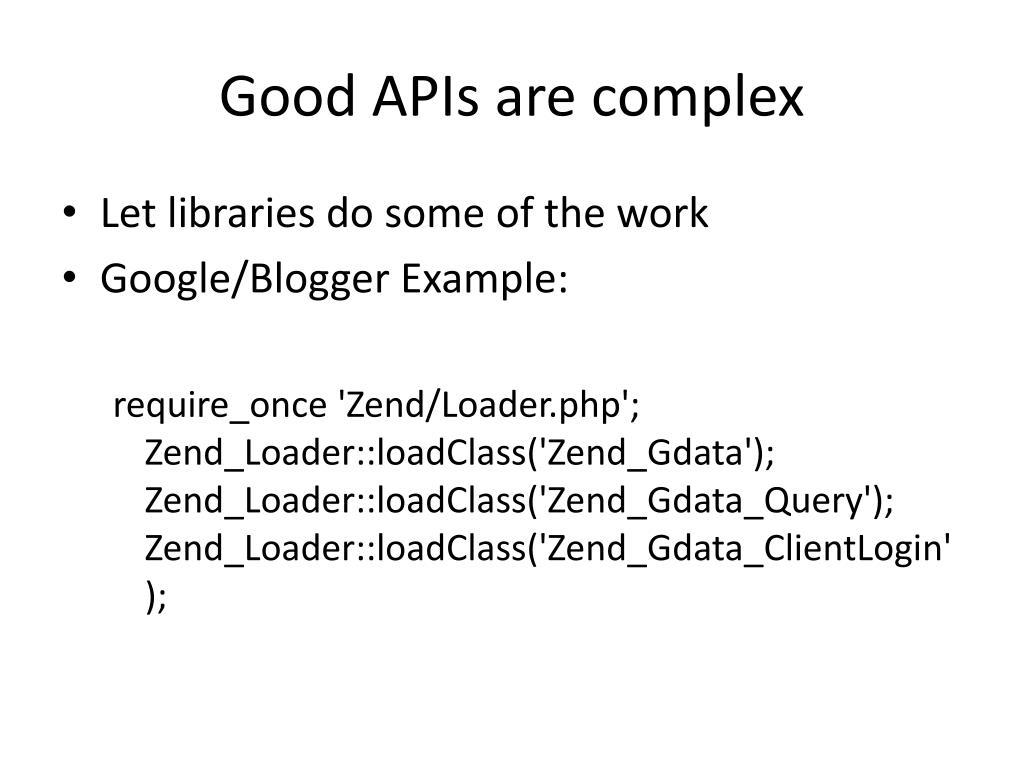

Good APIs are complex

  • Let libraries do some of the work

  • Google/Blogger Example:

    require_once 'Zend/Loader.php'; Zend_Loader::loadClass('Zend_Gdata'); Zend_Loader::loadClass('Zend_Gdata_Query'); Zend_Loader::loadClass('Zend_Gdata_ClientLogin');


More google w library

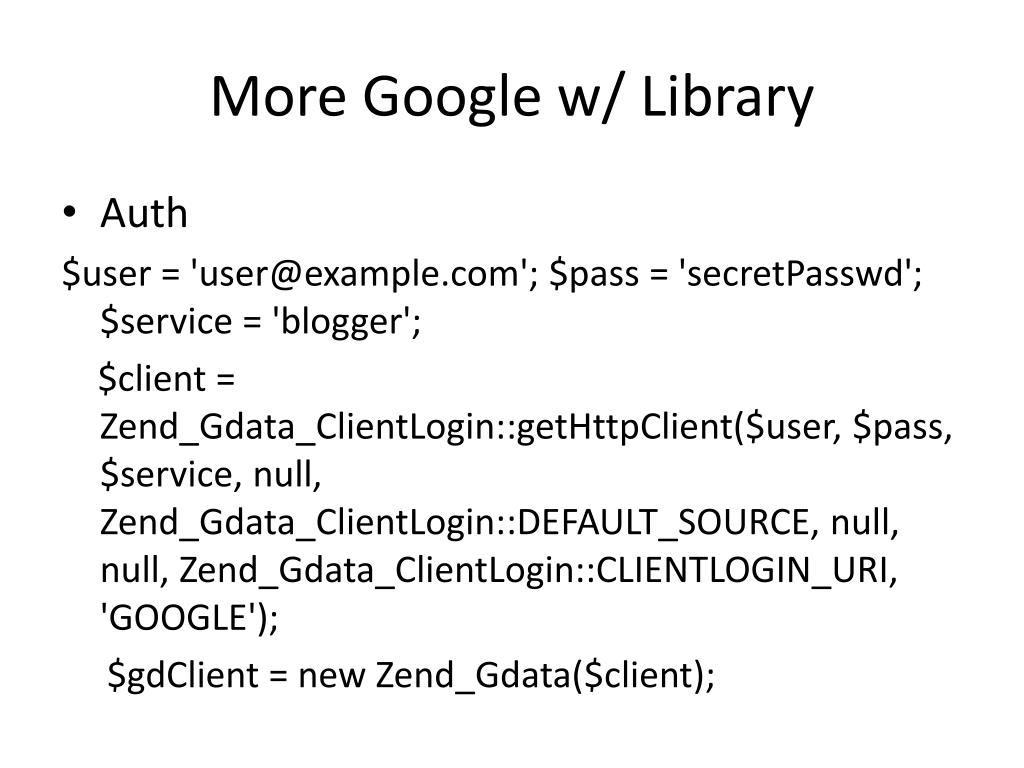

More Google w/ Library

  • Auth

    $user = [email protected]'; $pass = 'secretPasswd'; $service = 'blogger';

    $client = Zend_Gdata_ClientLogin::getHttpClient($user, $pass, $service, null, Zend_Gdata_ClientLogin::DEFAULT_SOURCE, null, null, Zend_Gdata_ClientLogin::CLIENTLOGIN_URI, 'GOOGLE');

    $gdClient = new Zend_Gdata($client);


More google w library1

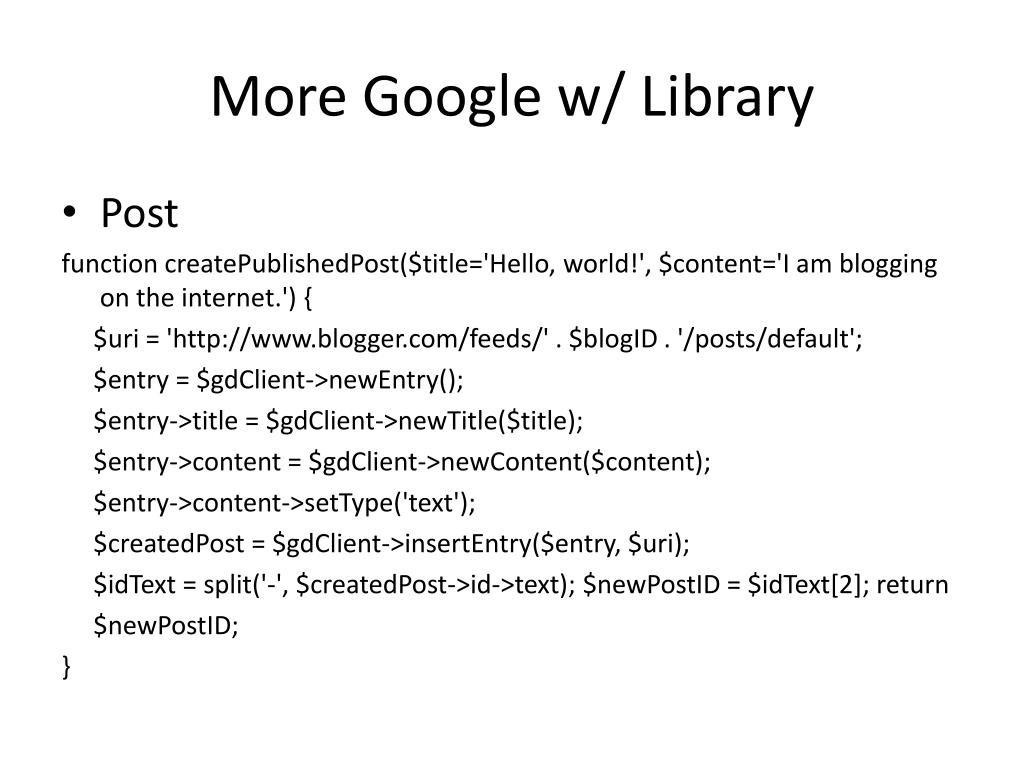

More Google w/ Library

  • Post

    function createPublishedPost($title='Hello, world!', $content='I am blogging on the internet.') {

    $uri = 'http://www.blogger.com/feeds/' . $blogID . '/posts/default';

    $entry = $gdClient->newEntry();

    $entry->title = $gdClient->newTitle($title);

    $entry->content = $gdClient->newContent($content);

    $entry->content->setType('text');

    $createdPost = $gdClient->insertEntry($entry, $uri);

    $idText = split('-', $createdPost->id->text); $newPostID = $idText[2]; return

    $newPostID;

    }


Google api library

Google API + Library

  • http://code.google.com/apis/blogger/docs/1.0/developers_guide_php.html


Today

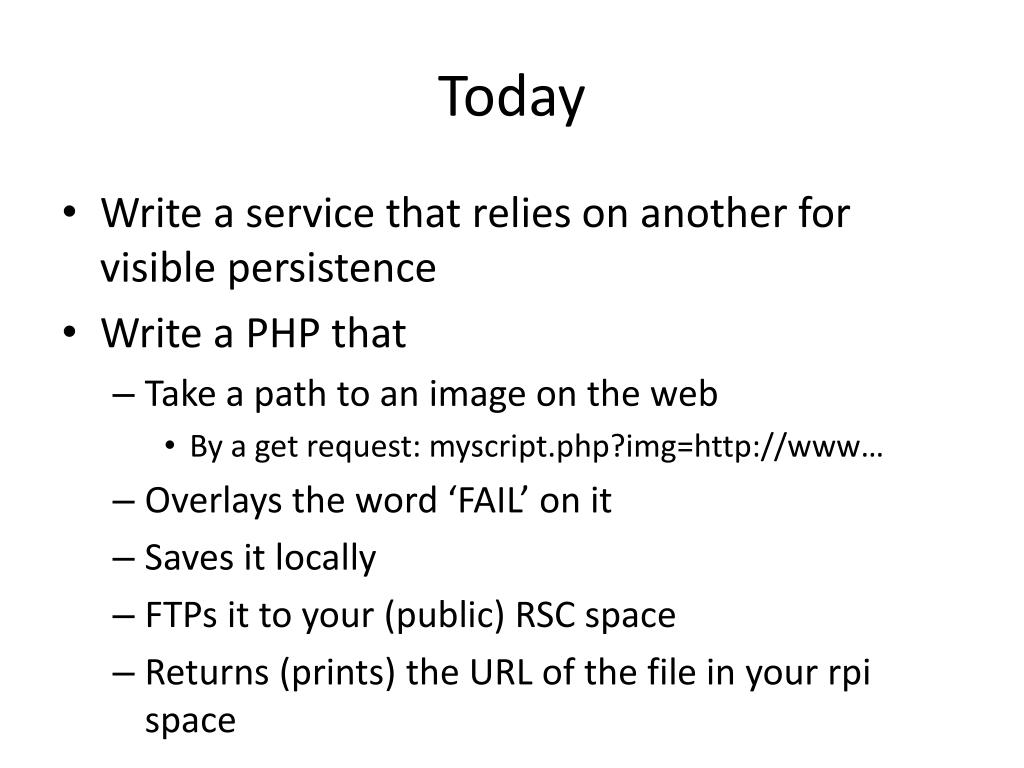

Today

  • Write a service that relies on another for visible persistence

  • Write a PHP that

    • Take a path to an image on the web

      • By a get request: myscript.php?img=http://www…

    • Overlays the word ‘FAIL’ on it

    • Saves it locally

    • FTPs it to your (public) RSC space

    • Returns (prints) the URL of the file in your rpi space


Today1

Today

  • http://php.net/manual/en/function.imagettftext.php

    • Check out ex 1

  • http://www.php.net/manual/en/ftp.examples-basic.php


Integrating with services

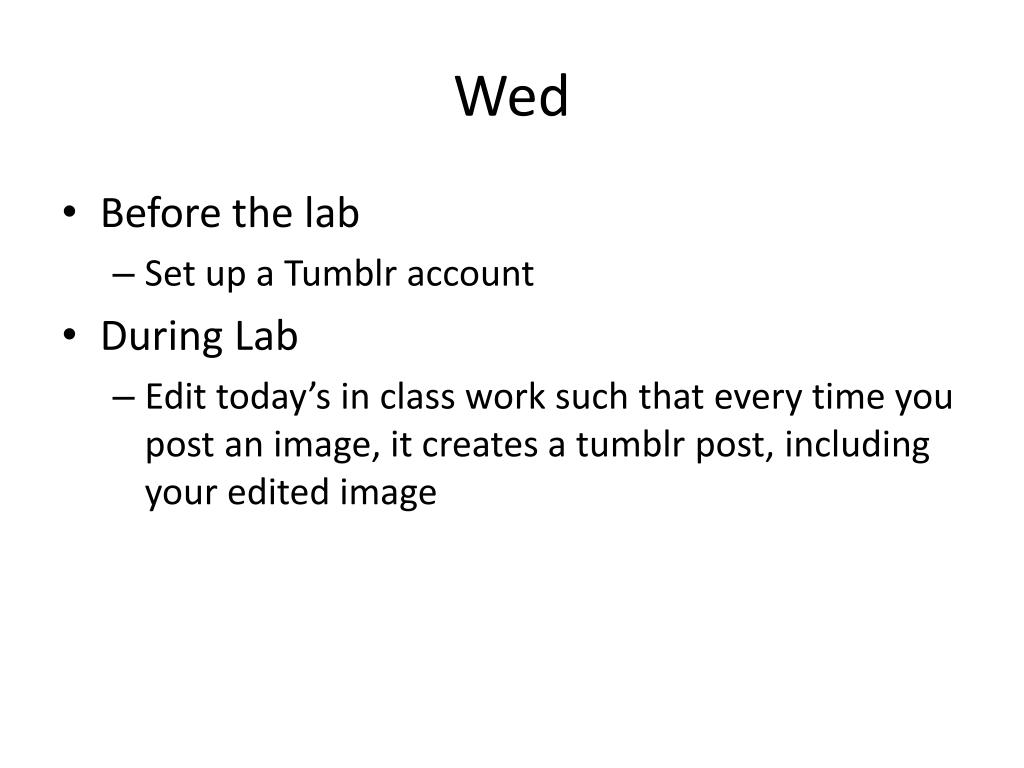

Wed

  • Before the lab

    • Set up a Tumblr account

  • During Lab

    • Edit today’s in class work such that every time you post an image, it creates a tumblr post, including your edited image


Integrating with services

<?php

$homepage = file_get_contents('http://…...’);

file_put_contents("index.html", $homepage);

$file = 'index.html';

$remote_file = 'public_html/index.html';

// set up basic connection

$conn_id = ftp_connect('ftp.rpi.edu');

// login with username and password

$login_result = ftp_login($conn_id, ‘########', ‘###########');

// upload a file

if (ftp_put($conn_id, $remote_file, $file, FTP_ASCII)) {

echo "successfully uploaded $file\n";

} else {

echo "There was a problem while uploading $file\n";

}

// close the connection

ftp_close($conn_id);

?>


  • Login
