Assembly homework 1

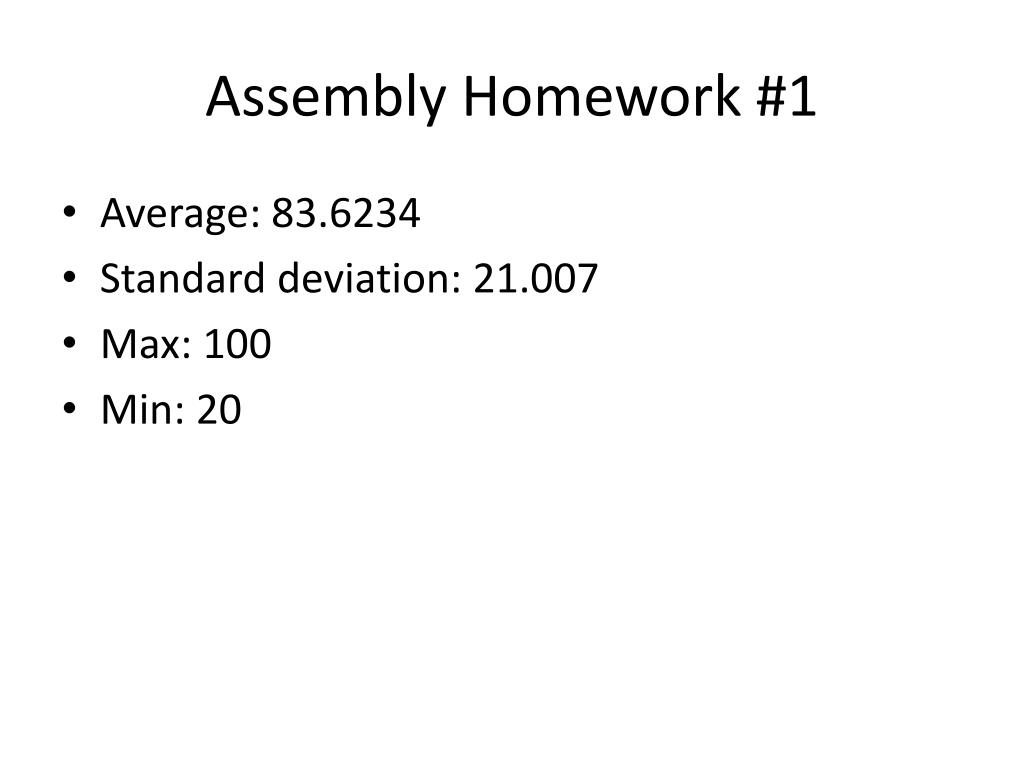

Assembly Homework #1

  • Average: 83.6234

  • Standard deviation: 21.007

  • Max: 100

  • Min: 20


Some notes

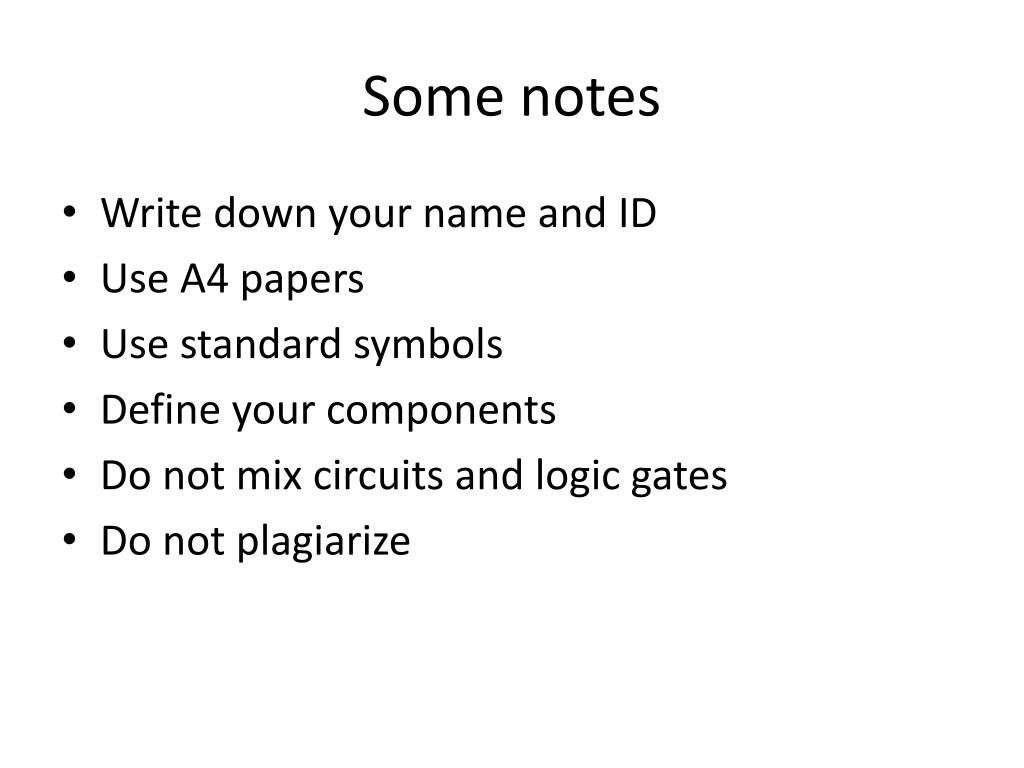

Some notes

  • Write down your name and ID

  • Use A4 papers

  • Use standard symbols

  • Define your components

  • Do not mix circuits and logic gates

  • Do not plagiarize


Problem 5

Problem #5


Assembly homework 1

Idea

  • X = X3X2X1X0, Y = Y3Y2Y1Y0

  • X = Y: (X3=Y3)(X2=Y2)(X1=Y1)(X0=Y0)

  • X > Y: (X3>Y3) + (X3=Y3)(X2>Y2) + (X3=Y3)(X2=Y2) (X1>Y1) + (X3=Y3)(X2=Y2)(X1=Y1)(X0>Y0)

x > y: xy’

x = y: x’y’ + xy

x < y: x’y

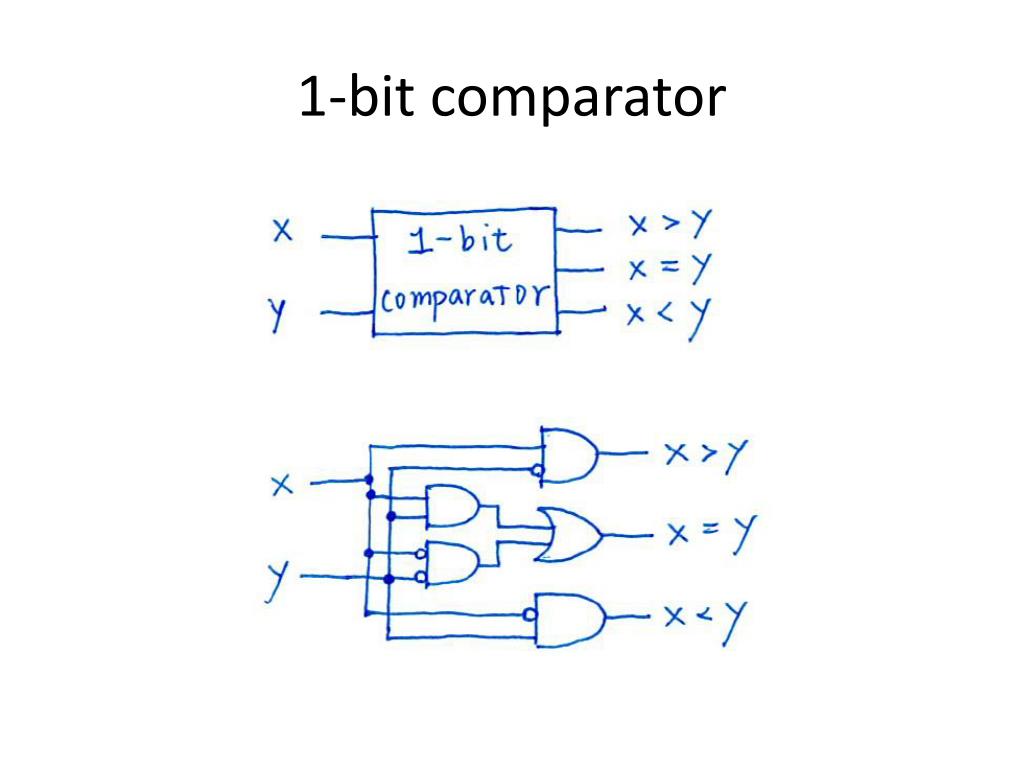

1 bit comparator

1-bit comparator


Assembly homework 1

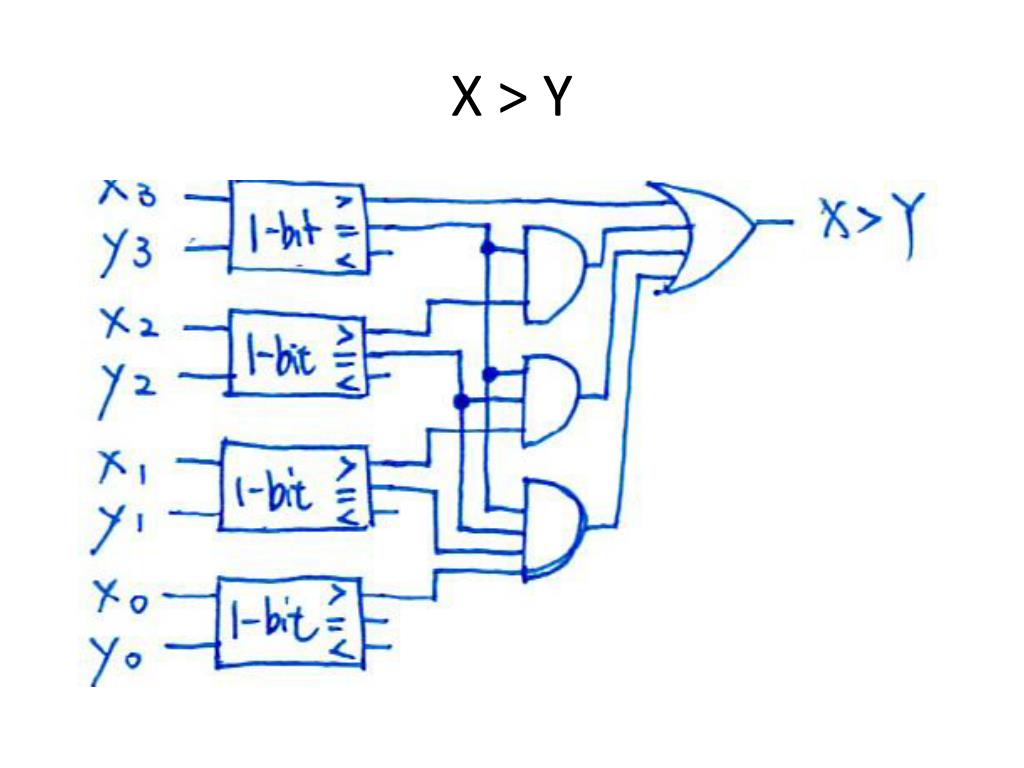

X > Y


Assembly homework 1

X = Y


Assembly homework 1

X < Y


Other solutions

Other solutions

  • More then 2 inputs for 1-bit comparator (control signal, previous results, etc)

  • Using adder/substractor (note: 4-bit is not enough!)


Grading policy

Grading policy

  • 5 points per each components (1-bit comparator, X>Y, X=Y, X<Y)

  • 15–20 points: correct with minor mistakes

  • 10-15 points: correct with many minor mistakes

  • 5-10 points: (maybe) correct major mistakes

  • 0-5 points: I cannot understand it…


Problem 6

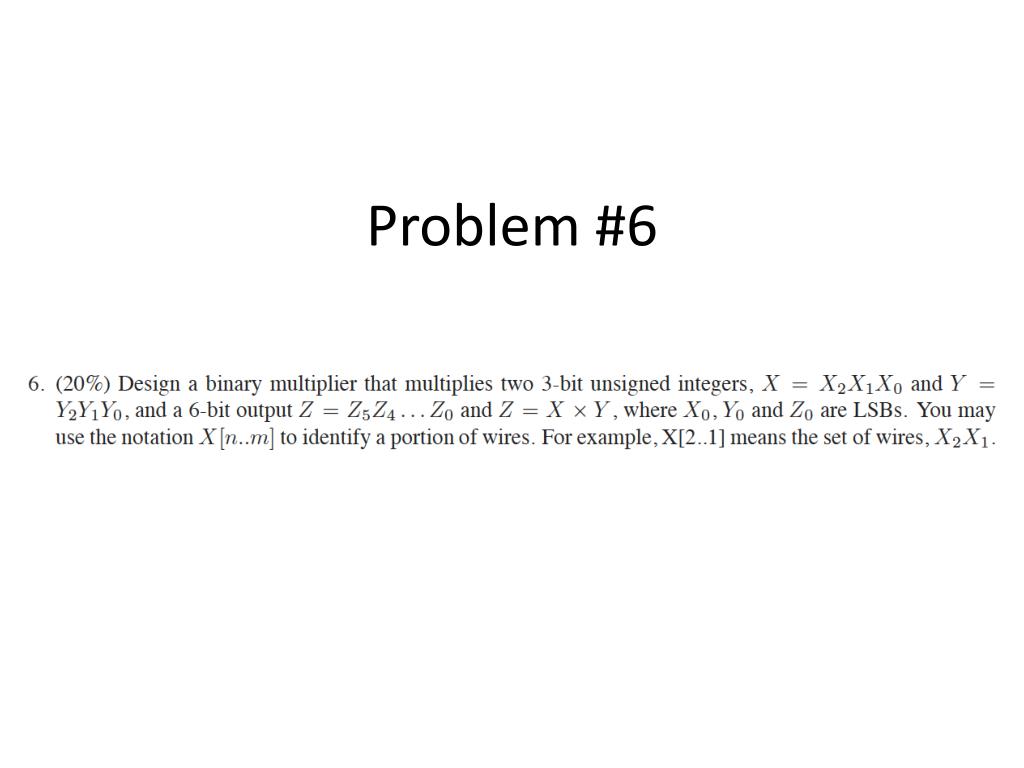

Problem #6


Assembly homework 1

Solution 1

Z2Z1Z0 = X2X1X0 + Y2Y1Y0

cin

X2 X1 X0 Y2 Y1 Y0

X0 ×Y0

Y0

Y1

Y2

3-bit adder

Z0

0

Z0

Z1

Z2

X1 ×Y0

3-bit adder

X0

X1

X2

X2 ×Y0

Z1

X0 ×Y1

cout

X1 ×Y1

0

X2 ×Y1

3-bit adder

Z2

Z3

Z4

X0 ×Y2

X1 ×Y2

X2 ×Y2

Z5


Assembly homework 1

Solution 2

X2 X1 X0 Y2 Y1 Y0

y

X0 ×Y0

Z0

half adder

x

s

X0 ×Y1

X1 ×Y0

half adder

Z1

c

X0 ×Y2

cin

X1 ×Y1

full adder

half adder

Z2

x

full adder

X2 ×Y0

s

y

X2 ×Y1

full adder

half adder

cout

Z3

X1 ×Y2

full adder

Z4

X2 ×Y2

Z5


Grading policy1

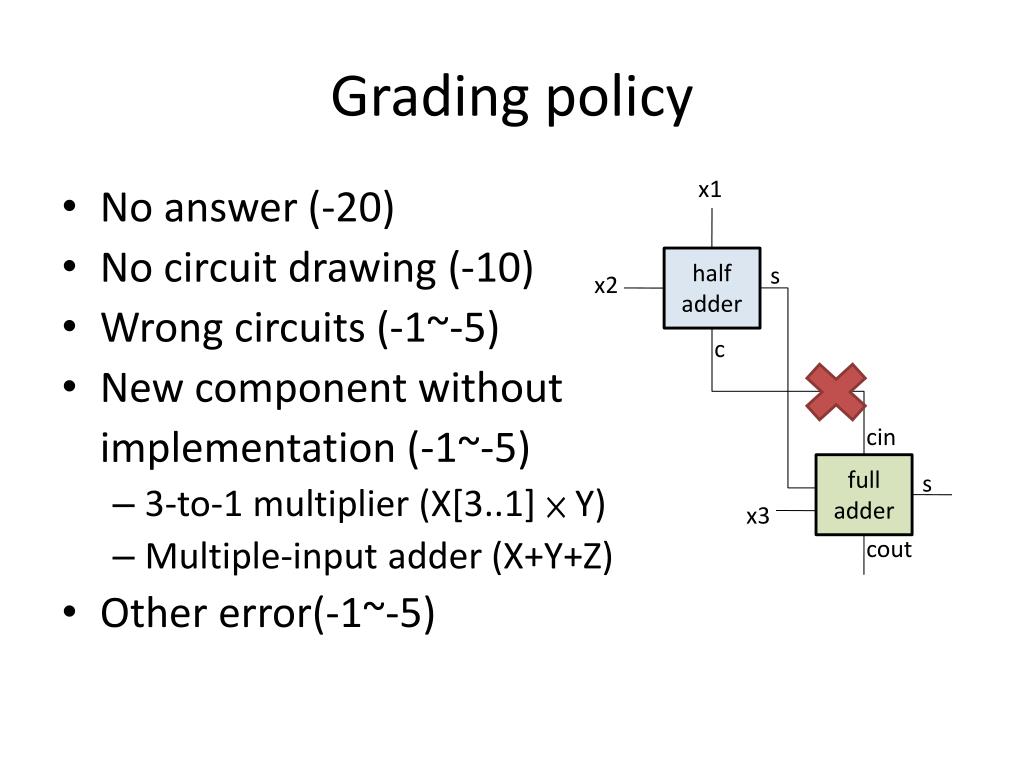

Grading policy

x1

  • No answer(-20)

  • No circuit drawing (-10)

  • Wrong circuits (-1~-5)

  • New component without

    implementation(-1~-5)

    • 3-to-1 multiplier (X[3..1] × Y)

    • Multiple-input adder (X+Y+Z)

  • Other error(-1~-5)

half adder

s

x2

c

cin

full adder

s

x3

cout


Last digit of your id 5 ex b7890201 1 1 5 1

(last digit of your ID) % 5ex: B78902011 => 1%5 = 1
