  1. Matchmaking: A New MapReduce Scheduling Technique Chen He Dr. Ying Lu Dr. David Swanson

  2. Problem Statement • MapReduce cluster scheduling algorithm becomes increasingly important • Efficient MapReduce scheduler must avoid unnecessary data transmission • We will focus on decreasing data transmission in a MapReduce cluster

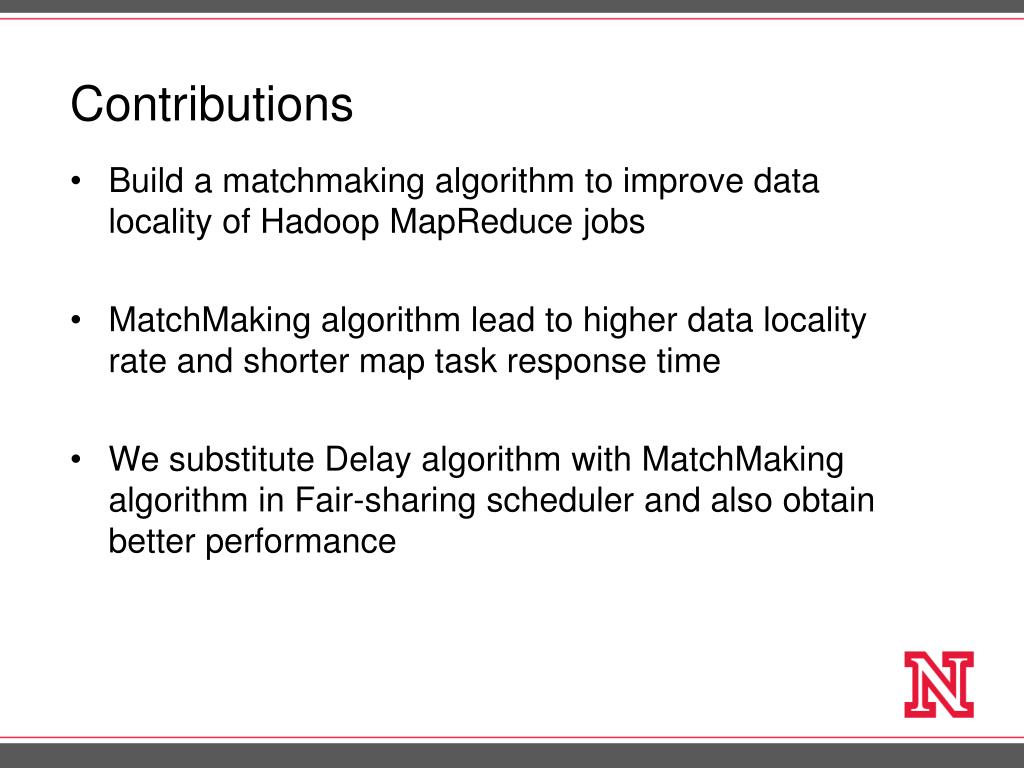

  3. Contributions • Build a matchmaking algorithm to improve data locality of Hadoop MapReduce jobs • MatchMaking algorithm lead to higher data locality rate and shorter map task response time • We substitute Delay algorithm with MatchMaking algorithm in Fair-sharing scheduler and also obtain better performance

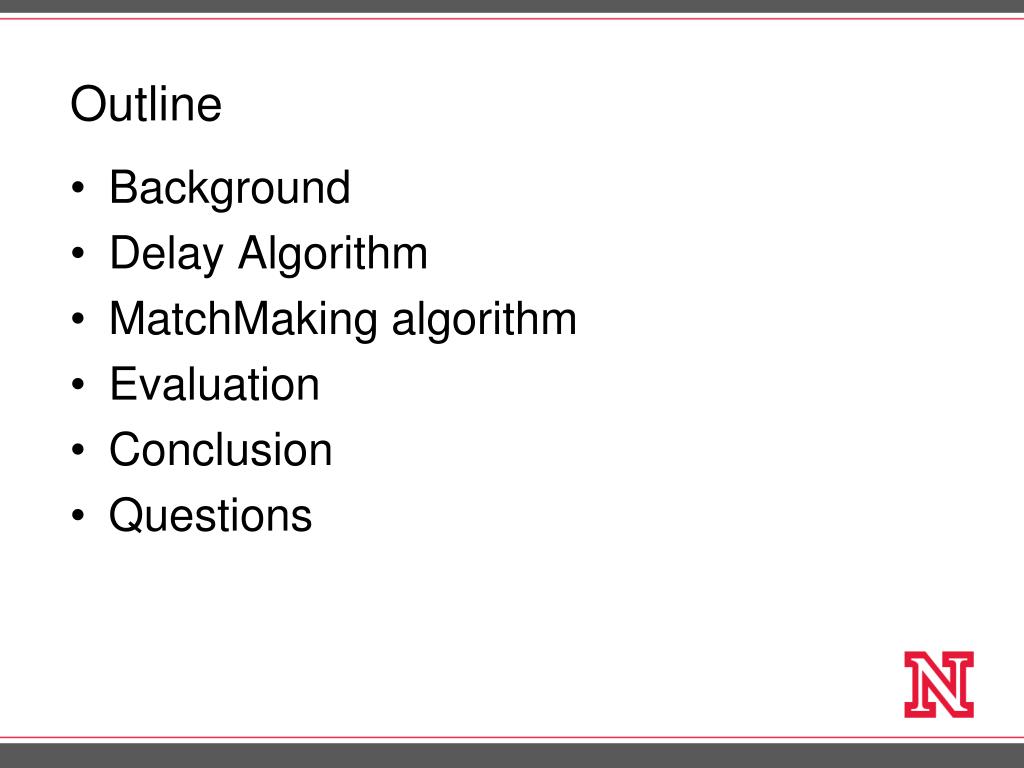

  4. Outline • Background • Delay Algorithm • MatchMaking algorithm • Evaluation • Conclusion • Questions

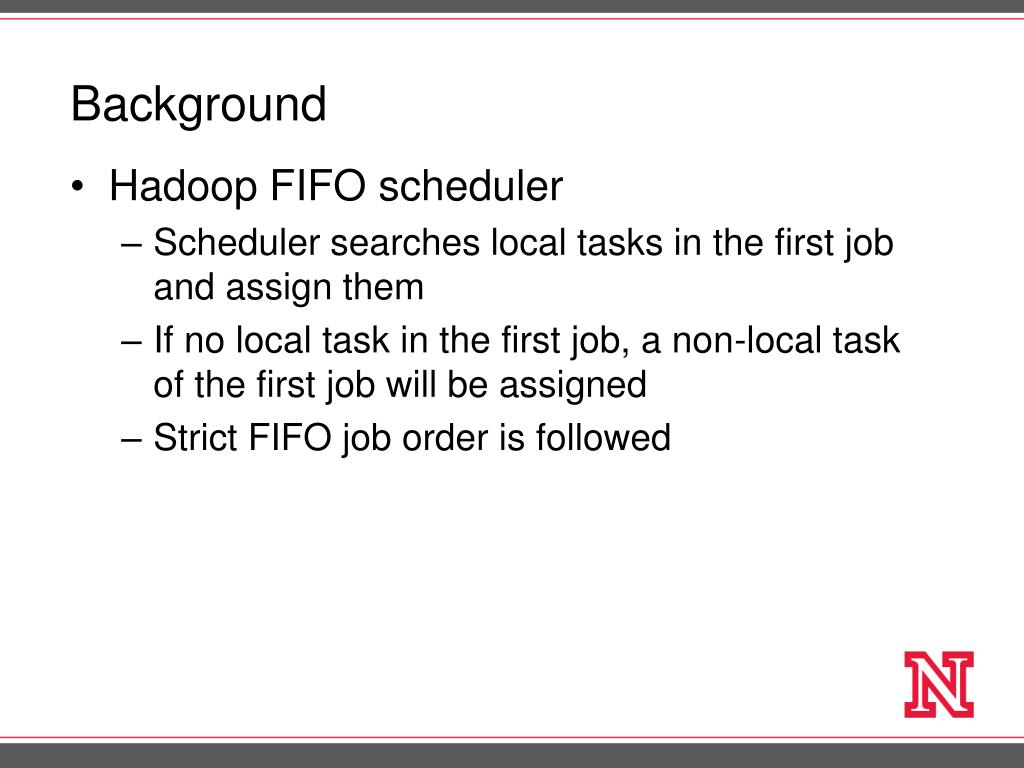

  5. Background • Hadoop FIFO scheduler • Scheduler searches local tasks in the first job and assign them • If no local task in the first job, a non-local task of the first job will be assigned • Strict FIFO job order is followed

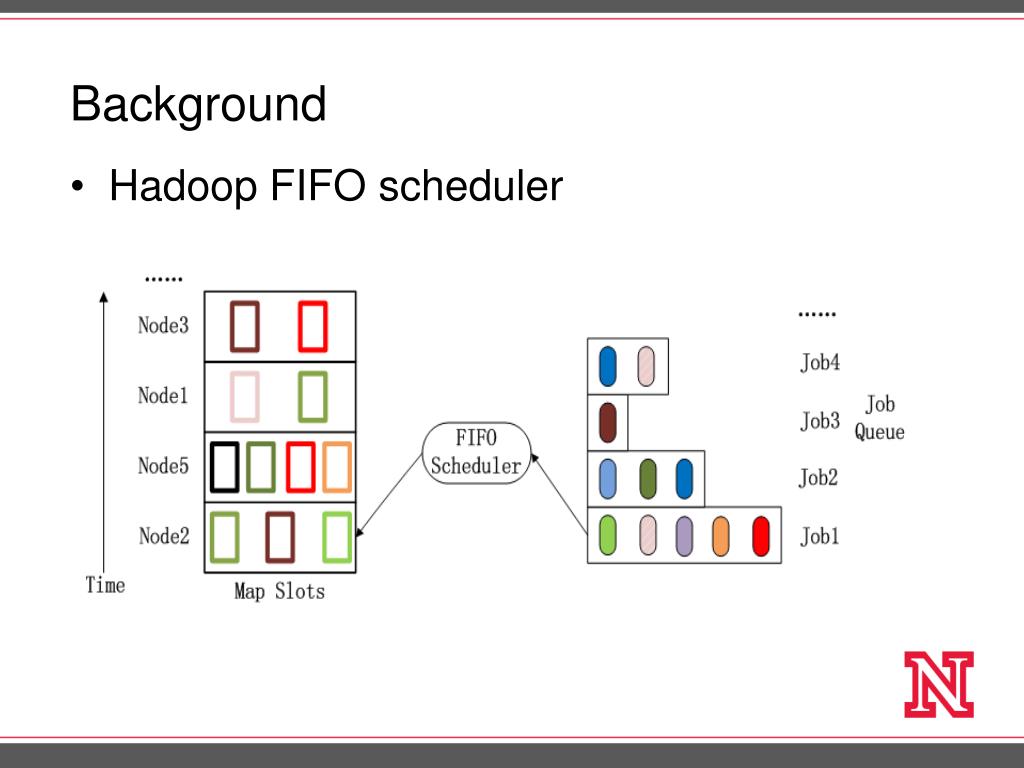

  6. Background • Hadoop FIFO scheduler

  7. Background • Hadoop FIFO scheduler

  8. Background • Hadoop FIFO scheduler

  9. Background • Hadoop FIFO scheduler

  10. Background • Hadoop FIFO scheduler

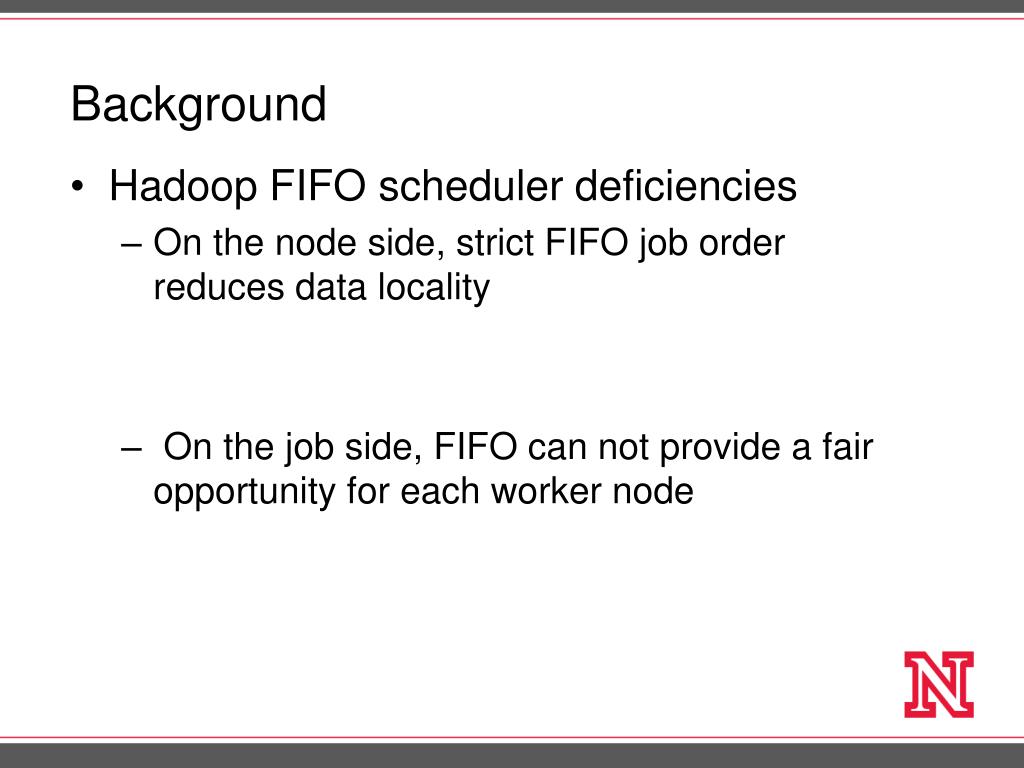

  11. Background • Hadoop FIFO scheduler deficiencies • On the node side, strict FIFO job order reduces data locality • On the job side, FIFO can not provide a fair opportunity for each worker node

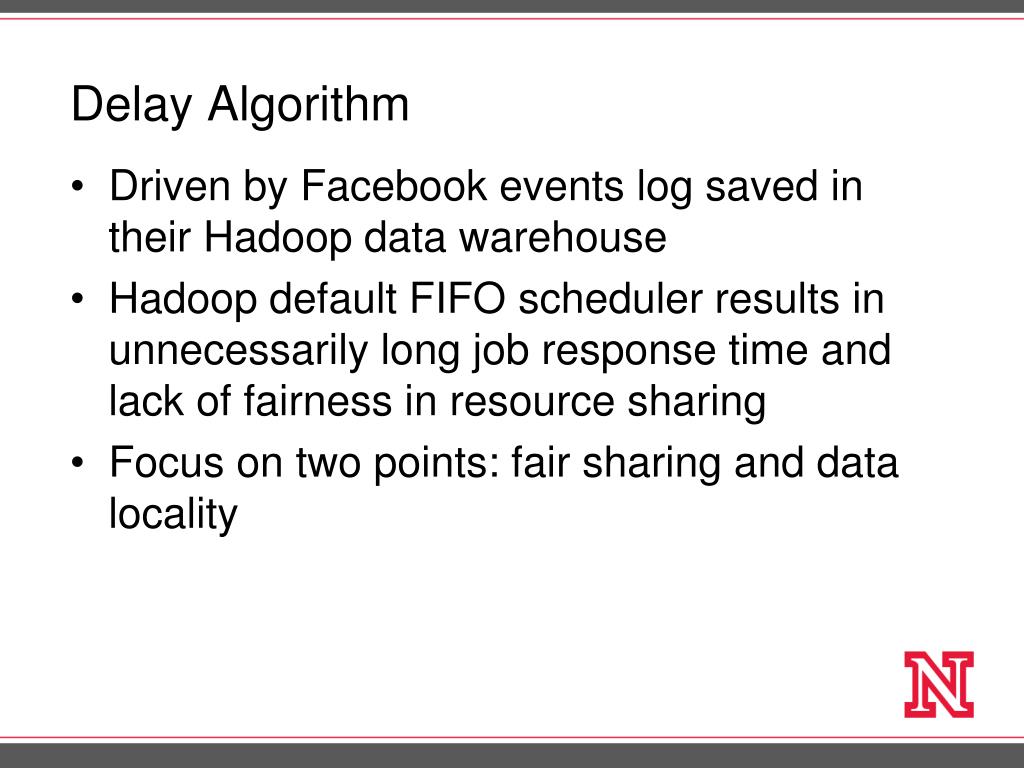

  12. Delay Algorithm • Driven by Facebook events log saved in their Hadoop data warehouse • Hadoop default FIFO scheduler results in unnecessarily long job response time and lack of fairness in resource sharing • Focus on two points: fair sharing and data locality

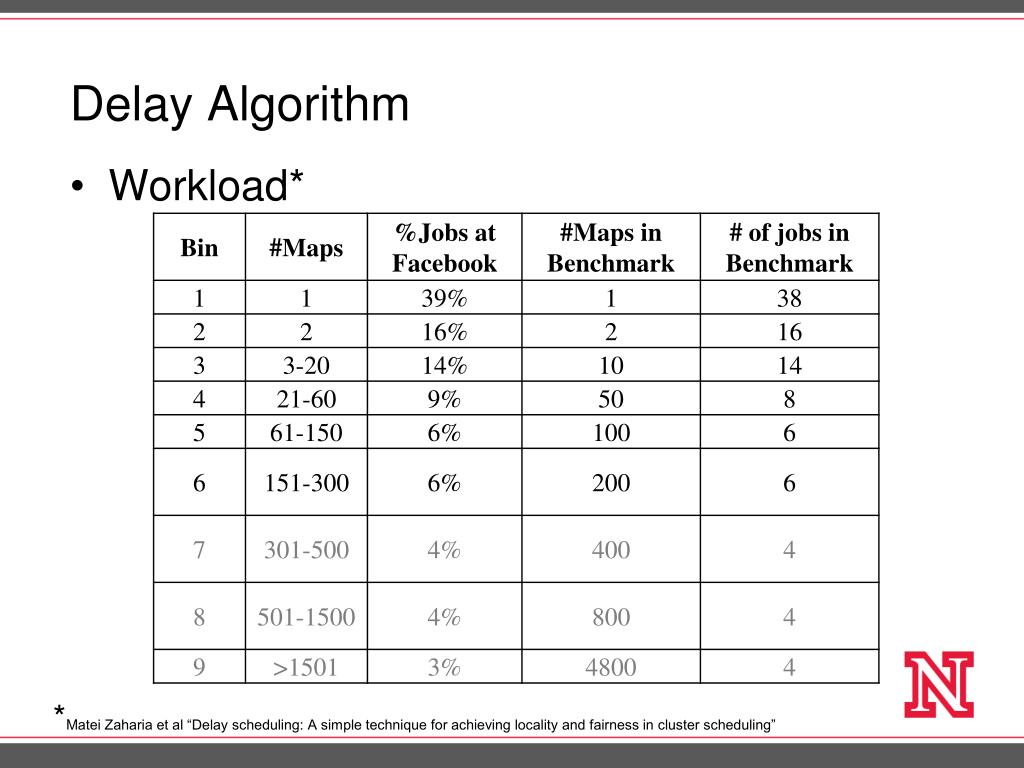

  13. Delay Algorithm • Workload* *Matei Zaharia et al “Delay scheduling: A simple technique for achieving locality and fairness in cluster scheduling”

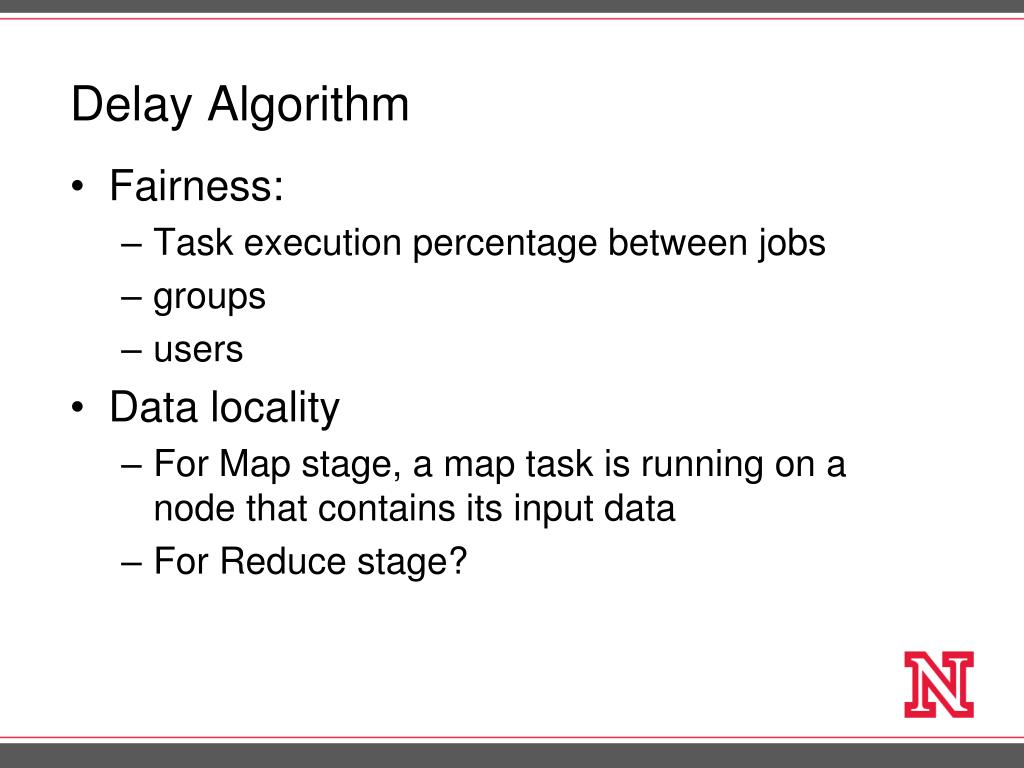

  14. Delay Algorithm • Fairness: • Task execution percentage between jobs • groups • users • Data locality • For Map stage, a map task is running on a node that contains its input data • For Reduce stage?

  15. Delay Scheduling Fairness VS. Data locality

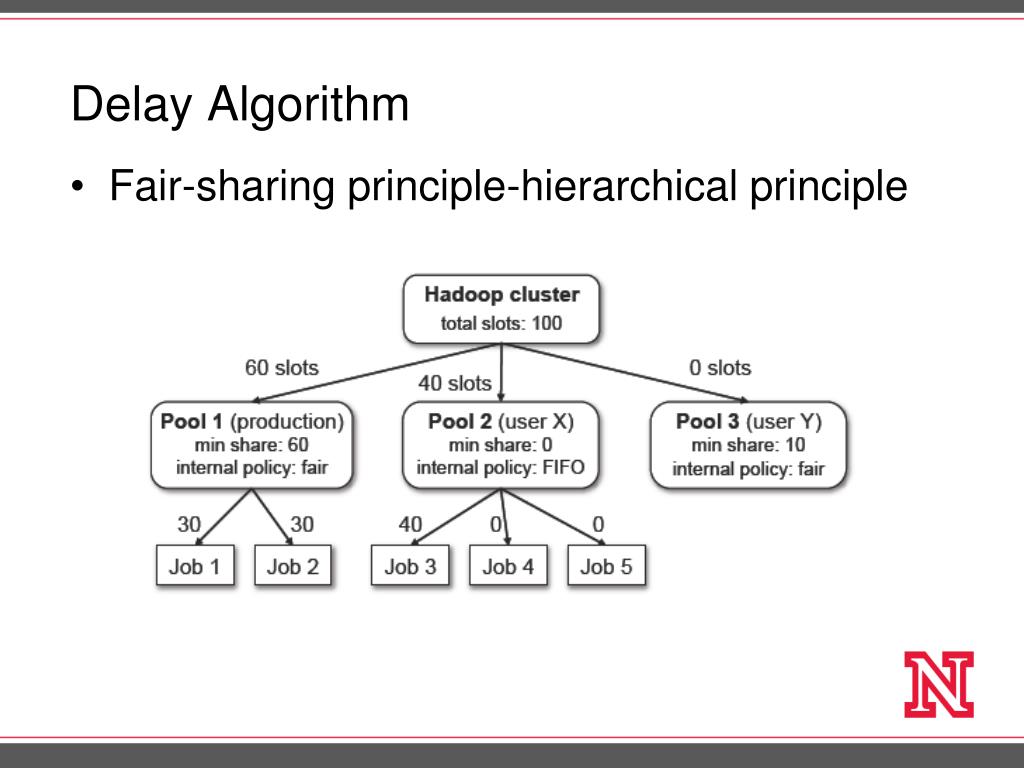

  16. Delay Algorithm • Fair-sharing principle-hierarchical principle

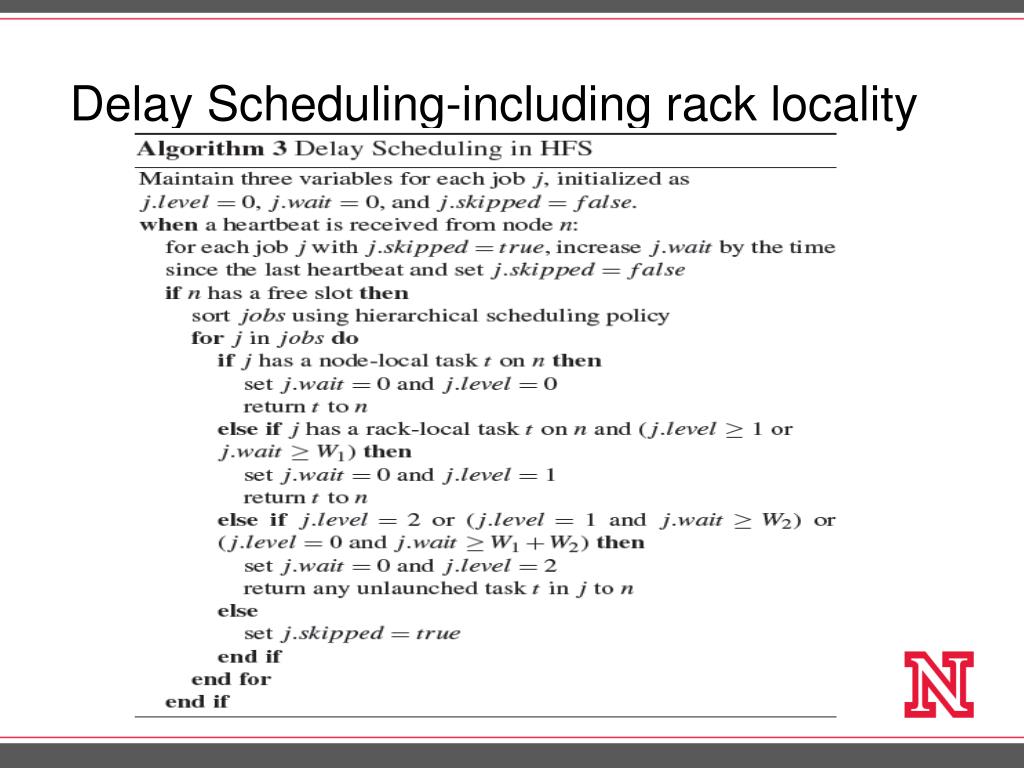

  17. Delay Scheduling-including rack locality

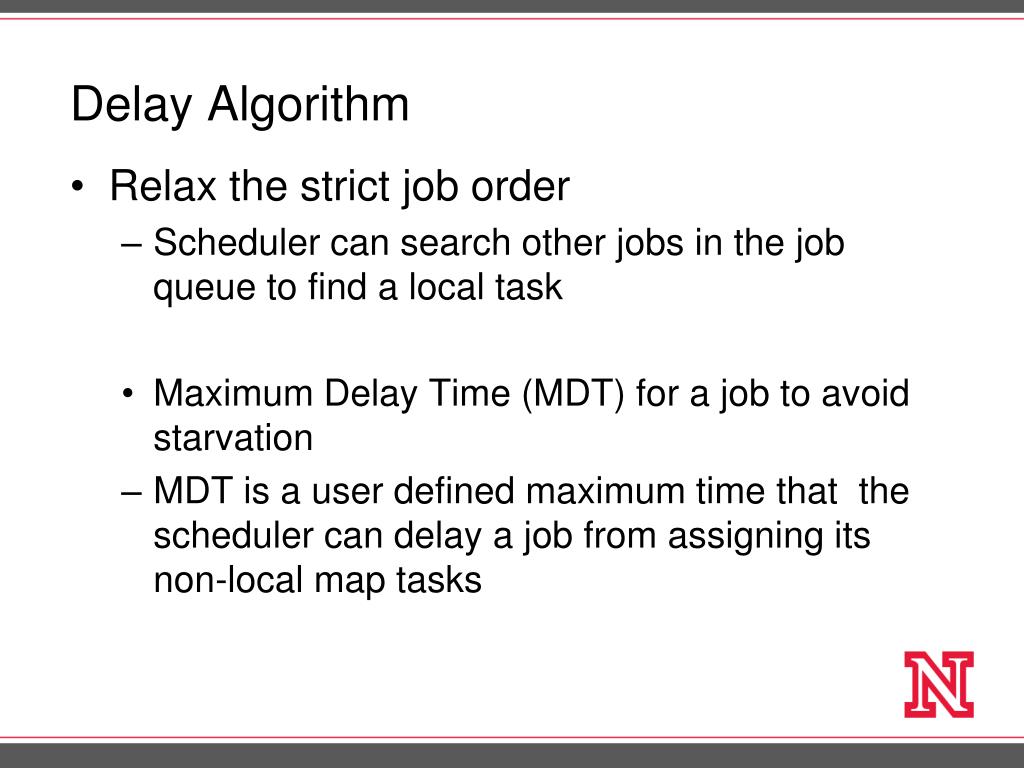

  18. Delay Algorithm • Relax the strict job order • Scheduler can search other jobs in the job queue to find a local task • Maximum Delay Time (MDT) for a job to avoid starvation • MDT is a user defined maximum time that the scheduler can delay a job from assigning its non-local map tasks

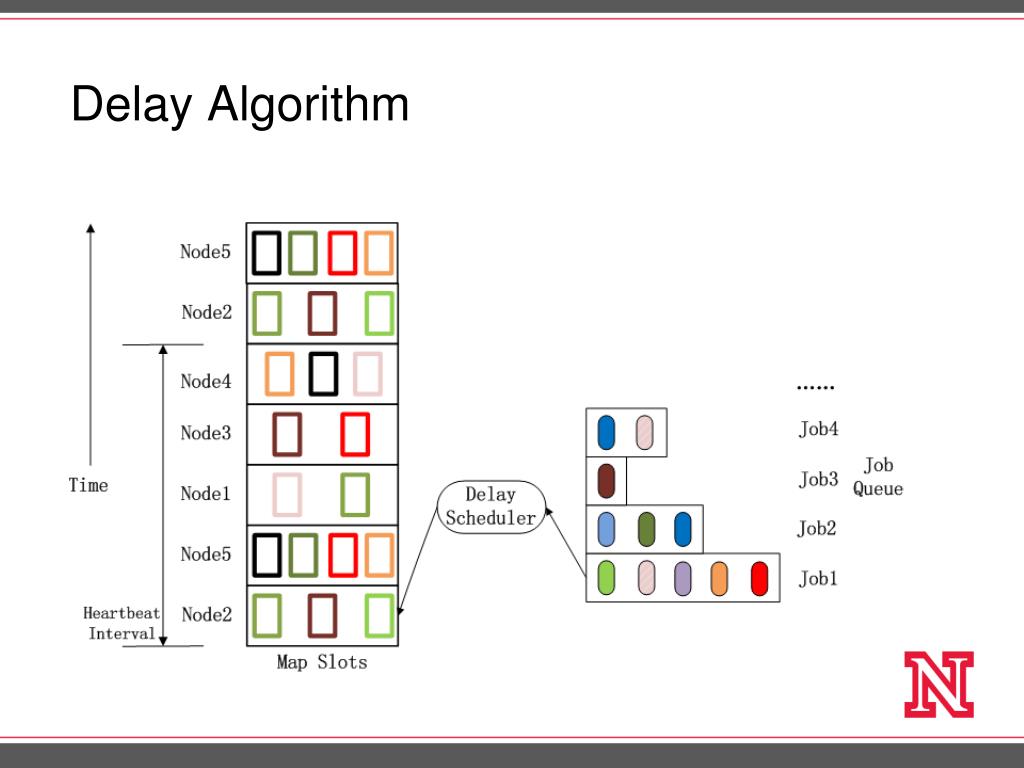

  19. Delay Algorithm

  20. Delay Algorithm

  21. Delay Algorithm

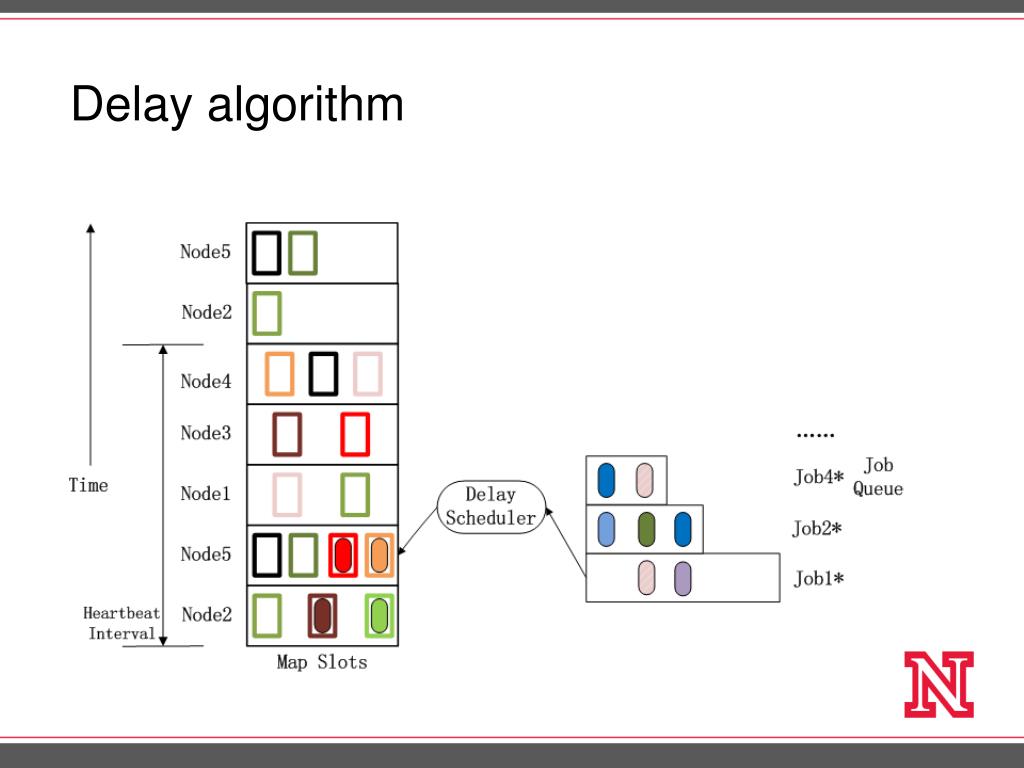

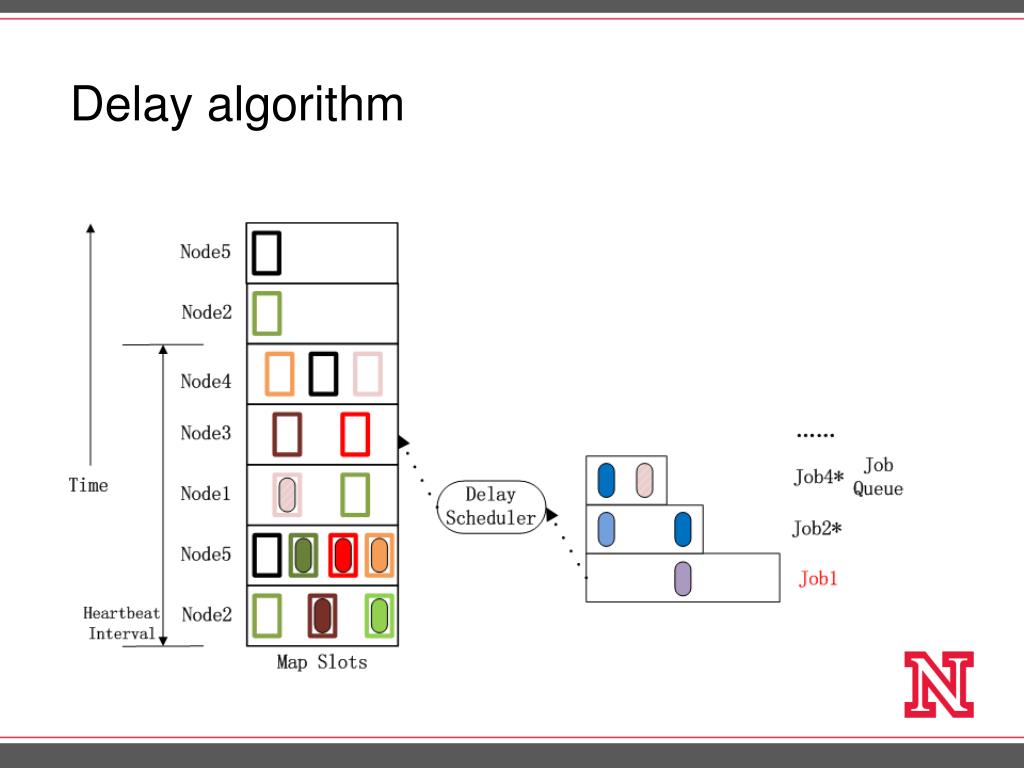

  22. Delay algorithm

  23. Delay algorithm

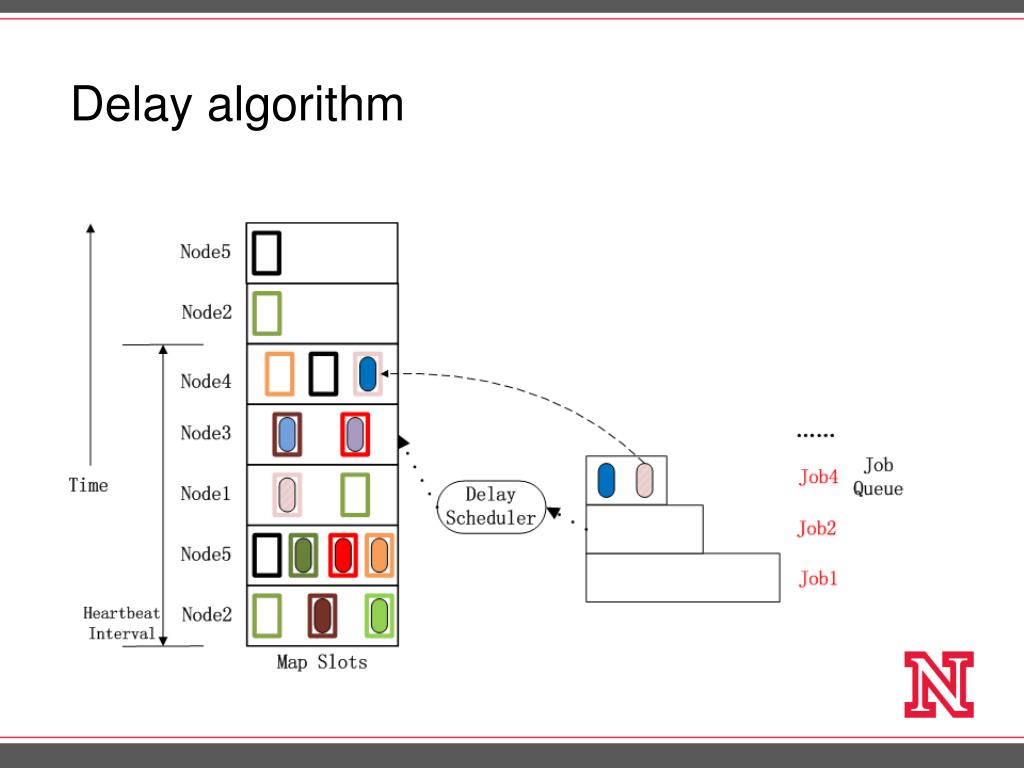

  24. Delay algorithm

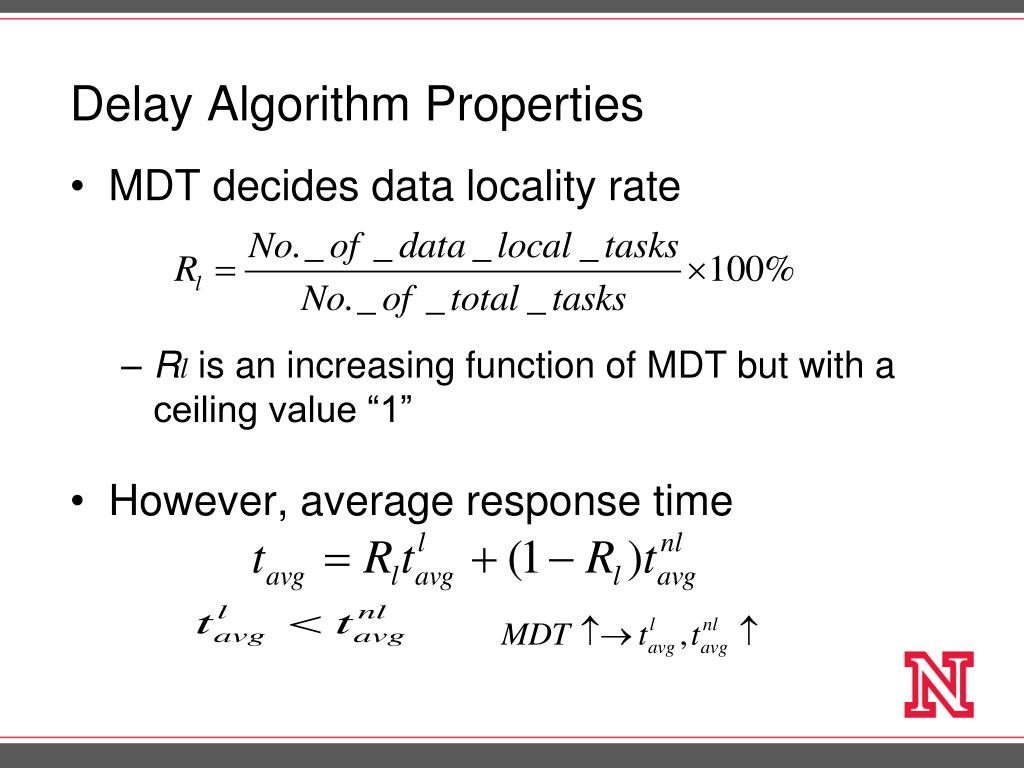

  25. Delay Algorithm Properties • MDT decides data locality rate • Rl is an increasing function of MDT but with a ceiling value “1” • However, average response time

  26. Delay Algorithm Deficiency To achieve best response time, we need to vary the MDT value different types of jobs different cluster sizes different job execution orders

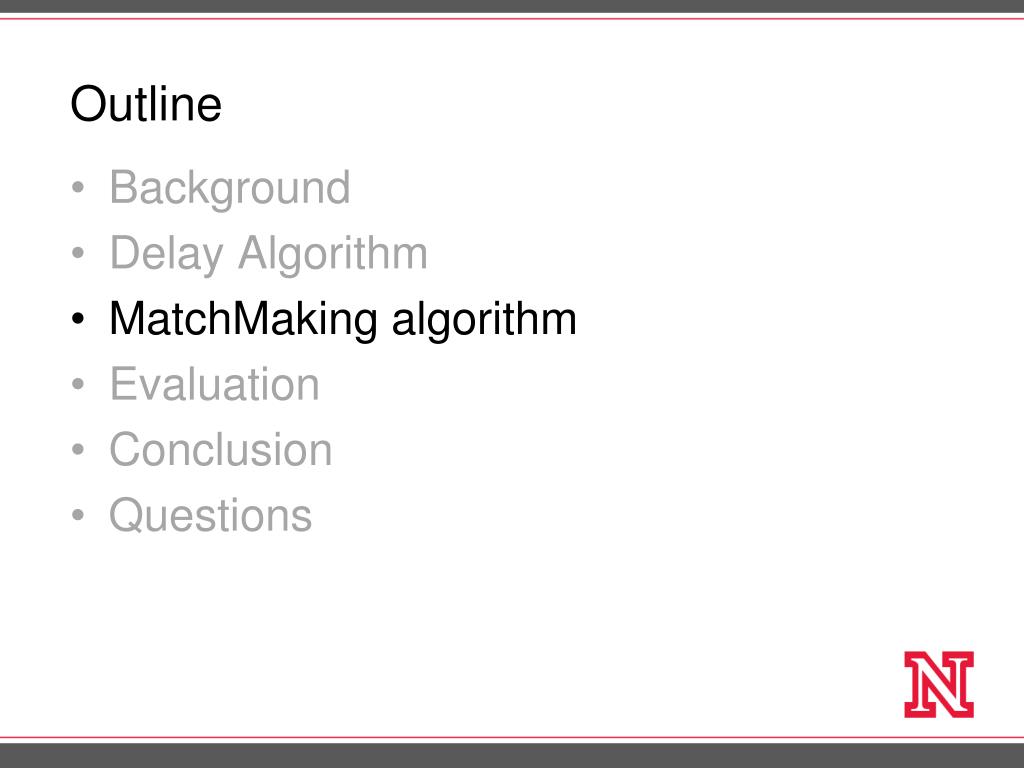

  27. Outline • Background • Delay Algorithm • MatchMaking algorithm • Evaluation • Conclusion • Questions

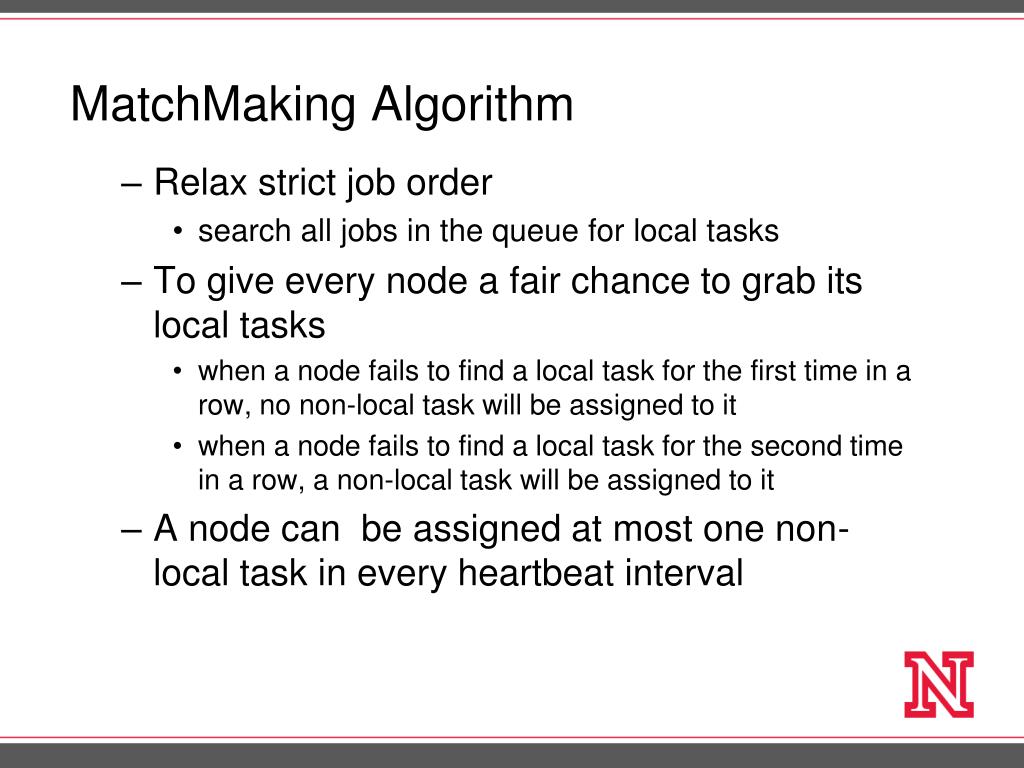

  28. MatchMaking Algorithm • Relax strictjob order • search all jobs in the queue for local tasks • To give every node a fair chance to grab its local tasks • when a node fails to find a local task for the first time in a row, no non-local task will be assigned to it • when a node fails to find a local task for the second time in a row, a non-local task will be assigned to it • A node can be assigned at most one non-local task in every heartbeat interval

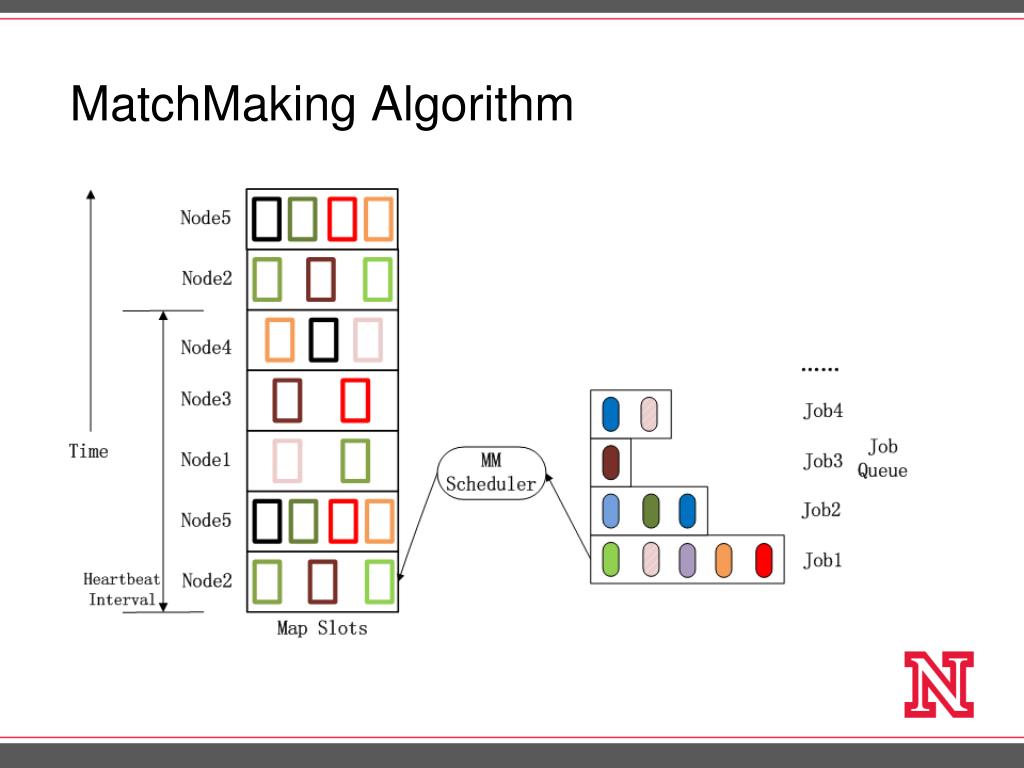

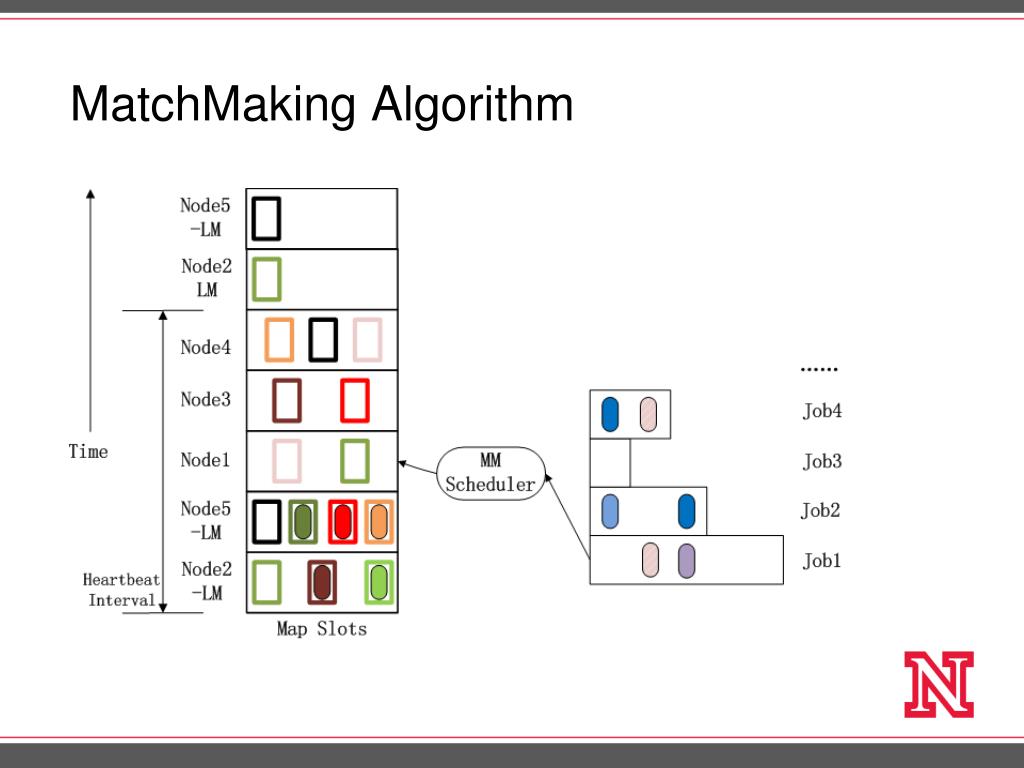

  29. MatchMaking Algorithm

  30. MatchMaking Algorithm

  31. MatchMaking Algorithm

  32. MatchMaking Algorithm

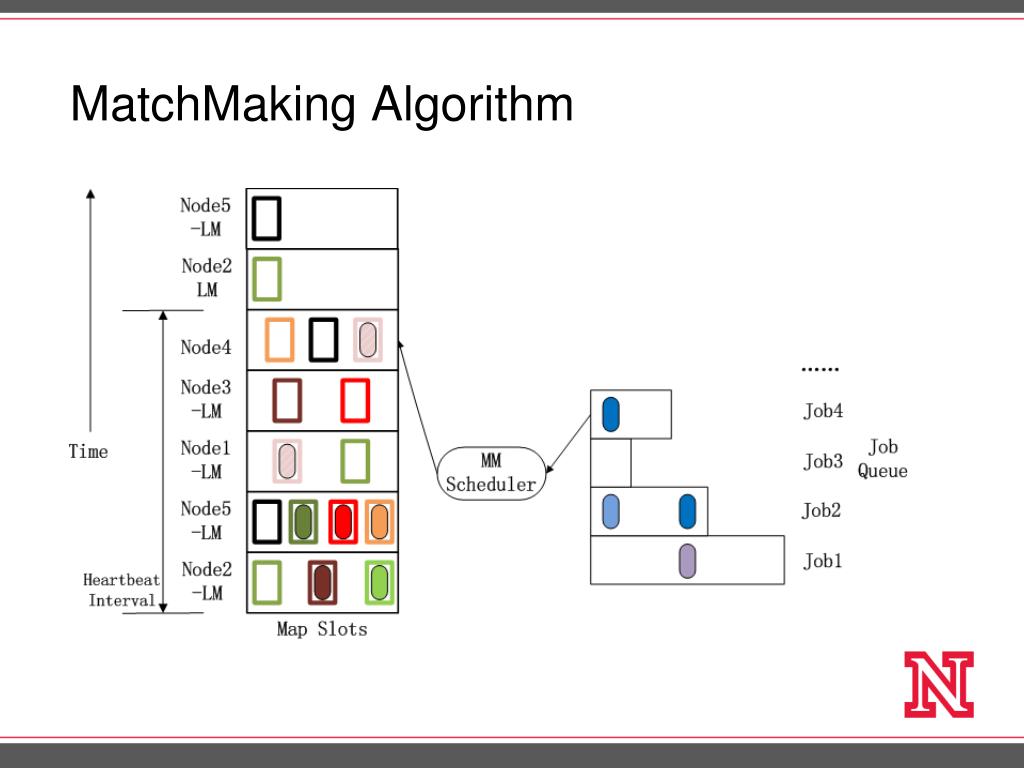

  33. MatchMaking Algorithm

  34. MatchMaking Algorithm

  35. Outline • Background • Delay Algorithm • MatchMaking algorithm • Evaluation • Conclusion • Questions

  36. Evaluation • Environment • Hardware • 1 head node with 2 AMD Optron 2.2GHz 64bit, 8GB Mem, 1Gbps Ethernet • 30 worker nodes with same CPUs and network but 4GB Mem • Software • Hadoop 0.21 • Redhat LinuxCentOS 5.5 • Test cases • Loadgen • Wordcount • Metrics • Locality Rate • Average Response Time

  37. Evaluation • Hadoop Configuration • HDFS • Block size is128MB • 100 Blocks evenly distributed in 30 worker nodes • Replication number is 2 • MapReduce • 2 map slots and 1 reduce slot for each worker node • Facebook production workload* *Matei Zaharia et al “Delay scheduling: A simple technique for achieving locality and fairness in cluster scheduling”

  38. Evaluation • FIFO Scheduler • Default locality policy • Delay policy • Matchmaking policy • Fair-sharing Scheduler • Delay policy • Matchmaking policy

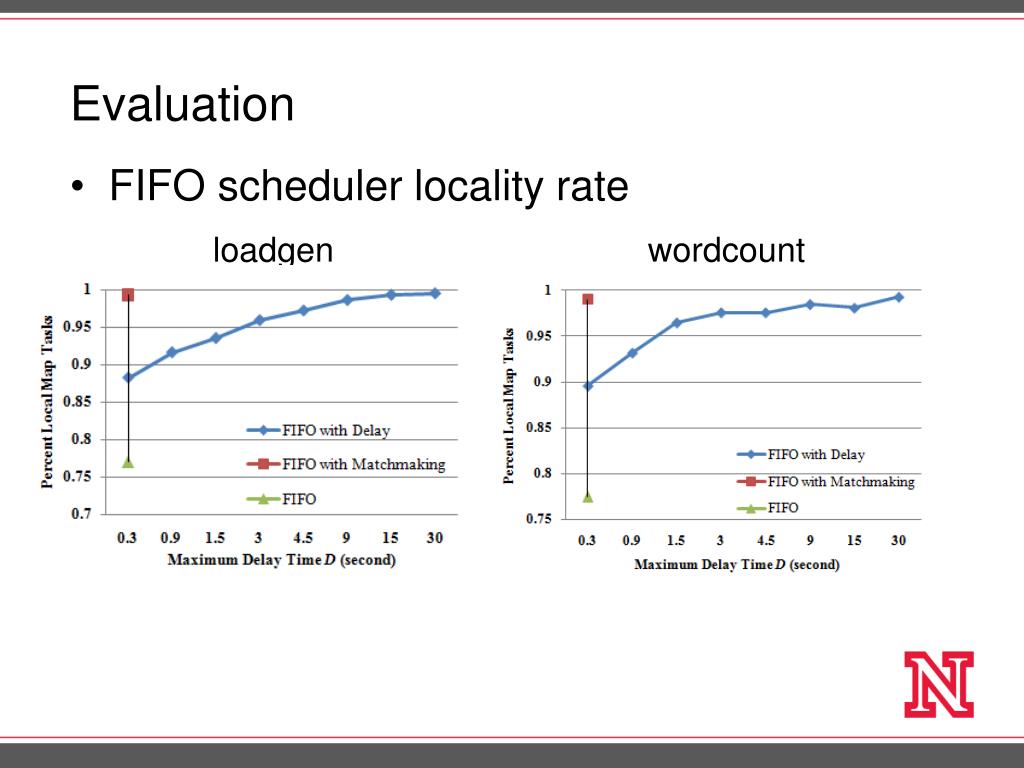

  39. Evaluation • FIFO scheduler locality rate loadgen wordcount

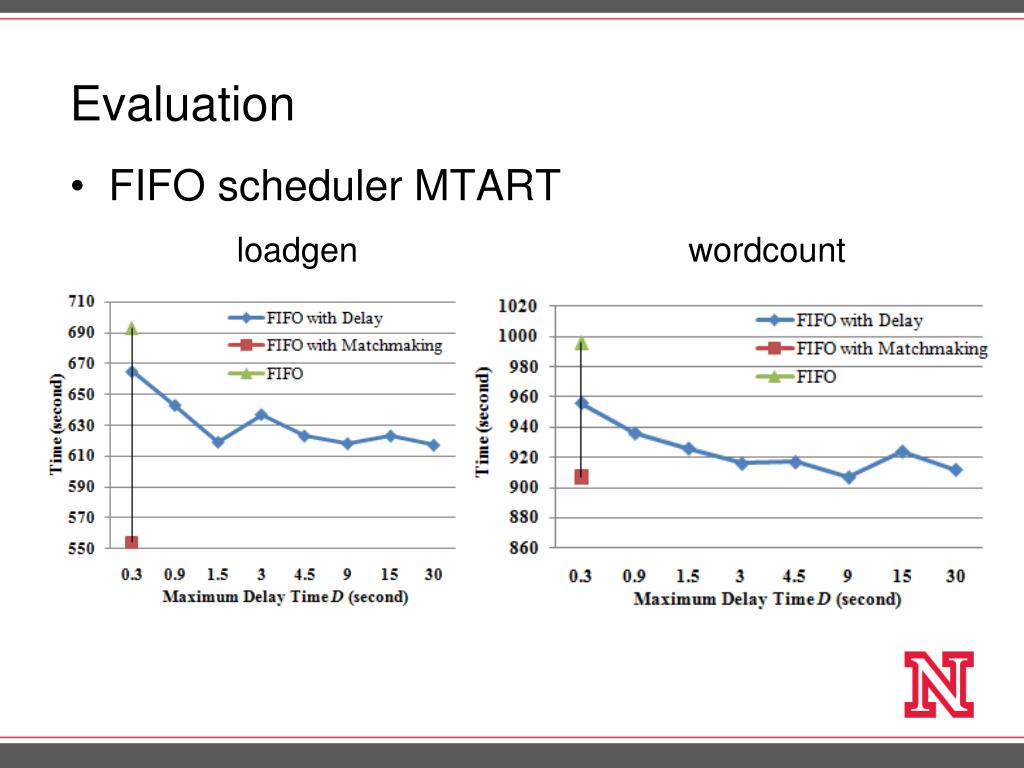

  40. Evaluation • FIFO scheduler MTART loadgen wordcount

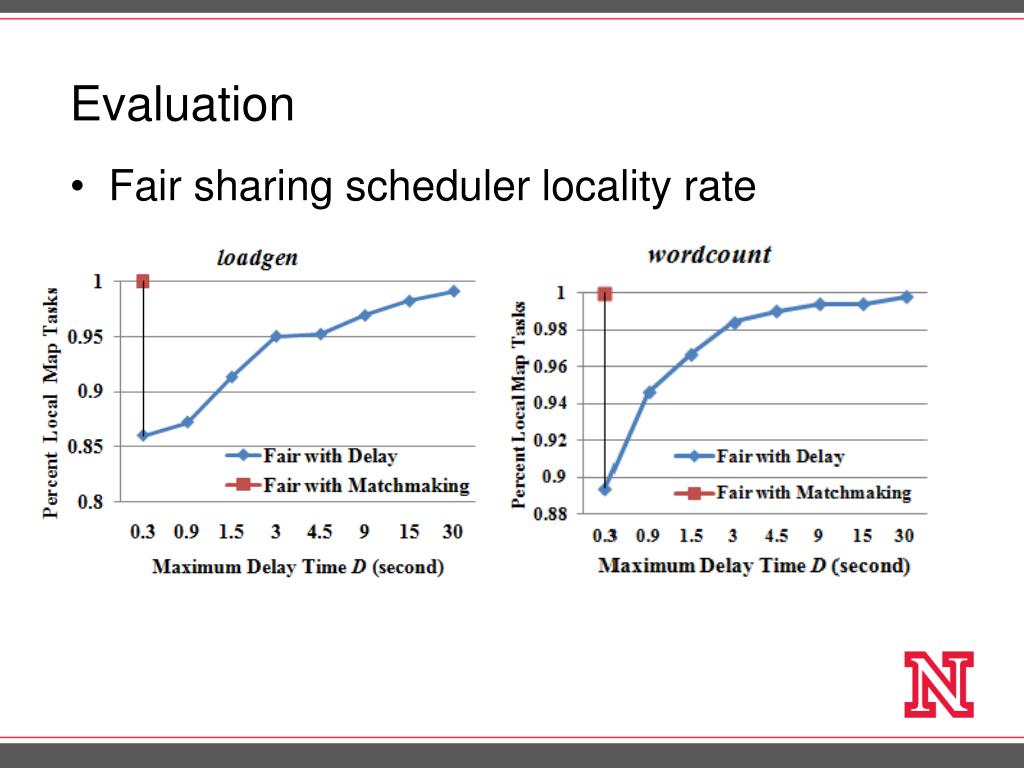

  41. Evaluation • Fair sharing scheduler locality rate

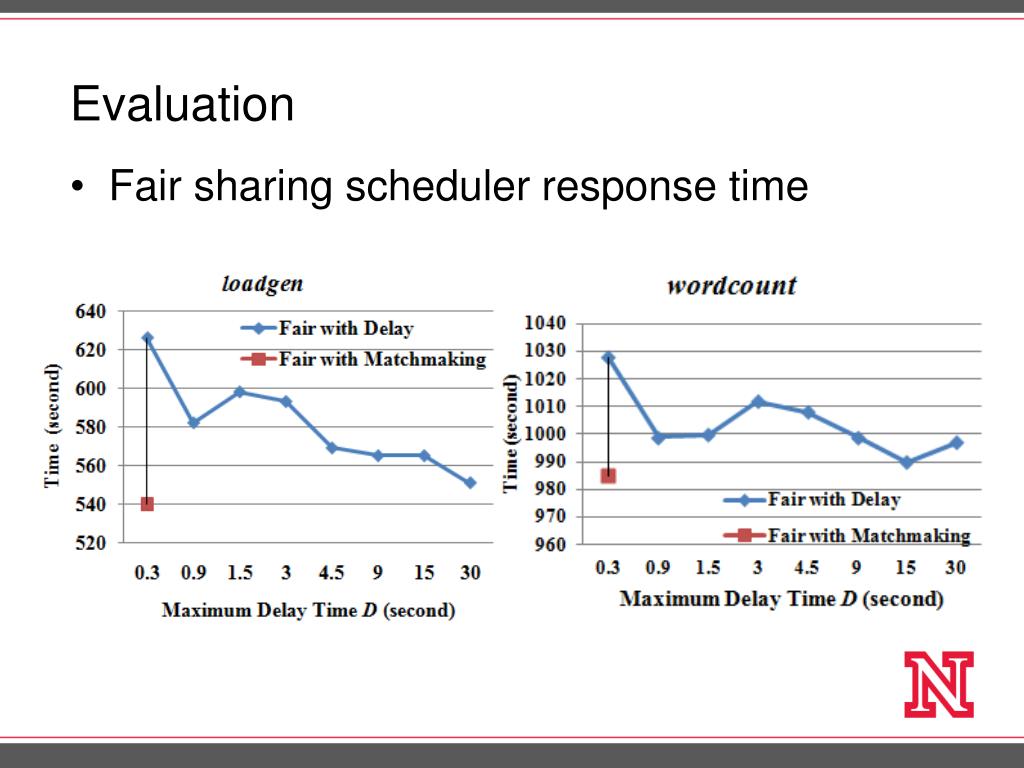

  42. Evaluation • Fair sharing scheduler response time

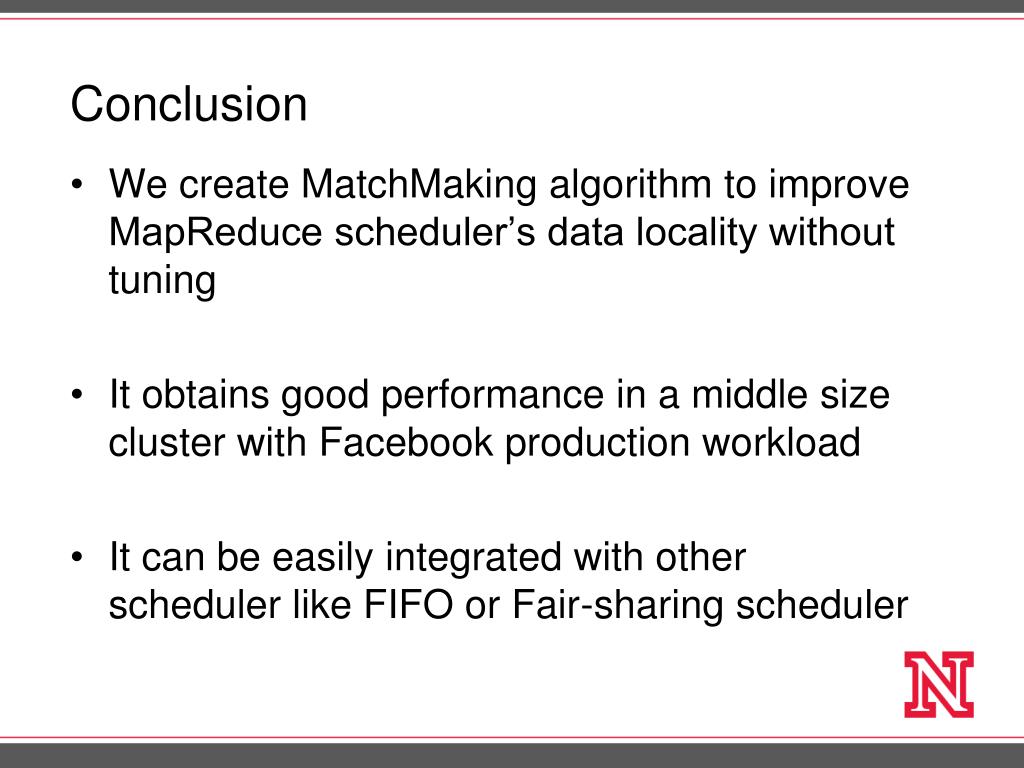

  43. Conclusion • We create MatchMaking algorithm to improve MapReduce scheduler’s data locality without tuning • It obtains good performance in a middle size cluster with Facebook production workload • It can be easily integrated with other scheduler like FIFO or Fair-sharing scheduler

  44. Disscussion • Data locality in the Reduce stage

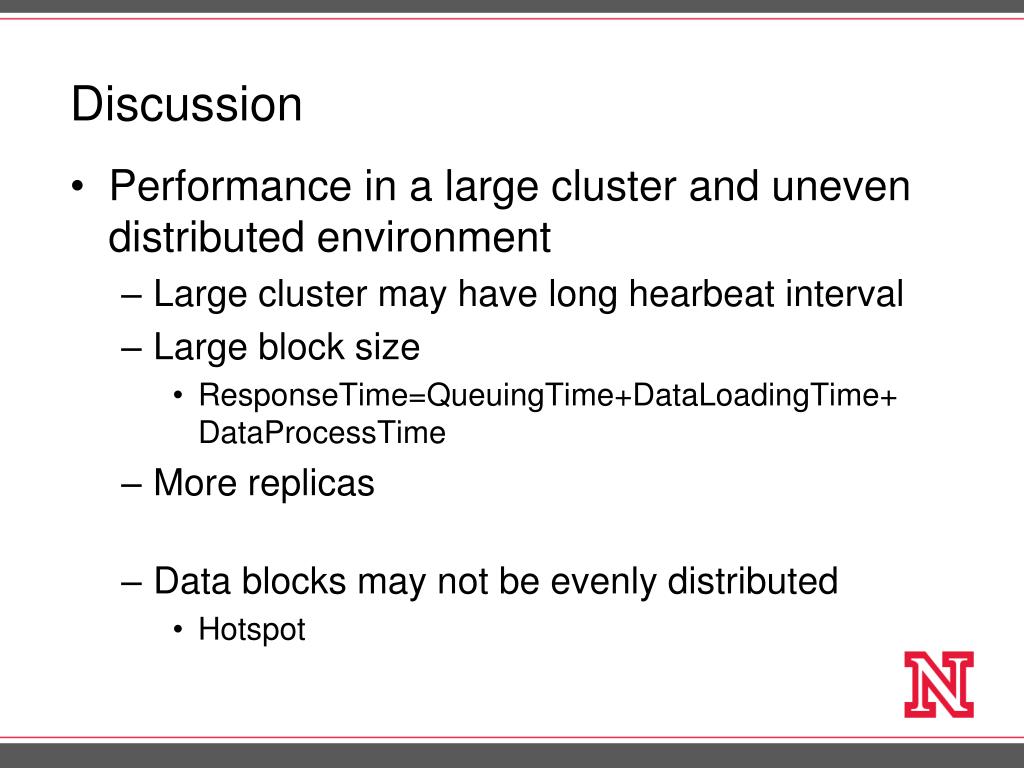

  45. Discussion • Performance in a large cluster and uneven distributed environment • Large cluster may have long hearbeat interval • Large block size • ResponseTime=QueuingTime+DataLoadingTime+DataProcessTime • More replicas • Data blocks may not be evenly distributed • Hotspot

  46. Discussion • If the job queue is very long. • Set a parameter MaxJobConsidered • Priorities

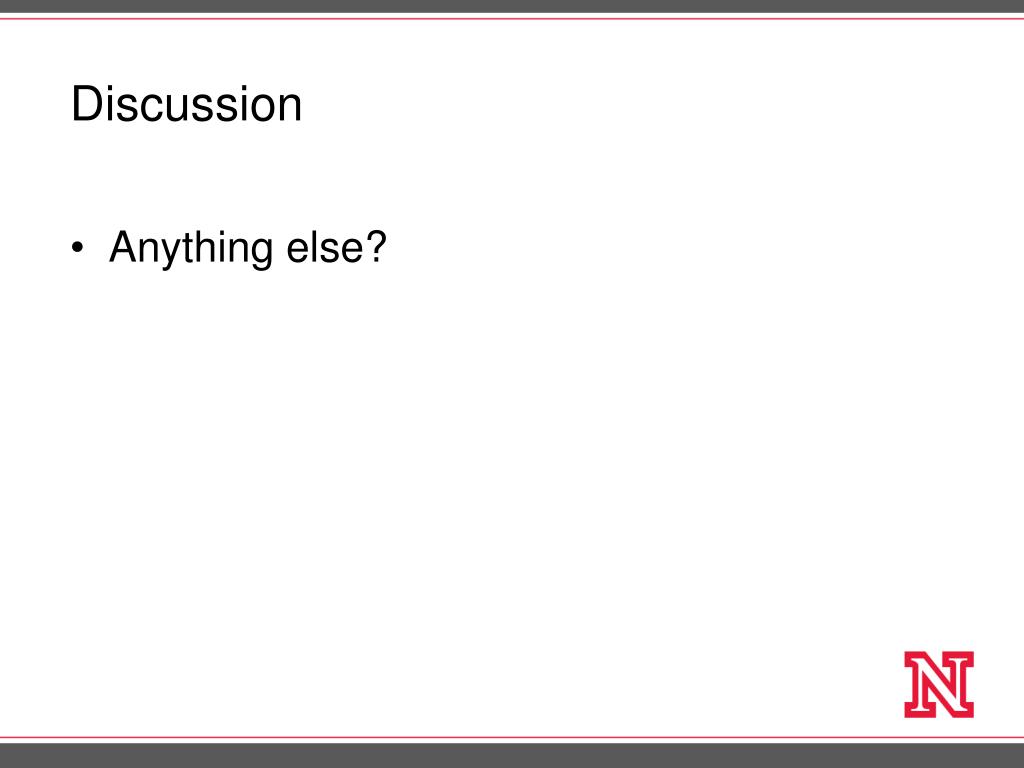

  47. Discussion • Anything else?

  48. Back Page Questions This picture is adopted from the Internet
