Presentation Transcript

Recommending Materialized Views and Indexes with the IBM DB2 Design Advisor(Automating Physical Database Design)

Jarek Gryz


Agenda
Agenda Design Advisor

  • Motivation

  • Indexes in DB2

  • Materialized query tables in DB2

  • Problem definition

  • How does the DB2 Design Advisor tool work ?

  • Experiments


Motivation
Motivation Design Advisor


Why have an index

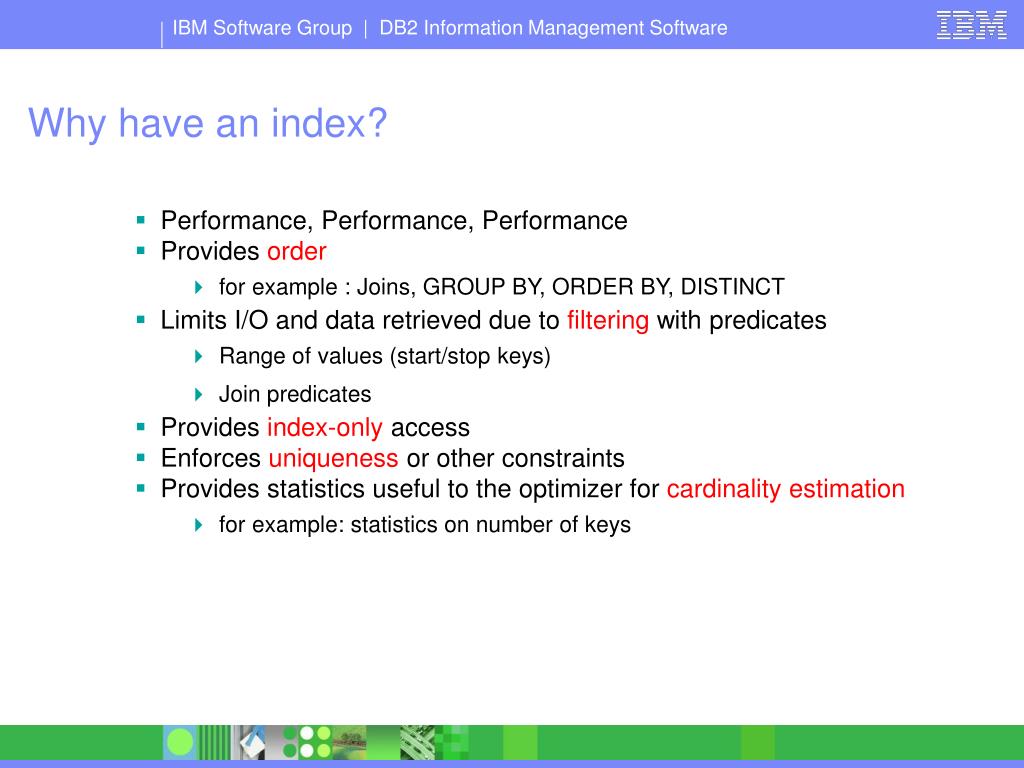

Why have an index? Design Advisor

  • Performance, Performance, Performance

  • Provides order

    • for example : Joins, GROUP BY, ORDER BY, DISTINCT

  • Limits I/O and data retrieved due to filtering with predicates

    • Range of values (start/stop keys)

    • Join predicates

  • Provides index-only access

  • Enforces uniqueness or other constraints

  • Provides statistics useful to the optimizer for cardinality estimation

    • for example: statistics on number of keys


Why have materialized query tables

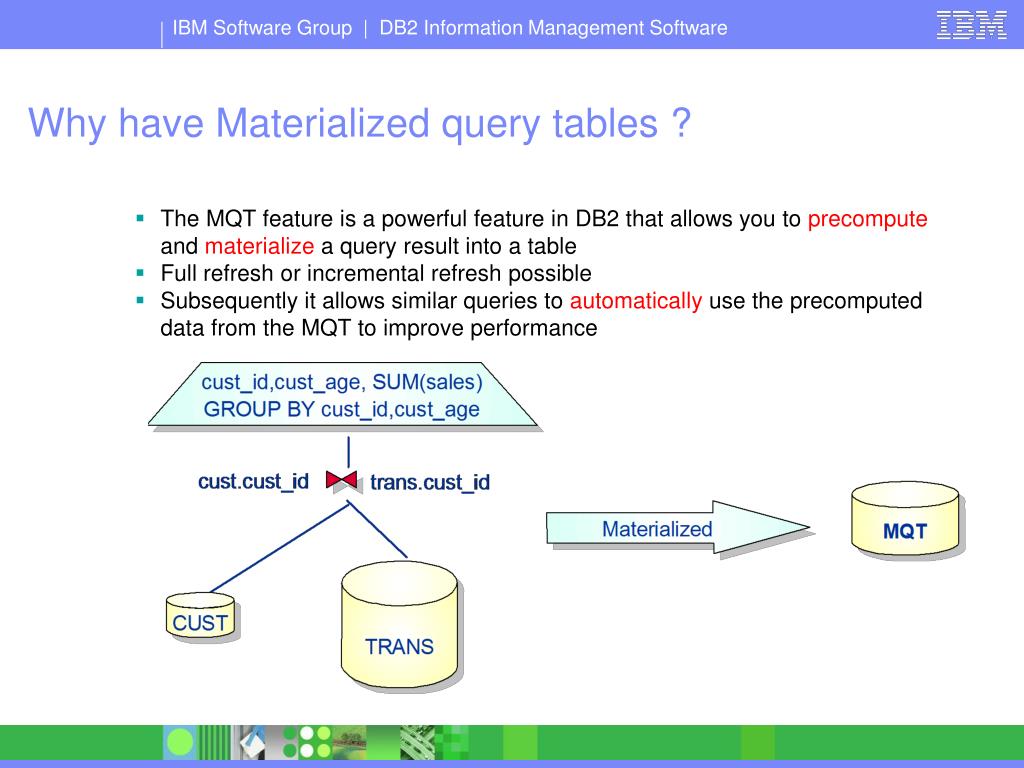

Why have Materialized query tables ? Design Advisor

  • The MQT feature is a powerful feature in DB2 that allows you to precompute and materialize a query result into a table

  • Full refresh or incremental refresh possible

  • Subsequently it allows similar queries to automatically use the precomputed data from the MQT to improve performance


Problem definition

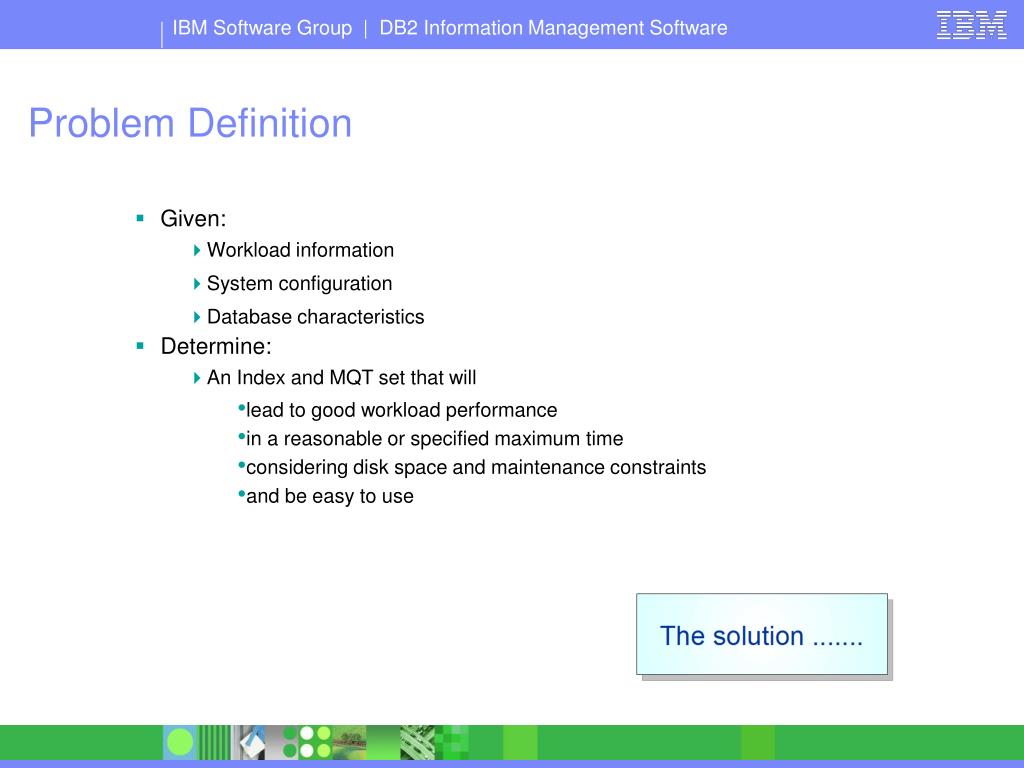

Problem Definition Design Advisor

  • Given:

    • Workload information

    • System configuration

    • Database characteristics

  • Determine:

    • An Index and MQT set that will

      • lead to good workload performance

      • in a reasonable or specified maximum time

      • considering disk space and maintenance constraints

      • and be easy to use


The db2 design advisor

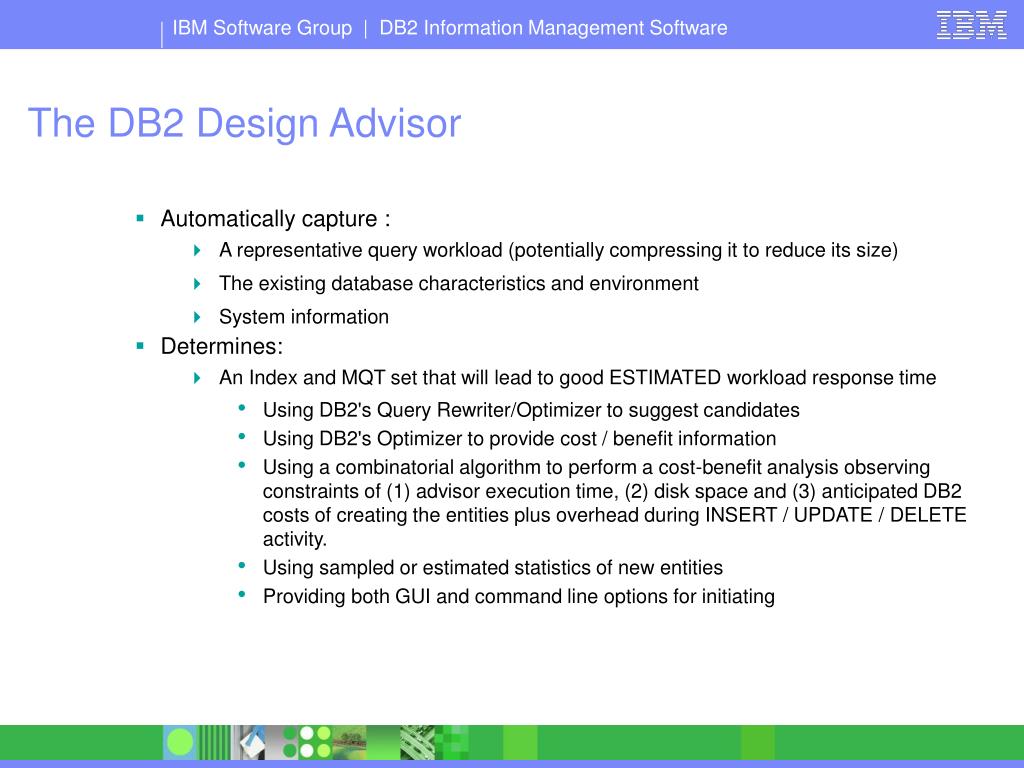

The DB2 Design Advisor Design Advisor

  • Automatically capture :

    • A representative query workload (potentially compressing it to reduce its size)

    • The existing database characteristics and environment

    • System information

  • Determines:

    • An Index and MQT set that will lead to good ESTIMATED workload response time

      • Using DB2's Query Rewriter/Optimizer to suggest candidates

      • Using DB2's Optimizer to provide cost / benefit information

      • Using a combinatorial algorithm to perform a cost-benefit analysis observing constraints of (1) advisor execution time, (2) disk space and (3) anticipated DB2 costs of creating the entities plus overhead during INSERT / UPDATE / DELETE activity.

      • Using sampled or estimated statistics of new entities

      • Providing both GUI and command line options for initiating


Issues in automating physical db design selection

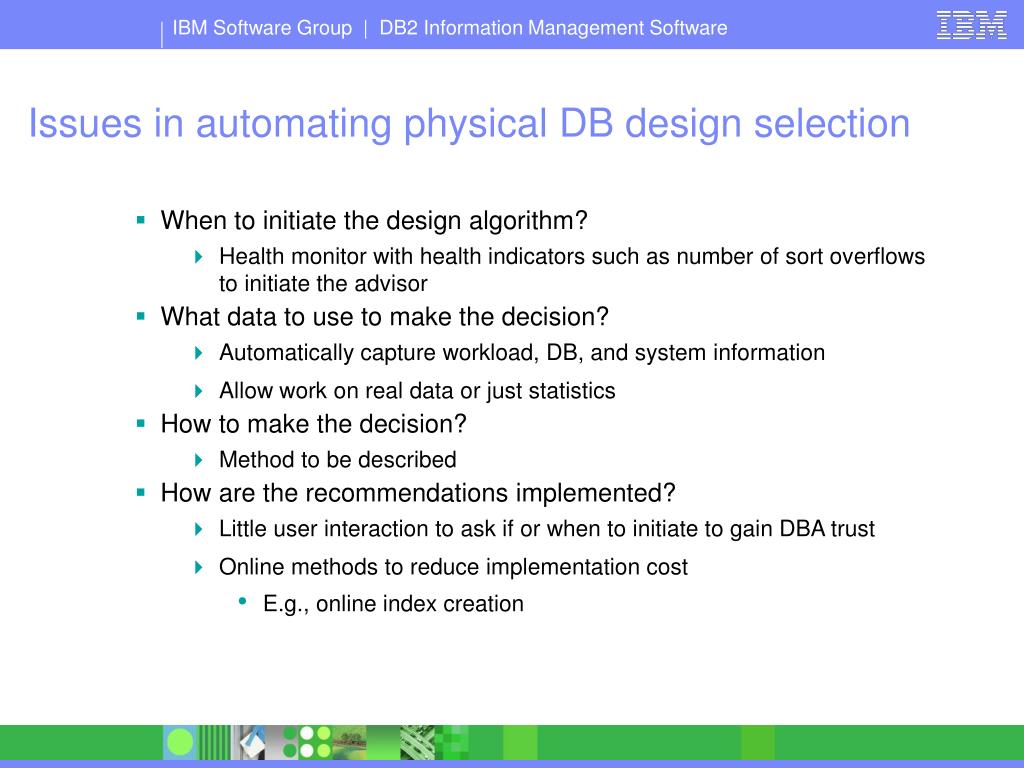

Issues in automating physical DB design selection Design Advisor

  • When to initiate the design algorithm?

    • Health monitor with health indicators such as number of sort overflows to initiate the advisor

  • What data to use to make the decision?

    • Automatically capture workload, DB, and system information

    • Allow work on real data or just statistics

  • How to make the decision?

    • Method to be described

  • How are the recommendations implemented?

    • Little user interaction to ask if or when to initiate to gain DBA trust

    • Online methods to reduce implementation cost

      • E.g., online index creation

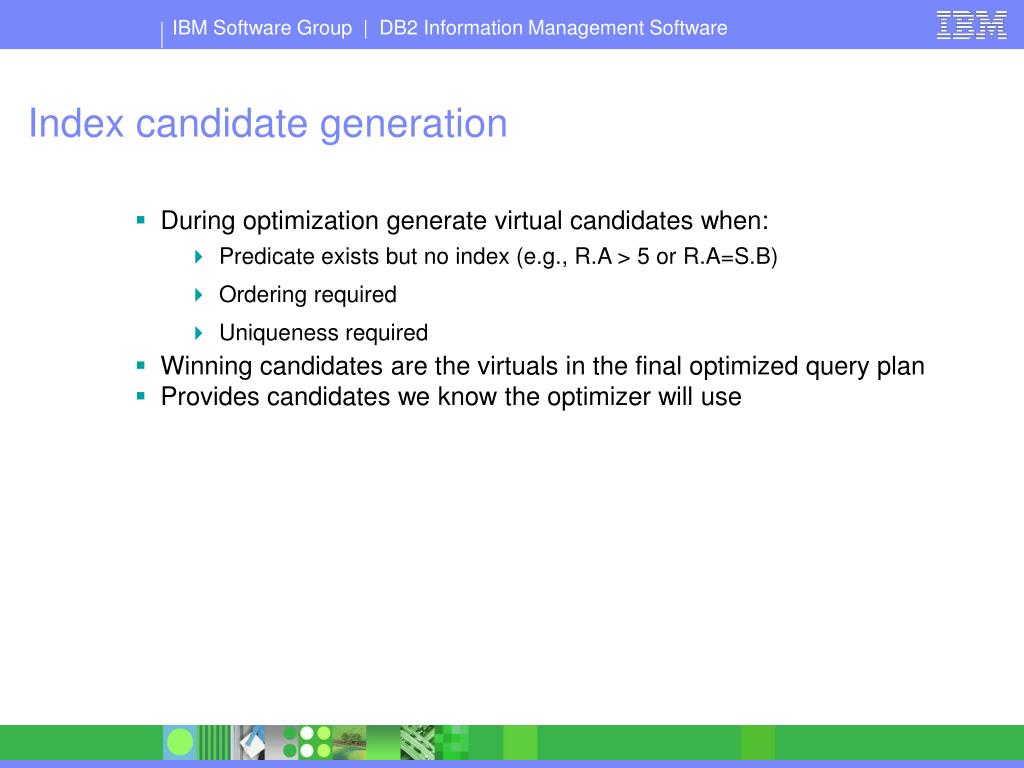

Index candidate generation
Index candidate generation Design Advisor

  • During optimization generate virtual candidates when:

    • Predicate exists but no index (e.g., R.A > 5 or R.A=S.B)

    • Ordering required

    • Uniqueness required

  • Winning candidates are the virtuals in the final optimized query plan

  • Provides candidates we know the optimizer will use

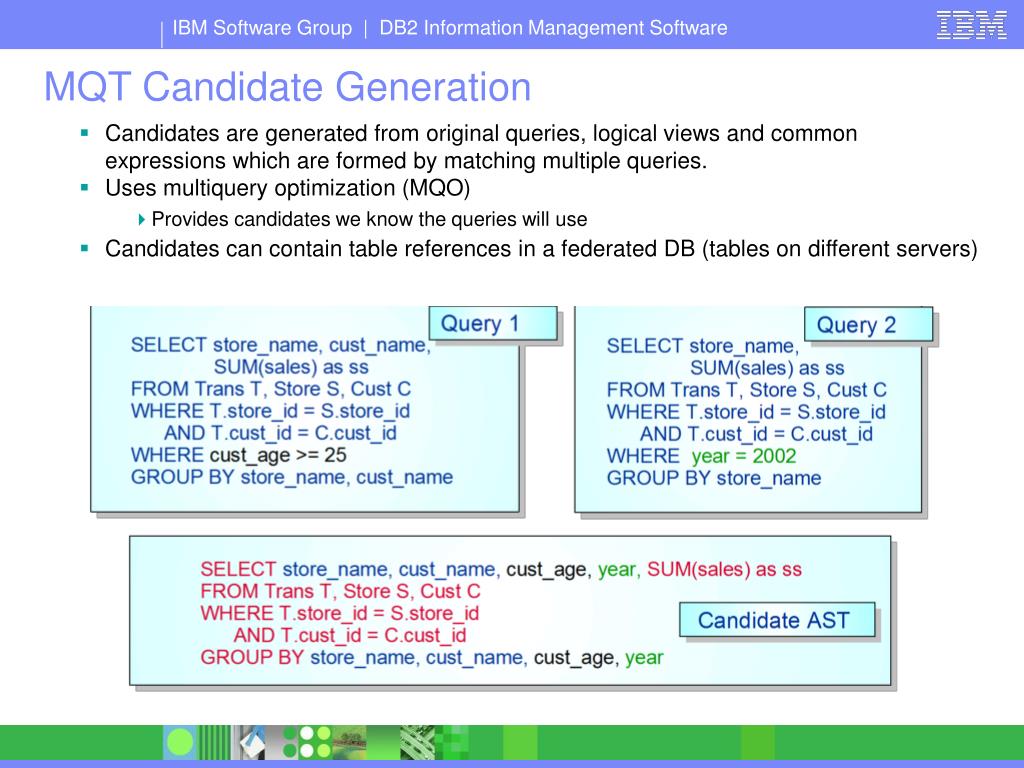

Mqt candidate generation
MQT Candidate Generation Design Advisor

  • Candidates are generated from original queries, logical views and common expressions which are formed by matching multiple queries.

  • Uses multiquery optimization (MQO)

    • Provides candidates we know the queries will use

  • Candidates can contain table references in a federated DB (tables on different servers)


Combinatorial search algorithm
Combinatorial search algorithm Design Advisor

  • The search phase uses a knapsack algorithm and random swap method to choose the recommended index and MQT set

  • Requires each candidate to have a cost-benefit ratio (cbratio)

    • Benefit based on estimated cost with and without MQT usage (updates have negative benefit)

    • Cost based on disk space usage

  • REFRESH DEFERRED or IMMEDIATE MQTs recommended.

    • Assumption (DEFERRED):

      • estimated time for population = full refresh cost

      • one refresh cost included in the calculation

    • IMMEDIATE changes added in plans for insert/update/deletes

  • If indexes on candidate MQT are selected, then the MQT must be selected as well


Experiments

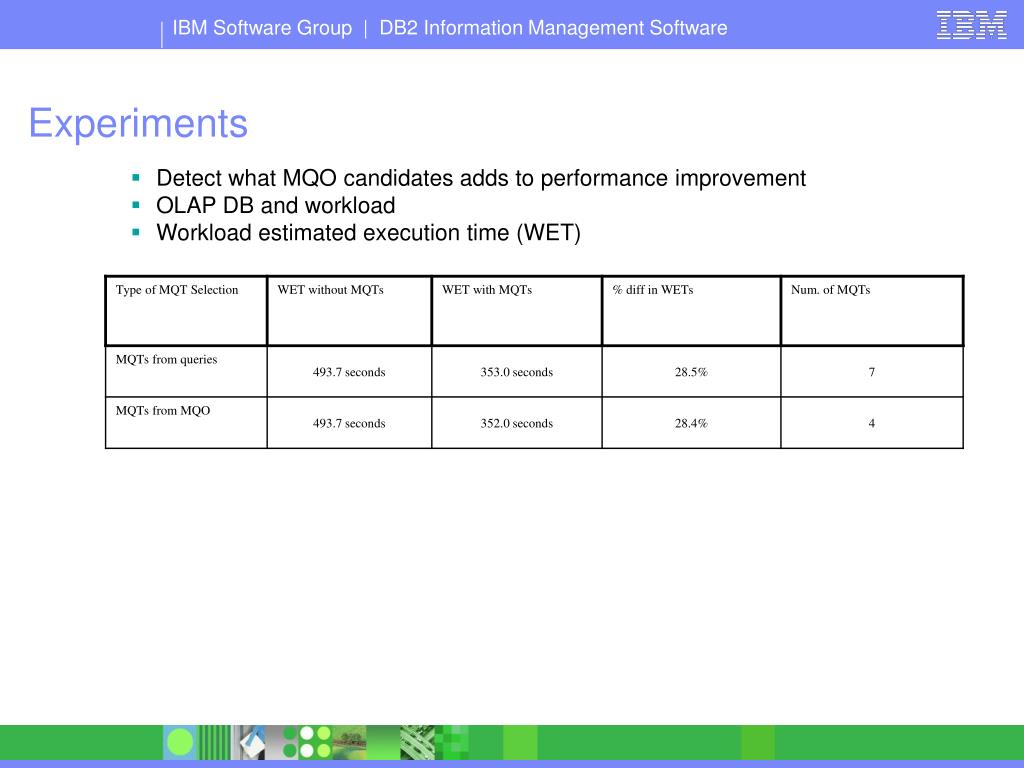

Experiments Design Advisor

  • Detect what MQO candidates adds to performance improvement

  • OLAP DB and workload

  • Workload estimated execution time (WET)


Autonomic capabilities in db2 stinger

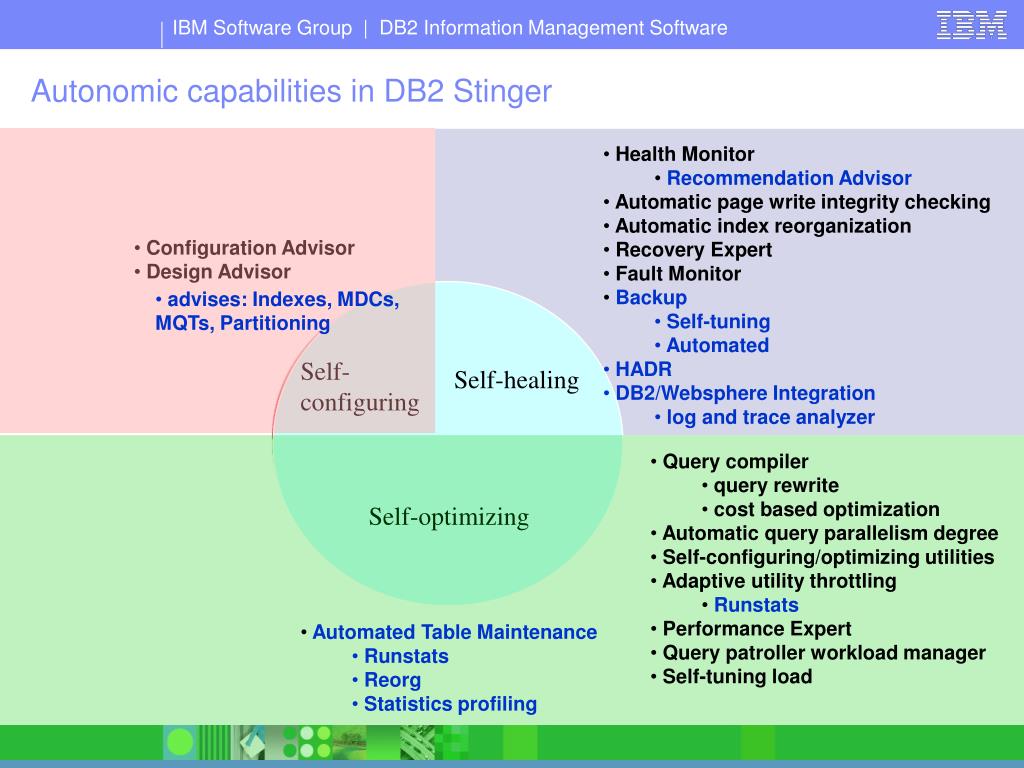

Autonomic capabilities in DB2 Stinger Design Advisor

  • Health Monitor

    • Recommendation Advisor

  • Automatic page write integrity checking

  • Automatic index reorganization

  • Recovery Expert

  • Fault Monitor

  • Backup

    • Self-tuning

    • Automated

  • HADR

  • DB2/Websphere Integration

    • log and trace analyzer

  • Configuration Advisor

  • Design Advisor

  • advises: Indexes, MDCs, MQTs, Partitioning

Self-configuring

Self-healing

  • Query compiler

    • query rewrite

    • cost based optimization

  • Automatic query parallelism degree

  • Self-configuring/optimizing utilities

  • Adaptive utility throttling

    • Runstats

  • Performance Expert

  • Query patroller workload manager

  • Self-tuning load

Self-optimizing

  • Automated Table Maintenance

    • Runstats

    • Reorg

    • Statistics profiling
