Flow control applied to transitional flows input output analysis model reduction and control

Flow control applied to transitional flows:input-output analysis, model reduction and control

Dan Henningson

collaborators

Shervin Bagheri, Espen Åkervik

Luca Brandt, Peter Schmid


Outline

Outline

  • Introduction with input-output configuration

  • Matrix-free methods for flow stability using Navier-Stokes snapshots

    • Edwards et al. (1994), …

  • Global modes and transient growth

    • Cossu & Chomaz (1997), …

  • Input-output characteristics of Blasius BL and reduced order models based on balanced truncation

    • Rowley (2005), …

  • LQG feedback control based on reduced order model

  • Conclusions


Message

Message

  • Need only snapshots from a Navier-Stokes solver (with adjoint) to perform stability analysis and control design for complex flows

  • Main example Blasius BL, but many other more complex flows are now tractable …


Linearized navier stokes for blasius flow

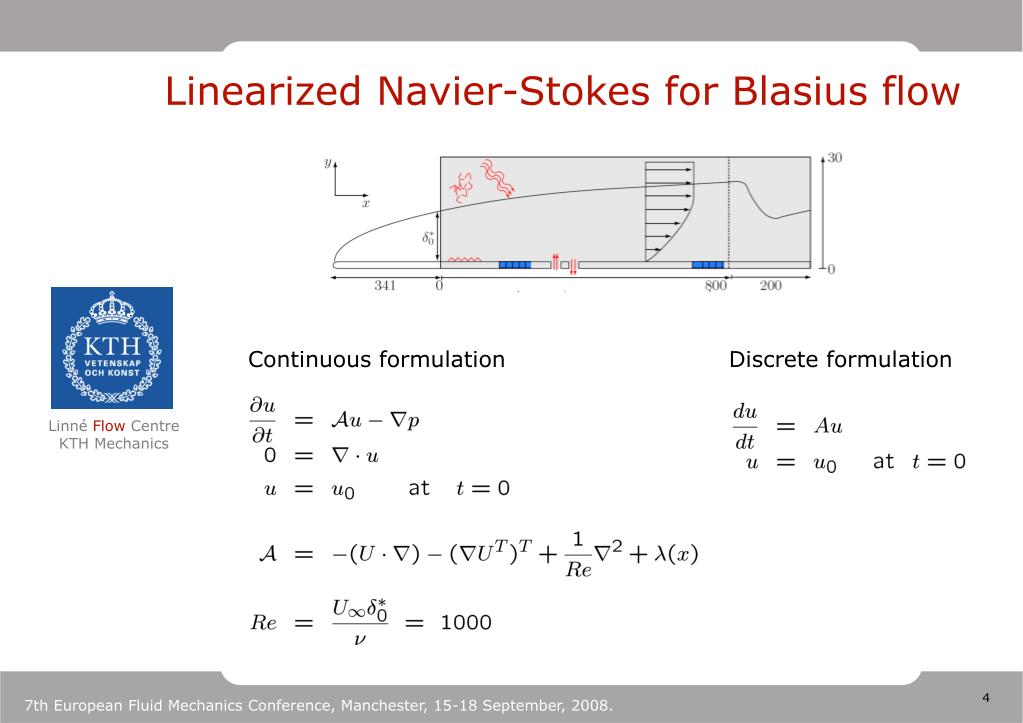

Linearized Navier-Stokes for Blasius flow

Continuous formulation

Discrete formulation


Input output configuration for linearized n s

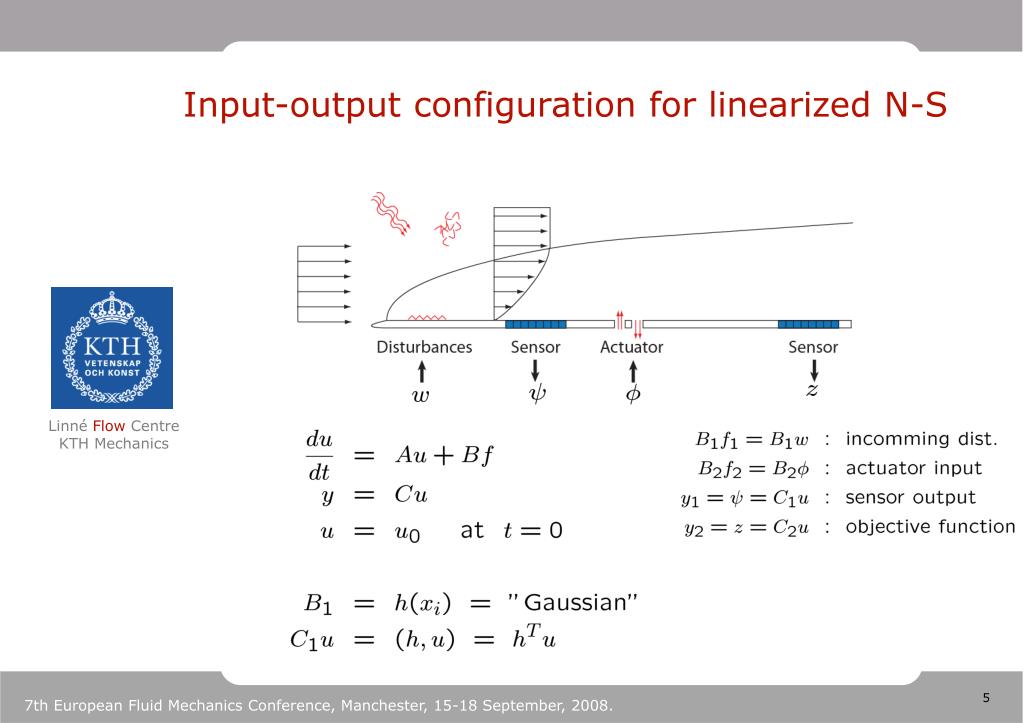

Input-output configuration for linearized N-S


Solution to the complete input output problem

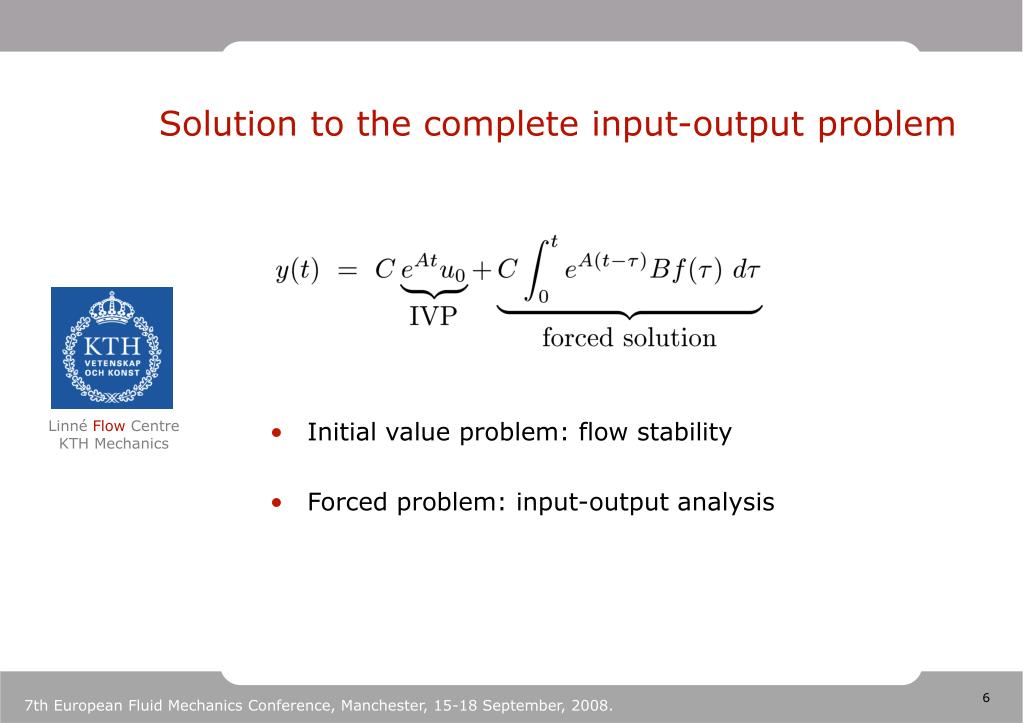

Solution to the complete input-output problem

  • Initial value problem: flow stability

  • Forced problem: input-output analysis


The initial value problem

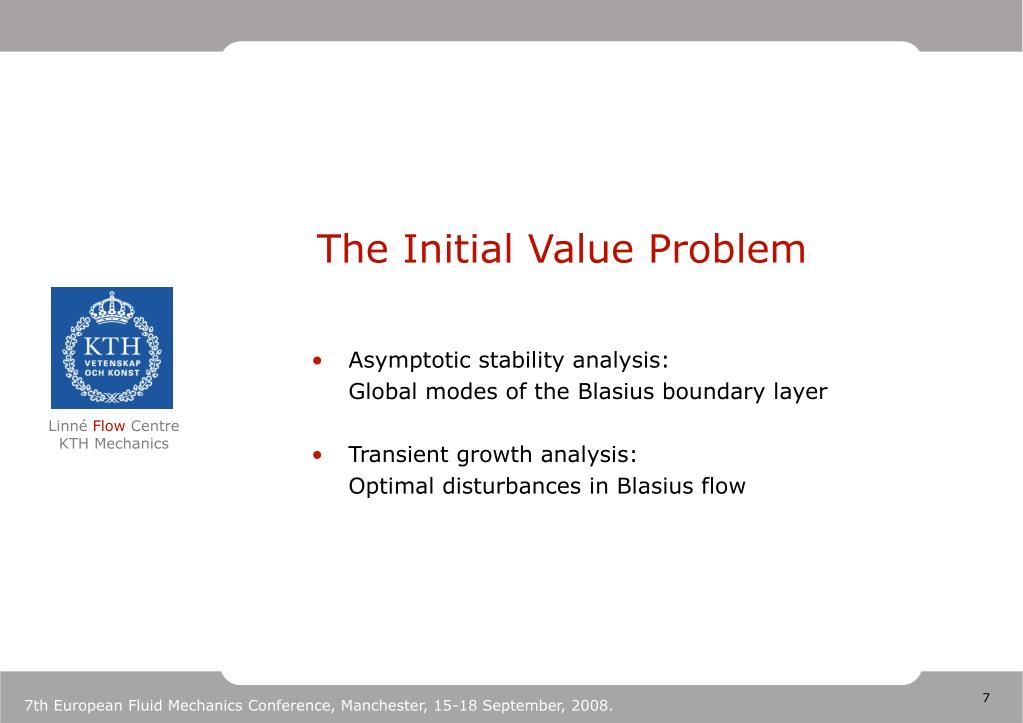

The Initial Value Problem

  • Asymptotic stability analysis:

    Global modes of the Blasius boundary layer

  • Transient growth analysis:

    Optimal disturbances in Blasius flow


Dimension of discretized system

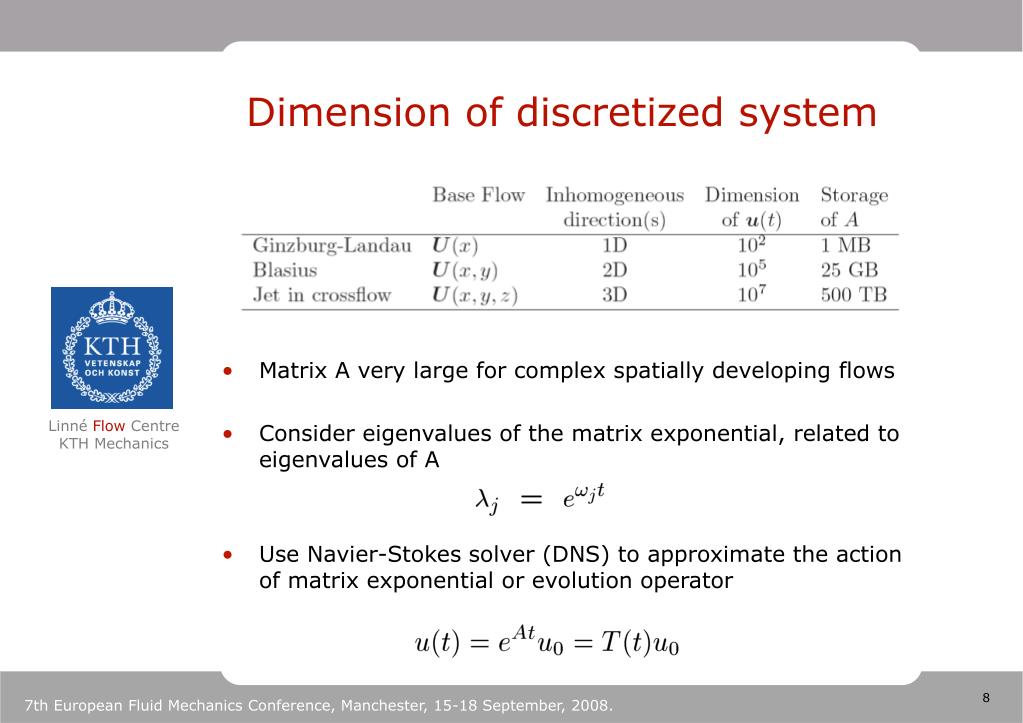

Dimension of discretized system

  • Matrix A very large for complex spatially developing flows

  • Consider eigenvalues of the matrix exponential, related to eigenvalues of A

  • Use Navier-Stokes solver (DNS) to approximate the action of matrix exponential or evolution operator


Krylov subspace with arnoldi algorithm

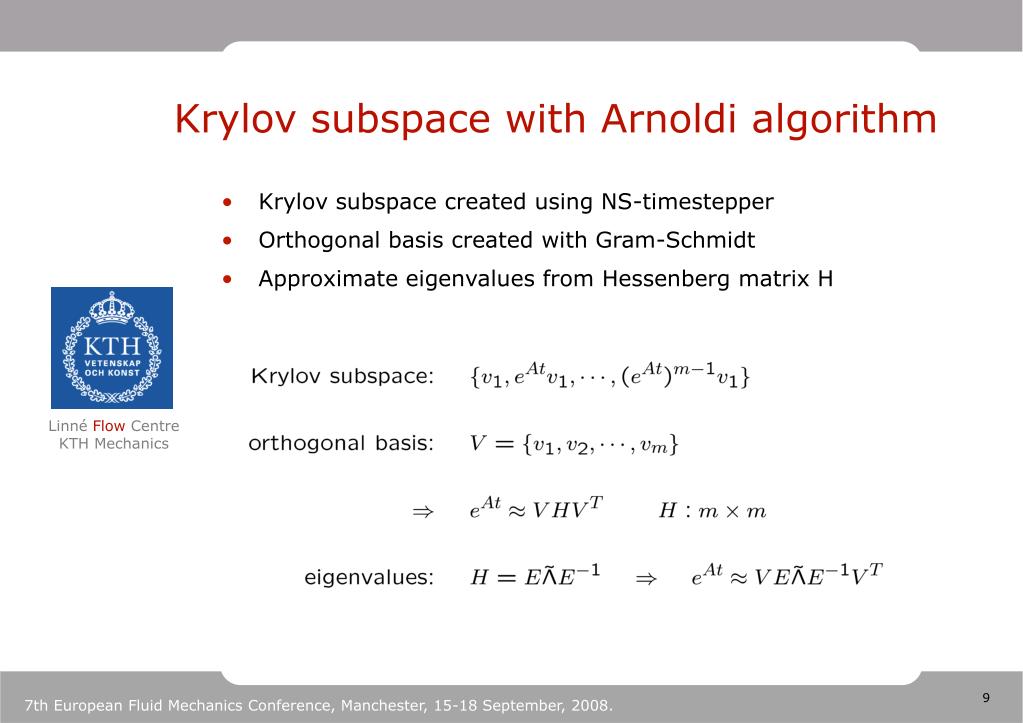

Krylov subspace with Arnoldi algorithm

  • Krylov subspace created using NS-timestepper

  • Orthogonal basis created with Gram-Schmidt

  • Approximate eigenvalues from Hessenberg matrix H


Global spectrum for blasius flow

Global spectrum for Blasius flow

  • Least stable eigenmodes equivalent using time-stepper and matrix solver

  • Least stable branch is a global representation of Tollmien-Schlichting (TS) modes


Global ts waves

Global TS-waves

  • Streamwise velocity of least damped TS-mode

  • Envelope of global TS-mode identical to local spatial growth

  • Shape functions of local and global modes identical


Optimal disturbance growth

Optimal disturbance growth

  • Optimal growth from eigenvalues of

  • Krylov sequence built by forward-adjoint iterations


Evolution of optimal disturbance in blasius flow

Evolution of optimal disturbance in Blasius flow

  • Full adjoint iterations (black) sum of TS-branch modes only (magenta)

  • Transient since disturbance propagates out of domain


Snapshots of optimal disturbance evolution

Snapshots of optimal disturbance evolution

  • Initial disturbance leans against the shear raised up by Orr-mechanism into propagating TS-wavepacket


The forced problem input output

The forced problem: input-output

  • Ginzburg-Landau example

  • Input-output for 2D Blasius configuration

  • Model reduction


Ginzburg landau example

Ginzburg-Landau example

  • Entire dynamics vs. input-output time signals


Input output operators

Input-output operators

  • Past inputs to initial state: class of initial conditions possible to generate through chosen forcing

  • Initial state to future outputs: possible outputs from initial condition

  • Past inputs to future outputs:


Most dangerous inputs and the largest outputs

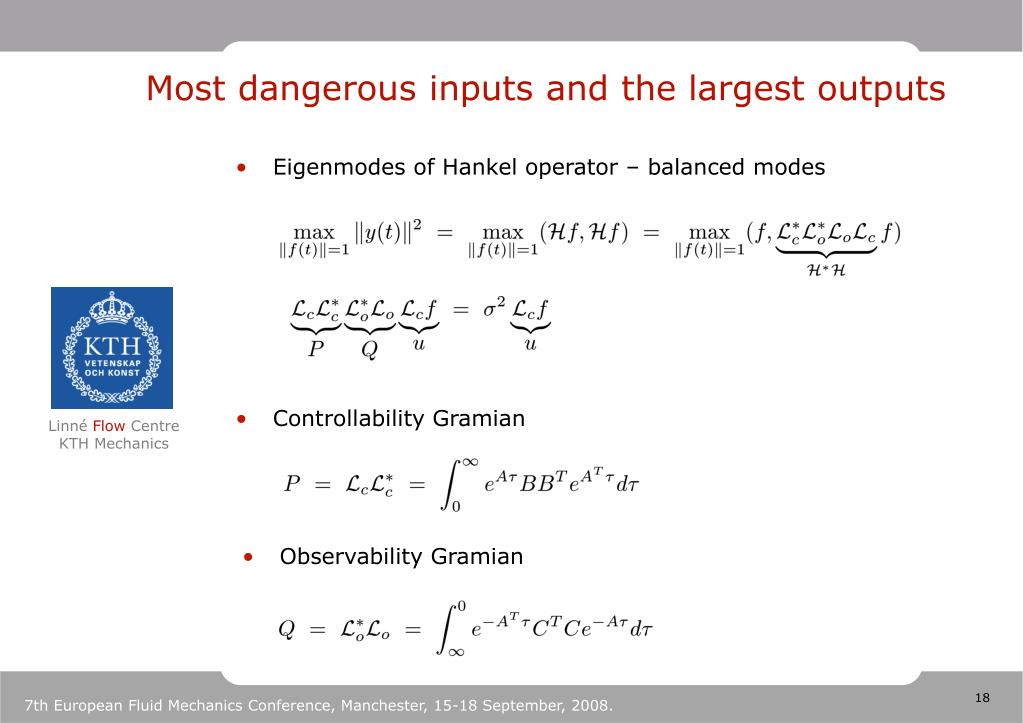

Most dangerous inputs and the largest outputs

  • Eigenmodes of Hankel operator – balanced modes

  • Controllability Gramian

  • Observability Gramian


Controllability gramian for gl equation

  • Input

Controllability Gramian for GL-equation

  • Correlation of actuator impulse response in forward solution

  • POD modes:

  • Ranks states most easily influenced by input

  • Provides a means to measure controllability


Observability gramian for gl equation

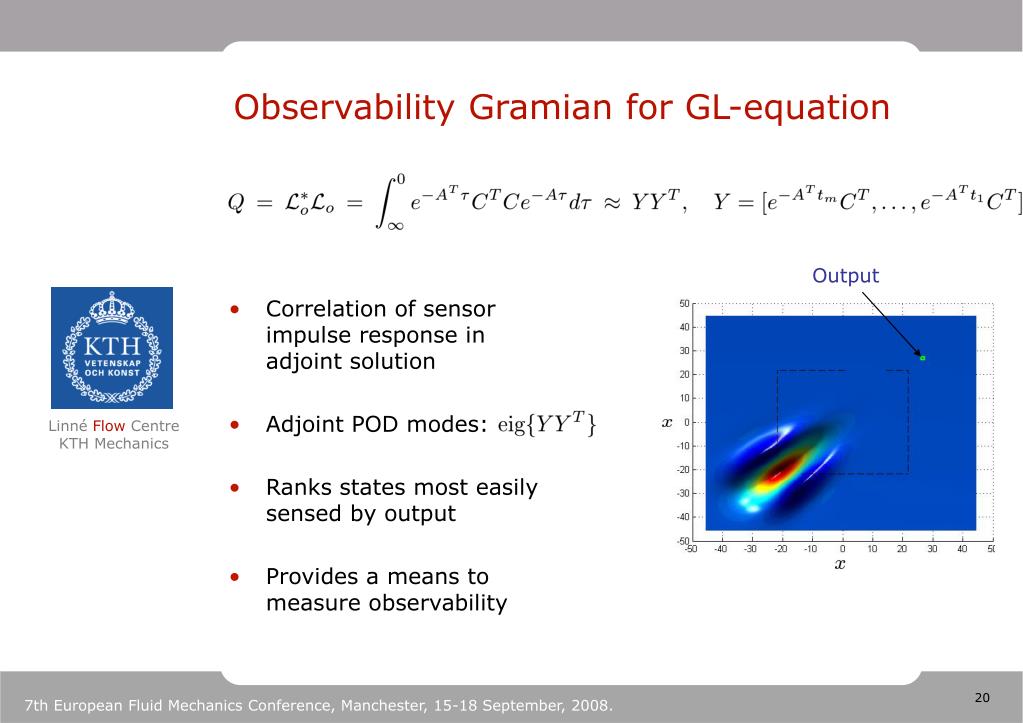

Observability Gramian for GL-equation

  • Correlation of sensor impulse response in adjoint solution

  • Adjoint POD modes:

  • Ranks states most easily sensed by output

  • Provides a means to measure observability

  • Output


Balanced modes eigenvalues of the hankel operator

Balanced modes: eigenvalues of the Hankel operator

  • Combine snapshots of direct and adjoint simulation

  • Expand modes in snapshots to obtain smaller eigenvalue problem


Snapshots of direct and adjoint solution in blasius flow

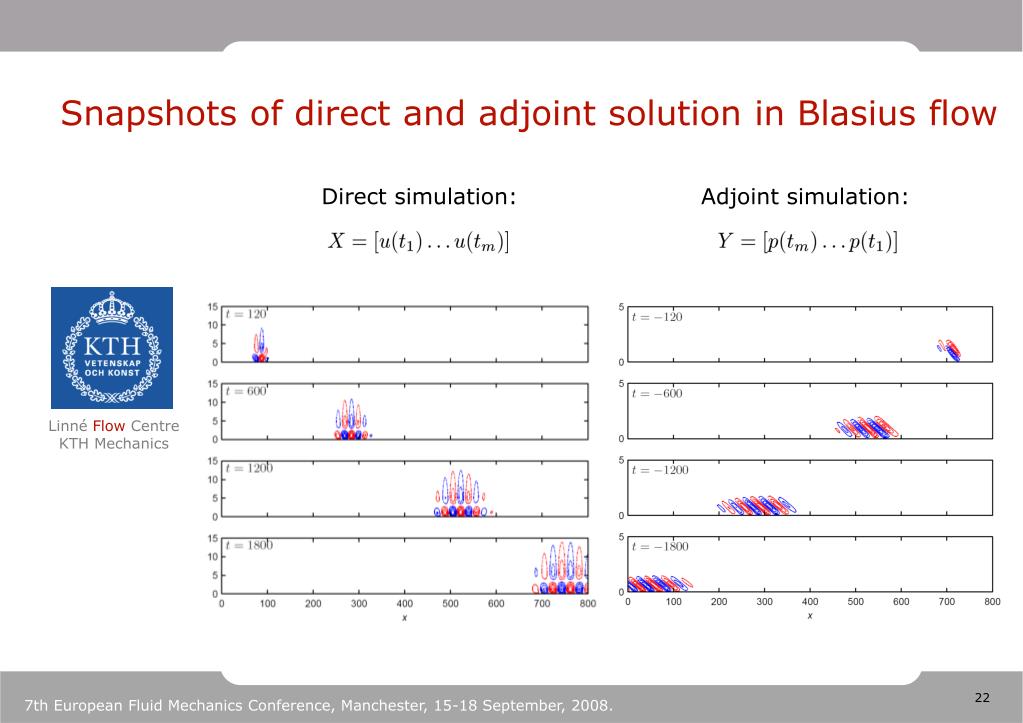

Snapshots of direct and adjoint solution in Blasius flow

Direct simulation:

Adjoint simulation:


Balanced modes for blasius flow

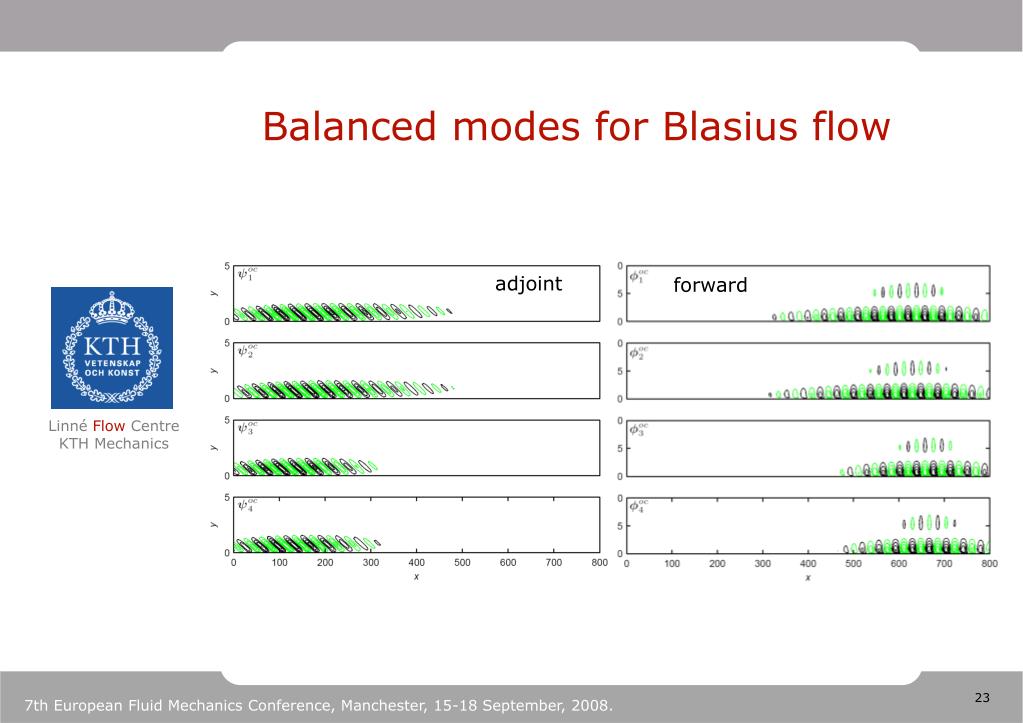

Balanced modes for Blasius flow

adjoint

forward


Properties of balanced modes

Properties of balanced modes

  • Largest outputs possible to excite with chosen forcing

  • Balanced modes diagonalize observability Gramian

  • Adjoint balanced modes diagonalize controllability Gramian

  • Ginzburg-Landau example revisited


Model reduction

Model reduction

  • Project dynamics on balanced modes using their biorthogonal adjoints

  • Reduced representation of input-output relation, useful in control design


Impulse response

Impulse response

Disturbance Sensor

Actuator Objective

Disturbance Objective

DNS: n=105

ROM: m=50


Frequency response

Frequency response

From all inputs to all outputs

DNS: n=105

ROM: m=80

m=50

m=2


Feedback control

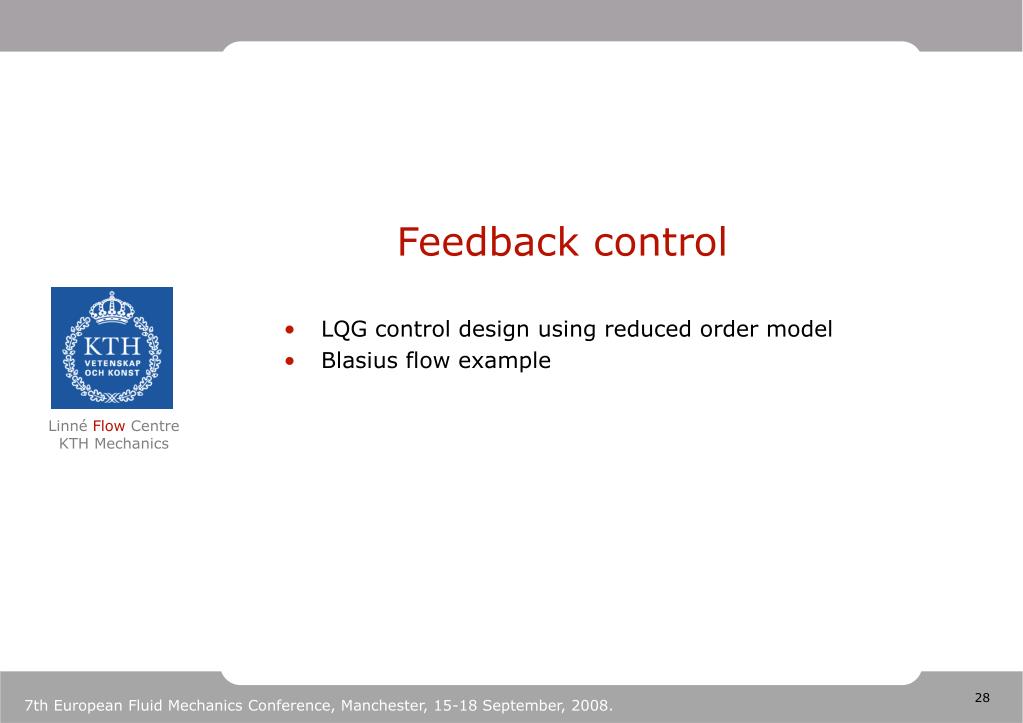

Feedback control

  • LQG control design using reduced order model

  • Blasius flow example


Optimal feedback control lqg

Optimal Feedback Control – LQG

cost function

g

(noise)

Ly

f=Kk

z

w

controller

Find an optimal control signal f(t) based on the measurements y(t) such that in the presence of external disturbances w(t) and measurement noise g(t) the output z(t) is minimized.

 Solution: LQG/H2


Lqg controller formulation with dns

LQG controller formulation with DNS

  • Apply in Navier-Stokes simulation


Performance of controlled system

Performance of controlled system

controller

Noise

Sensor

Actuator

Objective


Performance of controlled system1

Control off

Cheap Control

Intermediate control

Expensive Control

Performance of controlled system

Noise

Sensor

Actuator

Objective


Conclusions

Conclusions

  • Complex stability/control problems solved using Krylov/Arnoldi methods based on snapshots of forward and adjoint Navier-Stokes solutions

  • Optimal disturbance evolution brought out Orr-mechanism and propagating TS-wave packet automatically

  • Balanced modes give low order models preserving input-output relationship between sensors and actuators

  • Feedback control of Blasius flow

    • Reduced order models with balanced modes used in LQG control

    • Controller based on small number of modes works well in DNS

  • Outlook: incorporate realistic sensors and actuators in 3D problem and test controllers experimentally


Background

Background

  • Global modes and transient growth

    • Ginzburg-Landau: Cossu & Chomaz (1997); Chomaz (2005)

    • Waterfall problem: Schmid & Henningson (2002)

    • Blasius boundary layer, Ehrenstein & Gallaire (2005); Åkervik et al. (2008)

    • Recirculation bubble: Åkervik et al. (2007); Marquet et al. (2008)

  • Matrix-free methods for stability properties

    • Krylov-Arnoldi method: Edwards et al. (1994)

    • Stability backward facing step: Barkley et al. (2002)

    • Optimal growth for backward step and pulsatile flow: Barkley et al. (2008)

  • Model reduction and feedback control of fluid systems

    • Balanced truncation: Rowley (2005)

    • Global modes for shallow cavity: Åkervik et al. (2007)

    • Ginzburg-Landau: Bagheri et al. (2008)


Jet in cross flow

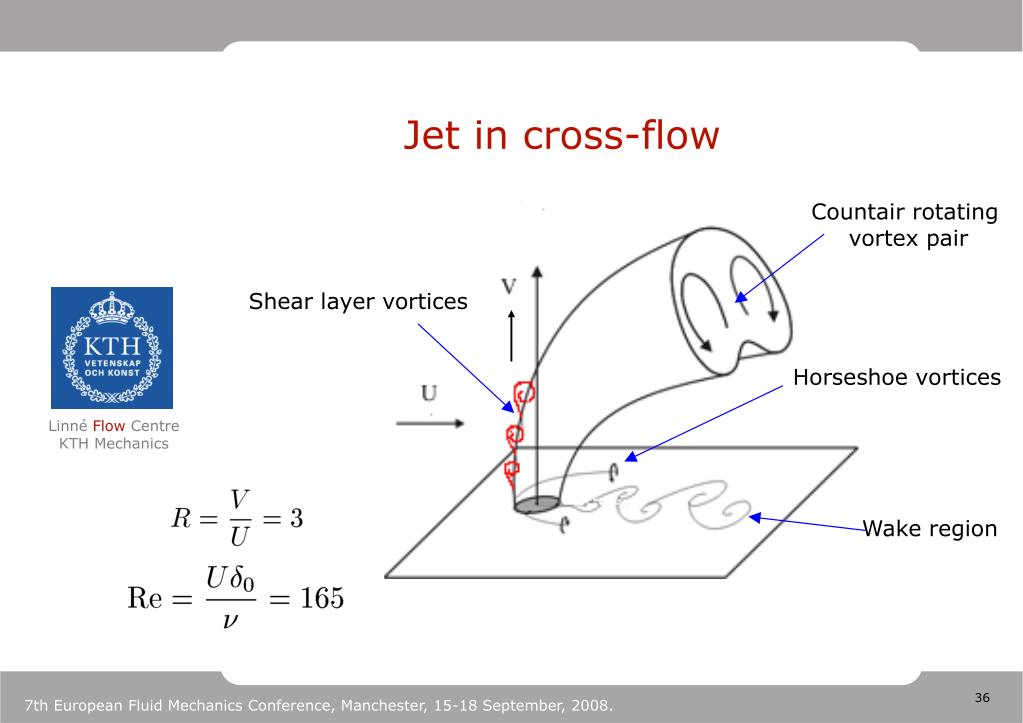

Jet in cross-flow

Countair rotating vortex pair

Shear layer vortices

Horseshoe vortices

Wake region


Direct numerical simulations

Direct numerical simulations

  • DNS: Fully spectral and parallelized

  • Self-sustained global oscillations

  • Probe 1– shear layer

  • Probe 2 – separation region

1

2 Vortex

identification criterion

2


Basic state and impulse response

Unsteady

Time-averaged

Steady-state

Basic state and impulse response

  • Steady state computed using the SFD method (Åkervik et.al.)

  • Energy growth of perturbation

Steady state

Perturbation


Global eigenmodes

Global eigenmodes

  • Global eigenmodes computed using ARPACK

  • Growth rate: 0.08

  • Strouhal number: 0.16

1st global mode

time

Perturbation energy

Global mode energy


Optimal sum of eigenmodes

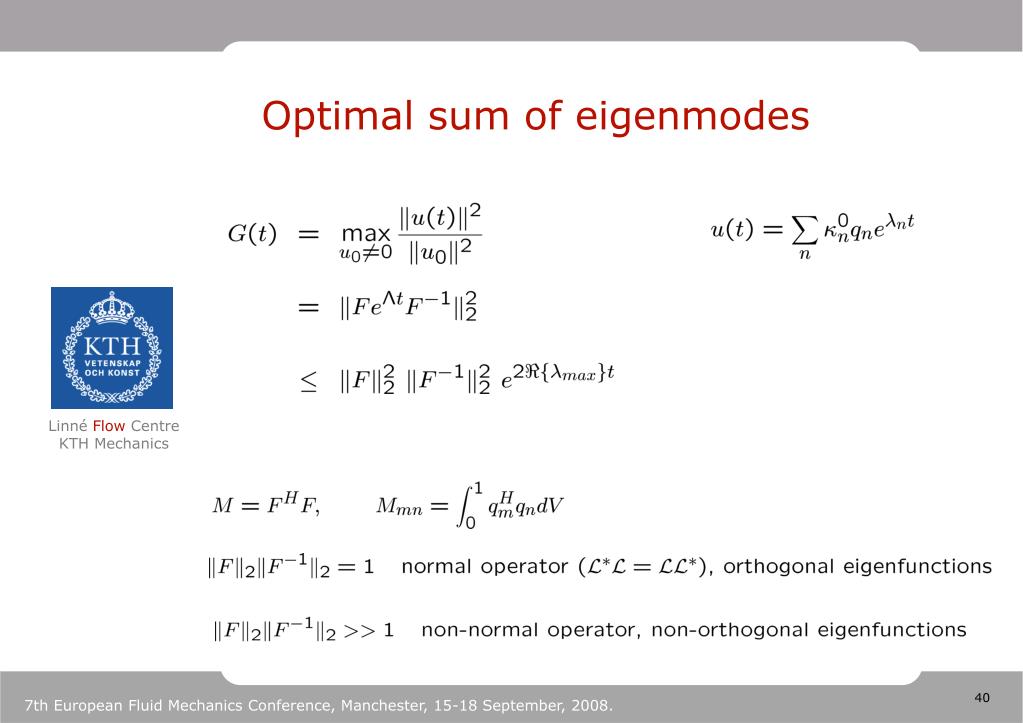

Optimal sum of eigenmodes


Global view of tollmien schlichting waves

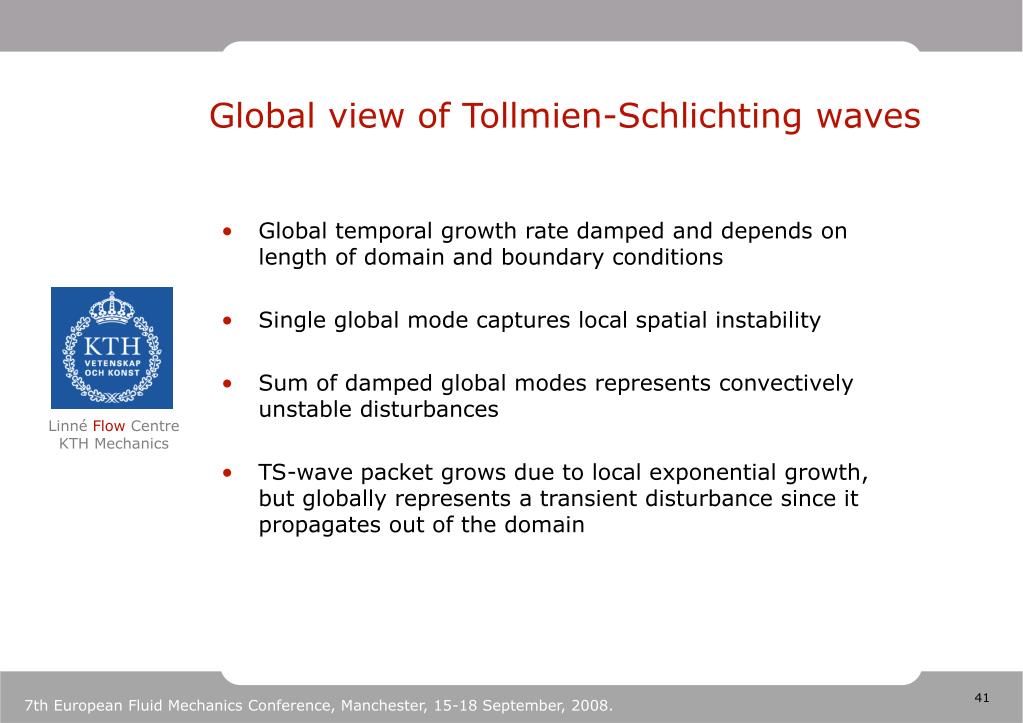

Global view of Tollmien-Schlichting waves

  • Global temporal growth rate damped and depends on length of domain and boundary conditions

  • Single global mode captures local spatial instability

  • Sum of damped global modes represents convectively unstable disturbances

  • TS-wave packet grows due to local exponential growth, but globally represents a transient disturbance since it propagates out of the domain


3d blasius optimals

3D Blasius optimals

  • Streamwise vorticies create streaks for long times

  • Optimals for short times utilizes Orr-mechanism


Input output analysis

Input-output analysis

  • Inputs:

    • Disturbances: roughness, free-stream turbulence, acoustic waves

    • Actuation: blowing/suction, wall motion, forcing

  • Outputs:

    • Measurements of pressure, skin friction etc.

  • Aim: preserve dynamics of input-output relationship in reduced order model used for control design


A long shallow cavity

A long shallow cavity

  • Basic flow from DNS with SFD:

  • Åkervik et al., Phys. Fluids 18, 2006

  • Strong shear layer at cavity top and recirculation at the downstream end of the cavity

Åkervik E., Hoepffner J., Ehrenstein U. & Henningson, D.S. 2007. Optimal growth, model reduction and control in a separated boundary-layer flow using global eigenmodes. J. Fluid Mech. 579: 305-314.


Global spectra

Global spectra

  • Global eigenmodes found using Arnoldi method

  • About 150 eigenvalues converged and 2 unstable


Most unstable mode

Most unstable mode

  • Forward and adjoint mode located in different regions

  • implies non-orthogonal eigenfunctions/non-normal operator

  • Flow is sensitive where adjoint is large


Maximum energy growth

Maximum energy growth

  • Eigenfunction expansion in selected modes

  • Optimization of energy output


Development of wavepacket

Development of wavepacket

  • x-t diagrams of pressure at y=10 using eigenmode expansion

  • Wavepacket generates pressure pulse when reaching downstream lip

  • Pressure pulse triggers another wavepacket at upstream lip


Lqg feedback control

LQG feedback control

cost function

Reduced model of real system/flow

Estimator/ Controller


Riccati equations for control and estimation gains

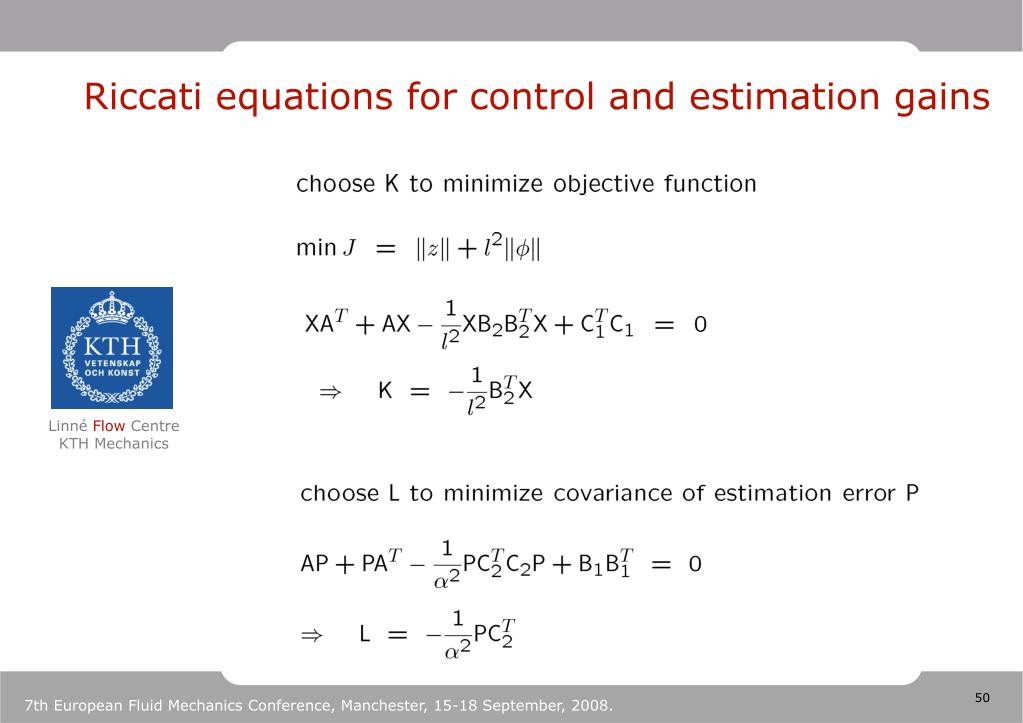

Riccati equations for control and estimation gains


Feedback control of cavity disturbances

Feedback control of cavity disturbances

  • Project dynamics on least stable global modes

  • Choose spatial location of control and measurements

  • LQG control design


Controller performance

Controller performance

  • Least stable eigenvalues are rearranged

  • Exponential growth turned into exponential decay

  • Good performance in DNS using only 4 global modes
