- By
**gyan** - Follow User

- 133 Views
- Uploaded on

Download Presentation
## PowerPoint Slideshow about ' BRAVAIS LATTICE' - gyan

**An Image/Link below is provided (as is) to download presentation**

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.

- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript

BL describes the periodic nature of the atomic arrangements (units) in a X’l.

X’l structure is obtained when we attach a unit to every lattice point and repeat in space

Unit – Single atoms (metals) / group of atoms (NaCl)

[BASIS]

Lattice + Basis = X’l structure

Infinite array of discrete points arranged (and oriented) in such a way that it looks exactly the same from whichever point the array is looked at.

Q

P

2-D honey comb net

Not a BL

Lattice arrangement looks the same from P and R, bur rotated through 180º when viewed from Q

If the lattice is a BL, then it is possible to find a set of 3 vectors a, b, c such that any point on the BL can be reached by a translation vector

R = n1a + n2b + n3c

where a, b, c are PTV and ni’s are integers

eg: 2D lattice

(B)

(A)

(C)

a2

a2

a2

a1

a1

a2

a1

(D)

a1

(A), (B), (C) define PTV, but (D) is not PTV

C2

PTV

B

F5

F4

F2

F3

F1

a2

A

C1

a3

F6

a1

For Cube B, C1&C2 are Face centers; also F2&F3

All atoms are either corner points or face centers and are EQUIVALENT

(-1,-1,3)

(-1,-1,2)

(-1,0,2)

(0,0,2)

(0,-1,2)

a3

(0,0,1)

(0,1,1)

a2

(0,0,0)

(0,1,0)

a1

(1,1,0)

(1,2,0)

(1,0,0)

Rectangular Lattice : a ≠ b, α = 90

2 sc lattices displaced by (a/2,a/2,a/2)

A is the body center

B

PUC

A

B is the body center

All points have identical surrounding

a2

60º

a1

A lattice which is not a BL can be made into a BL by a proper choice of 2D lattice and a suitable BASIS

2-D Lattice

B

A

The original lattice which is not a BL can be made into a BL by selecting the 2D oblique lattice (blue color) and a 2-point BASIS A-B

Corners – 1

Face centers – 3

Inside the cube – 4

(¾, ¼, ¾)

(¼, ¾, ¾)

(¾, ¾,¼)

z

(¼, ¼,¼)

y

x

(0,0,0)

DiamondStructure

(000)

k = k´- k = G201

k´

k

θ201

2π/λ

Incident beam

(102)

(002)

(302)

(202)

(301)

(201)

(101)

(001)

(300)

(200)

(100)

(000)

(00 -1)

(30 -1)

- Diffraction Intensities
- Scattering by electrons
- Scattering by atoms
- Scattering by a unit cell
- Structure factors
- Powder diffraction intensity calculations
- – Multiplicity
- – Lorentz factor
- – Absorption, Debye-Scherrer and Bragg Brentano
- – Temperature factor

- Scattering by atoms
- We can consider an atom to be a collection of electrons.
- This electron density scatters radiation according to the Thomson approach (classical Scattering). However, the radiation is coherent so we have to consider interference between x-rays scattered from different points within the atom
- – This leads to a strong angle dependence of the scattering – FORM FACTOR.

- Form factor (Atomic Scattering Factor)
- We express the scattering power of an atom using a form factor (f)
- – Form factor is the ratio of scattering from the atom to what
- would be observed from a single electron

30

29

Form factor is expressed as a function of (sinθ)/λ as the interference depends on both λ and the scattering angle

Form factor is equivalent to the atomic number at low angles, but it drops rapidly at high

(sinθ)/λ

20

fCu

10

0

0.6

1.0

0.8

0

0.2

0.4

sinθ/λ

The form factor is related to the scattering density distribution in an atoms

- It is the Fourier transform of the scattering density

- Neutrons are scattered by the nucleus not electrons and as the nucleus is very small, the neutron form factor shows no angular dependence

NEUTRON

b

F-

X-RAY

3He

7Li

f

C

1H

Li+

sinθ/λ

sinθ/λ

1

3

3

2

2

(b)

Scattering by a Unit Cell – Structure Factor

The positions of the atoms in a unit cell determine the intensities of the reflections

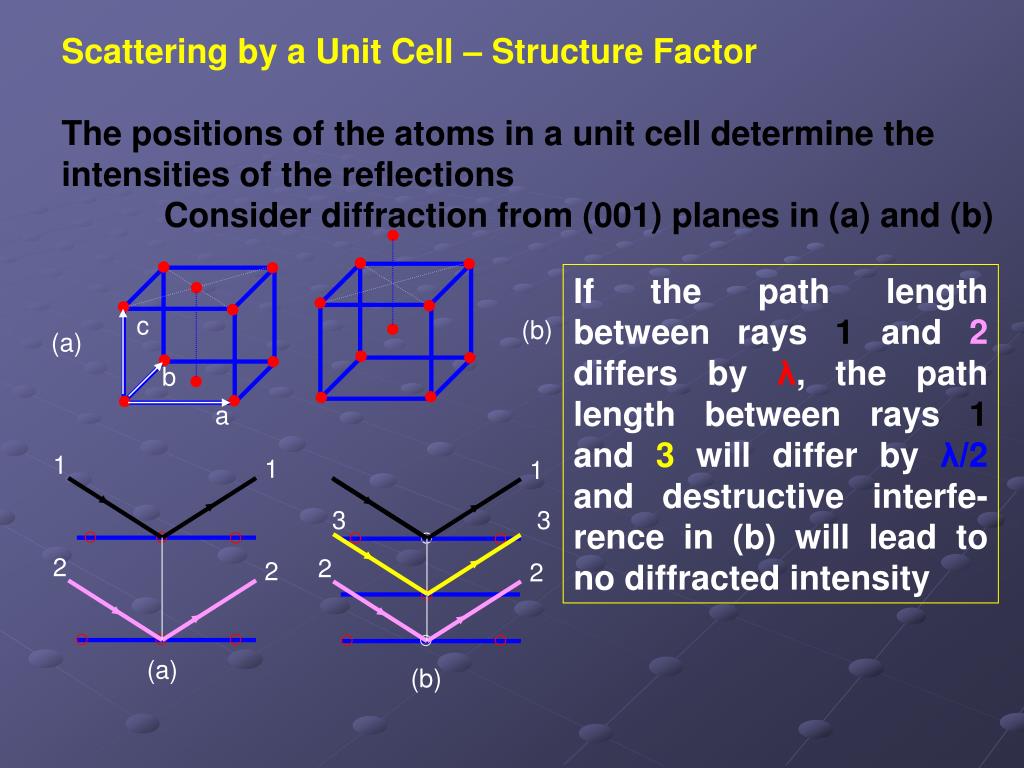

Consider diffraction from (001) planes in (a) and (b)

If the path length between rays 1 and 2 differs by λ, the path length between rays 1 and 3 will differ by λ/2 and destructive interfe-rence in (b) will lead to no diffracted intensity

c

(a)

b

a

1

1

2

2

(a)

Download Presentation

Connecting to Server..
