Study of Malathion's Toxicity to Mollusk and Its Implications with Cancer Development

Study of Malathion's Toxicity to Mollusk and Its Implications with Cancer Development. Caroline Hsiao Manhasset Science Research In C ooperation With: Dr . Wei Zhu SUNY College at Old Westbury SUNY Old Westbury Neuroscience Research Institute. Cancer Rate per 100,000 . Need.

gwylan
Download Presentation

Study of Malathion's Toxicity to Mollusk and Its Implications with Cancer Development

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Study of Malathion's Toxicity to Mollusk and Its Implications with Cancer Development Caroline Hsiao Manhasset Science Research In Cooperation With: Dr. Wei Zhu SUNY College at Old Westbury SUNY Old Westbury Neuroscience Research Institute

  2. Cancer Rate per 100,000 Need Figure 1: Graph of Cancer Incidence Worldwide http://info.cancerresearchuk.org/cancerstats/types/liver/incidence/

  3. Low Level (Endogenous) Morphine High Level of Morphine Morphine Signaling Nitric Oxide Healthy state, Antiviral, Antibacterial Cellular Damage, Cancer Development Figure 2: Basic outline of morphine signaling. Diagram Created by Author

  4. Malathion usage 2010 Malathion Figure 3: Increased usage of Malathionin recent years Malathion Detected After Spraying Malathion usage 2007 http://10.7.1.5/cgi-bin/overmain?args=d29ya3N0YXRpb249MTAuMjAuMS43NSZ1cmw9YUhSMGNEb3ZMM2QzZHk1d1pYTjBjSEp2WkhWamRITnZibXhwYm1VdVkyOXRMMHhoWW1Wc2N5MU5VMFJUTDBFeE16Uk5MbkJrWmc9PSZwcm9maWxlPVN0dWRlbnREZWZhdWx0JnVzZXI9TUFOSEFTU0VUXGNhcm9saW5lX2hzaWFvJm9sPTEmcmE9MSZhbD0wJnJhdGluZ3M9c3NocA==

  5. Mytilusedulis Posterior duct muscle – where hemocytes (immune cells) were dissected Pedal ganglia was dissected Figure 5: examples of Mytilusedulis dissection

  6. Purpose and Hypothesis Figure 6: The purpose of this study was to observe Malathion ‘s effect on Mytilusedulis Hypothesis: H(a): Malathion will effect the opiate signaling pathway in hemocyte cells and therefore may show a link to cancer development. H(0): Malathion will have no effect on the opiate signaling pathway in hemocytecells and show no correlation to tumor development.

  7. H(a): Malathion will effect the opiate signaling pathway in hemocyte cells and therefore may show a link to cancer development. H(0): Malathion will have no effect on the opiate signaling pathway in hemocyte cells. Hypothesis

  8. Mytilusedulis Dissection N = ~1,000 per group Method – Image Analysis Hemocyte Extraction Divide Hemocytesinto Two Six-Well Plates Morphine and Naloxone 10-6M Malathion and Naloxone 10-6M Malathion and L-name 10-6M Morphine and L-name 10-6M Control 10-6M Morphine 10-6M Malathion10-6M Add 15uL of Trypan Blue Stain Take Pictures Take Pictures Calculate and Analyze Form Factor Count Dead Cells Statistical Analysis (ANOVA With SceffePosthoc Test)

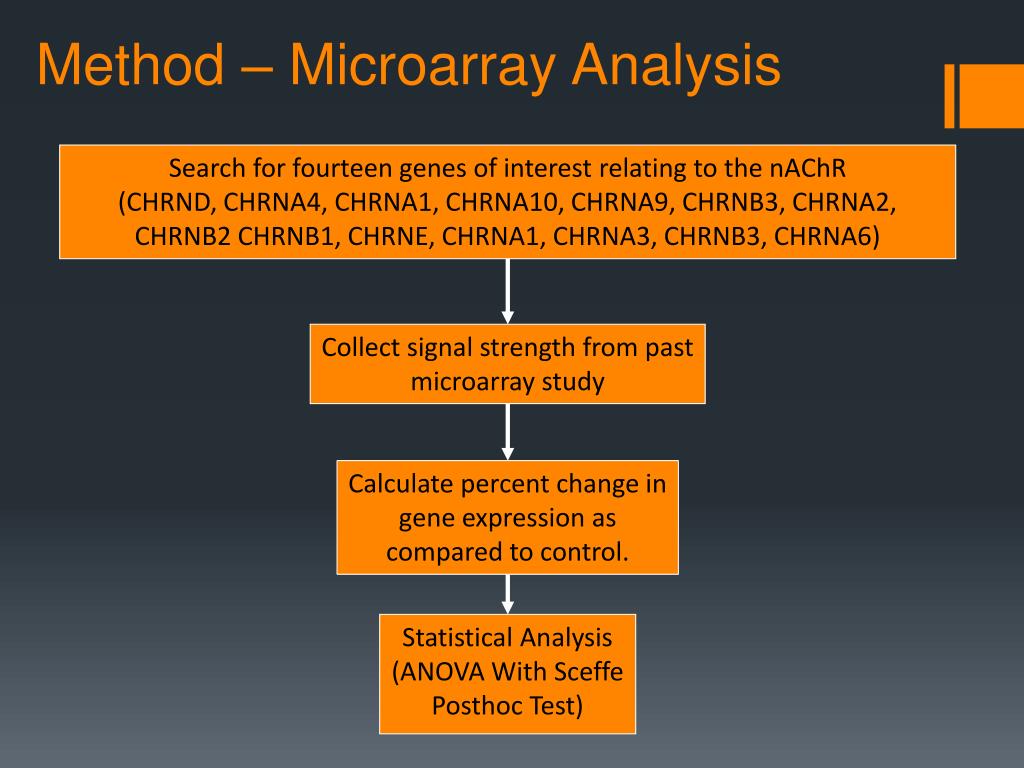

  9. Search for fourteen genes of interest relating to the nAChR (CHRND, CHRNA4, CHRNA1, CHRNA10, CHRNA9, CHRNB3, CHRNA2, CHRNB2 CHRNB1, CHRNE, CHRNA1, CHRNA3, CHRNB3, CHRNA6) Method – Microarray Analysis Collect signal strength from past microarray study Calculate percent change in gene expression as compared to control. Statistical Analysis (ANOVA With SceffePosthoc Test)

  10. N = ~1,000 per group Cells are pretreated with 125I labeled morphine Method - Morphine Release Assay Malathion (10-4M, 10-5M, 10-6M, 10-7M, 10-8M) Control (Nicotine 10-6M) Enter Samples to Gammar Counter Analyze Concentration of Morphine Released

  11. Image Analysis Image Analysis Picture Taken by Author Normal Hemocytes Hemocytes with Malathion Exposure

  12. Results Malthion10-6M Naloxone 10-6M Morphine 10-6M Naloxone 10-6M Malthion10-7M Malthion10-6M Malthion10-5M Morphine 10-6M Malthion10-3M N = ~1,000 per group Graph Created by Author

  13. Results * ^ * ^ N = ~1,000 per group * ^ * ^ ^ ^ ^ ^ N = ~1,000 per group Graph Created by Author

  14. N = ~1,000 per group Results 10-8M 10-7M Control 10-6M 10-4M 10-5M Graph Created by Author

  15. Results Graph Created by Author

  16. Inhibition of Acetylcholinesterase Kills Insects Malathion Disruption of Opiate Signaling in Animals and Humans Discussion Inappropriate Nitric Oxide Release Oxidative Stress Potential Tumor Development Diagram Created by Author

  17. Conclusion • Malathion is toxic to Mytilusedulis • Affects the opiate signaling system in both animals and humans.

  18. Future Studies Diagram Created by Author

  19. Acknowledgements • Dr. Wei Zhu - SUNY Old Westbury Neuroscience Research Institute • Mr. Peter Guastella - Manhasset High School • The SCA - Summer Studies Scholarship

  20. Bibliography BanachM, Casares F, Kream RM, Gluba A, Rysz J, Stefano GB. “Morphine-mediated alteration of hypertension-related gene expression in human white blood cells and multilineage progenitor cells”. J Hum Hypertens 2010 Bonner Matthew R., Coble Joseph, Blair Aaron, Freeman Laura E. Beane, Dale Jane A. Hoppin P. Sandler, and Michael C. R. Alavanja; Malathion Exposure and the Incidence of Cancer in the Agricultural Health Study; American Journal of Epidemiology; Vol. 166; Pgs 1023-1034; May 17, 2007 Cabello Gertrudis, Valenzuela Mario, VilaxaArnaldo, DuránViviana, Isolde Rudolph, Hrepic Nicolas, and Gloria Calaf; A Rat Mammary Tumor Model Induced by the Organophosphorous Pesticides Parathion and Malathion, Possibly through Acetylcholinesterase Inhibition; Environmental Health Perspectives; vol 109; pgs 471-479; May 2001 Calaf, G.M., and Roy D. “Cancer genes induced by malathion and parathion in the presence of estrogen in breast cells”; INTERNATIONAL JOURNAL OF MOLECULAR MEDICINE; volume 21; pgs261-268, 2008 26 CalafG.M. ParraA E. and Garrido F. “Cell proliferation and tumor formation induced by eserine, an acetylcholinesterase inhibitor, in rat mammary gland”Oncology Reports; volume 17; pgs 25-33; 2007 CasaresFM, Mantione KJ, Kream RM, Stefano GB. “Neurotransmitter Gene Microarray Analysis in Human White Blood Cells and Human Stem Cells Following Morphine Exposure”.Activitas Nervosa Superior Rediviva. 51(3-4): 153-158; 2010 Echiburu-ChauC, Calaf GM, “Rat lung cancer induced by malathion and estrogen”Int J Oncology, vol 33, pgs 603-611, Sept 2008 Edwards Debra, “Preliminary Risk Assessment for the Reregistration Eligibility Decision Document” Environmental Protection Agency pgs 7-18, 2000 Edwards Debra, “Reregistration Eligibility Decision for Malathion” Environmental Protection Agency, pgs 8-194, 2010, Gupta, K.,Kshirsagar, S.,Chang, L,Schwartz, R.,Law, PY.,Yee, D.,Hebbel, RP., Morphine stimulates angiogenesis by activating proangiogenic and survival-promoting signaling and promotes breast tumor growth [Electronic version]. Cancer Research, 62, 4491-4498. Gwinn Maureen R., Whipkey Diana L., Tennant Lora B., and Weston Ainsley; Differential Gene Expression in Normal Human Mammary Epithelial Cells Treated with Malathion Monitored by DNA Microarrays; Environmental Health Perspectives; vol 113; pg 1046-1051; August 2005 Ishikawa, M., Tanno, K., Kamo, A., Takayanagi, Y., Sasaki, K., Enhancement of tumor growth by morphine and its possible mechanism in mice;Biological and Pharmaceutical Bulletin, vol16, pgs 762-766 2006 MarilieD. Gammon et. al.; “Enviormental Toxins and Breast Cancer on Long Island. Polycyclic Aromatic Hydrocarbon DNA Adducts”; August 2002; Cancer Epidemiology, Biomarkers & Prevention; Vol. 11; 677–685. Moore Pamela D., Yedjou Clement G., and Tchounwou Paul B; “Malathion-Induced Oxidative Stress, Cytotoxicity and Genotoxicity in Human Liver Carcinoma (HepG2) Cells” Environ Toxicol.; volume 25(3): pgs 221–226; 2010 June Rapp Doris, “How Can Pregnant Women Avoid Dangerous Everyday Chemicals?”; Health News Digest; Oct 16 2011 Scharrer B. Paemen L, Smith EM, Hughes TK, Liu Y Pope M Stefano GB “The presence and effects of mammalian signal molecules in immunocyts of the insect Leucophaeamaderae” Cell Tissue Res, vol 283, pg 93-97, Jan 1996 Stefano GB, Hartman A, Bilfinger TV, Magazine HI, Liu Y, Casares F, Goligorsky MS; Presence of the mu3 opiate receptor in endothelial cells. Coupling to nitric oxide production and vasodilation; Journal of Biological Chemistry; vol270; pgs30290-30293; December 22, 1995 Stefano George B., Kream Richard M., Mantione Kirk J., Sheehan Melinda, Cadet Patrick, Zhu Wei, Bilfinger Thomas V., and Esch Tobias; “Endogenous Morphine/Nitric Oxide-Coupled Regulation of Cellular Physiology and Gene Expression: Implications for Cancer Biology”; Semin Cancer Biol; vol 18, pgs 199–210; June 2008 Stefano George B., Kream Richard M., Mantione Kirk J., Sheehan Melinda, Cadet Patrick, Zhu Wei, Bilfinger Thomas V., and Esch Tobias; “Endogenous Morphine/Nitric Oxide-Coupled Regulation of Cellular Physiology and Gene Expression: Implications for Cancer Biology”; Published in June 2008. Stefano George B., Burrill John D., Labur Sergei, Blake Julie, Cadet Patrick; “Regulation of various genes in human leukocytes acutely exposed to morphine: expression microarray analysis”; Med SciMonit; Published: 2005 Weinber David B, Menotti David E, “Registrants’ May 7, 2010 Response to EPA’s April 29, 2010 Letter:LImplementation of Chlorpyrifos, Diazinon and MalathionSalmonidBiOp”, Environmental Protection Agency, pg1-3, 2010, Yen Li Lo, Jyh-Cherng Yu, Shou-Tung Chen, Giu- Cheng Hsu, Yi-Chien Mau, Show-Lin Yang, Pei-Ei Wu1 and Chen-Yang Shen“Breast cancer risk associated with genotypic polymorphism of the mitotic checkpoint genes: a multigenic study on cancer susceptibility” Carcinogenesis vol.28 no.5 pp.1079–1086, 2007 Zhu W, Cadet P, Baggerman G, Mantione KJ, Stefano GB; Human white blood cells synthesize morphine: CYP2D6 modulation; J Immunol; vol 175; pgs 7357-7362; December 2005 Zhu W, Mantione KJ, Casares FM, Cadet P, Kim JW, Bilfinger TV, Kream RM, Khalil S, Singh S, Stefano GB. “Alcohol-, nicotine-, and cocaine-evoked release of morphine from invertebrate ganglia: Model system for screening drugs of abuse.” Medical Science Monitor. 12(5): BR155-BR161. 2006 Zhu Yu Cheng, Snodgrass Gordon L., Chen Ming Shun; “Enhanced esterase gene expression and activity in a Malathion resistant strain of the tarnished plant bug, Lyguslineolaris”; Insect Biochemistry and Molecular Biology; vol 34; pgs 1175–1186; May 24 2004
