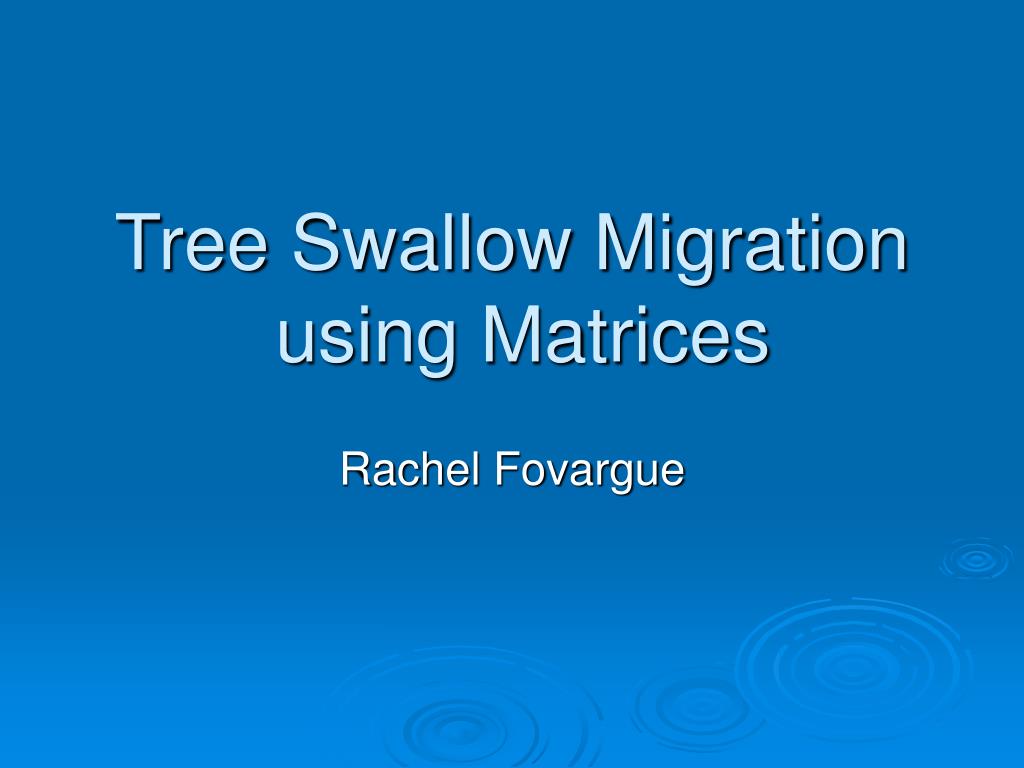

  1. Tree Swallow Migration using Matrices Rachel Fovargue

  2. Migration • Defined as… • the periodic passage of groups of animals (especially birds or fishes) from one region to another for feeding or breeding

  3. Birds

  4. Mammals

  5. Humans

  6. Bird Migration • Some move to follow food source, others travel south to avoid frozen waters • Advantage: Breeding in North… days are long, food is plentiful • Disadvantage: Travel in perilous, lots of energy used, predation common • Most species travel to tropical regions for winter, although there are exceptions • Mainly a Northern Hemisphere Phenomenon

  7. Tree SwallowsTachycineta bicolor • Size: 12-15 cm (5-6 in) • Wingspan: 30-35 cm (12-14 in) • Weight: 16-25 g (0.56-0.88 ounces) • Habitat: Open areas near water and fields, especially wooded swamps and shorelines. • Food: Flying insects and some berries • Catches insects in flight.

  8. Tree Swallow Migration • Pic or info - Travel in large flocks - Roost together at night

  9. Reproduction Nest an open cup of grass or pine needles placed in tree cavity or nest box. Lined with feathers, usually of waterfowl. • Egg Description: White, ~25 mm in length, • Clutch Size: average 5-7 eggs per nest • Fledging: average of 4.6 nestlings fledge per nest

  10. Matrix Model • X1 =Population of North • X2 = Population of Birds Flying South • X3 = Population of South • X4 = Population of Birds Flying North • a = Survival rate for North • b = Survival rate for Flight South • c = Survival rate for South • d = Survival rate for Flight North • e = Dispersal rate of Northern Population • f = Dispersal rate of Population Flying South • g = Dispersal rate of Southern Population • h = Dispersal rate of Population Flying North • m = Reproduction rate

  11. MatLab Program for Two AreasNorth/South • clear all m=1.0046 x=[0; 400] y=zeros(2,1460); y(:,1)=x;  %initialize for n=1:1459 a=sin((n-91)*2*pi/365)*.004+.9959 b=-sin((n-91)*2*pi/365)*.004+.9959 d=-sin((n-91)*2*pi/365)/50+.02 e=sin((n-91)*2*pi/365)/50+.02 A=[a*(1-d)*m b*e; a*d b*(1-e)]    y(:,n+1)=A*y(:,n);   %update with matrix model end plot([1:1460],y(1,:),'*r',[1:1460],y(2,:),'xb') legend('North','South')

  12. MatLab Program with Four AreasNorth/Trip Down/South/Return Trip • clear all m=1.0093 x=[30; 4000; 4700; 20] y=zeros(4,730); y(:,1)=x;   %initialize for n=1:729 a=sin((n-(365/4))*2*pi/365)*.004+.9934  %survival rate North b=-sin((n)*2*pi/365)*.003+.997   %survival rate Trip Down c=-sin((n-(365/4))*2*pi/365)*.003+.997   %survival rate South d=sin((n)*2*pi/365)*.003+.997   %survival rate Trip Back e=-sin((n-(365/4))*2*pi/365)/50+.02   %Dispersal Rate North f=sin((n)*2*pi/365)/50+.02   %Dispersal Rate Trip Down g=sin((n-(365/4))*2*pi/365)/50+.02   %Dispersal Rate South h=-sin((n)*2*pi/365)/50+.02   %Dispersal Rate Trip Back A=[a*(1-e)*m 0 0 d*h; a*e b*(1-f) 0 0; 0 b*f c*(1-g) 0; 0 0 c*g d*(1-h);]  y(:,n+1)=A*y(:,n);    %update with matrix model end plot([1:730],y(1,:),'*b',[1:730],y(2,:),'xg',[1:730],y(3,:),'ok',[1:730],y(4,:),'*r') legend('North','Trip Down','South','Return Trip')

  13. Bird Count • http://ebird.org/go/GuideMe?source=changeLocation&speciesCodes=treswa&reportType=species&bMonth=01&bYear=1996&eMonth=12&eYear=2006&monthRadio=-1&parentState=US-NY&getLocations=states&states=US-NY&countyState=US-NY&hotspotState=US-NY&bcrState=US-NY&continue.x=0&continue.y=0 • http://ebird.org/go/GuideMe?source=changeLocation&speciesCodes=treswa&reportType=species&bMonth=01&bYear=1996&eMonth=12&eYear=2006&monthRadio=-1&parentState=US-NY&getLocations=states&states=US-AL&states=US-GA&states=US-SC&countyState=US-NY&hotspotState=US-NY&bcrState=US-NY&continue.x=0&continue.y=0 • http://ebird.org/go/GuideMe?source=changeLocation&speciesCodes=treswa&reportType=species&bMonth=01&bYear=1996&eMonth=12&eYear=2006&monthRadio=-1&parentState=US-NY&getLocations=states&states=US-FL&countyState=US-NY&hotspotState=US-NY&bcrState=US-NY&continue.x=0&continue.y=0

  14. Conclusion • Can predict population Locations throughout the year • Also predict outcome of drop in survival rate in a particular location • Lower survival in any population leads to a sink and an inevitable demise in the total population • Conservation efforts have been started in many states to ensure nesting grounds for these birds

  15. References • Cornell Lab of Ornithology. All About Birds. Tree Swallow. http://www.birds.cornell.edu/AllAboutBirds/BirdGuide/Tree_Swallow_dtl.html. 2003 • Wikipedia. Bird Migration. http://en.wikipedia.org/wiki/Bird_migration. 2006 • Ebird.org. Cornell Lab of Ornithology. 2006 • Stocker, S. and D. Weis. Bird Migration. An energy analysis. 1998. http://imammb.oxfordjournals.org/cgi/reprint/15/1/65.pdf • Butler, R. Population Dynamics and Migration Routes of Tree Swallows. Field Ornithology. 59: 1988
