  1. Designing a type system for BoogiePL 2 K. Rustan M. Leino Microsoft Research, Redmond, WA 10 Oct 2007IFIP WG 2.3 meetingSanta Fe, NM 10 Oct 2007IFIP WG 2.3 meetingSanta Fe, NM

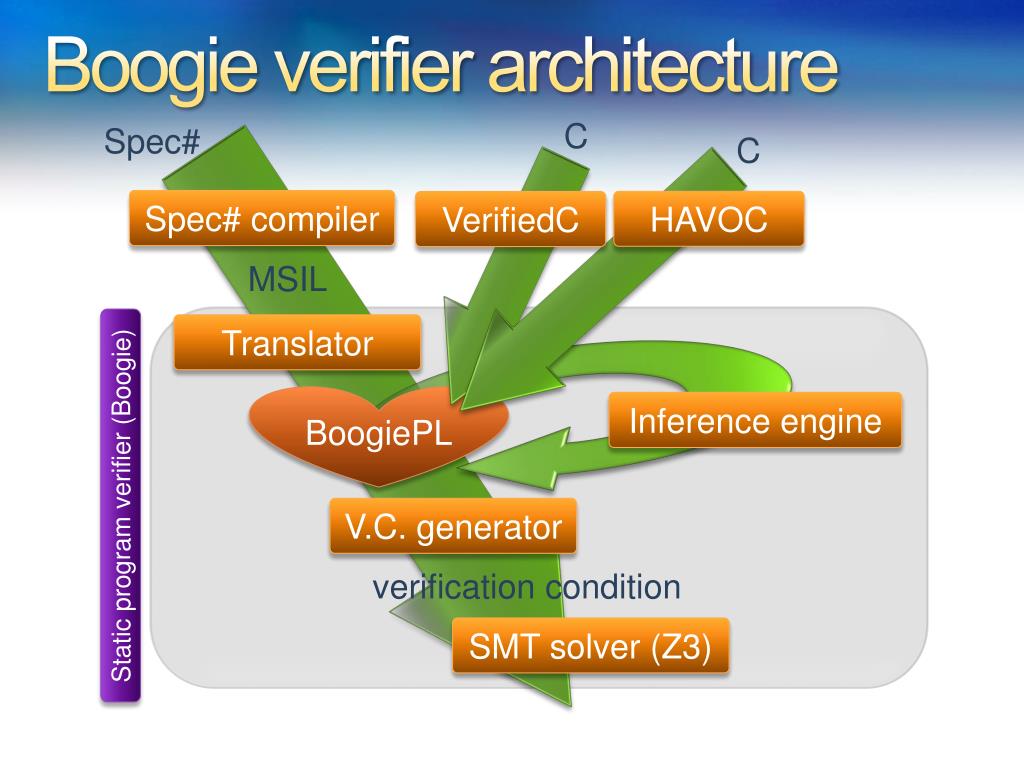

  2. Boogie verifier architecture C Spec# C Spec# compiler HAVOC VerifiedC MSIL Translator BoogiePL Inference engine Static program verifier (Boogie) V.C. generator verification condition SMT solver (Z3) “correct” or list of errors

  3. Modeling the heap • a := o.f • o.f := a • a := Heap[o,f] • a := select(Heap, o, f) • Heap[o,f] := a • Heap := Heap[o,f := a] • Heap := store(Heap, o, f, a)

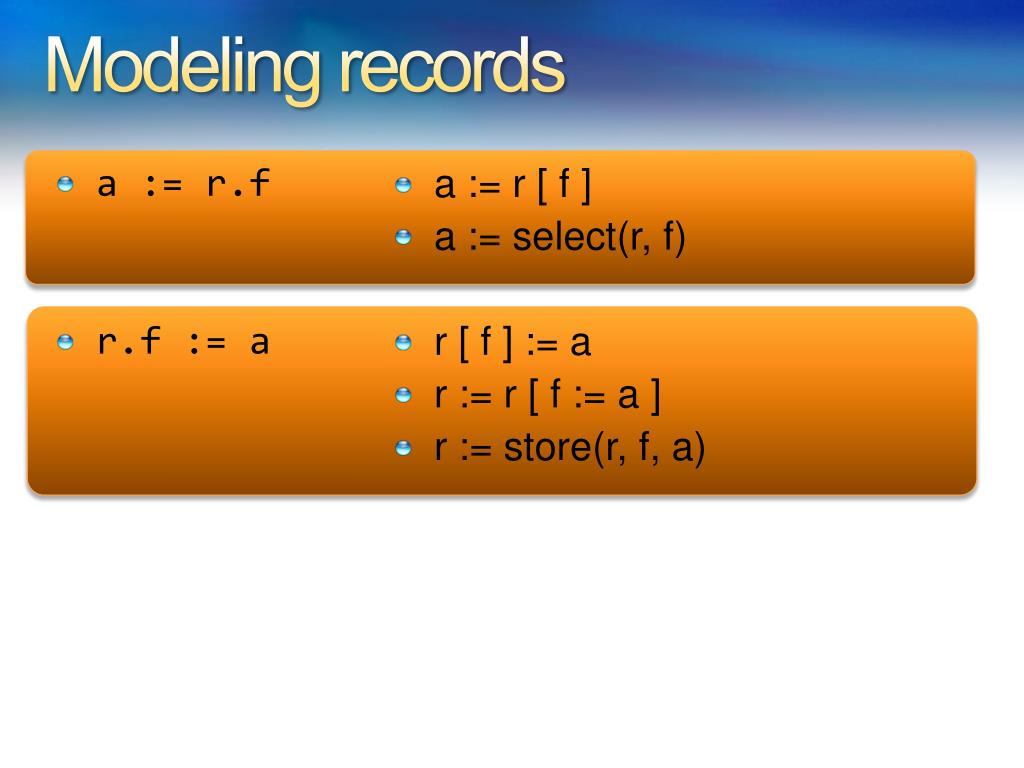

  4. Modeling records • a := r.f • r.f := a • a := r [ f ] • a := select(r, f) • r [ f ] := a • r := r [ f := a ] • r := store(r, f, a)

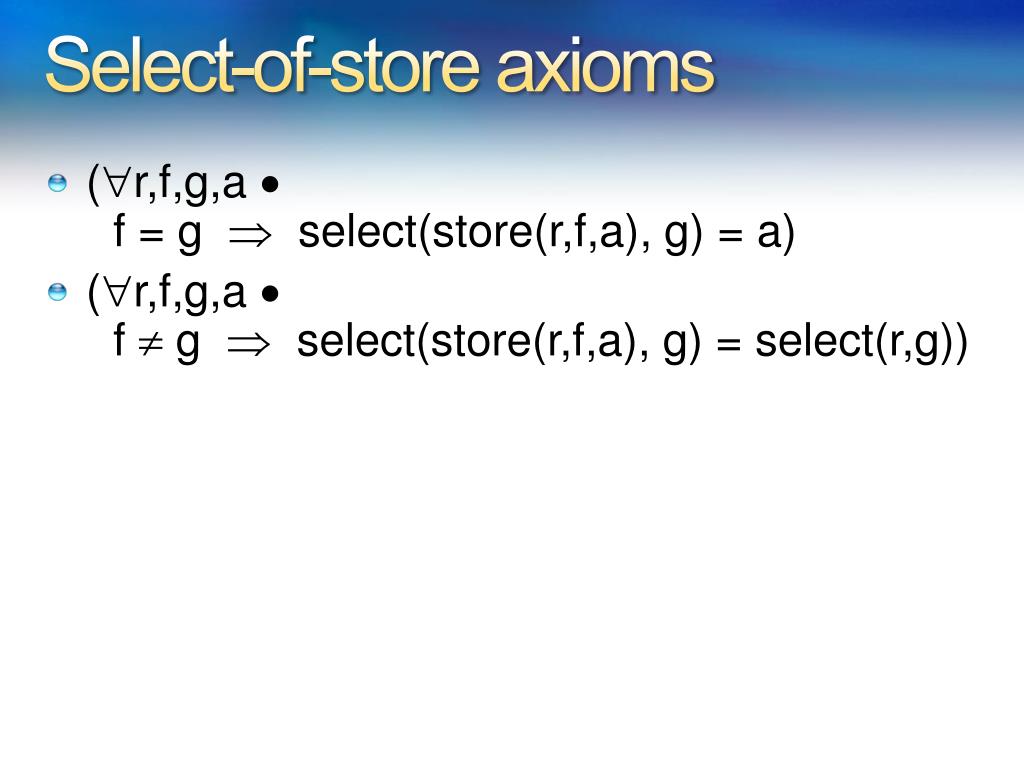

  5. Select-of-store axioms • (r,f,g,a  f = g  select(store(r,f,a), g) = a) • (r,f,g,a  f  g  select(store(r,f,a), g) = select(r,g))

  6. Type system for intermediate verification language • Types find errors in translation • Some types are required by some provers (e.g., SMT Lib)

  7. Type of heap • Heap: ref x Field  Value • HeapBool: ref x Field  boolHeapInt: ref x Field  int… • Heap: . ref x Field   

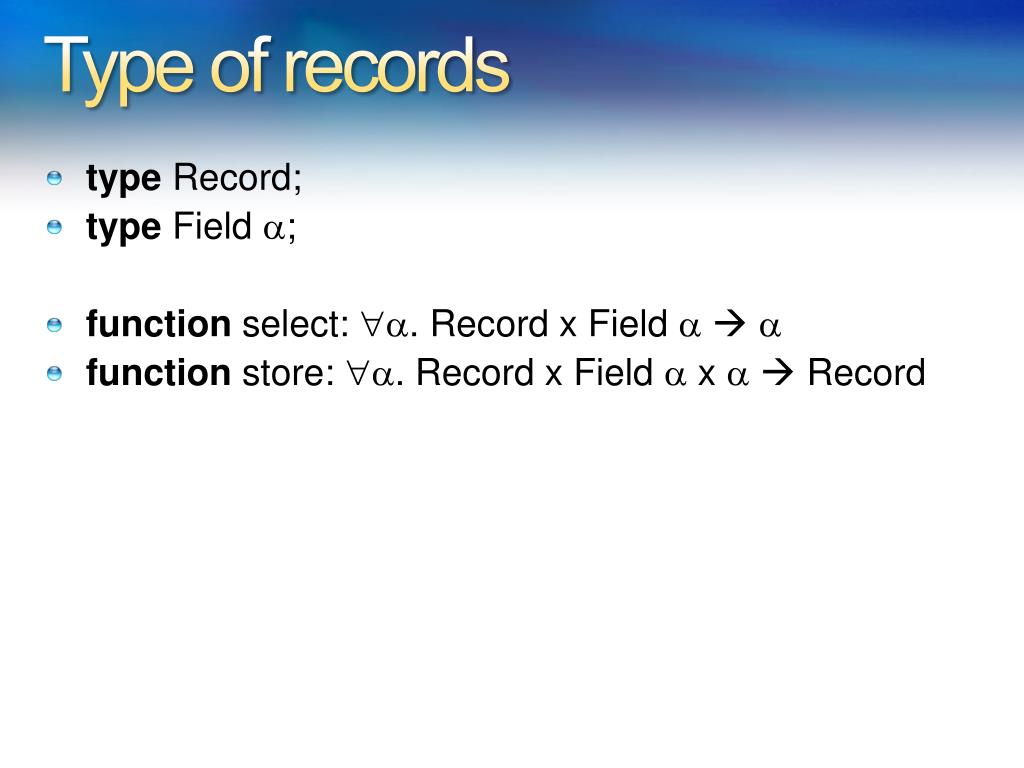

  8. Type of records • type Record; • type Field ; • function select: . Record x Field    • function store: . Record x Field  x   Record

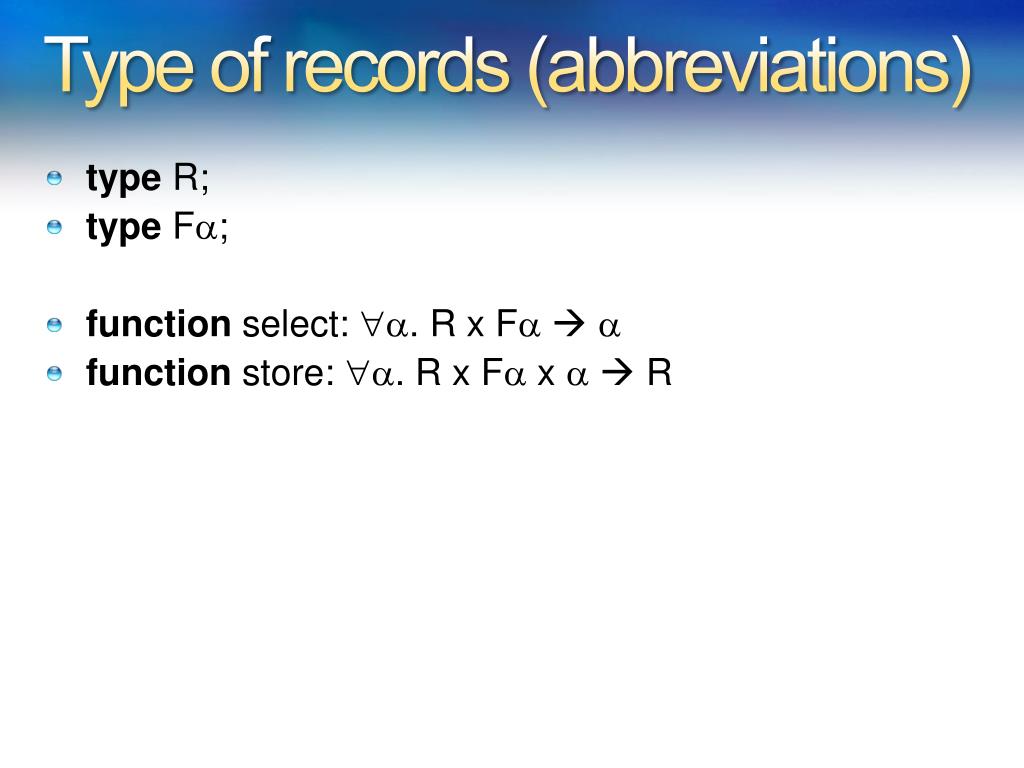

  9. Type of records (abbreviations) • type R; • type F; • function select: . R x F   • function store: . R x F x   R

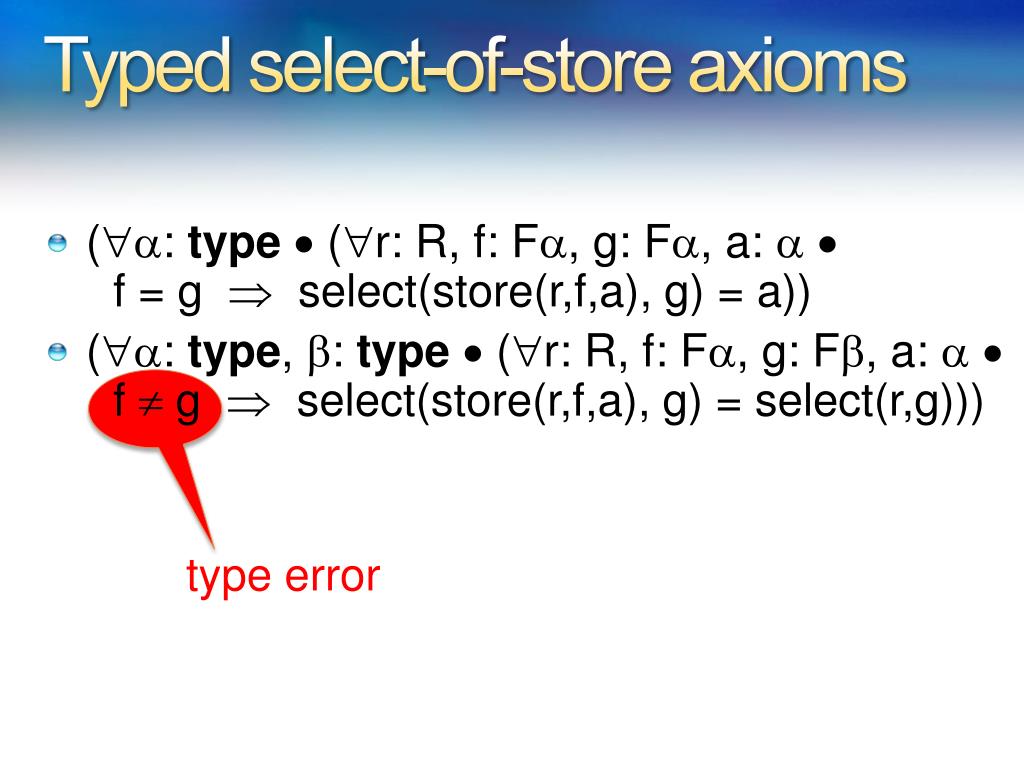

  10. Typed select-of-store axioms • (: type  (r: R, f: F, g: F, a:   f = g  select(store(r,f,a), g) = a)) • (: type, : type  (r: R, f: F, g: F, a:   f  g  select(store(r,f,a), g) = select(r,g))) type error

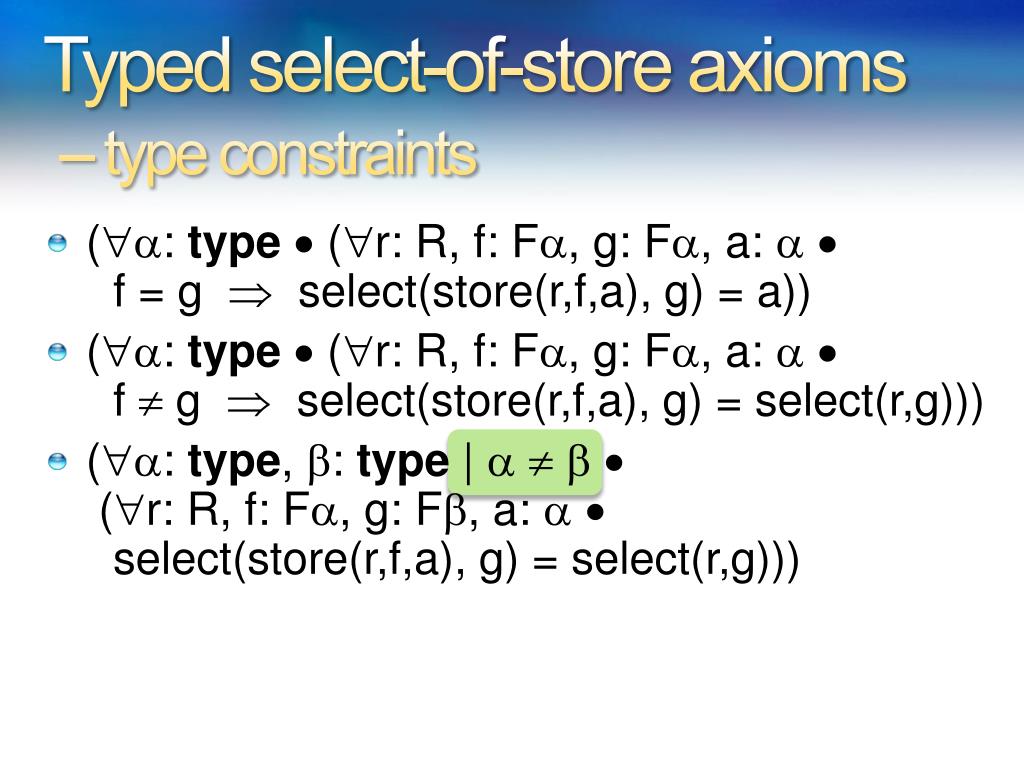

  11. Typed select-of-store axioms– type constraints • (: type  (r: R, f: F, g: F, a:   f = g  select(store(r,f,a), g) = a)) • (: type  (r: R, f: F, g: F, a:   f  g  select(store(r,f,a), g) = select(r,g))) • (: type, : type |    (r: R, f: F, g: F, a:   select(store(r,f,a), g) = select(r,g)))

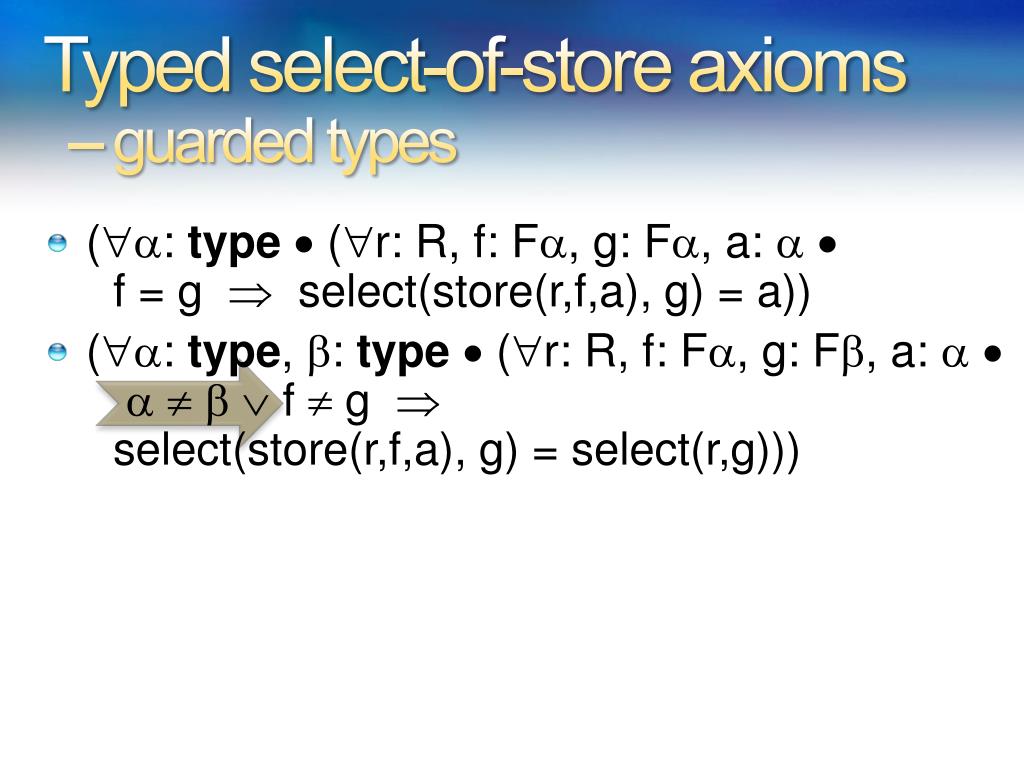

  12. Typed select-of-store axioms – guarded types • (: type  (r: R, f: F, g: F, a:   f = g  select(store(r,f,a), g) = a)) • (: type, : type  (r: R, f: F, g: F, a:       f  g  select(store(r,f,a), g) = select(r,g)))

  13. Frame conditions • class C {int x; bool y;void M() modifiesthis.x, this.y; { … } • constx: Field int;const y: Field bool;procedure M(this: ref);modifies Heap;ensures(: type  (o: ref, f: Field   Heap[o,f] = old(Heap)[o,f]  (o = this  f = x)  (o = this  f = y)  … )

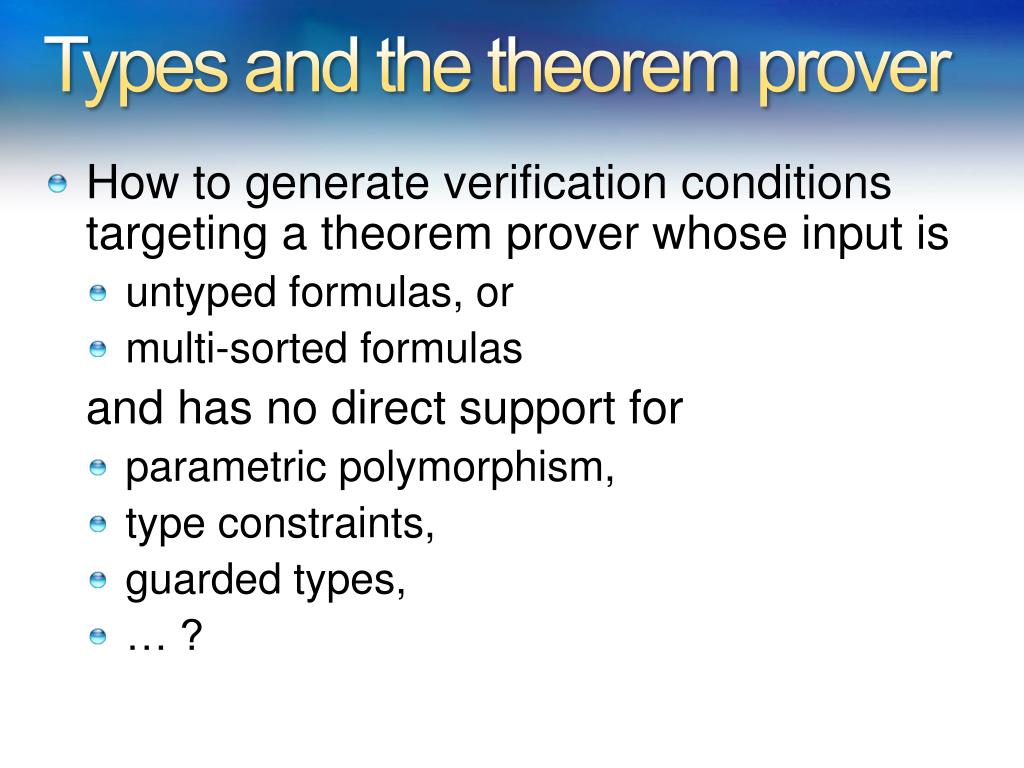

  14. Types and the theorem prover • How to generate verification conditions targeting a theorem prover whose input is • untyped formulas, or • multi-sorted formulas and has no direct support for • parametric polymorphism, • type constraints, • guarded types, • … ?

  15. Summary • What types to include in BoogiePL 2? • How to type equality? • How to translate into more primitive type systems? • perhaps let this drive the other issues?
