How to be a good engineer

How to be a good engineer ?

Phantom Weng, Openfind RD VP


Engineering

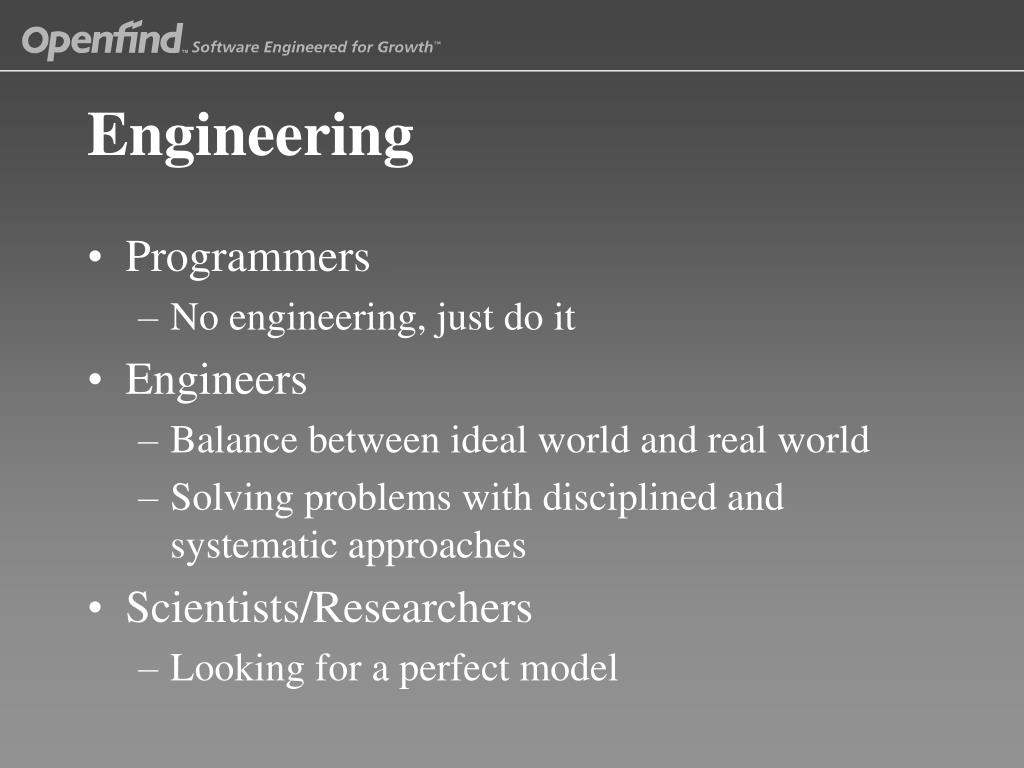

Engineering

  • Programmers

    • No engineering, just do it

  • Engineers

    • Balance between ideal world and real world

    • Solving problems with disciplined and systematic approaches

  • Scientists/Researchers

    • Looking for a perfect model


How to be a good engineer

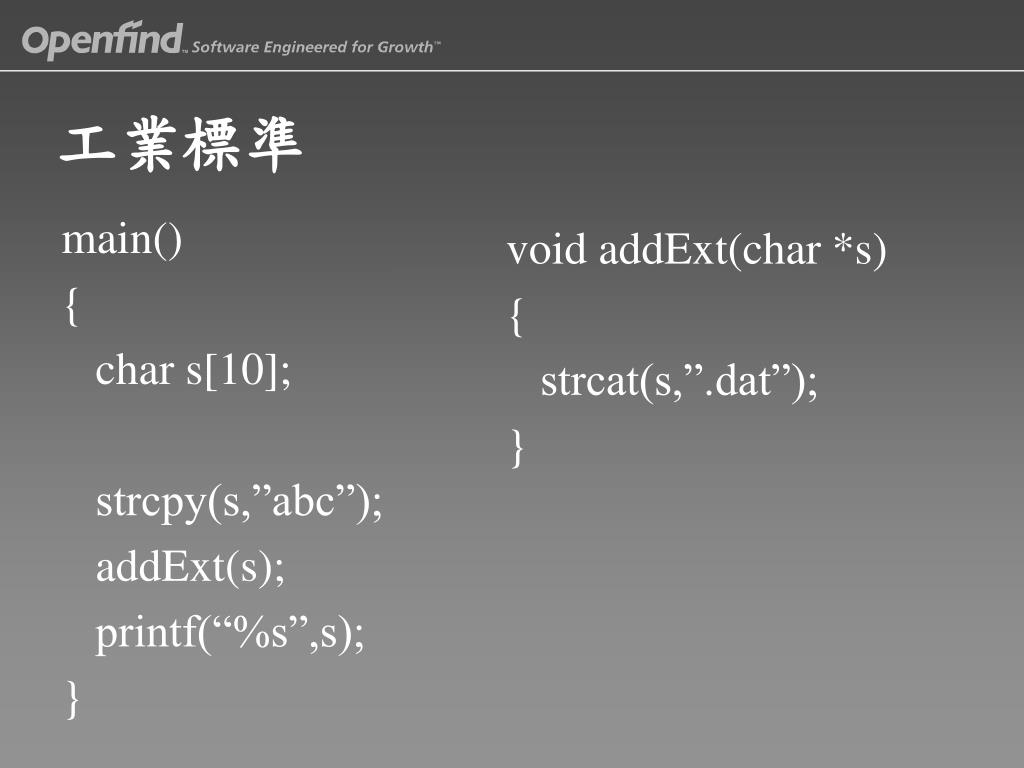

工業標準

main()

{

char s[10];

strcpy(s,”abc”);

addExt(s);

printf(“%s”,s);

}

void addExt(char *s)

{

strcat(s,”.dat”);

}


How to be a good engineer

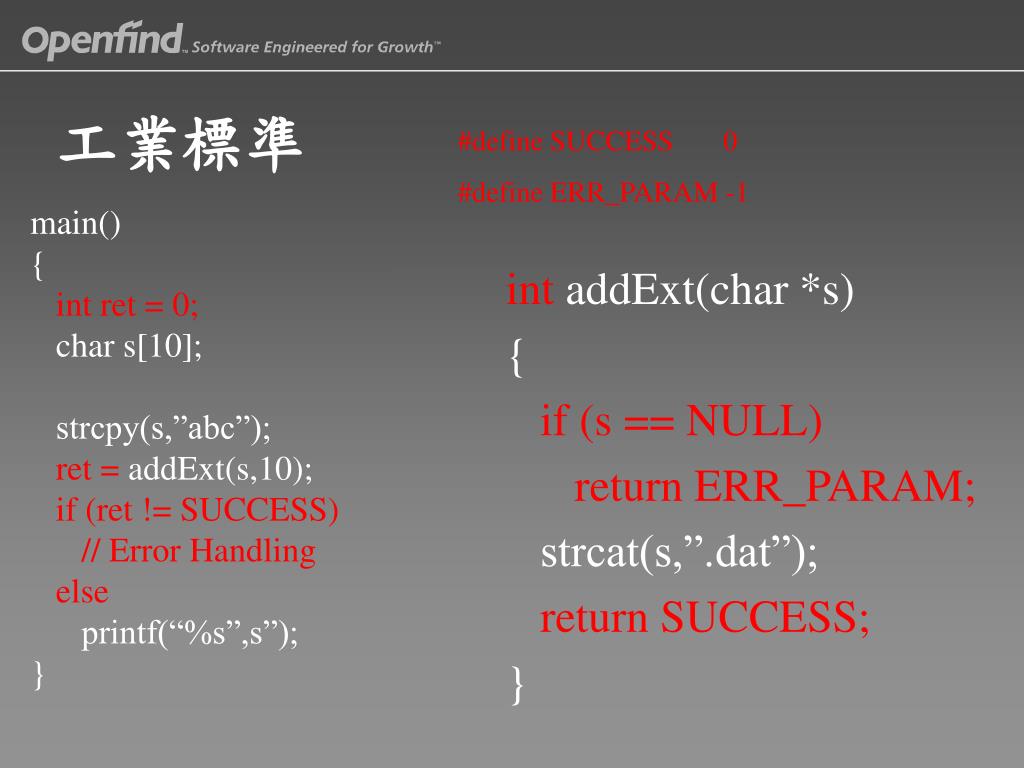

工業標準

#define SUCCESS 0

#define ERR_PARAM -1

main()

{

int ret = 0;

char s[10];

strcpy(s,”abc”);

ret = addExt(s,10);

if (ret != SUCCESS)

// Error Handling

else

printf(“%s”,s”);

}

int addExt(char *s)

{

if (s == NULL)

return ERR_PARAM;

strcat(s,”.dat”);

return SUCCESS;

}

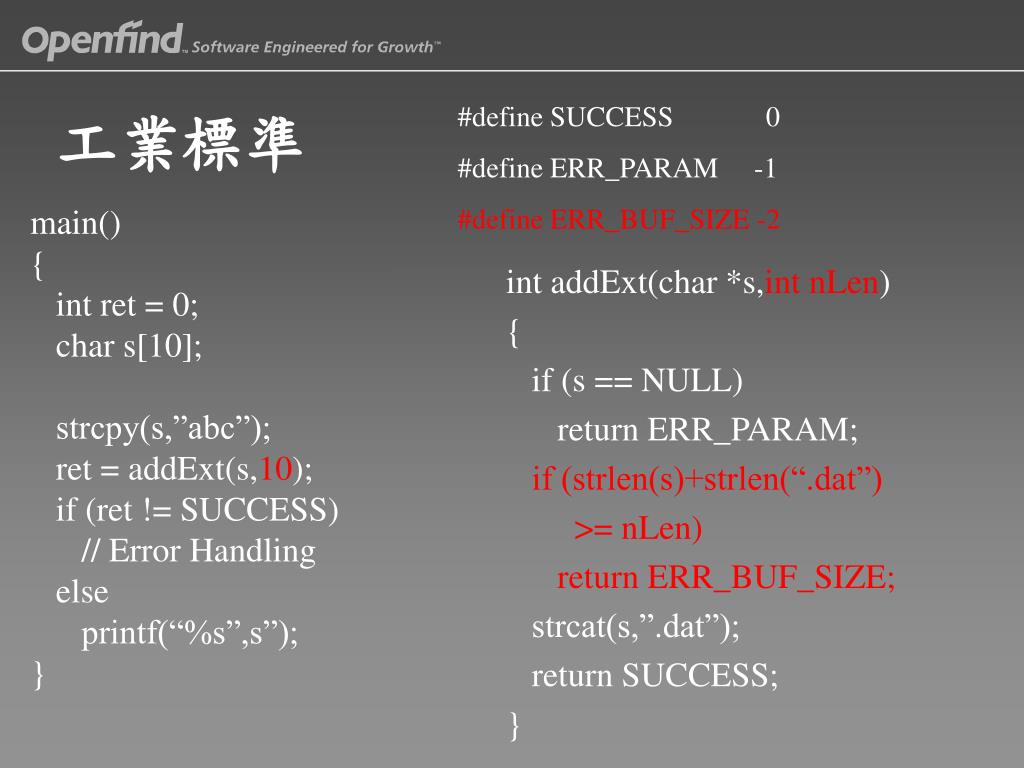

How to be a good engineer

工業標準

#define SUCCESS 0

#define ERR_PARAM -1

#define ERR_BUF_SIZE -2

main()

{

int ret = 0;

char s[10];

strcpy(s,”abc”);

ret = addExt(s,10);

if (ret != SUCCESS)

// Error Handling

else

printf(“%s”,s”);

}

int addExt(char *s,int nLen)

{

if (s == NULL)

return ERR_PARAM;

if (strlen(s)+strlen(“.dat”)

>= nLen)

return ERR_BUF_SIZE;

strcat(s,”.dat”);

return SUCCESS;

}


How to be a good engineer

工業標準

#define SUCCESS 0

#define ERR_PARAM -1

#define ERR_BUF_SIZE -2

#define LEN 10

#define EXT “.dat”

main()

{

int ret = 0;

char s[LEN];

strcpy(s,”abc”);

ret = addExt(s,LEN);

if (ret != SUCCESS)

// Error Handling

else

printf(“%s”,s”);

}

int addExt(char *s,int nLen)

{

if (s == NULL)

return ERR_PARAM;

if (strlen(s)+strlen(EXT)

>= nLen)

return ERR_BUF_SIZE;

strcat(s,EXT);

return SUCCESS;

}


How to be a good engineer

工業標準

#define SUCCESS 0

#define ERR_PARAM -1

#define ERR_BUF_SIZE -2

#define LEN 10

#define EXT “.dat”

main()

{

int ret = 0;

char s[LEN];

strncpy(s,”abc”,LEN);

s[LEN-1] = ‘\0’;

ret = addExt(s,LEN);

if (ret != SUCCESS)

// Error Handling

else

printf(“%s”,s”);

}

int addExt(char *s,int nLen)

{

if (s == NULL)

return ERR_PARAM;

if (strlen(s)+strlen(EXT)

>= nLen)

return ERR_BUF_SIZE;

strncat(s,EXT,nLen-strlen(s)-1);

s[nLen-1] = ‘\0’;

return SUCCESS;

}


How to be a good engineer

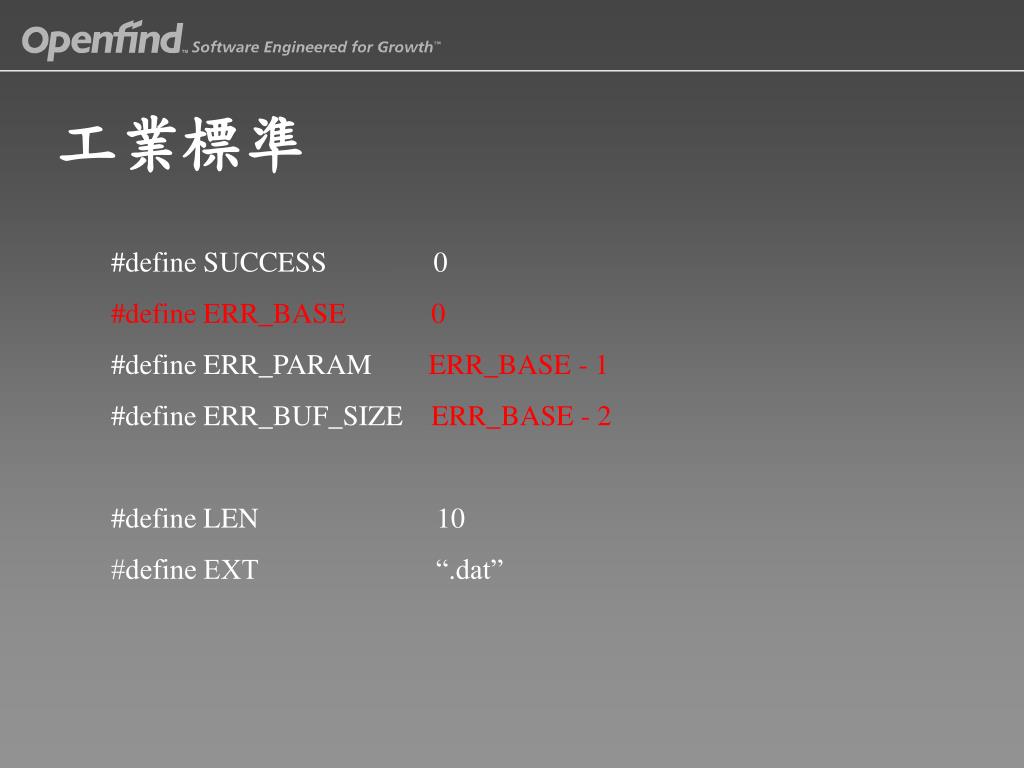

工業標準

#define SUCCESS 0

#define ERR_BASE 0

#define ERR_PARAM ERR_BASE - 1

#define ERR_BUF_SIZE ERR_BASE - 2

#define LEN 10

#define EXT “.dat”

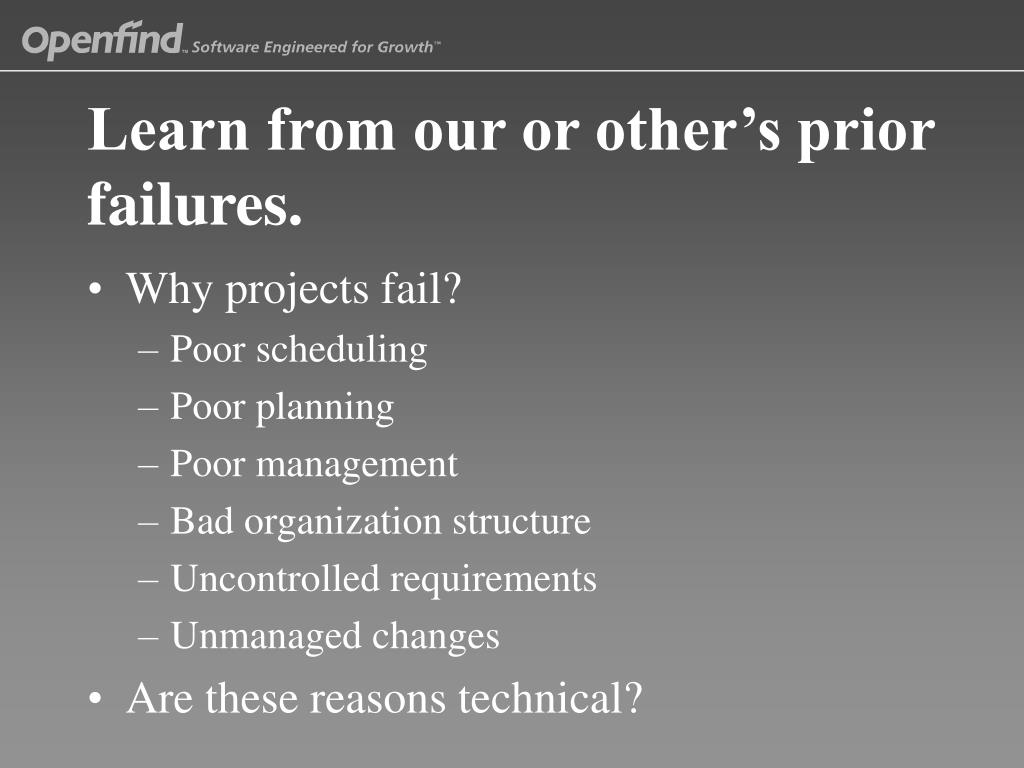

Learn from our or other s prior failures

Learn from our or other’s prior failures.

  • Why projects fail?

    • Poor scheduling

    • Poor planning

    • Poor management

    • Bad organization structure

    • Uncontrolled requirements

    • Unmanaged changes

  • Are these reasons technical?


Planning a software project

Planning a software project

  • Everyone knows we need to have a plan, but why we don’t have it

    • Release pressure and tight schedule

    • We only have time to testing and coding, anything else is unnecessary and can be skipped

  • But, actually, having a sound plan is the only way to meet the aggressive schedule.


Duties for an engineer

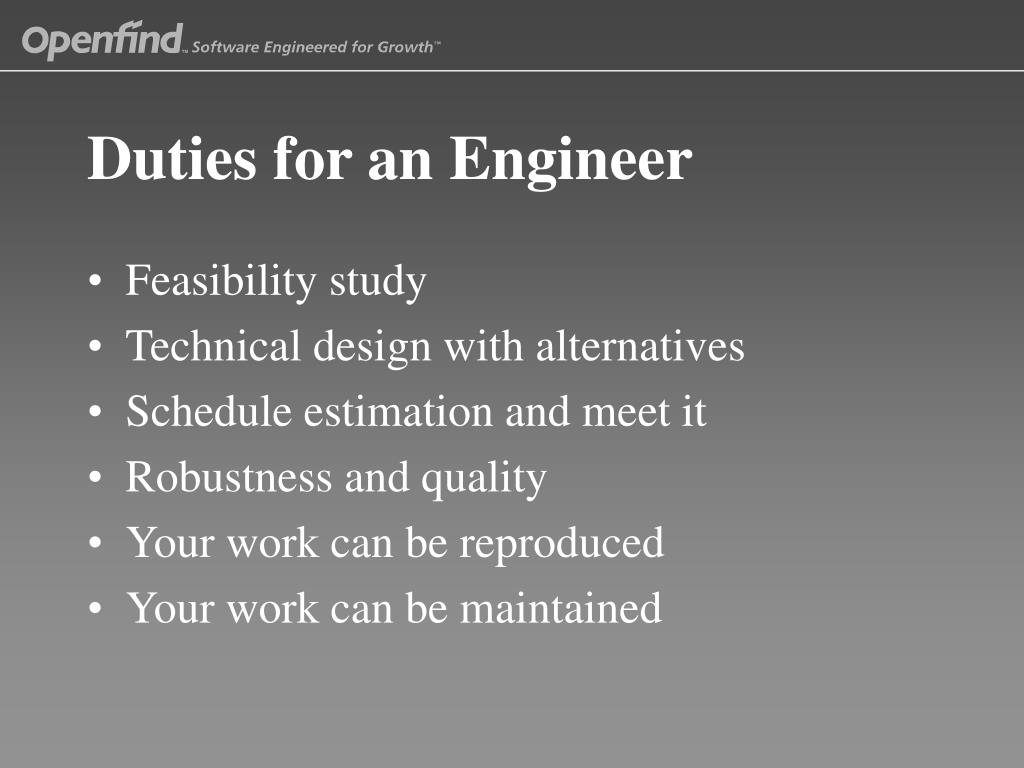

Duties for an Engineer

  • Feasibility study

  • Technical design with alternatives

  • Schedule estimation and meet it

  • Robustness and quality

  • Your work can be reproduced

  • Your work can be maintained


Bad schedule estimation

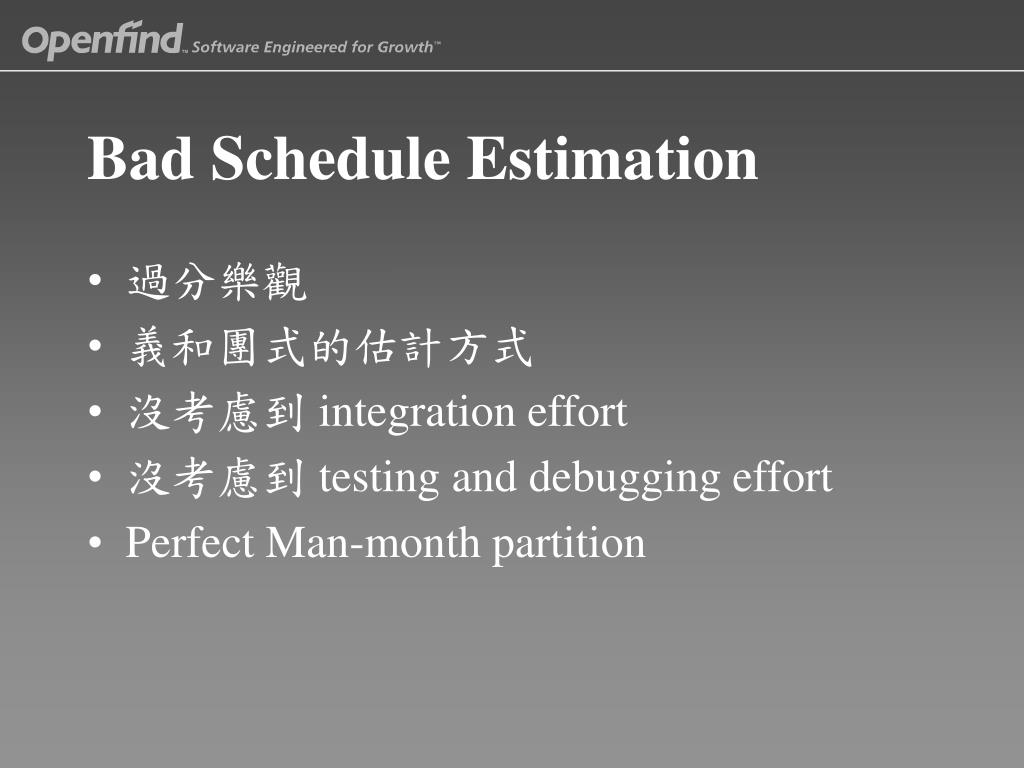

Bad Schedule Estimation

  • 過分樂觀

  • 義和團式的估計方式

  • 沒考慮到 integration effort

  • 沒考慮到 testing and debugging effort

  • Perfect Man-month partition


The man month

Time

Communication

Effort

Work load

Human resource

The Man-Month

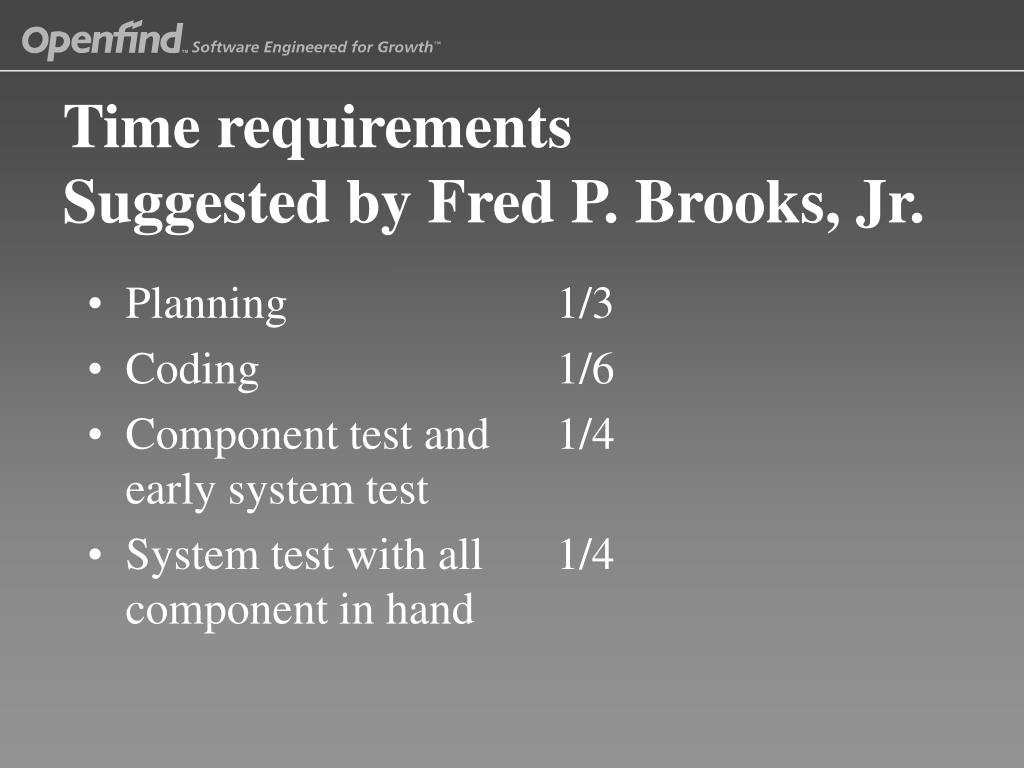

Time requirements suggested by fred p brooks jr

Time requirementsSuggested by Fred P. Brooks, Jr.

  • Planning

  • Coding

  • Component test and early system test

  • System test with all component in hand

1/3

1/6

1/4

1/4


How to estimate schedule

How to estimate schedule

  • Do not optimism. Always keep buffer.

  • More details you consider in the design stage, more accuracy about your estimated schedule.

  • Break large module into small modules.

  • Do not forget the effort of integration.

  • Use intermediate milestone to control.

  • Learn from mistakes.


Design

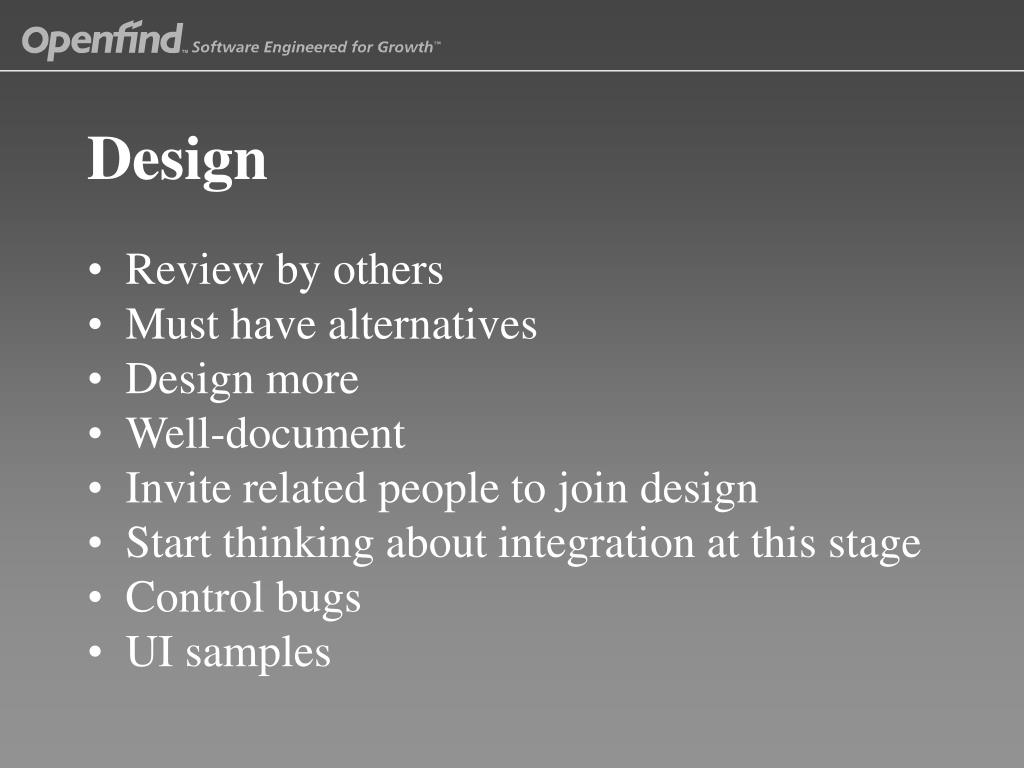

Design

  • Review by others

  • Must have alternatives

  • Design more

  • Well-document

  • Invite related people to join design

  • Start thinking about integration at this stage

  • Control bugs

  • UI samples


How to be a good engineer

5

4

3

1

2

溝通方式

  • 主動溝通是每個人的責任

  • 無法溝通的時候不是放著不管,而是 escalate

  • 最後總會有人做決定。做決定的人負責任。

  • 決定一但完成,所有人不管原來同不同意,必須共同遵守並確實執行。


How to be a good engineer

Thank You

機會永遠屬於主動的人
