Megasquirt router sequential

MegaSquirt Router/Sequential

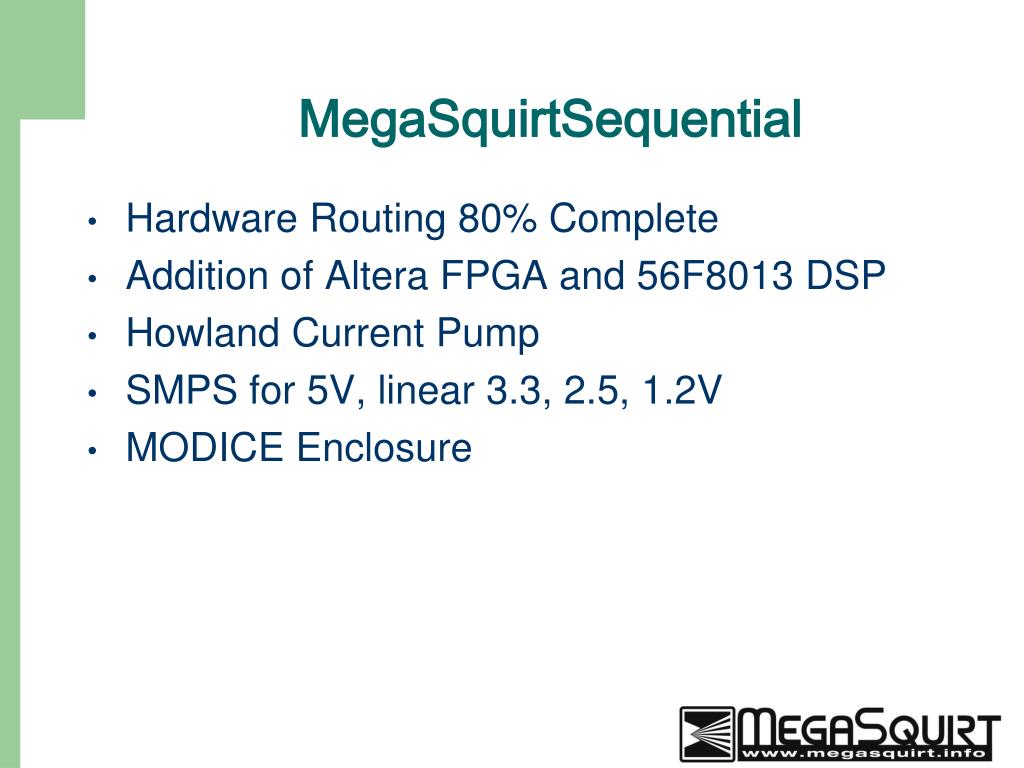

Megasquirtsequential

MegaSquirtSequential

  • Hardware Routing 80% Complete

  • Addition of Altera FPGA and 56F8013 DSP

  • Howland Current Pump

  • SMPS for 5V, linear 3.3, 2.5, 1.2V

  • MODICE Enclosure


Megasquirt router sequential

56F8013 DSP – Direct Digital Sampling for VR/Hall


Megasquirt router sequential

Wideband O2 Pump Current Control


Fpga for ept

FPGA for EPT

HCS12X

Xgate

EPT

Sync

SPI

FPGA


Megasquirt router sequential

Deg

EPT

Reset

0…..720.00 Degree

Match

Event


Megasquirt router sequential

Altera FPGA – Cyclone II
