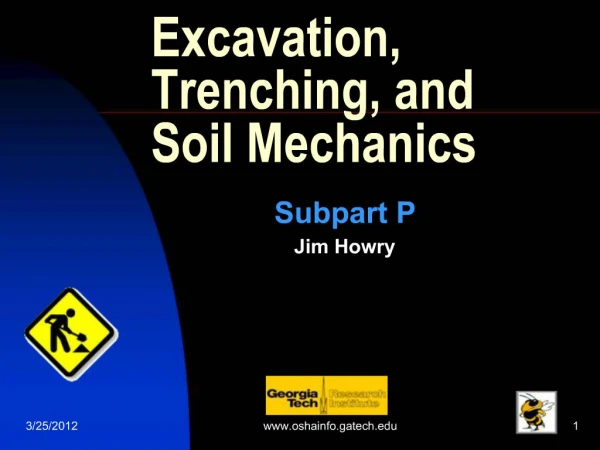

    1. 3/25/2012 www.oshainfo.gatech.edu 1 Excavation, Trenching, and Soil Mechanics Subpart P Jim Howry

    2. 3/25/2012 www.oshainfo.gatech.edu 2 Points To Be Covered: 1926.650: Scope and Application 1926.651: Specific Excavation Requirements 1926.652: Requirements for Protective Systems 1926 Subpart P Appendix A: Soil Classification Other Appendix and Tabulated Data!

    3. 3/25/2012 www.oshainfo.gatech.edu 3 DANGER!

    4. 3/25/2012 www.oshainfo.gatech.edu 4

    5. 3/25/2012 www.oshainfo.gatech.edu 5

    6. 3/25/2012 www.oshainfo.gatech.edu 6 Fatal Facts! An employee was installing a small diameter pipe in a trench 3’ wide, 12-15’ deep and 90 feel long. The trench was not sloped or shored nor was there a box or shield to protect the employee. Further, there was evidence of a previous cave-in. The employee apparently reentered the trench, and a second cave-in occurred, burying him. He was found face down in the bottom of the trench.

    7. 3/25/2012 www.oshainfo.gatech.edu 7 Four employees of a mechanical contractor were laying a lateral sewer line at a building site. The foreman, a plumber by trade, and a laborer were laying an eight-inch, 20-foot long plastic sewer pipe in the bottom of a trench 36 inches wide, nine feet deep, and approximately 50 feet long. The trench was neither sloped nor shored, and there was water entering it along a shale seam near the bottom. The west side of the trench caved in near the bottom, burying one employee to his chest and completely covering the other. Rescue operations took two and five hours - too late to save the men.

    8. 3/25/2012 www.oshainfo.gatech.edu 8 1926.650 Scope and Application “This subpart applies to all open excavations made in the earth’s surface. Excavations are defined to include trenches.”

    9. 3/25/2012 www.oshainfo.gatech.edu 9 What Is Soil? A soil is a mixture of rock, water, air and a variety of other substances. Soil is made up of rock in the form of small particles and spaces called voids. Normally some part of these voids is filled with water.

    10. 3/25/2012 www.oshainfo.gatech.edu 10 Weighing in on Soil…

    11. 3/25/2012 www.oshainfo.gatech.edu 11 Mechanics of a Cave-In

    12. 3/25/2012 www.oshainfo.gatech.edu 12 Diagram of a cave in

    13. 3/25/2012 www.oshainfo.gatech.edu 13

    14. 3/25/2012 www.oshainfo.gatech.edu 14 Protecting Employees in Excavations 1926.652 (a)(1) “Each employee in an excavation shall be protected from a cave-ins by an adequate protective system designed in accordance with paragraph (b) or (c) of this section except when: (I) Excavations are made in entirely stable rock; or (ii) Excavations are less than 5’ in depth and examination of the ground by a competent person provides no indication of a potential cave-in.”

    15. 3/25/2012 www.oshainfo.gatech.edu 15 Protective Systems “a method of protecting employees from cave-ins, from material that could fall or roll from an excavation face or into and excavation, or from the collapse of adjacent structures. Protective systems include support systems, sloping and benching systems, shield systems, and other systems that provide the necessary protection”

    16. 3/25/2012 www.oshainfo.gatech.edu 16 So…We have Options: Slope, or Bench according to allowable configurations… Use a Registered Professional Engineer to design a sloping or benching system. Use support systems in accordance with requirements set forth in the standard. Purchase an engineered system, (example..a trench box or shield.) Have a PE design a shielding or shoring system specific to your task.

    17. 3/25/2012 www.oshainfo.gatech.edu 17 29 CFR 1926.652(b)(4)(i) Design by a registered professional engineer… Any system not found within the guidelines set forth in the standard, or within the tabulated data tables in the standard requires use of a Professional Engineer. *No where in the standard or tabulated data does it allow for excavations deeper than 20 feet.

    18. 3/25/2012 www.oshainfo.gatech.edu 18 Competent Person “one who is capable of identifying existing and predictable hazards in the surroundings, or working conditions which are unsanitary, hazardous, or dangerous to employees, and who has the authorization to take prompt corrective measures to eliminate them” (Knowledge & Authority)

    19. 3/25/2012 www.oshainfo.gatech.edu 19 1926.651(k)(1) Inspections

    20. 3/25/2012 www.oshainfo.gatech.edu 20 Access and Egress 1926.651 (c)(2) “A stairway, ladder, ramp or other safe means of egress shall be located in a trench excavations that are 4’ or more in depth so at to require no more than 25’ of lateral travel for employees.”

    21. 3/25/2012 www.oshainfo.gatech.edu 21 Soil Tests 1926 Subpart P appendix A, Soil Classification (c)(3) In order to classify a soil A, B, or C at least one visual and one manual test must be performed by a competent person.

    22. 3/25/2012 www.oshainfo.gatech.edu 22 Visual Test “Visual analysis is conducted to determine the qualitative information regarding the excavation site in general, the soil adjacent to the excavation, the soil forming the sides of the open excavation, and the soil taken as samples from the excavated materials.”

    23. 3/25/2012 www.oshainfo.gatech.edu 23 Manual Tests “Manual analysis of soil samples is conducted to determine quantitative as well as qualitative properties of soil to provide more information in order to classify soil properly.” Examples: Thumb penetration, Pocket penetrometers, Drying tests, Sedimentation…

    24. 3/25/2012 www.oshainfo.gatech.edu 24 Thumb Penetration Test 1926 Subpart P Appendix A(2)(iii) …type A soils with an unconfined compressive strength of 1.5 tsf can be readily indented by the thumb;however they can only be penetrated by the thumb only with great effort…Type C soils with an unconfined compressive strength of .5 tsf can be easily penetrated several inches by the thumb, and can be molded by light finger pressure.

    25. 3/25/2012 www.oshainfo.gatech.edu 25 SOLID ROCK “Natural solid mineral matter that can be excavated with vertical sides and remain intact while exposed”

    26. 3/25/2012 www.oshainfo.gatech.edu 26 Type A Soil Cohesive soil with an unconfined, compressive strength of 1.5 Tsf Examples of this type of soil are: Clays, silty clay, sandy clays, and clay loam.

    27. 3/25/2012 www.oshainfo.gatech.edu 27 A Soil is NOT type ‘A’ IF: The soil is fissured The soil is subject to vibration The soil has been previously disturbed The material is subject to other factors that would require it to be classified as a less stable material. Water is present

    28. 3/25/2012 www.oshainfo.gatech.edu 28 Sources of Vibration Traffic Railroad Operations Heavy Equipment Operations Jack Hammer Operations Tamping Machine Operations Thumping Car Stereos that make you want to pull your hair out and to…never mind…

    29. 3/25/2012 www.oshainfo.gatech.edu 29 Type B Soil Cohesive soil with an unconfined compressive strength greater than .5 Tsf Granular cohesionless soils including; silt, silt loam, sandy loam, and some sandy clay loam Previously disturbed soils except those which would otherwise be classified as Type ‘C’ soil

    30. 3/25/2012 www.oshainfo.gatech.edu 30 Type ‘C’ Soil Cohesive soils with an unconfined compressive strength of 0.5 Tsf or less Granular soils including gravel, sand, and loamy sand Submerged soil, or soil from which water is freely seeping

    31. 3/25/2012 www.oshainfo.gatech.edu 31 Sloping Requirements by Soil Type

    32. 3/25/2012 www.oshainfo.gatech.edu 32 Sloping in Type ‘A’ Soil

    33. 3/25/2012 www.oshainfo.gatech.edu 33 Sloping in Type ‘B’ Soil

    34. 3/25/2012 www.oshainfo.gatech.edu 34 Sloping in Type ‘C’ Soil

    35. 3/25/2012 www.oshainfo.gatech.edu 35 Trench Boxes or Shield Systems: “A structure that is able to withstand the forces imposed on it by a cave-in and thereby protect employees.”

    36. 3/25/2012 www.oshainfo.gatech.edu 36 Trench Boxes or Shield

    37. 3/25/2012 www.oshainfo.gatech.edu 37 Is this allowable? YES! If the Trench boxes are designed to be stacked and are used in accordance with their tabulated data.

    38. 3/25/2012 www.oshainfo.gatech.edu 38 Trench Boxes and Sloping or Benching Trench boxes are generally used in open areas, but they may also be used in combination with sloping and benching. The box should extend at least 18 inches above the surrounding area if there is sloping toward the excavation.

    39. 3/25/2012 www.oshainfo.gatech.edu 39

    40. 3/25/2012 www.oshainfo.gatech.edu 40

    41. 3/25/2012 www.oshainfo.gatech.edu 41

    42. 3/25/2012 www.oshainfo.gatech.edu 42 Shoring (Shoring System) “A structure such as metal hydraulic, mechanical or timber shoring system that supports the sides of an excavation and which is designed to prevent cave-ins.”

    43. 3/25/2012 www.oshainfo.gatech.edu 43 Hydraulic Shoring

    44. 3/25/2012 www.oshainfo.gatech.edu 44 Stacked Hydraulic Shores

    45. 3/25/2012 www.oshainfo.gatech.edu 45 Whaler System

    46. 3/25/2012 www.oshainfo.gatech.edu 46 Surface Encumbrances Adjacent Structures Roads and/ or Sidewalks Curb and Gutter Light poles Utilities Mailboxes 1926.651 (a) “All surface encumbrances that are located so as to create a hazard to employees shall be removed or supported as necessary to safeguard employees”

    47. 3/25/2012 www.oshainfo.gatech.edu 47 Utilities 1926.651(b) The estimated location of utility installations, such as sewer, telephone, fuel, electric, …that reasonably may be expected to be encountered during excavation work, shall be determined prior to opening an excavation…

    48. 3/25/2012 www.oshainfo.gatech.edu 48 Locates Red = Power Blue = Water Orange = Communications Yellow = Gas

    49. 3/25/2012 www.oshainfo.gatech.edu 49 Can an Excavation be a Confined Space…? Oxygen deficient atmospheres: less than 19.5% oxygen. Potential for other gasses to be present include but not be limited to: Natural Gas from potential leaks or cut lines. Methane from decayed matter.

    50. 3/25/2012 www.oshainfo.gatech.edu 50 Summary Call before you dig. Use at least one visual and one manual soil test to determine soil type. A Ladder is required for access and egress at 4’ The ladder must be within 25’ lateral travel at all times. At 5’ depth some type of ‘protective system is required’. Treat all soil as Type ‘C’ and slope at 1 ½ : 1 and you are covered. If not: Use some type of shoring or shielding to protect your employees. Excavations over 20’ require the use of a P.E.
