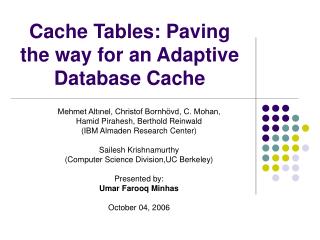

Cache Tables: Paving the way for an Adaptive Database Cache

Mehmet Altınel, Christof Bornhövd, C. Mohan,

Hamid Pirahesh, Berthold Reinwald

(IBM Almaden Research Center)

Sailesh Krishnamurthy

(Computer Science Division,UC Berkeley)

Presented by:

Umar Farooq Minhas

October 04, 2006


Motivation l.jpg

Motivation

  • Issues

    • Response time

    • Scalability

  • Wide-spread use of Transactional Web Applications (TWA) in enterprise applications

    • Broad range of components e.g. network load balancers, HTTP servers, application servers, … , databases etc.

  • Solutions

    • Caching of static HTML pages

    • Multiple level caches


Motivation contd l.jpg

Motivation contd..

  • Static Caching, Drawbacks

    • TWAs tend to be more & more dynamic

    • High volumes of data

    • Highly personalized contents

  • Run business logic in remote application servers close to end users

    • Reduced response time

    • Reduced load on in-house systems

    • Benefits are limited by the frequency with which remote server needs to access backend DB

  • Proposed Solution: DBCache

    • Allows DB caching at mid-tier nodes, remote data centers and edge servers


Dbcache overview l.jpg

DBCache: Overview

  • Built using full-fledged DBMS, DB2

    • Reduced development effort

    • Allows caching of related DB objects

      • Triggers, constraints, indices , stored procedures, …

    • Makes use of existing distributed query execution

  • Provides cache transparency

  • Supports both full-table and partial-table caching

  • On-demand caching

    • Adapts to dynamically changing loads

    • Exploits typical characteristics of TWA queries


Dbcache contributions l.jpg

DBCache: Contributions

  • Database cache model

    • Introduces a new DB object ‘Cache Table’

    • Dynamic/static caching support

  • Novel query re-write scheme

  • Cache load and maintenance mechanisms


Outline l.jpg

Outline

  • Motivation

  • DBCache: Overview

  • Cache Tables

  • Dynamic Cache Model

  • Query Compilation

  • Cache Table Population and Maintenance

  • Performance Evaluation

  • Conclusions & Future Work

  • Discussion


Cache tables l.jpg

Cache Tables

  • A Cache Table is a database object by which an end user can specify that a table (cache table) in a database (cache database) is a cache of a table (backend table) in another database (backend database)

Back

end

Table

Cache

Table

Backend DB

Cache DB

  • Two types of cache tables supported:

    • Declarative/Static Cache tables

    • Dynamic Cache tables


Declarative static cache tables l.jpg

Declarative/Static Cache Tables

  • When table contents static and known upfront

    • Use declarative cache tables

    • Similar to materialized views

  • Entire table cached in absence of predicate definition

  • Exploits existing materialized view support in DB2


Dynamic cache tables l.jpg

Dynamic Cache Tables

  • Populated on-demand

  • Provides adaptability

  • Can choose to cache only “hot” items


Dbcache schema setup l.jpg

DBCache Schema Setup

  • Cache schema exact mirror of backend DB schema

  • Each backend DB table represented by

    • Cache Table or

    • Nickname (caching disabled)

  • Requires no change in existing queries

  • Allows caching of other relevant logical and physical objects


Outline11 l.jpg

Outline

  • Motivation

  • DBCache: Overview

  • Cache Tables

  • Dynamic Cache Model

  • Query Compilation

  • Cache Table Population and Maintenance

  • Performance Evaluation

  • Conclusions & Future Work

  • Discussion


Dynamic cache model l.jpg

Dynamic Cache Model

  • Key concepts

    • Cache Keys

      • Defined on cache table column

      • Can be non-unique

      • Must be ‘domain-complete’

        • Unique/Primary key columns complete by definition

        • Guarantees correctness of equality predicates


Dynamic cache model13 l.jpg

Dynamic Cache Model

  • Key concepts contd..

    • Referential Cache Constraints (RCCs)

      • Defined between any cols of two cache tables

      • Creates a cache-parent/cache-child relationship

      • Guarantees the correctness of equi-join predicates

      • Somewhat similar to referential integrity constraints


Dynamic cache model14 l.jpg

Dynamic Cache Model

  • Key concepts contd..

    • Cache Groups

      • Set of related cache tables whose content is (directly or transitively) populated by the values of one or more cache keys of a single cache table, called the root table.

      • Tables reachable by RCC constraints from the root table are called member tables

      • Advantages

        • Application context recognized more easily

        • Helps avoiding conflicting cache constraints


Dynamic cache model15 l.jpg

Dynamic Cache Model

  • Key concepts contd..

    • Cache Groups contd..

      • Represented by a directed graph called cache group graph, nodes denote cache tables and edges denote RCCs

      • Direction of an edge for RCC is from a cache-parent to a cache-child

      • Bi-directional edges possible

      • Two or more groups can be overlapping

        • Captured in connectivity graphs


Dynamic cache model16 l.jpg

Dynamic Cache Model

  • Issues with Cache Constraints

    • Can cause unexpected cache loads resulting in a phenomena called recursive cache load problem

    • A cache group is called safe if it avoids this problem

    • How to ensure group safety ?


Dynamic cache model17 l.jpg

Dynamic Cache Model

  • Rules for cache group safety

    • Rule-1: A cache group graph must not include any heterogeneous cycles.

  • Rule-2: A cache table must not have more than one non-unique domain-complete column.

  • A new cache constraint is created only if it doesn’t violate Rule 1 and Rule 2.


Outline18 l.jpg

Outline

  • Motivation

  • DBCache: Overview

  • Cache Tables

  • Dynamic Cache Model

  • Query Compilation

  • Cache Table Population and Maintenance

  • Performance Evaluation

  • Conclusions & Future Work

  • Discussion


Query compilation l.jpg

Query Compilation

  • Declarative Cache Tables

    • Existing materialized view matching mechanism in DB2 is exploited

    • Name switching

  • Dynamic Cache Tables

    • Generate two plans local plan and remote plan

    • Choose at run-time through a switch operator which uses the probe query to decide which leg to execute

    • Janus (two-headed) plan: derived from Roman Mythology

    • God of gates, doors, doorways, beginnings and endings. Month of January ?

http://en.wikipedia.org/wiki/Janus_%28mythology%29


Query compilation20 l.jpg

Query Compilation

  • Constructing a Janus Plan:

1

Initial Query

Plan

Remote Query

Plan

Replace Cache Table

names with Nicknames

2

Generate a probe query by checking all equality predicates that

can potentially participate in probe query condition

if none found then ABORT ( remote query plan gets executed )

3

Cloned Input

Query Graph

Local Query

Plan

Replace Nicknames with

eligible Cache Table names

from step - 2

4

Insert switch operator on top of remote, local and probe query plans


Outline21 l.jpg

Outline

  • Motivation

  • DBCache: Overview

  • Cache Tables

  • Dynamic Cache Model

  • Query Compilation

  • Cache Table Population and Maintenance

  • Performance Evaluation

  • Conclusions & Future Work

  • Discussion


Cache table population maintenance l.jpg

Cache Table Population & Maintenance

  • Declarative Cache Tables

    • Relies on DPropR utility: IBM’s asynchronous data replication tool

  • Dynamic Cache Tables

    • On-demand loading

      • Cache key values failing probe query are used to extract data

      • Extracted data populated asynchronously by a cache daemon

    • Cache invalidation

      • Generate invalidation messages and send to cache daemon

      • Cache daemon generates and executes deletes against cacheDB

      • Updated rows get loaded with new requests


Outline23 l.jpg

Outline

  • Motivation

  • DBCache: Overview

  • Cache Tables

  • Dynamic Cache Model

  • Query Compilation

  • Cache Table Population and Maintenance

  • Performance Evaluation

  • Conclusions & Future Work

  • Discussion


Performance evaluation l.jpg

Performance Evaluation

  • Focus: Evaluate overhead of Janus plans for dynamic tables

    • Overhead of probe query and switch operator

    • Overhead of on-demand loading

  • Experimental settings


Performance evaluation25 l.jpg

Performance Evaluation

  • Cache Hit Case

    • Janus plan vs. pure local queries

    • Difference gives the overhead for probe query and the switch operator

    • Cache table loaded with all the data from backend table


Performance evaluation26 l.jpg

Performance Evaluation

  • Cache Miss Case

    • Janus plan vs. pure remote queries

    • Difference gives the overhead

    • Cache table initially empty


Outline27 l.jpg

Outline

  • Motivation

  • DBCache: Overview

  • Cache Tables

  • Dynamic Cache Model

  • Query Compilation

  • Cache Table Population and Maintenance

  • Performance Evaluation

  • Conclusions & Future Work

  • Discussion


Conclusions future work l.jpg

Conclusions & Future Work

  • Significant contributions

    • Provides a new frame-work to implement DB caching for TWAs and tends to provide:

      • Seamless integration with current applications

      • Supports static/dynamic cache tables

      • Adapts to the changing workloads in TWAs

      • Re-uses the functionality of a full-fledged DBMS i.e. DB2

    • What next ?

      • Provide efficient, scalable, zero-admin DBCache

      • Development of new tools to ease deployment

      • Improve adaptability and maintenance


Comparison l.jpg

Comparison

vs. amco05:

  • Relies on asynchronous data propagation utility

  • Not completely transparent

  • May not work for heterogeneous DBMSs

  • Allows stale data

    vs. gula04:

  • Cache constraints against C&C constraints

  • Doesn’t provide any guarantees of freshness/consistency

  • Relatively more transparent

  • Maintenance-centric vs. query-centric

  • Both deployed as mid-tier level caches

  • Both use a full-fledged DBMS

  • Both use Materialized views

  • Both use two-headed query plans


Discussion l.jpg

Discussion

  • Is it really that good ?

    • Using full-fledged DBMS at each middle-tier node, drawbacks ?

    • How is data freshness specified/guaranteed ?

    • Is it adaptable ? Weakly ? Strongly ?

    • When can cache constraints become bottleneck ?

    • Size of dynamic cache tables ?

      • Cache replacement policies/cleansing mechanisms?

    • Caching of other physical & logical DB Objects ?

      • Updates to those objects in backend DB?

    • Message traffic between Cache Daemon & Backend DB ?

      • Very frequent updates in backend DB

    • Local updates ?

    • Flaws in performance evaluation ?
