Sustainable and Environmentally Friendly Culture Systems

1. Sustainable and Environmentally Friendly Culture Systems Kevin Fitzsimmons, Ph.D. Environmental Research Lab Department of Soil, Water and Environmental Science University of Arizona

2. Introduction • Aquaculture is the fastest growing sector in production agriculture in the US and worldwide. • Aquatic plants and animals are only now being domesticated. • US industry is dwarfed by aquaculture in Asia, Europe and Latin America.

3. Environmental constraints on conventional shrimp culture • Loss of mangroves and other coastal vegetation.

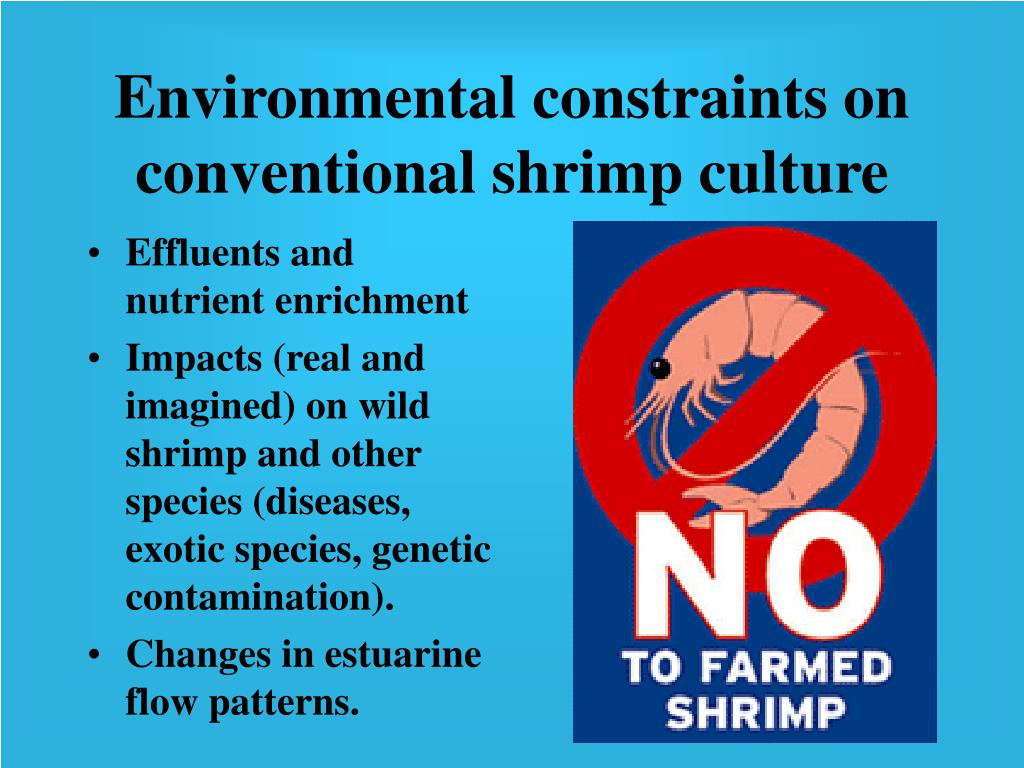

4. Environmental constraints on conventional shrimp culture • Effluents and nutrient enrichment • Impacts (real and imagined) on wild shrimp and other species (diseases, exotic species, genetic contamination). • Changes in estuarine flow patterns.

5. Introduction • Sustainable aquaculture is not a new concept. • Fish/rice, fish/vegetable, fish/duck and fish/pig systems in Eastern Asia are thousands of years old. • These highly efficient systems and the healthy diets they produce are the primary reason for the high populations in East and South Asia.

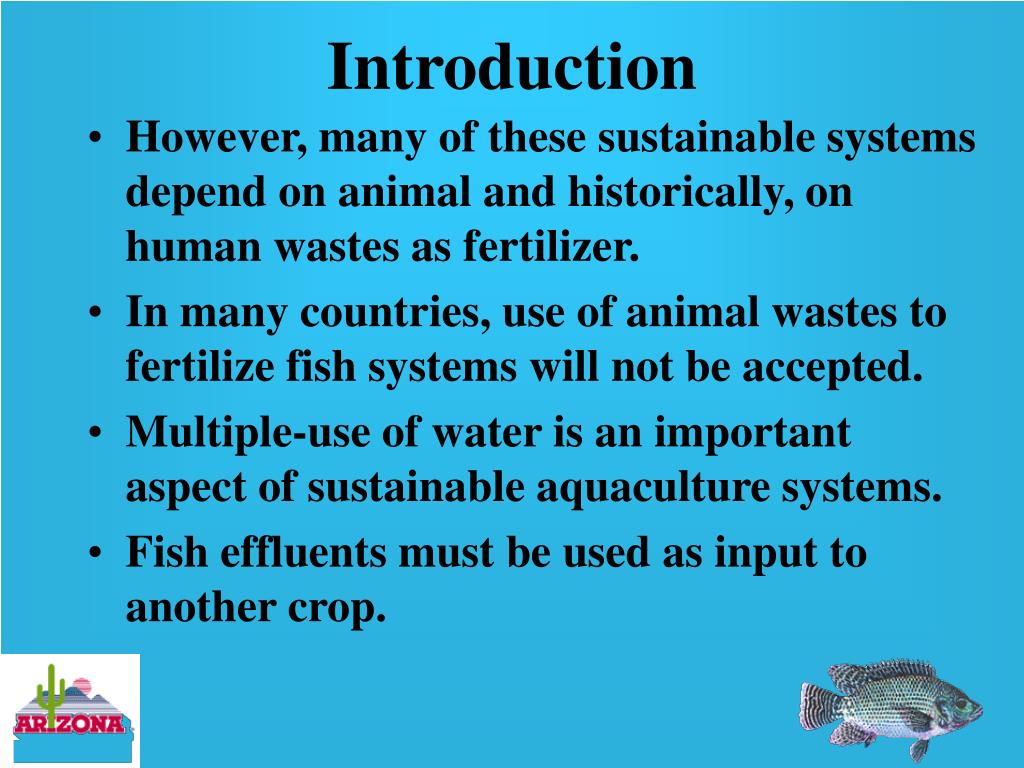

6. Introduction • However, many of these sustainable systems depend on animal and historically, on human wastes as fertilizer. • In many countries, use of animal wastes to fertilize fish systems will not be accepted. • Multiple-use of water is an important aspect of sustainable aquaculture systems. • Fish effluents must be used as input to another crop.

7. Introduction • Irrigated agriculture has been a central part of the “Green Revolution”. • Irrigation should be part of the “Blue Revolution”. • Millions of hectares are irrigated worldwide. • Irrigation water is ideally suited for aquaculture and aquaculture effluent is ideal for plant crops.

8. Introduction • Water is already controlled. • Either pumped from groundwater or diverted from natural or man-made watercourses. • Reservoirs and canal structures are ideal locations for fish culture. • Water is usually of high quality, often from the same source as drinking water. • Most water fit for drinking and/or agriculture, is fine for fish.

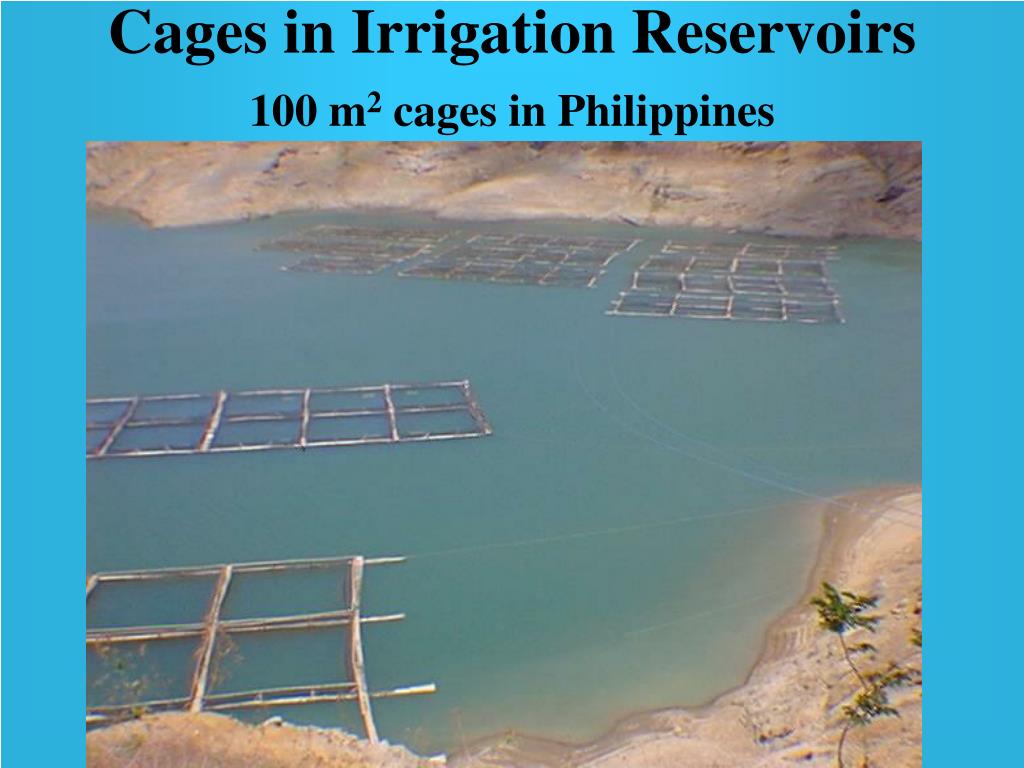

9. Cages in Irrigation Reservoirs 100 m2 cages in Philippines

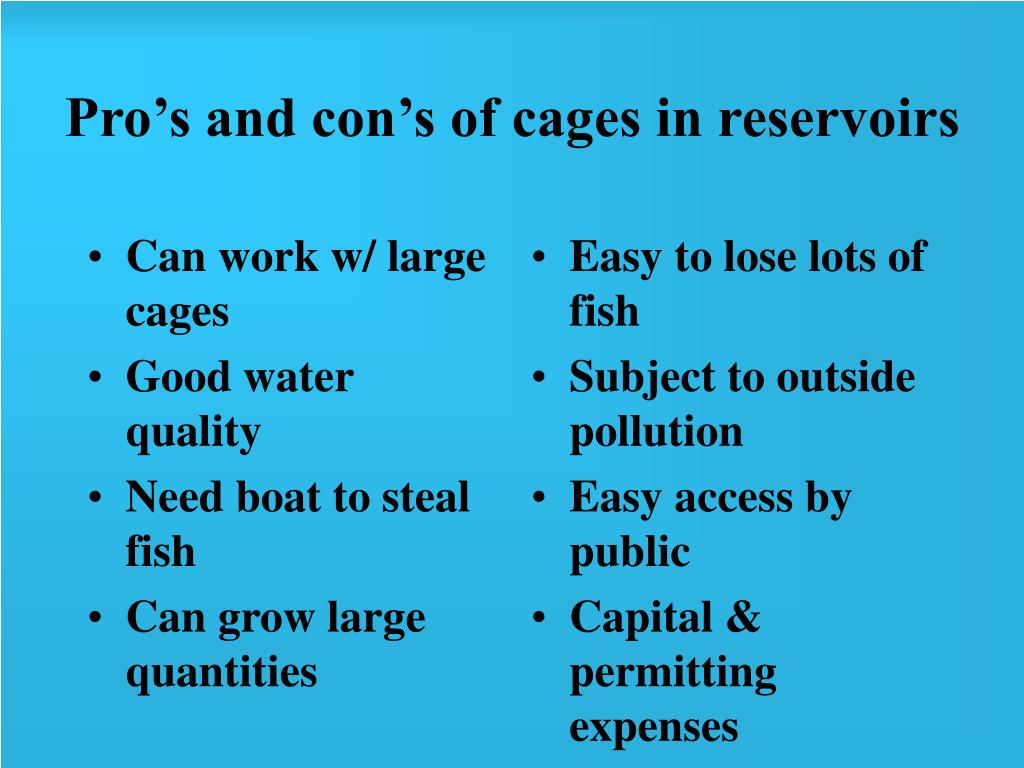

10. Can work w/ large cages Good water quality Need boat to steal fish Can grow large quantities Easy to lose lots of fish Subject to outside pollution Easy access by public Capital & permitting expenses Pro’s and con’s of cages in reservoirs

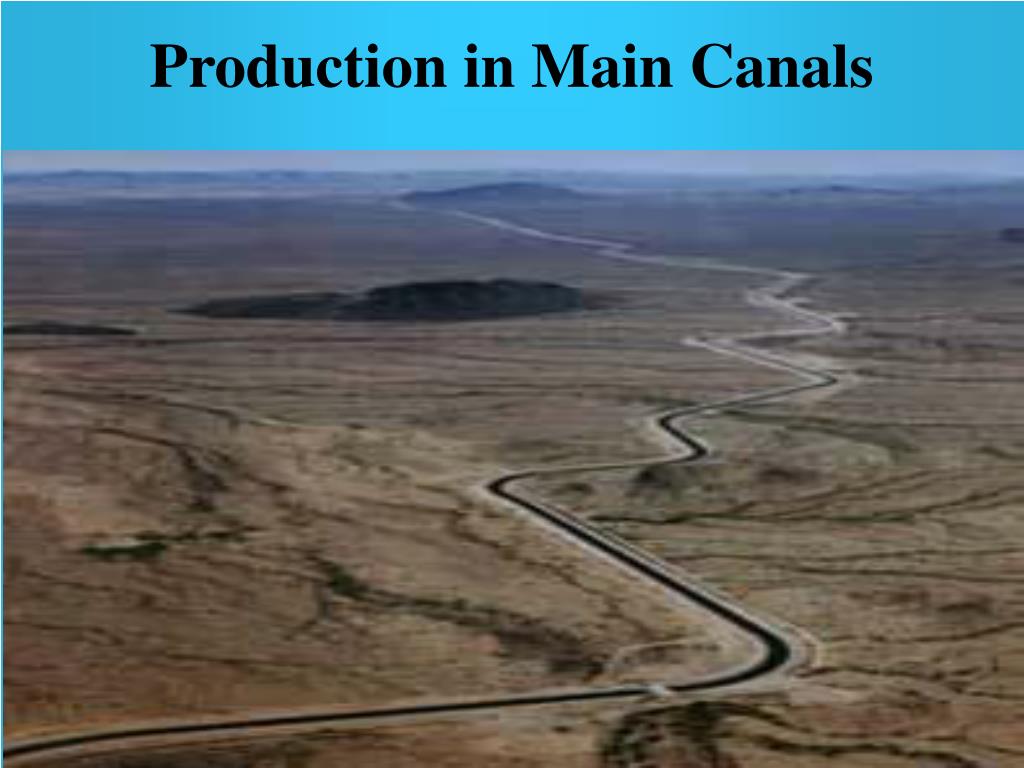

11. Production in Main Canals

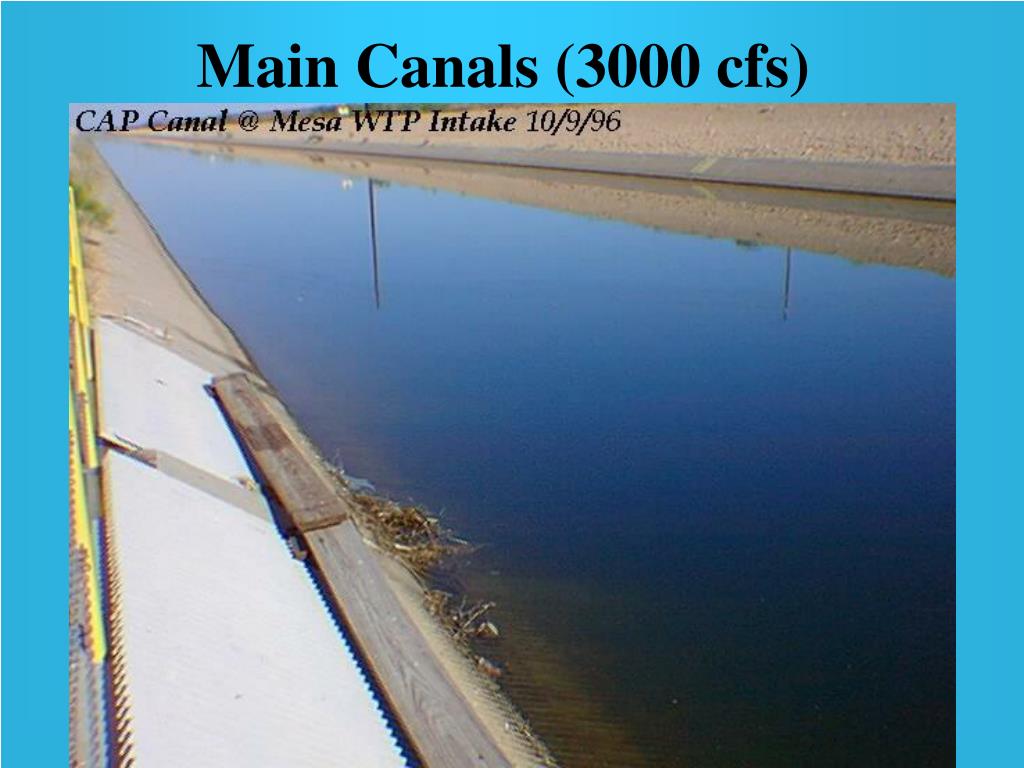

12. Main Canals (3000 cfs)

13. Good water motion and quality Easy access One management entity Water interruptions are rare and/or scheduled Management may not be interested Water motion may be excessive Poaching High cost of cages Water may be interrupted Pro’s and con’s of cages in main canals

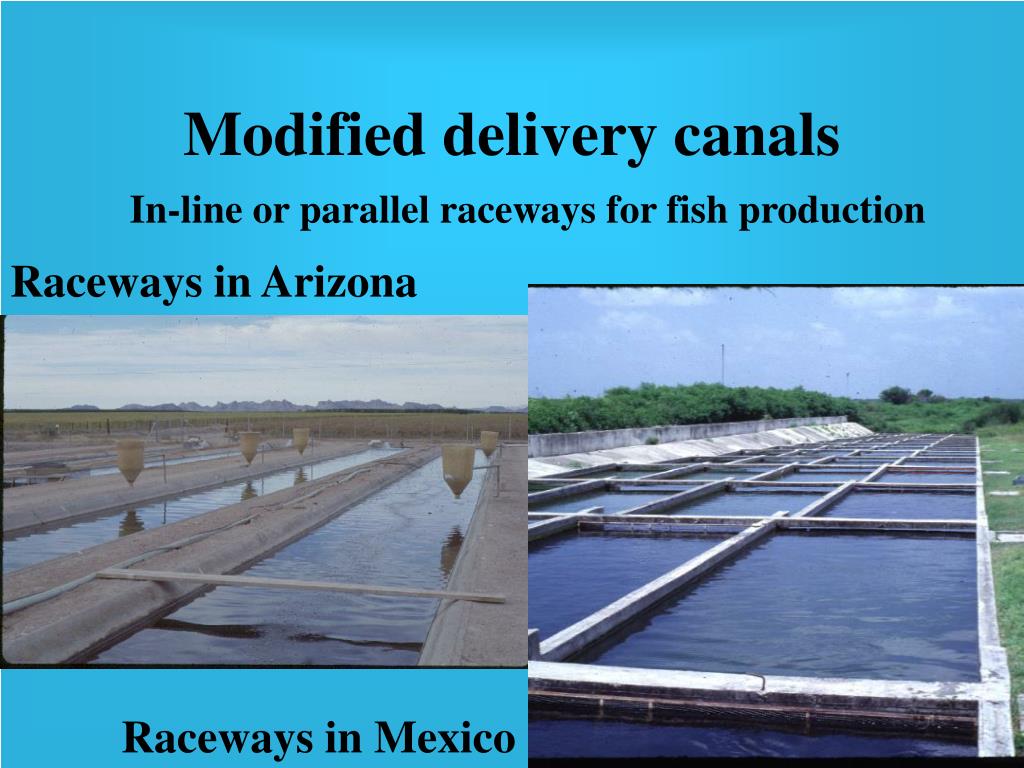

14. Modified delivery canals In-line or parallel raceways for fish production Raceways in Arizona Raceways in Mexico

15. Better control of water and access Adjustable flow rates Can modify production system Higher costs Less dilution capability Difficult to dry down May be on irrigation district land, not on-farm Pro’s and con’s of modified delivery canals

16. Diversions from well or delivery canal Tanks in Arizona Ponds in Costa Rica

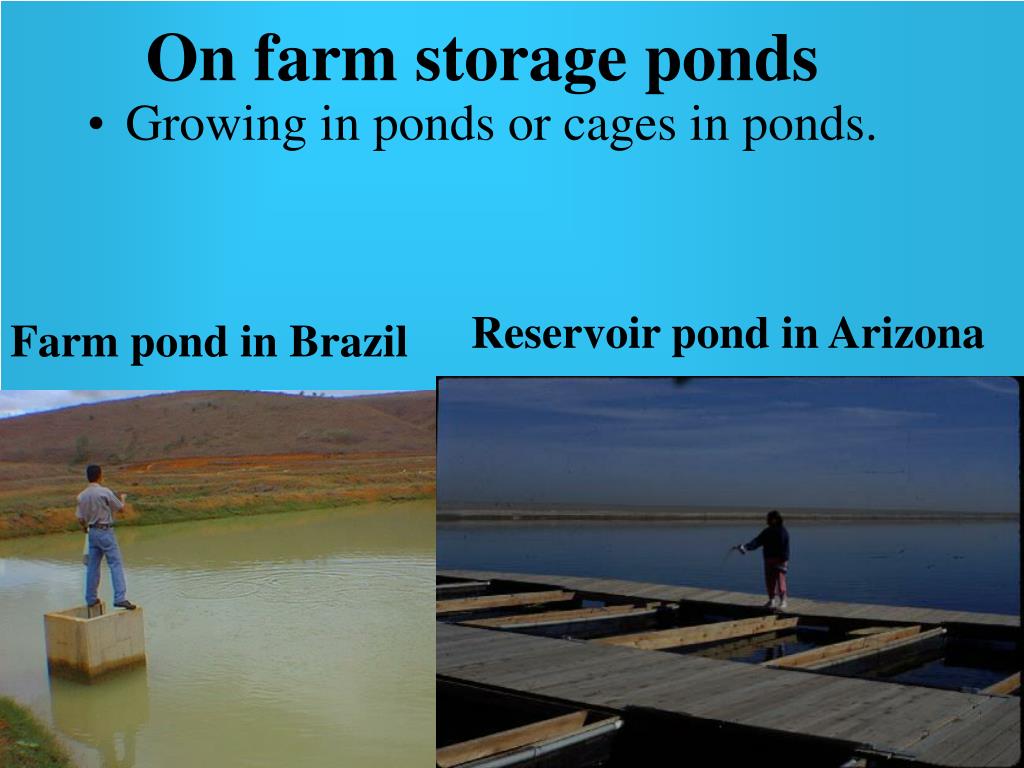

17. On farm storage ponds • Growing in ponds or cages in ponds. Reservoir pond in Arizona Farm pond in Brazil

18. Species produced • Shrimp, trout, tilapia, catfish, grass carp and many other species can be grown in irrigation water.

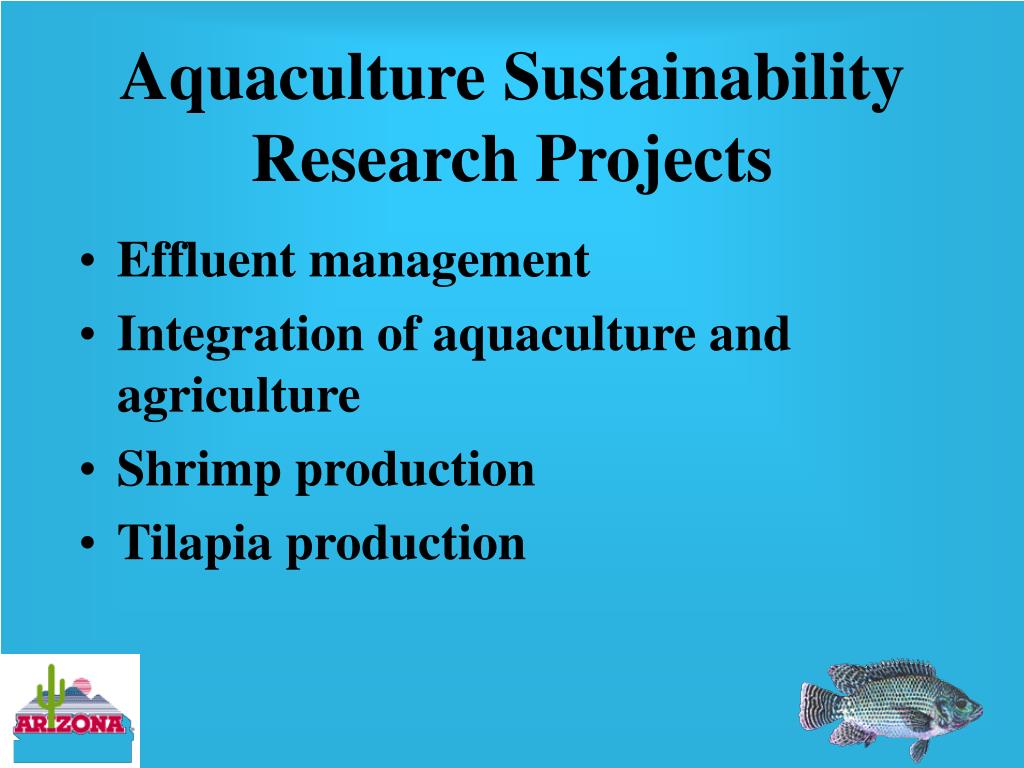

19. Aquaculture Sustainability Research Projects • Effluent management • Integration of aquaculture and agriculture • Shrimp production • Tilapia production

20. Research - Effluent management • US - EPA is in process of regulating all US aquaculture wastes • Field crop irrigation is accepted as a “Best Management Practice” by several states • World Bank, Global Aquaculture Alliance and others promote multiple use.

21. Pond culture to cotton irrigation

22. Research Projects - Integration of aquaculture and agriculture • Irrigate cotton crops with water from catfish ponds and well water • Irrigate cotton crops with water from tilapia tanks and well water • Measure differences in water quality, nitrogen requirements & cotton yield • Determine economic impact

23. Research Projects - Integration of aquaculture and agriculture • First use of water for extensive pond culture. • Pond filled with well water. • Catfish stocked at 7,000 kg/ha • Second use to irrigate and fertilize cotton. • Replicated plots irrigated with well water and pond water.

24. Results - Integration of aquaculture and agriculture • Water pH reduced from 8.3 to 8.0 • Added 19.7 kg/ha N to 45 kg/ha used in standard fertilization schedule.

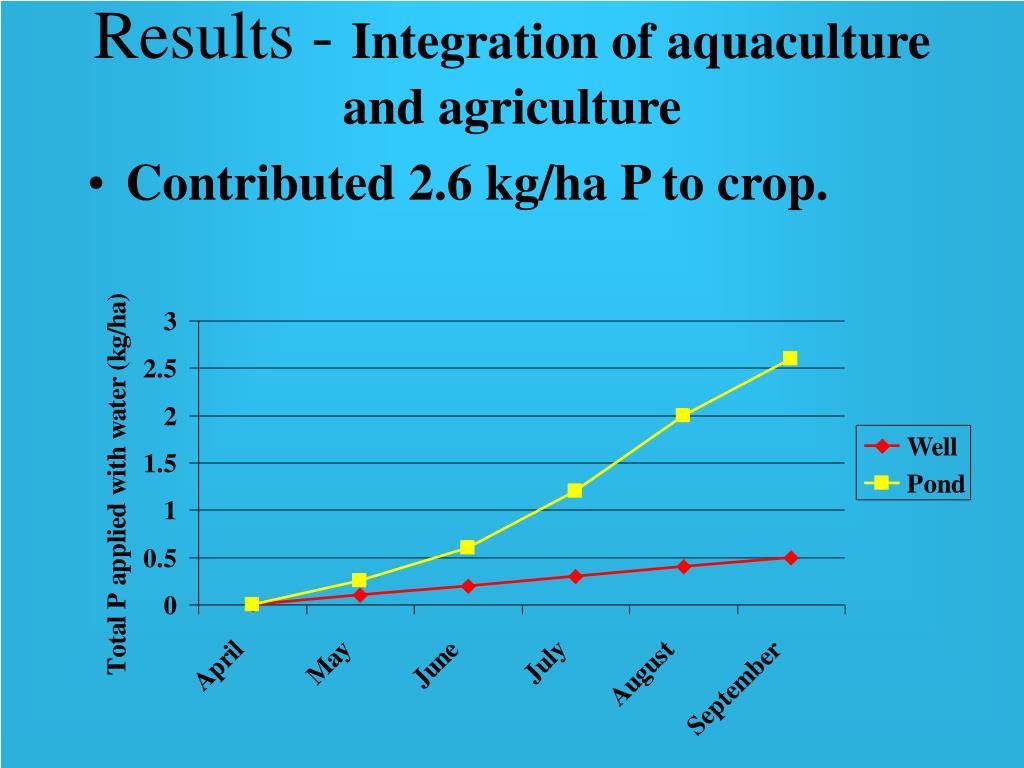

25. Results - Integration of aquaculture and agriculture • Contributed 2.6 kg/ha P to crop.

26. Results - Integration of aquaculture and agriculture: • No significant difference in cotton yield. • Need additional trials with less chemical fertilizer application. • No negative impacts on soils. • Split cost of water results in savings to farmers ($120/ha).

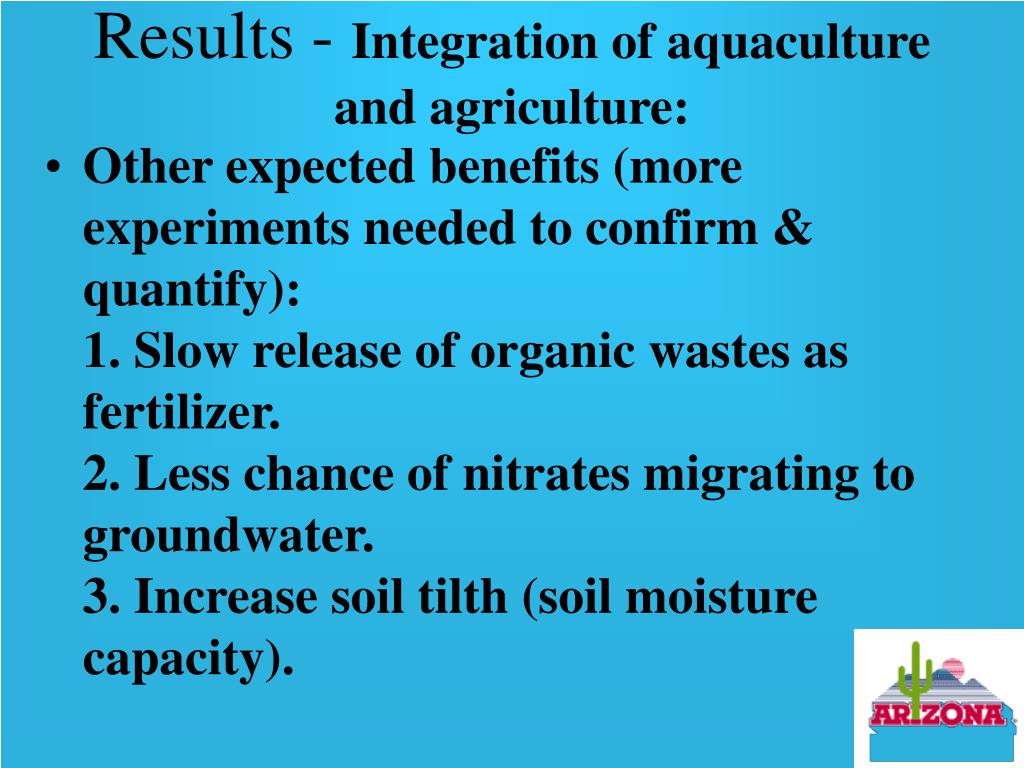

27. Results - Integration of aquaculture and agriculture: • Other expected benefits (more experiments needed to confirm & quantify):1. Slow release of organic wastes as fertilizer.2. Less chance of nitrates migrating to groundwater.3. Increase soil tilth (soil moisture capacity).

28. Sustainable Shrimp Systems • Shrimp • Tilapia • Seaweed • Halophytes Puerto Peñasco, Mexico

29. Use of inland saline waters for “marine” species and irrigation • “Low quality” groundwater, saline intrusion along seacoasts in Mexico, Peru and Ecuador • Much of this water is low grade geothermal. • Some has been used for conventional irrigation in the past. • Penaeid shrimp, redfish, oysters, seaweeds have been grown in-land.

30. Low salinity inland shrimp culture • Florida, Harbor Branch Oceanographic • Mexico, Colima; Aquagranjas • Thailand, multiple sites • India, Andhra Pradesh • Texas: multiple farms and Texas A&M • Arizona: Gila Bend, Hyder, & Aztec Farms • University of Arizona

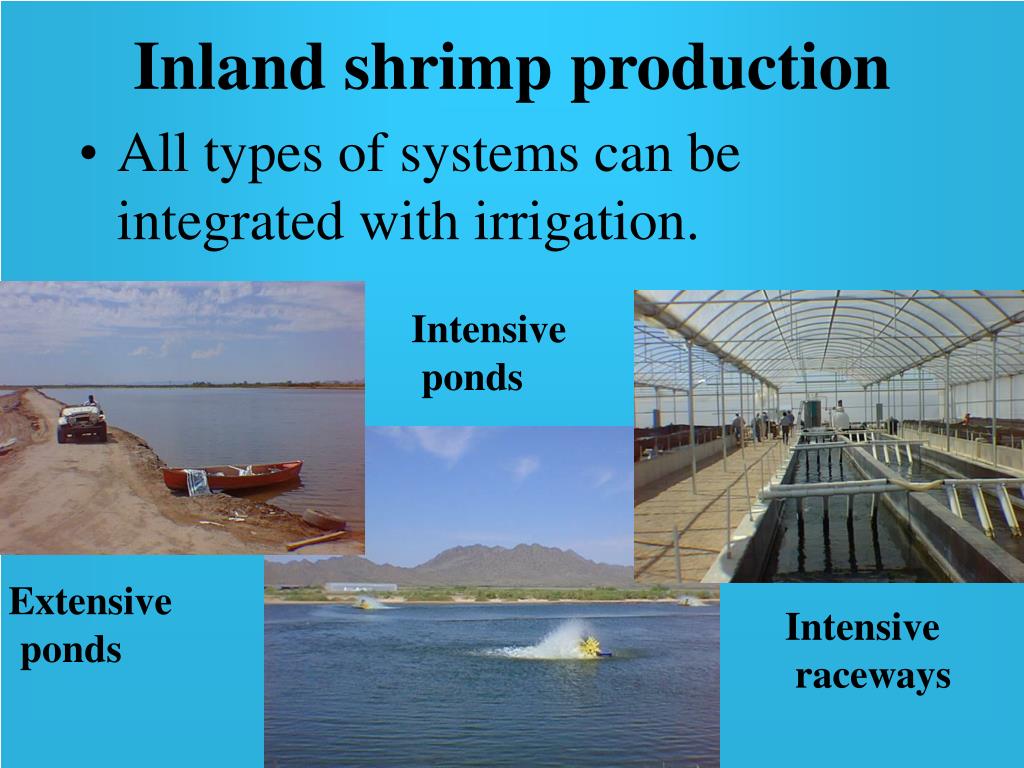

31. Inland shrimp production • All types of systems can be integrated with irrigation. Intensive ponds Extensive ponds Intensive raceways

32. Source groundwater • Low (1-2 ppt or 1000 -2000 ppm TDS). • Med (3-5 ppt or 3000 - 5000 ppm TDS) • Low can be used on conventional crops. • Medium salinity effluent constitutes a disposal problem. • Medium salinity effluent can be used for algae culture, seaweeds, halophyte crops.

33. Shrimp in inland waters • Low salinity can be used on certain conventional crops with proper cultivation techniques. Sorghum Olives

34. Research Project - Shrimp effluent on crops • Wood Brothers Farm in Gila Bend, AZ • 12 hectares of ponds, one greenhouse • Stocking Litopenaeus vannamei • 35 shrimp/m2 @ 0.4 g • Feed - Rangen • Aeration • Paddlewheels • Diffusers

35. RESULTSGila Bend, Low salinity • Water exchange: 10-15% • Survival 70% • Harvest after 95 days, @ 21 g • Yield • 7,500 kg/ha • 12 ha of ponds • Effluent used on olives, sorghum, cotton

36. RESULTSGila Bend, Low salinity • Preliminary data (summer 2000): • 0.07 mg/L NH3, 0.321 mg/L NO2, 21.2 mg/L NO3, 0.17 mg/L total P • Fertilizer value about 43 kg/ha N and 0.34 kg/ha P

37. RESULTSGila Bend, Low salinity • Algae bloom • more characteristic of freshwater • nutritional value for shrimp needs to be studied • Problems • Hemocytic enteritis • Gill fouling

38. RESULTS Aztec Farm, Medium salinity • Stocking L. vannamei, L. stylirostris • 5 to 10 shrimp/m2 @ PL 20 • Feed - Rangen • Water exchange: limited • Aeration:none

39. RESULTS 1999Aztec, Medium salinity • Survival L. vannamei, L. stylirostris • 10 to 30% • 3 grams per week at one point • Harvest after 120 days, @ 10 - 20 g • Yield - 20,000 kg • average = 1,000 kg/ha • 20 ha of ponds • 2000 results are reported to be better

40. Conclusions • Shrimp can be produced in low salinity groundwater. • Commercial quantities can be produced. • Low salinity effluent waters can be used for conventional field crops. • Medium salinity effluent can be used for halophyte crops. • Sustainability will not be demonstrated until salt levels in soils are tested after several years of irrigation.

41. Conclusions • Markets are prepared to pay a premium for fresh, locally grown shrimp. • Profitability will be determined if more crop cycles can be completed without significant losses due to disease or other environmental conditions.

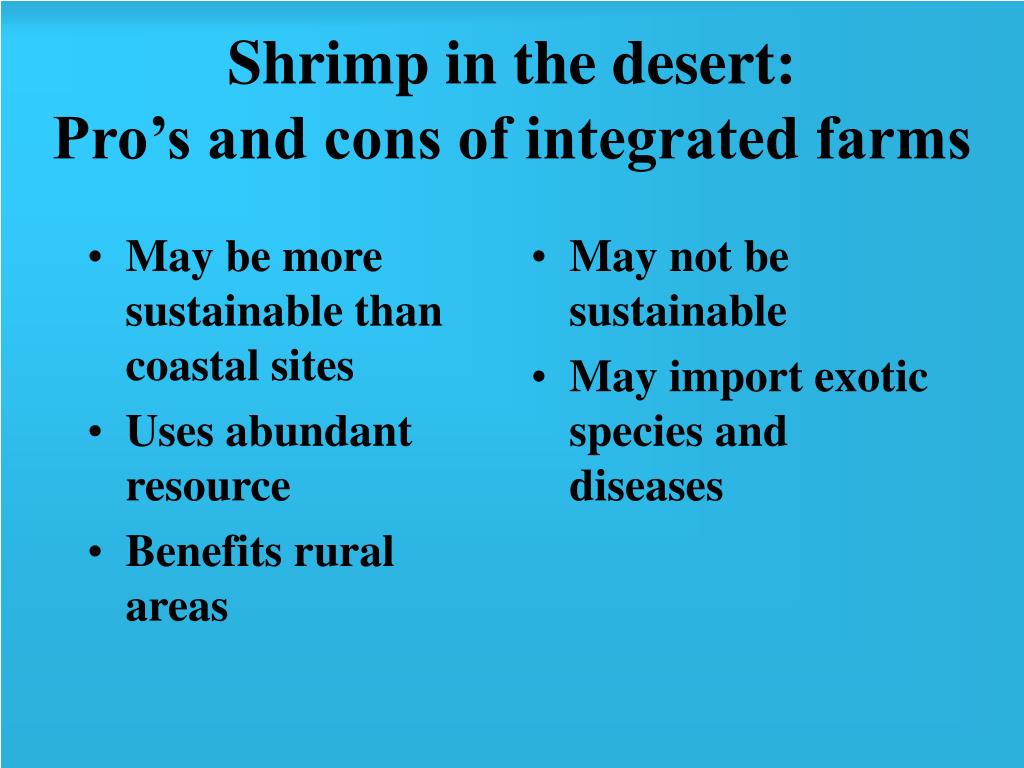

42. May be more sustainable than coastal sites Uses abundant resource Benefits rural areas May not be sustainable May import exotic species and diseases Shrimp in the desert:Pro’s and cons of integrated farms

43. Shrimp in coastal locations - Sustainable Systems • Effluents can be used for halophytes, seaweeds or reconstructed mangroves. • Halophytes have agronomic potential • Seaweeds are effective biofilters absorbing nutrients. • Mangroves are needed for restoration and many farms are required to provide mitigation.

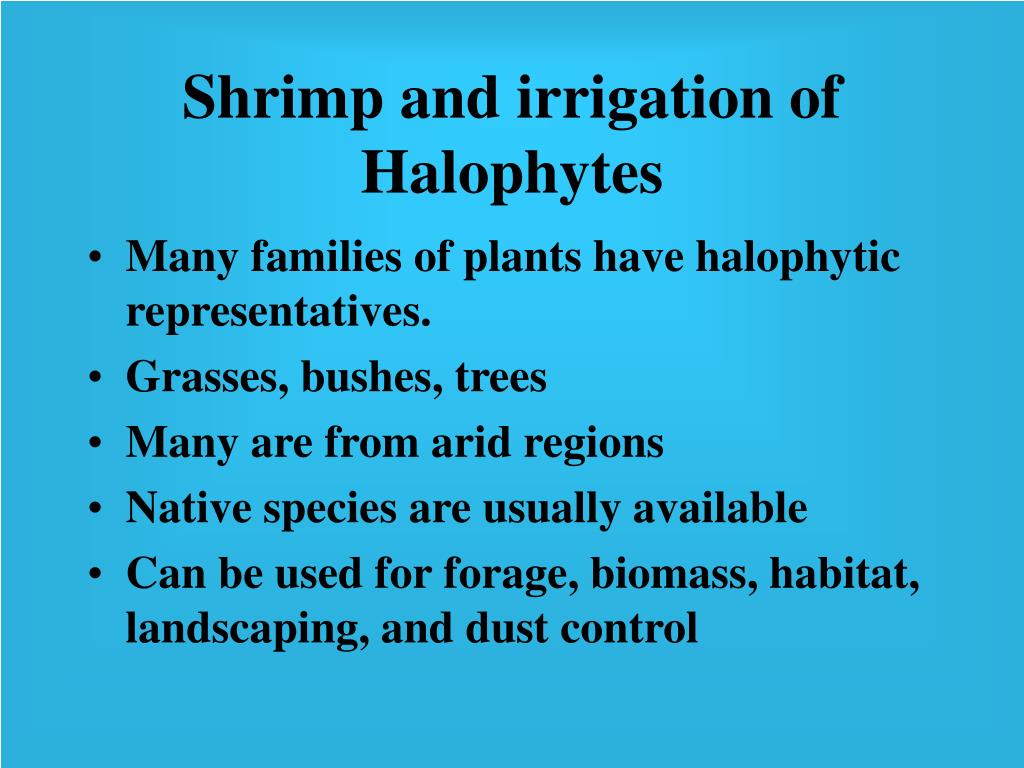

44. Shrimp and irrigation of Halophytes • Many families of plants have halophytic representatives. • Grasses, bushes, trees • Many are from arid regions • Native species are usually available • Can be used for forage, biomass, habitat, landscaping, and dust control

45. Shrimp and halophytes

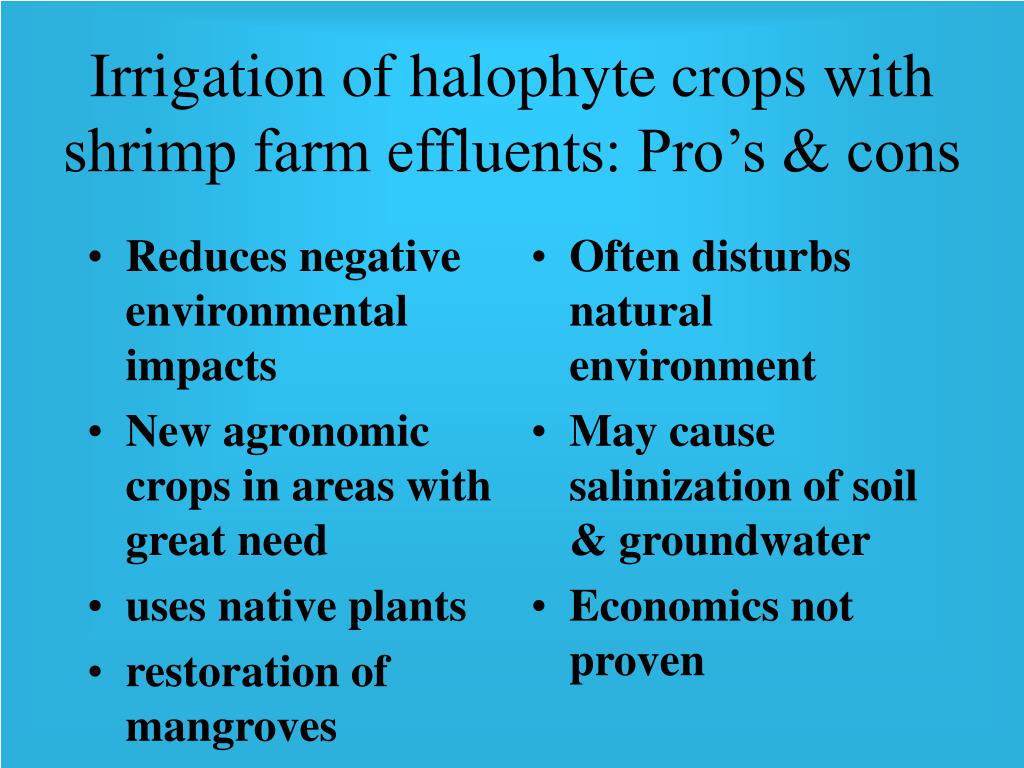

46. Reduces negative environmental impacts New agronomic crops in areas with great need uses native plants restoration of mangroves Often disturbs natural environment May cause salinization of soil & groundwater Economics not proven Irrigation of halophyte crops with shrimp farm effluents: Pro’s & cons

47. Shrimp and Seaweeds • Gracilaria and shrimp production in Hawaii

48. Sustainable Aquaculture - Arizona Aquaculture Website • Extension Information • Links to other projects

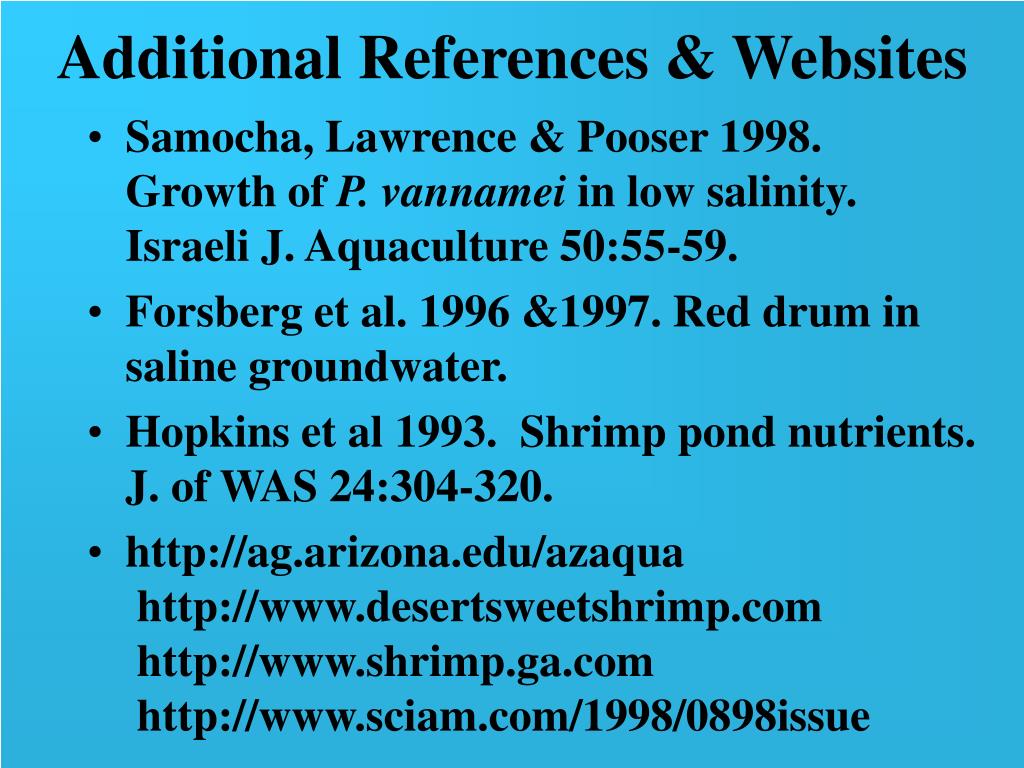

49. Additional References & Websites • Samocha, Lawrence & Pooser 1998. Growth of P. vannamei in low salinity. Israeli J. Aquaculture 50:55-59. • Forsberg et al. 1996 &1997. Red drum in saline groundwater. • Hopkins et al 1993. Shrimp pond nutrients.J. of WAS 24:304-320. • http://ag.arizona.edu/azaqua http://www.desertsweetshrimp.com http://www.shrimp.ga.com http://www.sciam.com/1998/0898issue

50. Sustainable Aquaculture Predictions • Many irrigation systems will encourage multiple use. • Cages in reservoirs will be restricted to developing countries. • Shrimp farming with in-land low salinity will grow. • Shrimp in coastal areas will switch to integration with irrigated halophytes or seaweed/mangrove systems.
