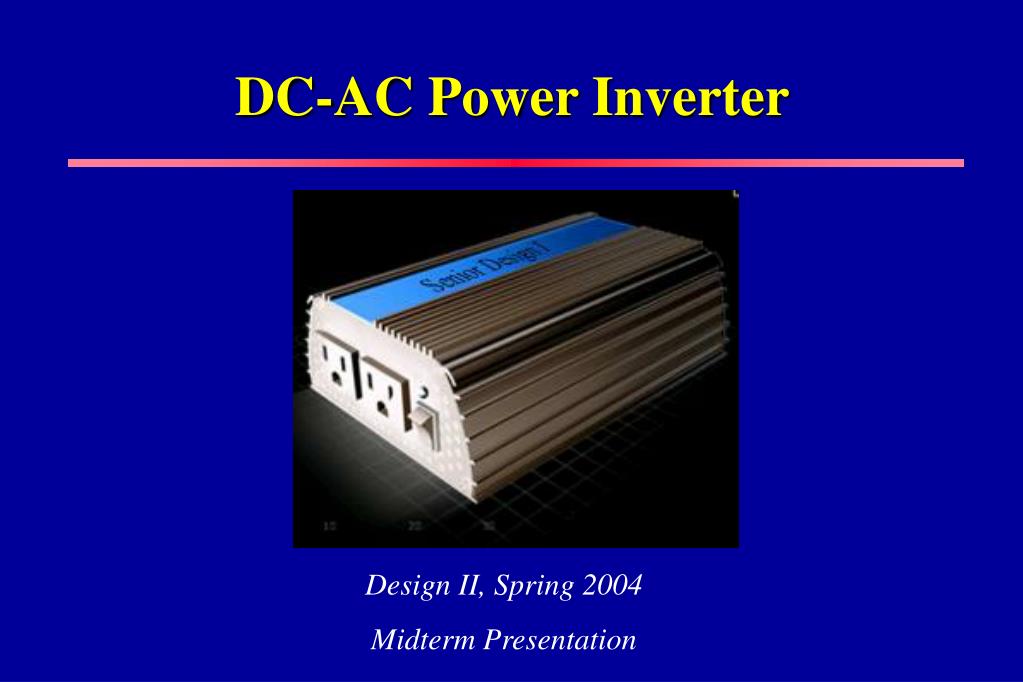

DC-AC Power Inverter

Design II, Spring 2004

Midterm Presentation


Team members

Team Members

Min-Chiat Wee

Team Leader

Daniel Martin

Faculty Advisor

Dr. Yaroslav Koshka

Dustin Bailey

Industrial Advisor: Dr. Mark Kinsler

Jason Horner


Abstract

Abstract

  • Design a switch-mode power supply that converts 12 VDC to 120 VAC

  • Pure sinusoidal waveform with 60 Hz frequency

  • 300 W continuous output


Problem statement

Problem Statement

  • Problems:

    • Inexpensive inverters are very inefficient due to a high harmonic content of the output signal

    • Pure sine wave inverters have a high cost per watt ratio

  • Solution:

    • An inexpensive inverter that produces a near perfect sine wave output


Design constraints

Design Constraints


Main components

Main Components

12 VDC Input

(from vehicle battery)

PWM Control

Circuit

Half-bridge

Converter

Transformer

Low-pass

Filter

Full-bridge

Inverter

Sinusoidal PWM

Controller

120 VAC,

60 Hz, 300 W

Output


Pwm control circuit

PWM Control Circuit

12 VDC Input

(from vehicle battery)

PWM Control

Circuit

Half-bridge

Converter

Transformer

Low-pass

Filter

Full-bridge

Inverter

Sinusoidal PWM

Controller

120 VAC,

60 Hz, 300 W

Output


Pwm controller

PWM Controller

  • Produces two complementary pulses to control half-bridge transistors

  • Problem:

    • Voltage dropped less than 170VDC when the input voltage was decreased

  • Solution:

    • A feedback network was added for voltage regulation

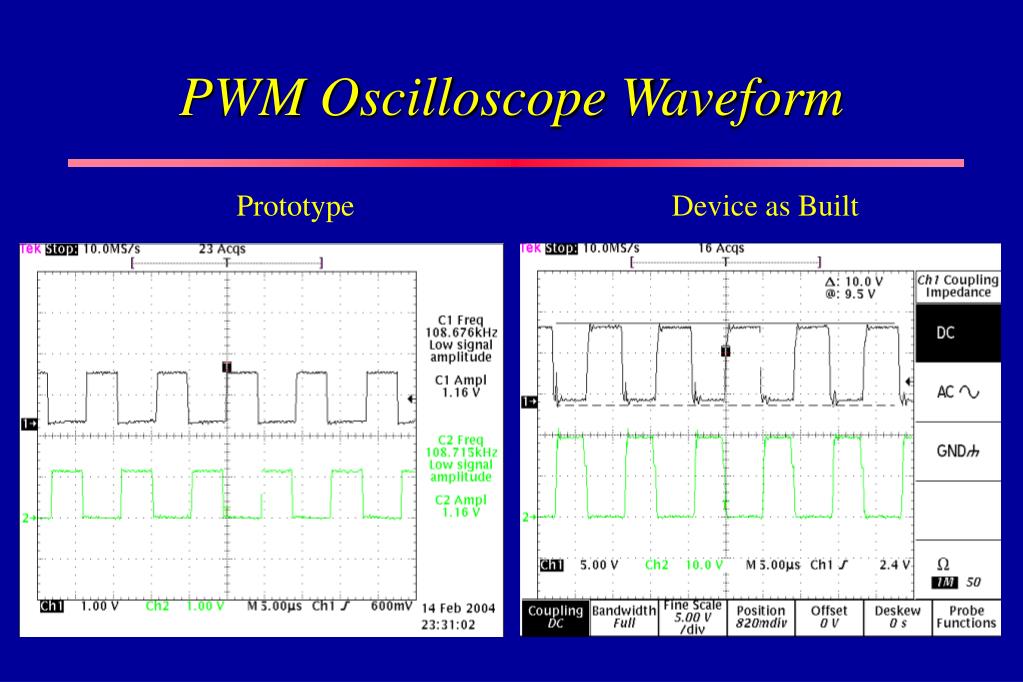

Pwm oscilloscope waveform

PWM Oscilloscope Waveform

Prototype

Device as Built


Half bridge converter

Half-bridge Converter

12 VDC Input

(from vehicle battery)

PWM Control

Circuit

Half-bridge

Converter

Transformer

Low-pass

Filter

Full-bridge

Inverter

Sinusoidal PWM

Controller

120 VAC,

60 Hz, 300 W

Output


Half bridge converter1

Half-bridge Converter

  • Chops the 12 VDC to produce a 12 V, 100 kHz, square pulse

  • Problem:

    • IRF740A MOSFETs has an Rds(on) = 0.55Ω, resulting in high power losses.

  • Solution:

    • Chose IRF530 MOSFETs with an Rds(on) = 0.16 Ω

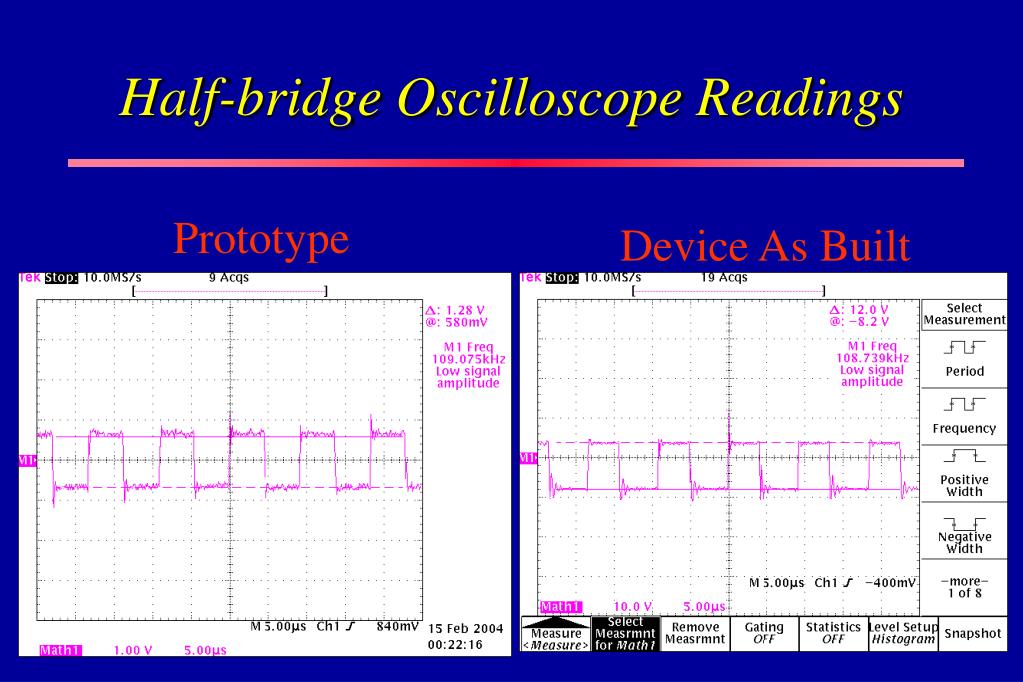

Half bridge oscilloscope readings

Half-bridge Oscilloscope Readings

Prototype

Device As Built


Transformer

Transformer

12 VDC Input

(from vehicle battery)

PWM Control

Circuit

Half-bridge

Converter

Transformer

Low-pass

Filter

Full-bridge

Inverter

Sinusoidal PWM

Controller

120 VAC,

60 Hz, 300 W

Output


Step up transformer

Step Up Transformer

  • Steps up voltage from

    12 VAC to 340 VAC

  • Problem:

    • Initial transformer had high internal capacitance leading to failure of device

  • Solution:

    • Custom ordered a transformer to fit our design constraints

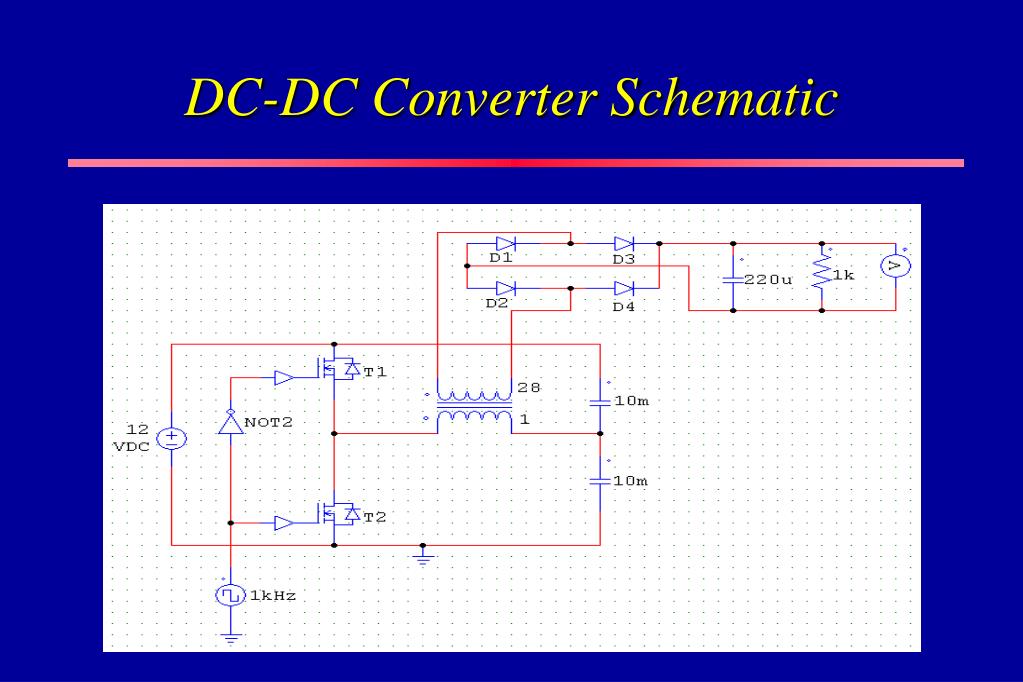

Dc dc converter schematic

DC-DC Converter Schematic

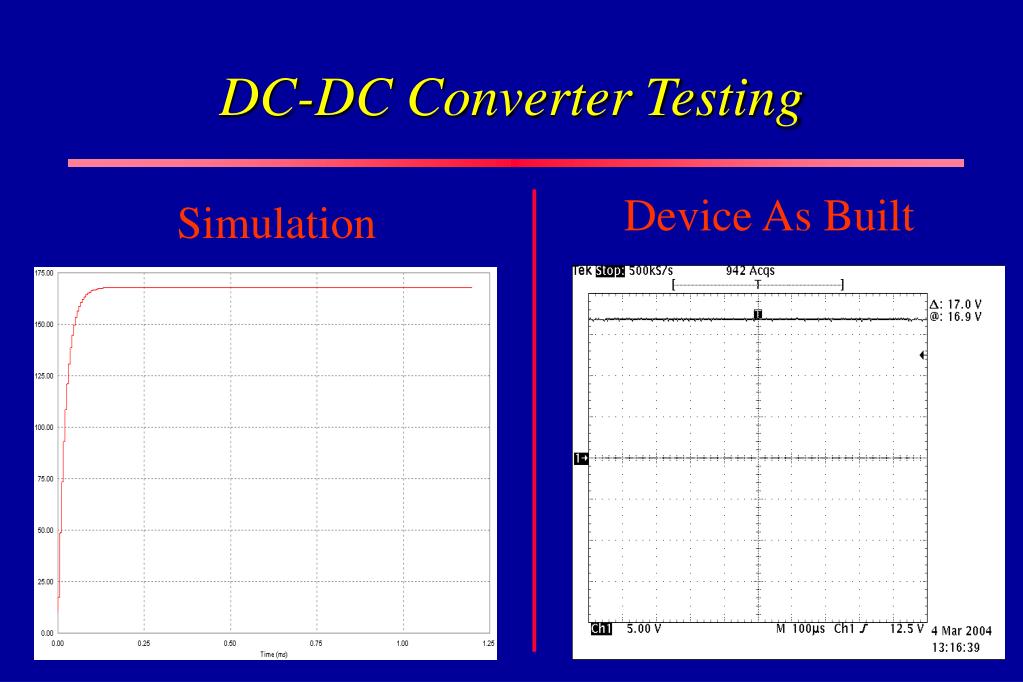

Dc dc converter testing

DC-DC Converter Testing

Device As Built

Simulation

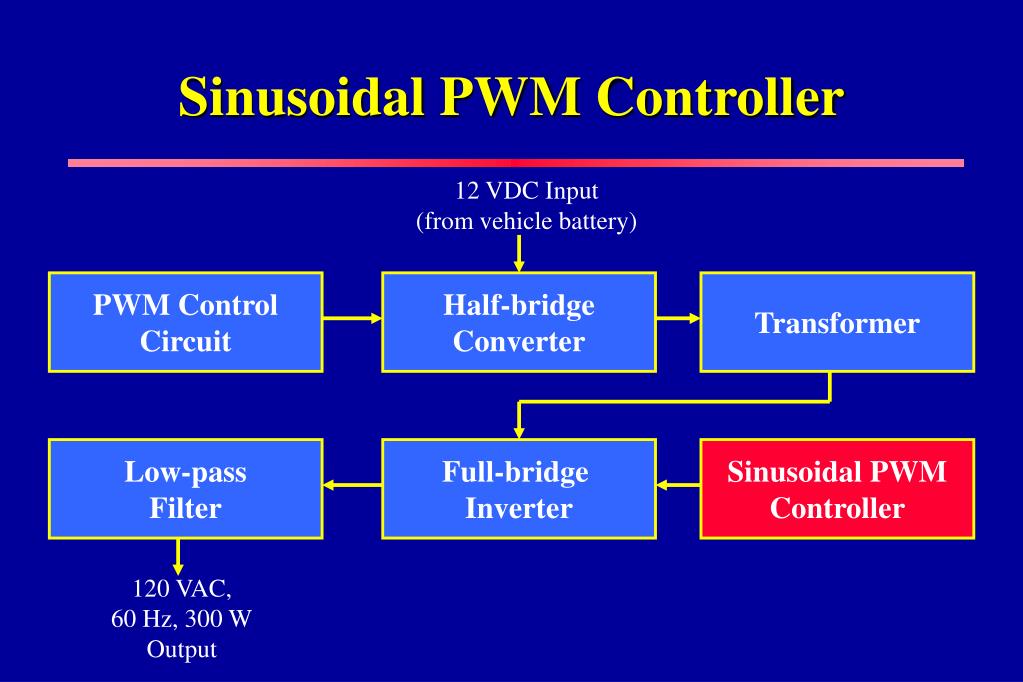

Sinusoidal pwm controller

Sinusoidal PWM Controller

12 VDC Input

(from vehicle battery)

PWM Control

Circuit

Half-bridge

Converter

Transformer

Low-pass

Filter

Full-bridge

Inverter

Sinusoidal PWM

Controller

120 VAC,

60 Hz, 300 W

Output

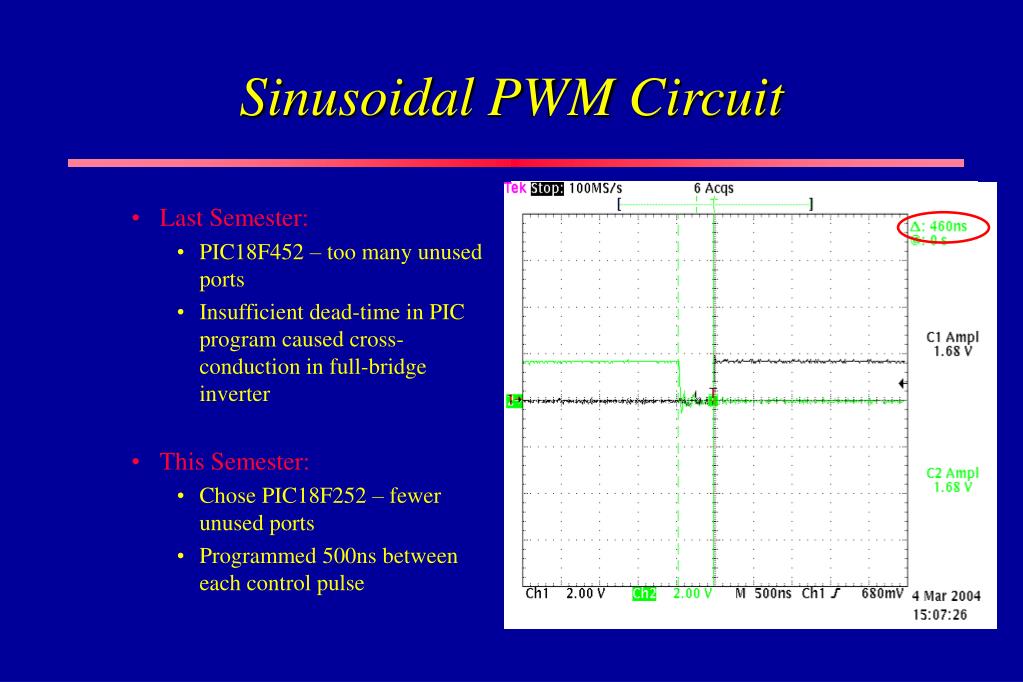

Sinusoidal pwm circuit

Sinusoidal PWM Circuit

  • Last Semester:

    • PIC18F452 – too many unused ports

    • Insufficient dead-time in PIC program caused cross-conduction in full-bridge inverter

  • This Semester:

    • Chose PIC18F252 – fewer unused ports

    • Programmed 500ns between each control pulse


Software flow diagram

Initialize all variables

Count0 = 300 (300 duty cycles)

300 duty cycle values?

One Sampling Period?

Output 1 = high, Output 2 = low

Read duty cycle table (increment pointer)

Duty cycle and sampling period timer

Output 1 = low, Output 2 = high

Decrement Count0 by 1

Has duty cycle been reached?

Software Flow Diagram

yes

no

no

yes

no

yes

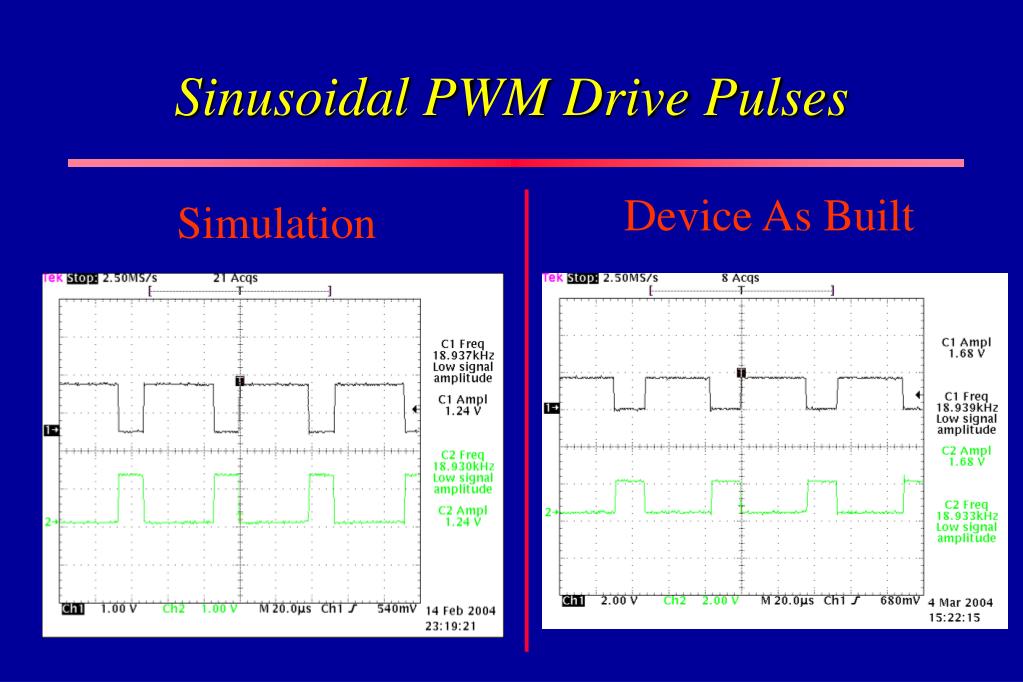

Sinusoidal pwm drive pulses

Sinusoidal PWM Drive Pulses

Device As Built

Simulation


Full bridge inverter

Full-bridge Inverter

12 VDC Input

(from vehicle battery)

PWM Control

Circuit

Half-bridge

Converter

Transformer

Low-pass

Filter

Full-bridge

Inverter

Sinusoidal PWM

Controller

120 VAC,

60 Hz, 300 W

Output

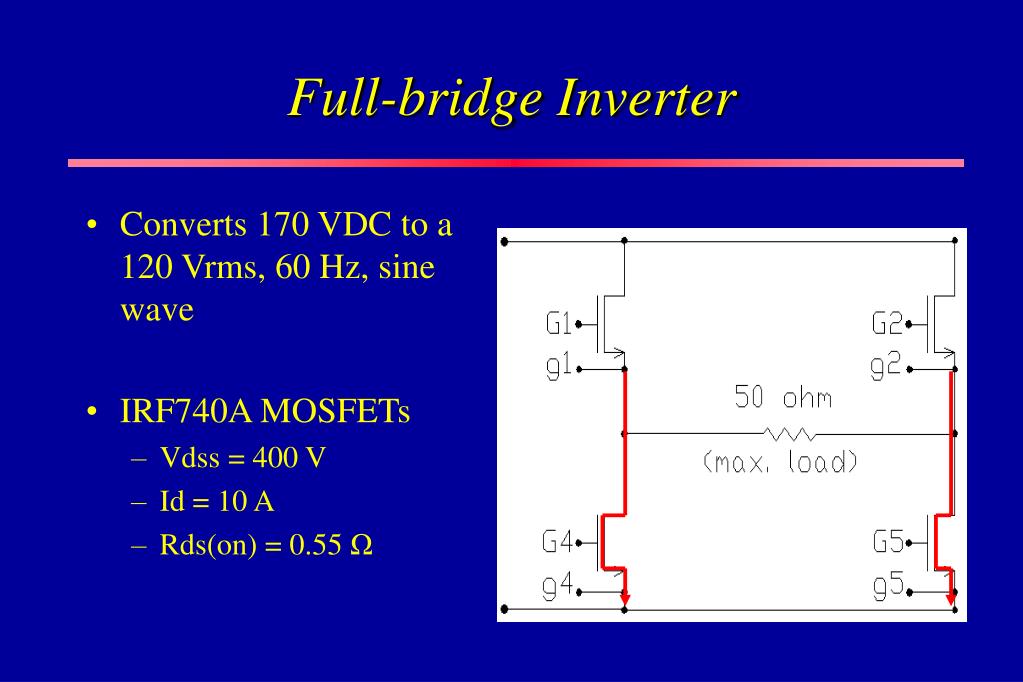

Full bridge inverter1

Full-bridge Inverter

  • Converts 170 VDC to a 120 Vrms, 60 Hz, sine wave

  • IRF740A MOSFETs

    • Vdss = 400 V

    • Id = 10 A

    • Rds(on) = 0.55 Ω


Simulation vs actual unfiltered

Simulation vs. Actual (unfiltered)

Simulation

Device As Built


Frequency spectrum before filtering

60 Hz

60 Hz

18 kHz

18 kHz

Frequency Spectrum Before Filtering

Simulation

Device As Built


Low pass filter

Low-pass Filter

12 VDC Input

(from vehicle battery)

PWM Control

Circuit

Half-bridge

Converter

Transformer

Low-pass

Filter

Full-bridge

Inverter

Sinusoidal PWM

Controller

120 VAC,

60 Hz, 300 W

Output


Low pass filter1

Low-pass Filter

  • 2nd order L-C filter

    • Filters to retain a 60 Hz fundamental frequency

    • Few components

    • Handle current

    • Wind inductor (fine tune)


Dc ac full bridge inverter schematic

DC-AC Full-bridge Inverter Schematic


Final output testing

Final Output Testing

Simulation

Prototype


Frequency spectrum after filtering

Frequency Spectrum After Filtering

Simulation

Device As Built


Component costs

Component Costs


Pcb layout

PCB Layout

Dimensions: 7.5” x 6.5” x 2.5”


Packaging

Packaging

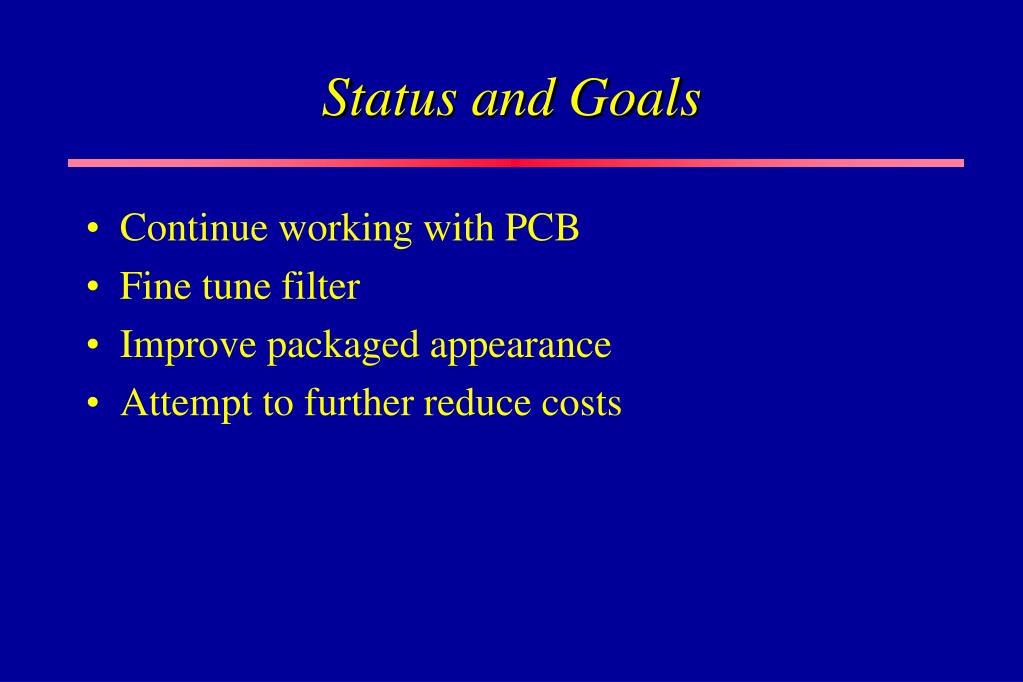

Status and goals

Status and Goals

  • Continue working with PCB

  • Fine tune filter

  • Improve packaged appearance

  • Attempt to further reduce costs


Acknowledgements

Acknowledgements

  • Dr. Yaraslov Koshka

  • Dr. Mark Kinsler

  • Dr. Mike Mazzola

  • Dr. Raymond Winton

  • Dr. Herb Ginn

  • Jim Gafford

  • Robin Kelley

  • Len Cox

  • Jessie Thomas


Any questions

Any Questions?

???
