  1. Texwrap Vertical Wrapping System

  2. Model 914OVS Wrapper

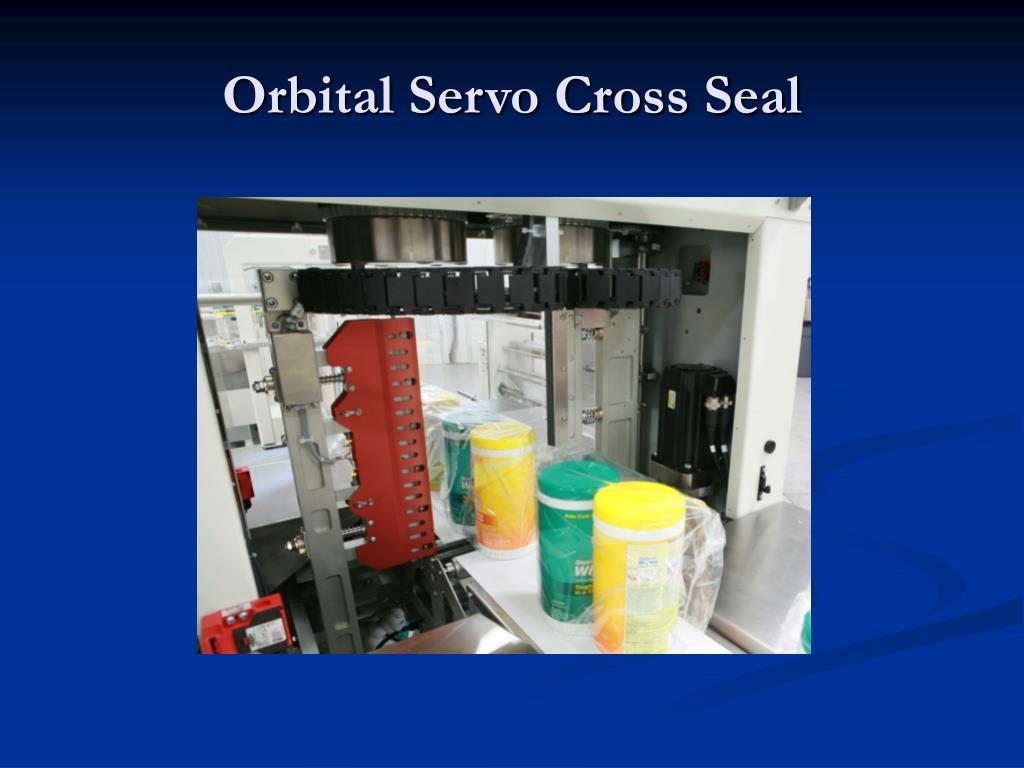

  3. Orbital Servo Cross Seal

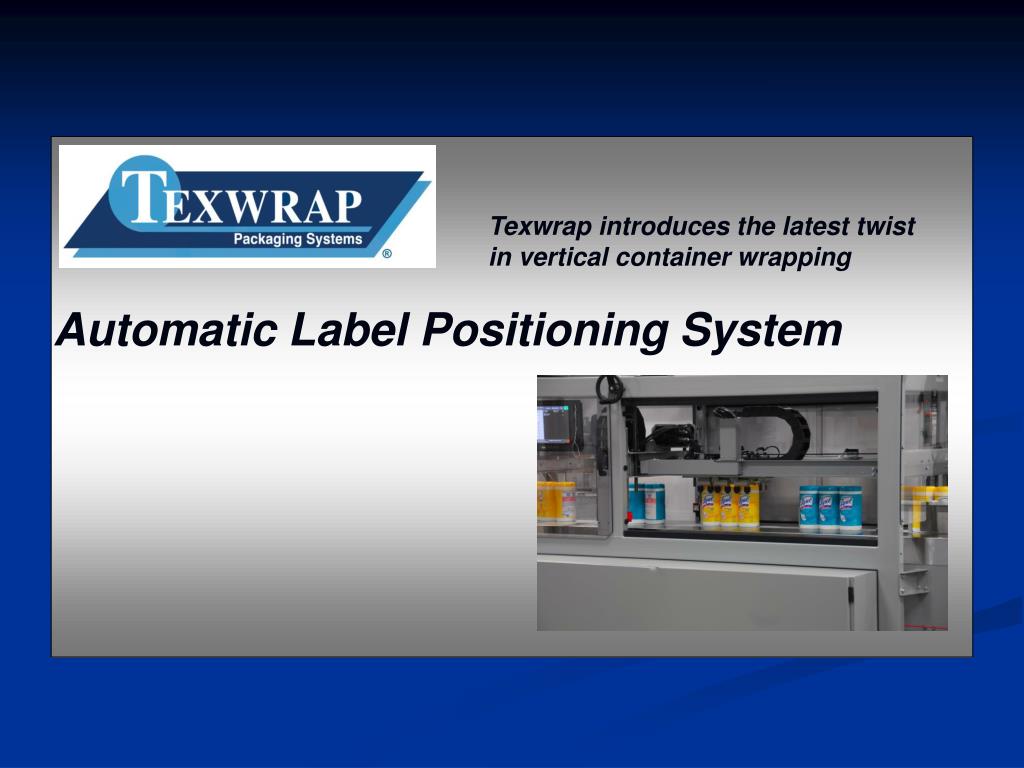

  4. Texwrap introduces the latest twist in vertical container wrapping Automatic Label Positioning System

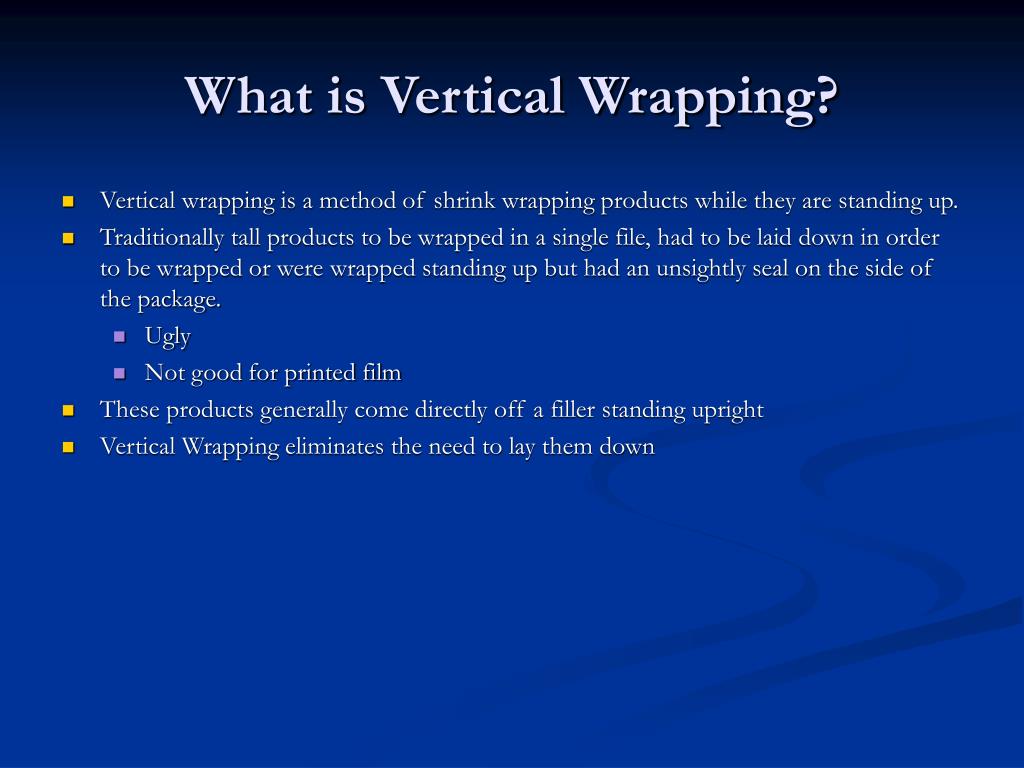

  5. What is Vertical Wrapping? • Vertical wrapping is a method of shrink wrapping products while they are standing up. • Traditionally tall products to be wrapped in a single file, had to be laid down in order to be wrapped or were wrapped standing up but had an unsightly seal on the side of the package. • Ugly • Not good for printed film • These products generally come directly off a filler standing upright • Vertical Wrapping eliminates the need to lay them down

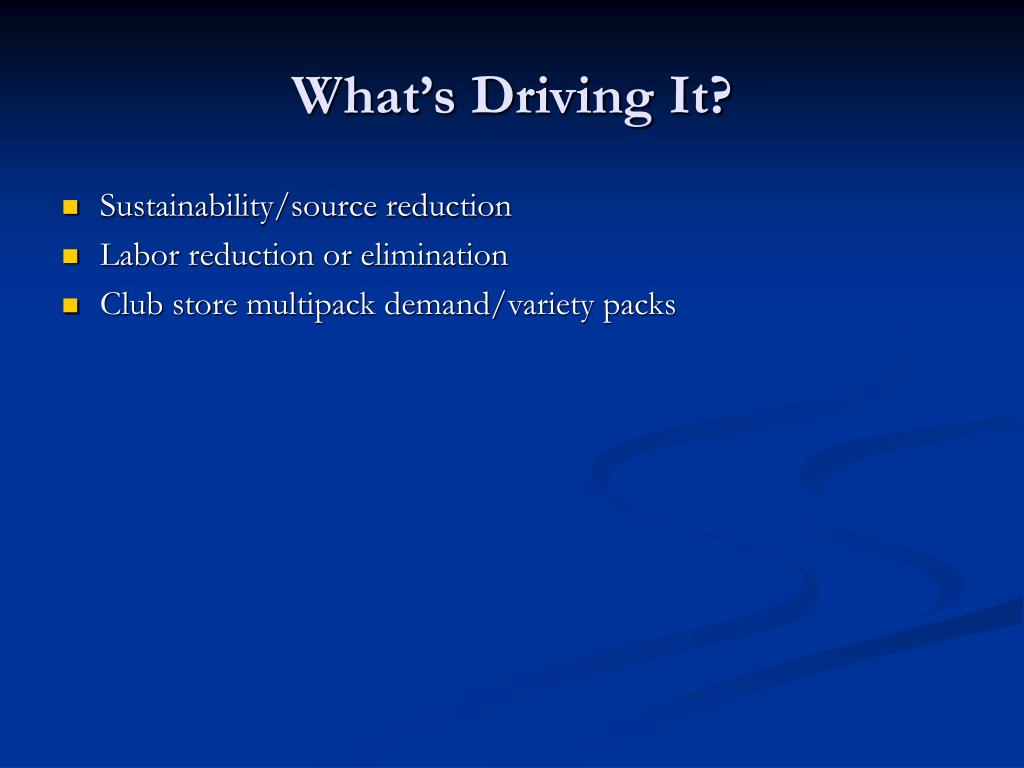

  6. What’s Driving It? • Sustainability/source reduction • Labor reduction or elimination • Club store multipack demand/variety packs

  7. Source Reduction • Eliminate chipboard carrier or tray • U-board carrier to machine and hide bar codes • Manually placed usually

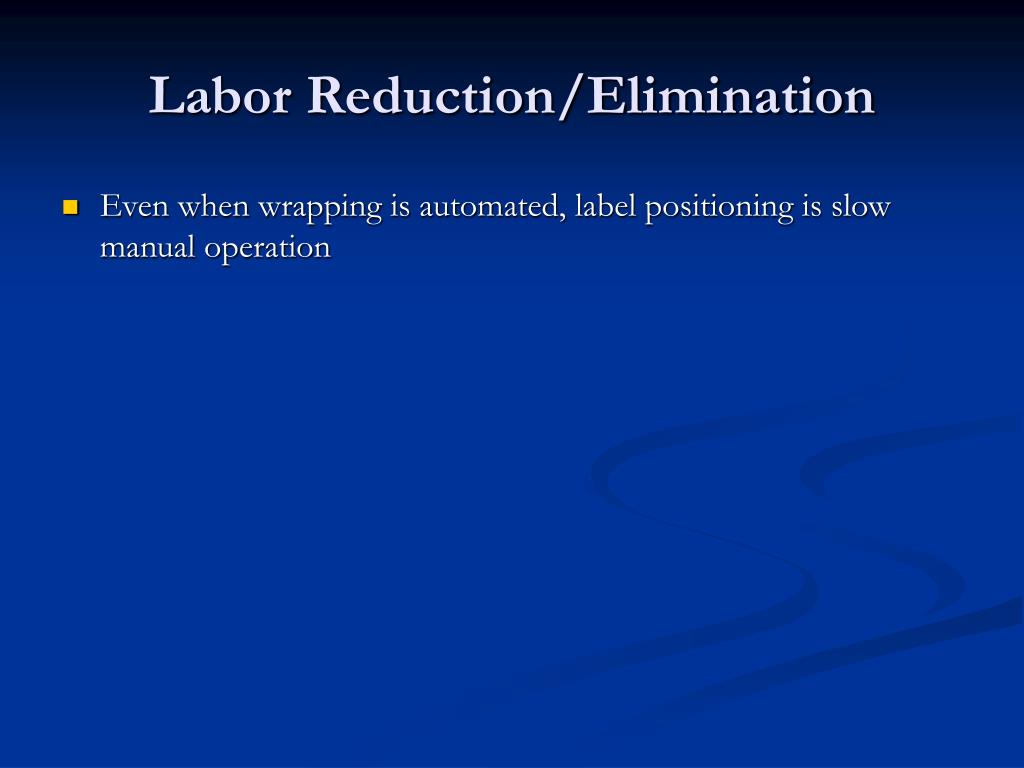

  8. Labor Reduction/Elimination • Even when wrapping is automated, label positioning is slow manual operation

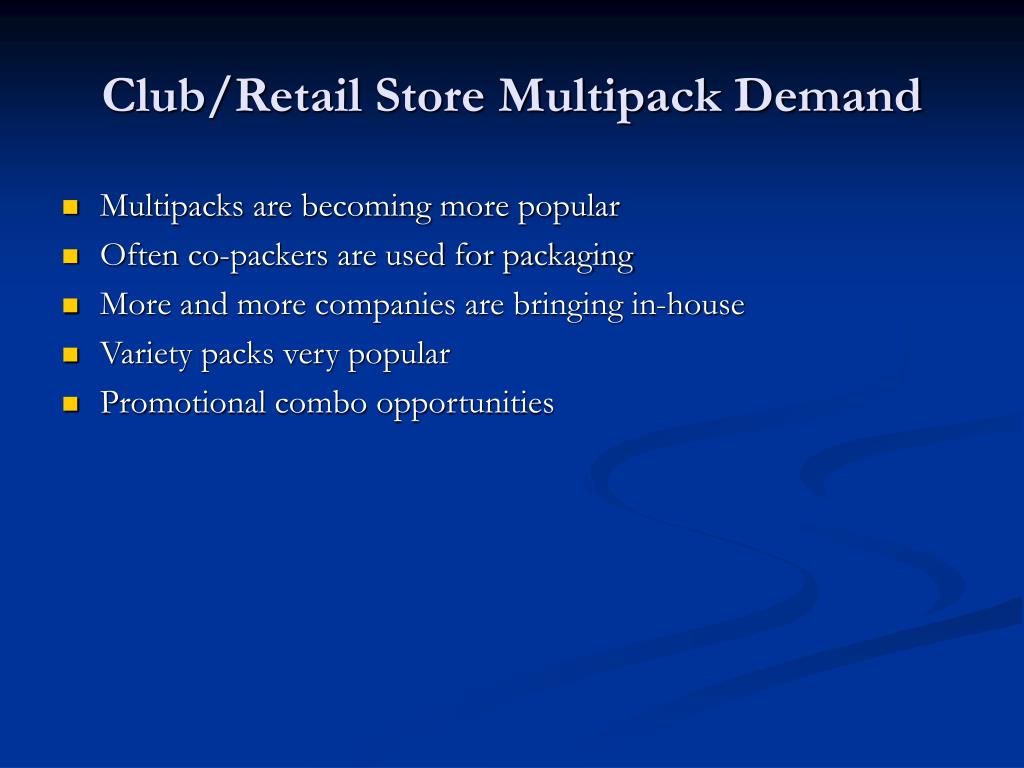

  9. Club/Retail Store Multipack Demand • Multipacks are becoming more popular • Often co-packers are used for packaging • More and more companies are bringing in-house • Variety packs very popular • Promotional combo opportunities

  10. Printed Film • Hides individual bar codes • Give the multipack a unique UPC • Increased shelf appeal

  11. Chip Carrier/Tray Elimination • For machinability • Obscures bar codes • Source reduction opportunity • Less cost to eliminate

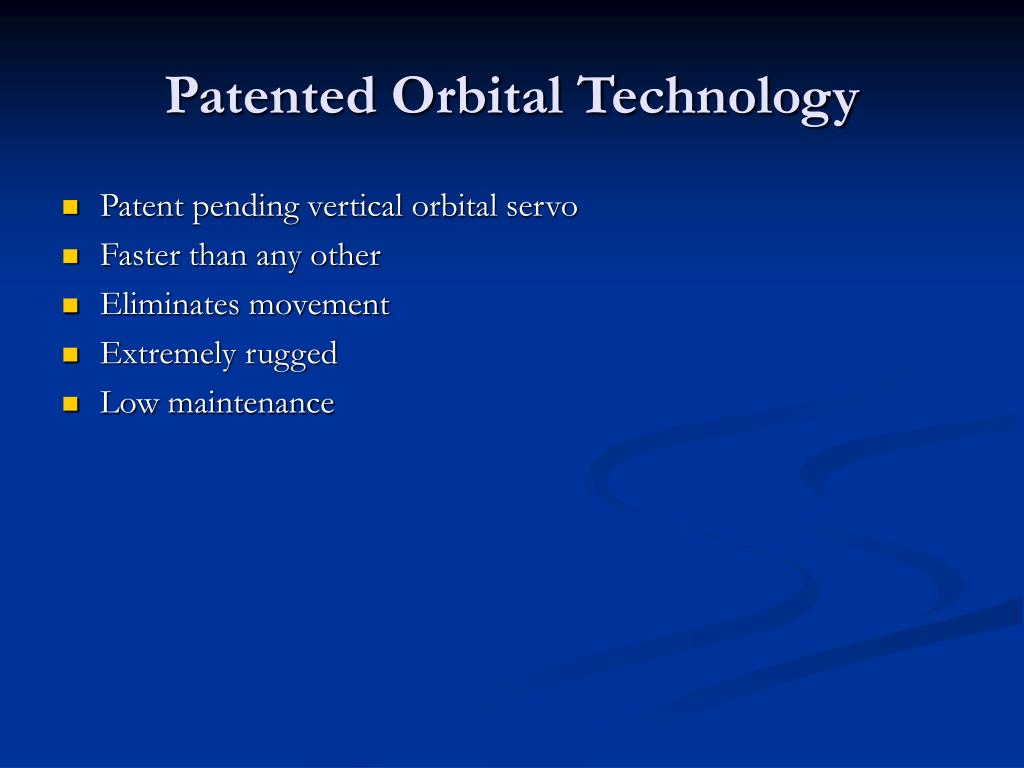

  12. Patented Orbital Technology • Patent pending vertical orbital servo • Faster than any other • Eliminates movement • Extremely rugged • Low maintenance

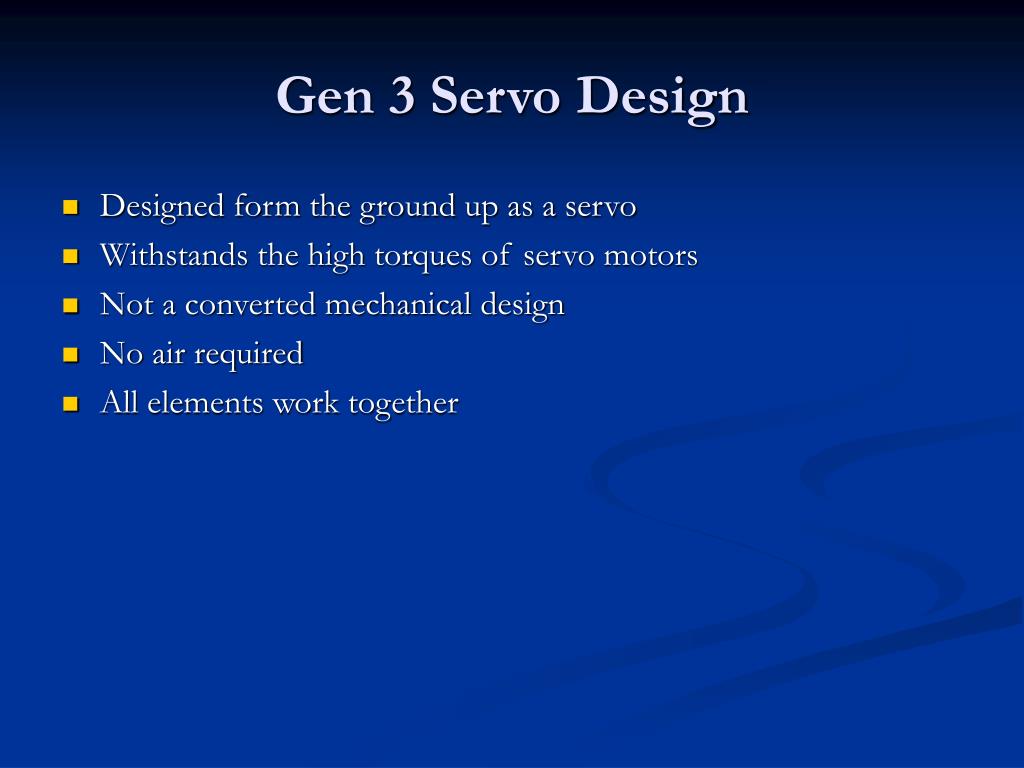

  13. Gen 3 Servo Design • Designed form the ground up as a servo • Withstands the high torques of servo motors • Not a converted mechanical design • No air required • All elements work together

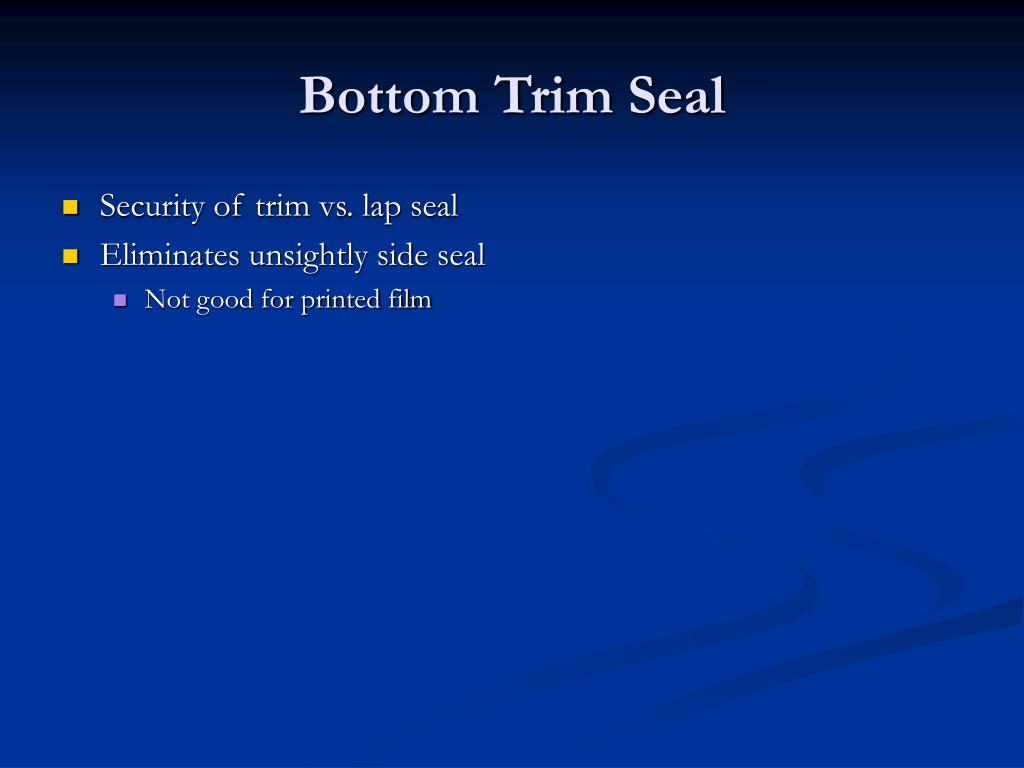

  14. Bottom Trim Seal • Security of trim vs. lap seal • Eliminates unsightly side seal • Not good for printed film

  15. TGM Trim Seal • Texwrap exclusive • Patented design • Automatically compensates for speed changes • Very secure seal • Works with all films

  16. APPS • Advanced Product Positioning System

  17. Package Shelf Appeal • Allow the graphics to show thru • No unsightly side seal • Trim seal is on the bottom • Printed film adds appeal

  18. Obscure Individual Bar Codes • In multipacks, the bar codes on the individual items have to be hidden • New bar code for the multipack unit for store scanning

  19. Speed • Fastest on the market x 2 • High speed camera system • Up to 75 3-packs/minute

  20. Flexibility • Different package sizes

  21. Ease-of-Operation • Intuitive • Help screens for setup • Easy-to understand controls • Lockable service levels • Product recipe library

  22. Less Film Used • TGM • Bridging

  23. Texwrap Reliability • KC rating 30 years • Design parameters- examples

  24. 3 Year Warranty • Texwrap’s exclusive industry-leading “Built-Better/Backed Better” warranty • All Texwrap manufactured parts- unlimited cycles • Purchased parts 1 year (excludes normal wear items) • Transferrable • Standard

  25. Lowest Cost-in- Use • Low maintenance • Fewer parts- servos • Less downtime • Uses less film/package • Less rework • Easy to operate

  26. Types of Products Run • Bottles • Cans • Jars • Canisters • Aerosols

  27. Local After-Sale Service • Nationwide network of highly trained distributor service techs • Supported by 6 full-time techs at Texwrap

  28. Custom Infeeds Available • Side-belt lug feeder • Screw lug feeder
