  1. Quality analysis of industrial systems.LaQuSo experienceSerguei Roubtsov

  2. LaQuSo: Laboratory for Quality Software • 9 employees + master students and students-assistants (HG 5.91) • industrial projects • research projects • own research in software quality assessment and tooling / LaQuSo / Mathematics & Computer Science

  3. Analysis approach Focus on maintainability: • Static code analysis, architecture assessment, code reviews, tooling • Based on quantifiable measures: software metrics • Provides an answer to an analysis question; for this purpose metrics: • should reflect quality criteria, thresholds • Visualisation / LaQuSo / Mathematics & Computer Science

  4. What code is hard to maintain? • Hard to understand • not documented • cluttered or inconsistently used/developed • too large • Difficult to modify • duplicated • intertwined • non-extendable • non-portable • Difficult to test / analyse • too complex / LaQuSo / Mathematics & Computer Science

  5. What to analyze? • Architecture: • dependencies (layering) • dependency cycles • code external duplication • dead code • system documentation • Code base: • code size and complexity • duplication metrics • potential bugs • documentation • adherence to standards / LaQuSo / Mathematics & Computer Science

  6. Our Tooling SQuAVisiT Software Quality Analysis and Visualisation Toolset Name, Class Count, Abstract Class Count, Ca, Ce, A, I, D, V: bsh,0,0,1,0,0,0,1,1 com.caucho.burlap.client,0,0,1,0,0,0,1,1 com.caucho.burlap.io,0,0,1,0,0,0,1,1 com.caucho.burlap.server,0,0,1,0,0,0,1,1 com.caucho.hessian.client,0,0,1,0,0,0,1,1 com.caucho.hessian.io,0,0,1,0,0,0,1,1 com.caucho.hessian.server,0,0,1,0,0,0,1,1 com.ibatis.common.util,0,0,1,0,0,0,1,1 oracle.toplink.essentials.sessions,0,0,1,0,0,0,1,1 oracle.toplink.exceptions,0,0,2,0,0,0,1,1 oracle.toplink.expressions,0,0,1,0,0,0,1,1 oracle.toplink.internal.databaseaccess,0,0,1,0,0,0,1,1 oracle.toplink.jndi,0,0,1,0,0,0,1,1 oracle.toplink.logging,0,0,1,0,0,0,1,1 oracle.toplink.publicinterface,0,0,2,0,0,0,1,1 oracle.toplink.queryframework,0,0,1,0,0,0,1,1 oracle.toplink.sessionbroker,0,0,1,0,0,0,1,1 oracle.toplink.sessions,0,0,2,0,0,0,1,1 oracle.toplink.threetier,0,0,1,0,0,0,1,1 oracle.toplink.tools.sessionconfiguration,0,0,1,0,0,0,1,1 oracle.toplink.tools.sessionmanagement,0,0,1,0,0,0,1,1 org.aopalliance.aop,0,0,9,0,0,0,1,1 org.aopalliance.intercept,0,0,24,0,0,0,1,1 org.apache.axis.encoding.ser,0,0,1,0,0,0,1,1 org.apache.catalina.loader,0,0,1,0,0,0,1,1 org.aspectj.weaver,0,0,2,0,0,0,1,1 org.aspectj.weaver.ast,0,0,1,0,0,0,1,1 org.aspectj.weaver.bcel,0,0,1,0,0,0,1,1 org.aspectj.weaver.internal.tools,0,0,1,0,0,0,1,1 org.aspectj.weaver.loadtime,0,0,1,0,0,0,1,1 org.quartz.spi,0,0,1,0,0,0,1,1 org.quartz.utils,0,0,1,0,0,0,1,1 org.quartz.xml,0,0,1,0,0,0,1,1 org.springframework.aop,24,20,17,6,0,83,0,26,0,09,1 org.springframework.aop.aspectj,39,7,3,24,0,18,0,89,0,07,1 org.springframework.aop.aspectj.annotation,27,3,0,19,0,11,1,0,11,1 org.springframework.aop.aspectj.autoproxy,3,0,1,8,0,0,89,0,11,1 org.springframework.aop.config,17,3,1,15,0,18,0,94,0,11,1 org.springframework.aop.framework,37,9,22,18,0,24,0,45,0,31,1 org.springframework.jdbc.core,53,20,6,20,0,38,0,77,0,15,1 org.springframework.jdbc.core.metadata,22,2,1,10,0,09,0,91,0,1 org.springframework.jdbc.core.namedparam,10,4,3,12,0,4,0,8,0,2,1 org.springframework.jdbc.core.simple,17,6,0,12,0,35,1,0,35,1 org.springframework.jdbc.core.support,8,5,2,14,0,62,0,88,0,5,1 org.springframework.jdbc.datasource,27,7,13,14,0,26,0,52,0,22,1 org.springframework.jdbc.datasource.lookup,8,2,2,13,0,25,0,87,0,12,1 org.springframework.jdbc.object,14,8,0,12,0,57,1,0,57,1 org.springframework.jdbc.support,15,5,12,16,0,33,0,57,0,1,1 org.springframework.jdbc.support.incrementer,15,4,0,8,0,27,1,0,27,1 org.springframework.jdbc.support.lob,18,5,5,12,0,28,0,71,0,02,1 org.springframework.jdbc.support.nativejdbc,10,2,2,7,0,2,0,78,0,02,1 org.springframework.jdbc.support.rowset,4,2,2,6,0,5,0,75,0,25,1 org.springframework.jdbc.support.xml,7,6,0,7,0,86,1,0,86,1 org.springframework.web.servlet.view.xslt,4,2,0,17,0,5,1,0,5,1 org.springframework.web.struts,16,5,0,22,0,31,1,0,31,1 org.springframework.web.util,24,6,26,15,0,25,0,37,0,38,1 org.w3c.dom,0,0,12,0,0,0,1,1 org.xml.sax,0,0,3,0,0,0,1,1 (2) AV Repository (1) (3) (4) / LaQuSo / Mathematics & Computer Science

  7. SQuAVisiT • Flexible • Plug-in architecture • Languages • C, Cobol, Java, JavaScript, PL/SQL, Delphi, C# • Analysis tools (third party and our own) • dependency extractors, duplication detectors, error detectors, metrics calculators, parsers, code style checkers • Visualization tools • MetricsView, GraphViz, ExTraVis , MatrixZoom, SolidSX, visualization modules of third-party tools / LaQuSo / Mathematics & Computer Science

  8. Real life industrial systems They are often: • Heterogeneous (C/Assembler, Cobol/PL SQL, Java/Object mapping to SQL…) • Incomplete (some code is in libraries and third-party components) • Not compilable and executable within analysis environment ( ‘weird’ OS, proprietary development environment, …) / LaQuSo / Mathematics & Computer Science

  9. Expert system Industrial case: Insurance company’s expert system • What kind of system do we have? • Heterogeneous: JavaScript, PL/SQL, C++, Java, Cobol • Medium size: 300 KLOC • 15 years old • Scarce documentation • Oracle DB • Problem reported • Maintenance (dis)continuation decision / LaQuSo / Mathematics & Computer Science

  10. Dependencies Model: Matrix View Data layer • (Almost) layered: good design • BUT data layer is accessed from several layers • Layers affected by calls from top layer are visible (red squares) / LaQuSo / Mathematics & Computer Science

  11. Dependencies Model: Extravis • Green ‘bubbles’: controversial coding approach • Parameters as names f(1,3) -> f_1_3 • Absence of dedicated data access layer is confirmed / LaQuSo / Mathematics & Computer Science

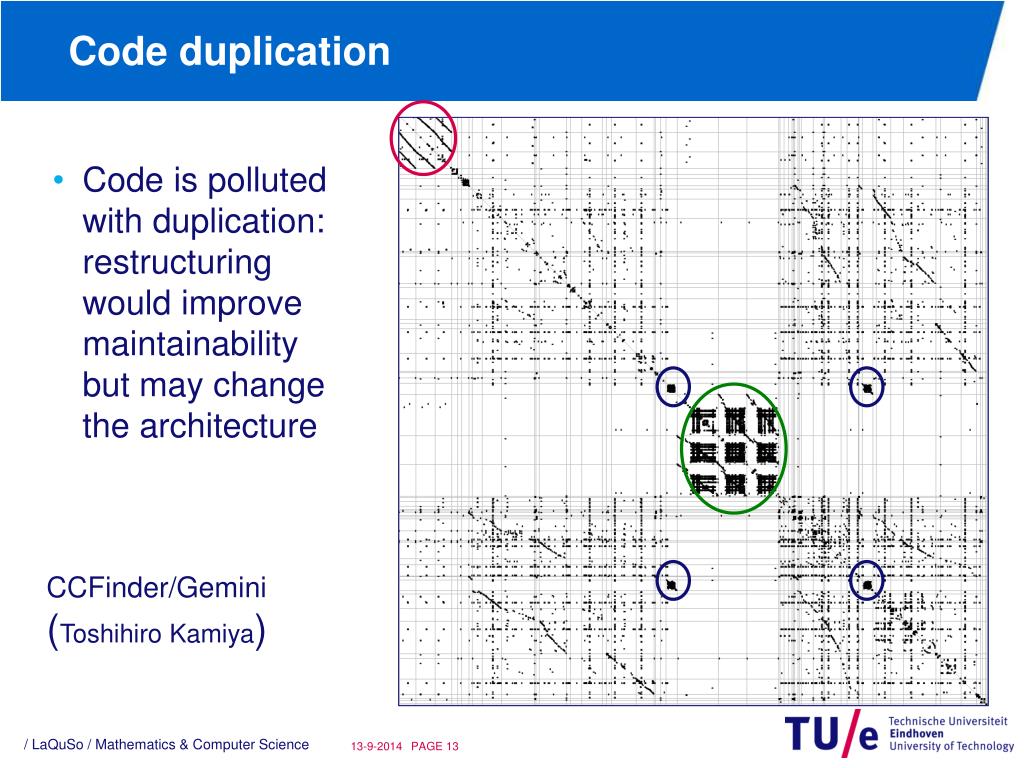

  12. Code duplication • Code is polluted with duplication: restructuring would improve maintainability but may change the architecture CCFinder/Gemini (Toshihiro Kamiya) / LaQuSo / Mathematics & Computer Science

  13. Summary • Layered architecture • System is well-structured but • JavaScript + two-tier architecture could cause serious maintenance problems in the future • Code polluted by duplication • Low impact if no major changes are expected • Analysis advice: • Short term • Refactor and maintain for limited amount of time (3-5 years) • Develop overview documentation • Long term • Migrate to three-tier architecture / LaQuSo / Mathematics & Computer Science

  14. Industrial case: Embedded System • What kind of code do we have? • Component system with compile-time binding via make files • C with embedded Assembler • Complete • Medium size: 150 KLOC • Developer’s assumption • Layered architecture • Problems reported • Extensive change. Is architectural purity still preserved? / LaQuSo / Mathematics & Computer Science

  15. Dependencies Structure • system is poorly layered • unexpected cyclic dependencies exist between components / LaQuSo / Mathematics & Computer Science

  16. Summary • Layered architecture • System is poorly-structured (indications of decay) but • Code is of good quality, well documented • The system is NOT large or complex • Analysis advice: • Reengineer affected parts according to the presumed layered architecture / LaQuSo / Mathematics & Computer Science

  17. Industrial case: Pension fund • What kind of system do we have? • Homogeneous: Cobol • Large: 1.7 MLOC • 17 years old • Oracle DB • Problem reported • Need to migrate due to discontinuation of support / LaQuSo / Mathematics & Computer Science

  18. Dead code? • “Empty spaces” in the visualization • 1216 modules not called by other modules • Dead code? • Other (sub)systems? • 651 are dead • Confirmed by the developers / LaQuSo / Mathematics & Computer Science

  19. Results of Analysis: effort Halstead metrics Time to understand (T) is proportional to Halstead Effort: T = E / 18 /3600 Time to understand, hours / LaQuSo / Mathematics & Computer Science

  20. Summary • Architecture • System structure is preserved but intertwined in some places • Dead code is widely spread • Code is polluted by duplication but • Percentage of weak (large, complex) parts is low • Analysis advice: • Short term: • Refactor weak parts, eliminate dead code and maintain for limited amount of time • Long term: • Redevelop on a modern platform / LaQuSo / Mathematics & Computer Science

  21. Expert system Industrial case: Insurance company’s front-end • What kind of system do we have? • Technical data • Homogeneous: Java • Large: 750 KLOC • Oracle DB • J2EE application (Spring Framework, Hibernate) • Recently developed by a third party • No documentation • Problem reported • Purchase decision / LaQuSo / Mathematics & Computer Science

  22. Code not available? What can we do? Customer SQuAVisiT • Install locally. • Perform measurements. • Tune results • Analyse, interpret. report / LaQuSo / Mathematics & Computer Science

  23. Understandability: Documentation • Comments percentage (LOCs counter tool) • Average: 43% • Ranging from 0% to 1500%. Why? • large repeated header blocks of comments • commented out code • Javadoc (CheckStyle tool) • 85260 violations • Missing or malformed declarations • Documentation generation is impossible, or • Documentation quality is compromised • Documentation quality should be reassessed! / LaQuSo / Mathematics & Computer Science

  24. Dn – Distance from the main sequence Abstractness = #AbstrClasses/#Classes 1 zone of uselessness main sequence Instability = #Out/(#Out+#In) zone of pain 0 1 Dn = | Abstractness + Instability – 1 | [R.Martin 1994] /LaQuSo SET / W&I

  25. Average Dn 1.00 Benchmarksopen source our System 0.186 0.00 /LaQuSo SET / W&I

  26. What about distributions? % of packages beyond threshold an average open source system our System Dn threshold value /LaQuSo SET / W&I

  27. What have we seen? • Architecture is good • Documentation should be reassessed / LaQuSo / Mathematics & Computer Science

  28. Conclusions • Approach comprising analysis and visualization • Supported by SQuAVisiT, a flexible tool allowing • To address different maintainability aspects • To combine different analysis and visualization techniques • Confirmed by analysis of several middle-size to large systems (150 KLOC – 1.7 MLOC) / LaQuSo / Mathematics & Computer Science

  29. Future Work (Your?) • Flexible SQuAVisiT data structure: How to store data (dependencies, metrics) about historically and hierarchically different software artifacts? • (Fully-featured) parsers/fact extractors for C++, C#, Delphi,… • Improved dependency analysis: Analysis of dynamic bindings, injected dependencies, dependencies via global and static variables,… • More metrics to retrieve: e.g. Dn-based analysis for different languages, analysis/benchmarking of distributions of different metrics / LaQuSo / Mathematics & Computer Science
