  1. The Coulomb dissociation of 14Be 宋玉收 哈尔滨工程大学 2013.1 上海

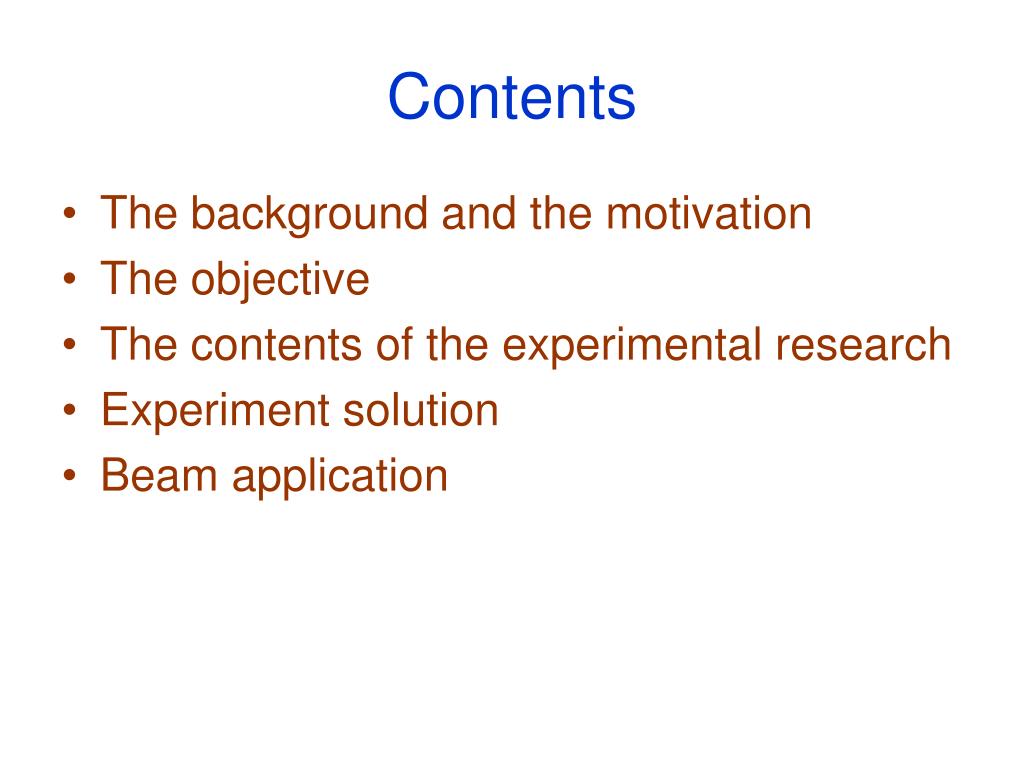

  2. Contents • The background and the motivation • The objective • The contents of the experimental research • Experiment solution • Beam application

  3. The background and the motivation • Low-lying dipole excitation mechanism; • Scarcity of experimental results and large uncertainty of existed experimental data (14Be); • Theoretical calculation need more experimental support • Different from 11Li and 6He, three-body model or five-body model; • valence neutron and excited-core configuration ; • Coulomb excitation has larger cross section and is feasible for drip-line nuclei research at RIBLL;

  4. M. Labiche et. al, prl86.600.2001 68Ni、130,132Sn Coulomb dissociation

  5. prl86.600.2001 • Invariant mass spectrum; • Large (2s1/2)2 admixture; • prl86.600.2001, npa658.31.1999 • Enhanced low-lying strength of E1; • Large uncertainty of the exp. data; • No quantitative spectroscopic factor discussion in detail; • The peak position and integration of the energy spectrum deviate from the theoretical result; • No 2-n correlation discussion;

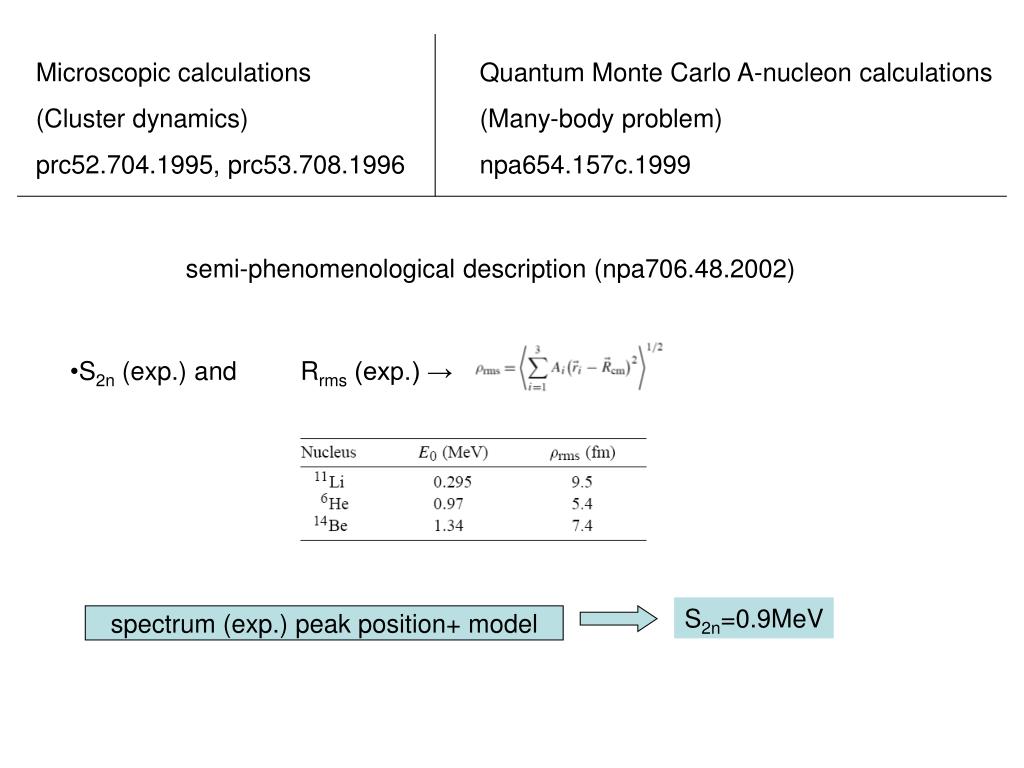

  6. Rrms (exp.) → • S2n (exp.) and Microscopic calculations (Cluster dynamics) prc52.704.1995, prc53.708.1996 Quantum Monte Carlo A-nucleon calculations (Many-body problem) npa654.157c.1999 semi-phenomenological description (npa706.48.2002) S2n=0.9MeV spectrum (exp.) peak position+ model

  7. S2n=0.9MeV S2n=1.34MeV S2n=1.34MeV, Rrms=3.10±0.15fm spectrum (exp.) peak position+ model • The narrow B(E1) shape is quite different from other Borromean halo nuclei; • vary the binding energy, the radius, and the admixture of different components of WF; • initial and final state WF considered;

  8. Integration of the excitation strength Similar as 8He and more complicated than 11Li, 6He.

  9. 1s1/2 0d5/2 0p1/2 0p3/2 s01/2 n complicated core structure should be considered 14Be S2n 13Be s-wave bound state 13Be 0d5/2 closed p shell? magic number loss or excited core? closed p shell

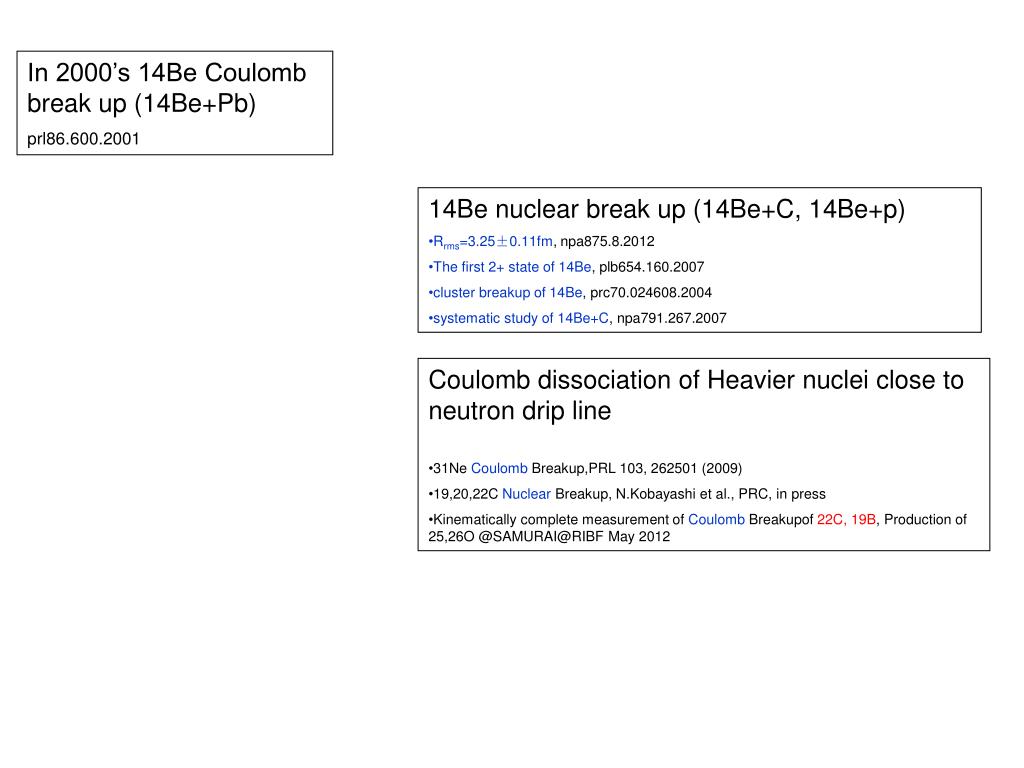

  10. In 2000’s 14Be Coulomb break up (14Be+Pb) prl86.600.2001 • 14Be nuclear break up (14Be+C, 14Be+p) • Rrms=3.25±0.11fm, npa875.8.2012 • The first 2+ state of 14Be, plb654.160.2007 • cluster breakup of 14Be, prc70.024608.2004 • systematic study of 14Be+C, npa791.267.2007 • Coulomb dissociation of Heavier nuclei close to neutron drip line • 31Ne Coulomb Breakup,PRL 103, 262501 (2009) • 19,20,22C Nuclear Breakup, N.Kobayashi et al., PRC, in press • Kinematically complete measurement of Coulomb Breakupof 22C, 19B, Production of 25,26O @SAMURAI@RIBF May 2012

  11. The objective • The correlation (spatial) of two valence neutrons by sum rule; • Spectroscopic factor of 2s1/2 and 1d5/2; • To verify the two-neutron bonding energy S2n; • To discuss the reasonability of 3-body and 5-body14Be model by the energy spectrum and neutron-removal cross section; • 12Be core is inert or not; • To understand systematically about the soft E1 excitation of 2-n halo nuclei like 6He, 11Li, 14Be; npa706.48.2002

  12. The contents of the experimental research • The kinematically complete measurement of the break up of 14Be on Pb target; • The angular distribution of 12Be+n+n in mass center coordinate; • Angular distribution of valence neutrons; • To reconstruct the invariant mass spectrum of 14Be; • To eliminate the nuclear interaction contribution from the transition strength by neglecting non-peripheral collision; • To obtain the reduce transition strength B(E1) by the virtual photon model;

  13. n 14Be 12Be n 12Be n n n 12Be n  Pb (high Z target ) Invariant Mass M 14Be* 12Be+n+n 14Be  Excitation Energy E*

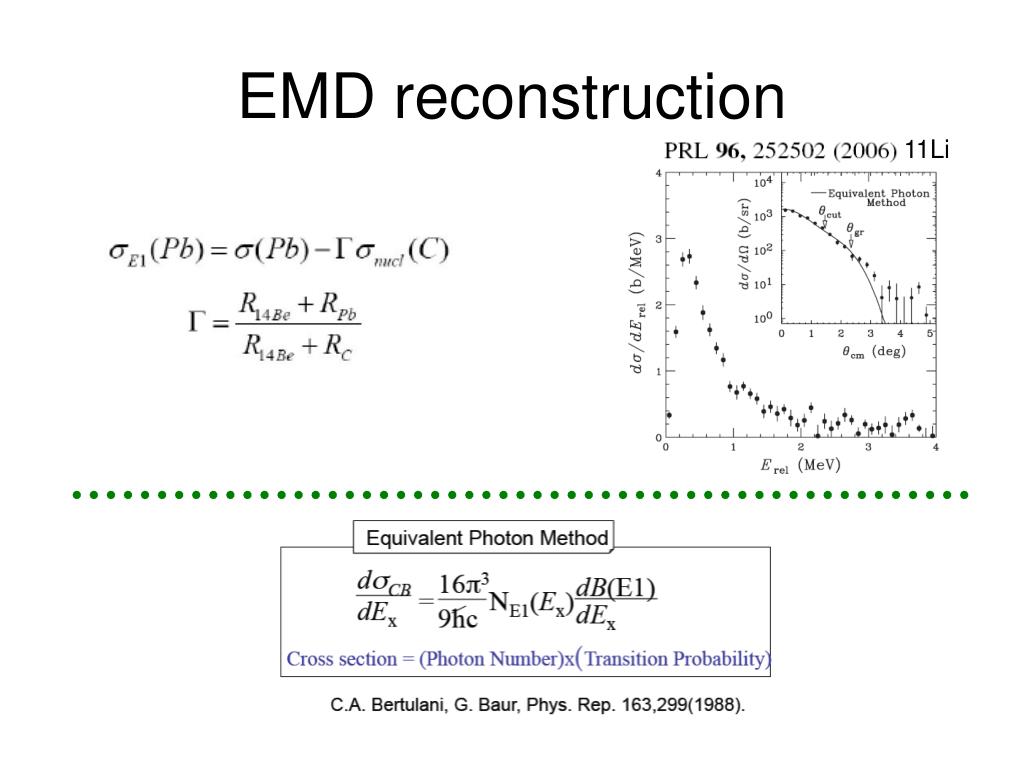

  14. 11Li EMD reconstruction

  15. Spectroscopic factor Energy weighted sum rule (EWSR , non-model dependent) prc70.054606.2004

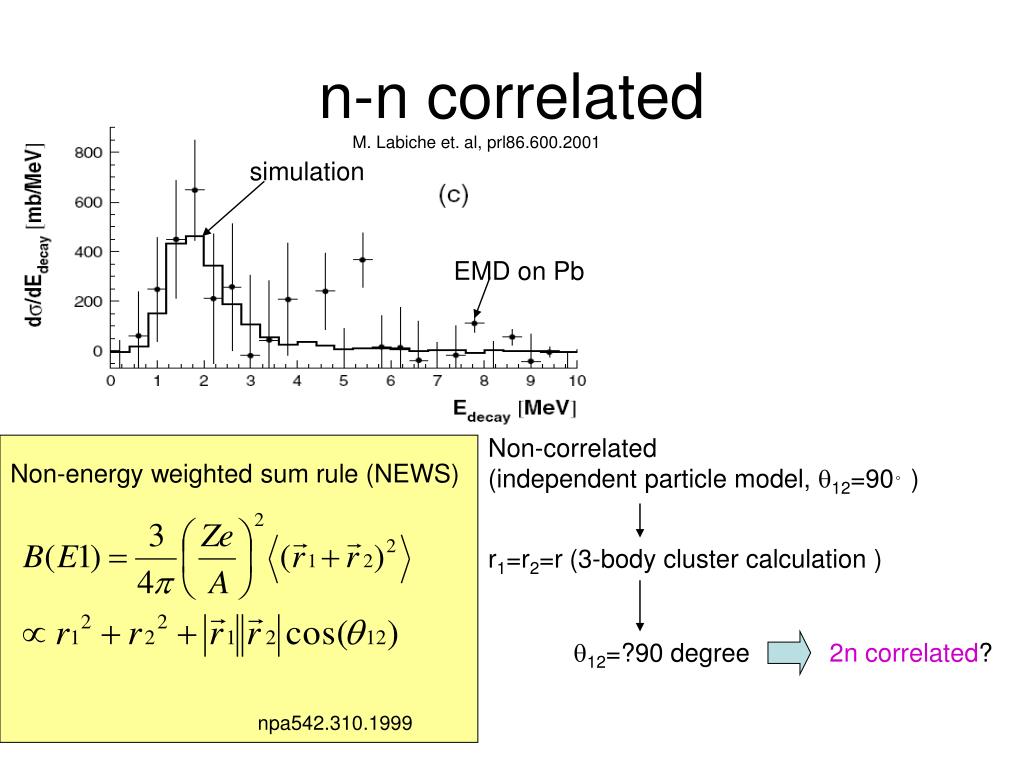

  16. M. Labiche et. al, prl86.600.2001 simulation EMD on Pb n-n correlated Non-correlated (independent particle model, 12=90。) Non-energy weighted sum rule (NEWS) r1=r2=r (3-body cluster calculation ) 12=?90 degree 2n correlated? npa542.310.1999

  17. Inert core? jkps61.27.2012 npa875.8.2012, Rmexp=3.25±0.11fm discrepancy

  18. the relation between binding energy, spectroscopic factor, and deformation coefficient . S2n core-excited probability

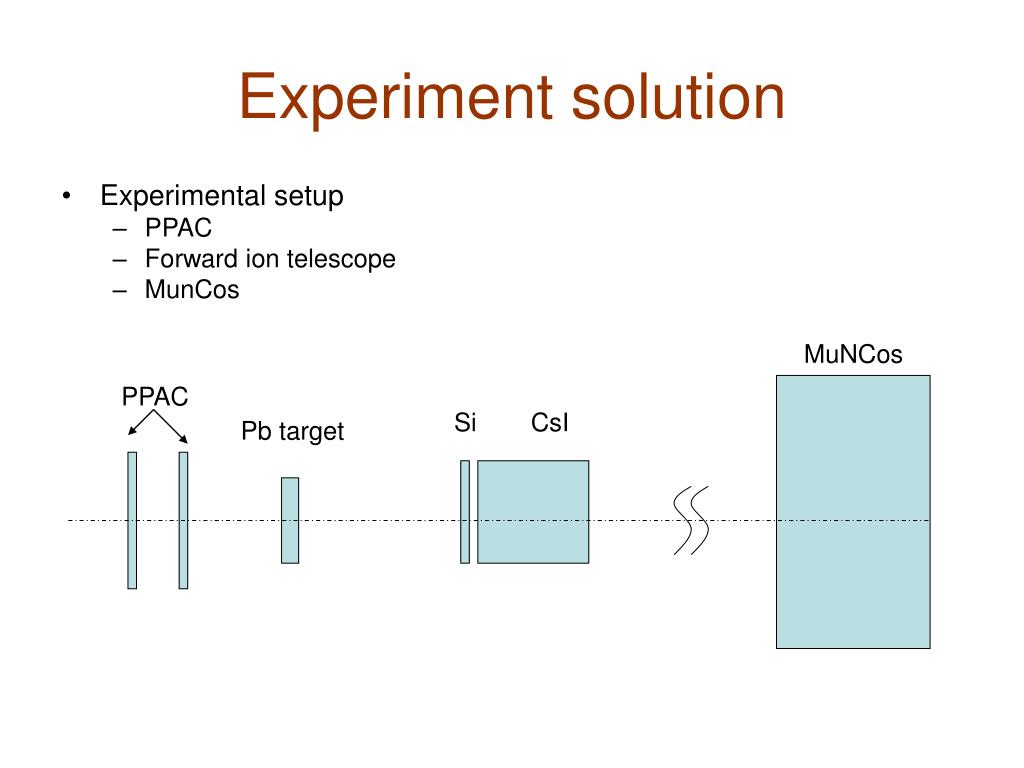

  19. MuNCos PPAC Si CsI Pb target Experiment solution • Experimental setup • PPAC • Forward ion telescope • MunCos

  20. level scheme of 12Be • Some problems to be pay more attention • No gamma detector presented; • 14Be、12Be particle identification, and coincidence between production ions and neutrons; • The influence of neutrons produced in the telescope on the detection of the break-up neutrons; • Position resolution and efficiency of detectors ahead target; • Target thickness

  21. 14.4/hour*200hour=2880 Beam application 200enA 的18O 作为入射初级束，3500um 的9Be 作为初级靶，降能器为2000um 的Al，分离提纯后的14Be，能量为35AMeV，能量展宽约8MeV（~1.6%），流强约为20 pps.

  22. Thanks
