  1. Random Quads Review You should know ALL of the properties of each type of quadrilateral. Look in your notes!! STUDY!!!!

  2. Quads Family Tree

  3. Name the Quadrilateral and Find the Missing Measures

  4. Name the Quadrilateral and Find the Missing Measures • Isosceles Trapezoid • 1 set of parallel sides, legs are congruent • Base angles are congruent • Angles between bases are supplementary

  5. Name the Quadrilateral and Find the Missing Measures

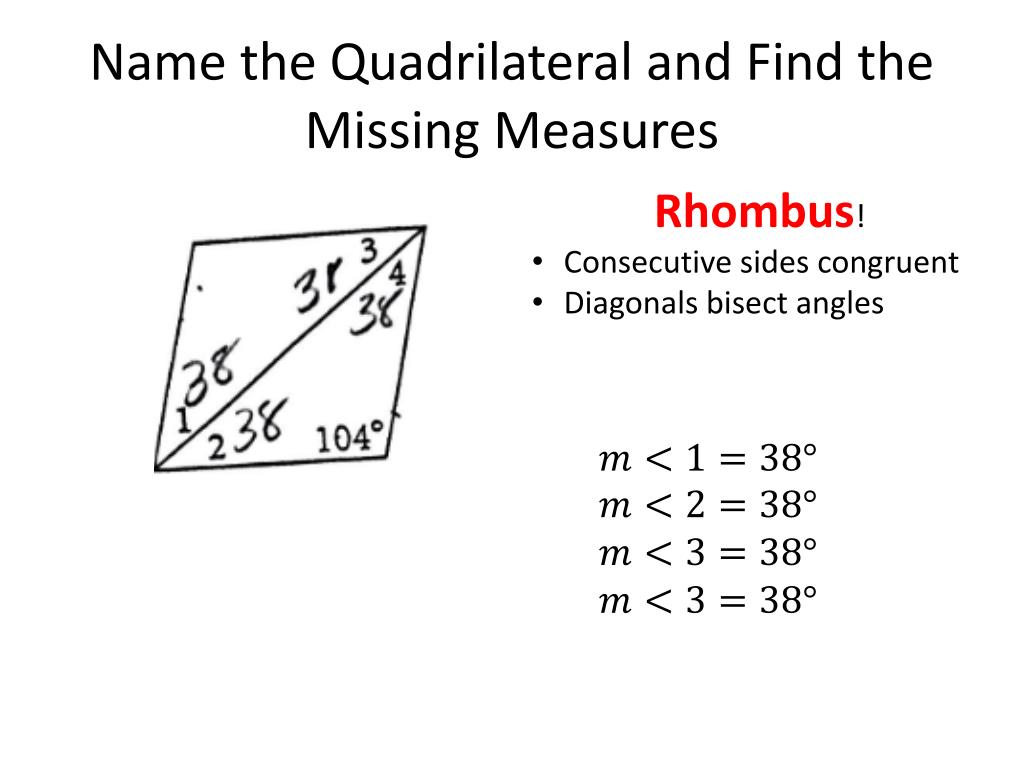

  6. Name the Quadrilateral and Find the Missing Measures • Rhombus! • Consecutive sides congruent • Diagonals bisect angles

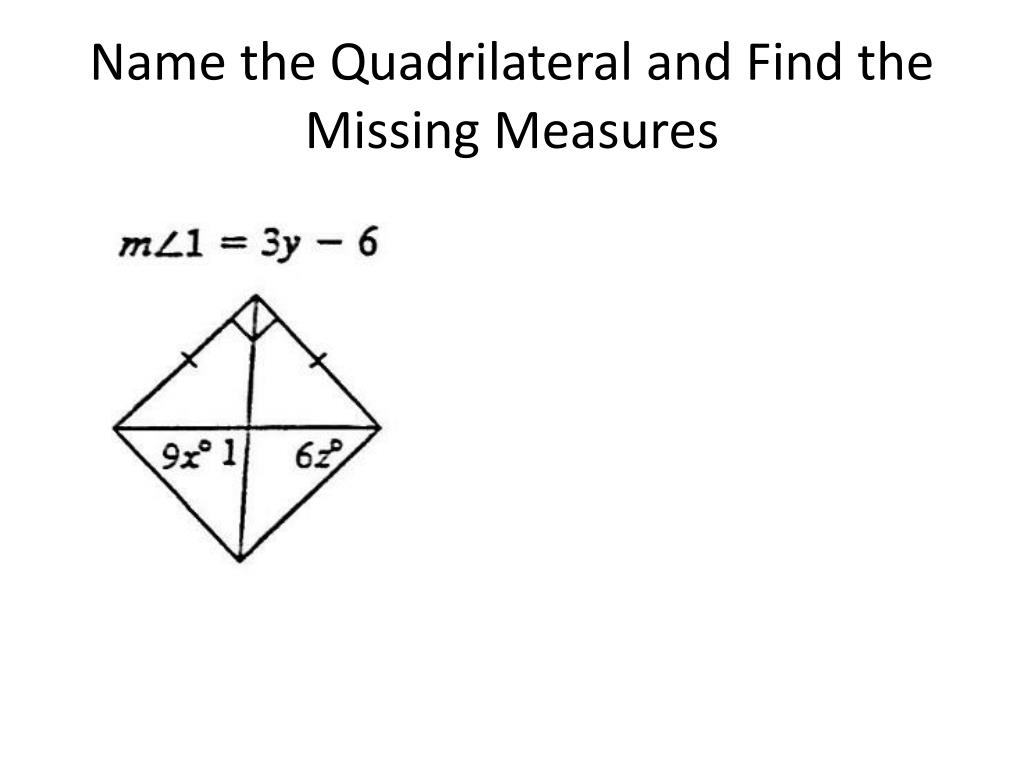

  7. Name the Quadrilateral and Find the Missing Measures

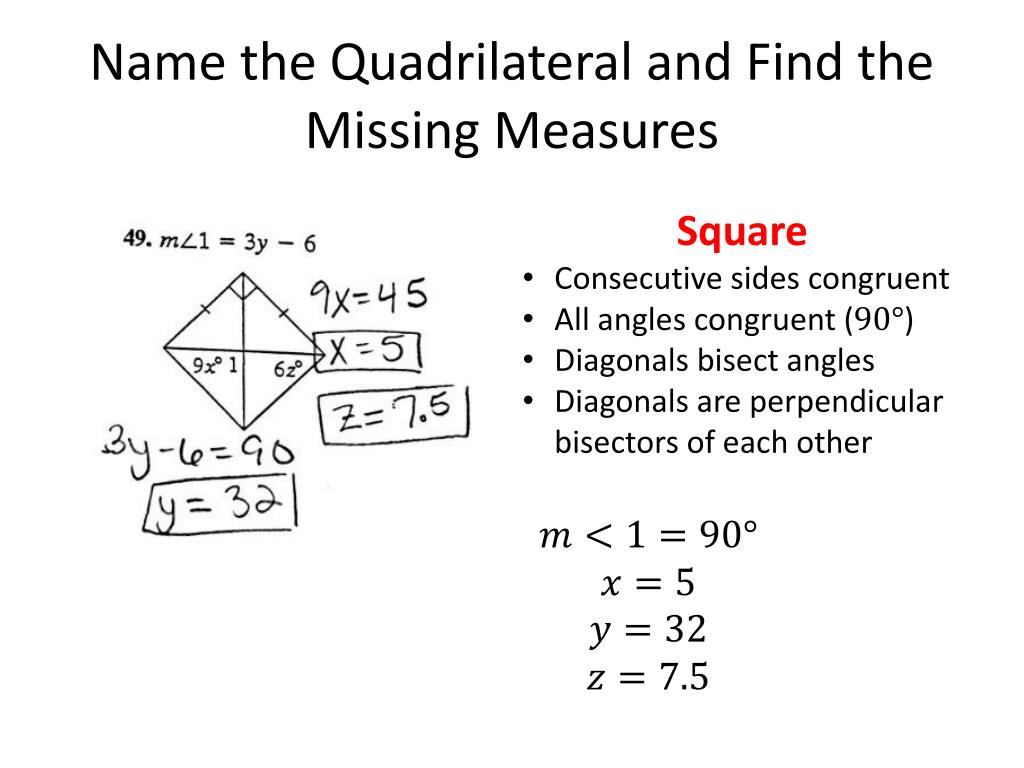

  8. Name the Quadrilateral and Find the Missing Measures • Square • Consecutive sides congruent • All angles congruent () • Diagonals bisect angles • Diagonals are perpendicular bisectors of each other

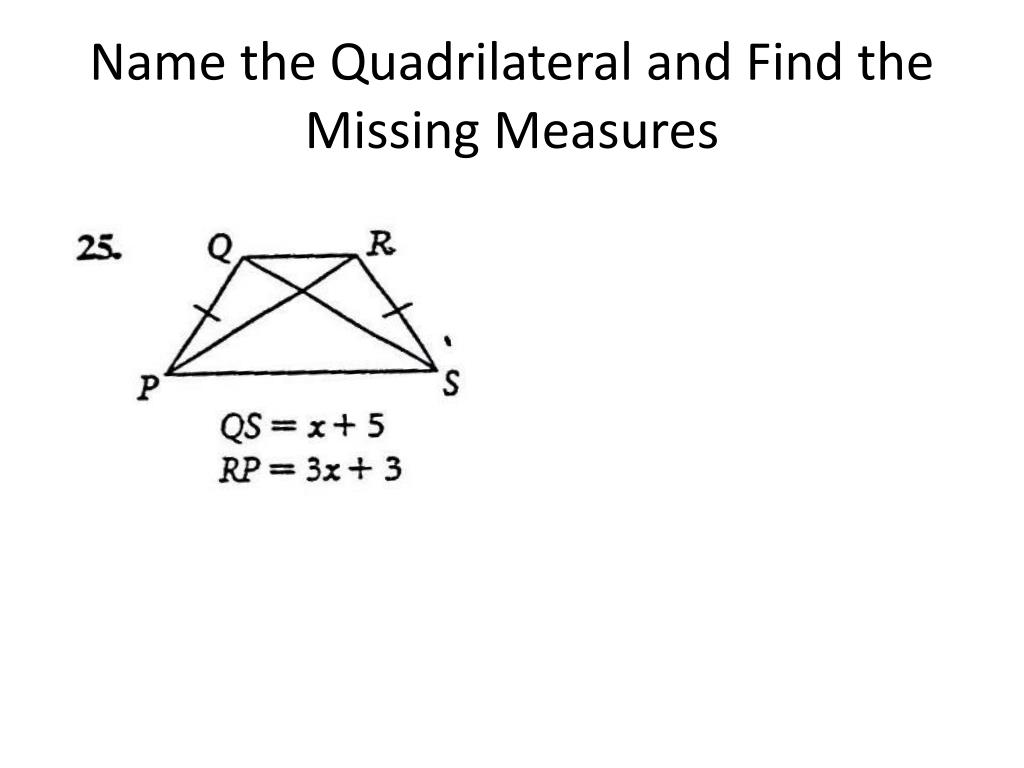

  9. Name the Quadrilateral and Find the Missing Measures

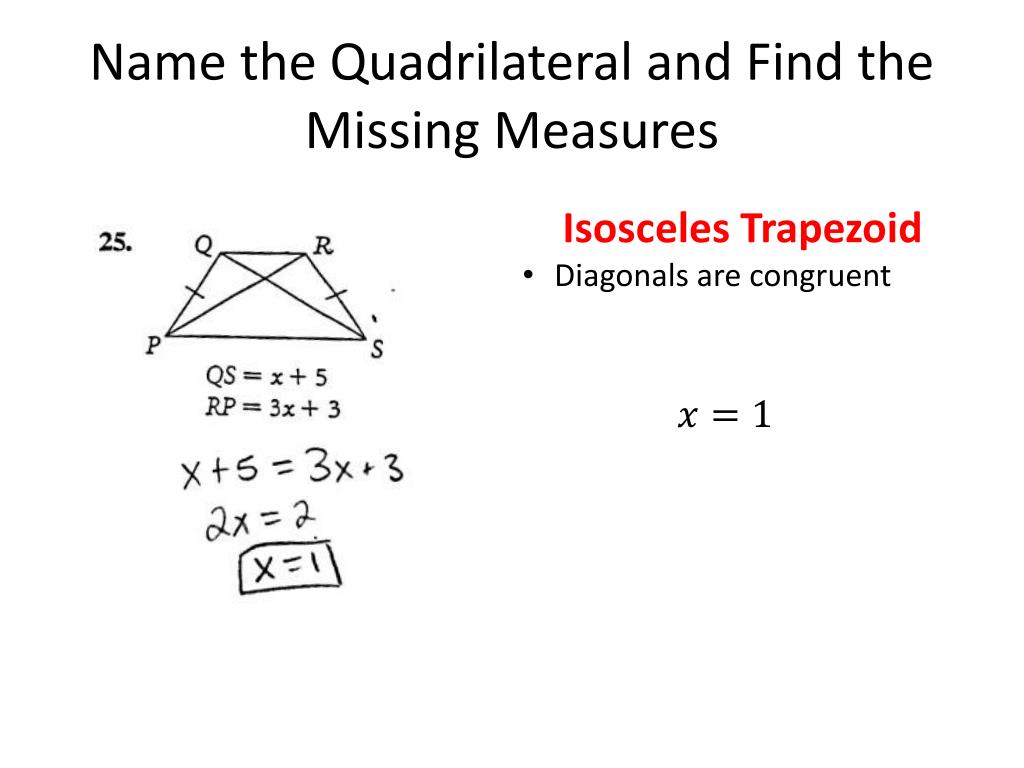

  10. Name the Quadrilateral and Find the Missing Measures • Isosceles Trapezoid • Diagonals are congruent

  11. Name the Quadrilateral and Find the Missing Measures

  12. Name the Quadrilateral and Find the Missing Measures • Kite • 2 Sets of consecutive congruent sides • Diagonals are perpendicular to each other • Vertex angles are bisected by their diagonal • Non-vertex angles are congruent

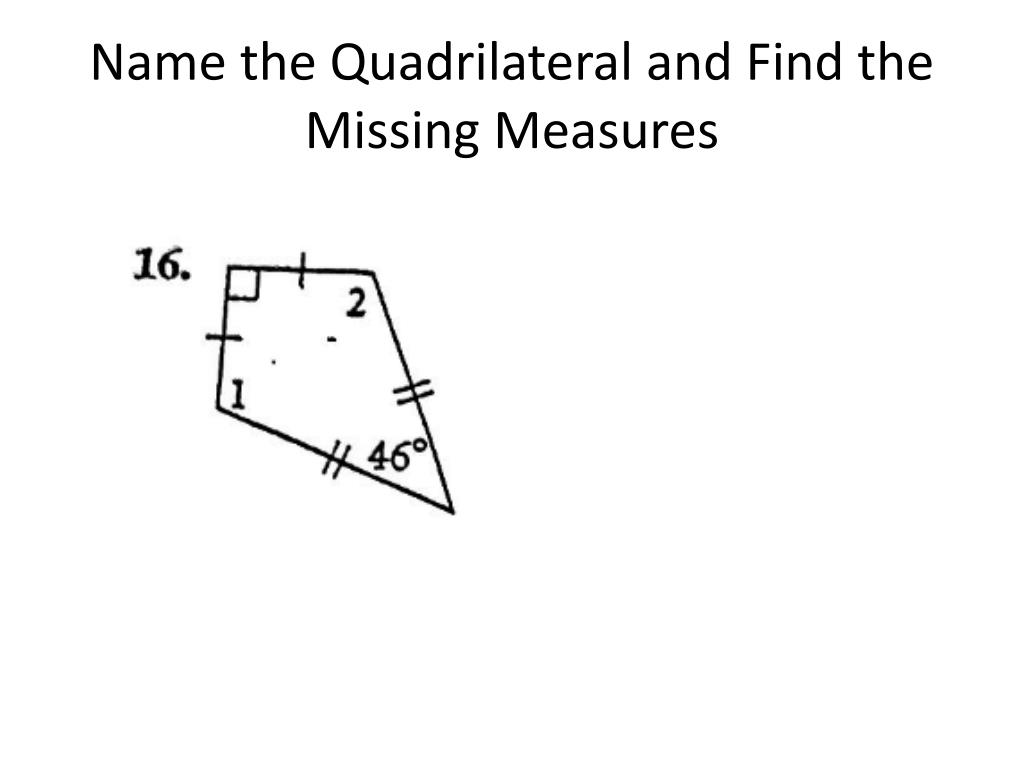

  13. Name the Quadrilateral and Find the Missing Measures

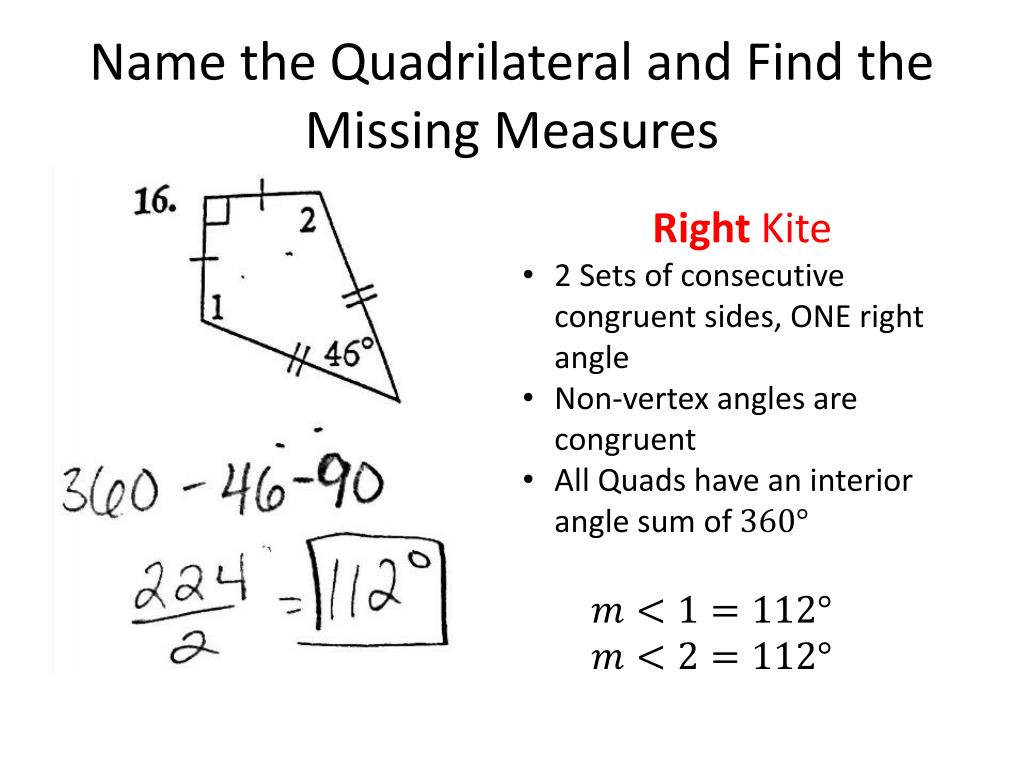

  14. Name the Quadrilateral and Find the Missing Measures • Right Kite • 2 Sets of consecutive congruent sides, ONE right angle • Non-vertex angles are congruent • All Quads have an interior angle sum of

  15. Name the Quadrilateral and Find the Missing Measures

  16. Name the Quadrilateral and Find the Missing Measures • Isosceles Trapezoid • 1 set of parallel sides, legs are congruent • Base angles are congruent • Angles between bases are supplementary

  17. Name the Quadrilateral and Find the Missing Measures

  18. Name the Quadrilateral and Find the Missing Measures • Kite • 2 Sets of consecutive congruent sides • Diagonals are perpendicular to each other • Vertex angles are bisected by their diagonal • Non-vertex angles are congruent

  19. Name the Quadrilateral and Find the Missing Measures

  20. Name the Quadrilateral and Find the Missing Measures • Rectangle • 2 Sets of opposite sides congruent • All angles congruent () • Diagonals are congruent to (and bisect) each other
