5. The Harmonic Oscillator

5. The Harmonic Oscillator. All Problems are the Harmonic Oscillator. Consider a general problem in 1D Particles tend to be near their minimum Taylor expand V ( x ) near its minimum Recall V’ ( x 0 ) = 0 Constant term is irrelevant We can arbitrarily choose the minimum to be x 0 = 0

Download Presentation

5. The Harmonic Oscillator

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

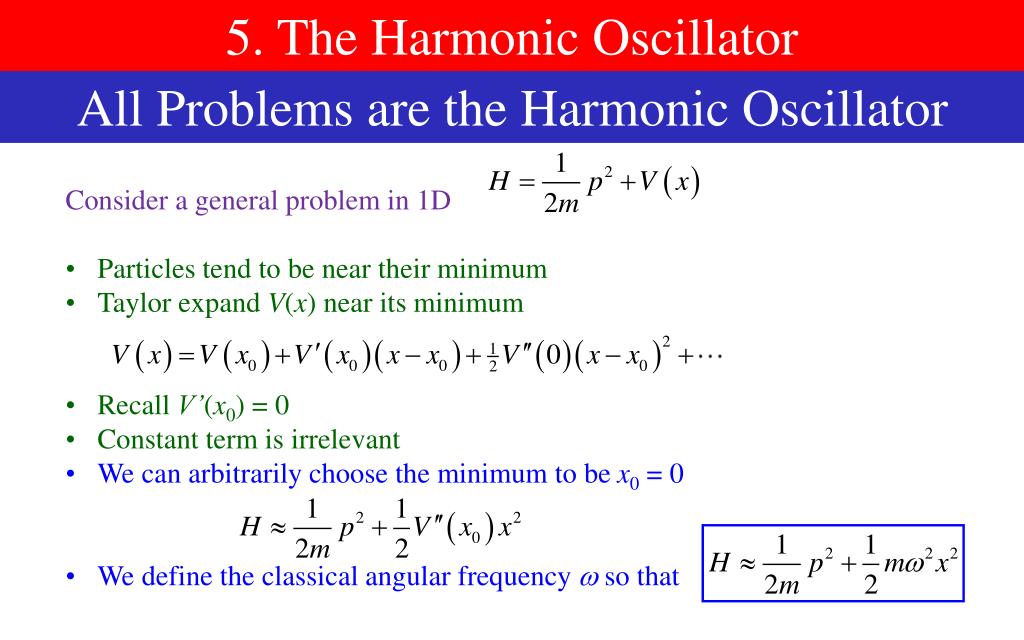

  1. 5. The Harmonic Oscillator All Problems are the Harmonic Oscillator Consider a general problem in 1D • Particles tend to be near their minimum • Taylor expand V(x) near its minimum • Recall V’(x0) = 0 • Constant term is irrelevant • We can arbitrarily choose the minimum to be x0 = 0 • We define the classical angular frequency  so that

  2. 5A. The 1D Harmonic Oscillator Raising and Lowering Operators • First note that V() = , so only bound states • Classically, easy to show that the combination mx + ip has simple behavior • With a bit of anticipation, we define • We can write X and P in terms of these:

  3. Commutators and the Hamiltonian • We will need the commutator • Now let’s work on the Hamiltonian

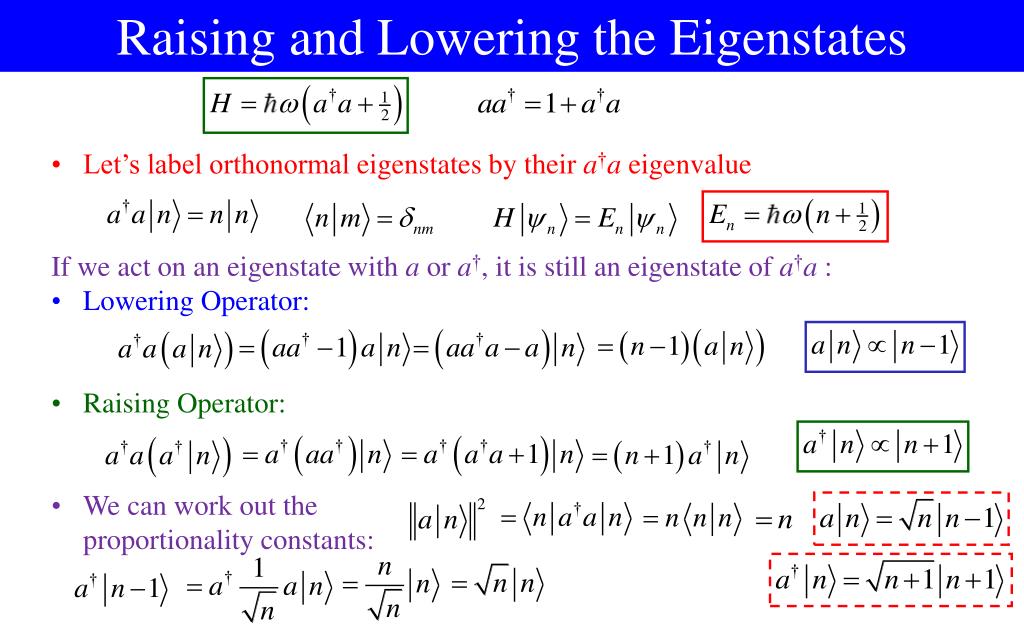

  4. Raising and Lowering the Eigenstates • Let’s label orthonormal eigenstates by their a†a eigenvalue If we act on an eigenstate with a or a†, it is still an eigenstate of a†a: • Lowering Operator: • Raising Operator: • We can work out theproportionality constants:

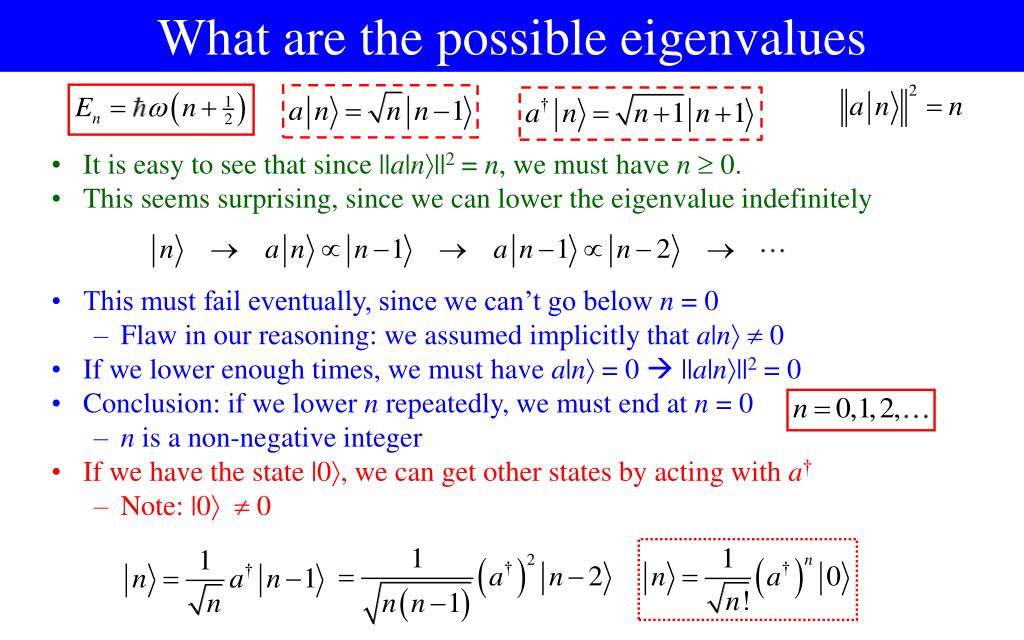

  5. What are the possible eigenvalues • It is easy to see that since ||a|n||2 = n, we must have n  0. • This seems surprising, since we can lower the eigenvalue indefinitely • This must fail eventually, since we can’t go below n = 0 • Flaw in our reasoning: we assumed implicitly that a|n  0 • If we lower enough times, we must have a|n = 0  ||a|n||2 = 0 • Conclusion: if we lower n repeatedly, we must end at n = 0 • n is a non-negative integer • If we have the state |0, we can get other states by acting with a† • Note: |0  0

  6. The Wave Functions (1) • Sometimes – rarely – we want the wave functions • Let’s see if we can find the ground state |0: • Normalize it:

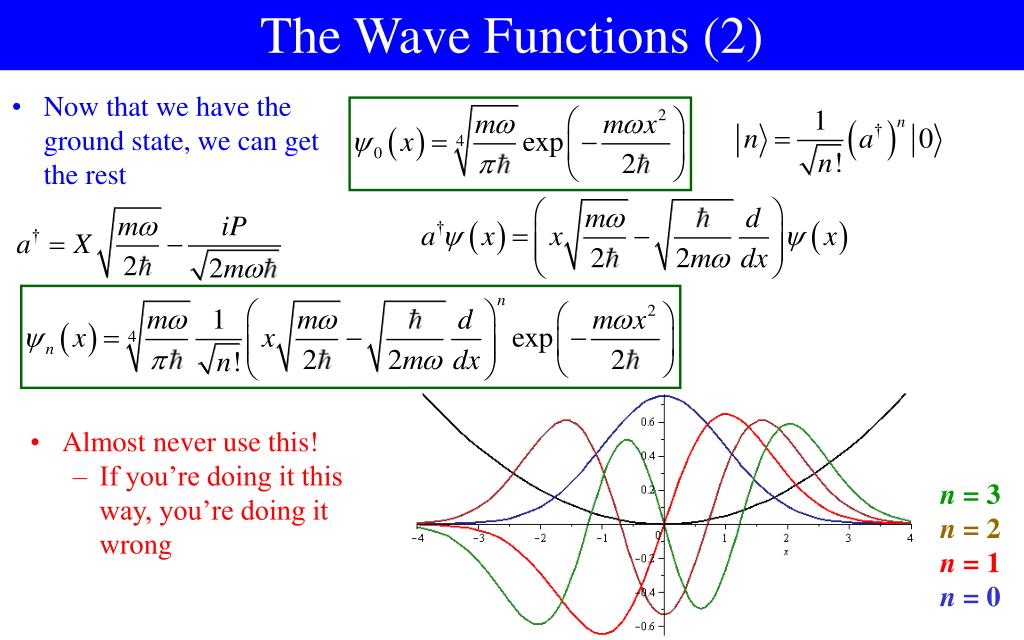

  7. The Wave Functions (2) • Now that we have the ground state, we can get the rest • Almost never use this! • If you’re doing it this way, you’re doing it wrong n = 3 n = 2 n = 1 n = 0

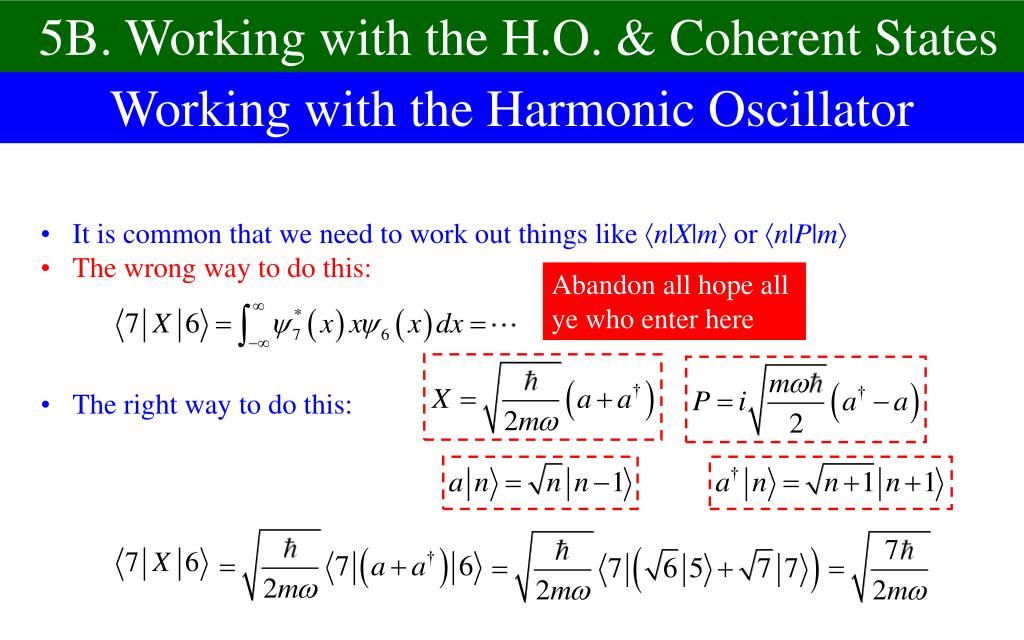

  8. 5B. Working with the H.O. & Coherent States Working with the Harmonic Oscillator • It is common that we need to work out things like n|X|m or n|P|m • The wrong way to do this: • The right way to do this: Abandon all hope all ye who enter here

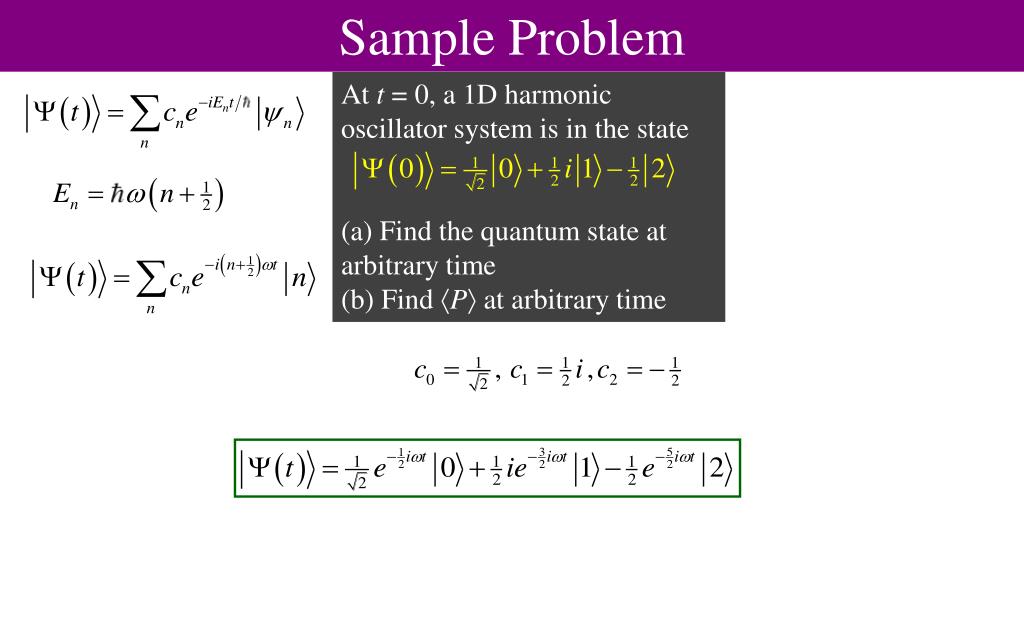

  9. Sample Problem At t = 0, a 1D harmonic oscillator system is in the state (a) Find the quantum state at arbitrary time (b) Find P at arbitrary time

  10. Sample Problem (2) (b) Find P at arbitrary time

  11. Coherent States Can we find eigenstates of a and a†? • Yes for a and no for a† • Because a is not Hermitian, they can have complex eigenvalues z • Note that the state |z = 1 is different from |n = 1 • Let’s find these states: • Act on both sides with m|: • Normalize it

  12. Comments on Coherent States They have a simple time evolution • Suppose at t = 0, the state is • Then at t it will be When working with this state, avoid using the explicit form • Instead use: • And its Hermitian conjugate equation: • Recall: these states are eigenstates of a non-Hermitian operator • Their eigenvalues are complex and they are not orthogonal • These states roughly resemble classical behavior for large z • They can have large values of X and P • While having small uncertainties X and P

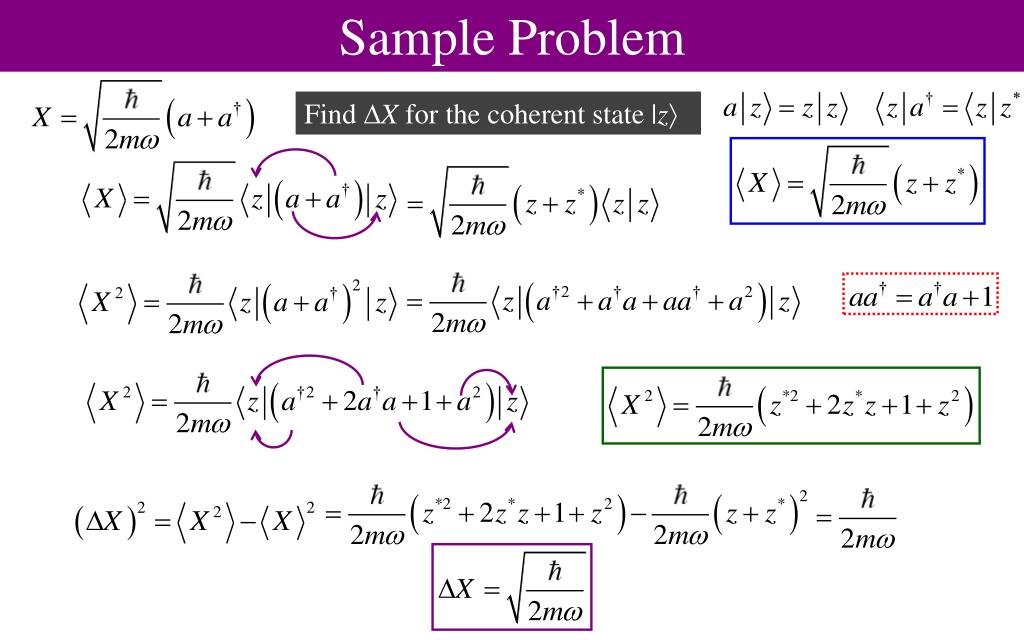

  13. Sample Problem Find X for the coherent state |z

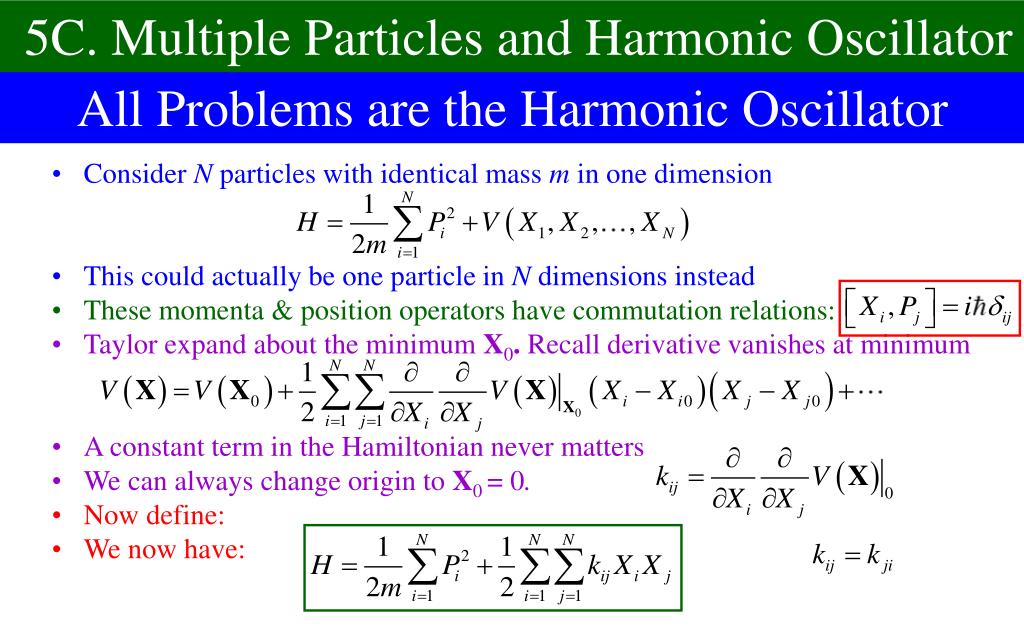

  14. 5C. Multiple Particles and Harmonic Oscillator All Problems are the Harmonic Oscillator • Consider N particles with identical mass m in one dimension • This could actually be one particle in N dimensions instead • These momenta & position operators have commutation relations: • Taylor expand about the minimum X0. Recall derivative vanishes at minimum • A constant term in the Hamiltonian never matters • We can always change origin to X0 = 0. • Now define: • We now have:

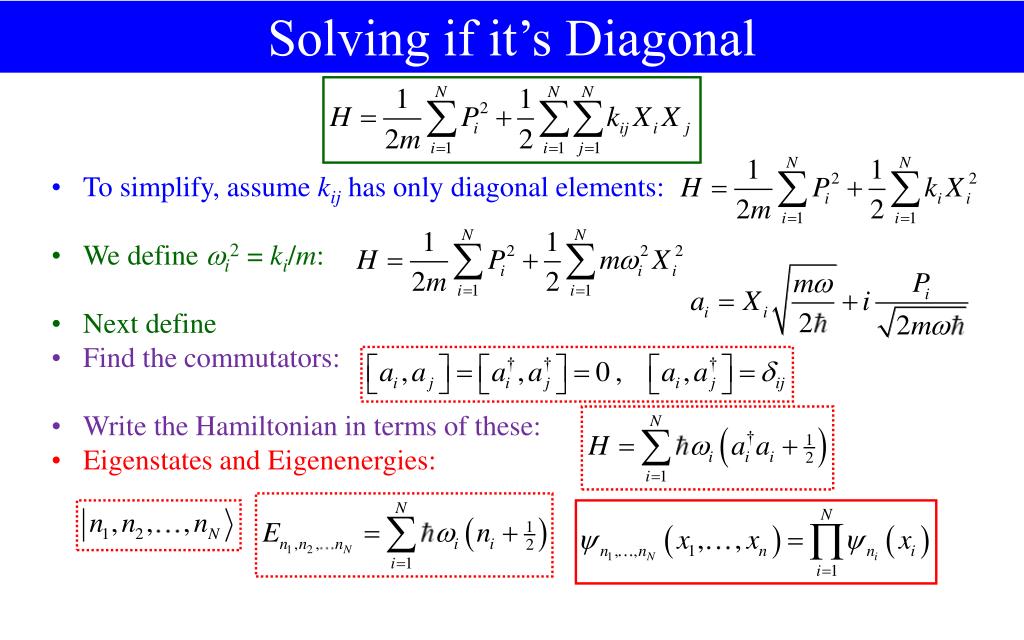

  15. Solving if it’s Diagonal • To simplify, assume kijhas only diagonal elements: • We define i2 = ki/m: • Next define • Find the commutators: • Write the Hamiltonian in terms of these: • Eigenstates and Eigenenergies:

  16. What if it’s Not Diagonal? • Note that the matrix made of kij’s is a real symmetricmatrix (Hermitian) Classically, we would solve this problem by finding the normal modes • First find eigenvectors of K: • Since K is real, these are real eigenvectors • Put them together into a real orthogonal matrix • Same thing as unitary, but for real matrices • Then you can change coordinates: • Written in terms of the newcoordinates, the behavior is much simpler. • The matrix V diagaonalizesK • Will this approach work quantum mechanically?

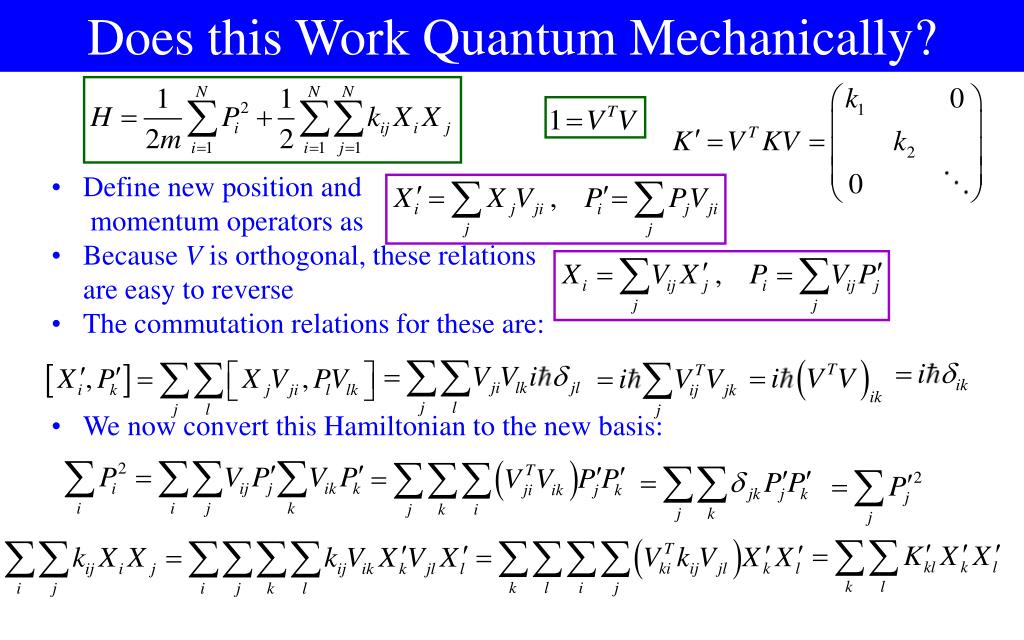

  17. Does this Work Quantum Mechanically? • Define new position and momentum operators as • Because V is orthogonal, these relationsare easy to reverse • The commutation relations for these are: • We now convert this Hamiltonian to the new basis:

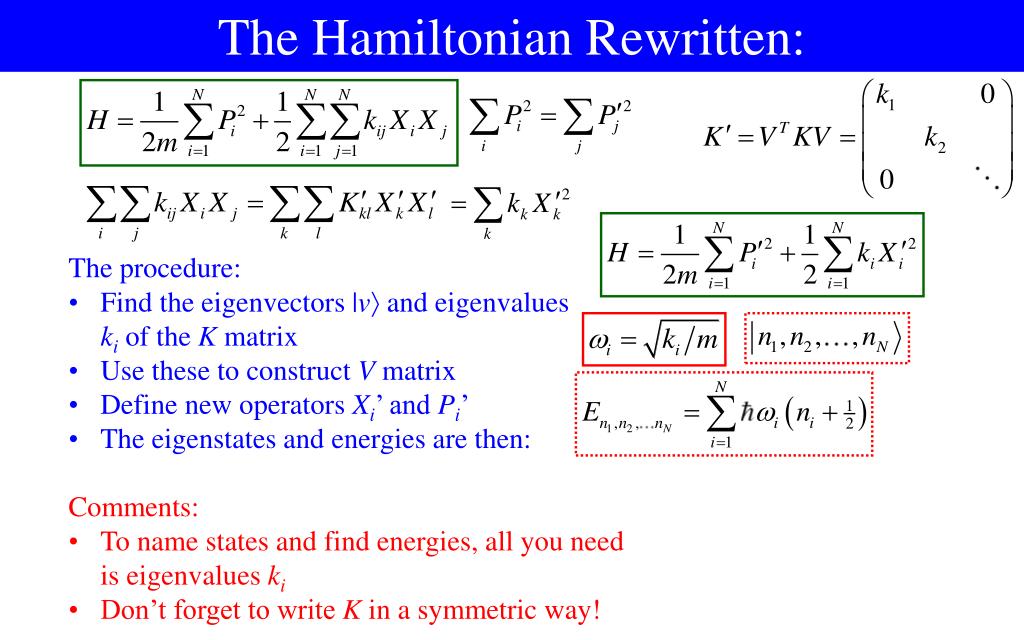

  18. The Hamiltonian Rewritten: The procedure: • Find the eigenvectors |v and eigenvalueski of the K matrix • Use these to construct V matrix • Define new operators Xi’ and Pi’ • The eigenstates and energies are then: Comments: • To name states and find energies, all you need is eigenvalues ki • Don’t forget to write K in a symmetric way!

  19. Sample Problem Name the eigenstates and find the corresponding energies of the Hamiltonian • Find the coefficients kij that make up the K matrix • NO! Remember, kij must be symmetric! So k12 = k21 • Now find the eigenvalues: The states and energies are:

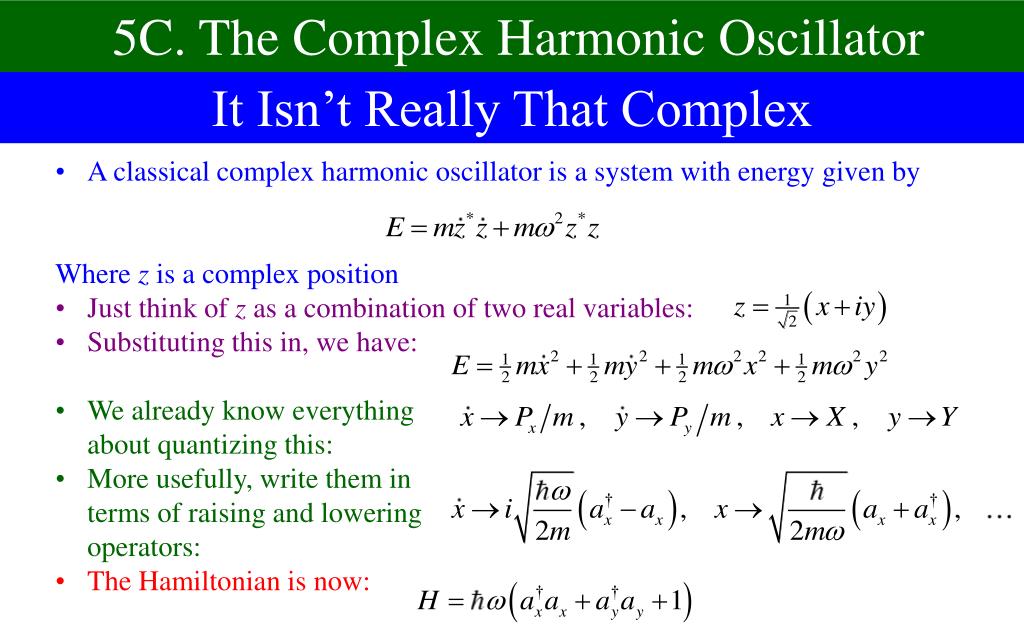

  20. 5C. The Complex Harmonic Oscillator It Isn’t Really That Complex • A classical complex harmonic oscillator is a system with energy given by Where z is a complex position • Just think of z as a combination of two real variables: • Substituting this in, we have: • We already know everythingabout quantizing this: • More usefully, write them interms of raising and loweringoperators: • The Hamiltonian is now:

  21. Working with complex operators • Writing z in terms of a and a† • Let’s define for this purpose • Commutation relations: • All other commutators vanish • In terms of these, • And the Hamiltonian:

  22. The Bottom Line • If we have a classical equation for the energy: • Introduce raising/lowering operators with commutation relations • The Hamiltonian in terms of these is: • Eigenstates look like: • For z and z* and theirderivatives, we substitute: • This is exactly what we will need when we quantize EM fields later
