  1. INDIA │ 18-20 august2010 virtual techdays FINE TUNING SHAREPOINT SERVER 2010 ENVIRONMENT Vedant Kulshreshtha│ TSP – Collaboration Platform Microsoft India

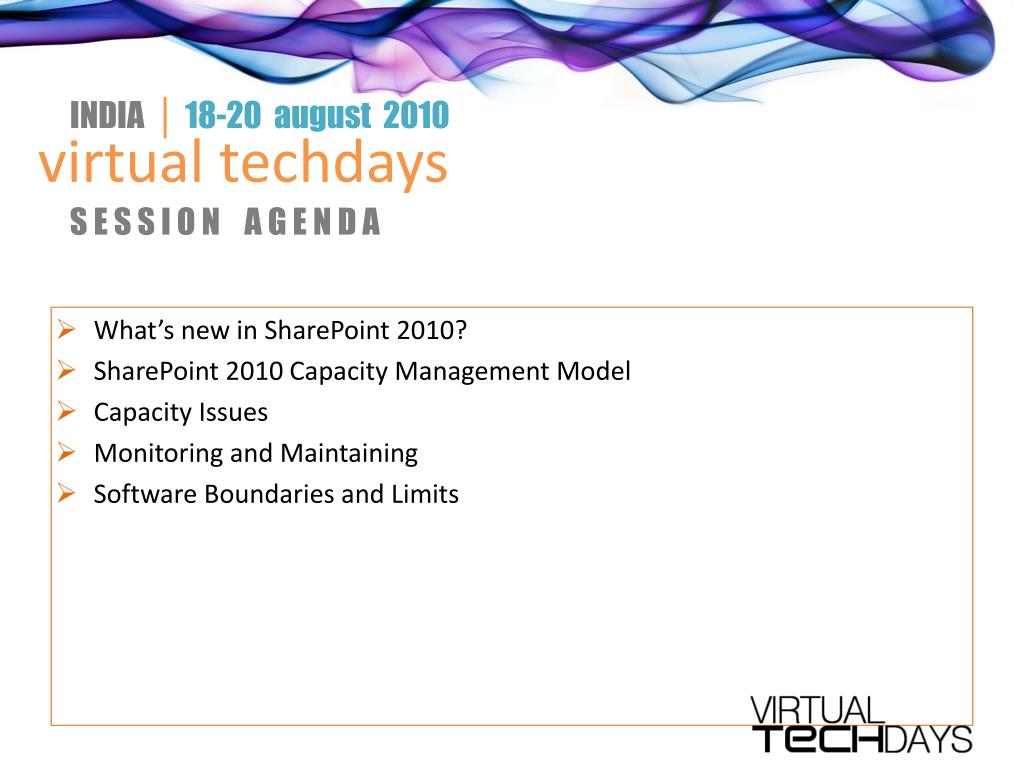

  2. INDIA │ 18-20 august2010 virtual techdays • What’s new in SharePoint 2010? • SharePoint 2010 Capacity Management Model • Capacity Issues • Monitoring and Maintaining • Software Boundaries and Limits S E S S I O N A G E N D A

  3. INDIA │ 18-20 august2010 virtual techdays MICROSOFT SHAREPOINT 2010 Sites Deliver the Best Productivity Experience Composites Communities Cut Costs with a Unified Infrastructure Rapidly Respond to Business Needs Insights Content Search

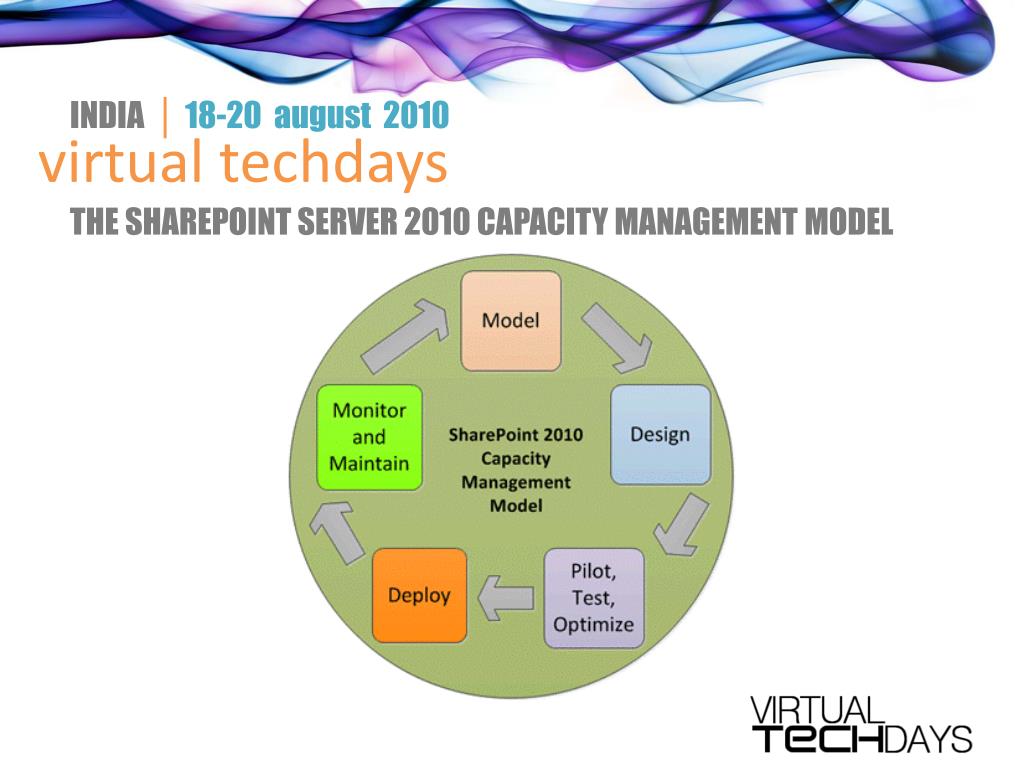

  4. INDIA │ 18-20 august2010 virtual techdays THE SHAREPOINT SERVER 2010 CAPACITY MANAGEMENT MODEL

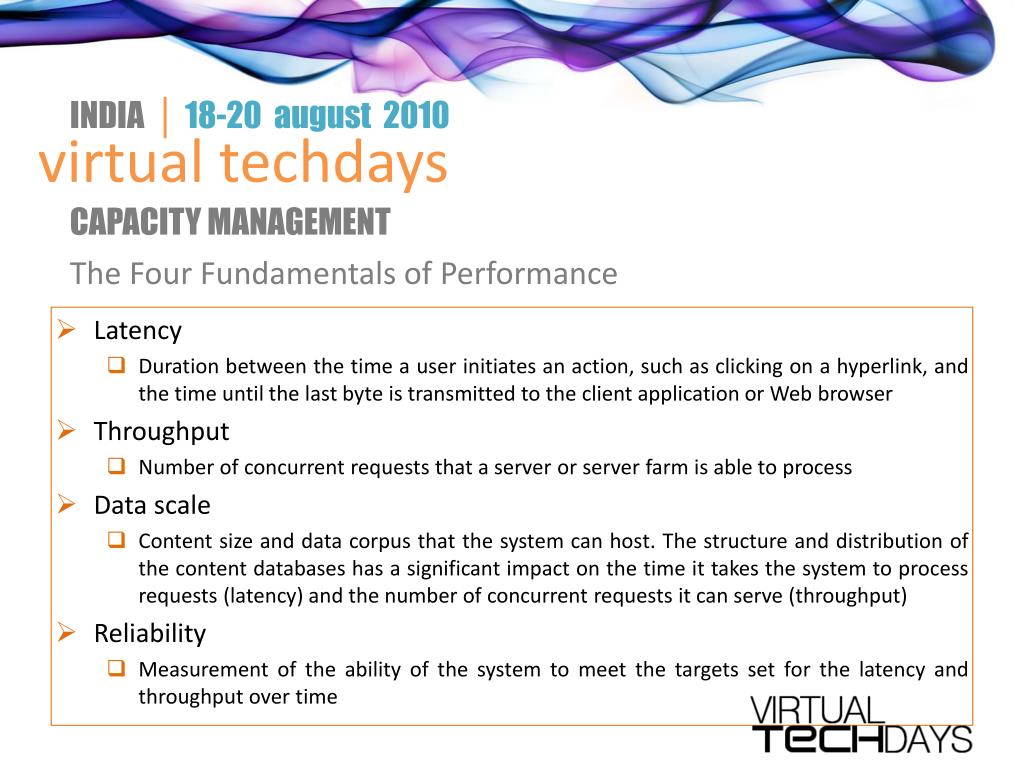

  5. INDIA │ 18-20 august2010 virtual techdays • Latency • Duration between the time a user initiates an action, such as clicking on a hyperlink, and the time until the last byte is transmitted to the client application or Web browser • Throughput • Number of concurrent requests that a server or server farm is able to process • Data scale • Content size and data corpus that the system can host. The structure and distribution of the content databases has a significant impact on the time it takes the system to process requests (latency) and the number of concurrent requests it can serve (throughput) • Reliability • Measurement of the ability of the system to meet the targets set for the latency and throughput over time CAPACITY MANAGEMENT The Four Fundamentals of Performance

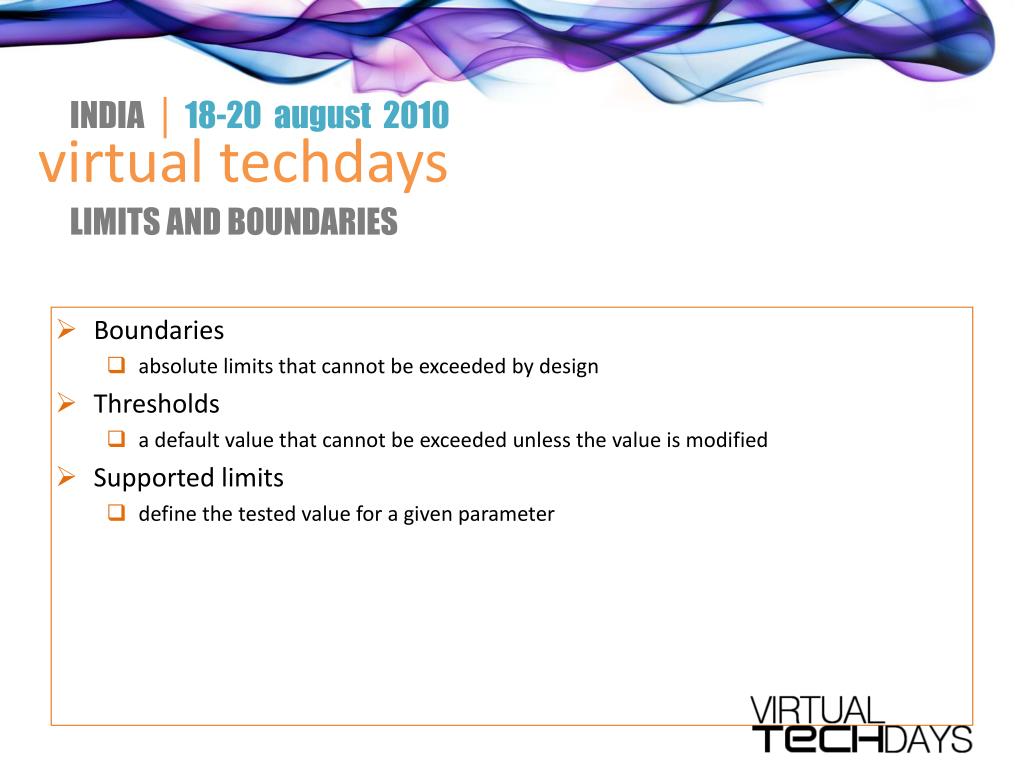

  6. INDIA │ 18-20 august2010 virtual techdays • Boundaries • absolute limits that cannot be exceeded by design • Thresholds • a default value that cannot be exceeded unless the value is modified • Supported limits • define the tested value for a given parameter LIMITS AND BOUNDARIES

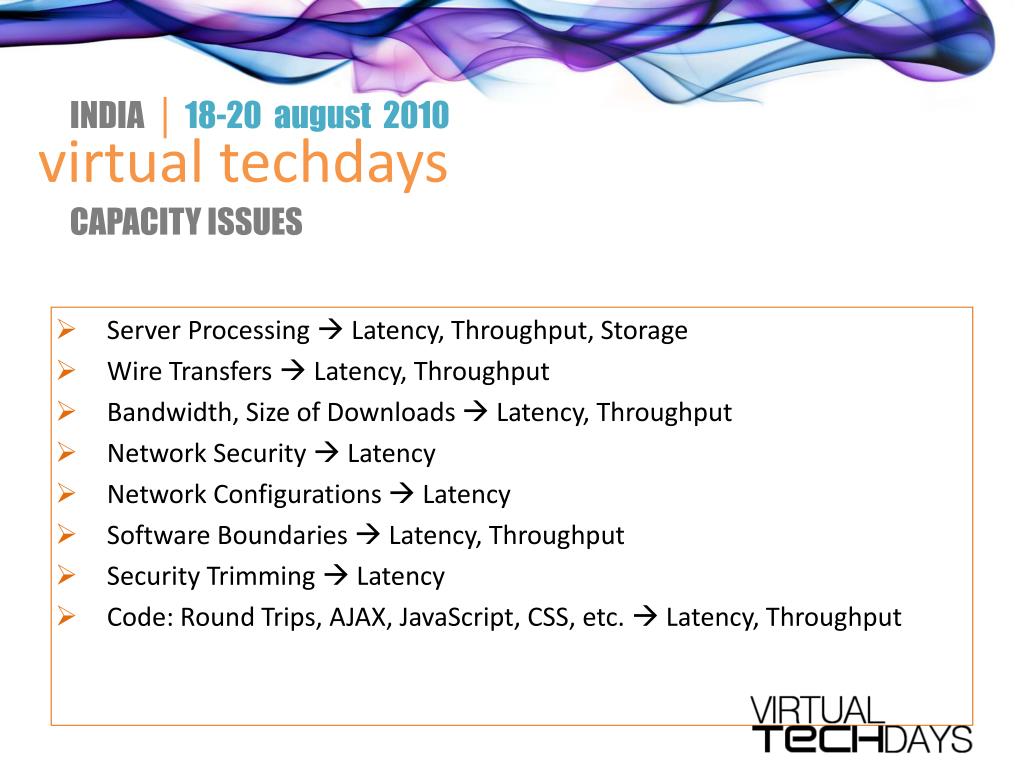

  7. INDIA │ 18-20 august2010 virtual techdays • Server Processing  Latency, Throughput, Storage • Wire Transfers  Latency, Throughput • Bandwidth, Size of Downloads  Latency, Throughput • Network Security  Latency • Network Configurations  Latency • Software Boundaries  Latency, Throughput • Security Trimming  Latency • Code: Round Trips, AJAX, JavaScript, CSS, etc.  Latency, Throughput CAPACITY ISSUES

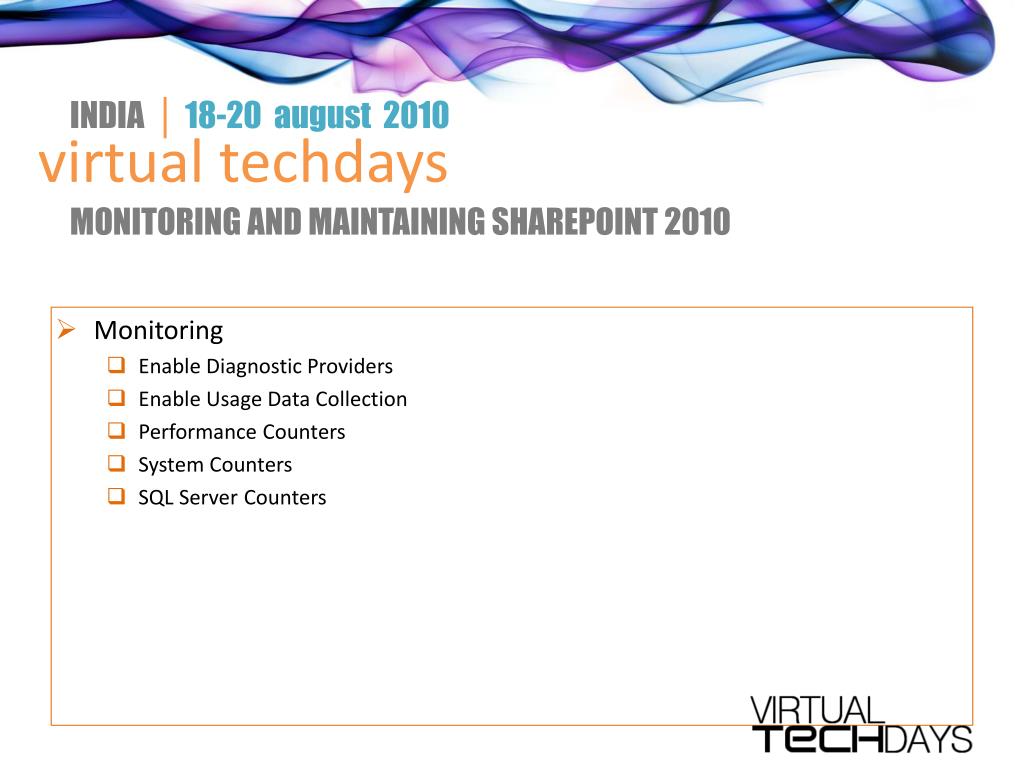

  8. INDIA │ 18-20 august2010 virtual techdays • Monitoring • Enable Diagnostic Providers • Enable Usage Data Collection • Performance Counters • System Counters • SQL Server Counters MONITORING AND MAINTAINING SHAREPOINT 2010

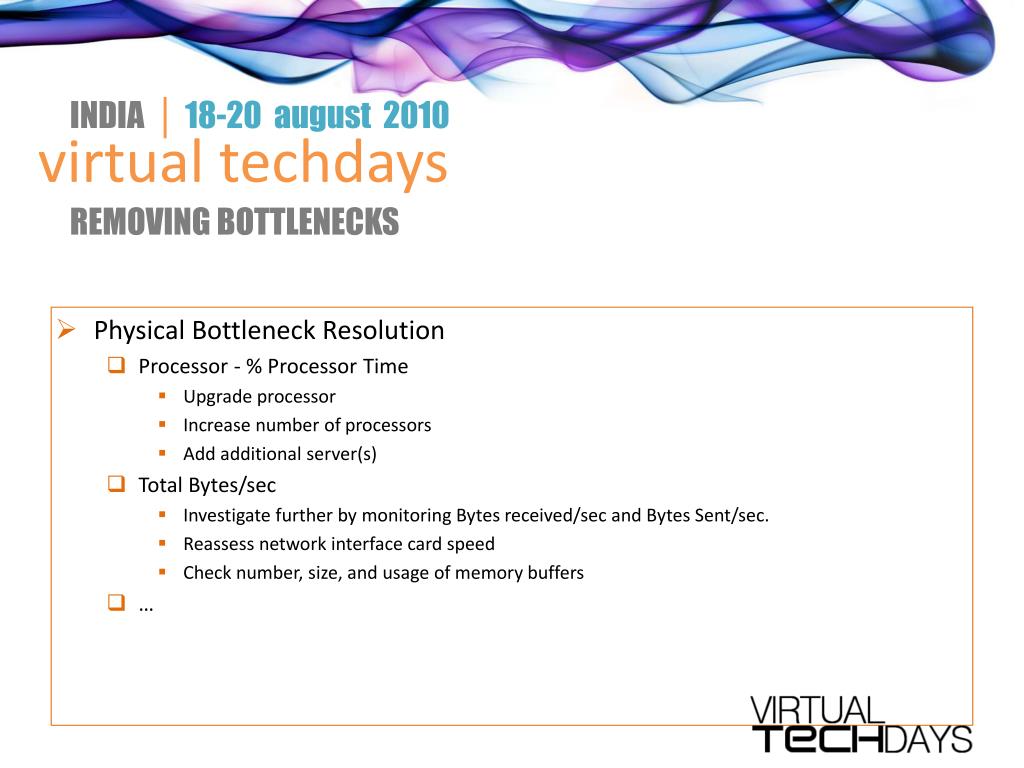

  9. INDIA │ 18-20 august2010 virtual techdays • Physical Bottleneck Resolution • Processor - % Processor Time • Upgrade processor • Increase number of processors • Add additional server(s) • Total Bytes/sec • Investigate further by monitoring Bytes received/sec and Bytes Sent/sec. • Reassess network interface card speed • Check number, size, and usage of memory buffers • … REMOVING BOTTLENECKS

  10. INDIA │ 18-20 august2010 virtual techdays • Validating Requirements • Network Security • Network Configurations • Boundaries • Custom Software • Caching TWEAKING THE SYSTEM

  11. INDIA │ 18-20 august2010 virtual techdays • Web application limits • Content database - 300 per Web application • Zone - 5 per Web application • Managed path - 20 per Web application • Web Server limits • Application pools - 10 per Web server • Content database limits • 200 GB per content database • Site collections per content database - 2,000 recommended and 5,000 maximum SOFTWARE BOUNDARIES AND LIMITS

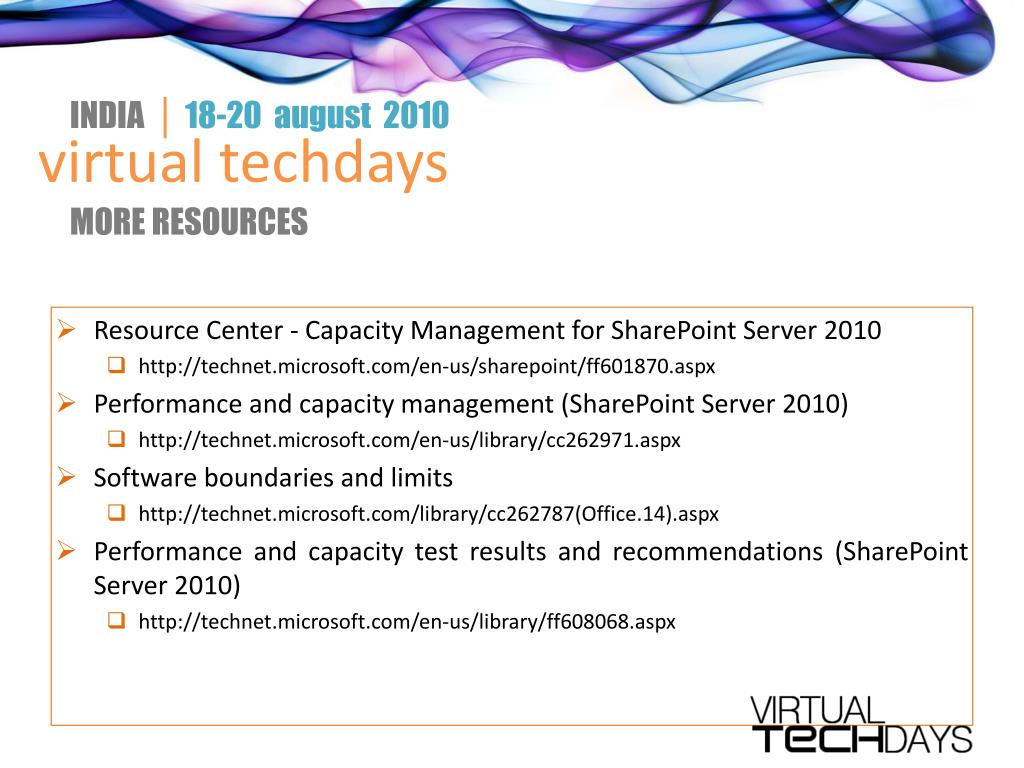

  12. INDIA │ 18-20 august2010 virtual techdays • Resource Center - Capacity Management for SharePoint Server 2010 • http://technet.microsoft.com/en-us/sharepoint/ff601870.aspx • Performance and capacity management (SharePoint Server 2010) • http://technet.microsoft.com/en-us/library/cc262971.aspx • Software boundaries and limits • http://technet.microsoft.com/library/cc262787(Office.14).aspx • Performance and capacity test results and recommendations (SharePoint Server 2010) • http://technet.microsoft.com/en-us/library/ff608068.aspx MORE RESOURCES

  13. THANKS│18-20 august2010 virtual techdays vedantk@microsoft.com│ http://blogs.technet.com/b/vedant/
